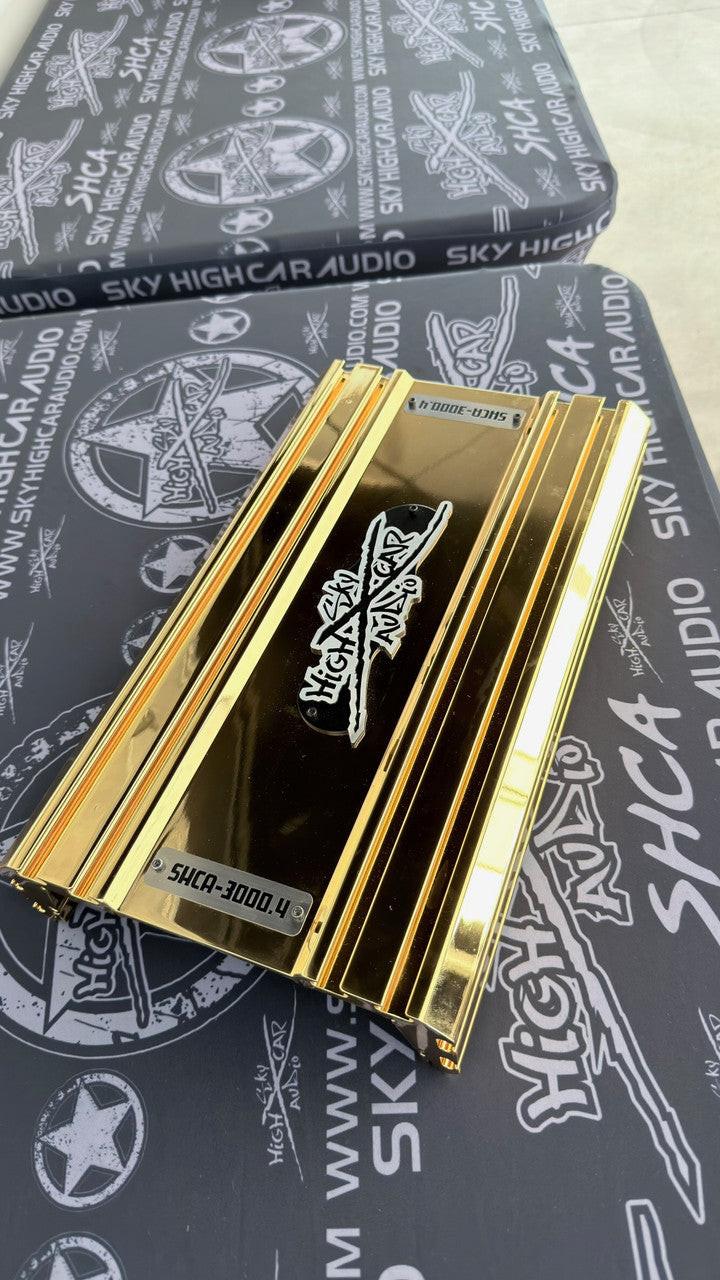

Sky High Car Audio SHCA3000.4 – 3000W 4-Channel Full-Range Car Audio Amplifier

Sky High Car Audio SHCA3000.4 3000W 4 Channel Full Range Amplifier is a Korean-engineered and assembled 4 channel amplifier built for serious front stages, pro-audio door builds, mids and highs systems, mid-bass setups, and high-power multi-speaker installs.

Sold by AudioSellerz.com, the Sky High Car Audio SHCA3000.4 is made for builders who need real full-range power, clean control, flexible wiring options, and a chassis design that matches the SHCA monoblock lineup. This is not a small factory speaker upgrade amp. This is a serious 3000W 4 channel amplifier for loud front stages, pro audio mids and highs, bridged mid-bass channels, demo vehicles, and show-quality amp racks.

If you are building a loud daily driver, custom door panel setup, active front stage, semi-active system, motorcycle-style pro audio layout, or multi-speaker demo build, the SHCA3000.4 full range amplifier gives you the flexibility to power the system the way you want while still matching the look and modular features of the SHCA amplifier family.

High-Power 4 Channel Full Range Amplifier

The Sky High Car Audio SHCA3000.4 is a 4 channel Class D full range amplifier designed for high-output speaker systems. It is a strong choice for active front stages, semi-active front stages, pro-audio mids and highs, bridged mid-bass channels, and large multi-speaker builds that need more power and control than a basic 4 channel amp can provide.

This amplifier is built for customers who want loud, clean speaker output and real install flexibility. If you are building a full Sky High system, you can shop more Sky High Car Audio products to match your amplifiers, wiring, RCA cables, speakers, battery terminals, and install accessories.

Flexible 4 Channel, 3 Channel, or Bridged 2 Channel Use

The SHCA3000.4 can be used in multiple wiring layouts depending on your speaker setup and tuning goals. That makes it useful for systems that may grow or change over time.

• 4 channel mode: Traditional full-range stereo front and rear speaker setup
• 3 channel mode: Channels 1 and 2 used individually, with channels 3 and 4 bridged for stronger mid-bass or a small subwoofer stage
• 2 channel bridged mode: Channels 1 and 2 bridged, and channels 3 and 4 bridged for a pair of high-power outputs

RCA input can be run from 2 or 4 channels of input, making integration easier with different head units, DSPs, processors, and system layouts.

Minimum Ohm Ratings Matter

This amplifier is designed for serious output, but it still needs to be wired correctly. The SHCA3000.4 is not 1 ohm rated and should not be wired below its intended limits.

• Minimum stereo load: 2 ohm per channel
• Minimum bridged load: 4 ohm bridged
• Not designed or warrantied for 1 ohm operation

Make sure your speakers, wiring configuration, final impedance, crossover settings, and amplifier setup are correct before powering the system. Running below the intended impedance can create heat, distortion, protection issues, or amplifier damage.

Electrical Support Matters

A 3000W 4 channel amplifier can expose weak wiring, poor grounds, low battery support, voltage drop, or bad fuse planning quickly. If the amplifier is not getting clean voltage, you may lose output, create distortion, stress speakers, or push the amp into protection.

Before finalizing the install, use the Audio Sellerz car audio wire gauge and fuse guide to plan wire size and fuse protection. You can also shop car audio wire and Sky High Car Audio amp kits to support the amplifier with the right wiring foundation.

Korean-Engineered SHCA Modular Amplifier Platform

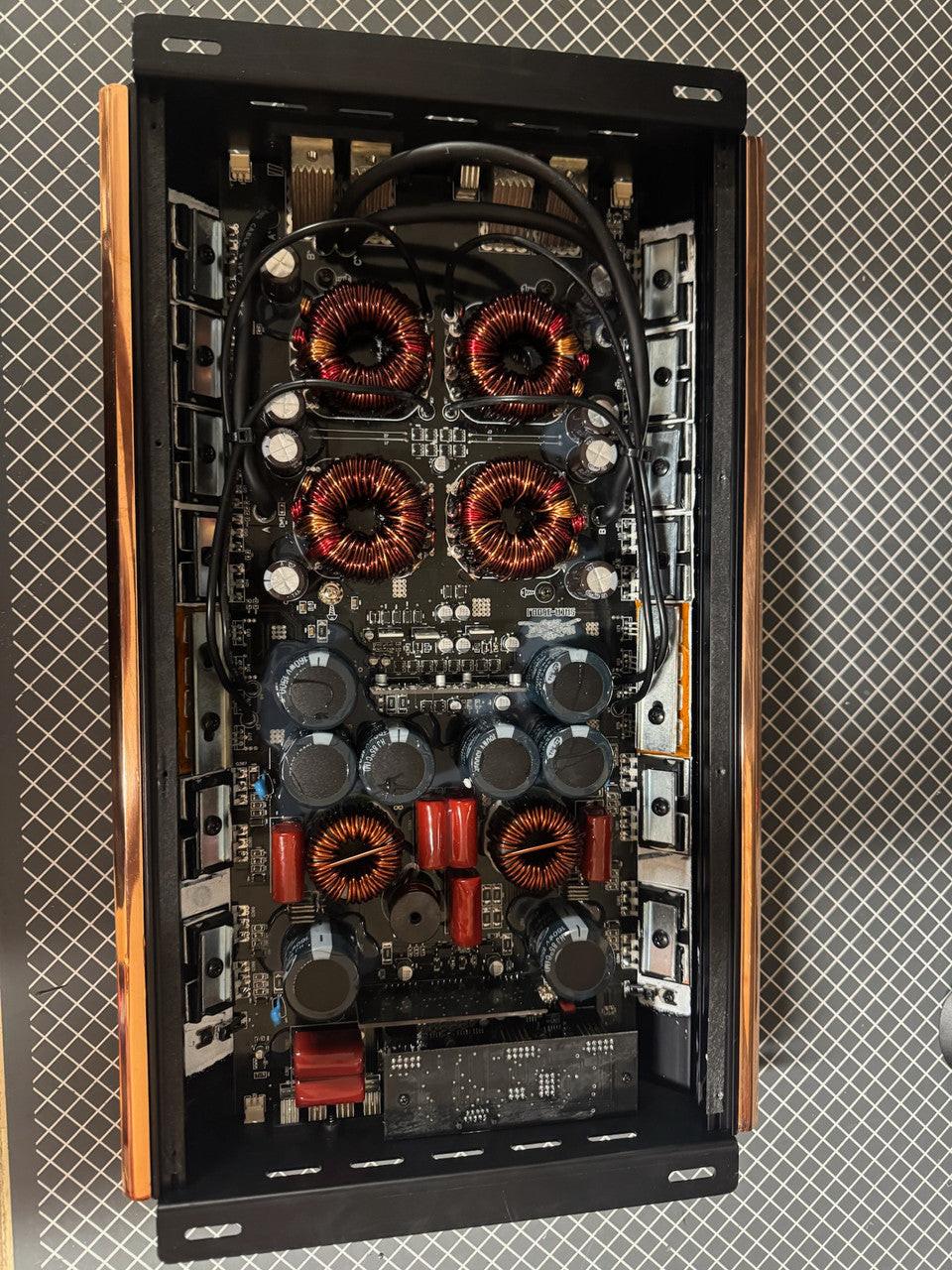

The SHCA3000.4 is Korean engineered and assembled as part of the Sky High SHCA modular amplifier platform. It uses quality components, strong layout design, and performance-focused construction for serious car audio systems.

The SHCA3000.4 also shares the same footprint as the SHCA3500.1, making it a great choice for symmetrical multi-amp racks, front stage and substage combinations, clean wall builds, and show-style installs where the amplifiers need to line up properly.

Dimensions and Fitment

• Length: 15.75"
• Width: 9.92"
• Height: 3.13"

This shared SHCA footprint makes the amplifier easier to use in clean amp racks, trunk layouts, under-floor installs, side panel builds, beauty panel setups, and wall builds where spacing and visual balance matter.

Voltage and Warranty

• Max operating voltage: 17.0 VDC
• Rated output power: 13.2V at 2 ohm per channel at 1000 Hz with all channels loaded
• Warranty: 1-year manufacturer warranty covering manufacturer defects under proper installation conditions

Efficiency and Airflow Built In

The Sky High SHCA3000.4 is designed to stay consistent at high volume and during long play sessions. Loud mids and highs systems can create heat, especially during demos, meets, shows, and aggressive daily use.

• High-efficiency circuit layout helps reduce internal heat and component stress
• Standard acrylic backplate with internally mounted cooling fan assists with airflow and reliability
• Built for long demo sessions, meets, shows, and aggressive daily use without quick thermal drop-off

SHCA Customization and Modular Styling

Like the rest of the SHCA amplifier line, the Sky High Car Audio SHCA3000.4 is built to look as good as it plays. The modular platform gives builders cosmetic flexibility for show builds, daily builds, wall builds, and clean amp racks.

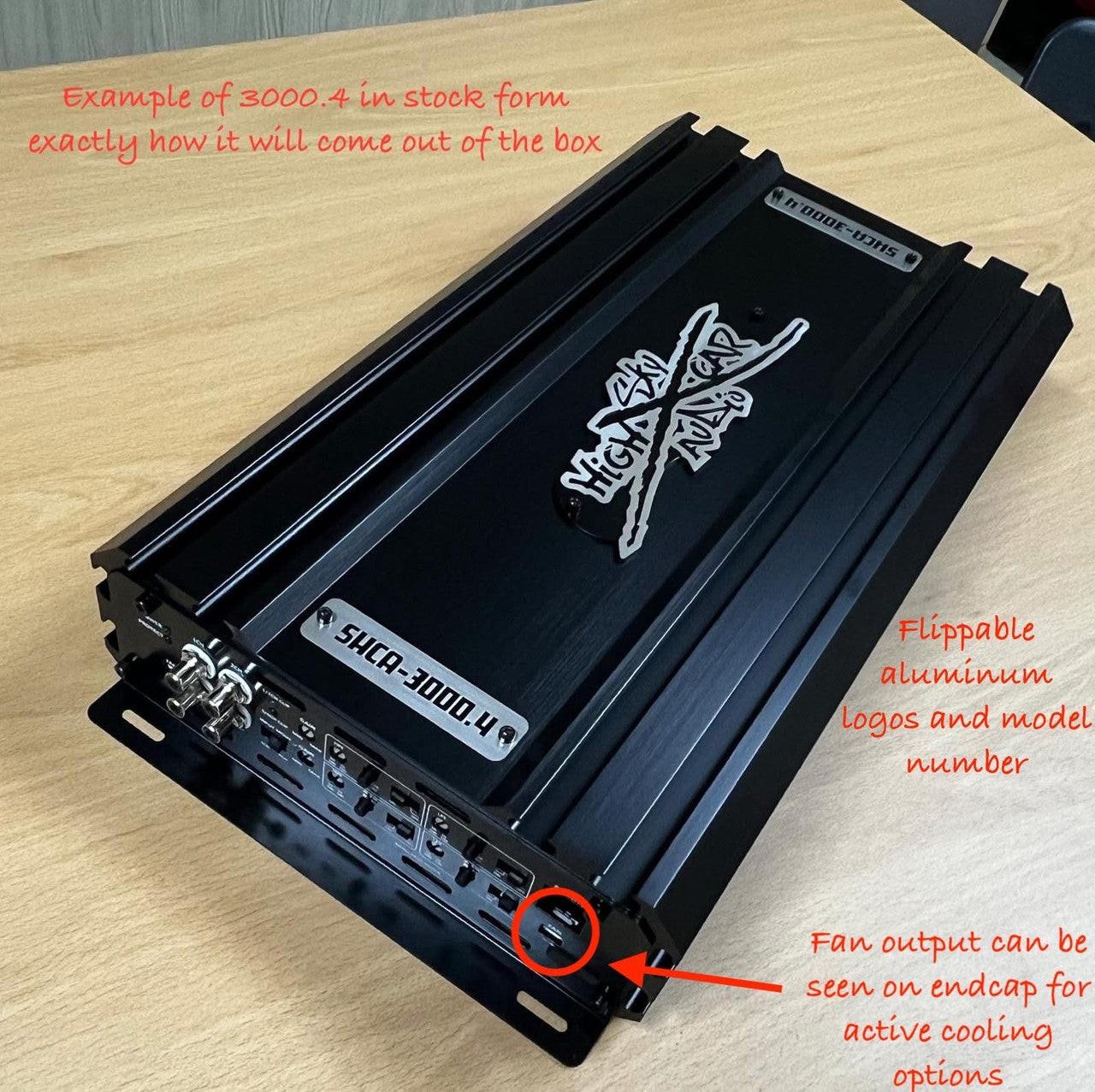

The flippable branding system uses diamond-cut aluminum Sky High logo and model number plates that are fully reversible, so the branding can stay upright no matter how the amplifier is mounted.

The modular center panel accepts drop-in customizable overlays, sold separately, including forged carbon, mirror stainless, paint-matched aluminum, acrylic, and plexi light-up options. No adhesive or permanent modification is needed. Just unbolt, swap, and reinstall.

Power Input Flexibility

For high-output systems, the SHCA platform supports flexible power upgrades as the system grows.

• Input expansion kits are sold separately and used to add more 12V power delivery points for heavy-use systems
• Expansion material options include cast aluminum, CNC’d aircraft-grade aluminum, and copper
• Ring terminal adapters are sold separately and useful for tight installs, show-style panel work, and secure clean connections to the amplifier inputs

When you start adding more power delivery, stronger batteries, and bigger wire, fuse protection becomes even more important. Clean wiring, proper fusing, strong grounds, and enough battery support help protect the amplifier and speakers.

Cooling System Expandability

The SHCA3000.4 is part of the Sky High modular cooling ecosystem, giving builders more ways to support thermal performance in high-output installs.

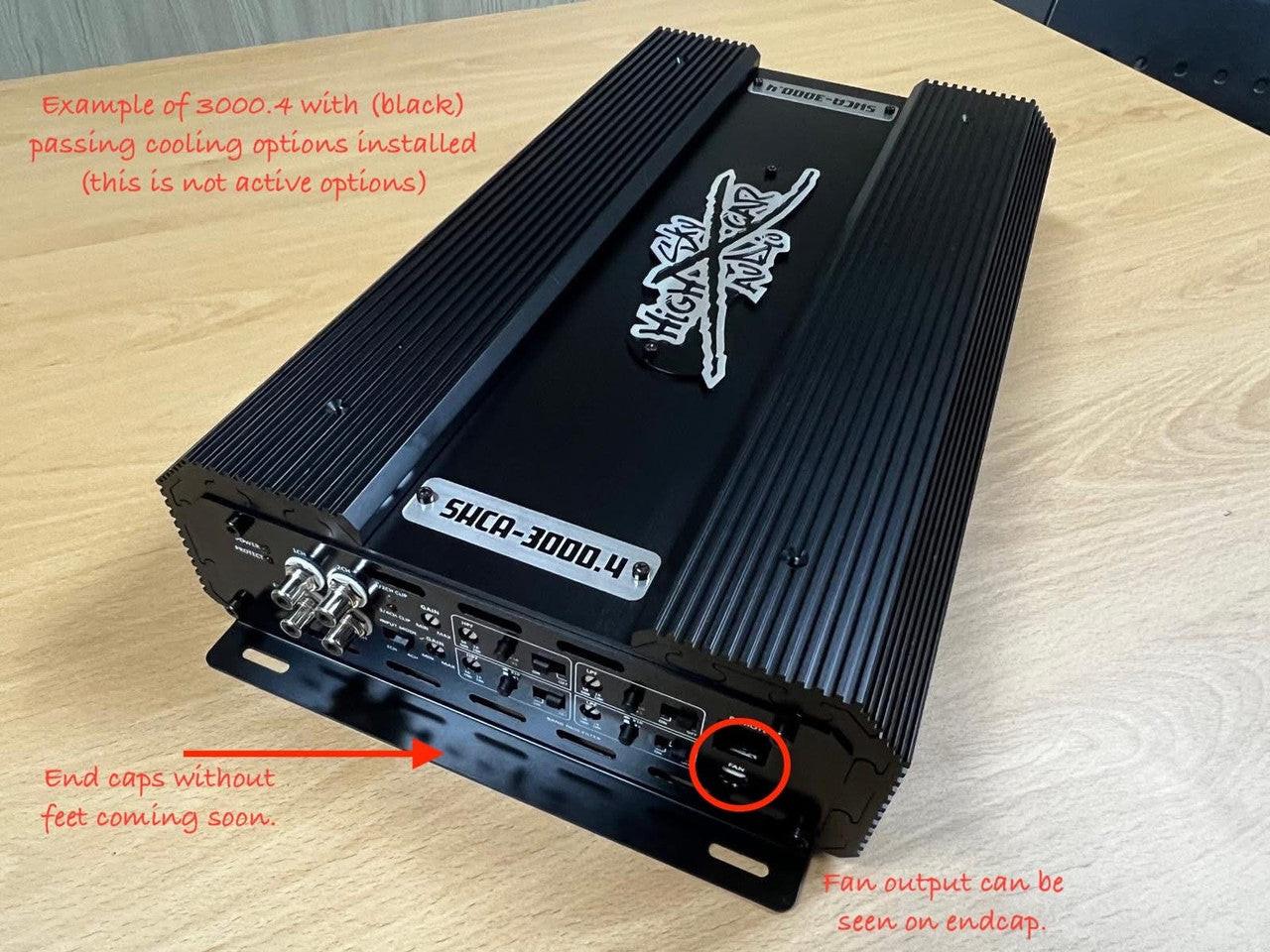

• Passive cooling add-ons are sold separately and designed to slide onto the heatsink to increase surface area for additional cooling performance
• Active push/pull fan kits are sold separately and can mount to the extruded heatsink extensions while plugging into onboard 12V outputs
• The SHCA platform is designed to support a future bolt-on water-cooled heatsink system for extreme show and competition builds

Non-anodized coatings can affect cooling potential, so keep that in mind when planning custom finishes for a high-output system.

CAT6 Remote System Compatible

The SHCA3000.4 is built to work within the Sky High SHCA control ecosystem. This helps larger systems stay easier to monitor and manage when multiple SHCA amplifiers are used together.

• Link up to 12 SHCA amplifiers on a control network
• Monitor amplifier temperature or system voltage through supported SHCA control setups
• Compatible with the Sky High Smart Bass Knob ecosystem for centralized management in complex systems
• Control features vary by supported amplifier and system configuration

Mounting Options for High-End Installs

The SHCA3000.4 4 channel amplifier is designed for clean, professional installations where the amplifier layout matters as much as the sound.

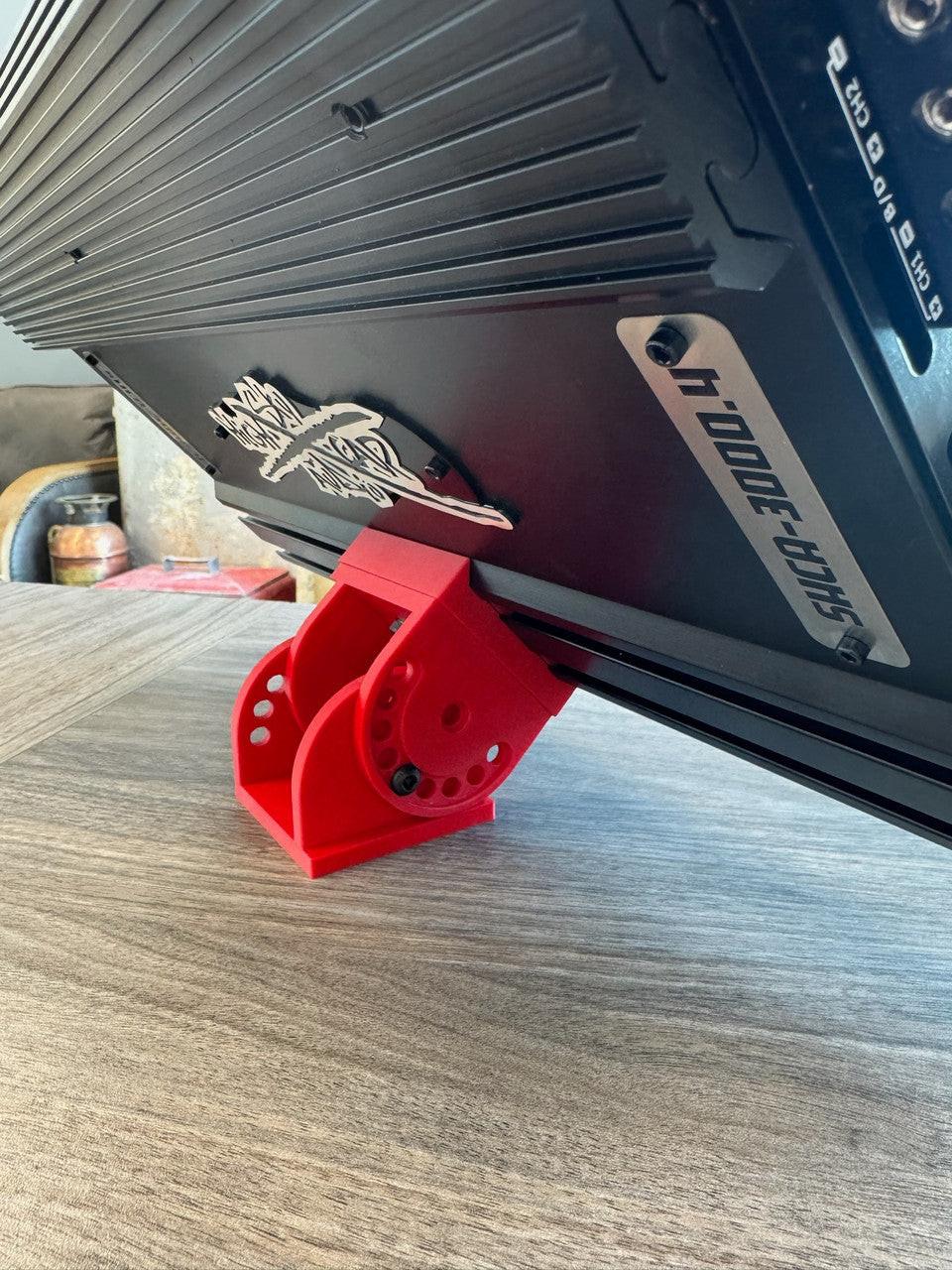

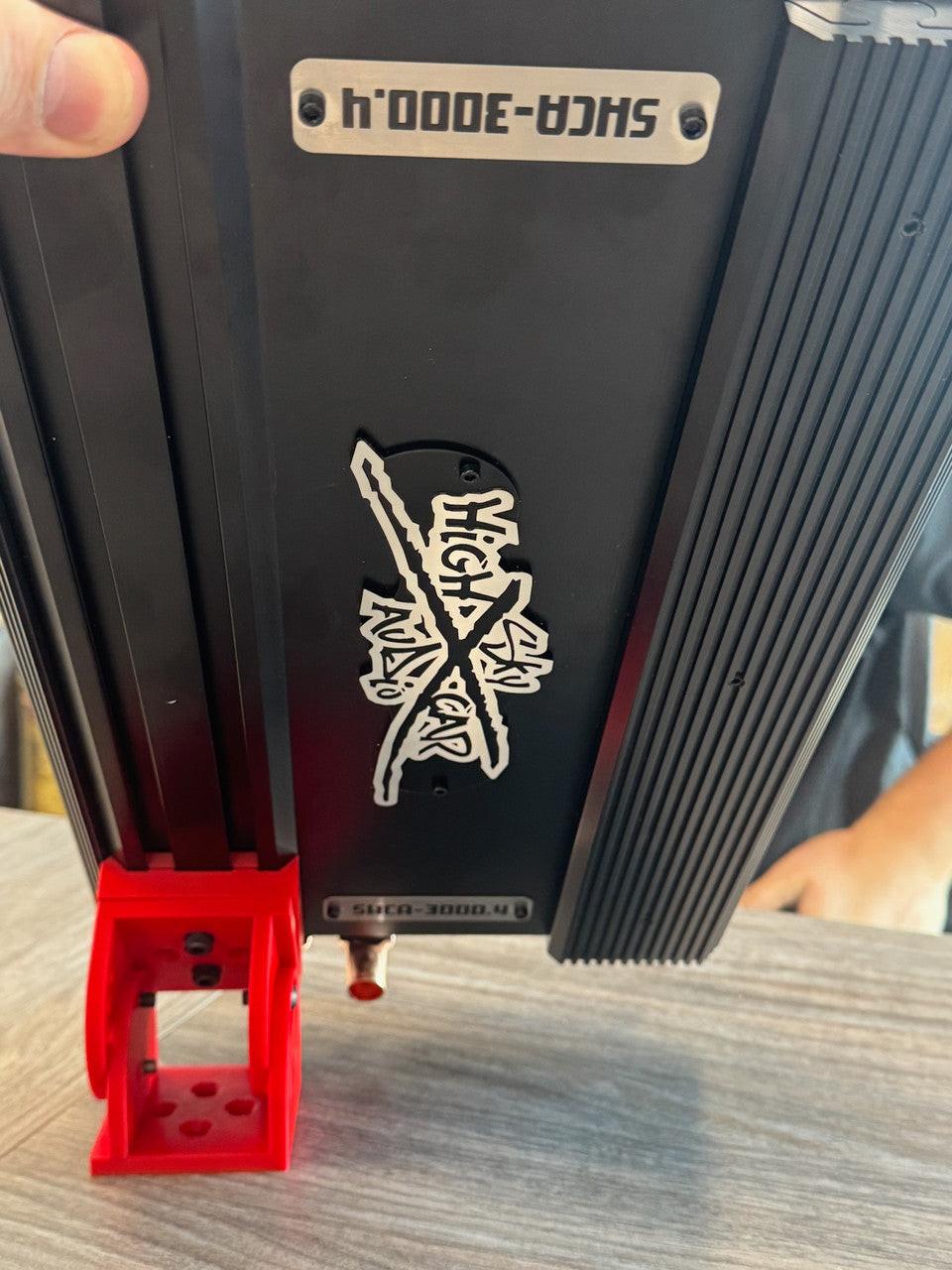

• Works with Sky High bracket kits, sold separately, for stacking, vertical mounting, floating wall installs, and side-by-side linking
• Slide-lock channels in the heatsink allow bracket placement and adjustment without custom fabrication
• Optional footless endcaps allow smooth, flush mounting on amp racks or beauty panels

Perfect For

• High-power mids and highs builds
• Pro-audio door speaker systems
• Active and semi-active front stages
• Bridged mid-bass channels
• Show vehicles and demo builds
• Multi-speaker systems
• Custom door panels and loud front stages
• Motorcycle-style pro audio layouts
• Customers who want a 4 channel amplifier that matches the SHCA monoblock lineup

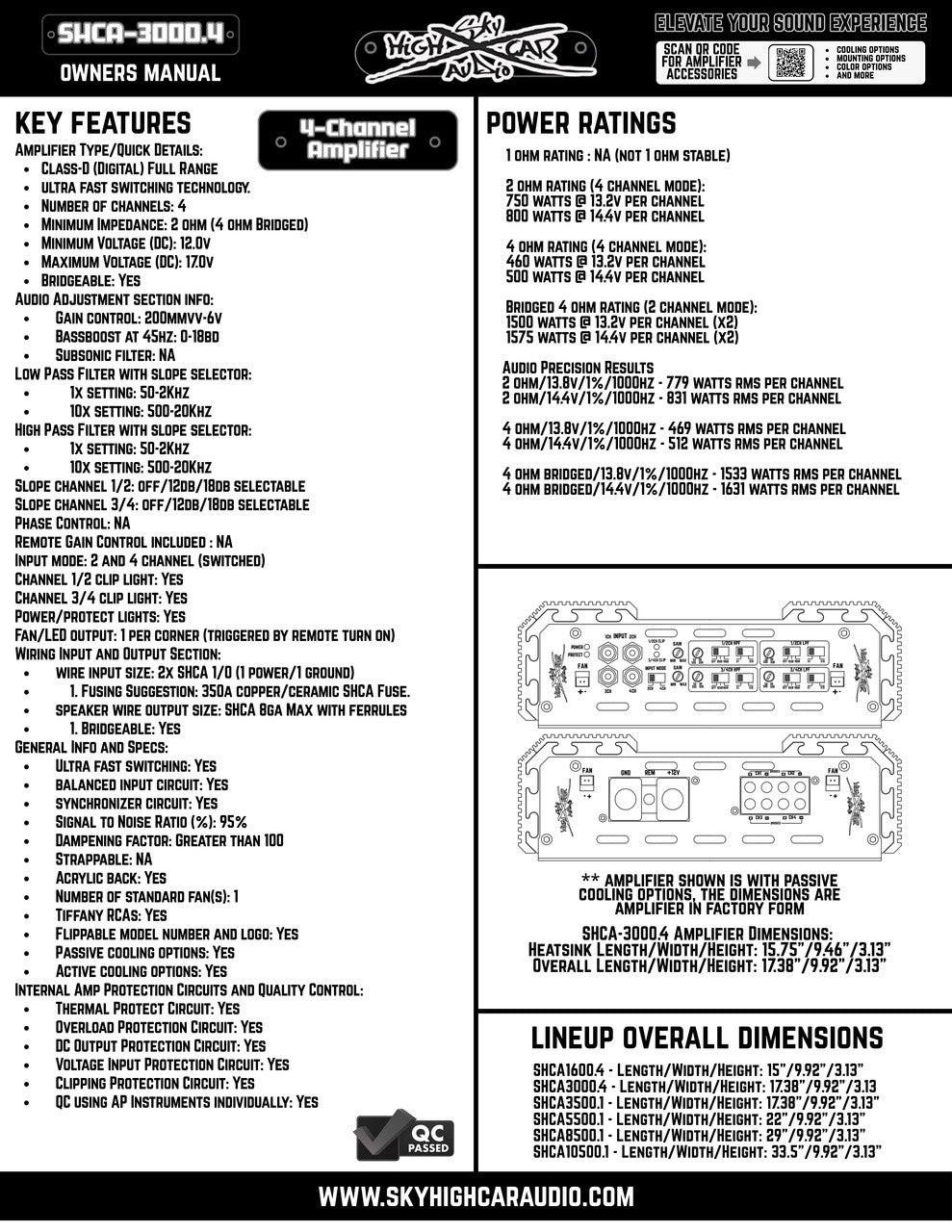

Quick Details

• Brand: Sky High Car Audio
• Model: SHCA3000.4
• Product type: 4 channel full range amplifier
• Power class: 3000W
• Amplifier topology: Class D full range
• Build: Korean engineered and assembled
• Minimum load: 2 ohm per channel stereo
• Minimum bridged load: 4 ohm bridged
• Not 1 ohm rated
• Max operating voltage: 17.0 VDC
• Rated output power reference: 13.2V at 2 ohm per channel at 1000 Hz with all channels loaded
• Warranty: 1-year manufacturer warranty against manufacturer defects under proper installation conditions
• Length: 15.75"
• Width: 9.92"
• Height: 3.13"
• Best use: Front stages, mids and highs, pro audio doors, bridged mid-bass, demo builds, and custom amp racks

Troubleshooting and System Planning

High-power full range amplifiers need clean voltage, strong grounds, correct speaker impedance, proper fuse protection, and enough battery support. If you are troubleshooting voltage drop, weak grounding, distortion, overheating, shutdown, or protection issues, the Audio Sellerz amplifier protect mode guide and car audio grounding guide can help you understand common problems before replacing equipment.

For stronger mids and highs systems, battery support matters too. Depending on the full build, you may need upgraded battery support, heavier power wire, better grounding, and clean fuse protection to keep voltage stable during high-volume play.

Build a Serious Front Stage Around the SHCA3000.4

If you are building a serious front stage, pro-audio door setup, bridged mid-bass system, or multi-speaker build and want a 3000W 4 channel Sky High Car Audio amplifier that matches the look, power, and modular features of the SHCA monoblocks, the SHCA3000.4 is the go-to choice.

For shoppers searching for a Sky High 4 channel amplifier, 3000W full range amplifier, pro audio door amp, mids and highs amplifier, or high-power front stage amplifier, the SHCA3000.4 is built for serious car audio systems.
