Car Audio DSP Processors

Car Audio DSP Processors

Sold by AudioSellerz.com

Shop car audio DSP processors for better control over crossovers, equalization, signal routing, time alignment, output levels and multi-amplifier systems.

A DSP — or digital signal processor — gives you much more control over the audio signal before it reaches your amplifiers. Whether you are tuning a clean daily-driver system, building active speakers, controlling mids and highs, integrating several amplifiers or trying to get better sound from a factory radio, the right DSP can make the entire system easier to tune correctly.

Shop RCA cables | Shop amplifiers | Shop line output converters

What Does a Car Audio DSP Do?

A car audio DSP lets you control and shape the signal going to different amplifiers and speakers.

Depending on the processor, DSP tuning can include:

  • High-pass and low-pass crossovers
  • Band-pass filtering
  • Graphic equalization
  • Parametric equalization
  • Time alignment and delay
  • Phase control
  • Independent output levels
  • Signal routing
  • Limiters
  • Multiple tuning presets

Instead of forcing every amplifier and speaker section to work from the same basic signal, a DSP lets you build the signal around what each part of the system actually needs.

Which DSP Processor Should You Buy?

The main things to compare are the number of inputs and outputs, crossover capability, EQ control, time alignment, factory-radio integration, tuning interface and how many amplifier or speaker sections you need to control.

Stetsom STX 2448 – 4 Output DSP

The Stetsom STX 2448 DSP gives you 2 input channels and 4 independent outputs.

It combines DSP processing, crossover control, graphic and parametric EQ, alignment, phase adjustment, output-level control, limiting and signal routing in one compact processor.

This makes it a good option for systems that need more tuning control without requiring a large number of output channels.

Stetsom STX2448 FLOATING DSP

The Stetsom STX2448 FLOATING DSP adds additional signal-flow flexibility while retaining the compact 2-input / 4-output format.

It also supports both RCA and high-level signal input, making it useful for aftermarket-radio systems as well as selected factory-radio integrations.

Stetsom STX 2848 – 8 Output DSP

For larger multi-amplifier systems, the Stetsom STX 2848 DSP gives you 2 input channels and 8 independent outputs.

Eight outputs provide much more flexibility when you are separately controlling:

  • Subwoofers
  • Midbass speakers
  • Midrange speakers
  • Horns or compression drivers
  • Tweeters
  • Front and rear speaker sections
  • Multiple amplifiers

The STX 2848 also includes crossover control, graphic and parametric EQ, alignment, phase control, limiting and selectable input routing for each output.

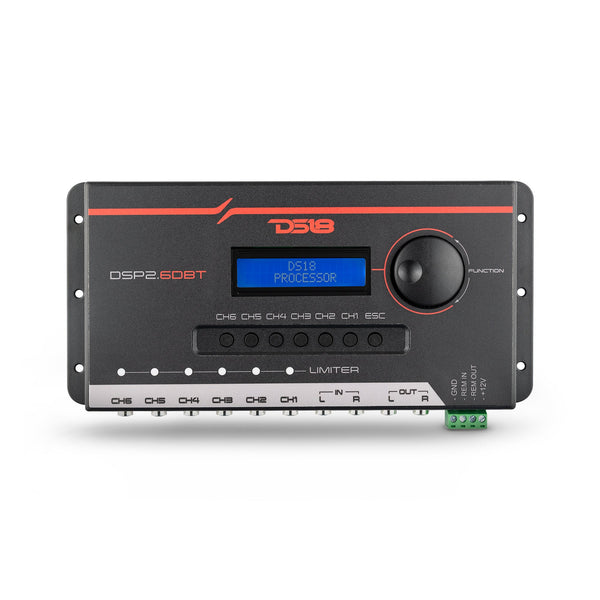

DS18 DSP2.6DBT Bluetooth DSP

The DS18 DSP2.6DBT Digital Sound Processor uses 2 RCA inputs and 6 RCA outputs and adds Bluetooth-based tuning control.

It is a strong option for customers who want app-based adjustment and enough outputs to control several different sections of a car audio system.

4 Channel, 6 Channel & 8 Channel DSP Processors

The number of DSP outputs determines how many separate signal paths you can control.

4-output DSP: useful for simpler multi-amplifier or active systems.

6-output DSP: gives you more flexibility for front stages, subwoofers and additional speaker sections.

8-output DSP: useful for larger systems where mids, highs, midbass, subwoofers or multiple amplifiers need independent tuning.

More outputs are not automatically better. Choose enough channels to control the system you actually plan to build.

DSP Crossovers for Car Audio

One of the biggest advantages of a DSP is precise crossover control.

A DSP can help determine which frequencies are sent to:

  • Subwoofers
  • Midbass speakers
  • Midrange speakers
  • Horns
  • Compression drivers
  • Tweeters

Proper crossover settings help each speaker operate inside the frequency range it is designed to reproduce and can help protect speakers from frequencies they should not be playing.

Car Audio DSP Equalization

Equalization allows you to reduce or increase selected frequency ranges to improve system balance.

Many DSP processors offer both graphic and parametric EQ controls. Parametric EQ provides much more precise adjustment because you can control the frequency, amount of boost or cut and the width of the affected frequency range.

Good EQ should be used to correct and balance a properly designed system — not to compensate for incorrect speakers, bad installation or poor crossover settings.

Time Alignment & Speaker Delay

In a vehicle, the driver usually sits much closer to some speakers than others.

DSP time alignment allows selected channels to be delayed so sound from different speakers can arrive at the listening position more closely together.

This can improve:

  • Front-stage placement
  • Center image
  • Speaker blending
  • Overall sound quality

Time alignment is especially useful in systems built around sound quality and precise front-stage tuning.

DSP for Mids, Highs & Multi-Amp Systems

DSP processors are extremely useful in high-output systems with separate amplifiers for different speaker sections.

A larger DSP can provide individual outputs for:

  • Midrange amplifiers
  • Horn amplifiers
  • Tweeter amplifiers
  • Midbass amplifiers
  • Subwoofer amplifiers

Each section can then have its own crossover range, level and other tuning settings instead of relying only on the controls built into the amplifier.

DSP for Subwoofer Systems

A DSP can also improve control over the bass section of a system.

Depending on the processor, you may be able to adjust:

  • Low-pass frequency
  • Subsonic filtering
  • Output level
  • Phase
  • Delay
  • EQ
  • Limiter settings

This can make it easier to blend the subwoofer system with the rest of the speakers instead of treating bass as a completely separate part of the system.

DSP With Factory Radios

Modern factory radios can make amplifier integration more complicated because the factory signal may already contain equalization, crossovers or other processing.

Some DSP processors support high-level signal input, while other systems may use a line output converter or a vehicle-specific integration solution before the DSP.

Before choosing a processor, determine what signal the factory system is actually providing and how many input channels are required.

DSP vs Basic Crossover

A basic crossover mainly separates frequency ranges.

A DSP can provide crossover control while also adding EQ, delay, phase adjustment, signal routing, output-level control and other tuning functions.

For a simple system, a basic crossover may be enough. For a more complicated multi-amplifier or active system, a DSP provides much more control.

DSP Amplifiers

Some products combine amplification and digital signal processing in the same chassis.

The DS18 DSP8.6iA amplifier with integrated DSP is one example. It combines multi-channel amplification with digital tuning and multiple signal-input options.

A DSP amplifier can be useful when you want a cleaner installation with fewer separate pieces of equipment.

RCA Cables for DSP Systems

A multi-output DSP may require several RCA connections between the processor and amplifiers.

Browse our car audio RCA cables and interconnects for 2-channel, 4-channel and multi-channel signal wiring.

Do You Need a DSP?

You may benefit from a DSP if you want:

  • More precise crossover control
  • Independent control of several amplifiers
  • Active speaker tuning
  • Better front-stage alignment
  • Parametric EQ
  • Time alignment
  • More control over mids, highs and subwoofers
  • A cleaner way to manage a complicated system

You do not need a DSP simply because you have an aftermarket amplifier. For many basic systems, the radio and amplifier controls may already provide enough adjustment.

Car Audio DSP FAQs

What does DSP stand for in car audio?

DSP stands for Digital Signal Processor or Digital Signal Processing. It refers to equipment used to digitally control and modify the audio signal.

Does a DSP make car audio sound better?

A DSP gives you the tools to improve crossover settings, equalization, time alignment and system balance. The final result still depends on the equipment, installation and how the DSP is tuned.

Can a DSP control multiple amplifiers?

Yes. Multi-output DSP processors are commonly used to send separately tuned signals to several amplifiers.

Do I need a DSP for mids and highs?

Not always, but a DSP can provide much more precise crossover and level control in systems using separate midrange, horn, tweeter or midbass amplifiers.

Can a DSP work with a factory radio?

Yes, depending on the processor and vehicle. Some DSPs accept high-level input directly, while other installations use a line output converter or other integration device.

Is a DSP the same as an equalizer?

No. Equalization is only one DSP function. A DSP can also provide crossover filtering, delay, phase adjustment, signal routing, limiting and other controls.

Shop Car Audio DSP Processors at Audio Sellerz

Shop AudioSellerz.com for car audio DSP processors, digital signal processors, DSP crossovers and car audio tuning processors for daily-driver systems, active speaker builds, mids-and-highs systems and large multi-amplifier installations.

If you are unsure how many DSP channels you need, use the live chat bubble on AudioSellerz.com. Tell us how many amplifiers and speaker sections you are running and what you want to control, and we can help narrow down the right processor.

For more information about what DSP tuning can do, read our car audio DSP tuning guide.
