Sky High Car Audio SHCA1600.4 – 1600W 4-Channel Full-Range Car Audio Amplifier

Sky High Car Audio SHCA1600.4 1600W 4 Channel Full Range Amplifier is a Korean-built compact 4 channel amplifier designed for clean, controlled power in daily drivers, pro audio door systems, mids and highs builds, active front stages, and bridged mid-bass setups.

Sold by AudioSellerz.com, the Sky High Car Audio SHCA1600.4 gives builders real full-range amplifier power without needing a huge chassis. This amp is built for shoppers who want stronger door speaker output, louder mids and highs, cleaner front stage control, and a professional amp rack look that matches the Sky High SHCA monoblock lineup.

If you are upgrading door speakers, building a louder front stage, running pro audio mids and highs, bridging channels for stronger mid-bass, or matching your 4 channel amplifier with a Sky High monoblock, the SHCA1600.4 full range amplifier gives you the flexibility to build the system the right way.

Compact 1600W 4 Channel Full Range Power

The Sky High Car Audio SHCA1600.4 is a 1600W Class D 4 channel amplifier built for mids, highs, active front stages, semi-active front stages, pro audio door speakers, and bridged mid-bass channels. It is small enough for cleaner installs but serious enough for real-world speaker systems that need more output than a basic factory upgrade amp.

This amplifier is a strong choice for daily drivers, custom door panel builds, compact amp racks, under-seat installs, trunk layouts, and show-style systems where space, output, and appearance all matter. If you are building a full Sky High system, you can shop more Sky High Car Audio products to match your amplifiers, wiring, RCA cables, speakers, battery terminals, and install accessories.

Flexible 4 Channel, 3 Channel, or Bridged 2 Channel Use

The SHCA1600.4 is built to adapt to different system layouts. Whether you need classic 4 channel speaker power or stronger bridged output for mid-bass, this amplifier gives you multiple ways to build the system around your speakers and tuning goals.

• 4 channel mode: Classic front and rear full range speaker setup
• 3 channel mode: Channels 1 and 2 on separate speakers, with channels 3 and 4 bridged for stronger mid-bass or a small subwoofer stage
• 2 channel bridged mode: Channels 1 and 2 bridged, and channels 3 and 4 bridged for a pair of high-power full range or mid-bass outputs

RCA inputs can be run from 2 or 4 channels of input, making integration easier with factory head units, aftermarket radios, DSPs, processors, and different system layouts.

Minimum Ohm Ratings Matter

This amplifier is built for strong output, but it still needs to be wired correctly. The SHCA1600.4 is not 1 ohm rated and should not be wired below its intended limits.

• Minimum stereo load: 2 ohm per channel
• Minimum bridged load: 4 ohm bridged
• Not designed or warrantied for 1 ohm operation

Make sure your speakers, wiring configuration, final impedance, crossover settings, and amplifier setup are correct before powering the system. Wiring below the intended impedance can create heat, distortion, speaker stress, amplifier protection issues, or amplifier damage.

Electrical Support Matters

Even though the SHCA1600.4 has a compact footprint, the electrical side still matters. A strong 4 channel car audio amplifier can expose weak wiring, poor grounds, low battery support, voltage drop, or bad fuse planning quickly. If the amplifier is not getting clean voltage, you may lose output, create distortion, stress speakers, or push the amp into protection.

Before finalizing the install, use the Audio Sellerz car audio wire gauge and fuse guide to plan wire size and fuse protection. You can also shop car audio wire and Sky High Car Audio amp kits to support the amplifier with the right wiring foundation.

Korean-Built Class D SHCA Platform

The Sky High SHCA1600.4 is Korean-built using the same SHCA modular amplifier platform found across the Sky High amplifier line. It is designed for high efficiency, reliable output, clean power delivery, and strong layout design in real car audio systems.

The Class D design helps reduce heat and electrical stress while still delivering the output needed for louder mids, highs, front stages, and mid-bass setups. That makes the SHCA1600.4 a smart match for customers who want a compact amp that still performs like a serious piece of equipment.

Dimensions and Fitment

• Length: 11.81"
• Width: 9.92"
• Height: 3.13"

The compact footprint makes the SHCA1600.4 easier to fit under seats, in trunks, behind panels, on amp racks, or in custom beauty panel installs. It also matches the SHCA chassis style, making it a clean visual match for Sky High monoblocks in full system builds.

Voltage and Warranty

• Max operating voltage: 17.0 VDC
• Rated output power: 13.2V at 2 ohm per channel at 1000 Hz with all channels loaded
• Warranty: 1-year manufacturer warranty against manufacturer defects when installed and used correctly

Efficiency and Cooling

The SHCA1600.4 4 channel amplifier is built for daily use, demo time, and high-volume play. Loud front stages and pro audio door systems can create heat, especially during long demos, meets, shows, and aggressive daily listening.

• High-efficiency circuit layout helps reduce heat and electrical stress
• Standard acrylic backplate with internally mounted cooling fan improves airflow and reliability
• Designed to reduce heat-related drop-off so your mids and highs stay loud and clean

SHCA Customization and Modular Design

Just like the bigger SHCA amplifiers, the Sky High Car Audio SHCA1600.4 carries the same modular cosmetic and mounting platform. That means the amplifier can be built into clean daily systems, show builds, wall layouts, and professional amp racks without looking out of place next to larger SHCA amps.

The flippable branding system uses diamond-cut aluminum Sky High logo and model plates that are reversible, so the logo stays upright whether the amplifier is mounted horizontal, vertical, or upside down.

The modular center panel accepts drop-in overlay panels, sold separately, including forged carbon, mirror stainless, paint-matched aluminum, acrylic, and plexi light-up options. No adhesives or permanent modifications are needed. Just unbolt, swap, and bolt everything back together.

Power Input and Cooling Expansion

The SHCA platform is designed to grow with your system, which gives builders more flexibility when adding stronger batteries, bigger wire, multiple amplifiers, and more demanding speaker layouts.

• Input expansion kits are sold separately and used to add extra 12V power delivery points
• Expansion block material options include cast aluminum, CNC’d aluminum, and copper

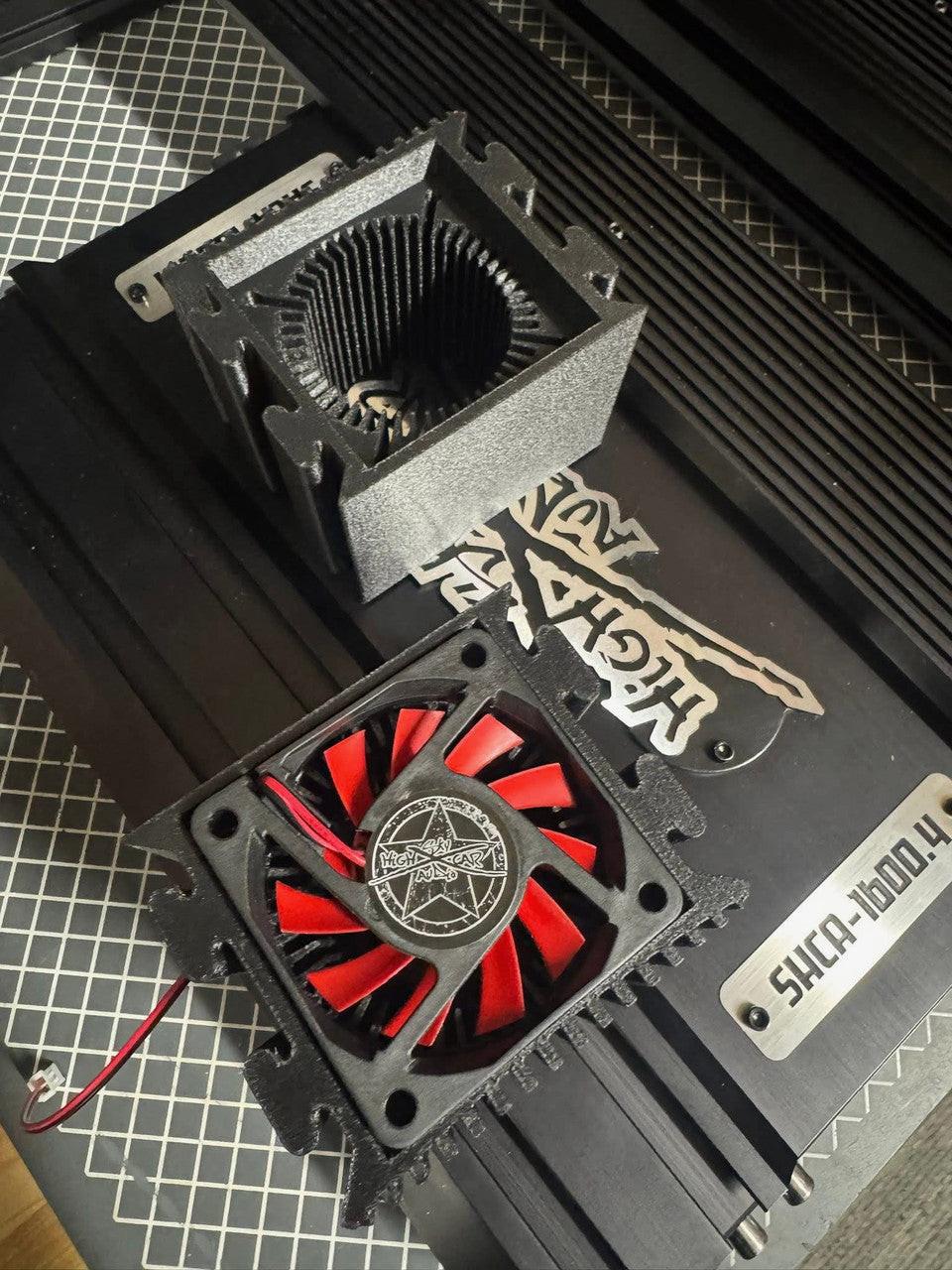

• Passive cooling add-ons are sold separately and slide onto the heatsink to increase surface area and improve thermal performance

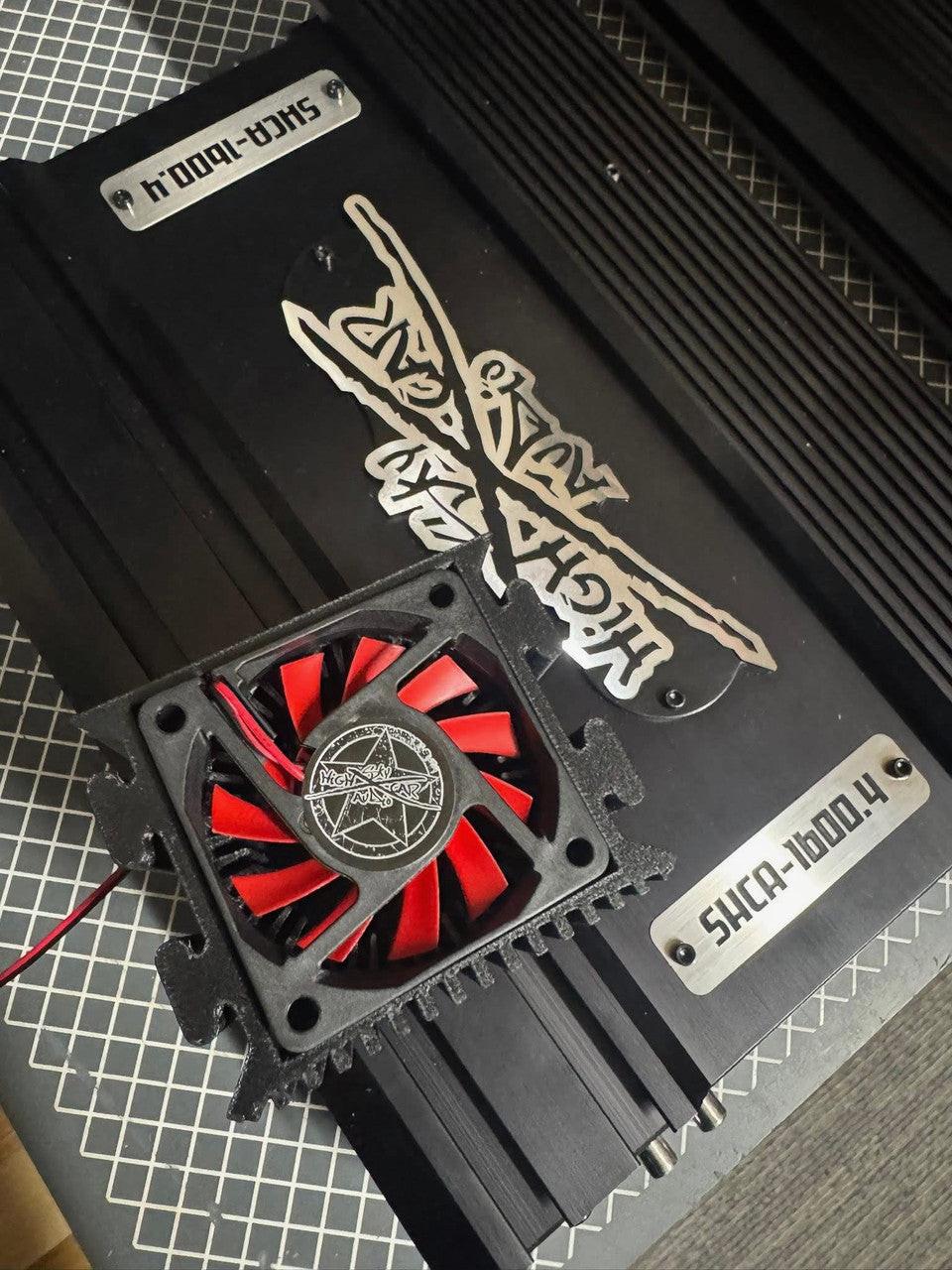

• Active push/pull fan kits are sold separately and mount to the extruded heatsink extensions while plugging into onboard 12V outputs
• The SHCA platform is designed to accept a future bolt-on water-cooled heatsink kit for extreme show and competition builds

When you start adding more power delivery, bigger wire, stronger batteries, and multiple amplifiers, fuse protection and clean power distribution become even more important.

Mounting Options for Clean Installs

The Sky High Car Audio SHCA1600.4 uses the same mounting structure as the rest of the SHCA line for easy, professional installs.

• Bracket kits are sold separately for stacking amplifiers, vertical mounting, floating wall installs, rail-style installs, and side-by-side linking
• Slide-lock channels in the heatsink make bracket positioning simple and adjustable
• Optional footless endcaps on the SHCA platform allow smooth flush mounting on amp racks and beauty panels

Perfect For

• Daily drivers needing better speaker power
• Pro audio door speaker systems
• Mids and highs builds
• Active and semi-active front stages
• Bridged mid-bass setups
• Factory speaker upgrades with serious amplifier power
• Custom door panels and loud front stages
• Compact amp racks and under-seat installs
• Customers who want a compact 4 channel amplifier that matches the SHCA monoblock lineup

Quick Details

• Brand: Sky High Car Audio
• Model: SHCA1600.4
• Product type: 4 channel full range amplifier
• Power class: 1600W
• Amplifier topology: Class D full range
• Build: Korean-built amplifier platform
• Minimum load: 2 ohm per channel stereo
• Minimum bridged load: 4 ohm bridged
• Not 1 ohm rated
• Max operating voltage: 17.0 VDC
• Rated output power reference: 13.2V at 2 ohm per channel at 1000 Hz with all channels loaded
• Warranty: 1-year manufacturer warranty against manufacturer defects under proper installation conditions
• Length: 11.81"
• Width: 9.92"
• Height: 3.13"
• Best use: Daily drivers, front stages, mids and highs, pro audio doors, bridged mid-bass, compact installs, and custom amp racks

Troubleshooting and System Planning

High-power full range amplifiers need clean voltage, strong grounds, correct speaker impedance, proper fuse protection, and enough battery support. If you are troubleshooting voltage drop, weak grounding, distortion, overheating, shutdown, or protection issues, the Audio Sellerz amplifier protect mode guide and car audio grounding guide can help you understand common problems before replacing equipment.

For stronger mids and highs systems, battery support matters too. Depending on the full build, you may need upgraded battery support, heavier power wire, better grounding, and clean fuse protection to keep voltage stable during high-volume play.

Build a Strong Front Stage Around the SHCA1600.4

If you are building a strong front stage, pro audio door system, multi-speaker setup, or bridged mid-bass layout and want a compact 4 channel Sky High Car Audio amplifier that matches your SHCA mono amps in power, look, and flexibility, the SHCA1600.4 is a perfect fit.

For shoppers searching for a Sky High 4 channel amplifier, 1600W full range amplifier, pro audio door amp, mids and highs amplifier, or compact front stage amplifier, the SHCA1600.4 is built for real car audio systems.
