Car Audio Wire Gauge Chart and Fuse Guide
Choosing the right wire size for a car audio system matters more than a lot of people realize. A powerful amplifier, strong subwoofer, upgraded battery, or high output alternator can still perform badly if the wire is too small, the ground is weak, or the fuse protection is wrong.
Car audio wiring is not just about making the system turn on. It is about giving the amplifier and electrical system a safe, strong current path so the equipment can work the way it should.
If your system has voltage drop, weak bass, dimming lights, amp protect mode, hot wires, blown fuses, or inconsistent performance, the wiring should be one of the first things you check.
This car audio wire gauge chart and fuse guide explains power wire size, ground wire size, amp kit sizing, fuse sizing, OFC vs CCA wire, Big 3 wiring, alternator wiring, battery wiring, speaker wire, and how wiring fits into the rest of your electrical system.
Shop Car Audio Wire Shop Amp Kits Shop Fuse Blocks Shop Big 3 Kits
Why Wire Size Matters in Car Audio
Car audio amplifiers need current. The larger the amplifier and the harder the system is played, the more important wiring becomes.
If the power wire is too small, the amplifier may not get the current it needs. If the ground is weak, the amp may struggle even if the power wire is large. If the fuse is wrong, the system may be unsafe or unreliable.
Correct wire size helps with:
- Amplifier power delivery
- Voltage stability
- Bass output
- Heat control
- Fuse safety
- Battery support
- Alternator charging
- Big 3 upgrades
- Long-term reliability
A system with the right wire size, clean grounds, proper fusing, and strong electrical support will usually perform better than a system with bigger equipment and weak wiring.
What Is Car Audio Wire Gauge?
Wire gauge is the size of the wire. In car audio, common power wire sizes include 8 gauge, 4 gauge, 2 gauge, 1/0 gauge, 2/0 gauge, and 4/0 gauge.
The smaller the gauge number, the larger the wire. For example, 1/0 gauge wire is larger than 4 gauge wire.
Larger wire can carry more current and is commonly used for bigger amplifiers, high output alternators, battery banks, long wire runs, and Big 3 upgrades.
The correct wire gauge depends on:
- Amplifier RMS power
- Amplifier current draw
- Wire length
- Wire material
- Fuse size
- Battery setup
- Alternator output
- System goals
- Future upgrades
Do not choose wire size by guessing. The wire needs to match the system.

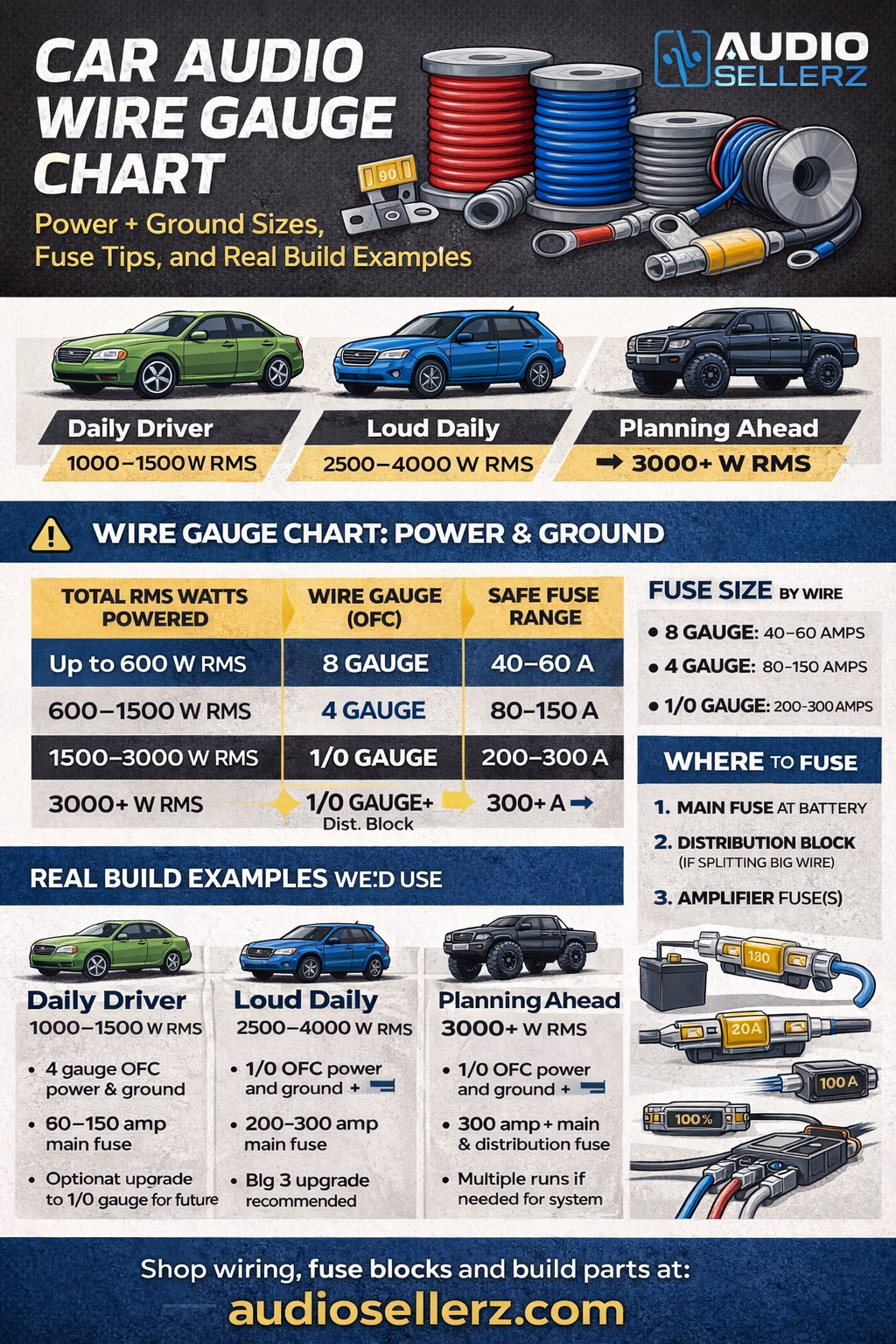

Car Audio Wire Gauge Chart
Use this chart as a general starting point for planning a car audio system. Real-world needs can change depending on wire length, wire material, amplifier efficiency, fuse rating, electrical upgrades, and how hard the system will be played.
| Wire Size | Common Car Audio Use | Best For |
|---|---|---|
| 8 gauge | Smaller amplifiers and compact systems | Light power needs, small daily setups |
| 4 gauge | Medium amplifiers and basic subwoofer systems | Many daily-driver amp installs |
| 2 gauge | Larger daily systems and higher current amp setups | Systems that need more headroom than 4 gauge |
| 1/0 gauge | Larger amplifiers, Big 3 kits, battery runs, and serious subwoofer systems | Most high-output car audio electrical upgrades |
| 2/0 gauge | Higher-output builds and larger electrical systems | High-current systems that need extra support |
| 4/0 gauge | Large battery banks and high-current builds | Big power systems, multiple runs, large electrical upgrades |
This chart is not the final answer for every vehicle. Wire run length, power level, fuse size, voltage, material, and system design all matter.
If you are planning future upgrades, it is often smarter to run larger wire once instead of buying wire twice.
What Size Wire Do I Need for My Amp?
The right amp wire size depends on the amplifier and the install.
Before choosing wire, look at:
- Amplifier RMS power
- Amplifier fuse rating
- Recommended wire size from the amplifier manufacturer
- Length of the power wire run
- Whether the wire is OFC or CCA
- Battery location
- Ground location
- Future upgrade plans
- Whether more amplifiers will be added later
A small amplifier may only need 8 gauge or 4 gauge wire. A larger monoblock amplifier may need 1/0 gauge wire. A high-power system may need multiple runs of wire, upgraded grounds, battery support, and a high output alternator.
Power Wire and Ground Wire Should Match
One of the biggest mistakes in car audio wiring is running large power wire and then using a smaller, weak, or poorly mounted ground wire.
Your amplifier needs power coming in, but it also needs a strong return path. If the ground wire is smaller, loose, painted, rusty, or connected to a bad location, the system can still have voltage problems.
In most car audio systems, the ground wire should match the power wire size. If you run 1/0 gauge power wire, the amp ground should usually be 1/0 gauge too.
A weak ground can cause:
- Voltage drop
- Weak bass
- Amp protect mode
- Heat
- Noise
- Inconsistent output
- Poor reliability
The ground point should be clean, tight, and connected to solid metal. Paint, rust, weak bolts, and thin sheet metal can all create problems.
Read the Car Audio Grounding Guide Shop Big 3 Kits
OFC vs CCA Wire
Wire material matters. OFC wire and CCA wire are not the same thing.
OFC stands for oxygen-free copper. CCA stands for copper-clad aluminum. OFC wire is usually the better choice for higher-current car audio systems because copper carries current better than aluminum. CCA can work in some smaller or budget builds, but it does not carry current the same way copper wire does.
| Wire Type | What It Means | Best Use |
|---|---|---|
| OFC wire | Copper wire with better current capability | Serious systems, Big 3 kits, alternator wiring, battery runs, larger amplifiers |
| CCA wire | Copper-clad aluminum wire | Budget systems or smaller installs when sized correctly |
For larger amplifiers, Big 3 kits, alternator upgrades, and battery runs, OFC wire is usually the better move when possible.
The wire is not the place to get lazy when the system depends on current flow.
Shop OFC & CCA Wire Shop Sky High Car Audio
Why Cheap Wire Can Hurt a System
Cheap wire can create problems even if it looks thick from the outside.
Some low-quality wire has thick insulation but less metal inside than expected. That can make the wire look bigger than it really performs. If the wire is undersized, poor quality, or not really the size it claims to be, the system may not perform correctly.
Cheap or undersized wire can lead to:
- Voltage drop
- Heat
- Weak amplifier output
- Fuse issues
- Poor battery charging
- Higher resistance
- Safety concerns
- Future upgrade problems
A customer may spend good money on an amplifier, subwoofer, alternator, or battery, then hold the whole system back with weak wire.
A strong system needs strong wiring.
Car Audio Fuse Guide
Fuses protect the wire. A fuse is not just there because the amplifier needs one. The fuse is there to protect the power wire if something goes wrong.
If a power wire shorts to ground, the fuse should blow before the wire overheats or causes damage.
Fuse protection matters for:
- Amplifier power wire
- Big 3 alternator wiring
- Battery-to-battery wiring
- Distribution blocks
- Multiple amplifier systems
- High output electrical builds
The fuse should be matched to the wire and system layout. Do not install a random oversized fuse just because bigger sounds better. A fuse that is too large may not protect the wire correctly.
Shop Fuse Blocks Shop Fused Amp Kits
Car Audio Fuse Size Chart
Use this fuse size chart as a planning guide. The final fuse size should match the wire, wire material, wire length, manufacturer recommendations, and system layout.
| Wire Size | Common Fuse Range | Notes |
|---|---|---|
| 8 gauge | Often around 40A to 80A | Small amplifiers and shorter runs |
| 4 gauge | Often around 100A to 150A | Many daily-driver amp installs |
| 2 gauge | Often around 150A to 200A | Larger daily setups |
| 1/0 gauge | Often around 250A to 350A | Big 3 kits, larger amps, battery runs |
| 2/0 gauge | Often around 350A to 400A+ | Higher-current systems |
| 4/0 gauge | Application-specific | Large electrical systems and multiple-run builds |
These are common planning ranges, not a replacement for proper system design. Fuse sizing can change based on wire quality, wire length, installation conditions, and the actual current path.
The fuse should protect the wire. If the fuse is too large for the wire, the wire can overheat before the fuse blows. If the fuse is too small, it may blow during normal system use.
Where Should the Fuse Go?
The main fuse should normally be close to the battery or power source. The goal is to protect the wire as early as possible.
If the wire shorts before the fuse, that section of wire is not protected.
For amplifier power wire, fuse near the battery. For rear battery setups, fusing may be needed at both ends depending on the layout. For alternator charging wire or Big 3 upgrades, fuse planning depends on the vehicle, wire routing, alternator location, and system design.
Important safety points:
- Fuse close to the power source
- Protect wire from sharp edges
- Keep wire away from heat
- Keep wire away from moving parts
- Secure wire properly
- Use proper terminals
- Use the right fuse holder
- Do not leave power wire unprotected
Car audio electrical work should be done carefully. If you are unsure, ask before wiring it.
Amp Kits: What Should Be Included?
A good amp kit should include the basics needed to install an amplifier safely and correctly.
Depending on the kit, it may include:
- Power wire
- Ground wire
- Fuse holder
- Fuse
- Remote wire
- RCA cables
- Speaker wire
- Terminals
- Wire loom or protection
- Install hardware
Not every amp kit is the same. Some are built for small systems. Some are built for larger amplifiers. Some use OFC wire. Some use CCA wire.
Before buying an amp kit, make sure it matches the amplifier and the system.
Shop Amp Kits Shop Car Audio Wire
Wire Size for Monoblock Amplifiers
Monoblock amplifiers are commonly used for subwoofers. Because subwoofer amps can pull a lot of current, wiring becomes very important.
A small bass amp may be fine on smaller wire, but larger monoblock amps often need 1/0 gauge wire or more depending on the power level, wire length, electrical system, and install.
A monoblock amp wiring plan should include:
- Correct power wire size
- Matching ground wire
- Proper fuse protection
- Clean ground
- Correct final ohm load
- Healthy battery
- Alternator support if needed
- Big 3 upgrade for larger systems
Shop Monoblock Amplifiers Shop Subwoofers Read the Amp Gain Guide
Wire Size for 4 Channel Amplifiers
A 4 channel amplifier is commonly used for door speakers, mids, highs, coaxials, and component speakers.
Many 4 channel amps do not pull as much current as large monoblock amplifiers, but wiring still matters. If the amp is underfed, the speakers may not perform the way they should. Poor wiring can also contribute to noise, voltage problems, weak output, and heat.
A 4 channel amp wiring plan should include:
- Correct amp kit size
- Proper fuse protection
- Clean ground
- Good RCA routing
- Correct speaker wire
- Proper crossover settings
- Safe wire routing
Shop 4 Channel Amplifiers Shop Speakers Read the Speaker Tuning Guide
Wire Size for Subwoofer Systems
Subwoofer systems can demand a lot from the electrical system.
A single small subwoofer setup may not need huge wire. A larger subwoofer build with a bigger monoblock amp may need 1/0 gauge wire, Big 3 wiring, battery support, and alternator support.
Wire planning for subwoofer systems should consider:
- Amplifier RMS power
- Final ohm load
- Subwoofer setup
- Wire length
- Battery location
- Ground point
- Fuse size
- Future upgrades
- Voltage drop
For larger subwoofer systems, do not cheap out on wire. Big bass needs a strong electrical path.
Shop Audio Sellerz Subwoofers Shop All Subwoofers Shop Subwoofer Boxes
Wire Size for Big 3 Kits
The Big 3 upgrade improves the main charging and grounding paths under the hood.
The Big 3 usually upgrades:
- Alternator positive to battery positive
- Battery negative to chassis ground
- Engine block to chassis ground
Many car audio Big 3 kits use 1/0 gauge wire, especially for larger systems, alternator upgrades, and future electrical plans.
The Big 3 helps the alternator, battery, and vehicle grounds work together better. It will not magically fix every electrical problem, but it is one of the best foundation upgrades for systems that need stronger current flow.
Shop Big 3 Kits Read the Big 3 Upgrade Guide
Wire Size for High Output Alternators
A high output alternator needs a strong charging path. If you upgrade the alternator but keep small factory wiring, weak grounds, or poor connections, the system may still have problems.
When upgrading to a high output alternator, think about:
- Alternator positive wire
- Battery ground
- Engine ground
- Big 3 upgrade
- Fuse protection
- Battery health
- Wire routing
- Heat protection
- Charging voltage
Brand X alternators are built to order for your vehicle. The average lead time is 2–4 weeks before shipping. All Brand X alternators come in the standard bare metal finish unless custom powder coating is added to the order.
Shop Brand X Electrical Shop High Output Alternators Read the High Output Alternator Guide
Wire Size for Second Battery Setups
Second battery wiring needs to be planned correctly.
A second battery can add reserve capacity, but it still needs the right wire, grounds, fuse protection, and alternator support. If the wire between batteries is too small, the system can have voltage drop or charging problems.
A second battery setup should consider:
- Front battery type
- Rear battery type
- Wire size between batteries
- Fuse protection near power sources
- Ground path
- Alternator output
- Battery chemistry
- Charging voltage
- System current demand
Battery upgrades help, but they still depend on the wire and charging system around them.
Shop Advanced Electric Batteries Shop Limitless Lithium Read the Second Battery Guide
Speaker Wire Size
Speaker wire matters too, but it is not the same as power wire.
Speaker wire carries the signal from the amplifier to the speakers or subwoofers. The right speaker wire size depends on power, distance, and speaker setup.
| Speaker Wire Size | Common Use |
|---|---|
| 18 gauge | Light speaker runs and smaller factory-style upgrades |
| 16 gauge | Common door speaker and coaxial speaker wiring |
| 14 gauge | Stronger speaker installs and longer runs |
| 12 gauge | Higher-power speakers and many subwoofer runs |
| 10 gauge | High-power subwoofer wiring and larger speaker setups |
Smaller speakers and shorter runs may be fine with smaller wire. Higher-power speakers, subwoofers, and longer runs may need larger speaker wire.
Shop Speaker Wire Shop Speakers
Remote Wire, RCA Cables, and Signal Wiring
Power wire and ground wire are not the only wiring in a car audio system.
A full amplifier install may also use:
- Remote turn-on wire
- RCA cables
- Speaker wire
- Line output converter wiring
- DSP wiring
- Distribution blocks
- Fuse blocks
The remote wire tells the amplifier when to turn on. RCA cables carry signal from the radio, processor, or line output converter to the amplifier. Speaker wire carries amplified signal from the amp to the speakers or subs.
Bad wiring, poor routing, or weak connections can create noise, signal issues, or unreliable operation.
Wire Routing Matters
How the wire is routed matters.
Power wire should be protected from heat, sharp edges, moving parts, and pinch points. If wire insulation gets damaged, the system can become unsafe.
When routing car audio wire:
- Avoid sharp metal edges
- Use grommets when passing through metal
- Keep wire away from exhaust heat
- Keep wire away from moving parts
- Secure wire so it cannot rub
- Do not run wire where seats or panels can crush it
- Protect wire under the hood
- Fuse power wire properly
- Keep signal wiring clean and organized
A clean install is safer, easier to service, and more reliable.
Voltage Drop and Wire Size
Small wire can cause voltage drop. When the amplifier pulls current, undersized wire can restrict the flow. That restriction can drop voltage at the amplifier.
Voltage drop can cause:
- Weak bass
- Amp protect mode
- More heat
- Earlier clipping
- Poor battery recovery
- Inconsistent output
- Electrical stress
If voltage at the battery is decent but voltage at the amplifier drops hard, the wiring and ground path need to be checked.
A high output alternator cannot fix bad wire by itself. The alternator, battery, Big 3, power wire, ground wire, fuse holders, and connections all have to work together.
Heat and Wire Safety
Wire that is too small can get hot. Heat is a warning sign.
If power wire, ground wire, fuse holders, terminals, or distribution blocks are getting hot, something is wrong.
Common causes include:
- Wire too small
- Bad ground
- Loose connection
- Poor crimp
- Fuse holder issue
- Too much current demand
- Corrosion
- Damaged wire
- Poor-quality wire
Do not ignore hot wiring. Car audio electrical problems can become safety problems.
Distribution Blocks and Fuse Blocks
Larger systems often need distribution blocks and fuse blocks.
A distribution block can split power or ground to multiple amplifiers. A fuse block can protect different wire runs.
These parts are useful when the system has:
- Multiple amplifiers
- Front and rear batteries
- Different wire sizes
- Larger power runs
- Multiple fuse points
- Organized wiring needs
The goal is clean, safe, serviceable wiring.
Common Car Audio Wiring Mistakes
Here are common wiring mistakes that hold systems back:
- Using wire that is too small
- Using cheap wire with thick insulation and less metal
- Running OFC and CCA like they are the same
- Not matching ground wire to power wire
- Grounding to painted metal
- Not fusing near the battery
- Using a fuse that is too large for the wire
- Running wire near heat or sharp edges
- Not using grommets through metal
- Loose terminals
- Poor crimps
- Skipping the Big 3 upgrade on larger systems
- Adding a high output alternator without upgrading wiring
- Adding batteries without enough fuse protection
Most wiring problems can be avoided by planning the system correctly before installing.
What Should You Upgrade First?
If your system has voltage drop or electrical problems, start with the basics before throwing random parts at it.
A smart order may be:
- Check the battery.
- Check power wire size.
- Check ground wire size.
- Inspect the ground location.
- Check fuse holder and terminals.
- Upgrade weak grounds.
- Add a Big 3 kit.
- Upgrade the alternator if current demand is too high.
- Add battery support if more reserve is needed.
Do not guess. Find the weak point.
Read the Electrical Upgrade Guide Shop Electrical Upgrades
Why Buy Car Audio Wire from Audio Sellerz?
Audio Sellerz works with real car audio systems, real installs, and real customers trying to make their vehicles louder, cleaner, and more reliable.
Wire is not always the most exciting part of the build, but it is one of the most important parts. The amplifier, subwoofer, battery, alternator, Big 3 kit, fuse blocks, and grounds all depend on the wiring being right.
If you are building a simple daily system, adding a subwoofer, upgrading your amp, installing a Big 3 kit, adding a battery, or stepping into a high output alternator, the wire needs to match the system.
Sold by AudioSellerz.com — real car audio people helping customers build stronger systems the right way.
Helpful Car Audio Electrical Guides
Use these guides to keep building the rest of your electrical system correctly:
High Output Alternator Guide Stock vs High Output Alternator Should You Upgrade Your Alternator? Big 3 Upgrade Guide Car Audio Grounding Guide Second Battery Guide
Frequently Asked Questions About Car Audio Wire Gauge and Fuses
What size wire do I need for my car audio amp?
The right wire size depends on amplifier power, wire length, wire material, fuse size, and system goals. Smaller amps may use 8 gauge or 4 gauge wire, while larger amps often need 1/0 gauge wire.
Is 4 gauge wire enough for a subwoofer amp?
It depends on the amplifier power, current draw, and wire length. 4 gauge wire can work for many medium systems, but larger monoblock amps may need 1/0 gauge wire.
Do I need 1/0 wire for car audio?
You may need 1/0 gauge wire if you are running a larger amplifier, Big 3 upgrade, high output alternator, battery run, or future high-current system.
Should my ground wire be the same size as my power wire?
In most systems, yes. If you run 1/0 gauge power wire, the amp ground should usually be 1/0 gauge too.
Is OFC wire better than CCA wire?
Yes, OFC wire is usually better for high-current car audio systems because copper carries current better than copper-clad aluminum.
What fuse size do I need for car audio?
Fuse size depends on wire size, wire material, current draw, and system layout. The fuse should protect the wire, not just match a random number.
Where should I put the amp fuse?
The main amp fuse should normally be close to the battery or power source to protect the power wire.
Can wire that is too small cause voltage drop?
Yes. Undersized wire can restrict current flow and cause voltage drop under load.
Can bad wire make my amp go into protect mode?
Yes. Poor power wire, bad ground, loose terminals, or weak fuse connections can contribute to low voltage and amp protect mode.
Do I need bigger wire for a high output alternator?
Usually, yes. A high output alternator needs upgraded charging wire, grounds, and often a Big 3 upgrade so the system has a strong current path.
Do I need a fuse between batteries?
Many multi-battery setups need fuse protection near power sources. The exact layout depends on the system, wire routing, and battery locations.
Can Audio Sellerz help me pick the right wire?
Yes. If you are not sure what wire, amp kit, fuse blocks, Big 3 kit, or electrical parts make sense for your system, reach out before ordering.
Shop Car Audio Wire, Amp Kits, and Fuse Blocks
If your system needs better voltage stability, safer wiring, stronger amplifier support, or room for future upgrades, start with the correct wire and fuse protection.
Shop car audio wire, amp kits, fuse blocks, Big 3 kits, Brand X alternators, Advanced Electric batteries, Limitless Lithium batteries, and electrical upgrades at Audio Sellerz.
The right wire helps the whole system work better.
Shop Car Audio Wire Shop Amp Kits Shop Fuse Blocks Shop Big 3 Kits Shop High Output Alternators
```
