DC Audio Shortie Subwoofers
Sizes Available: 10/12 Inch Model
Ohms Available: D2 & D4 Models
Power Handling: 500 Watts RMS 1000 Watts Peak
DC Audio Shortie

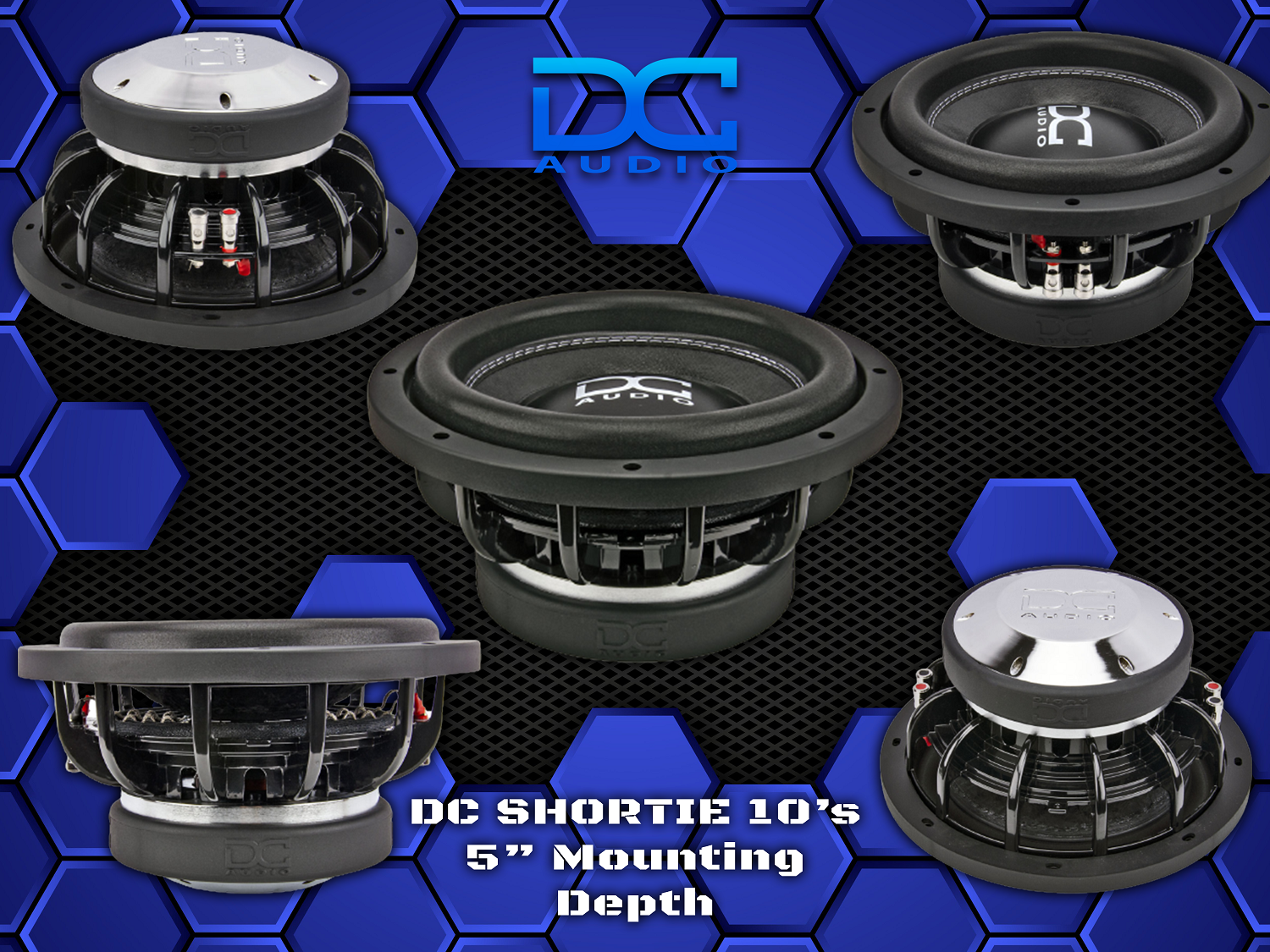

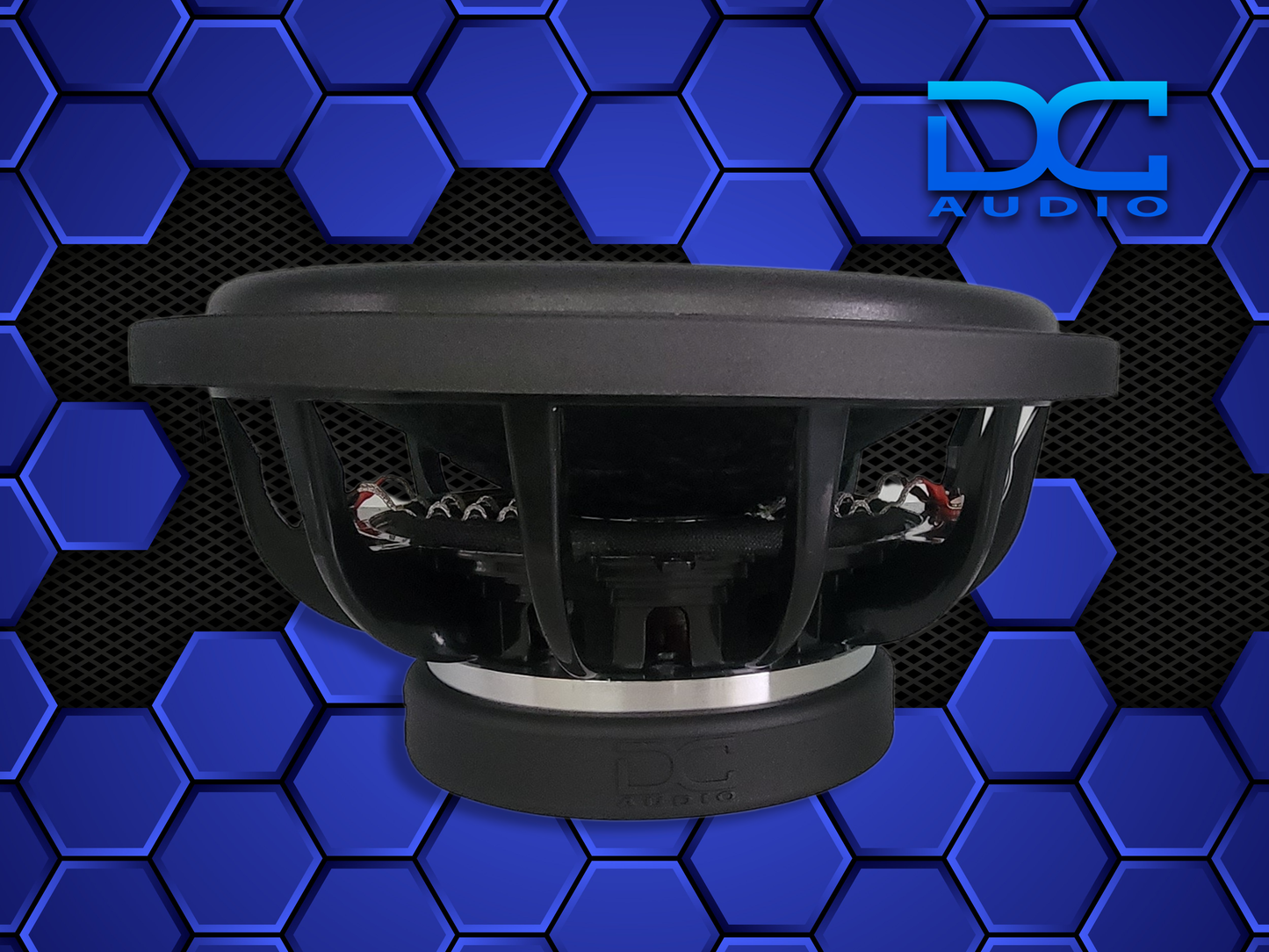

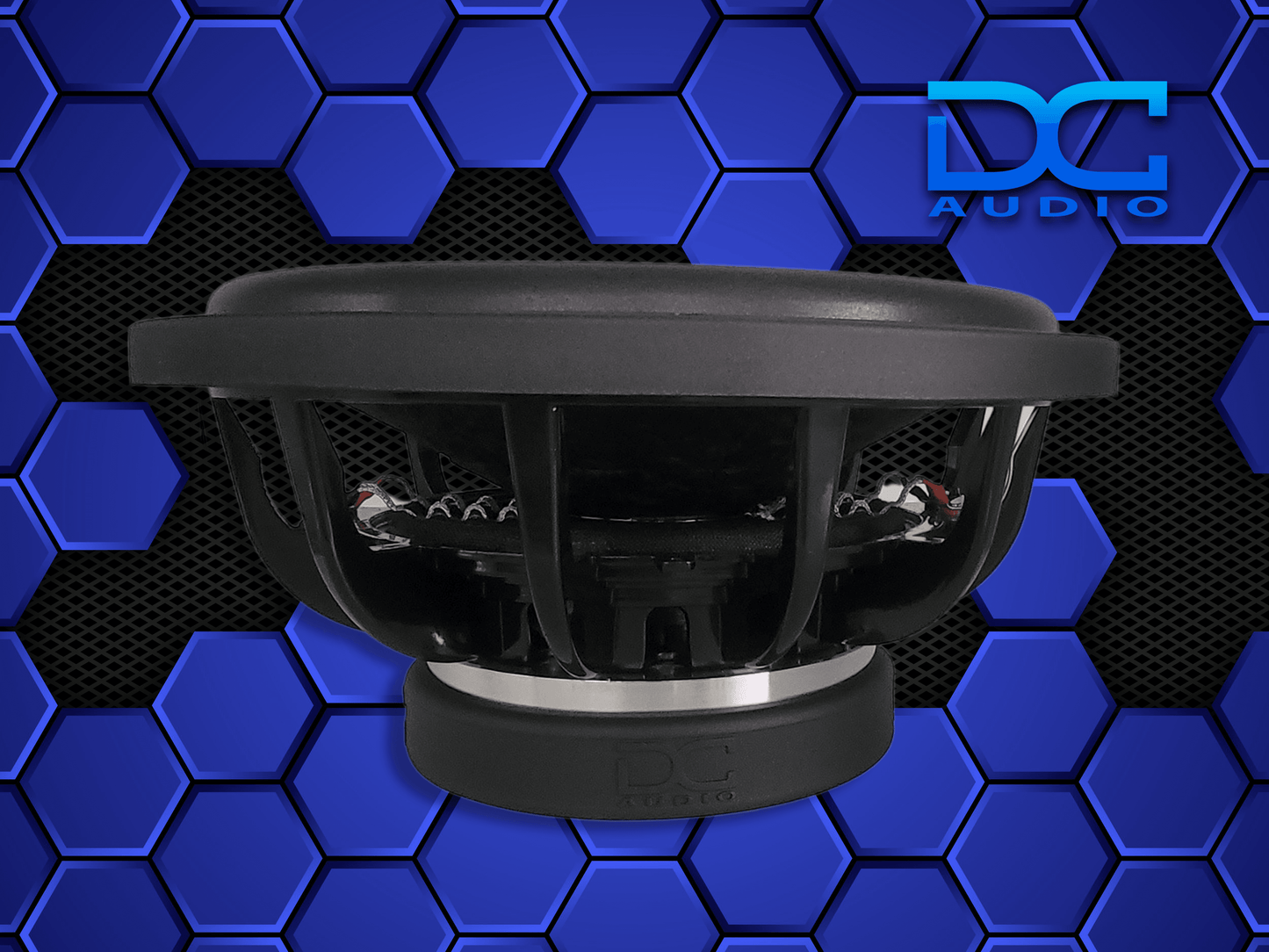

Got limited Mounting Depth?? DC has a answer It starts out with a single slug FEA optimized motor. A chrome top plate and T yoke. 2.5" voice coil, Glossy Black stamped Steel Frame, Side Motor Venting, push terminals and a rating suggestion of 500w RMS/1000w peak power handling.
This sub works great in sealed or ported enclosures.
Key Features

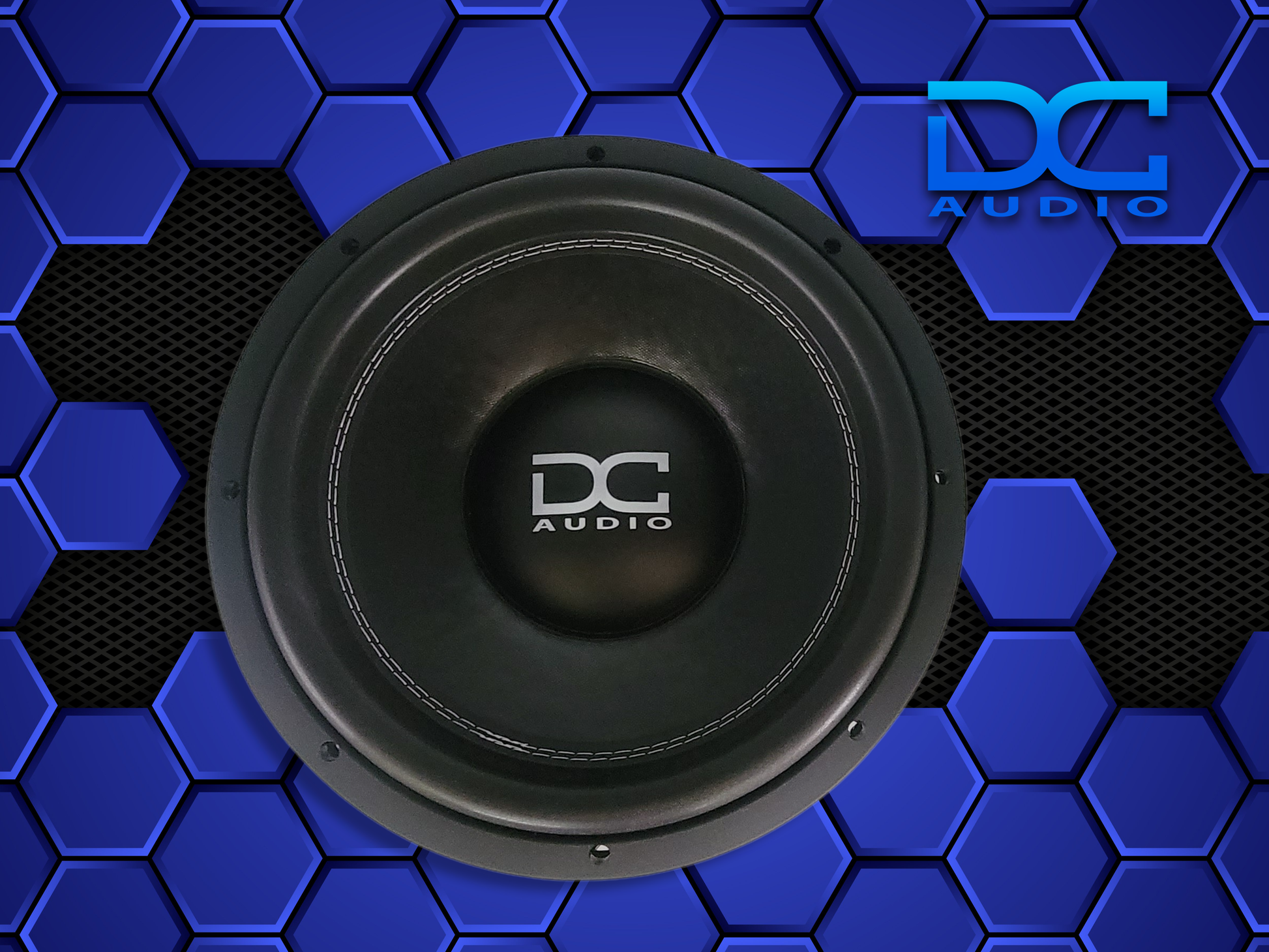

• Stitched surround and paper cone assembly

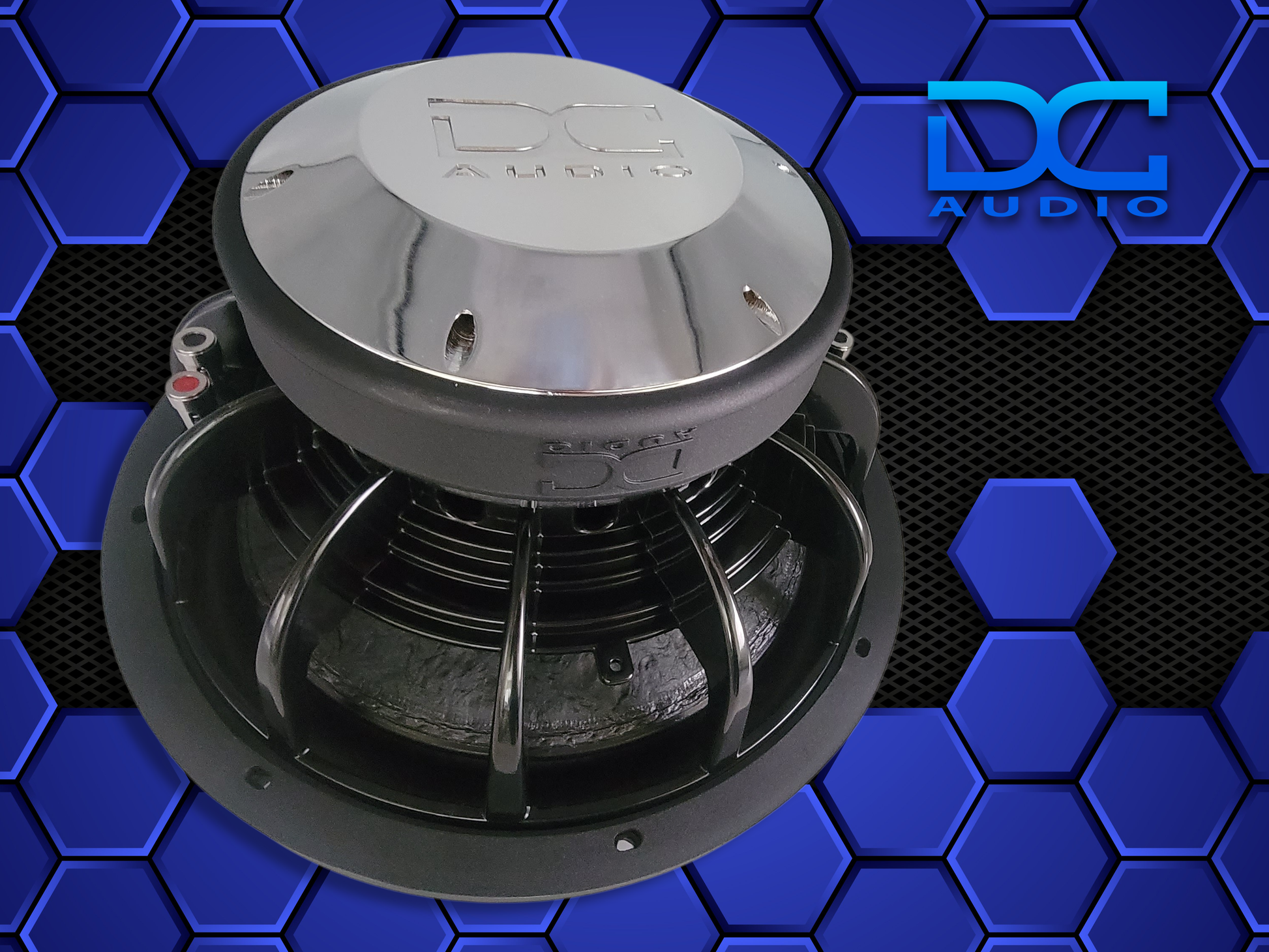

• Rubber Motor boot with DC Logo
• Polypropylene dust cover with DC logo

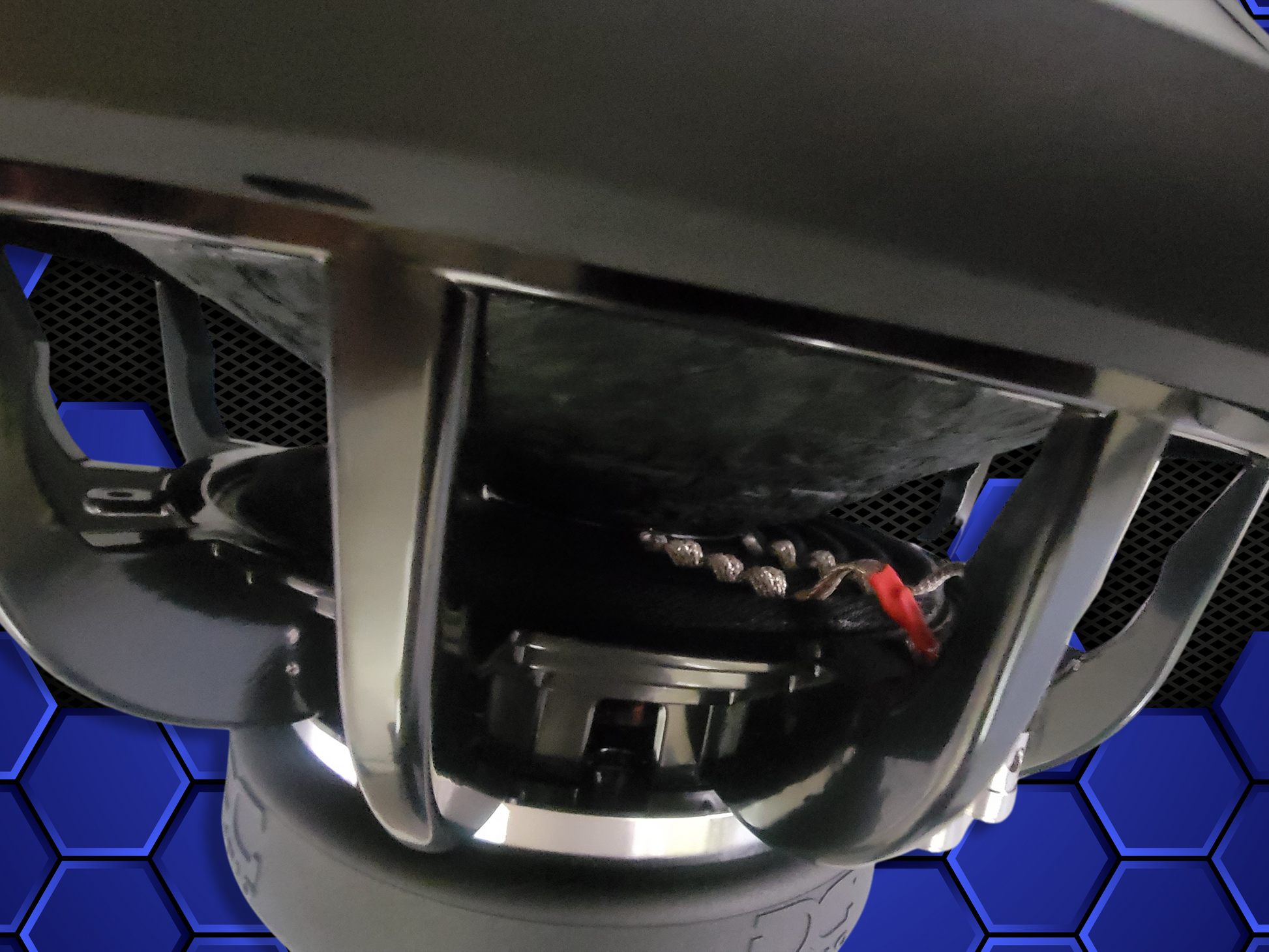

• Heavy duty interweaved tinsel lead wire sewn to the spider
• Cast Aluminum black frame
• FEA analyzed and optimized motor assembly - Fully CNC machined with Machined side venting
• Rubber mounting gasket
• Chrome spring loaded push terminals
• 2.5” voice coil
| 10" | 12" | |
|---|---|---|
| Mounting Depth | 5" | 5.48" |
| Mounting Hole Diameter | 9.3" | 11.0" |
| Outside Driver Diameter | 11" | 12.5" |
| VC Diameter | 2.5" | 2.5" |
| Displacement | .11 ft | .14 |
| Power Handling rms/peak | 500/1000 | 500/1000 |
| Ohm Options | d2/d4 | d2/d4 |
| Sd | 346cm | 552cm |
| Vas | 7.17L | 18.47L |
| Cms | 121.53um/n | 47.065u M?N |
| Mms | 218g | 301.6g |
| Fs | 45.5Hz | 41.9Hz |
| Bl | 15.67N/A | 19.067N/A |
| Re | 7 Ohm | 4 Ohm |
| Le | mH | mH |
| Qms | 4.382 |
