Dual 2 Ohm vs Dual 4 Ohm Subwoofers: Which Should You Buy?

Dual 2 Ohm vs Dual 4 Ohm Subwoofers: Which Should You Buy?

If the same subwoofer is offered in D2 and D4 versions, the correct choice is determined mainly by the final ohm load your amplifier needs to see.

D2 means the subwoofer has two separate 2 ohm voice coils.

D4 means the subwoofer has two separate 4 ohm voice coils.

Neither version is automatically louder, cleaner, stronger, or better. The voice-coil option simply gives you different wiring possibilities.

  • One dual 2 ohm subwoofer can normally be wired to 1 ohm or 4 ohms.
  • One dual 4 ohm subwoofer can normally be wired to 2 ohms or 8 ohms.

The right choice depends on the amplifier you own or plan to buy, the amplifier’s minimum stable impedance, how many subwoofers you will use, the final ohm load you want, the amplifier’s RMS output at that load, whether you may add more subwoofers later, and the electrical support available in the vehicle.

This guide helps you choose the correct D2 or D4 version before ordering so you do not end up with an amplifier and subwoofer combination that cannot be wired together properly.

When you are ready to build the system, browse car audio subwoofers, monoblock subwoofer amplifiers, subwoofer boxes and enclosures, and amplifier wiring kits.

Common D2 vs D4 Questions This Guide Answers

This guide answers the common questions people search before buying or wiring subwoofers, including dual 2 ohm sub wiring, dual 4 ohm to 2 ohm wiring, 2 ohm vs 4 ohm subwoofer setups, how to wire a dual 2 ohm subwoofer, how to wire a dual 4 ohm subwoofer, how to wire dual 4 ohm sub to 2 ohm, and how to wire 2 dual 4 ohm subs.

The important thing to understand is that D2 and D4 are not quality levels. They are voice-coil options. The right choice depends on how many subwoofers you are running, what final ohm load your amplifier needs, and whether you are building a single-sub, dual-sub, triple-sub, or four-subwoofer system.

Fast Answer: Should You Buy D2 or D4?

  • Buy one D2 subwoofer when you want a single sub wired to 1 ohm.
  • Buy one D4 subwoofer when you want a single sub wired to 2 ohms.
  • Buy two D4 subwoofers when you want two matching subs wired to 1 ohm.
  • Buy two D2 subwoofers when you want two matching subs wired to 2 ohms.
  • Buy four D2 subwoofers when you want a common four-subwoofer 1 ohm configuration.
  • Buy four D4 subwoofers when you want a common four-subwoofer 2 ohm configuration.

Real-World Example: Sky High FE 8 D2 vs D4

A good real-world example is the Sky High Car Audio FE Series 8-inch subwoofer. The FE 8 is rated at 500 watts RMS and is available in dual 2 ohm and dual 4 ohm versions, so it fits perfectly into this D2 vs D4 conversation.

If you want to run one Sky High FE 8 on a 1 ohm stable monoblock amplifier, the D2 version is usually the easier choice because one dual 2 ohm subwoofer can normally wire to 1 ohm.

If you want to run one Sky High FE 8 at 2 ohms, the D4 version is usually the easier choice because one dual 4 ohm subwoofer can normally wire to 2 ohms.

If you are planning to run two Sky High FE 8 subwoofers at 1 ohm, the D4 version is usually the cleaner path because two matching dual 4 ohm subwoofers can commonly be wired to a 1 ohm final load.

If you are planning to run two Sky High FE 8 subwoofers at 2 ohms, the D2 version is usually the cleaner path because two matching dual 2 ohm subwoofers can commonly be wired to a balanced 2 ohm final load.

If you are building three or four Sky High FE 8 subwoofers, the coil choice becomes even more important because the final load can change fast. Triple and quad 8-inch subwoofer builds can be a great way to get more cone area in tight spaces, but the amplifier, enclosure, wiring, and electrical support must be planned first.

This is why the voice-coil option matters before you order. The FE 8 itself is not better as D2 or D4. The right version is the one that matches your amplifier, number of subwoofers, and final ohm load.

If you are building a compact bass system, compare the Sky High FE 8 subwoofer, browse the full 8-inch subwoofer collection, and read the Sky High FE 8 small-box bass guide before choosing D2 or D4.

Dual 2 Ohm vs Dual 4 Ohm: The Main Difference

A dual voice coil subwoofer has two voice coils instead of one.

Each voice coil has its own positive and negative terminal.

The two coils can normally be connected in:

  • Series, which raises the final impedance
  • Parallel, which lowers the final impedance

One Dual 2 Ohm Subwoofer

A D2 subwoofer has two 2 ohm coils.

  • Coils wired in parallel: 1 ohm final load
  • Coils wired in series: 4 ohm final load

One Dual 4 Ohm Subwoofer

A D4 subwoofer has two 4 ohm coils.

  • Coils wired in parallel: 2 ohm final load
  • Coils wired in series: 8 ohm final load

That is why one D2 subwoofer is commonly paired with a 1 ohm stable monoblock, while one D4 subwoofer is commonly paired with an amplifier producing the desired power at 2 ohms.

For complete diagrams showing series and parallel connections, use the subwoofer wiring diagrams and final ohm-load guide.

What Does Dual 2 Ohm Mean on a Subwoofer?

Dual 2 ohm, also called D2, means the subwoofer has two separate 2 ohm voice coils.

The subwoofer contains:

  • Two separate voice coils
  • Each voice coil rated at a nominal 2 ohms
  • Two sets of positive and negative terminals

One D2 subwoofer can normally present either:

  • 1 ohm with the coils wired in parallel
  • 4 ohms with the coils wired in series

A D2 version is often the easiest choice for:

  • One subwoofer on a 1 ohm stable monoblock
  • One subwoofer on an amplifier bridged safely at 4 ohms
  • Two matching subwoofers with a 2 ohm target
  • Four matching subwoofers with a 1 ohm target

What Does Dual 4 Ohm Mean on a Subwoofer?

Dual 4 ohm, also called D4, means the subwoofer has two separate 4 ohm voice coils.

The subwoofer contains:

  • Two separate voice coils
  • Each voice coil rated at a nominal 4 ohms
  • Two sets of positive and negative terminals

One D4 subwoofer can normally present either:

  • 2 ohms with the coils wired in parallel
  • 8 ohms with the coils wired in series

A D4 version is often the easiest choice for:

  • One subwoofer with a 2 ohm target
  • Two matching subwoofers with a 1 ohm target
  • Two matching subwoofers with a 4 ohm target
  • Four matching subwoofers with a 2 ohm target

Is Dual 2 Ohm or Dual 4 Ohm Better?

Neither is universally better.

The better choice is the version that creates the correct final load for your amplifier and number of subwoofers.

A D2 subwoofer is not automatically louder because its individual coils have lower impedance.

A D4 subwoofer is not automatically cleaner or better sounding because its individual coils have higher impedance.

The final result depends on:

  • The final load after wiring
  • Amplifier power at that load
  • Amplifier stability
  • System voltage
  • Gain setting
  • Subwoofer enclosure
  • Vehicle acoustics
  • The subwoofer’s complete design

When comparing the D2 and D4 versions of the same model, review the manufacturer’s specifications. Different coil windings can sometimes create small differences in electrical or mechanical parameters, but there is no universal rule that makes every D2 or every D4 version superior.

Does a D2 Subwoofer Make More Power Than a D4?

The subwoofer does not create amplifier power.

The final impedance created by the subwoofer wiring affects how much power a compatible amplifier may produce.

For example, an amplifier may be rated to produce:

  • 1,000 watts RMS at 1 ohm
  • 650 watts RMS at 2 ohms
  • 350 watts RMS at 4 ohms

One D2 subwoofer can be wired to 1 ohm, which may allow that amplifier to produce its 1 ohm rating.

One D4 subwoofer can be wired to 2 ohms, which would use the amplifier’s 2 ohm rating.

That does not mean the D2 subwoofer itself is inherently louder. It means the selected wiring arrangement allows the amplifier to operate at a different load.

Lower Ohms Do Not Automatically Mean a Better System

A lower final impedance can allow a compatible amplifier to produce more power, but it also normally increases current demand and heat.

A lower load can place more demand on:

  • The amplifier
  • Power and ground wiring
  • Battery reserve
  • Alternator output
  • Fuse holders
  • Ground connections
  • Cooling

The goal is not to wire the amplifier as low as possible. The goal is to choose a final impedance the amplifier is designed to operate at while producing the power the subwoofers need.

A stable 2 ohm system with good voltage and proper tuning can perform better than an unstable 1 ohm system suffering from voltage drop, clipping, or overheating.

For a broader comparison, read the 1 ohm versus 2 ohm versus 4 ohm subwoofer-system guide.

Which Voice-Coil Option Should You Buy for One Subwoofer?

One Subwoofer With a 1 Ohm Stable Monoblock

Choose a dual 2 ohm subwoofer when:

  • You are using one subwoofer.
  • The monoblock is stable at 1 ohm.
  • The amplifier produces suitable RMS power at 1 ohm.
  • The electrical system can support the amplifier at that load.

Wire the two 2 ohm coils in parallel for a 1 ohm final load.

One Subwoofer With a 2 Ohm Target

Choose a dual 4 ohm subwoofer when:

  • You are using one subwoofer.
  • You want the amplifier to see 2 ohms.
  • The amplifier produces suitable RMS power at 2 ohms.
  • You prefer the electrical demand associated with that setup.

Wire the two 4 ohm coils in parallel for a 2 ohm final load.

One Subwoofer on a Bridged 2-Channel Amplifier

Many 2-channel amplifiers require a minimum 4 ohm load when bridged.

In that situation, one dual 2 ohm subwoofer may be wired in series to create a 4 ohm load.

Do not assume the amplifier is safe at 2 ohms bridged because it is stable at 2 ohms per channel in stereo mode. Always confirm the bridged minimum impedance in the amplifier manual.

Which Voice-Coil Option Should You Buy for Two Subwoofers?

Two-subwoofer systems are where customers most often buy the wrong coil option.

Two D4 Subwoofers for a 1 Ohm Final Load

Two matching dual 4 ohm subwoofers are a common choice for a 1 ohm stable monoblock.

The normal balanced arrangement is:

  • Wire the two coils on each D4 subwoofer in parallel.
  • Each subwoofer becomes a 2 ohm load.
  • Wire the two completed 2 ohm subwoofers together in parallel.
  • Final load: 1 ohm.

This is one of the most useful facts to remember:

One D2 is commonly used for 1 ohm. Two D4 subwoofers are commonly used for 1 ohm.

How to Wire 2 Dual 4 Ohm Subs to 1 Ohm

To wire 2 dual 4 ohm subs to 1 ohm, wire each subwoofer’s two 4 ohm coils in parallel first. Each subwoofer becomes a 2 ohm load. Then wire both completed 2 ohm subwoofers together in parallel at the amplifier. That creates a 1 ohm final load.

This is one of the most common setups for two-subwoofer systems using a 1 ohm stable monoblock amplifier.

Two D2 Subwoofers for a 2 Ohm Final Load

Two matching dual 2 ohm subwoofers are a common choice when the amplifier should see 2 ohms.

Balanced series-parallel wiring can create a 2 ohm final load.

This is useful when:

  • The amplifier produces suitable power at 2 ohms.
  • The amplifier is not rated for 1 ohm operation.
  • You want a two-subwoofer daily system at 2 ohms.

Two D2 Subwoofers for a 0.5 Ohm Final Load

Two D2 subwoofers can commonly be wired to 0.5 ohm by wiring all matching coils and subwoofers in parallel.

Only use this configuration when the amplifier is specifically rated for 0.5 ohm operation.

A 0.5 ohm system demands excellent:

  • Electrical support
  • Power and ground wiring
  • Fuse protection
  • Battery capacity
  • Charging output
  • Amplifier cooling
  • Gain setting

Do not wire a 1 ohm stable amplifier to 0.5 ohm because you expect impedance rise to protect it.

Two D4 Subwoofers for a 4 Ohm Final Load

Two D4 subwoofers can also be configured for a 4 ohm final load.

This can be useful with:

  • Certain bridged amplifiers
  • Systems prioritizing a higher final impedance
  • Amplifiers producing the desired power at 4 ohms

Can Two D2 Subwoofers Be Wired to 1 Ohm?

Two matching D2 subwoofers do not normally create a balanced 1 ohm final load using standard equal series and parallel wiring.

Common balanced final loads include 0.5 ohm and 2 ohms.

If you want two matching subwoofers at 1 ohm, dual 4 ohm versions are normally the easier choice.

Planning One Subwoofer Now and Two Later

This decision should be made before buying the first subwoofer.

If Your Final Goal Is Two Subwoofers at 1 Ohm

Buy a D4 version from the beginning.

Your system may operate like this:

  • One D4 subwoofer now: 2 ohm final load
  • Two matching D4 subwoofers later: 1 ohm final load

The amplifier must produce suitable power at 2 ohms with one sub and 1 ohm after the second sub is added.

If Your Final Goal Is Two Subwoofers at 2 Ohms

Buy a D2 version from the beginning.

Two matching D2 subwoofers can be wired to a balanced 2 ohm final load.

Before running one D2 subwoofer temporarily, confirm whether you will operate it at 1 or 4 ohms and how much power the amplifier produces at that load.

Do Not Choose Only for the Temporary Setup

If you buy one D2 because it creates 1 ohm today and later add a second matching D2, the completed pair will not normally create the same 1 ohm load.

You may need to:

  • Rewire to 2 ohms
  • Use a different amplifier
  • Operate at 0.5 ohm only if the amplifier is rated for it
  • Replace the subwoofers with a different coil configuration

Planning the final build first can prevent buying equipment twice.

Which Voice-Coil Option Should You Buy for Three Subwoofers?

Three-subwoofer systems create less common final loads and require more planning.

Three D2 Subwoofers

When each D2 subwoofer’s coils are wired in series, each sub becomes 4 ohms.

Three matching 4 ohm loads in parallel create approximately a 1.33 ohm nominal final load.

Other configurations may create much lower or higher loads.

Three D4 Subwoofers

When each D4 subwoofer’s coils are wired in parallel, each sub becomes 2 ohms.

Three matching 2 ohm loads in parallel create approximately a 0.67 ohm nominal final load.

When each D4 subwoofer’s coils are wired in series, each sub becomes 8 ohms. Three matching 8 ohm loads in parallel create approximately a 2.67 ohm nominal load.

Three-subwoofer installations should be planned around the actual amplifier ratings instead of being forced toward a familiar 1 or 2 ohm number.

This is another place where the Sky High FE 8 can be interesting. Triple-8 and quad-8 builds may fit vehicles where larger subwoofers do not, but the final load, box space, amplifier, and electrical support still need to be planned before ordering.

Which Voice-Coil Option Should You Buy for Four Subwoofers?

Four D2 Subwoofers for a 1 Ohm Final Load

Four matching dual 2 ohm subwoofers can commonly create a balanced 1 ohm final load.

One common method is:

  • Wire both coils on every subwoofer in series.
  • Each D2 subwoofer becomes 4 ohms.
  • Wire the four completed 4 ohm subwoofers together in parallel.
  • Final load: 1 ohm.

Four D4 Subwoofers for a 2 Ohm Final Load

Four matching dual 4 ohm subwoofers can commonly create a balanced 2 ohm final load.

One common method is:

  • Wire both coils on every subwoofer in series.
  • Each D4 subwoofer becomes 8 ohms.
  • Wire the four completed 8 ohm subwoofers together in parallel.
  • Final load: 2 ohms.

Four D4 Subwoofers at 0.5 Ohm

Four D4 subwoofers can also be configured for a very low 0.5 ohm final load.

Only use that arrangement with an amplifier specifically designed for 0.5 ohm operation and an electrical system capable of supporting the demand.

Use the complete subwoofer wiring guide to confirm the exact connections before installation.

Quick D2 vs D4 Buying Guide

Choose D2 When:

  • You want one subwoofer wired to 1 ohm.
  • You want one subwoofer wired to 4 ohms.
  • You want two matching subwoofers wired to 2 ohms.
  • You want two matching subs at 0.5 ohm and own a true 0.5 ohm stable amplifier.
  • You want four matching subwoofers at a common 1 ohm final load.

Choose D4 When:

  • You want one subwoofer wired to 2 ohms.
  • You want one subwoofer wired to 8 ohms.
  • You want two matching subwoofers wired to 1 ohm.
  • You want two matching subwoofers wired to 4 ohms.
  • You want four matching subwoofers at a common 2 ohm final load.

Match the Final Load to the Amplifier

Before choosing D2 or D4, find these amplifier specifications:

  • Minimum stable impedance
  • RMS output at 1 ohm
  • RMS output at 2 ohms
  • RMS output at 4 ohms
  • Bridged minimum impedance when applicable
  • Recommended power and ground wire
  • Fuse rating

Then compare those ratings with:

  • Total subwoofer RMS power handling
  • Number of subwoofers
  • Available wiring configurations
  • Vehicle electrical support
  • Intended daily or demo use

Browse monoblock amplifiers for car audio subwoofers after calculating the final load.

For compact 8-inch builds, this matters even more because customers often start with one sub and later want to add a second, third, or fourth. That is why it is smart to choose the correct D2 or D4 version of the Sky High FE 8 subwoofer from the beginning instead of buying twice.

Can a 1 Ohm Stable Amplifier Run at 2 Ohms?

Yes.

An amplifier rated as stable at 1 ohm can normally operate at higher loads such as 2 or 4 ohms.

It will usually produce less power at the higher load.

Check the amplifier’s RMS rating at the exact final impedance to make sure it still provides suitable power for the subwoofer system.

Can a 2 Ohm Stable Amplifier Run at 1 Ohm?

Not unless the manufacturer specifically rates it for 1 ohm operation.

Running below the amplifier’s minimum stable load can cause:

  • Excessive current demand
  • Overheating
  • Protect mode
  • Blown fuses
  • Clipping
  • Damaged output devices
  • Amplifier failure

If an amplifier repeatedly shuts down, use the amplifier protect-mode troubleshooting guide.

Do Not Depend on Box Rise to Protect the Amplifier

A subwoofer’s impedance changes with frequency and enclosure behavior while playing.

This is commonly discussed as impedance rise or box rise.

That does not make it safe to wire below the amplifier’s rated minimum impedance.

At some frequencies and operating conditions, the amplifier may still see a load close to the nominal wired impedance.

Choose the wiring from the amplifier’s published rating, not from the hope that impedance rise will keep it safe.

Nominal Impedance vs Meter Reading

A D2 or D4 label describes nominal impedance, not the exact DC resistance a multimeter will display.

A meter commonly reads lower than the nominal rating because it measures DC resistance rather than the complete frequency-dependent impedance.

For example, a nominal 4 ohm voice coil may measure somewhere below 4 ohms at rest.

The exact reading varies by subwoofer.

Use the measurement to:

  • Confirm the coils are connected
  • Check for open or shorted coils
  • Verify the completed wiring is in the expected range
  • Catch wiring mistakes before connecting the amplifier

Do not assume a healthy D4 coil must display exactly 4.00 ohms on a meter.

Should You Use Both Voice Coils?

Yes, unless the subwoofer manufacturer specifically approves another method.

A dual voice coil subwoofer is designed for both coils to be used.

Running only one coil can change:

  • Power handling
  • Thermal behavior
  • Motor behavior
  • Subwoofer parameters
  • Enclosure performance

Both coils should receive the same signal and be wired correctly.

Can You Mix D2 and D4 Subwoofers?

It is generally a poor idea to operate D2 and D4 subwoofers together on the same amplifier channel.

Different impedance branches may receive different current and power.

That can create:

  • Uneven output
  • Uneven cone movement
  • Different heating between subwoofers
  • Unbalanced power distribution
  • Difficult gain and enclosure behavior

Use matching subwoofers with the same:

  • Model
  • Voice-coil impedance
  • RMS rating
  • Mechanical condition
  • Enclosure environment

Does D2 or D4 Change Sound Quality?

The voice-coil label alone does not determine sound quality.

A properly matched D2 and D4 version of the same subwoofer can both perform well.

Differences that matter more include:

  • Amplifier power and stability
  • Enclosure design
  • Box volume
  • Port tuning and port area
  • System voltage
  • Gain and crossover settings
  • Vehicle acoustics
  • Subwoofer design

A higher final impedance does not automatically guarantee better sound.

A lower final impedance does not automatically guarantee louder bass.

The complete system determines the result.

Does D2 or D4 Change RMS Power Handling?

Many subwoofer models carry the same total RMS power rating in their D2 and D4 versions.

However, always confirm the specifications for the exact version being purchased.

Do not assume that each coil separately handles the subwoofer’s full advertised RMS rating.

The published RMS rating normally applies to the complete subwoofer with both voice coils used correctly.

Match Amplifier Power to Total Subwoofer RMS

When using multiple matching subwoofers, add their RMS ratings together.

Examples:

  • Two 500 watt RMS subwoofers: 1,000 watts RMS total
  • Two 1,000 watt RMS subwoofers: 2,000 watts RMS total
  • Four 750 watt RMS subwoofers: 3,000 watts RMS total

Then choose an amplifier that produces suitable clean RMS power at the final wired impedance.

Do not match equipment using peak or maximum wattage claims.

For FE 8 builds, this makes the math simple. One Sky High FE 8 is 500 watts RMS, two FE 8s are 1,000 watts RMS combined, and four FE 8s are 2,000 watts RMS combined. Match the amplifier output to the final ohm load and total RMS goal, not just the biggest number printed on the amp.

Electrical Support Matters More at Lower Loads

As amplifier current demand increases, the installation needs stronger support.

A high-power low-impedance setup may require:

  • Larger OFC power and ground wire
  • A clean bare-metal amplifier ground
  • Correct fuse protection
  • A Big 3 upgrade
  • Additional battery reserve
  • A high-output alternator
  • Secure distribution blocks and terminals

Browse car audio amp kits and power, ground, and speaker wire when planning the installation.

For larger systems, compare Big 3 upgrade kits, Advanced Electric battery support, and high output alternators.

For grounding help, read the car audio grounding guide.

Gain Setting Still Matters

Choosing the correct D2 or D4 version does not protect the subwoofer from poor tuning.

Improper gain can cause the amplifier to clip and send a distorted signal to the voice coils.

After the system is wired:

  • Confirm the final load.
  • Verify system voltage.
  • Set crossover filters correctly.
  • Set gain using a repeatable method.
  • Monitor the system for clipping, heat, and mechanical stress.

Use the amplifier gain-setting guide after installation.

The Subwoofer Box Still Matters

Voice-coil impedance determines wiring flexibility. It does not determine the enclosure your subwoofer needs.

The enclosure still needs to match:

  • The exact subwoofer model
  • Recommended airspace
  • Sealed or ported design
  • Port tuning
  • Port area
  • Mounting depth
  • Available vehicle space
  • Intended power level

A correctly wired subwoofer in the wrong enclosure can still sound weak, peaky, sloppy, or stressed.

Browse subwoofer boxes and enclosures or use the complete car audio bass-setup guide to plan the subs, amplifier, box, wiring, and electrical support together.

If you are choosing the FE 8 because space is limited, also read the Sky High FE 8 small-box bass guide. A compact 8-inch subwoofer still needs the correct enclosure to perform the way it should.

Common D2 and D4 Buying Mistakes

Buying the Subwoofer Before Choosing the Final Load

Decide what impedance the amplifier should see before ordering the coil version.

Assuming D2 Is Always Louder

Output depends on the amplifier, final wiring, enclosure, and complete system.

Assuming D4 Always Sounds Better

Higher coil impedance alone does not guarantee better sound quality.

Buying One D2 and Planning to Add Another at the Same 1 Ohm Load

Two D2 subwoofers do not normally create a balanced 1 ohm final load.

Buying Two D2 Subs for a 1 Ohm Stable Amplifier

Two D4 subwoofers are normally the easier route to a balanced 1 ohm load.

Running Below the Amplifier’s Minimum Impedance

Never assume the amplifier will survive because someone else used the same model below its rating.

Using Only One Voice Coil

Use both coils according to the manufacturer’s wiring instructions.

Mixing D2 and D4 Subwoofers

Use matching voice-coil configurations so power is distributed evenly.

Ignoring the Electrical System

The lower load may cause the amplifier to demand more current than the vehicle can supply.

Using Max Power Ratings

Match the amplifier and subwoofers using RMS power at the final impedance.

How to Choose D2 or D4 in Five Steps

  1. Choose the number of subwoofers: one, two, three, or four.
  2. Choose the target final impedance based on the amplifier’s published ratings.
  3. Select D2 or D4 so the version reaches that load with balanced wiring.
  4. Match total RMS power by comparing combined subwoofer RMS with amplifier RMS at the final load.
  5. Plan the supporting system: box, wire, grounds, fuses, batteries, alternator, and tuning.

Frequently Asked Questions

What Does Dual 2 Ohm Mean?

Dual 2 ohm means the subwoofer has two separate 2 ohm voice coils. This is also called D2. One dual 2 ohm subwoofer can normally be wired to 1 ohm in parallel or 4 ohms in series.

What Does Dual 4 Ohm Mean?

Dual 4 ohm means the subwoofer has two separate 4 ohm voice coils. This is also called D4. One dual 4 ohm subwoofer can normally be wired to 2 ohms in parallel or 8 ohms in series.

How Do You Wire a Dual 2 Ohm Subwoofer?

One dual 2 ohm subwoofer can normally be wired to 1 ohm by wiring both coils in parallel, or 4 ohms by wiring both coils in series. The correct choice depends on the amplifier’s rated power and minimum stable impedance.

How Do You Wire a Dual 4 Ohm Subwoofer to 2 Ohms?

One dual 4 ohm subwoofer can normally be wired to 2 ohms by wiring both 4 ohm coils in parallel. This is a common choice when the amplifier makes the right RMS power at 2 ohms.

How Do You Wire 2 Dual 4 Ohm Subs?

If you want two dual 4 ohm subs at 1 ohm, wire each subwoofer’s coils in parallel first so each sub becomes 2 ohms. Then wire both completed subwoofers together in parallel for a 1 ohm final load.

What Can One Dual 2 Ohm Subwoofer Be Wired To?

One D2 subwoofer can normally be wired to 1 ohm in parallel or 4 ohms in series.

What Can One Dual 4 Ohm Subwoofer Be Wired To?

One D4 subwoofer can normally be wired to 2 ohms in parallel or 8 ohms in series.

Which Is Better, Dual 2 Ohm or Dual 4 Ohm?

Neither is automatically better. Choose the version that creates the correct final load for the amplifier and number of subwoofers.

Which Is Louder, D2 or D4?

Neither is inherently louder. The amplifier power at the final wired impedance and the complete system determine output.

Does D4 Sound Better Than D2?

Not automatically. Sound quality depends more on the complete subwoofer design, enclosure, amplifier, tuning, and vehicle.

Does D2 Handle More Power Than D4?

Not necessarily. Many D2 and D4 versions of the same model share the same total RMS rating. Confirm the exact specifications.

Should I Buy D2 or D4 for One Subwoofer at 1 Ohm?

Choose D2. Its two 2 ohm coils can be wired in parallel to 1 ohm.

Should I Buy D2 or D4 for One Subwoofer at 2 Ohms?

Choose D4. Its two 4 ohm coils can be wired in parallel to 2 ohms.

Should I Buy D2 or D4 for Two Subwoofers at 1 Ohm?

Choose two matching D4 subwoofers.

Should I Buy D2 or D4 for Two Subwoofers at 2 Ohms?

Choose two matching D2 subwoofers.

Should I Buy the Sky High FE 8 in D2 or D4?

Choose the Sky High FE 8 D2 if you are running one subwoofer on a 1 ohm stable amp or planning a two-subwoofer setup that needs a 2 ohm final load. Choose the Sky High FE 8 D4 if you are running one subwoofer at 2 ohms or planning two matching FE 8s at a 1 ohm final load. The best choice depends on the amplifier and final system plan, not because D2 or D4 is automatically better.

Is the Sky High FE 8 Good for Multiple 8-Inch Builds?

Yes. The Sky High FE 8 can make sense for single, dual, triple, quad, and other multiple 8-inch builds when the enclosure, amplifier, final impedance, and electrical system are planned correctly. Browse the 8-inch subwoofer collection if you want to compare compact bass options.

Can Two D2 Subwoofers Be Wired to 1 Ohm?

Not with the common balanced series-parallel configurations. Two D2 subwoofers commonly create 0.5 ohm or 2 ohms.

Can Two D4 Subwoofers Be Wired to 1 Ohm?

Yes. Wire each subwoofer’s coils in parallel, then wire both completed subwoofers together in parallel.

Can Two D2 Subwoofers Be Wired to 0.5 Ohm?

Yes, but only use that configuration with an amplifier specifically rated for 0.5 ohm operation.

What Should I Buy if I Want One Sub Now and Two Later at 1 Ohm?

Buy D4. One D4 can run at 2 ohms now, and two matching D4 subwoofers can later be wired to 1 ohm.

What Should I Buy if I Want Two Subs Later at 2 Ohms?

Buy D2. Two matching D2 subwoofers can be wired to a balanced 2 ohm load.

Can I Mix a D2 and D4 Subwoofer?

It is generally not recommended because the subwoofers may receive unequal power.

Can I Run Only One Voice Coil?

Do not do so unless the subwoofer manufacturer specifically approves it. DVC subwoofers are normally designed to use both coils.

Why Does My Meter Read Less Than 2 or 4 Ohms?

A multimeter reads DC resistance, which is normally lower than the subwoofer’s nominal impedance rating.

Can a 1 Ohm Amp Run a 2 Ohm Subwoofer Load?

Yes. A 1 ohm stable amplifier can normally operate at 2 ohms, although it will usually make less power.

Can a 2 Ohm Stable Amp Run at 1 Ohm?

No, unless the manufacturer specifically rates it for 1 ohm operation.

Does Series Wiring Reduce Sound Quality?

Series wiring does not automatically reduce sound quality. It raises the final impedance, which changes how much power the amplifier may produce.

Does Parallel Wiring Make a Subwoofer Louder?

Parallel wiring lowers the final impedance. A compatible amplifier may produce more power at that load, but the result depends on the complete system.

Does the Final Ohm Load Change While Music Plays?

Yes. A subwoofer’s actual impedance varies with frequency and enclosure behavior. The nominal wired load should still remain within the amplifier’s published rating.

What Happens if I Wire the Subwoofer Too Low?

The amplifier may overheat, draw excessive current, enter protect mode, blow fuses, or fail.

Should I Pick the Amplifier or Subwoofer First?

Either can be selected first, but the amplifier, number of subs, RMS power, and final impedance must be planned together before ordering the coil configuration.

How Much Amplifier Power Do I Need?

Add the RMS ratings of all matching subwoofers and choose an amplifier producing suitable clean RMS power at the final wired impedance.

Shop Subwoofers, Amps, and Installation Parts

If you are choosing D2 or D4, you are really planning the whole bass system. Start with the Sky High FE 8 500W RMS subwoofer if you want a compact 8-inch option, or browse all car audio subwoofers if you are still comparing sizes and brands.

After the subwoofer choice is clear, match it with the right monoblock subwoofer amplifier, subwoofer box or enclosure, amplifier wiring kit, power, ground, and speaker wire, and fuse holders and power distribution.

Helpful Subwoofer and Amplifier Guides

These guides can help you finish the system plan before ordering:

Why Trust Audio Sellerz With Subwoofer Matching?

Audio Sellerz is a real car audio shop in Norton, Ohio. We regularly help customers who have selected good subwoofers and good amplifiers that cannot be wired together at the load they expected.

The voice-coil option affects the entire buying plan:

  • Final amplifier impedance
  • Available RMS power
  • Number of subwoofers
  • Future expansion
  • Electrical demand
  • Power and ground wiring
  • Fuse protection
  • Amplifier tuning

Choosing D2 or D4 correctly before ordering can prevent protect-mode problems, weak output, unsafe wiring, and the cost of replacing equipment later.

Customers near Norton, Akron, Cleveland, and Summit County can learn more about Audio Sellerz local car audio sales and installation services.

Dealers, installers, and shops can also apply for wholesale support through AudioResellerz.com.

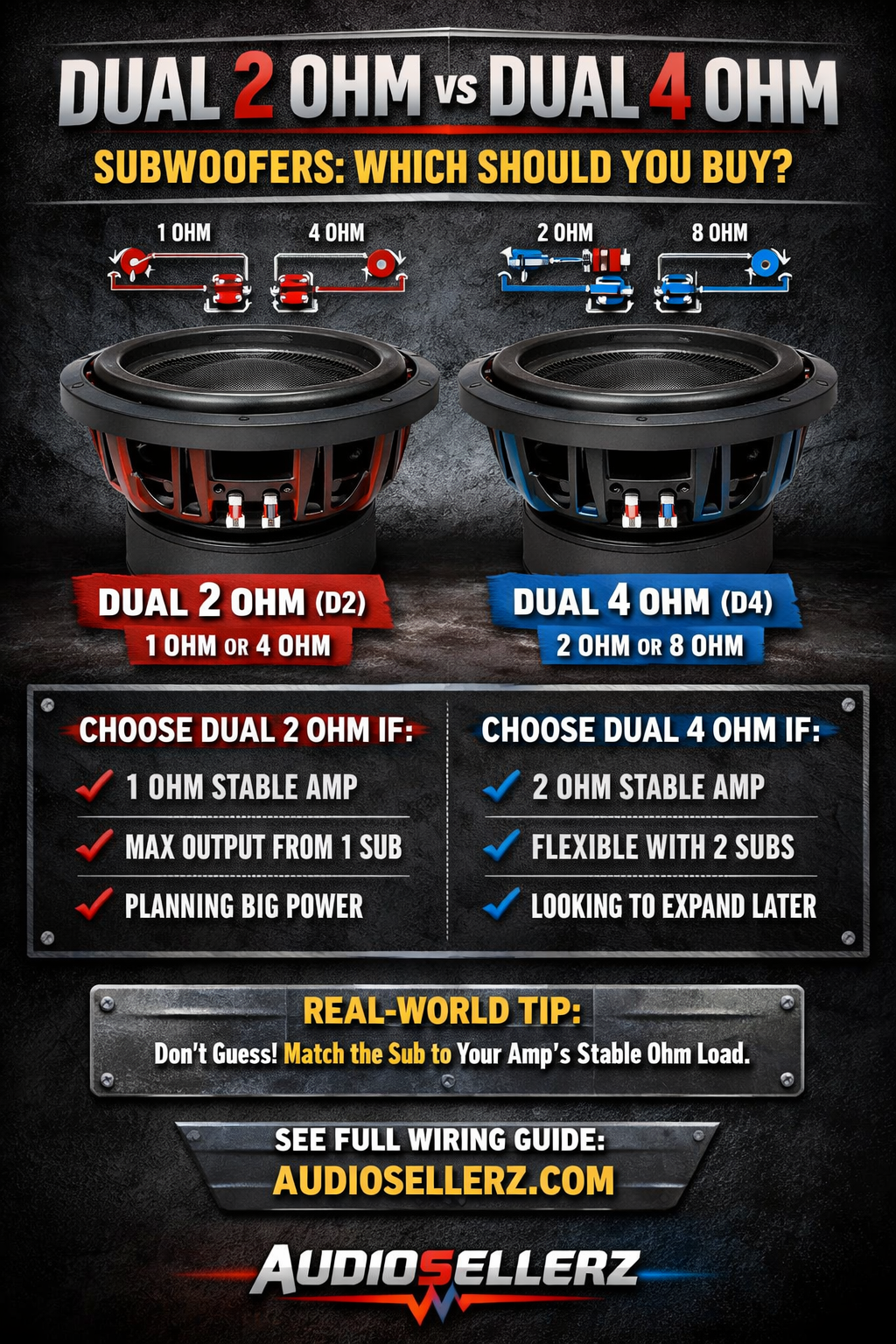

Final Answer: Should You Buy a Dual 2 Ohm or Dual 4 Ohm Subwoofer?

Work backward from the amplifier and the completed system.

  1. Decide how many subwoofers you will ultimately use.
  2. Find the amplifier’s minimum stable impedance.
  3. Check its RMS output at each supported load.
  4. Choose the D2 or D4 version that creates the correct final impedance.
  5. Match amplifier RMS power to the combined subwoofer RMS rating.
  6. Confirm the wiring with a diagram before installation.
  7. Support the amplifier with proper wire, grounds, fusing, and electrical capacity.

For one subwoofer at 1 ohm, choose D2.

For one subwoofer at 2 ohms, choose D4.

For two subwoofers at 1 ohm, choose D4.

For two subwoofers at 2 ohms, choose D2.

For the Sky High FE 8, that means D2 is usually the cleaner choice for a single-sub 1 ohm setup, while D4 is usually the cleaner choice for two FE 8s wired to 1 ohm. If you are building around more than one FE 8, confirm the final wiring before ordering so the amp, subs, and electrical system all match.

Neither voice-coil option is universally better. The correct version is the one that matches the amplifier and complete build without forcing unsafe wiring.

Follow Audio Sellerz

Follow Audio Sellerz for subwoofer wiring, D2 and D4 buying guidance, amplifier matching, enclosure planning, gain setting, and real car audio builds. Stay connected with us on Facebook, Instagram, TikTok, and YouTube.

Back to blog

Leave a comment

Please note, comments need to be approved before they are published.
