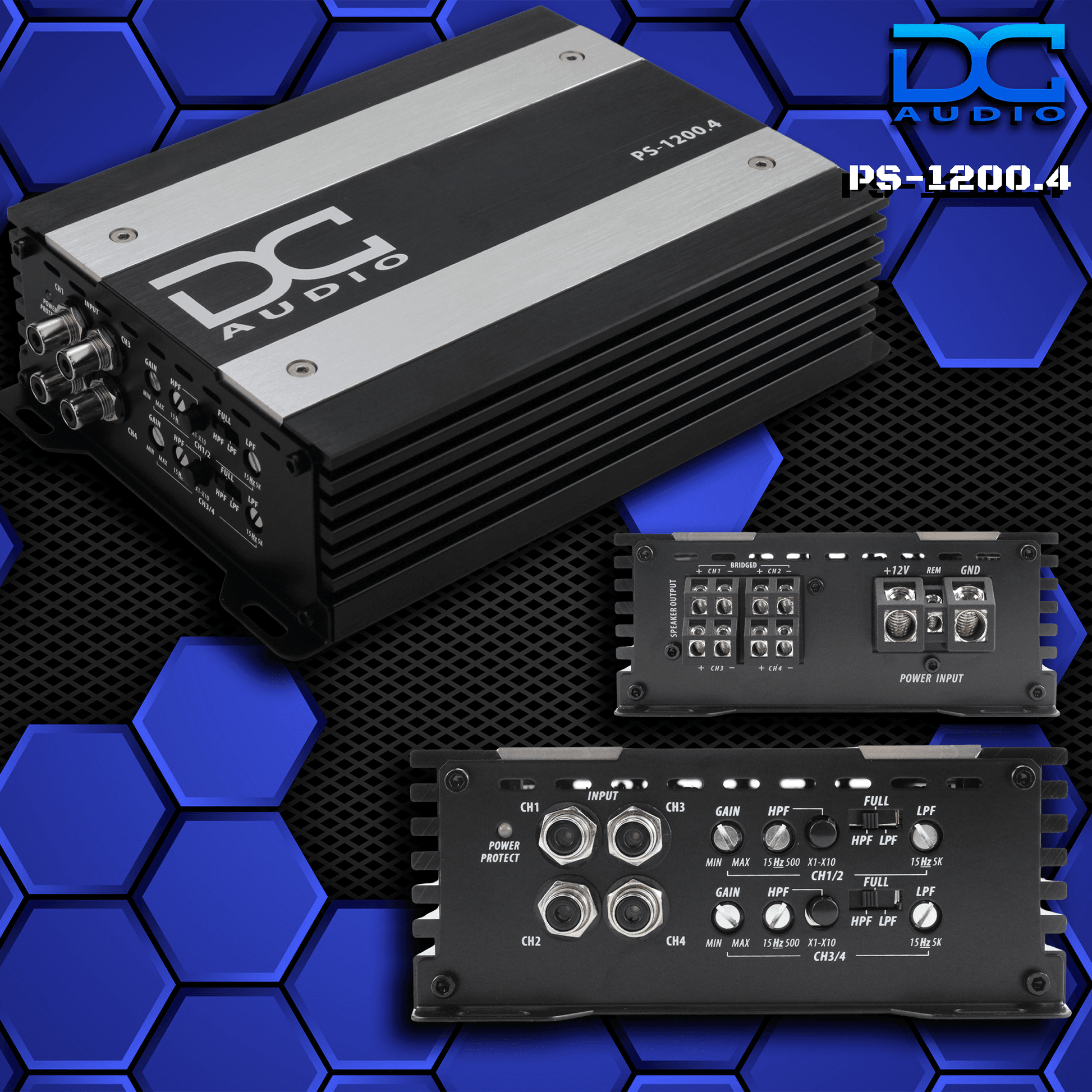

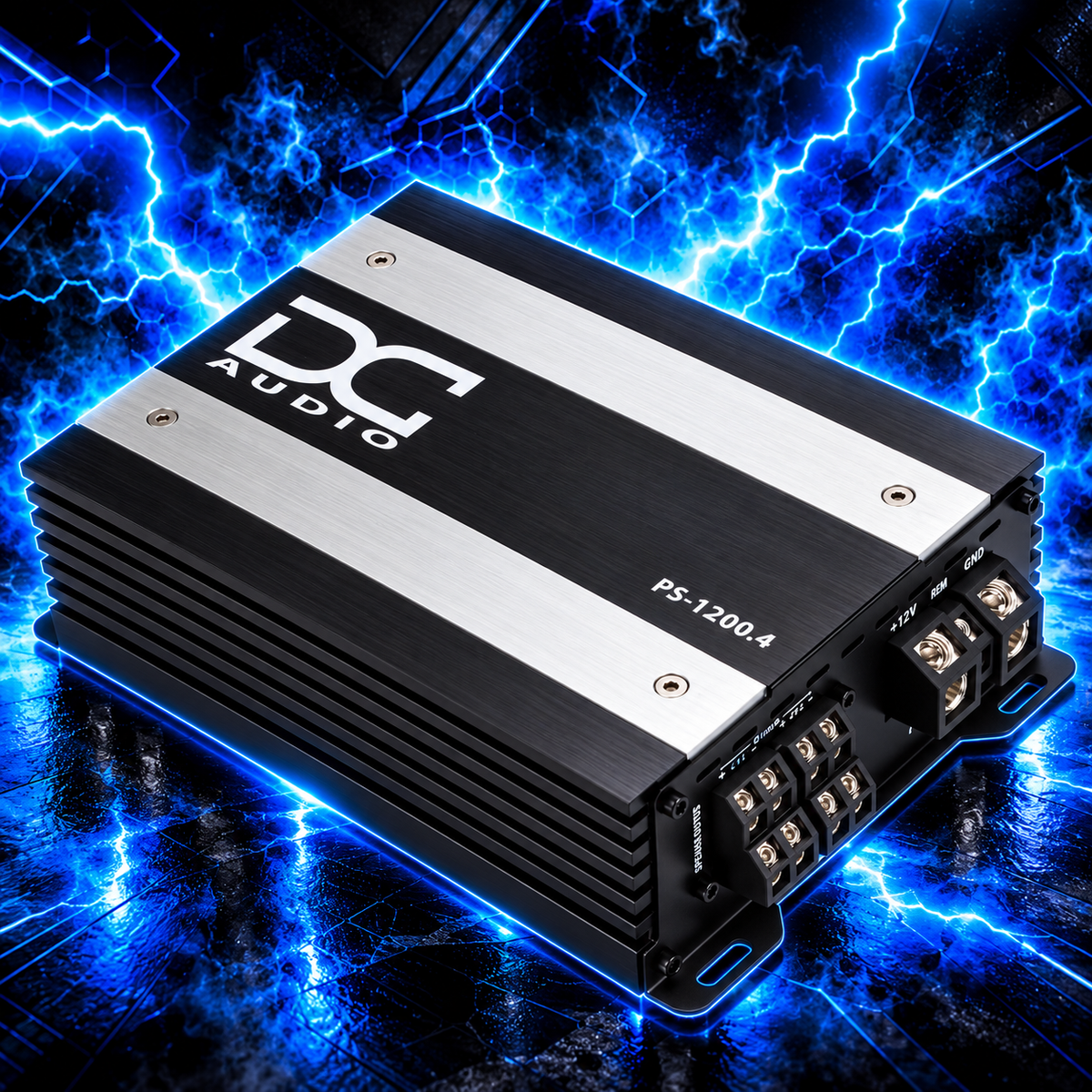

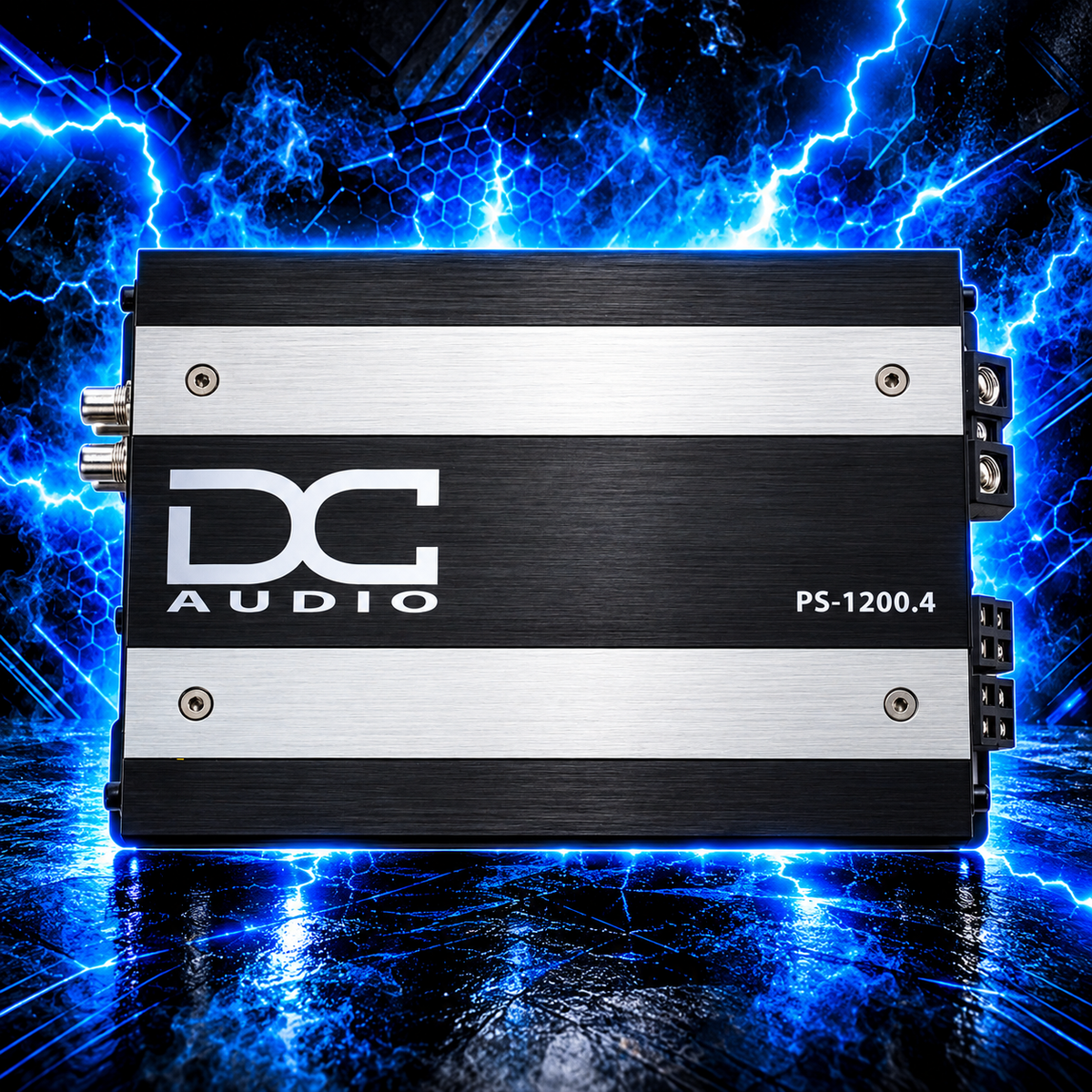

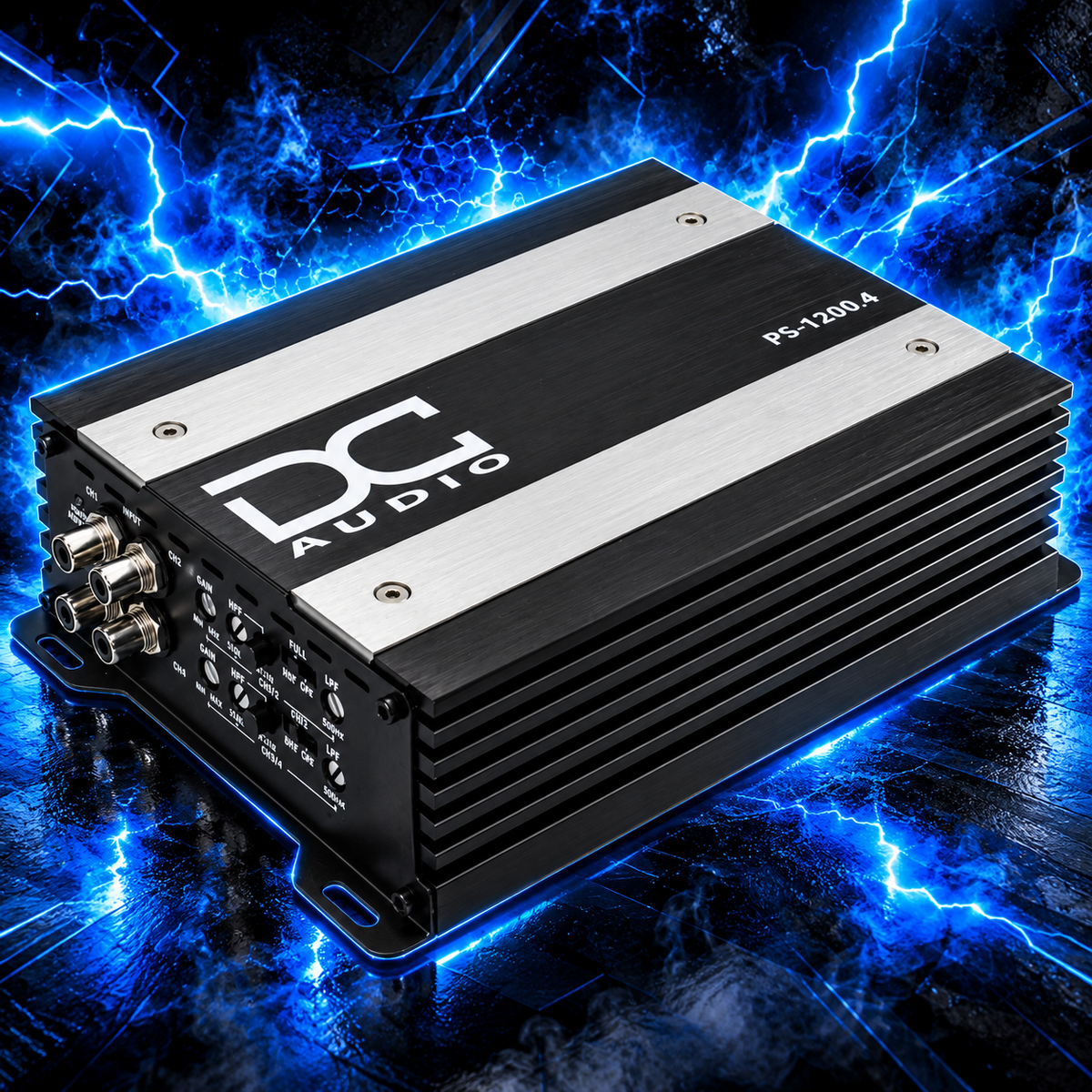

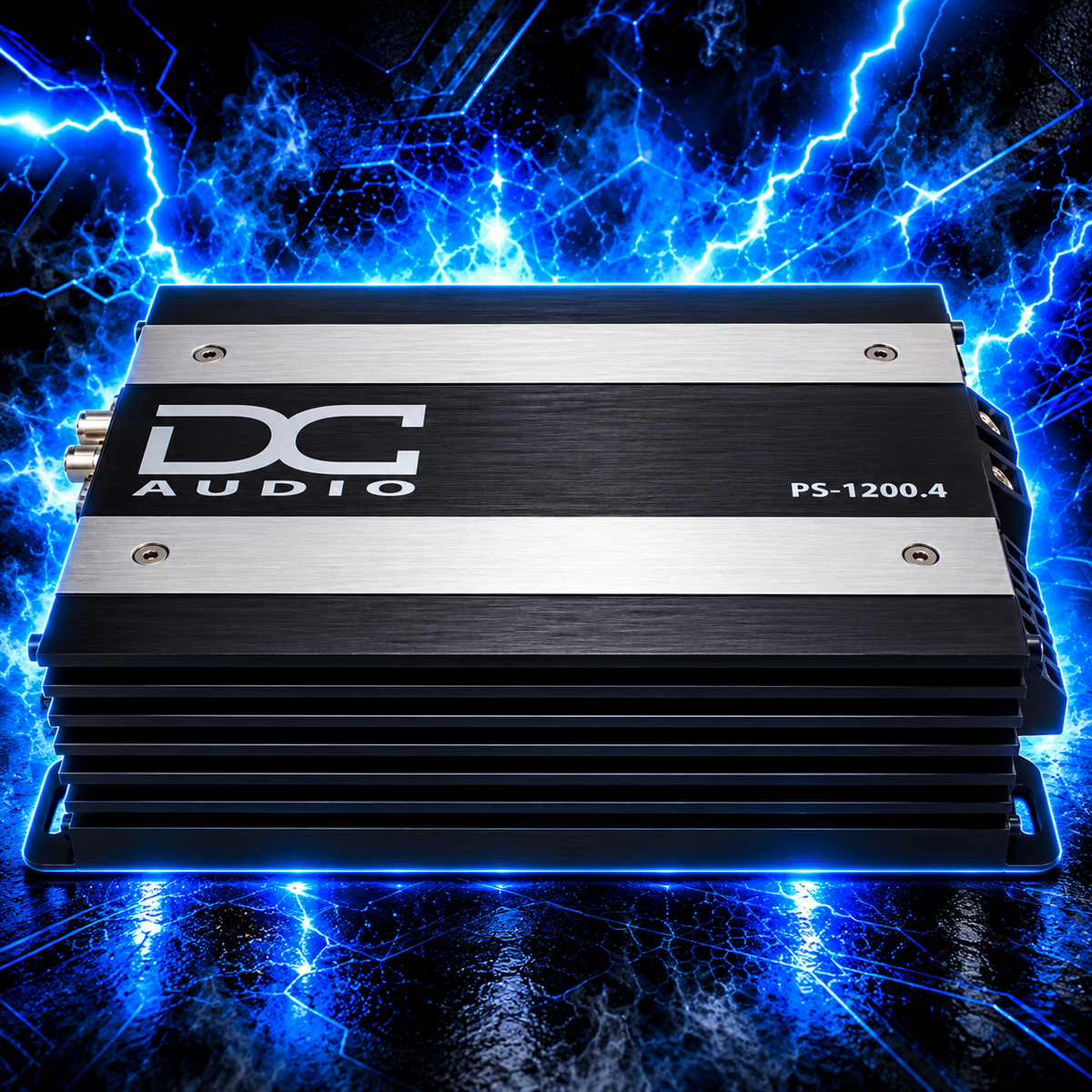

PS1200x4 - Mini 4 Channel Amplifier
PS1200x4 - Mini 4 Channel Amplifier
Couldn't load pickup availability
PS1200x4 - Mini 4 Channel Amplifier
Sold by AudioSellerz.com
The DC Audio PS1200x4 - Mini 4 Channel Amplifier is a DC Audio 4-channel car audio amplifier for customers planning powered speakers, coaxials, mids, highs, or another compatible full-range setup. The published specifications below remain the source for output, impedance, voltage, dimensions, controls, and installation requirements.
A speaker amplifier should be selected around the speakers it will power, their impedance, the number of channels needed, the intended crossover points, and the available electrical support. Matching those details helps the amplifier, speakers, wiring, and source signal work together as one system.
Original Product Details

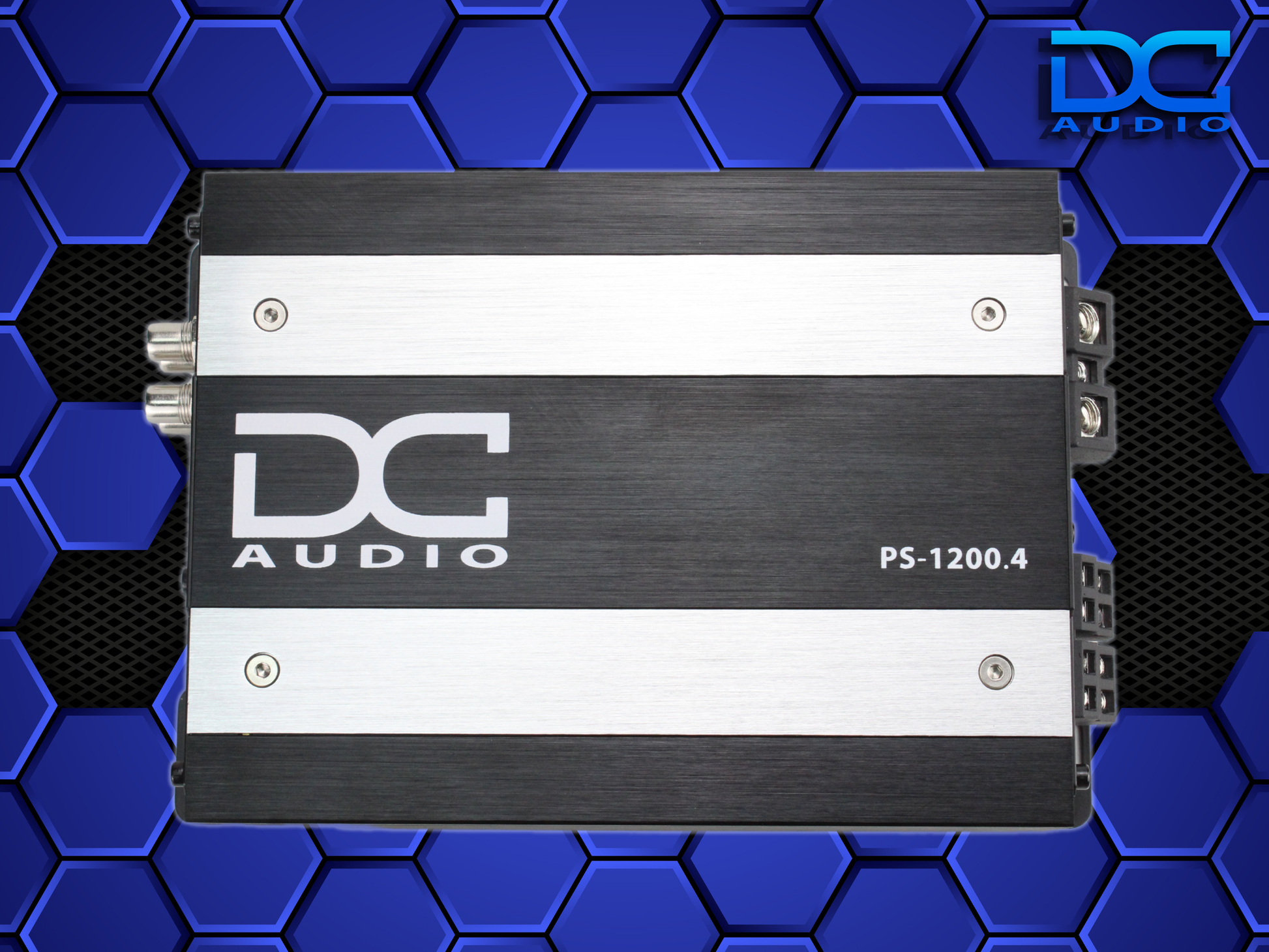

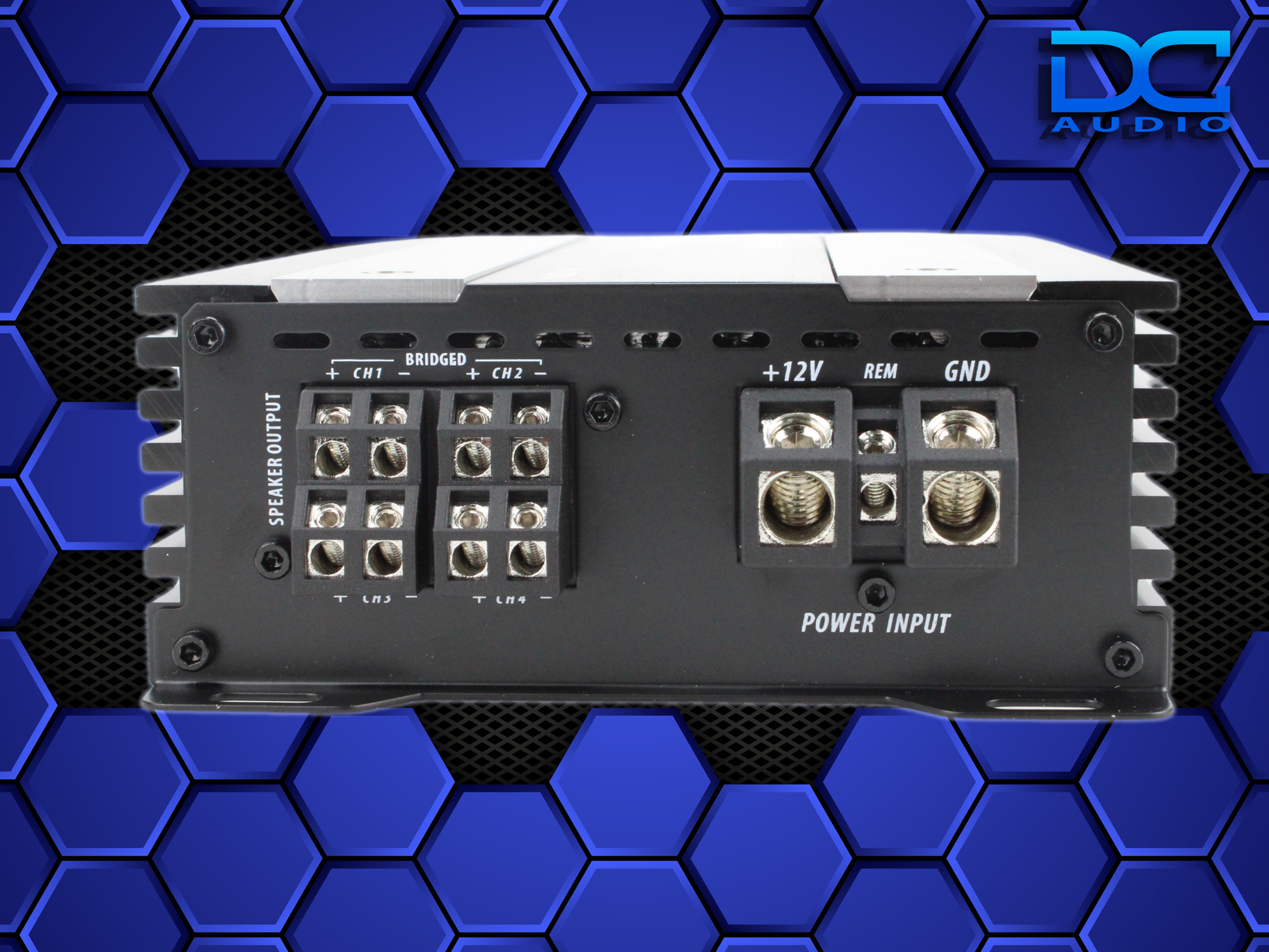

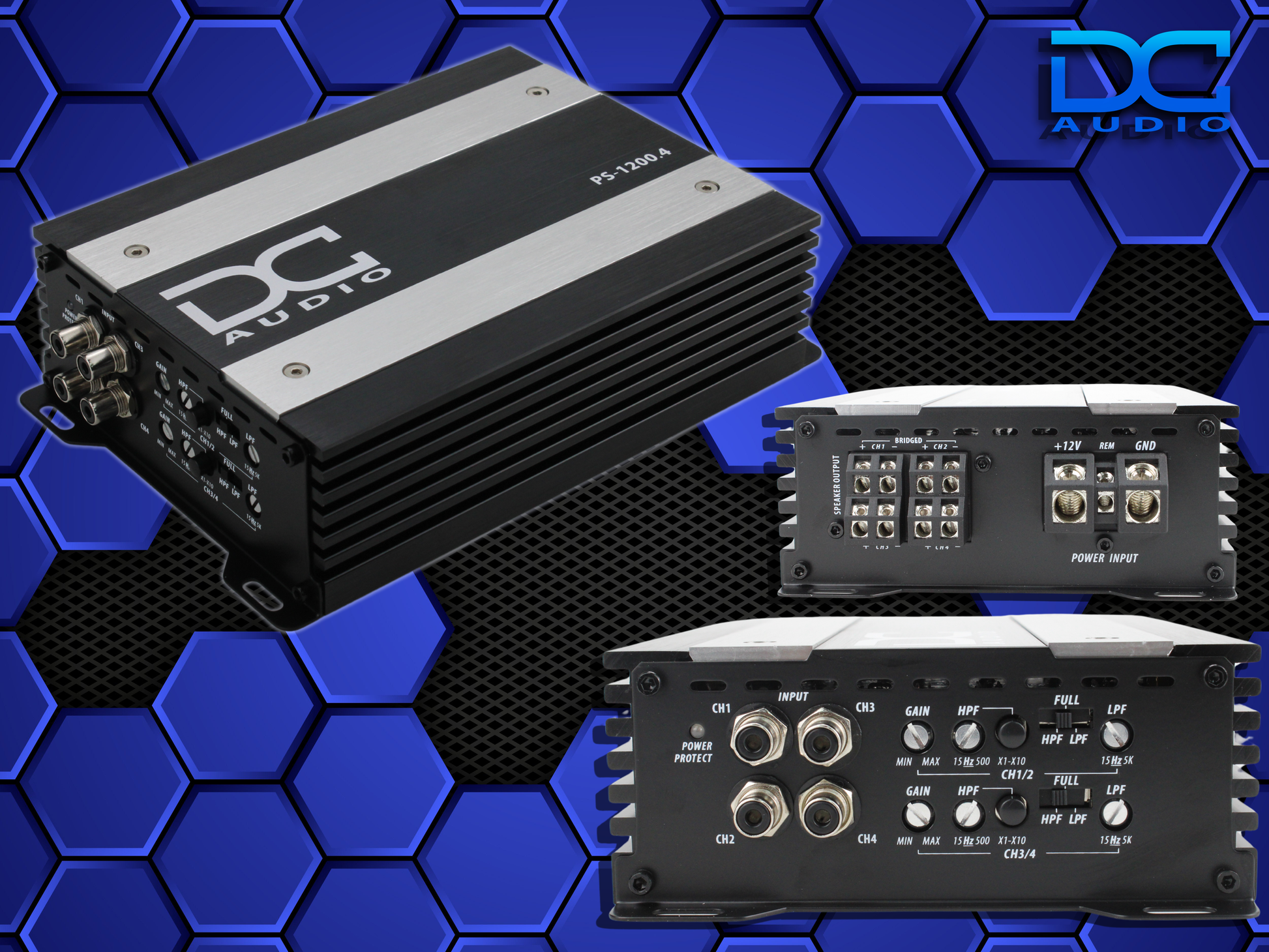

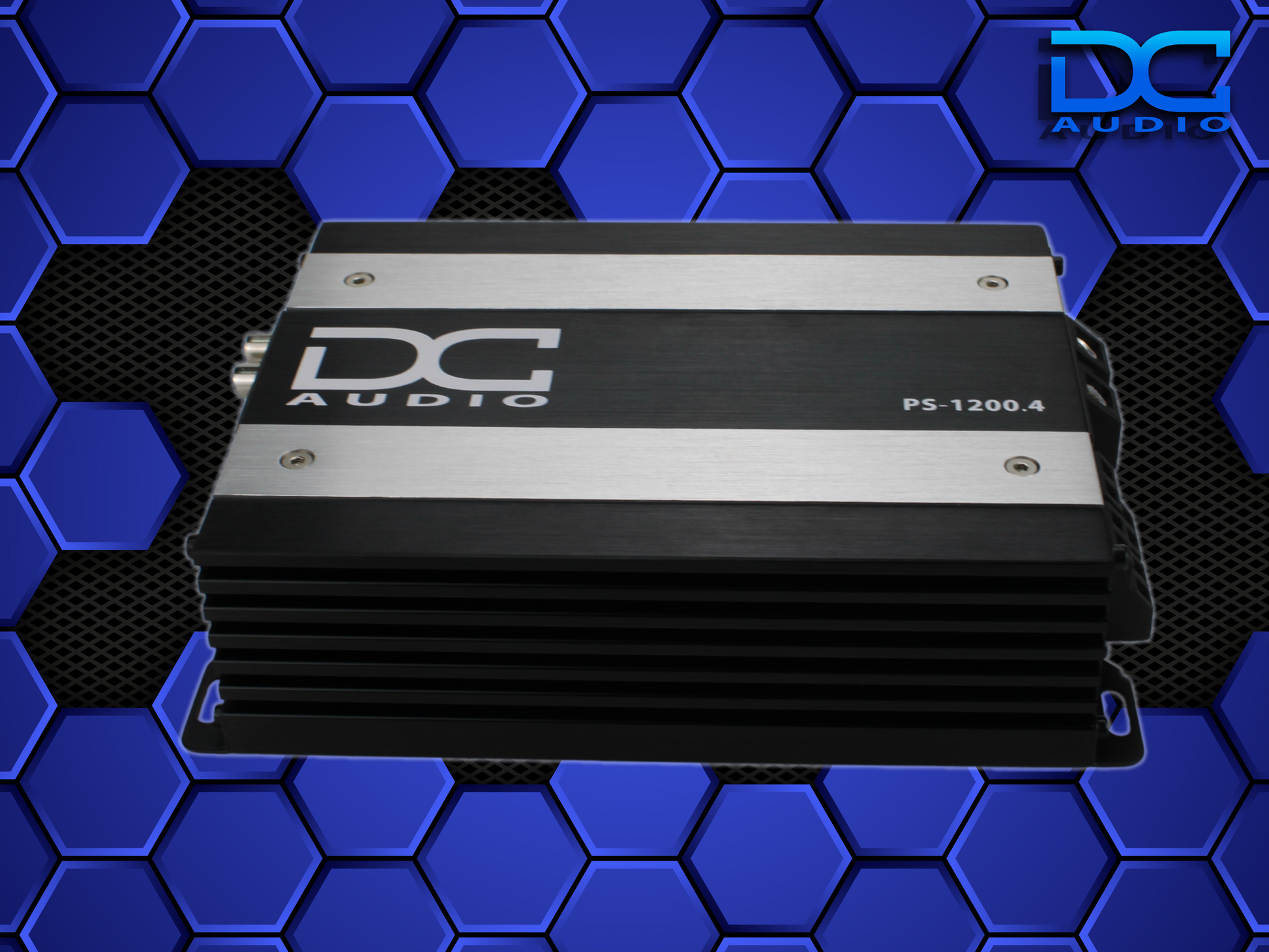

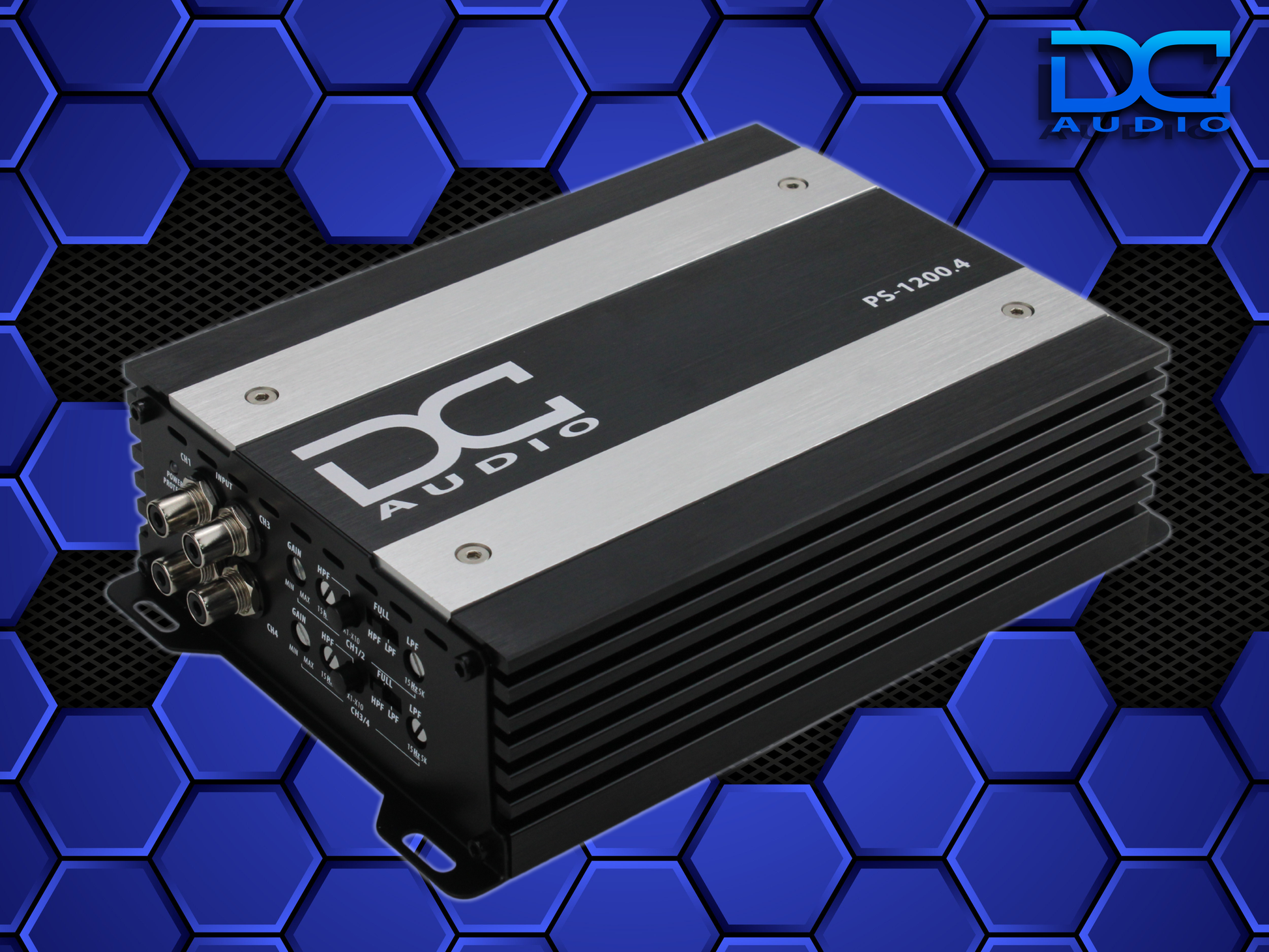

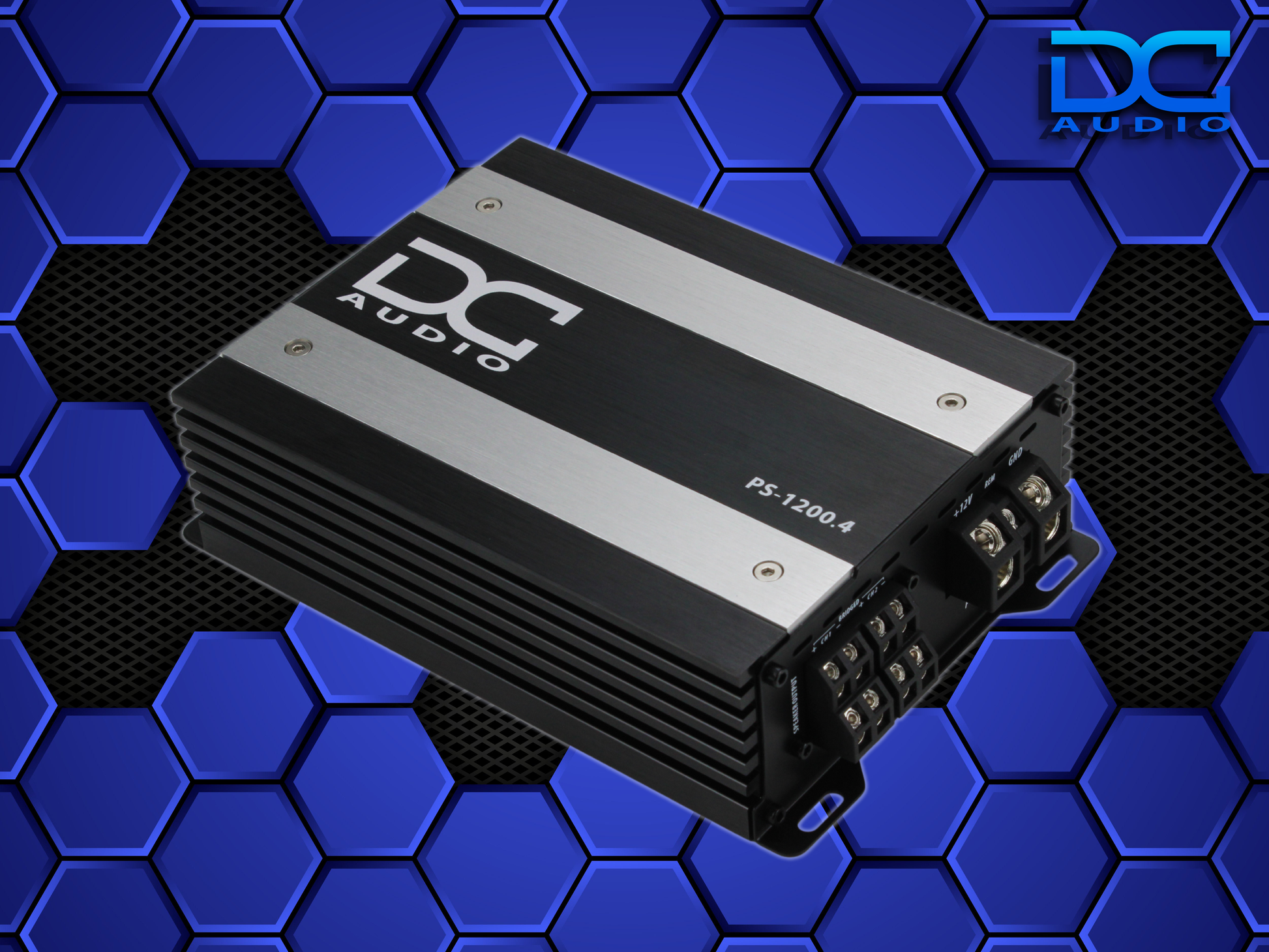

The DC-PS1200x4 is a compact series full bridge amplifier capable of making 1,200 watts. It’s High power 4 Channel amplifier. It has 4awg inputs and can be ran 4 ohms per channel, 2 ohms per channel or bridged at 4ohms
Output Power (RMS)
4 ohm 190Wx4 @ 14.4 Volts
2 ohm 300Wx4 @ 14.4 Volts
4ohm rms bridged power : 600W x 2

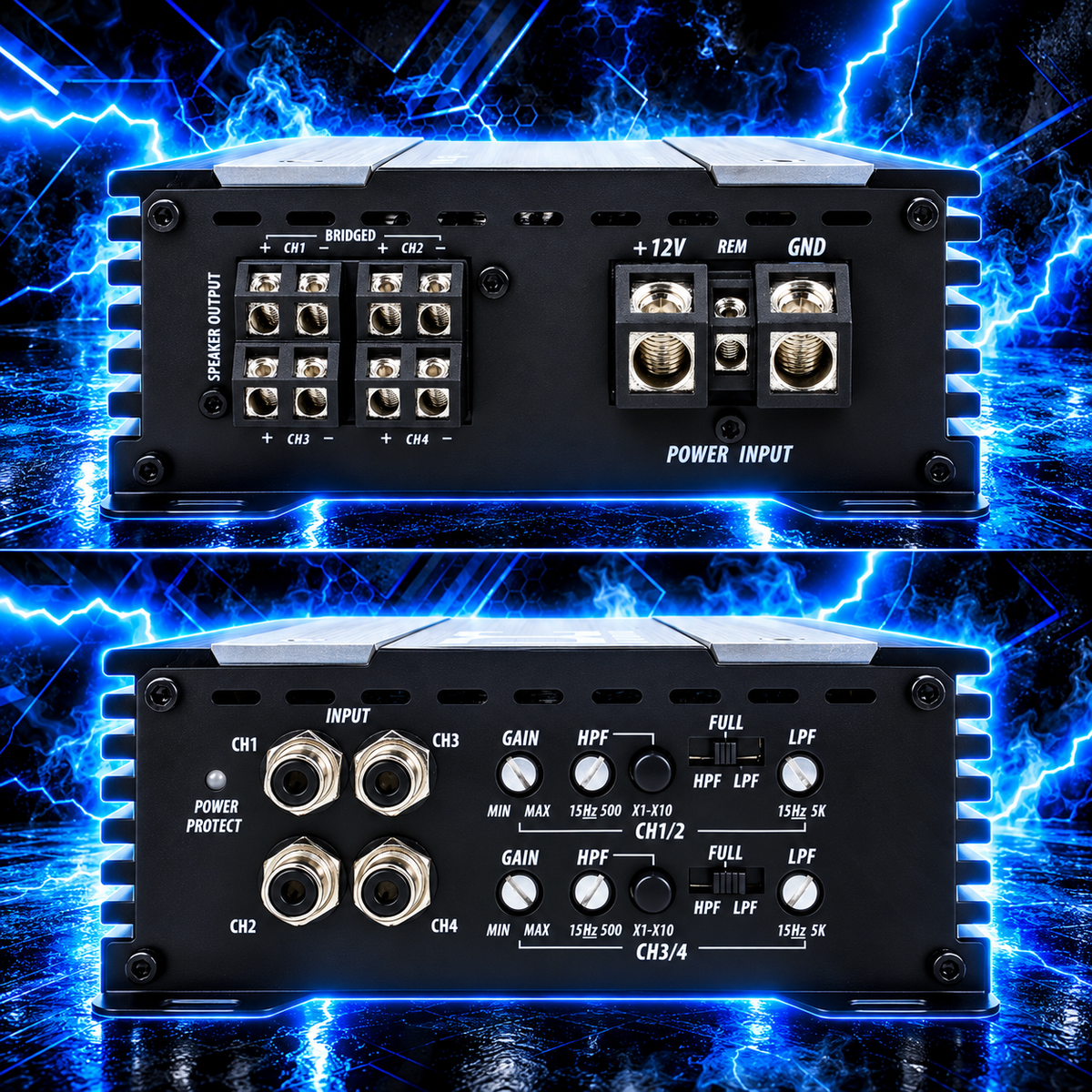

Key Features
4 ohm bridged stable
2 ohm stereo stable

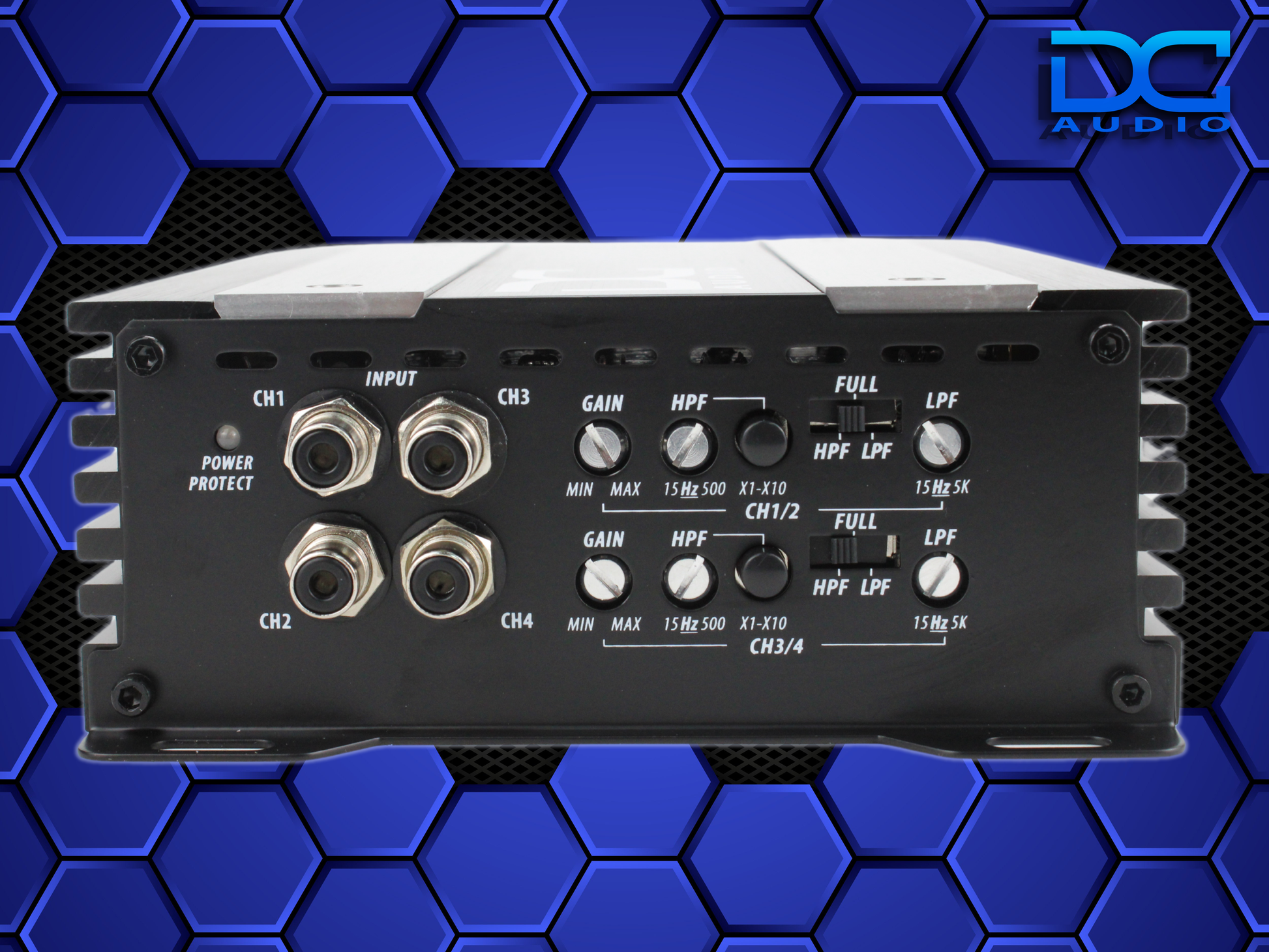

Variable low pass filter
Variable High pass filter
Full Range Output
9-16.5 Volts Capable
x10 Crossover Switches
Tiffany Style RCA Jacks
Power / Protect LED
AMP SPECS:
| DC Amp Model: | PS-1200x4 |
|---|---|
| Input Sensitivity | 4V~0.4V |
| Frequency Response | 10Hz~20KHz |
| 12dB / Octave Crossover | YES |
| High / Low Pass | 50Hz ~ 500Hz |
| Subsonic Filter | NO |
| Bass Boost @45hz | NO |
| Phase Shift | NO |
| Remote Control | NO |
| Clip Indicator | No |
| Signal to Noise Ratio | dB90 |
| Damping Factor | 90< |
| THD @ 4ohms | Less than 1% |
| Fuse Rating | External 100 amp |
| LED Status Lights | Power/Protect |
| Master/Slave | NO |

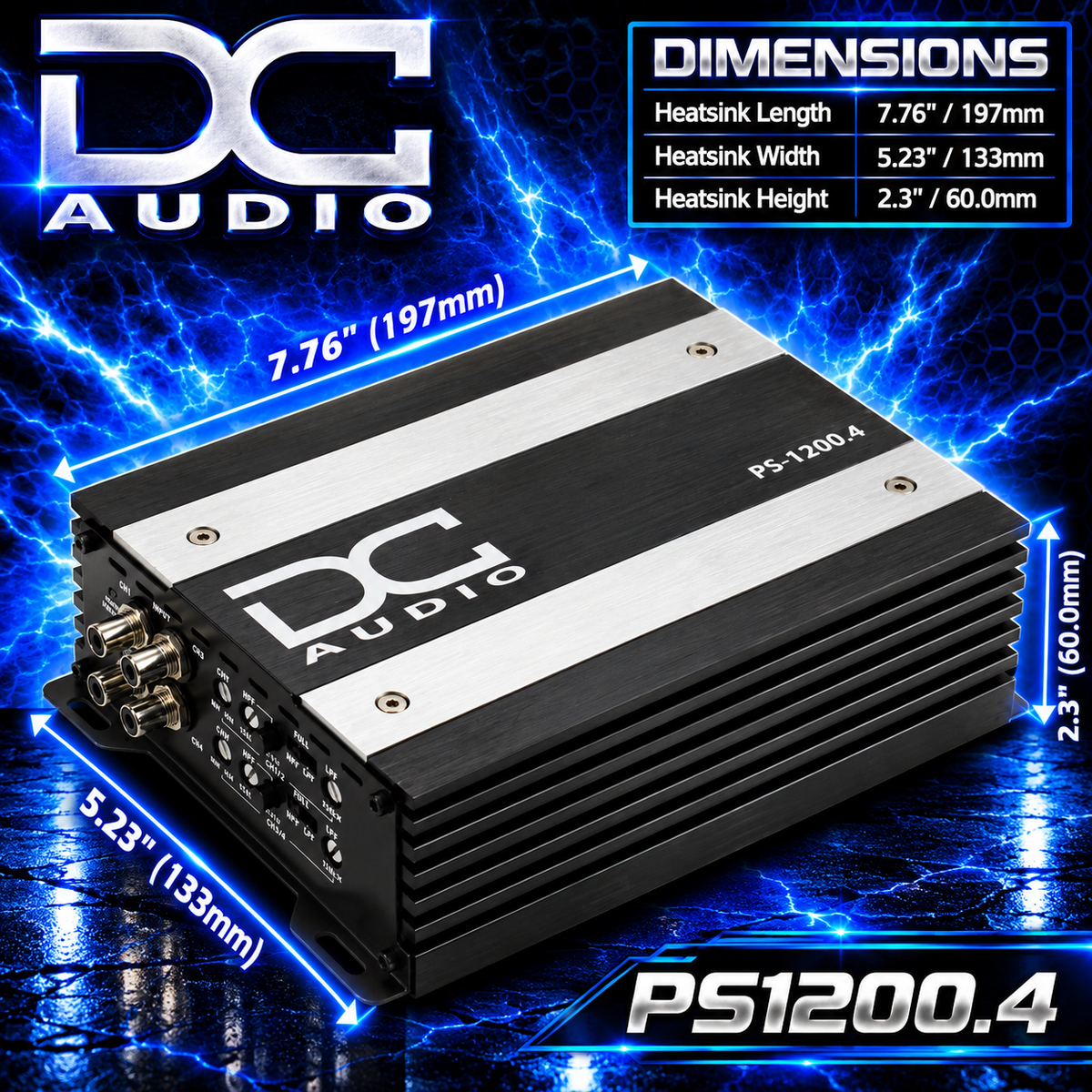

| Heatsink Length | 7.76"/197mm |
| Heatsink Width | 5.23"/133mm |
| Heatsink Height | 2.3"/60.0mm |
