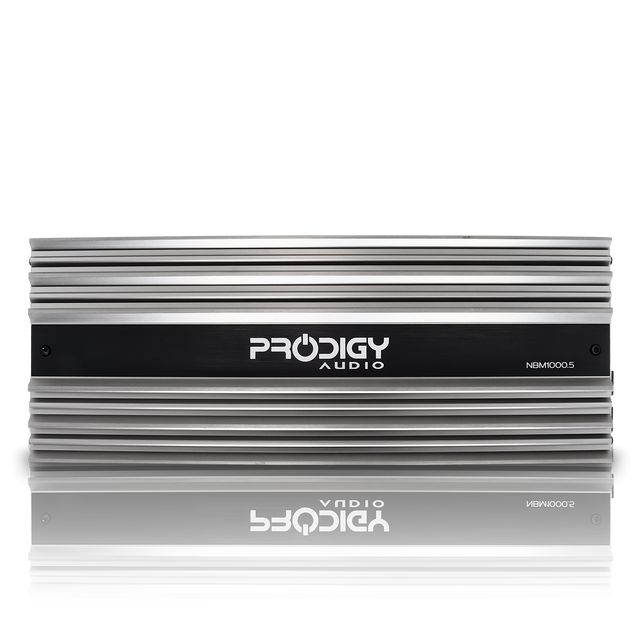

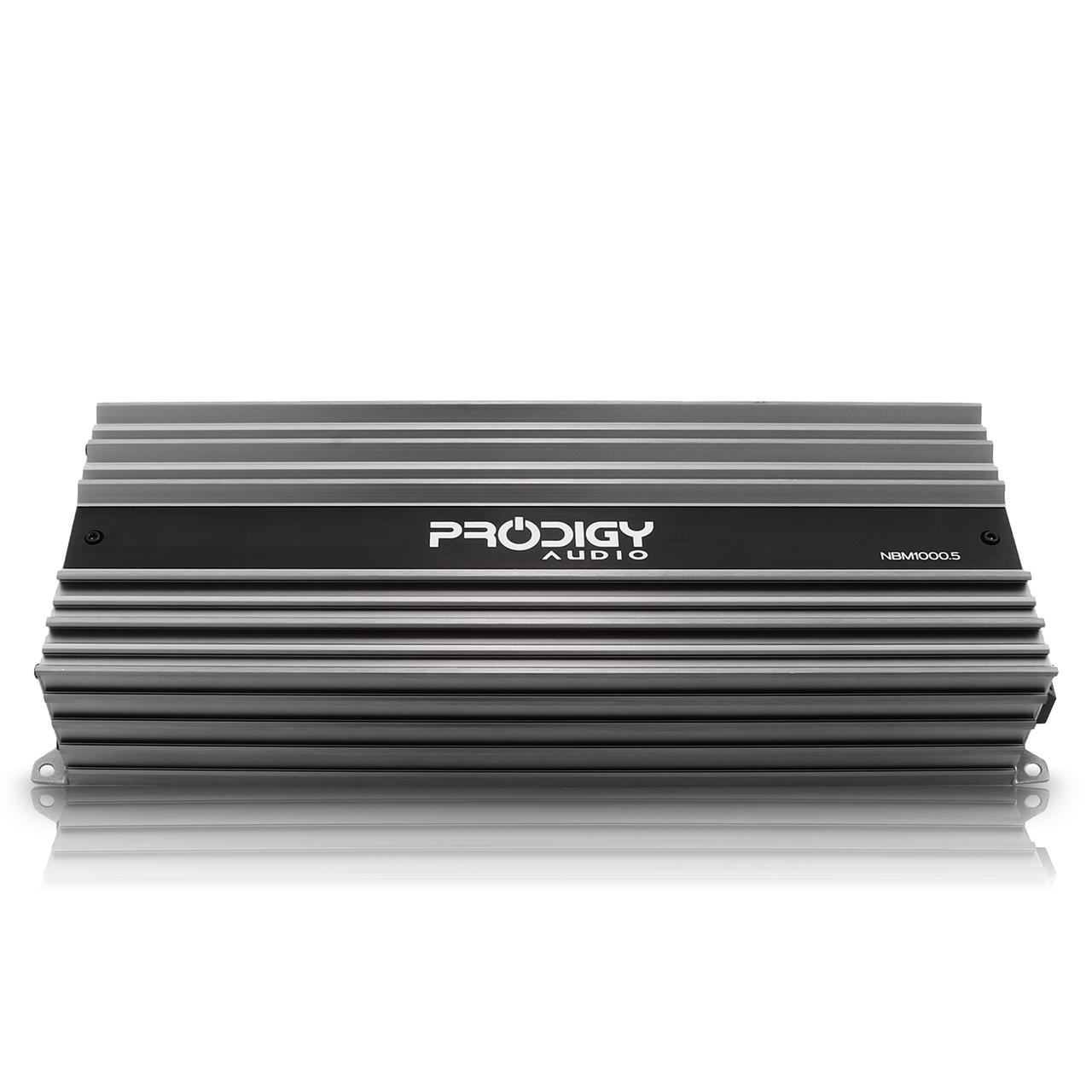

Prodigy Audio NBM1000.5 1000 Watt 5-Channel Amplifier

Name: Prodigy Audio NBM1000.5 1000 Watt 5-Channel Amplifier
Brand: Prodigy Audio
SKU: NBM1000.5
Price: 387.99 USD
Availability: InStock

$387.99 USD

~~$464.99 USD~~ $387.99 USD

Sale Sold out

Shipping calculated at checkout.

Prodigy Audio NBM1000.5 1000 Watt 5-Channel Amplifier

Sold by AudioSellerz.com

The Prodigy Audio NBM1000.5 1000 Watt 5-Channel Amplifier is a compact South Korea-built full-system amplifier that can power four speaker channels and a subwoofer channel from one chassis.

It is a practical choice for daily drivers and clean single-amplifier builds where front speakers, rear speakers, and bass all need dedicated power without installing separate full-range and monoblock amplifiers.

Prodigy Audio Amplifier Specifications

Amplifier type: Compact full-range digital 5-channel amplifier
Output at 4 ohms: 100 watts x 4 plus 250 watts x 1
Output at 2 ohms: 130 watts x 4 plus 400 watts x 1
Channel 5 output at 1 ohm: 500 watts x 1
Bridged output at 4 ohms: 260 watts x 2 plus 250 watts x 1
Channels 1-4 stability: 2 ohms stereo or 4 ohms bridged
Channel 5 stability: 1 ohm mono
Frequency response, channels 1-4: 10 Hz to 23 kHz
Frequency response, channel 5: 11 Hz to 260 Hz
Input sensitivity: 6 volts to 0.2 volts
Signal-to-noise ratio: Greater than 92 dB
Total harmonic distortion: Less than 0.1% at 4 ohms

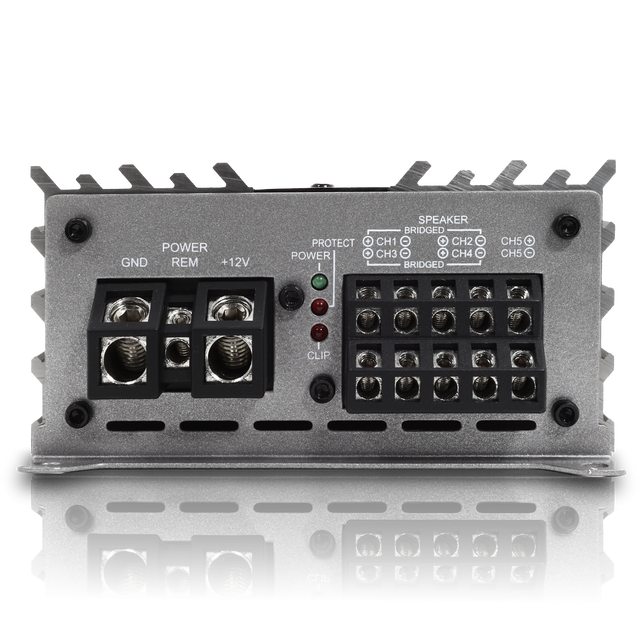

Power and ground terminals: 4 gauge
Listed fuse rating: 80 amps
Dimensions: 12.20 inches long x 4.87 inches wide x 2.13 inches high

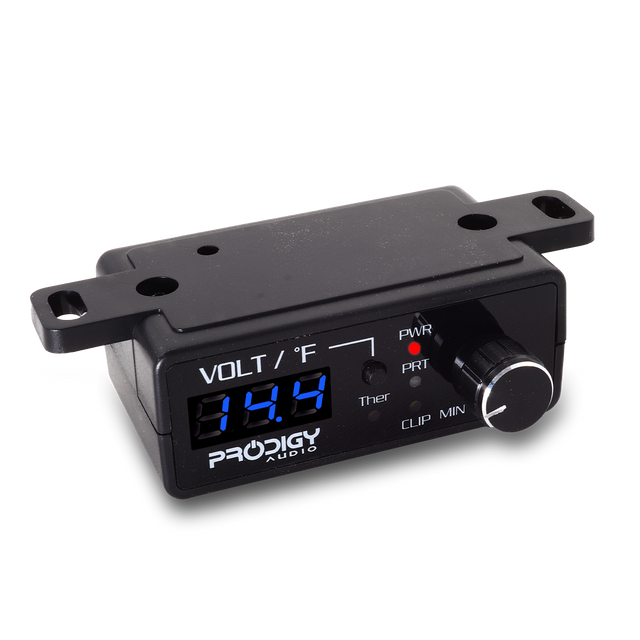

Included controller: Remote bass knob with voltage, temperature, and clipping display

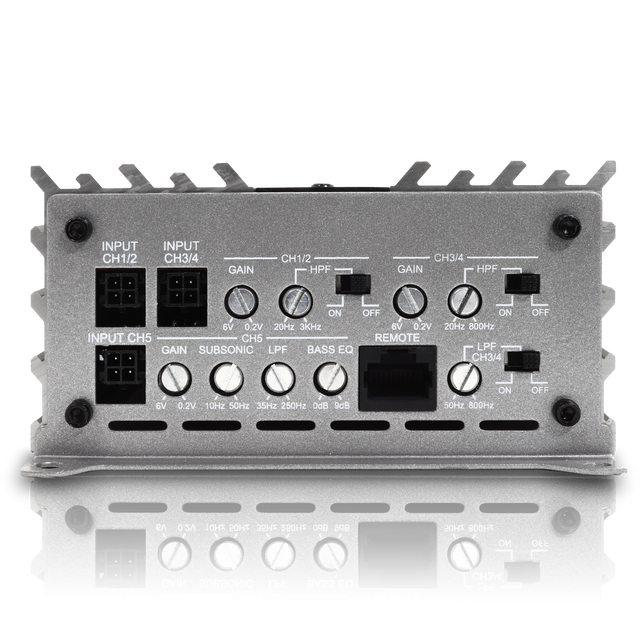

Tuning: Variable high-pass, x10 high-pass and low-pass functions on channels 3-4, bandpass capability, and variable subsonic filter

One Amplifier for Speakers and a Subwoofer

The NBM1000.5 can simplify a full daily-driver system, but each channel group still needs to be matched independently. Channels 1 through 4 must match the connected speaker impedance and RMS requirements, while channel 5 must match the subwoofer's final wired load.

Shop more Prodigy Audio amplifiers, compare Prodigy Audio subwoofers, or browse all car audio amplifiers and amp wiring kits.

Helpful Amplifier Installation Guides

Before powering the system, read how to set amplifier gain for subs, mids, and highs, verify cable and fuse sizing with the car audio wire gauge and fuse guide, and build the power and signal paths with the car audio wiring diagram guide.

A clean ground and adequate charging support are essential. Use the car audio grounding guide and the step-by-step car audio electrical upgrade guide when planning the full installation.

Shop Prodigy Audio at Audio Sellerz

Browse the complete Prodigy Audio collection at Audio Sellerz or learn more about the brand in why Audio Sellerz partnered with Prodigy Audio.

Frequently Asked Questions

How should this amplifier be matched?

Use the continuous output at the actual final impedance, the connected speaker or subwoofer RMS rating, channel layout, crossover range, and minimum stable load. Do not match equipment from maximum-power numbers alone.

What wire and fuse should be used?

Start with the amplifier's published fuse rating, expected current demand, cable length, and wire material. The battery-side fuse must protect the power cable, and the ground cable should match the power path.

Does a compact amplifier need less electrical support?

No. Physical chassis size does not determine current demand. Wiring, battery reserve, alternator output, and voltage under load must support the amplifier's real power requirements.
