How to Set Amp Gain for Subs, Mids, and Highs Without Blowing Your System

One of the most common mistakes in car audio is treating the gain knob like a power knob.

That one mistake is why so many systems end up sounding harsh, clipping early, running hot, or flat out cooking speakers that should have lasted a whole lot longer. A lot of people install a new amp, wire everything up, turn the gain until it gets louder, and assume they did it right. Then the bass starts sounding ugly, the mids get harsh, the tweeters get angry, or something eventually gives up.

The problem is simple.

Gain is not a volume knob.

Gain does not magically create more clean power. It is there to match the amplifier’s input sensitivity to the signal coming from your radio, DSP, or line output converter. When it is set correctly, the amp can make clean power without unnecessary distortion. When it is set wrong, you can clip the amp early, overheat speakers, and make even good equipment sound cheap.

This is also where a lot of people get tripped up. Setting gain on a mono amp for bass is not exactly the same as setting gain on a 4 channel or full-range amp for mids and highs.

The idea is the same, but the way the system reacts is different. Subs can hide distortion longer. Mids and tweeters usually tell on you much faster. A sub amp can seem fine while already being pushed too hard. A highs amp can get painfully harsh almost instantly if the gain or crossover settings are wrong.

So this guide is going to break it down in a real-world way.

We are going to cover:

What gain actually does
Why clipping destroys equipment
How to find your max clean volume
How to set gain for a mono sub amp
How to set gain for a 4 channel amp running mids and highs
A voltage chart people can actually use
Safe crossover starting points
Helpful system tips people overlook
The most common mistakes that ruin gear

If you are still building your setup, this is also where wiring and supporting parts matter. Clean signal is only one piece of the puzzle. Good power wire, proper grounds, fuse protection, and strong electrical support all help an amp perform the way it should. If the system is voltage-starved or wired poorly, no amount of gain knob magic is going to fix it.

What amp gain actually does

The gain control is really an input sensitivity adjustment.

Your source unit sends out a signal voltage. Your amplifier wants to see a certain amount of input signal so it can reach full clean output. The gain setting helps match those two things.

That means if your source has a strong clean signal, you may not need much gain at all.

If your source output is weaker, you may need more gain to get the amp where it needs to be.

That is why one person’s gain knob might be barely cracked open while another person’s is much higher, even if both setups are technically correct.

The actual knob position by itself means almost nothing.

That is also why copying somebody else’s amp settings is a bad idea. Two systems can have different head units, LOCs, DSP settings, speaker impedances, box designs, and system voltage. All of that changes what the amp sees.

The goal is not to turn the knob to some magic spot.

The goal is to make the amp play as loud as it can cleanly with the source unit set to its max clean volume.

Why bad gain settings kill speakers

A lot of people think speakers get blown because the amp was too big.

That can happen, but a huge amount of speaker damage actually comes from clipping.

Clipping is when the signal gets pushed past what the amp or source can reproduce cleanly. The musical waveform starts getting flattened and distorted. That dirty signal creates extra heat and stress. That is why clipped power can burn voice coils, make mids sound nasty, and kill tweeters way faster than most people expect.

This is also why a smaller amp can still blow speakers.

If someone runs a small amp into clipping all day trying to squeeze more out of it, that ugly distorted signal can absolutely damage equipment.

So when people say, “It’s only a small amp, it can’t hurt anything,” that is not true.

A clipped smaller amp can be harder on speakers than a clean stronger amp being used correctly.

Why subs and mids/highs need to be treated differently

This is the part a lot of blogs skip.

Mono amps for bass

Subwoofer amps are harder to judge by ear because low bass distortion is not always obvious right away. The system can still sound strong while the sub amp is already getting dirty.

That is why people overdo mono amp gain all the time. They hear more bass, think more is better, and never realize the woofer is being fed a rough clipped signal.

Subs also deal with enclosure behavior, impedance rise, box tuning, subsonic filter settings, and electrical drop. So the bass side of the system has more going on than just the gain knob.

4 channel and full-range amps for mids and highs

Mids and highs usually tell you much faster when something is wrong.

The sound gets harsh, shouty, scratchy, thin, or flat out painful. Tweeters especially do not need much abuse before they are done. A lot of full-range speaker failures come from too much gain, bad crossover settings, or both.

That is why you have to be more conservative on mids and highs amps. You are not trying to squeeze every last drop out of them. You are trying to get clean, controlled output.

Before you touch the gain knob

Before you start setting gain, the rest of the tune needs to be in a safe place.

Start with the source clean.

Set your EQ as flat as possible.
Turn loudness off.
Turn bass boost off.
Turn any dramatic DSP boosts off.
Set sub level back to neutral.
Set crossover points to safe starting positions.
Turn the amplifier gain all the way down.

That matters because if you set gain with a bunch of boost already built in, then later add more bass boost or EQ, you can push the amp into clipping without realizing it.

A lot of systems did not die because the original gain setting was awful.

They died because somebody set the gain, then later started stacking bass boost, cranked the sub level, boosted low frequencies, or used a source that was already dirty.

Find your source unit’s max clean volume

This is one of the most important parts of the whole process.

You need to know the loudest volume your radio or source can play cleanly before the signal starts getting nasty. Because if the source is distorted, then the amplifier is getting distorted input no matter how perfectly the gain is set.

A simple real-world way to find max clean volume is this:

Pick a clean track you know well.
Start low.
Bring the volume up slowly.
Listen for the point where the sound starts getting strained, sharp, or less clean.
Back it down a couple clicks.

That becomes your working tuning volume.

If distortion starts at 35, maybe your tuning volume is 32 or 33.

Every time you set gains, that is the volume number you use.

The two common ways to set gain

There are really two main ways most people do this.

Method 1: By ear

This is the most common method. It can work well if you are conservative and honest with yourself.

Method 2: With a digital multimeter

This is more precise and more repeatable. It is not a perfect replacement for a scope, but it gives people a very useful starting point.

That is why the voltage chart below is so helpful. It gives people a clean ballpark to work from whether they are setting up a sub amp or tuning full-range channels for mids and highs.

How to Set Gain on a Mono Amp for Subwoofers

Safe by-ear method for a sub amp

Start with:

Gain all the way down
Bass boost off
Subsonic set correctly
Low-pass set to a safe starting point
Source at your max clean volume

Then play a clean bass track or a proper test tone.

Now slowly raise the amp gain.

You are listening for the point where the bass stops getting cleaner and starts getting rougher.

Warning signs include:

The bass turning fuzzy instead of solid
Notes losing definition
The sub sounding angry instead of controlled
A fluttery dirty sound on deep notes
Mechanical stress like popping or hard bottoming

The second you hear that kind of behavior, stop and back it down.

Then back it down a little more.

That extra little bit matters because subs can still seem impressive even after you have already gone too far.

Better method for a sub amp: the multimeter way

If you want a cleaner repeatable starting point, this is the better route.

You need:

A digital multimeter
A test tone
Your target RMS power
Your final impedance load

The formula is:

Target AC Voltage = √(Watts × Ohms)

That is the electrical theory behind the chart below.

Example:

1000 watts at 1 ohm = 31.6 volts
1000 watts at 2 ohm = 44.7 volts
1500 watts at 1 ohm = 38.7 volts
2000 watts at 1 ohm = 44.7 volts

That formula gives you a strong starting point when you are setting gain with a meter, but it is not a guaranteed real-world result. Real output can change depending on amplifier design, distortion point, impedance rise, vehicle voltage, signal quality, and how honestly the amp is rated.

Safe crossover starting points for a sub amp

A smart daily-driver starting point for a sub amp is:

Low-pass filter around 70 to 90 Hz, usually starting near 80 Hz
Bass boost off
Subsonic off for sealed boxes
Subsonic set a few Hz below box tuning for ported boxes

If the box is tuned to 32 Hz, a subsonic around 28 to 30 Hz is a reasonable place to start.

That is not a one-size-fits-all rule, but it is a solid safe approach for most people.



Running multiple amps on subs?

If you are running multiple amps on subwoofers in the same box, wiring is only part of the setup. The amplifiers also need to be matched so each sub is getting the same clean output. This is especially important when each amp powers a different subwoofer in a shared enclosure. If one amp is stronger, clipping earlier, or set differently, one sub can work harder than the other.

Read this guide next if you are running multiple amps on subs in the same box:
https://audiosellerz.com/blogs/audio-sellerz-blogs/do-i-need-to-gain-match-my-amps

How to Set Gain on a 4 Channel Amp for Mids and Highs

Now let’s talk about the part a lot of people ignore.

Mids and highs.

A badly tuned full-range amp is miserable to listen to. Even worse, it can kill tweeters and mids much faster than most people think.

Safe by-ear method for mids and highs

Start with:

Gain all the way down
EQ flat
Bass boost off
Proper high-pass crossover set
Source at max clean volume

Now play clean music with vocals and detail.

Slowly raise the gain.

You are listening for the point where the sound stops opening up and starts getting harsh.

Bad signs include:

Vocals getting shouty
Snare hits sounding hard and unpleasant
Tweeters sounding crispy or scratchy
The whole front stage sounding thin but aggressive
Door speakers sounding like they are struggling on bass hits

Once you hear that edge, back the gain down.

Then back it down a little more.

Full-range amps almost always reward being a little conservative.

Why the lower wattage numbers matter for mids and highs

This is why the lower power numbers in the chart matter so much.

A lot of mids and highs channels are not seeing giant subwoofer-style power. You might be dealing with 50 watts, 100 watts, 150 watts, or 200 watts per channel. So having those smaller wattage numbers in the chart makes it much more useful for real full-range setups, not just bass systems.

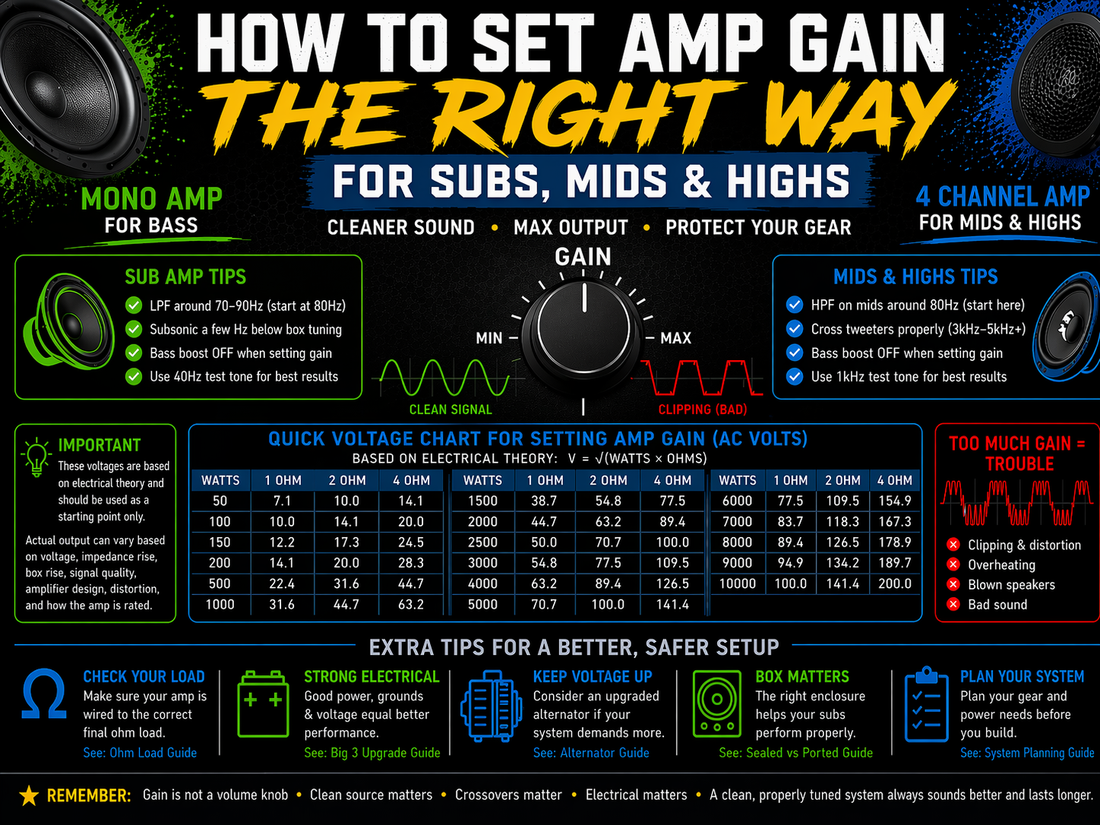

Quick Voltage Chart for Setting Amp Gain

If you are using a multimeter to set amp gain, this chart gives you a helpful starting point. The numbers below come from the formula:

Target AC Voltage = √(Watts × Ohms)

Important: This chart is based on electrical theory and should be used as a starting point only. It is not a guaranteed real-world result. Actual amplifier output can vary depending on vehicle voltage, impedance rise, box rise, signal quality, amplifier design, distortion, and how honestly the amp is rated.

We also added lower wattage numbers like 50 watts and 150 watts because those are common power ranges for mids and highs amps, not just subwoofer amps.

How to actually use the chart

Here is the simple version.

If your amp is rated for a certain RMS power at a certain ohm load, find that wattage on the chart and use the voltage shown as your starting point.

For example:

If your mono amp is doing 1000 watts at 1 ohm, your starting point is 31.6 volts.
If your mids amp channel is doing 150 watts at 4 ohm, your starting point is 24.5 volts.
If your full-range amp is doing 100 watts at 2 ohm, your starting point is 14.1 volts.

To use it:

Disconnect the speakers from the amp
Set gain all the way down
Set your source to max clean volume
Play the correct test tone
Measure AC voltage at the amplifier output
Slowly raise the gain until you reach the chart voltage

Again, this is a starting point based on electrical theory. It gets you in the ballpark. It does not promise that the amp is perfectly clean right there in every real-world situation.

Helpful Tips Before You Finalize Your Gain Settings

Setting gain correctly is a huge part of protecting your system, but it is not the only part. If your wiring, electrical, box, or final ohm load is wrong, even a careful gain setting can only do so much. That is why it helps to look at gain as one piece of the full setup, not the whole answer.

Double-check your final ohm load before setting gain

If your amp is wired to the wrong final load, your gain setting can be off before you even start. This matters a lot on subwoofer amps, but it also matters on bridged full-range channels and some mids and highs setups.

If you are not 100 percent sure what load the amp is actually seeing, read these next:

How to Wire Any Car Audio Amp to the Right Ohm Load

Subwoofer Wiring Diagrams: How to Find Your Final Ohm Load

Those guides fit this topic perfectly because gain settings only make sense when the load is correct first.

Match the woofer and amplifier the right way

A lot of people set gain trying to compensate for a mismatch between the amp and the subwoofer wiring options. That usually creates more problems, not more output.

If you are still figuring out whether a setup should be wired lower or higher, or whether a certain coil configuration makes sense for your amplifier, this guide is a smart next click:

1 Ohm vs 2 Ohm vs 4 Ohm Subwoofer Systems

Do not try to tune around weak electrical

If voltage is dropping hard, the amp is not going to behave consistently. That means more strain, more heat, and more chance of clipping when the system is pushed. If the setup is growing beyond what the stock charging system can comfortably support, the next fix is usually not more gain. The next fix is better electrical support.

A natural next read here is:

High Output Alternator for Car Audio Guide

The Big 3 upgrade matters more than people think

A lot of gain-setting problems are really voltage and wiring problems hiding underneath. If the current path is weak, the whole system suffers.

If someone is running bigger amps, stronger bass, or a high output alternator, they should read these next:

Big 3 Upgrade With a High Output Alternator: Why It’s a Must-Do for Car Audio

Do You Really Need the Big 3 Upgrade? Here’s the Truth

Both help explain why a good tune still depends on good electrical support.

Box choice still affects what good tuning feels like

On bass systems especially, people sometimes blame gain when the real issue is enclosure choice. A setup in the wrong box can make people crank gain trying to get output that the enclosure is not helping produce in the first place.

That is why this is another great related read:

Sealed vs Ported: What Box and What Size Sub Is Best for Car Audio?

If you are still early in the build, plan the whole system first

Some readers landing on a gain blog are still in the shopping and planning stage. For those people, it helps to point them toward a broader guide that helps them think through the whole build.

A smart internal link here is:

How to Pick the Right Car Audio for Your Vehicle

Safe crossover starting points for mids and highs

A lot of speaker damage on full-range channels is not from too much treble.

It is from trying to make mids play low bass they were never supposed to handle.

A smart starting point for many door speakers is a high-pass filter around 80 Hz. Some can safely play a little lower, and some need to be crossed higher, especially if the vehicle is played hard or the speaker is smaller.

Tweeters are even more sensitive.

They do not need much gain.
They do not need to be leaned on like subwoofers.
They absolutely need the correct crossover.

Starting too low on a tweeter is one of the fastest ways to destroy it.

The Most Common Mistakes People Make

Using gain like a volume knob

This is the biggest one. Turning the gain up does not make the amp stronger in a clean healthy way. It just changes how much input signal is needed to drive the amp to full output.

Tuning with bass boost on

Bass boost is one of the fastest ways to ruin a tune. Start with it off.

Ignoring the source

A dirty radio signal, badly adjusted LOC, or clipping DSP output can wreck everything downstream.

Running mids too low

People want more midbass, so they lower the crossover too far and wonder why the doors sound stressed.

Running tweeters with too much gain

Tweeters do not need heroic gain settings. Start low and be smart.

Trying to tune around weak electrical

If your voltage is falling apart, the amp is not going to behave consistently. That means more strain, less clean output, and more chance of clipping.

Ignoring the enclosure on bass setups

A badly matched box can make people over-tune the amp trying to fix bass that really has nothing to do with the gain setting.



Final Thoughts

Setting amp gain the right way is one of the most important things you can do in a car audio system.

It affects how clean the system sounds.
It affects how hot the equipment runs.
It affects how long your subs, mids, and tweeters live.
And it affects whether your setup feels strong and controlled or just loud and sloppy.

For mono sub amps, the biggest danger is thinking dirty bass is just more output.

For 4 channel and full-range amps, the biggest danger is pushing mids and tweeters into harshness and damage because the gain and crossover settings are wrong.

If you remember nothing else, remember this:

Gain is not a volume knob.
Clean source matters.
Crossovers matter.
Electrical matters.
And a clean properly tuned system is always better than a loud clipped mess.
