Step-by-Step Car Audio Electrical Upgrades (Big 3, Alternator, Battery)
A powerful amplifier and subwoofer system can only perform as well as the electrical system feeding it.
When a car audio build begins showing dimming lights, falling voltage, weak bass, hot connections or amplifier shutdowns, the solution is not always buying the largest battery or alternator available.
The correct approach is to diagnose the system and upgrade it in the right order.
A complete car audio electrical system includes:
- The alternator
- The starting battery
- Additional battery reserve when needed
- Alternator charging wire
- Battery and engine grounds
- Amplifier power and ground wire
- Big 3 wiring
- Fuse protection
- Battery terminals and distribution
- Compatible charging voltage
One weak connection can restrict the entire system.
A high-output alternator cannot overcome an undersized amplifier cable. A large battery cannot repair a poor ground. A Big 3 upgrade cannot make a small alternator produce more current than it was designed to generate.
Each upgrade has a specific job.
This guide explains what to test first, what to upgrade next and how to build a dependable electrical foundation without buying parts twice.
When you are ready to begin, Audio Sellerz carries car audio amplifier wiring kits, power and ground wire, Big 3 upgrade kits, high-output alternators, Advanced Electric battery support and car audio fuse and distribution products.
Recommended upgrade order: Test the battery and charging system, verify amplifier wiring and fuse protection, repair weak grounds, complete the Big 3, determine whether the alternator is keeping up, add the correct battery reserve and then retest voltage under the conditions in which the system will actually be used.
What Each Part of the Electrical System Does
Before upgrading anything, understand what each component contributes.
The Alternator Generates Charging Current
The alternator supports the vehicle and recharges the batteries while the engine is running.
A high-output alternator provides more charging capability than the factory alternator, but its usable output depends on:
- Engine speed
- Vehicle electrical demand
- Alternator temperature
- Belt and pulley performance
- Charging-system controls
The Battery Stores Electrical Energy
The battery starts the vehicle, provides reserve and helps respond to sudden changes in amplifier demand.
When the engine is off, the audio system operates from stored battery energy. The alternator provides no charging support until the engine is running.
The Wiring Carries Current
Power wire, ground wire, charging cables and distribution products move current between the alternator, batteries and amplifiers.
If that path is too small, loose, corroded or poorly connected, voltage can be lost before it reaches the amplifier.
The Fuses Protect Positive Wiring
Fuses are primarily selected to protect the wire and vehicle if a positive cable shorts to ground.
A larger amplifier or alternator does not make cable protection less important. It makes correct fuse planning even more important.
The Amplifier Uses the Electrical Energy
The amplifier converts electrical power into audio output.
When voltage falls or wiring resistance increases, an amplifier may:
- Clip sooner
- Create more heat
- Produce less clean output
- Enter protect mode
- Shut down
Signs Your Car Audio Electrical System Needs Attention
Common warning signs include:
- Headlights dimming heavily with the bass
- Voltage falling and not recovering
- The system becoming weaker after several songs
- The battery remaining discharged after driving
- The amplifier entering protect mode
- Hot fuse holders, terminals or wiring
- A burning smell near an electrical connection
- Repeated blown fuses
- Unreliable starting after listening
- Charging-system warning lights
- Amplifier output changing from one drive to the next
These symptoms do not automatically prove that the alternator is too small.
Similar problems can be caused by:
- A weak battery
- Loose battery terminals
- Undersized amplifier power wire
- A poor amplifier ground
- A weak engine ground
- A damaged fuse holder
- Incorrect amplifier impedance
- Excessive gain
- A slipping alternator belt
If an amplifier is already shutting down, use the amplifier protect-mode troubleshooting guide to separate voltage problems from heat, impedance and speaker-wiring problems.
The Correct Order for Car Audio Electrical Upgrades
- Document the system and test its current condition.
- Test the starting battery.
- Verify amplifier power wire and fuse protection.
- Repair weak amplifier, battery and engine grounds.
- Complete the Big 3 upgrade when needed.
- Determine whether the factory alternator can keep up.
- Choose a correctly sized high-output alternator when necessary.
- Add battery reserve based on the system and listening time.
- Confirm charging compatibility and retest everything under load.
Some systems only need the first few steps.
Large daily, demo and competition systems may require all of them.
Step 1: Document and Test the Existing System
Do not begin by replacing random parts.
Write down:
- Vehicle year, make, model and engine
- Factory alternator rating when known
- Every amplifier model
- Final amplifier impedances
- Battery type, age and quantity
- Power- and ground-wire sizes
- OFC or CCA wiring
- Main fuse sizes
- Normal charging voltage
- Lowest voltage during music
- Whether the system is played while driving or parked
Measure at More Than One Location
Take voltage readings at:
- The front battery
- The rear battery when equipped
- The amplifier power terminals
- The alternator output when safely accessible
Compare readings under the same load.
If voltage remains strong at the front battery but is much lower at the amplifier, the main problem may be between those two locations rather than inside the alternator.
Test Under Real Conditions
A system used for daily driving should be tested while operating like a daily system.
A vehicle used for parked demonstrations should also be tested at idle because alternator output may be lower there than at normal driving speed.
Record:
- Voltage with the audio system off
- Voltage with headlights and climate control operating
- Voltage during normal music
- Lowest voltage during heavy bass
- How quickly voltage recovers
- Whether voltage keeps declining
Step 2: Start With a Healthy Battery
A weak or discharged battery can make the entire system appear worse than it is.
Check the battery when:
- The vehicle starts slowly.
- The battery requires frequent charging.
- Voltage falls quickly after the engine is turned off.
- The system becomes weaker after short listening sessions.
- The vehicle has been sitting for an extended period.
- The battery is old or has been deeply discharged repeatedly.
A resting-voltage reading alone does not prove that a battery is healthy.
A proper battery evaluation can include:
- State of charge
- Load or conductance testing
- Terminal condition
- Charging acceptance
- Voltage recovery
Do Not Add More Batteries to Hide a Bad Battery
Adding a second battery to a system with a failing starting battery can create more confusion and more charging demand.
Test and correct the existing battery first.
Match the Battery to the Charging System
AGM, lithium, LTO and sodium-ion systems may have different charging requirements.
Before changing battery chemistry, verify:
- Acceptable charging-voltage range
- Maximum charging current
- Temperature limitations
- Battery-management requirements
- Compatibility with the vehicle’s charging controls
Use the car audio battery-sizing guide to compare reserve needs, amplifier demand and charging support.
Step 3: Verify the Amplifier Power Wire
A powerful amplifier needs a current path capable of supporting it.
Wire size depends on:
- Amplifier current demand
- Cable length
- OFC or CCA construction
- System voltage
- Installation temperature
- Fuse protection
- Future upgrades
Smaller amplifiers may use 8- or 4-gauge wire when the cable and installation support the expected current.
Larger amplifiers commonly require true 1/0-gauge cable. Extreme systems may need larger conductors or multiple cable runs.
Do not choose wire from amplifier wattage alone. Check the amplifier manufacturer’s current and wiring requirements.
OFC vs CCA
OFC is oxygen-free copper.
CCA is copper-clad aluminum.
Equal-size OFC and CCA cable do not have equal current capability.
OFC is normally the stronger choice for:
- High-current amplifier wiring
- Big 3 upgrades
- Alternator charge wiring
- Battery connections
- Large grounds
CCA can work when properly oversized and kept within its safe capability, but it should not be treated as electrically equal to the same gauge of OFC.
Read the CCA vs OFC amplifier-kit guide before choosing a kit based only on price.
Inspect the Entire Power Path
Check:
- Battery terminal connection
- Main fuse holder
- Power-wire routing
- Distribution blocks
- Amplifier terminal connection
- Crimped lugs
- Areas near sharp metal or heat
Use the car audio wire-gauge and fuse guide to plan wire size and protection together.
Step 4: Correct the Fuse Protection
Fuse protection is not an optional finishing detail.
The main positive amplifier cable should generally be protected close to the battery or power source.
Systems with additional batteries may require protection near each source of stored energy, depending on the layout.
The fuse must be selected around:
- Wire size
- Conductor material
- Circuit design
- Equipment requirements
- Expected current
Do not install a larger fuse merely because the existing fuse keeps opening.
A repeatedly opening fuse can indicate:
- An undersized circuit
- A short circuit
- A damaged holder
- A loose connection
- Excessive amplifier demand
- An unsafe amplifier load
Watch for Hot Fuse Holders
A fuse holder that becomes unusually hot may have:
- Loose fasteners
- A poor fuse contact
- Corrosion
- Insufficient current capacity
- Weak cable termination
Heat at one connection is evidence of resistance and should be corrected immediately.
Step 5: Repair the Grounds
Current needs a complete return path.
A large positive cable cannot overcome a weak ground.
Poor grounds can cause:
- Voltage drop
- Amplifier protect mode
- Electrical noise
- Heat
- Weak output
- Unreliable charging
- Burned terminals
A Strong Amplifier Ground Should Be:
- Connected to a dependable conductive path
- Free from paint, rust and heavy contamination
- Secured with appropriate hardware
- Protected from loosening
- Large enough for the expected current
- Properly terminated
The ground path should have current-carrying capability suitable for the positive side of the circuit.
A small ground cable paired with a large power cable can restrict the system.
Do Not Trust a Ground by Appearance Alone
A cable can look secure and still have excessive resistance.
Test the voltage drop between the amplifier ground and battery negative while the amplifier is operating.
Read the complete car audio grounding guide for more help choosing and testing amplifier, battery and chassis grounds.

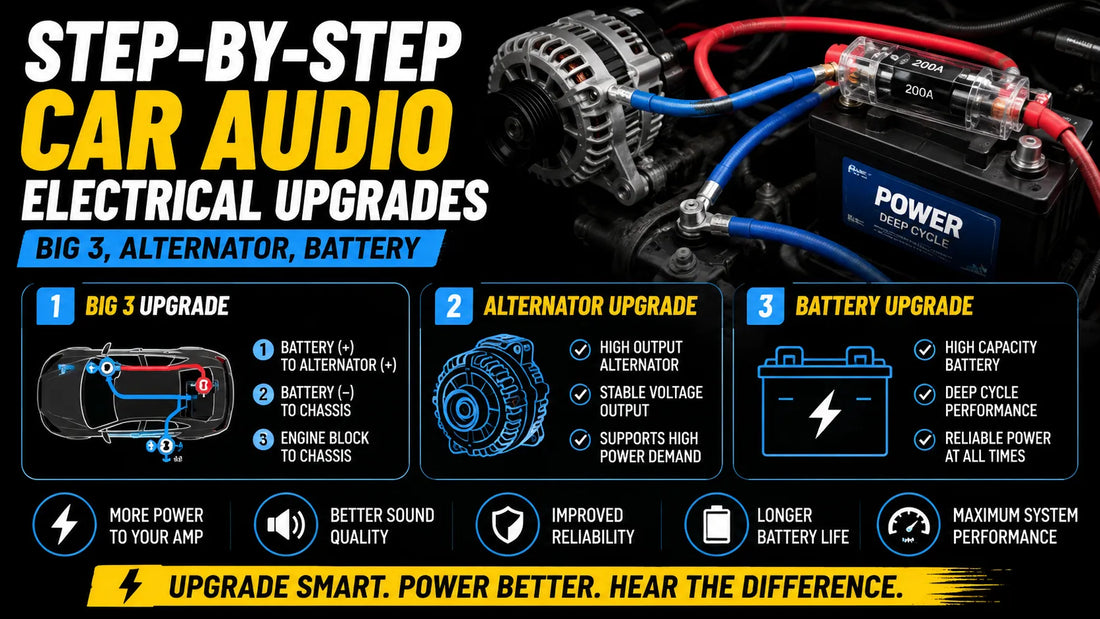

Step 6: Complete the Big 3 Upgrade
The Big 3 strengthens three major under-hood electrical paths:
- Alternator positive to battery positive
- Battery negative to chassis
- Engine block to chassis
The Big 3 does not increase the alternator’s rated amperage.
It can reduce resistance in the major charging and grounding paths so the available current can move more efficiently.
When to Consider the Big 3
- You installed a larger amplifier.
- You are upgrading the alternator.
- You added battery support.
- The factory charging cable is small or damaged.
- The factory engine grounds are weak or corroded.
- You are experiencing measurable voltage loss through those paths.
- You want to prepare the vehicle for future power.
Keep Important Factory Connections
In many installations, upgraded cables are added in parallel with the factory wiring instead of removing it.
The factory wiring may include:
- Fusible links
- Computer connections
- Battery-current sensors
- Multiple factory grounding paths
Do not remove or bypass factory wiring without understanding its purpose.
Modern Battery-Current Sensors
Some vehicles monitor current through a sensor near the negative battery terminal.
Connecting added grounds to the wrong side of that sensor can interfere with the vehicle’s charging calculations.
Follow vehicle- and alternator-specific instructions when completing the upgrade.
Read whether your system needs a Big 3 upgrade or learn why the Big 3 matters with a high-output alternator.
Step 7: Determine Whether the Stock Alternator Is Enough
Not every aftermarket audio system needs a high-output alternator.
A healthy stock alternator may remain adequate when:
- The system is modest.
- Voltage remains healthy during normal use.
- The battery recovers while driving.
- The wiring and grounds have been verified.
- The amplifier does not shut down from low voltage.
- No major power increase is planned.
A high-output alternator becomes more important when:
- Voltage steadily declines while the engine is running.
- The battery does not recover during normal driving.
- The system becomes weaker after extended use.
- You are installing multiple large amplifiers.
- You are adding substantial battery capacity.
- The vehicle is used for long demonstrations at idle.
- The complete charging demand exceeds the factory system’s capability.
Headlight dimming alone does not prove that the alternator is too small.
Before ordering, compare the symptoms in the guide explaining whether you should upgrade your car audio alternator.
You can also use the stock alternator vs high-output alternator comparison.
Step 8: Choose the Correct High-Output Alternator
Do not choose an alternator from amplifier wattage alone.
Alternator sizing should account for:
- Vehicle year, make, model and engine
- Factory charging-system controls
- Vehicle electrical demand
- Every amplifier in the system
- Amplifier efficiency
- Battery capacity and chemistry
- Alternator output at idle
- Daily, demo or competition use
- Future upgrades
Output at Idle Matters
An alternator’s maximum rating may represent output at a higher alternator speed.
Customers who demonstrate systems while parked should compare:
- Output at idle
- Output at normal driving speed
- Maximum output
- Alternator temperature
- Pulley requirements
A well-matched alternator with useful idle output can be a better choice than a larger unit that produces most of its output at higher engine speed.
Belt and Pulley Condition Matters
Inspect:
- Belt condition
- Tensioner operation
- Idler pulleys
- Pulley alignment
- Belt wrap
Belt squeal, black dust or inconsistent charging under load can indicate belt slip.
Vehicle Fitment Must Be Exact
Alternator fitment may depend on more than the vehicle model.
Confirm:
- Engine size
- Factory alternator option
- Case and mounting design
- Connector type
- Pulley design
- Computer control
Use the high-output alternator sizing guide before choosing between common alternator-output ranges.
Step 9: Add Battery Reserve When Needed
The alternator and battery solve different problems.
The alternator creates charging current while the engine is running.
The battery stores energy and helps respond when amplifier demand changes faster than available alternator output.
Additional Battery Support May Make Sense When:
- The system uses a large amplifier.
- The vehicle is used for demonstrations.
- The system is played with the engine off.
- The alternator output is lower at idle.
- The system requires more reserve for changing demand.
- The existing electrical foundation has already been corrected.
More Batteries Do Not Create More Charging Output
Adding batteries gives the system more stored energy.
Those batteries must still be recharged.
If the factory alternator cannot recover the existing battery, adding more capacity may allow longer play time before voltage falls, but it does not correct the charging shortage.
Second-Battery Wiring Must Be Planned Carefully
Consider:
- Battery chemistry
- Positive cable size
- Ground capacity
- Fuse protection near each battery
- Battery isolation when required by the application
- Charging compatibility
- Battery mounting and protection
Read the second-battery wiring guide for car audio before adding reserve without a complete plan.
Step 10: Match Charging Voltage to the Battery
The battery, alternator and regulator must be compatible.
Do not assume one charging voltage is correct for every:
- AGM battery
- Lithium battery
- LTO bank
- Sodium-ion battery
- Mixed electrical system
Incorrect charging voltage can cause:
- Poor battery recovery
- Reduced capacity
- Battery-management shutdowns
- Excessive heat
- Reliability or safety problems
Computer-Controlled Charging
Modern vehicles may vary charging voltage according to:
- Battery state of charge
- Temperature
- Engine load
- Fuel-economy strategy
- Computer commands
Changing the alternator or battery chemistry does not automatically remove those controls.
Confirm whether the vehicle needs:
- A computer-compatible alternator
- Programming
- An external regulator
- Vehicle-specific wiring
- A specific ground path around the battery sensor
Step 11: Retest the Complete System
After completing the upgrades, repeat the original tests.
Measure:
- Battery voltage before starting
- Charging voltage at idle
- Charging voltage at normal driving speed
- Voltage at the amplifier
- Lowest voltage under normal music
- Voltage recovery after bass notes
- Battery condition after driving
Check Voltage Drop Across Individual Paths
Under load, compare voltage across:
- Alternator positive to battery positive
- Battery negative to engine
- Battery negative to chassis
- Front battery positive to amplifier positive
- Amplifier ground to battery negative
A significant voltage difference across one section can help identify the restricted cable or connection.
Check Temperature
After the system has operated, carefully inspect:
- Battery terminals
- Charging-wire connections
- Fuse holders
- Distribution blocks
- Amplifier terminals
- Ground connections
Connections should not become abnormally hot.
Do Not Use Amplifier Gain to Compensate for Weak Voltage
Turning the gain higher does not repair the electrical system.
Excessive gain can cause the amplifier to clip sooner, create additional heat and increase the risk of equipment damage.
Correct the voltage problem first, then set the gain correctly.
Read the guide explaining how to set amplifier gain for subwoofers, mids and highs.
Electrical Upgrades for a Daily Driver
A daily-driver electrical system should prioritize:
- Reliability
- Stable charging
- Battery recovery
- Safe wiring
- Strong grounds
- Reasonable upgrade headroom
- Low maintenance
A daily system may only need:
- A healthy battery
- A correctly sized amp kit
- A better ground
- Proper fuse protection
A louder daily system may add:
- A Big 3 upgrade
- A high-output alternator
- Upgraded battery support
Do not overbuild one component while leaving another component undersized.
Electrical Upgrades for a Demo Vehicle
Demo vehicles may operate near their electrical limits for extended periods while parked.
Priorities include:
- Strong alternator output at idle
- Substantial battery reserve
- Multiple power and ground paths when required
- Large and dependable distribution
- Alternator and amplifier cooling
- Voltage monitoring
- External charging between demonstrations
A system that performs correctly while driving may still discharge during a long parked demonstration.
Electrical Upgrades for Engine-Off Listening
The alternator does not help while the engine is off.
Engine-off listening depends on:
- Usable battery capacity
- Amplifier current demand
- Listening volume
- Battery voltage limits
- Leaving enough reserve to restart the vehicle
- External charging
Do not repeatedly drain the battery bank and expect the alternator to recharge it instantly. Deeply discharged battery systems may require an appropriate external charger.
Diagnosing Common Electrical Symptoms
The Lights Dim, but Voltage Recovers Quickly
Check:
- Battery condition
- Big 3 wiring
- Factory charging cables
- Amplifier power and ground
- Headlight wiring sensitivity
Voltage Keeps Falling While Driving
Check:
- Alternator capacity
- Alternator output at idle
- Belt slip
- Battery condition
- Total system demand
- Charging-wire resistance
Voltage Is Good at the Battery but Low at the Amplifier
Check:
- Front-to-rear power wire
- Main fuse holder
- Distribution blocks
- Amplifier ground
- Loose terminals
The Fuse Holder Is Hot
Check:
- Fastener tightness
- Fuse contact area
- Corrosion
- Holder current capacity
- Cable termination
The Battery Keeps Dying
Check:
- Battery health
- Parasitic draw
- Engine-off listening time
- Alternator recovery
- Charging voltage
- Remote-turn-on wiring
The Amplifier Protects at High Volume
Check:
- Voltage at the amplifier
- Final impedance
- Ground quality
- Amplifier temperature
- Speaker-wire shorts
- Gain settings
Common Car Audio Electrical Upgrade Mistakes
Buying Parts Before Testing
Replacing parts without measuring the problem can waste money and leave the original restriction untouched.
Adding a Large Battery to a Weak Charging System
More storage does not create more alternator output.
Installing a High-Output Alternator With Factory-Size Wiring
The upgraded alternator needs a charging and grounding path capable of carrying its available output.
Skipping the Big 3
Weak factory charging and ground cables may restrict a larger alternator.
Using Undersized CCA Wire
CCA must be sized according to its actual current capability—not treated like equal-size OFC.
Installing a Larger Fuse to Stop It From Blowing
The fuse must protect the wire. Increasing fuse size without correcting the cause can create a dangerous cable failure.
Grounding to Paint or Thin Metal
A ground must connect to a dependable conductive path.
Ignoring Hot Connections
Heat is a warning of resistance or excessive current.
Mixing Battery Chemistries Without a Plan
Different battery types may not have compatible charging or discharge behavior.
Ignoring Smart Charging
Computer-controlled vehicles may require vehicle-specific alternators, programming and cable routing.
Choosing an Alternator by Maximum Output Alone
Idle output, fitment, belt requirements and charging control also matter.
Turning Up the Gain to Fix Weak Output
Gain cannot repair low voltage or undersized wiring.
Complete Electrical Upgrade Checklist
Before purchasing or installing parts, confirm:
- Vehicle year, make, model and engine
- Factory alternator rating
- Factory charging control
- Battery-current sensor location
- Amplifier models
- Final amplifier impedances
- Battery type, age and quantity
- Battery charging requirements
- Power-wire size and material
- Ground-wire size and connection
- Main fuse size and holder capacity
- Big 3 status
- Charging voltage
- Voltage at each amplifier
- Idle-output needs
- Daily, demo or competition use
- Engine-off listening time
- Future amplifier upgrades
Frequently Asked Questions
What Electrical Upgrade Should I Do First?
Begin by testing the battery, charging voltage, amplifier wiring, grounds and fuse connections. Correct the weakest part first.
Do I Need the Big 3 Before a High-Output Alternator?
For many builds, the Big 3 should be completed before or during the alternator installation so the increased current has a stronger path.
Will the Big 3 Increase Alternator Output?
No. It improves the charging and grounding paths but does not change the alternator’s rated capability.
Should I Upgrade the Battery or Alternator First?
Upgrade battery capacity when more stored energy is needed. Upgrade the alternator when charging output is insufficient. Large systems often need both.
Does a Second Battery Replace a High-Output Alternator?
No. A second battery adds reserve but still needs to be recharged.
Does a High-Output Alternator Replace a Second Battery?
Not always. The alternator supplies charging current while running, while the battery provides reserve and supports rapid changes in demand.
Can a Bad Ground Cause Voltage Drop?
Yes. A weak ground can cause voltage loss, heat, noise, weak output and amplifier shutdowns.
Should the Ground Wire Match the Power Wire?
The ground path should have enough current capability for the circuit. Using a substantially smaller ground than the positive cable can restrict the amplifier.
Should I Use OFC or CCA?
OFC normally provides greater current capability than equal-size CCA and is generally preferred for high-current electrical upgrades.
How Close Should the Main Fuse Be to the Battery?
The positive cable should be protected close enough to its power source that an unprotected section is minimized. Follow equipment and installation requirements for the specific vehicle.
Why Is My Fuse Holder Hot?
Possible causes include loose hardware, corrosion, poor fuse contact, an undersized holder or a weak cable termination.
Why Does Voltage Drop Even With a High-Output Alternator?
Check alternator output at idle, belt slip, battery condition, charging wire, Big 3 grounds, amplifier wire, fuse holders and total current demand.
Can Audio Sellerz Help Plan the Electrical System?
Yes. Provide:
- Vehicle and engine information
- Amplifier models
- Final impedances
- Battery setup
- Wire sizes
- Current charging voltage
- Daily, demo or competition use
- Future upgrade plans
Helpful Car Audio Electrical Guides
- Should you upgrade your car audio alternator?
- Stock alternator vs high-output alternator comparison
- What size high-output alternator do you need?
- Big 3 upgrade with a high-output alternator
- Do you really need the Big 3 upgrade?
- How much battery capacity do you need?
- How to add a second car audio battery
- Car audio wire-gauge and fuse guide
- Car audio grounding guide
- Complete car audio wiring-diagram guide
- Complete car audio bass-system guide
Shop Car Audio Electrical Upgrades
- Shop high-output alternators
- Shop Big 3 upgrade kits
- Shop Advanced Electric battery support
- Shop car audio power and ground wire
- Shop amplifier wiring kits
- Shop fuse holders and power distribution
Why Trust Audio Sellerz With Your Electrical System?
Audio Sellerz is a real car audio shop in Norton, Ohio.
We understand that the alternator, battery, Big 3 wiring, amplifier cables, grounds and fuse protection cannot be selected as unrelated parts.
A proper recommendation considers:
- The vehicle and engine
- The amplifier system
- The final impedance
- The battery chemistry
- The current wiring
- The vehicle’s charging controls
- How the system is actually used
Our goal is not to sell the largest electrical component available.
Our goal is to help build a system that remains safe, dependable and capable of supporting the equipment you paid for.
Customers near Norton, Akron, Cleveland and Summit County can learn more about Audio Sellerz local car audio sales and installation services.
Final Car Audio Electrical Upgrade Plan
Build the electrical system in this order:
- Test the existing battery and charging system.
- Correct undersized amplifier wiring.
- Install proper fuse protection.
- Repair weak battery, chassis and amplifier grounds.
- Complete the Big 3 when the charging paths need improvement.
- Determine whether the factory alternator can support the real demand.
- Install the correct high-output alternator when charging output is insufficient.
- Add battery reserve based on listening time and amplifier demand.
- Confirm that the charging voltage matches the battery system.
- Retest voltage, recovery and connection temperature under load.
The alternator generates the current.
The batteries store energy.
The wiring and grounds move it.
The fuses protect the positive circuits.
The amplifier uses the energy.
When all of those parts are correctly matched, the system becomes more consistent, easier to troubleshoot and far more dependable.
Dealer and Wholesale Support
Dealers, installers and car audio shops interested in available alternator, battery, wiring and electrical product lines can learn more through the Audio Resellerz dealer portal.
Follow Audio Sellerz
Follow Audio Sellerz for Big 3 upgrades, high-output alternators, battery systems, amplifier wiring, grounding, voltage testing, product releases and real car audio builds.
Follow Audio Sellerz on Facebook
Follow Audio Sellerz on Instagram
