Prodigy Audio NBM1200.1 1200 Watt Monoblock Amplifier

Name: Prodigy Audio NBM1200.1 1200 Watt Monoblock Amplifier
Brand: Prodigy Audio
SKU: NBM1200.1
Price: 272.99 USD
Availability: InStock

$272.99 USD

~~$326.99 USD~~ $272.99 USD

Sale Sold out

Shipping calculated at checkout.

Prodigy Audio NBM1200.1 1200 Watt Monoblock Amplifier

Sold by AudioSellerz.com

The Prodigy Audio NBM1200.1 1200 Watt Monoblock Amplifier is a compact South Korea-built digital mono amplifier for daily subwoofer systems that need real 1-ohm power in a smaller chassis.

Prodigy rates it at 550 watts x 1 at 4 ohms, 950 watts x 1 at 2 ohms, and 1,200 watts x 1 at 1 ohm. The included remote bass controller displays voltage, temperature, and clipping information to help the driver monitor the system.

Prodigy Audio Amplifier Specifications

Amplifier type: Compact digital monoblock
RMS output at 4 ohms: 550 watts x 1
RMS output at 2 ohms: 950 watts x 1
RMS output at 1 ohm: 1,200 watts x 1
Minimum stable load: 1 ohm mono
Frequency response: 10 Hz to 264 Hz

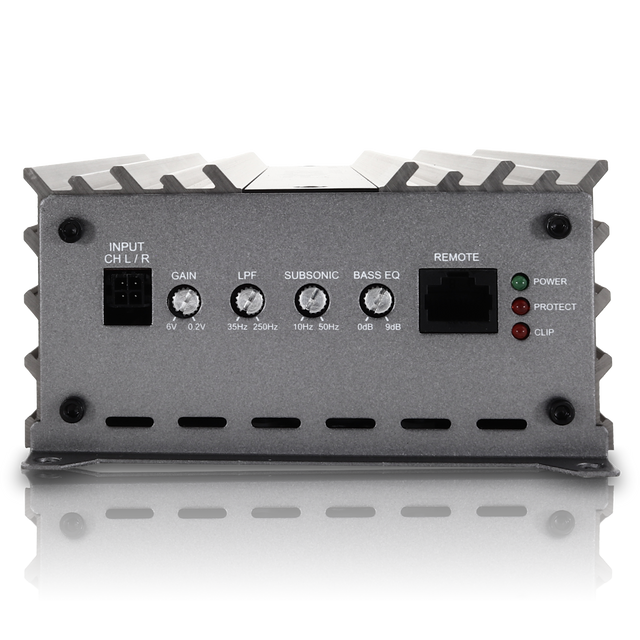

Low-pass filter: 35 Hz to 250 Hz
Subsonic filter: 10 Hz to 50 Hz
Input sensitivity: 6 volts to 0.2 volts
Signal-to-noise ratio: Greater than 95 dB
Total harmonic distortion: Less than 0.1%
Operating voltage: 9 to 15.5 volts

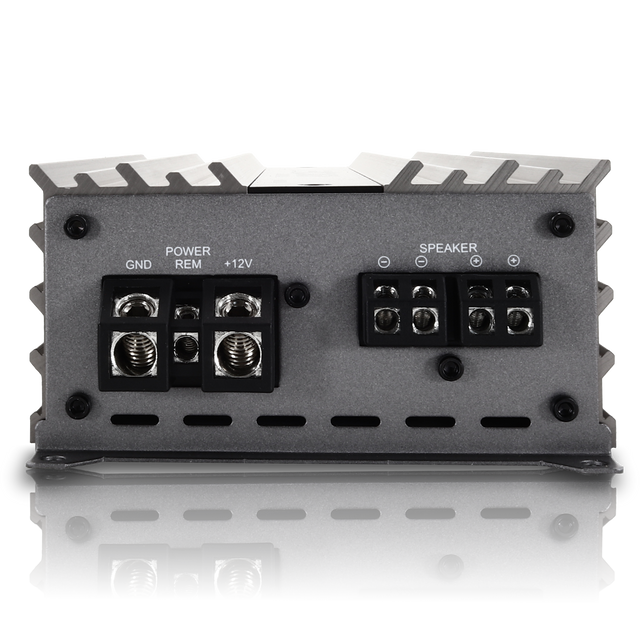

Power and ground terminals: 4 gauge
Speaker terminals: Accept up to 12 gauge wire
Listed fuse rating: 110 amps
Dimensions: 8.26 inches long x 4.87 inches wide x 2.13 inches high
Included controller: Remote bass knob with voltage, temperature, and clipping monitoring
Protection: Thermal, high/low voltage, speaker short, and DC protection

Match the NBM1200.1 to the Subwoofer Load

The amplifier's available power changes with impedance, so the subwoofer voice coils and wiring plan must create a final load the NBM1200.1 is designed to handle. Match RMS power rather than maximum ratings, then set the low-pass, subsonic filter, and gain for the enclosure and subwoofer.

Compare more Prodigy Audio monoblock and multi-channel amplifiers, shop Prodigy Audio subwoofers, or browse complete amplifier wiring kits for the installation.

Helpful Amplifier Installation Guides

Before powering the system, read how to set amplifier gain for subs, mids, and highs, verify cable and fuse sizing with the car audio wire gauge and fuse guide, and build the power and signal paths with the car audio wiring diagram guide.

A clean ground and adequate charging support are essential. Use the car audio grounding guide and the step-by-step car audio electrical upgrade guide when planning the full installation.

Shop Prodigy Audio at Audio Sellerz

Browse the complete Prodigy Audio collection at Audio Sellerz or learn more about the brand in why Audio Sellerz partnered with Prodigy Audio.

Frequently Asked Questions

How should this amplifier be matched?

Use the continuous output at the actual final impedance, the connected speaker or subwoofer RMS rating, channel layout, crossover range, and minimum stable load. Do not match equipment from maximum-power numbers alone.

What wire and fuse should be used?

Start with the amplifier's published fuse rating, expected current demand, cable length, and wire material. The battery-side fuse must protect the power cable, and the ground cable should match the power path.

Does a compact amplifier need less electrical support?

No. Physical chassis size does not determine current demand. Wiring, battery reserve, alternator output, and voltage under load must support the amplifier's real power requirements.
