PRO-ZXI 6x9" Mid-Range Bullet Loudspeaker Neodymium/Ferrite Magnets | 300W RMS 4-Ohm

DS18 PRO-ZXI694BM 6X9" Mid-Range Loudspeaker with Bullet 600 Watts 4-Ohm

The ZXi series brings Pro Audio to a bright new level of elegance, clarity, and loudness.

These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.

The PRO-ZXi694BM has a beautiful black basket face with strong black on black bullet dust cap.

This 4-ohm 6x9 Inches handles an enormous 300 watts RMS and 600 watts MAX power ensuring screaming loud mid and high range frequencies be acute and clear.

Highlights

• 6x9” Bullet black on black Pro-Audio Loudspeaker.
• Max Power Handling: 600 watts
• RMS Power Handling: 300 watts
• Frequency Response: 80Hz-12.5KHz
• Voice Coil Diameter: 1.5"
• Voice Coil Material: Glass Fiber
• Impedance: 4-Ohm
• Sensitivity: 98dB
• Magnet Weight: 30 Oz + 3 Oz
• Magnet Material: Ferrite + Neodymium
• Mounting Depth: 3.38"
• Recommended High Pass: 100Hz

Great For:

• Car Audio
• Pro Audio
• Motorcycles
• Home Studio
• Hi-Fi Installation
• Surround Sound
• Bookshelf Speakers
• Stunt Walls
• DIY Projects







Technical Details

                                                                                                               PRO- ZXI694BM Product Manual

SPECIFICATIONS
Nominal Diameter	6x9” / 152.4 x 228.6mm
Nominal Impedance	4 ohms
RMS Power Handling	300w
MAX Power Handling	600w
Sensitivity (1w/1m)	98dB
Frequency Response	80Hz - 12.5KHz
Recommended HI Pass Crossover	100 Hz
Pair or single	Single
MOTOR
Voice Coil Diameter	1.5” / 38.6mm
Voice Coil Former Material	Glass Fiber
Winding Material	CCAW
Cone Material	Paper
Bullet Material	Aluminum
Surround Material	Cloth
Basket Material	Aluminum
Basket Color	Sandblasted Black
Magnet Material	Ferrite + Neodymium
Magnet Weight	30+3 Oz
Displacement Volume	0.62L / 0.0219ft3

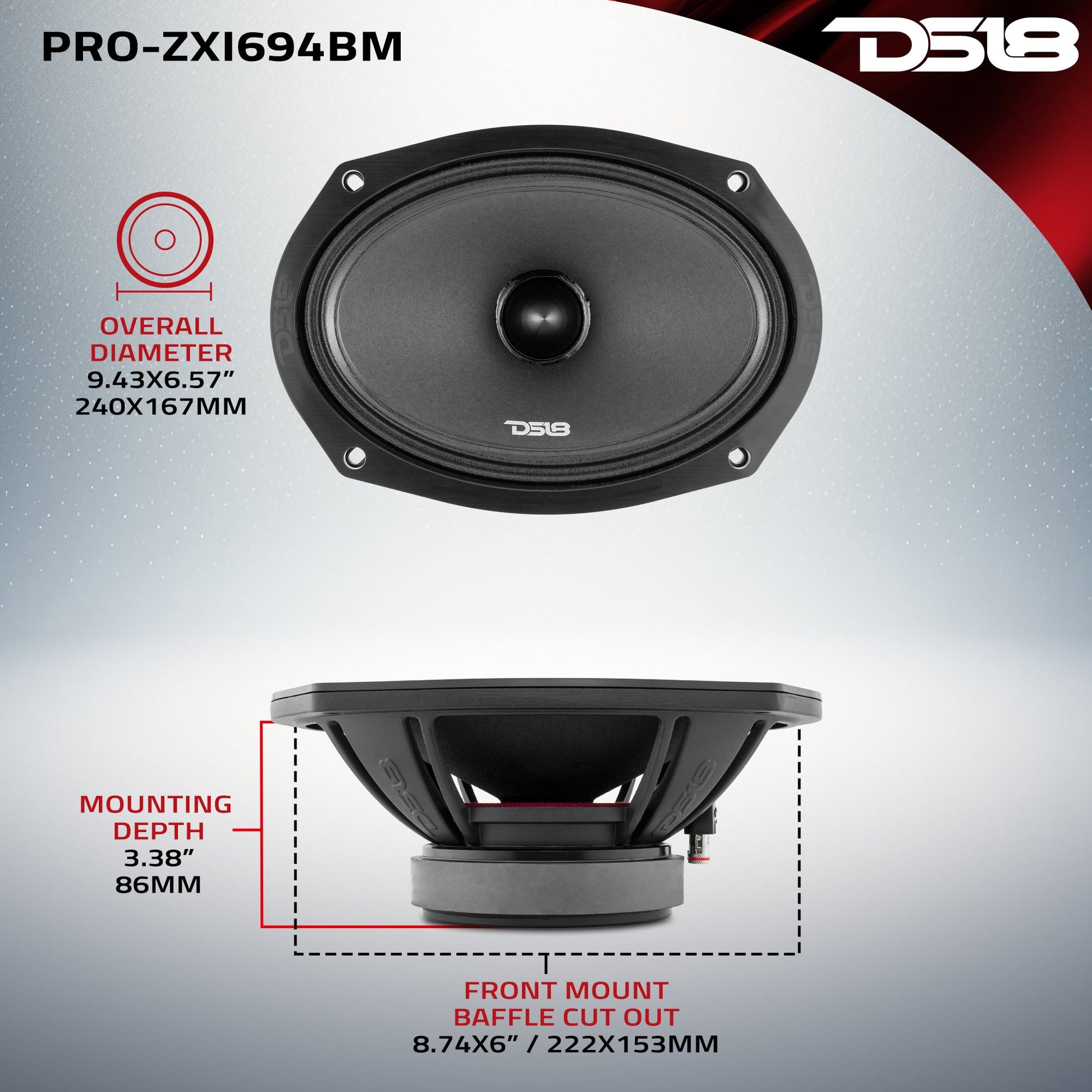

MEASUREMENT
Overall Diameter	9.43x6.57” / 240x167mm
Overall Depth	3.7" / 94mm
Front Mount Baffle Cutout	8.74x6” / 222x153mm
Mounting Depth	3.38” / 86mm
Motor Diameter	4.72” / 120mm
