PRO 6x9" Neodymium Full-Range Bullet Loudspeaker 250 Watts Rms 4-Ohm
PRO 6x9" Neodymium Full-Range Bullet Loudspeaker 250 Watts Rms 4-Ohm
Couldn't load pickup availability
PRO 6x9" Neodymium Full-Range Bullet Loudspeaker 250 Watts Rms 4-Ohm
Sold by AudioSellerz.com
The DS18 PRO-FR69NEO is a 6x9" full-range speaker from the DS18 PRO line rated at 250W RMS with a 4 ohm design. Swapping in better speakers is one of the most noticeable upgrades you can make to any system.
DS18 Product Details

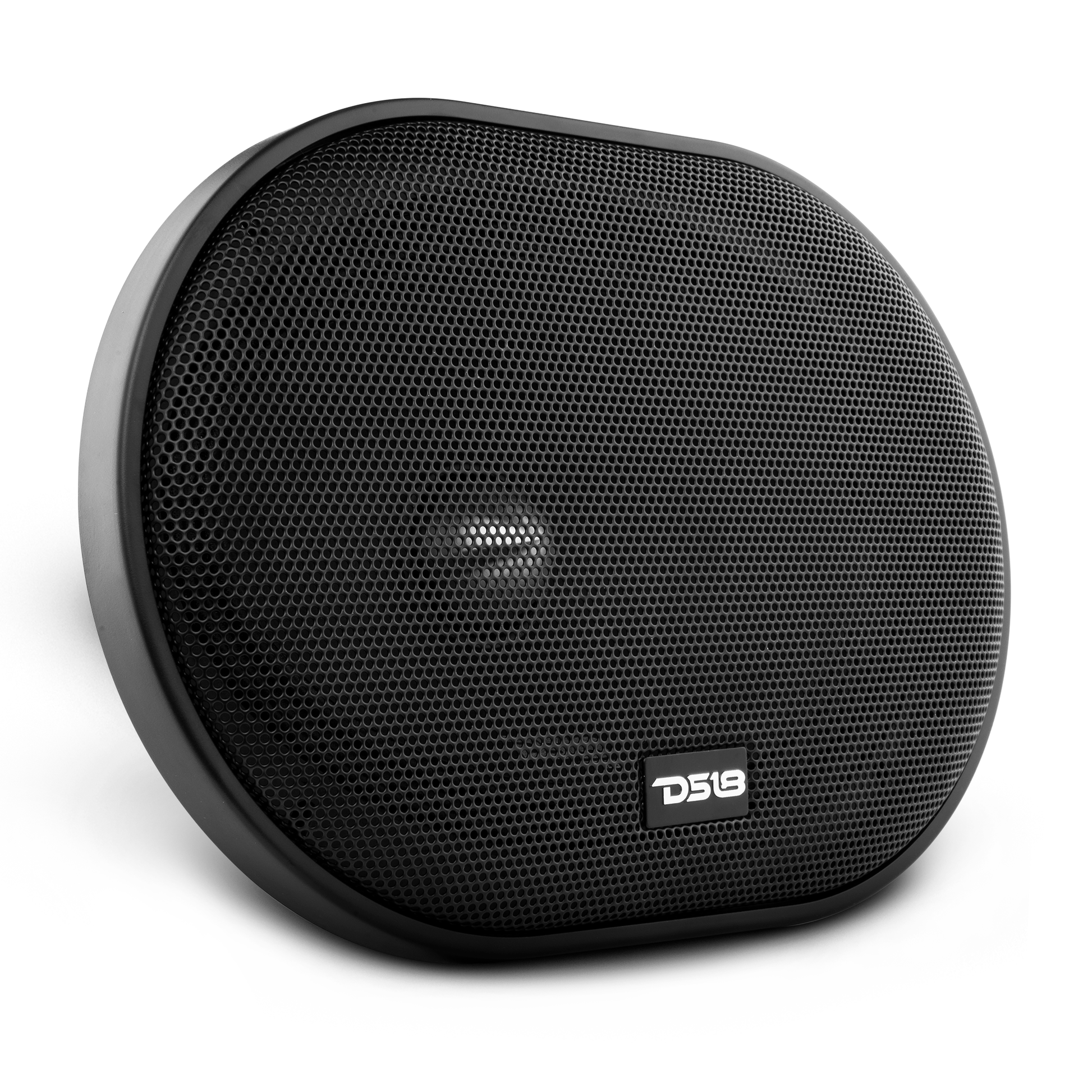

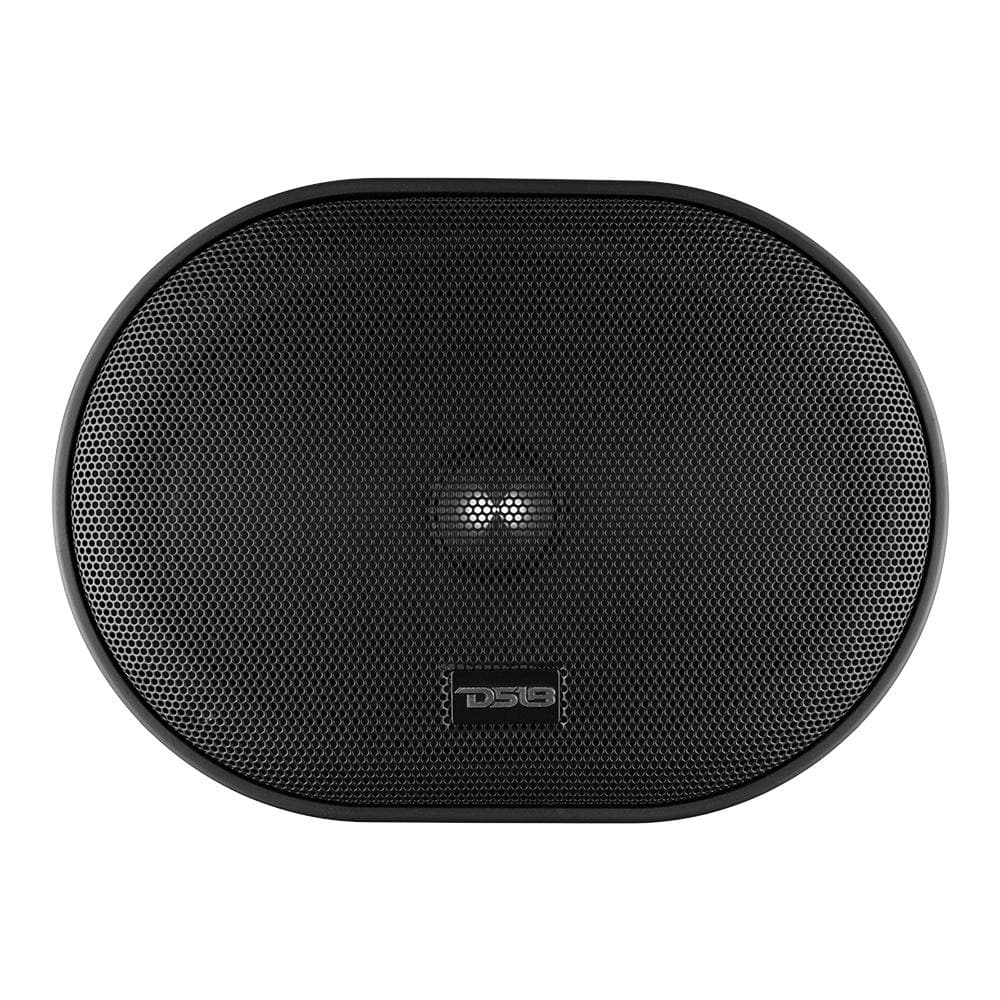

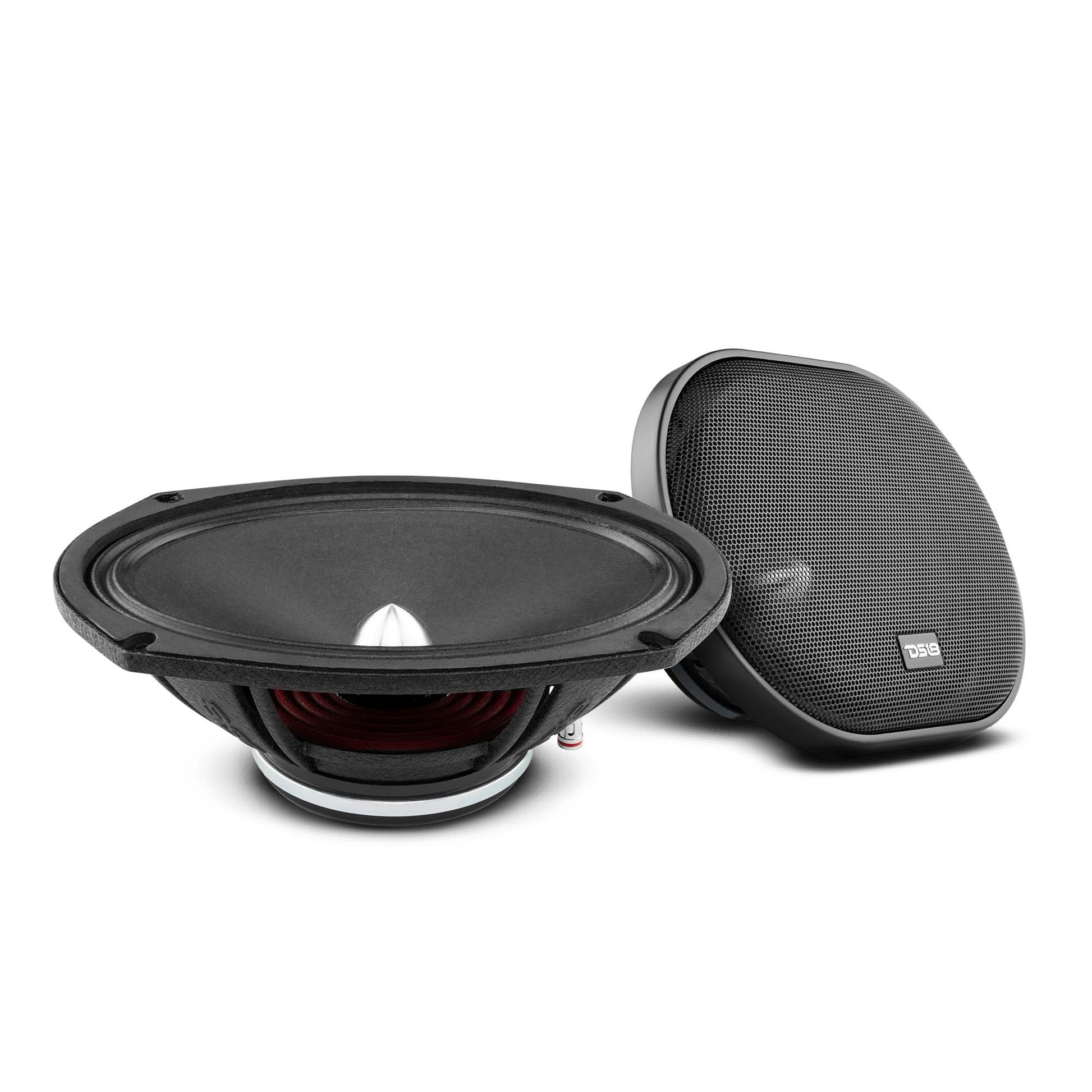

DS18 PRO-FR69NEO 6x9" Neodymium Full-Range Loudspeaker with Bullet 500 Watts 4-Ohm with Grill
Versatility is paramount in large and small audio systems alike. Many DS18 fans have been wanting a more powerful 6x9 so they can get clear and loud sound from their 6x9s. We have obliged the overwhelming requests by releasing our PRO-FR69NEO. This Neodymium driven midrange speaker will be the loudest 6x9 we have while also handling the most power.
The great thing about NEO motor structures is that you get better performance, higher wattage handing, better efficiency, and much lighter in weight than a traditional speaker with a ferrite motor structure. This is a 4 ohms speaker that handles 250w RMS and 500 W Peak power with a dB sensitivity rating of 98dB. This neo also has a built in bullet resonator to help this screaming full range all the way from 100Hz to 9000Hz with extreme clarity and loudness.
Highlights
- Neodymium motor structure that handles more power, lighter, and more efficient than ferrite motors.
- Silver bullet resonator that will bring the loudness and clarity of this speaker to the highest pinnacle.
- High RMS rating of 250w RMS and 500w MAX @4 Ohms so you can have a very high powered 6x9 to blow away the competition.
- High decibel rating so it does not take max power to get the fullest sound.
Technical Details
| Nominal Diameter | 6x9" |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 250w |
| MAX Power Handling | 500w |
| Sensitivity (1w/1m) | 98dB |
| Frequency Response | 100Hz-9KHz |
| Recommended HI Pass Crossover | 120Hz |
| MOTOR | |
| Voice Coil Diameter | 38.6mm/1.5" |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | Aluminum |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Magnet Material | Neodymium |
| Magnet Weight | 2.8 Oz |
| Displacement Volume | 0.0524L |

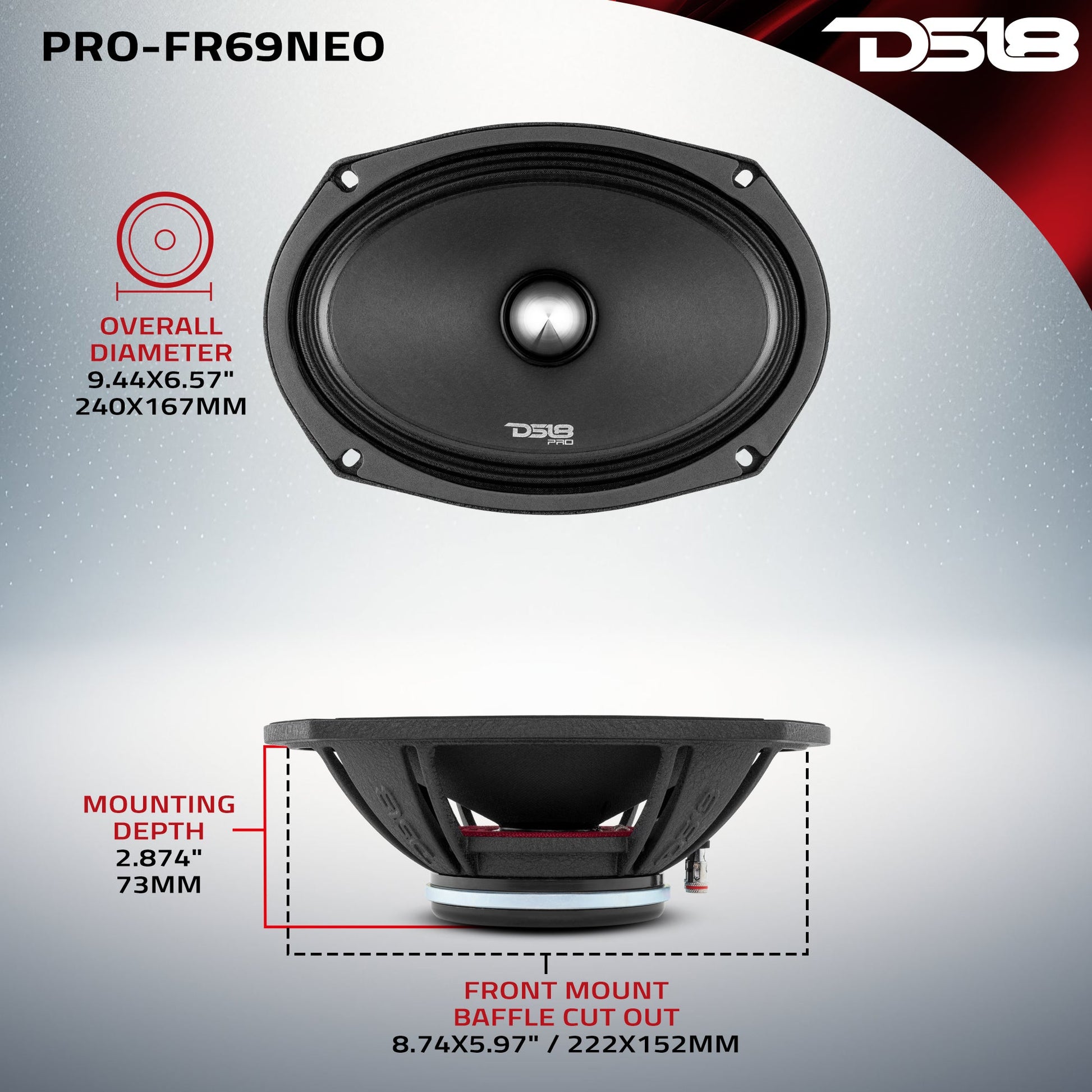

| MEASUREMENTS | |
| Overall Diameter | 9.44x6.57" |
| Overall Depth | 3.31" |
| Front Mount Baffle Cutout | 8.74x5.97" |
| Mounting Depth | 2.874" |
| Motor Diameter | 4.13" |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 250W RMS at 4 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Pro audio mids work best with a proper crossover or DSP so each driver only plays the range it was built for.
