DS18
PRO-X 6X9" Mid-Range Loudspeaker with Bullet | 200W RMS 4-Ohm
PRO-X 6X9" Mid-Range Loudspeaker with Bullet | 200W RMS 4-Ohm
Couldn't load pickup availability
PRO-X 6X9" Mid-Range Loudspeaker with Bullet | 200W RMS 4-Ohm
Sold by AudioSellerz.com

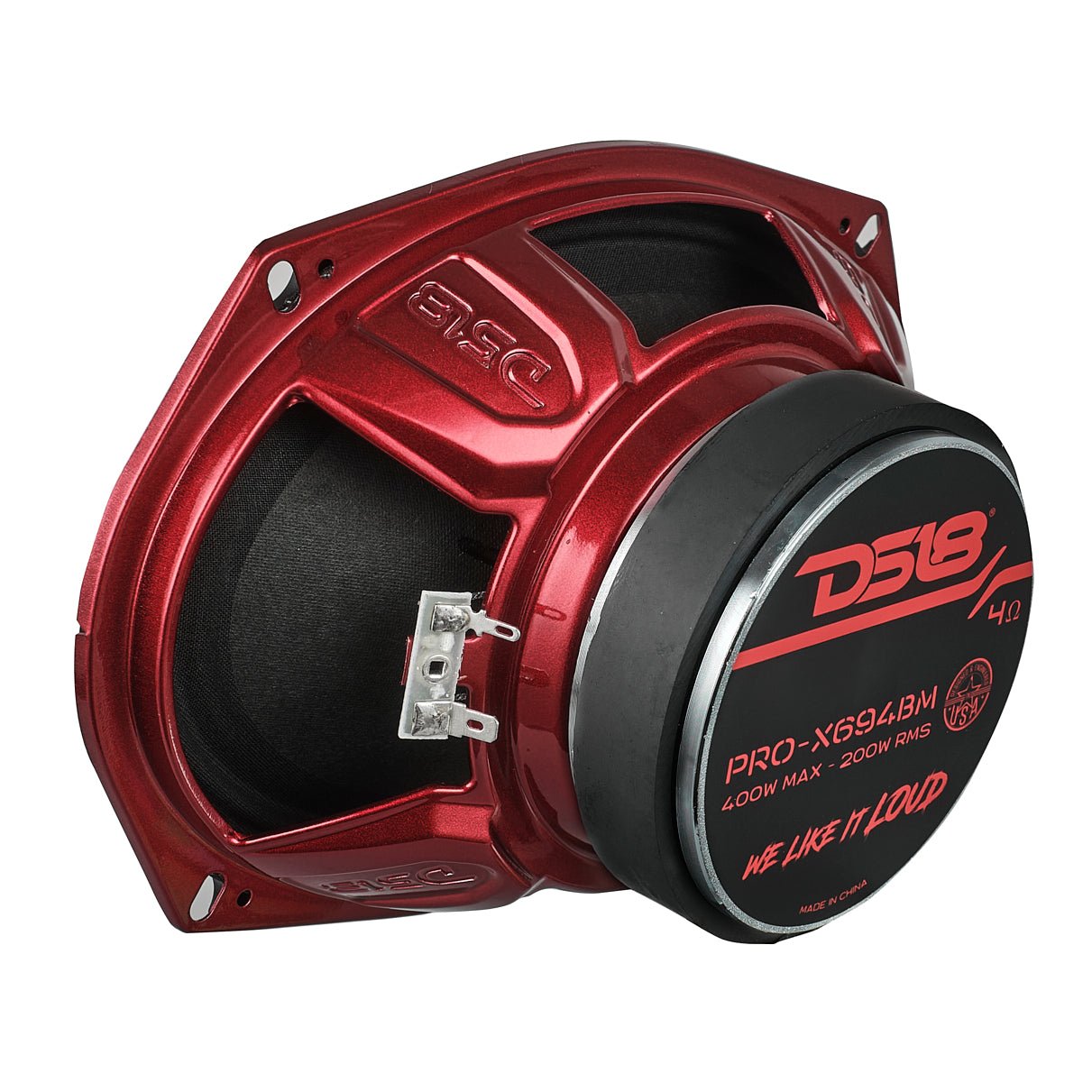

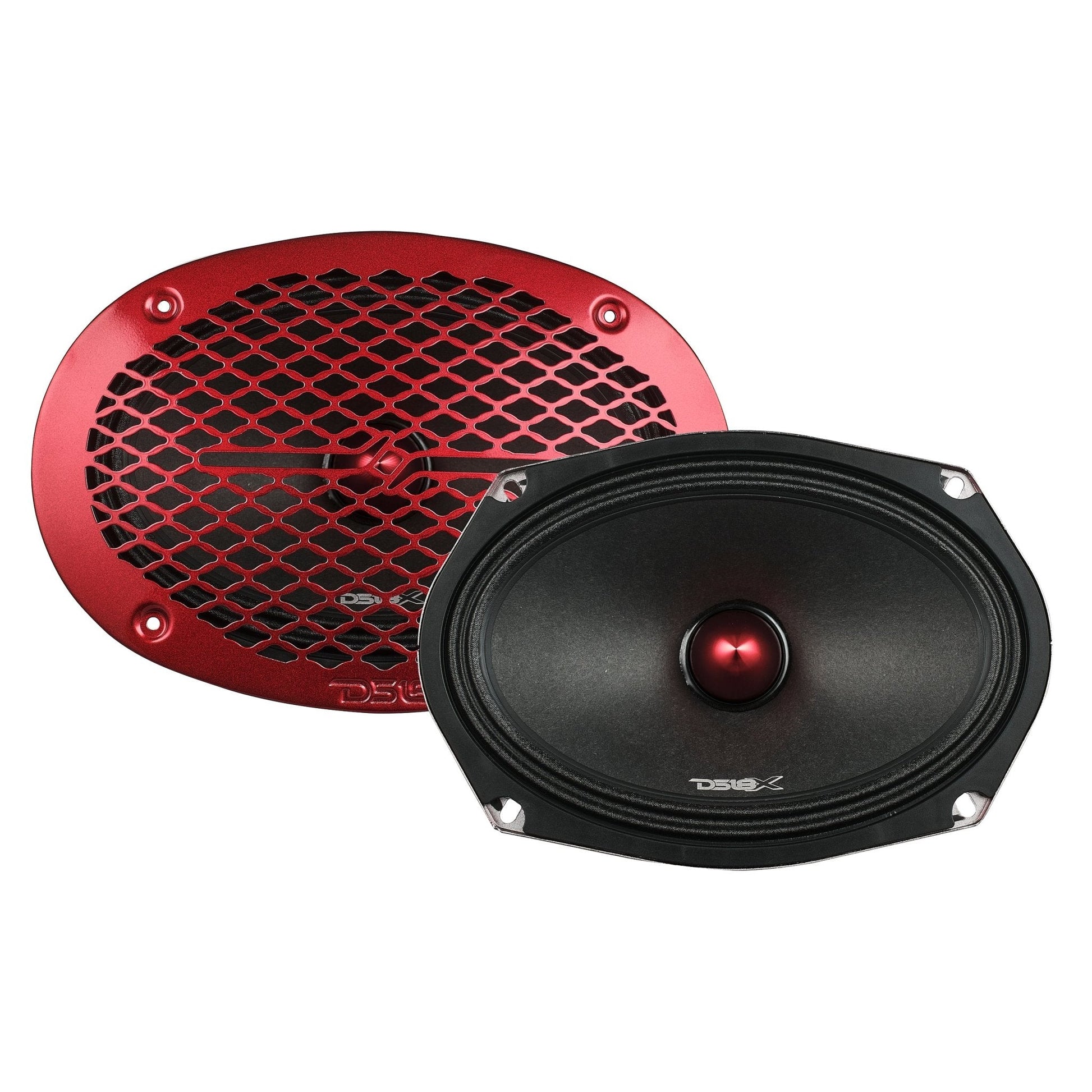

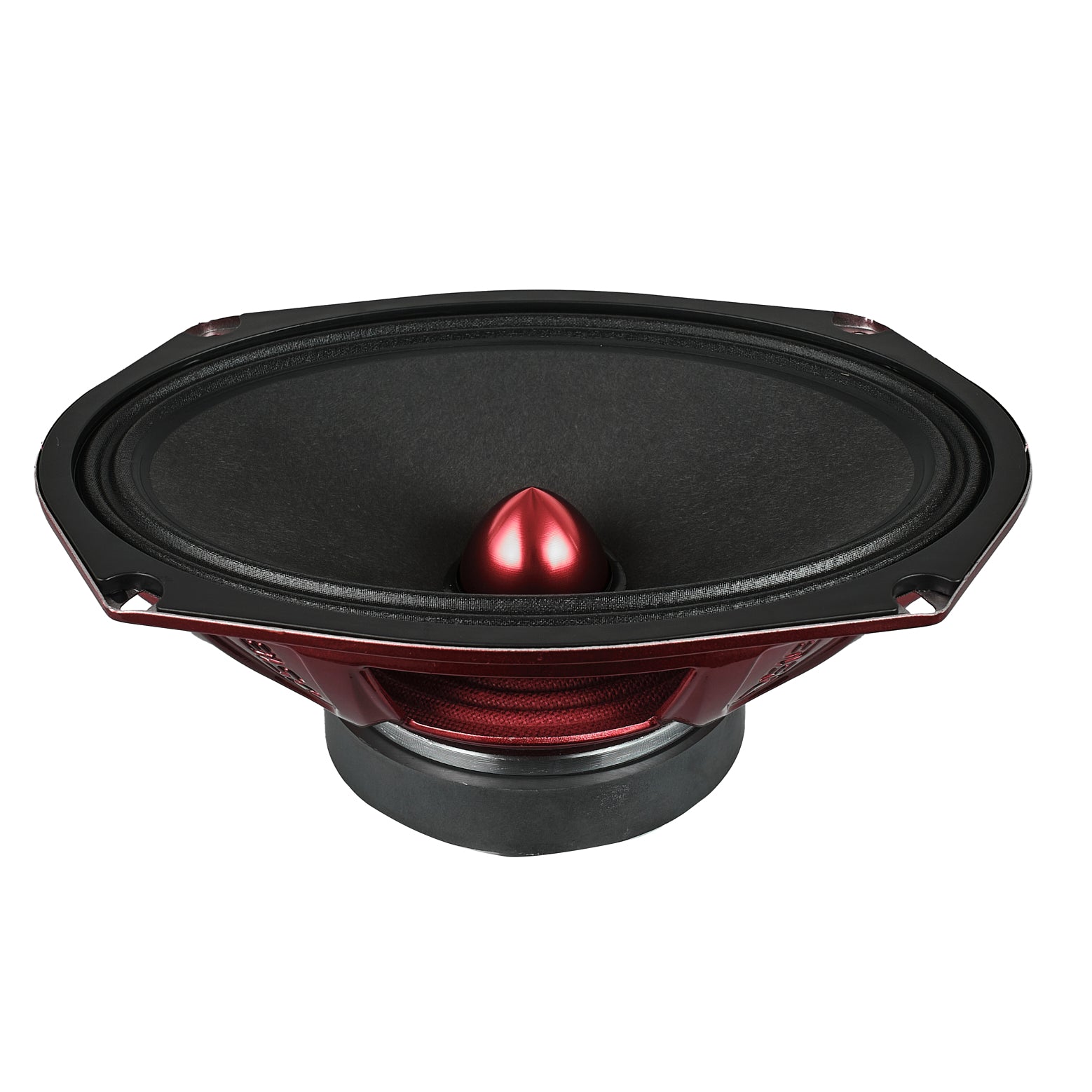

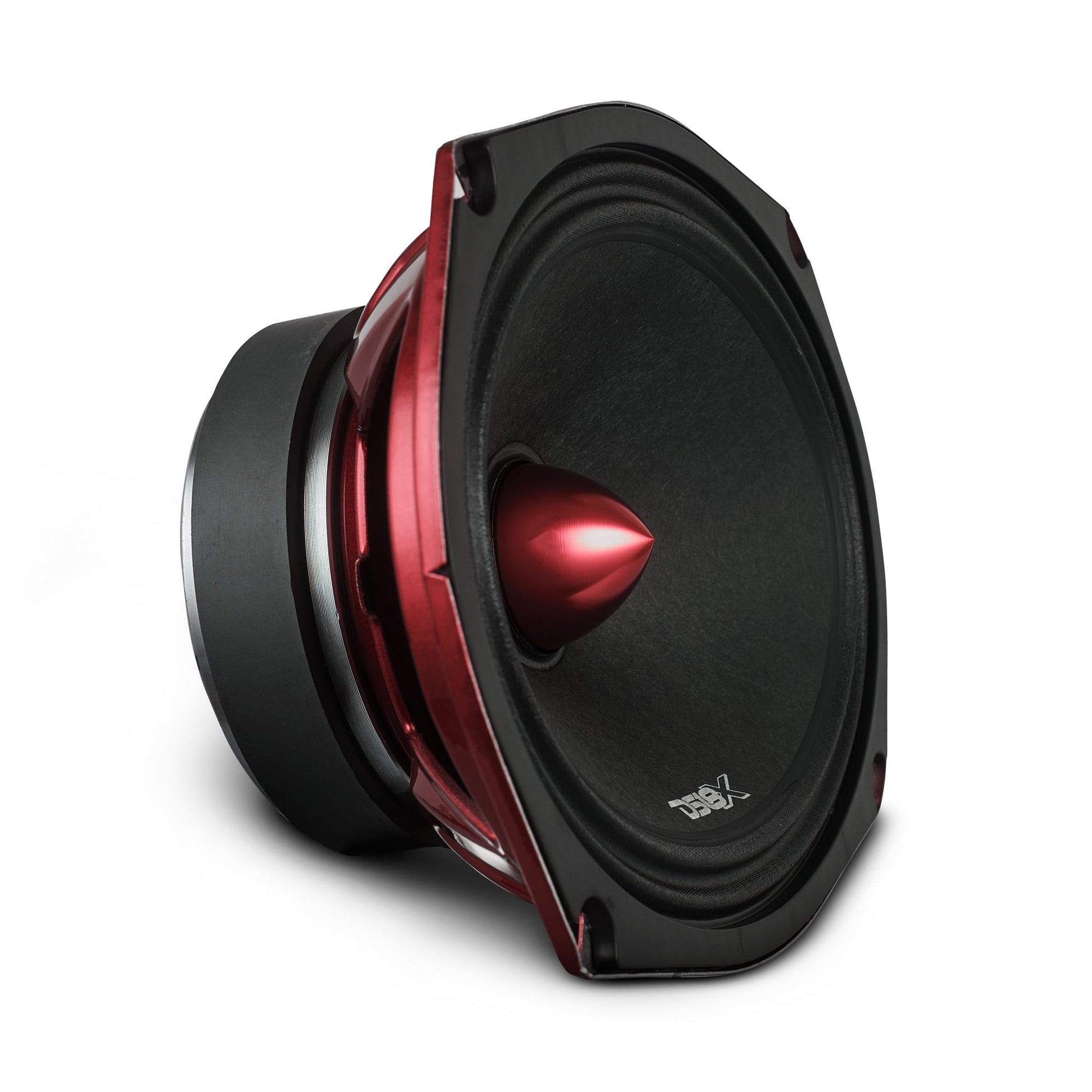

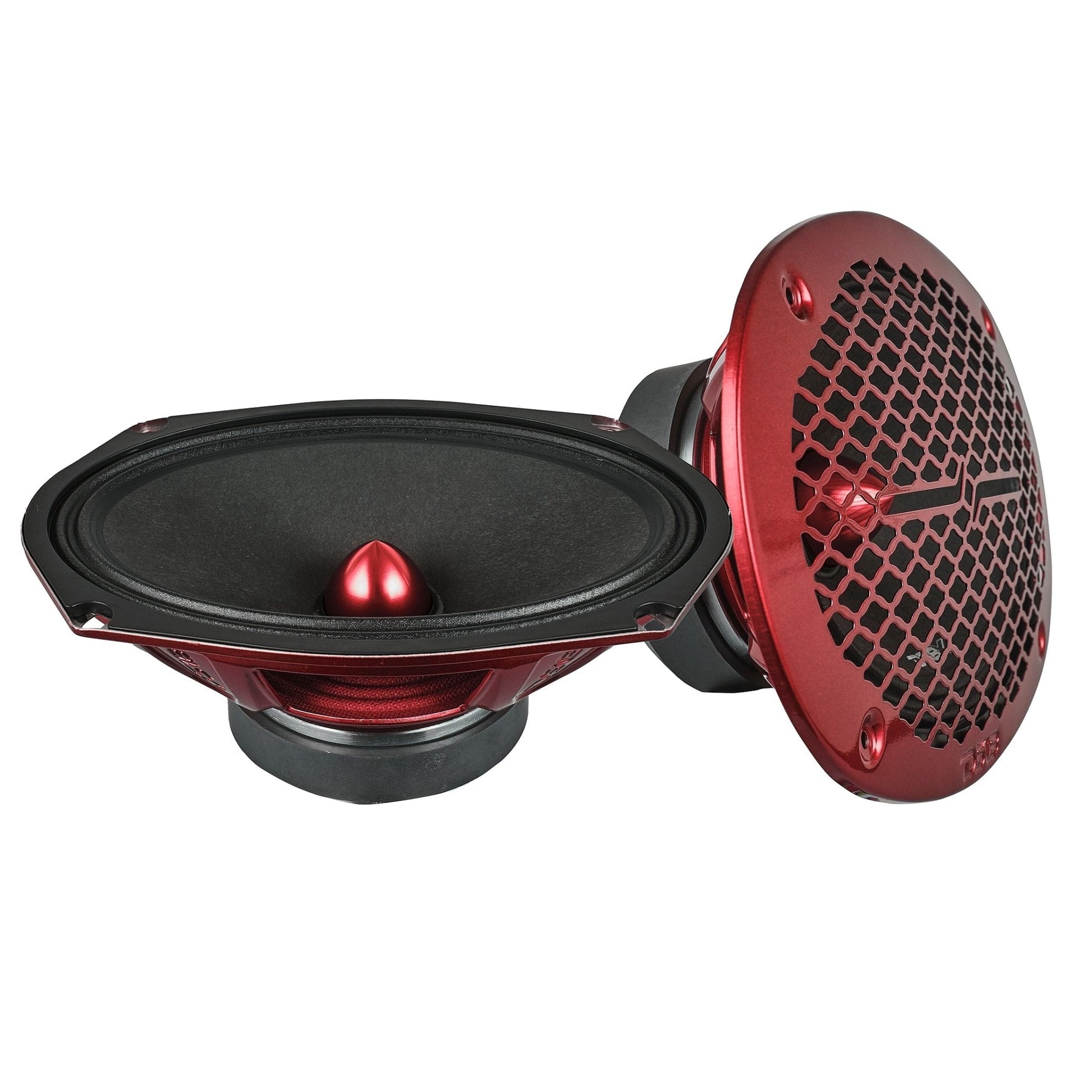

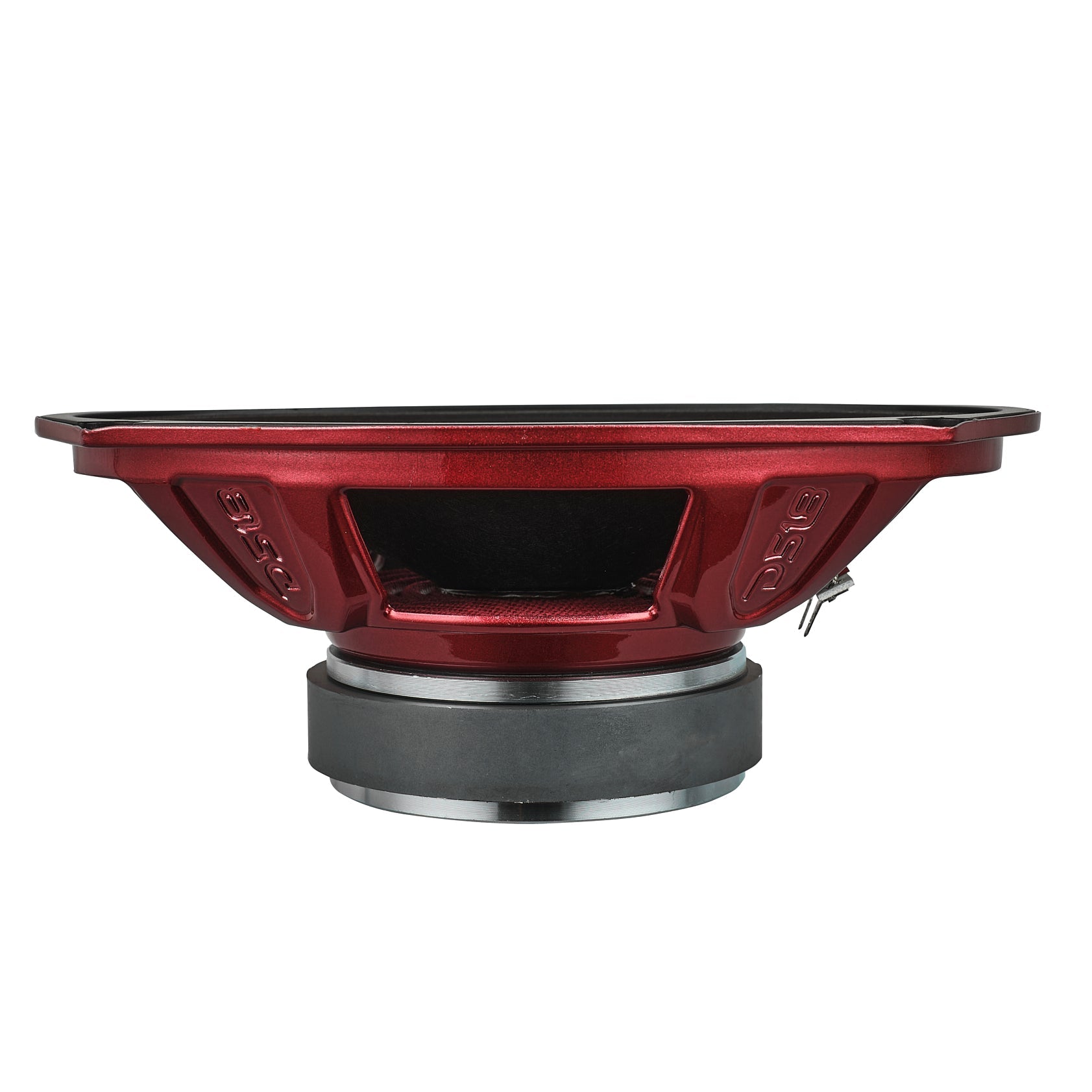

The DS18 PRO-X694BM is a 6x9" mid-range loudspeaker from the DS18 PRO line rated at 200W RMS with a 4 ohm design. Swapping in better speakers is one of the most noticeable upgrades you can make to any system.
DS18 Product Details
DS18 PRO-X694BM 6.9” Mid-Range Loudspeaker with Bullet 275 Watts RMS 4-Ohm with Grill
Loud & Powerful Music, Without Distortion
With strong midrange and clear high frequencies, these speakers deliver a concert-like audio experience without any distortion. Even better, the 1.5” 4-ohms voice coil handles high heat temperatures without breaking a sweat so you can blast your favorite music on a regular basis for extended periods of time
Order the DS18 PRO-X694BM today to own powerful midrange speakers that will last for years and give an amazing audio experience every time!
Blast Concert-Like Music for Years to Come!
The high 98 dB sensitivity of the PRO-X694BM lets you crank up the volume without any sound distortion, while the 65Hz to 12KHz frequency provides richer and more accurate tones that any audiophile will immediately notice. These loudspeakers can also handle up to 275 Watts RMS, making it capable of handling consistent and heavy usage. Put this baby on max volume and enjoy extreme volume levels with crystal clarity!
Product Highlights
- 6x9” Midrange Loudspeaker with Bullet Dust Cap
- Max Power Handling: 550 Watts
- Rms Power Handling: 275 Watts
- Frequency Response: 65Hz-12Khz
- Voice Coil Diameter: 1.5”
- Voice Coil Material: Kapton
- Impedance: 4-Ohms
- Sensitivity (1W/1M): 98dB
- Magnet Weight: 27 Oz
- Magnet Material: Ferrite
- Mounting Depth: 3.35”
Technical Details
| Model: | PRO-X694BM |
| Type: | Midrange Loudspeaker |
| Size: | 6x9" |
| RMS Power: | 275W |
| MAX Power: | 550W |
| Frequency Response: | 65Hz-12KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 98dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Steel Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |

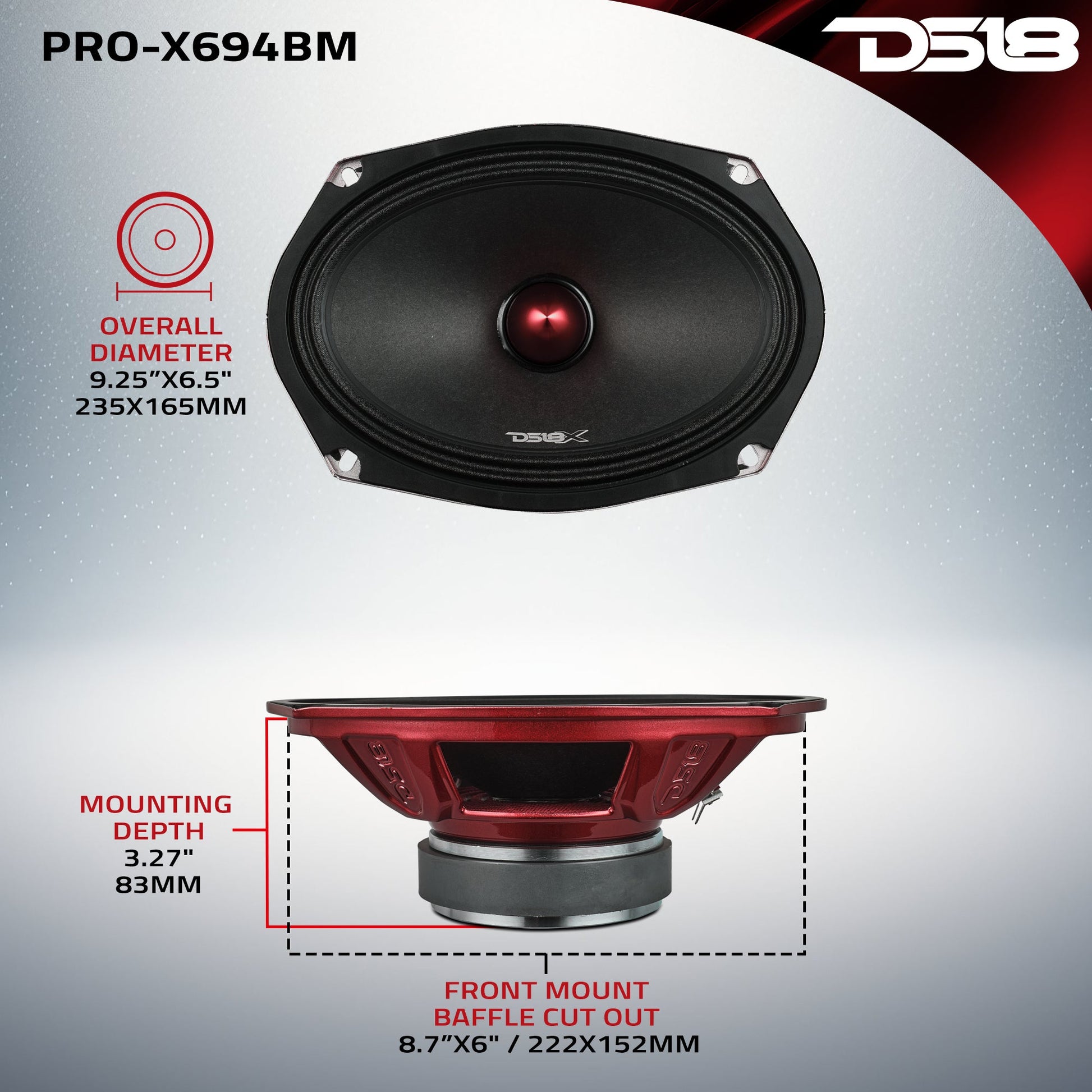

| Measurements | |
| Voice Coil Size: | 1.5" |
| Magnet Weight: | 27 oz. |
| Mounting Depth: | 3.35" |
| Cut-Out Dimension: | 8.62 x 5.91" |
| Parameters | |
| Vas | 14.69 LTR |
| Xmax | 9.2 mm |
| Fs | 105 Hz |
| Qms | 7.382 |
| Qes | 0.941 |
| Qts | 0.835 |
| Re | 3.2 ohms |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 200W RMS at 4 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Pro audio mids work best with a proper crossover or DSP so each driver only plays the range it was built for.
