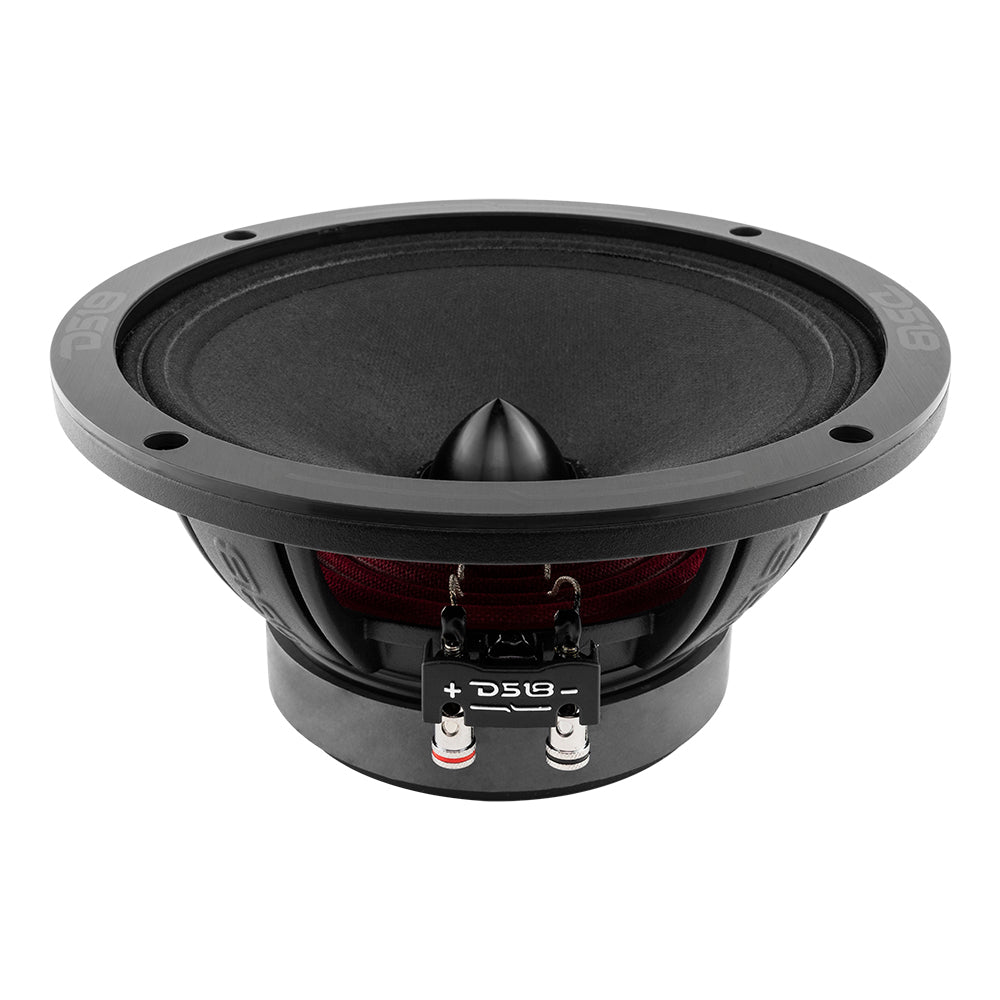

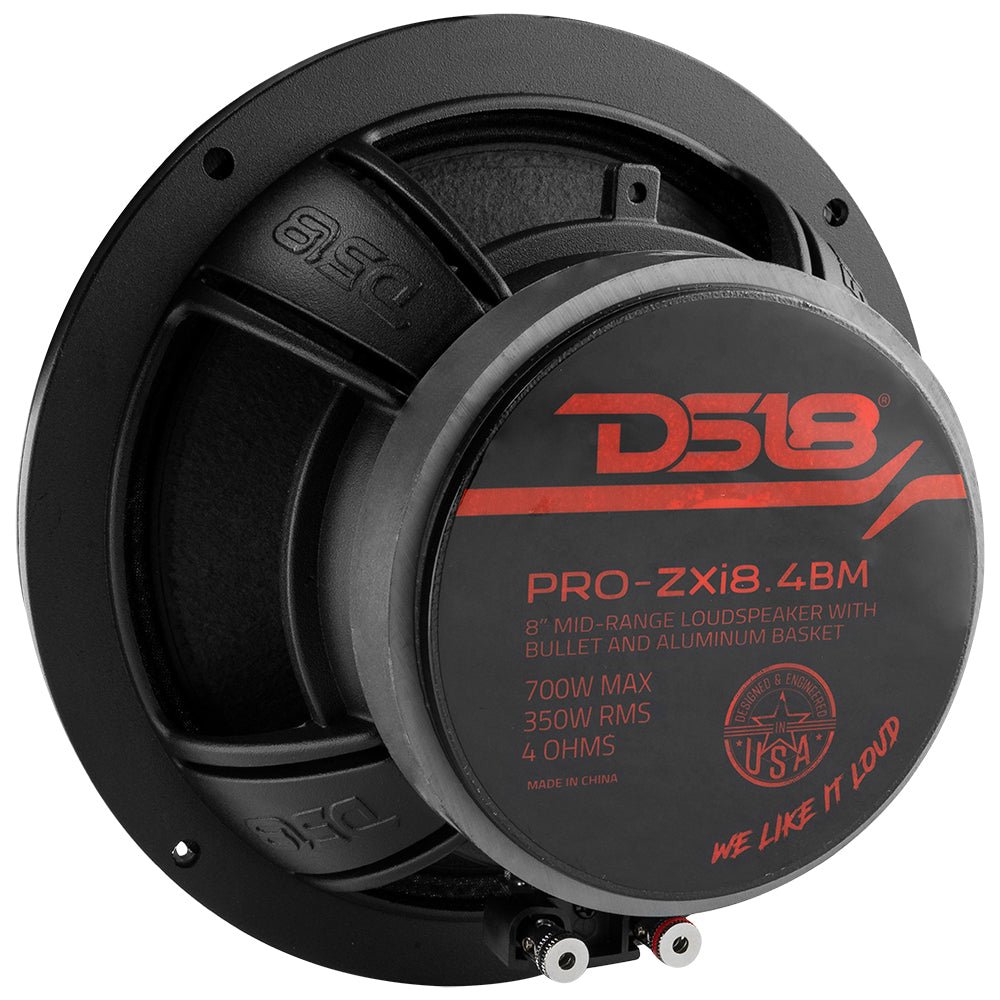

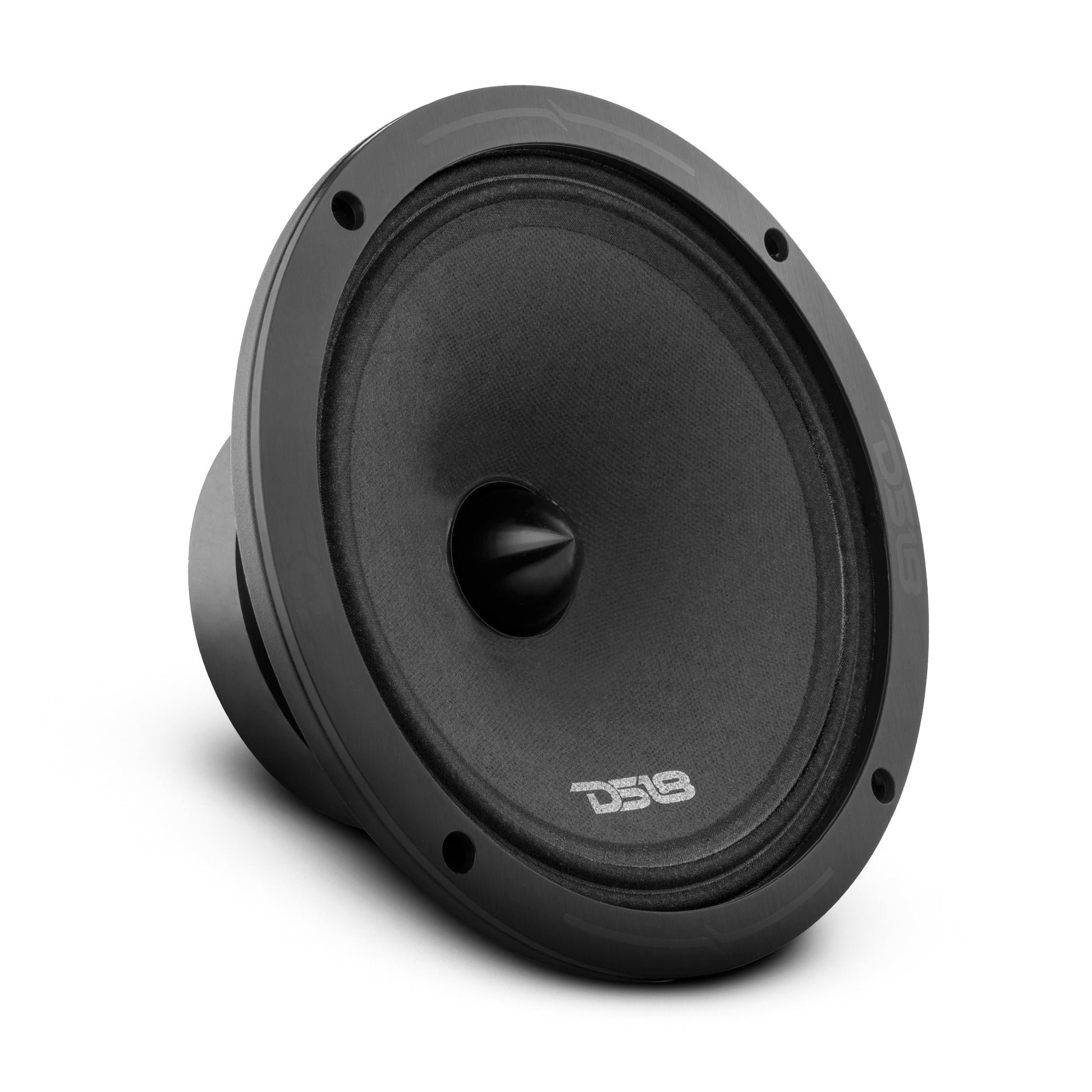

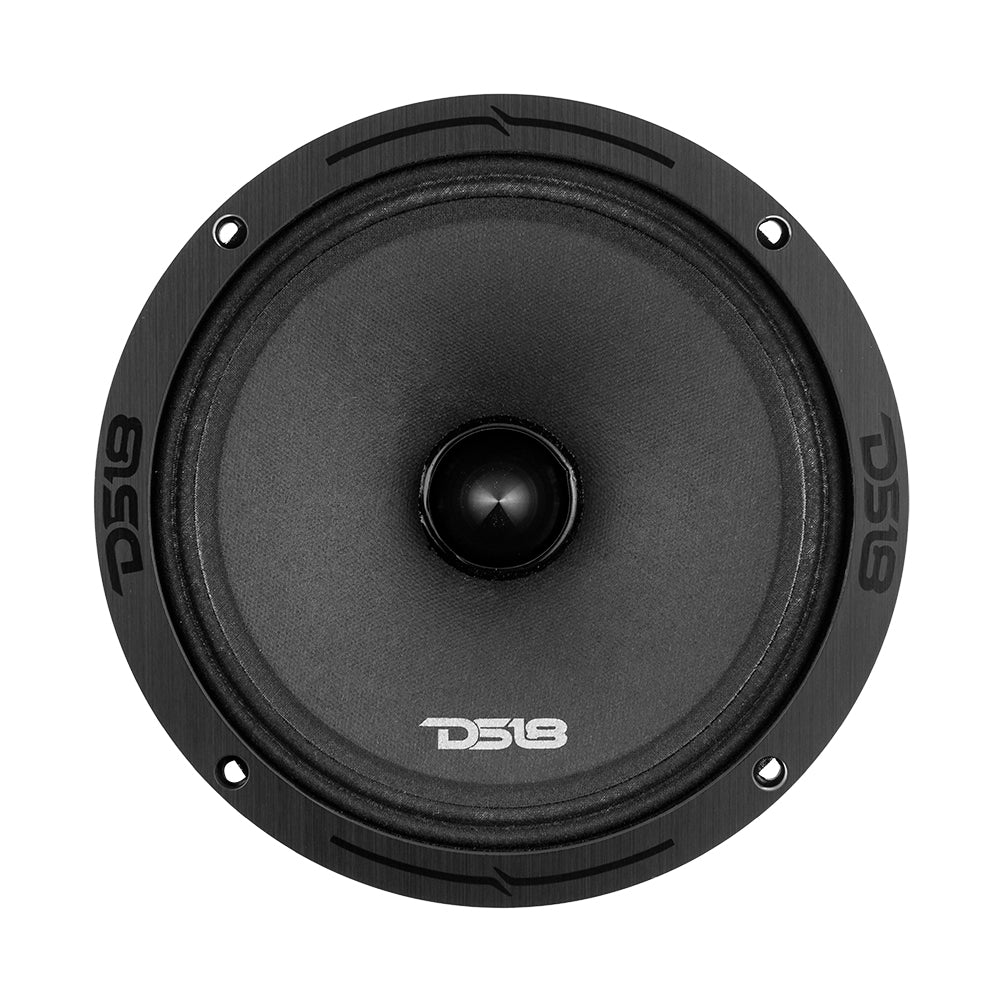

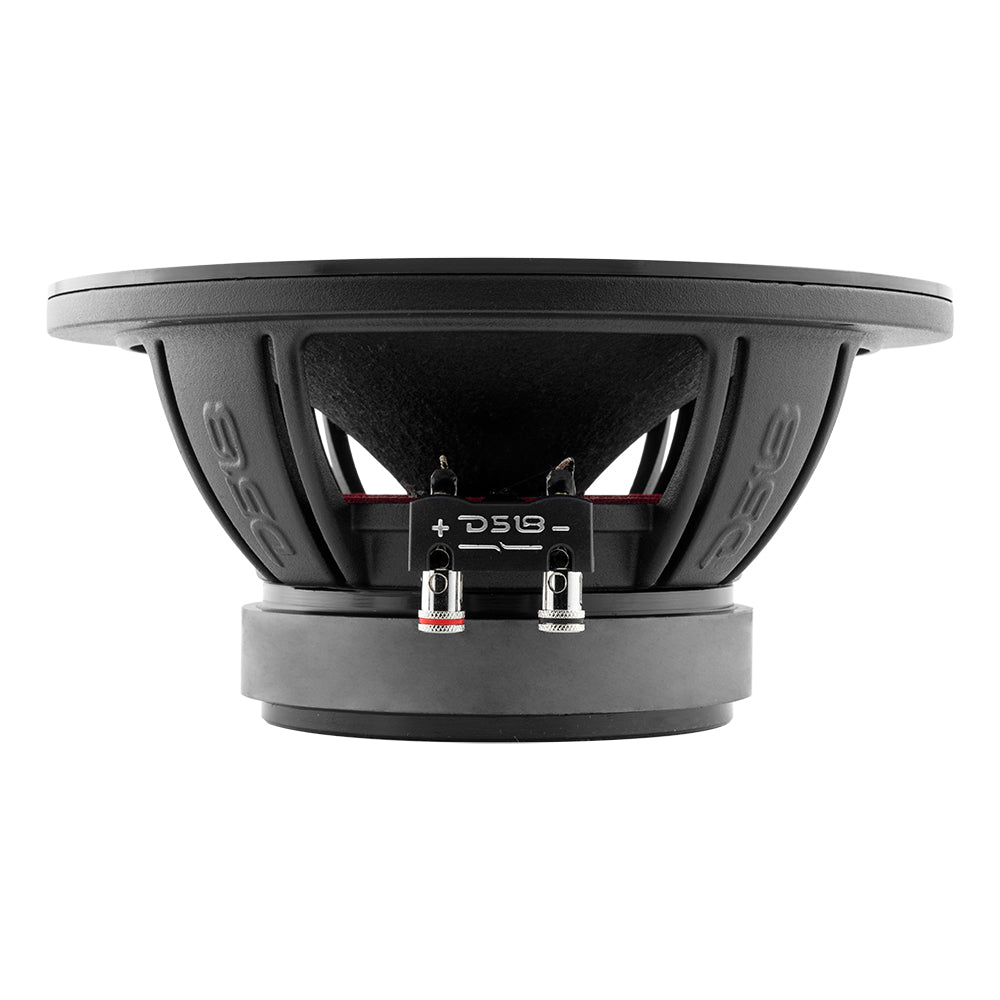

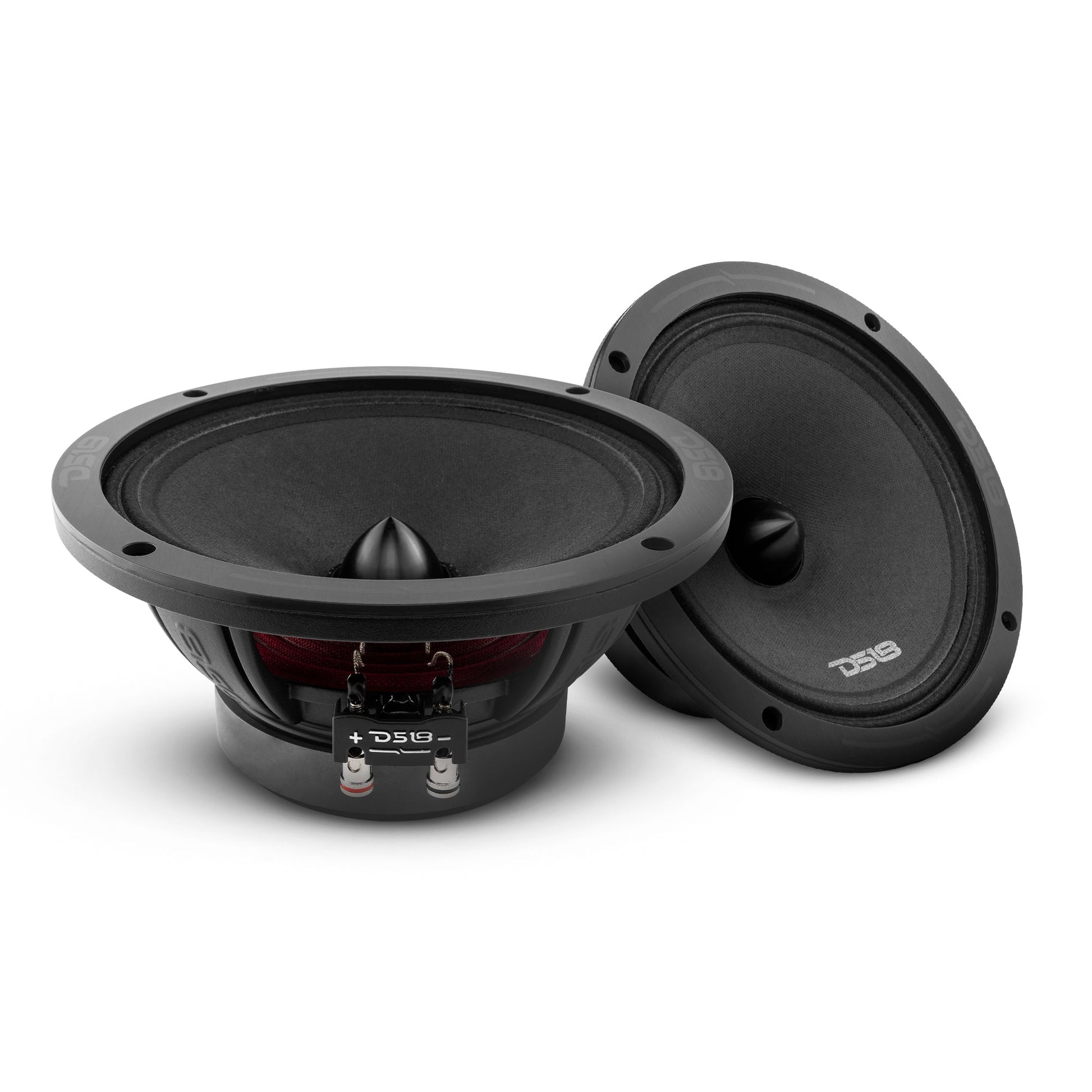

PRO-ZXI 8" Mid-Range Bullet Loudspeaker Neodymium/Ferrite Magnets | 350W RMS 4-Ohm

PRO-ZXI 8" Mid-Range Bullet Loudspeaker Neodymium/Ferrite Magnets | 350W RMS 4-Ohm

Sold by AudioSellerz.com

SKU: PRO-ZXI8.4BM

PRO-ZXI 8" Mid-Range Bullet Loudspeaker Neodymium/Ferrite Magnets | 350W RMS 4-Ohm is a DS18 audio processor from DS18 built for system tuning, signal control, crossover setup, equalization, and cleaner full-system audio builds. This description helps shoppers looking for DS18 8 inch speakers, DS18 DSP, car audio processor, audio equalizer, digital sound processor, system tuning understand where it fits in a real audio system.

Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.

Audio Sellerz System Match Notes

• Use clean signal routing and proper tuning so the speakers, subwoofers, and amplifiers work together.
• For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
• If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.

DS18 PRO-ZXI8.4BM 8" Mid-Range Loudspeaker with Bullet 700 Watts 4-Ohm

The ZXi series brings Pro Audio to a bright new level of elegance, clarity, and loudness.

These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.

The PRO-ZXi8.4BM has a beautiful black basket face with strong black on black bullet dust cap.

This 4-ohm 8 inch speaker handles an enormous 350 watts RMS and 700 watts MAX power ensuring screaming loud mid and high range frequencies be acute and clear.

Key Features

• 8.4 Bullet black on black Pro-Audio Loudspeaker.
• Max Power Handling: 700 watts
• RMS Power Handling: 350 watts
• Frequency Response: 80Hz-12.5Khz
• Voice Coil Diameter: 1.5"
• Voice Coil Material: Glass Fiber
• Impedance: 4-Ohm
• Sensitivity: 99Db
• Magnet Weight: 30 Oz + 3 Oz
• Magnet Material: Ferrite + Neodymium
• Mounting Depth: 3.42"

Great for:

• Car Audio
• Pro Audio
• Motorcycles
• Home Studios
• Hi-Fi Installation
• Stunt Walls
• DIY Projects

Technical Details

                                                                                                                   PRO- ZXI8.4BM Product Manual

SPECIFICATIONS
Nominal Diameter	8" / 203.2mm
Nominal Impedance	4 ohm
RMS Power Handling	350W
MAX Power Handling	700W
Sensitivity (1w/1m)	99dB
Frequency Response	80Hz - 12.5Khz
Recommended HI Pass Crossover	125Hz
Pair or single	Single
MOTOR
Voice Coil Diameter	1.5" / 38.6mm
Voice Coil Former Material	Glass fiber
Winding Material	CCAW
Cone Material	Paper
Dust Cap Material	N/A
Bullet Material	Aluminum
Surround Material	Cloth
Basket Material	Aluminum
Basket Color	Black Sandblasted
Magnet Material	Ferrite + Neodymium
Magnet Weight	30 + 3 Oz
Displacement Volume	0.63L / 0.022ft3

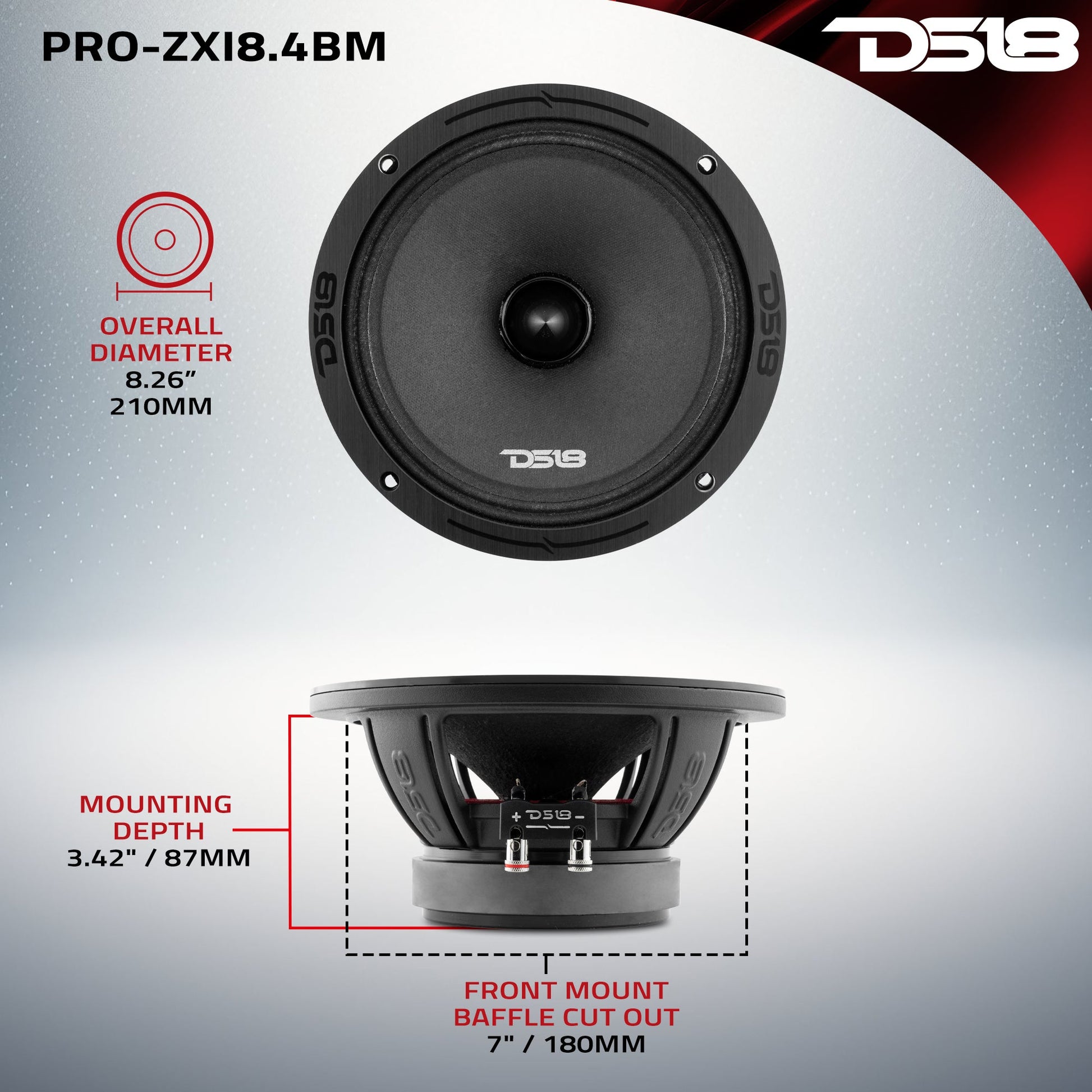

MEASUREMENT
Overall Diameter	8.26" / 210mm
Overall Depth	3.77" / 96mm
Front Mount Baffle Cutout	7" / 180mm
Mounting Depth	3.42" / 87mm
Motor Diameter	4.72" / 120mm
