DS18
ZR 12" Subwoofer 750 Watts Rms DVC 2-Ohm
ZR 12" Subwoofer 750 Watts Rms DVC 2-Ohm
Couldn't load pickup availability
ZR 12" Subwoofer 750 Watts Rms DVC 2-Ohm
Sold by AudioSellerz.com

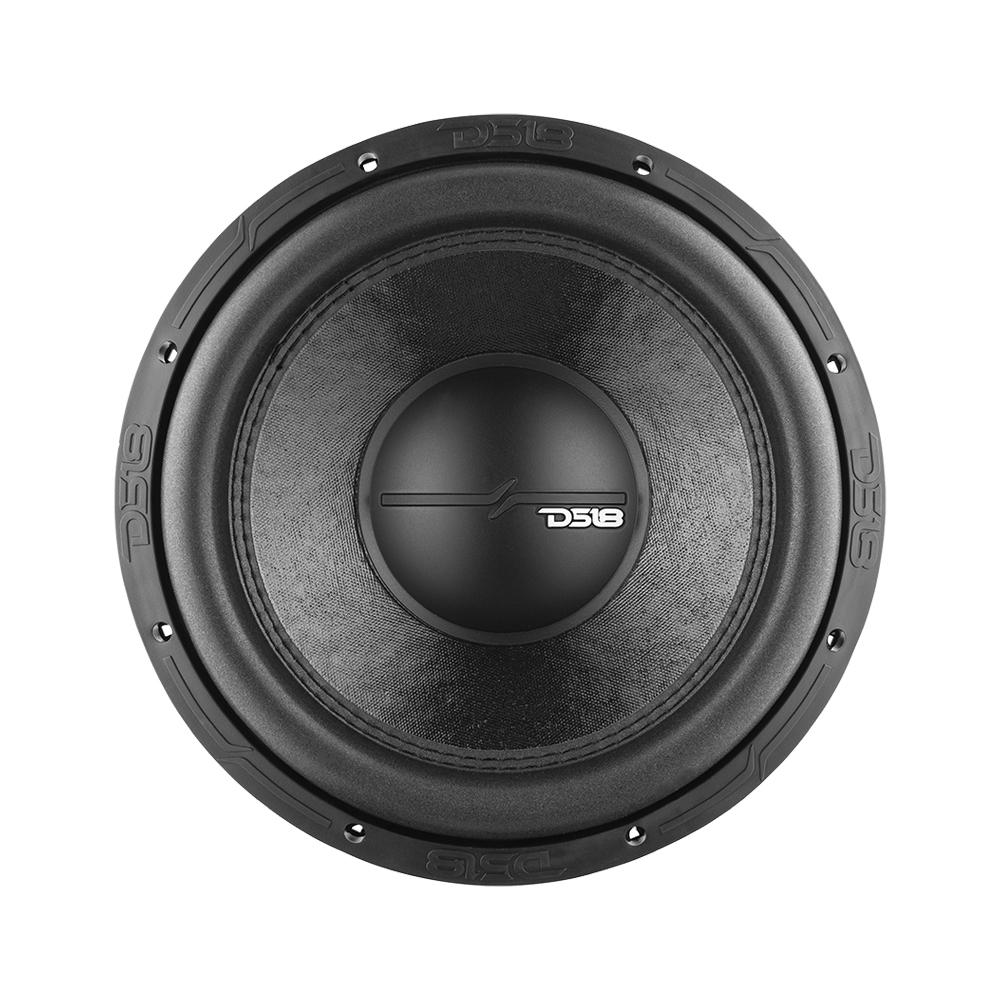

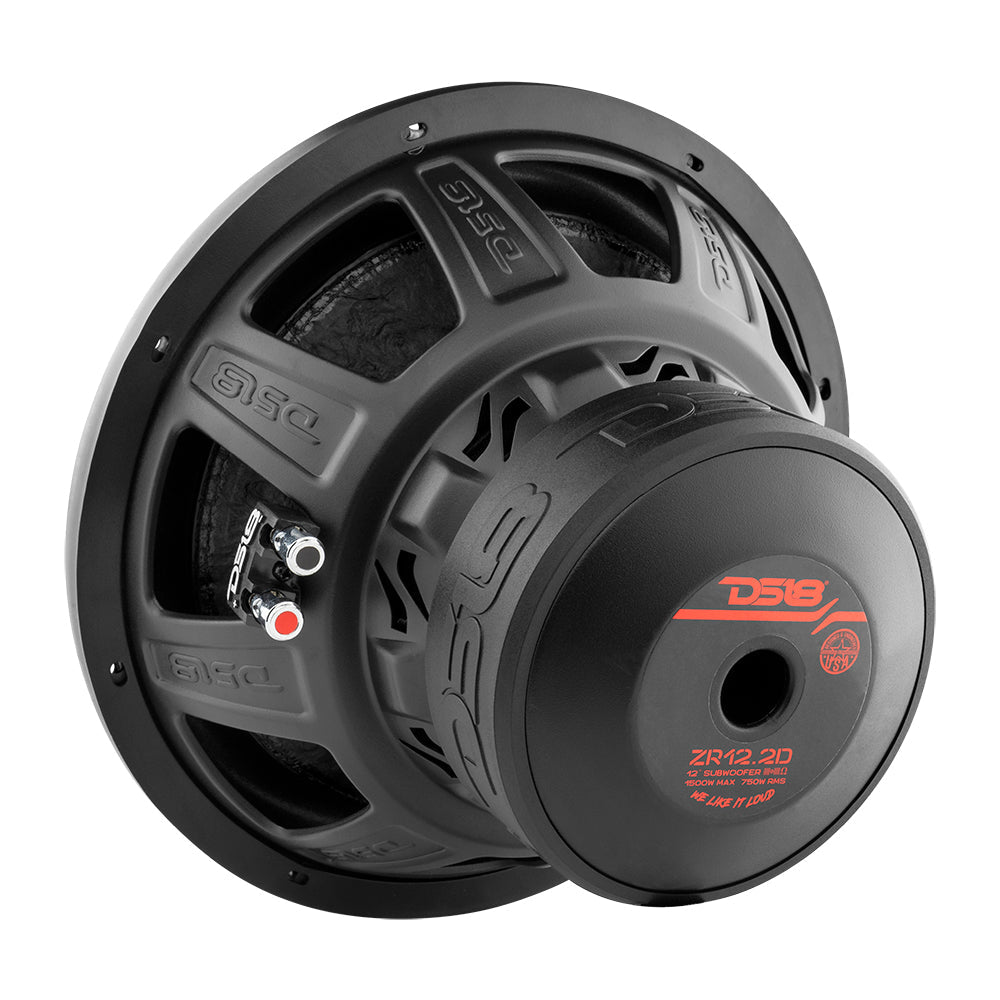

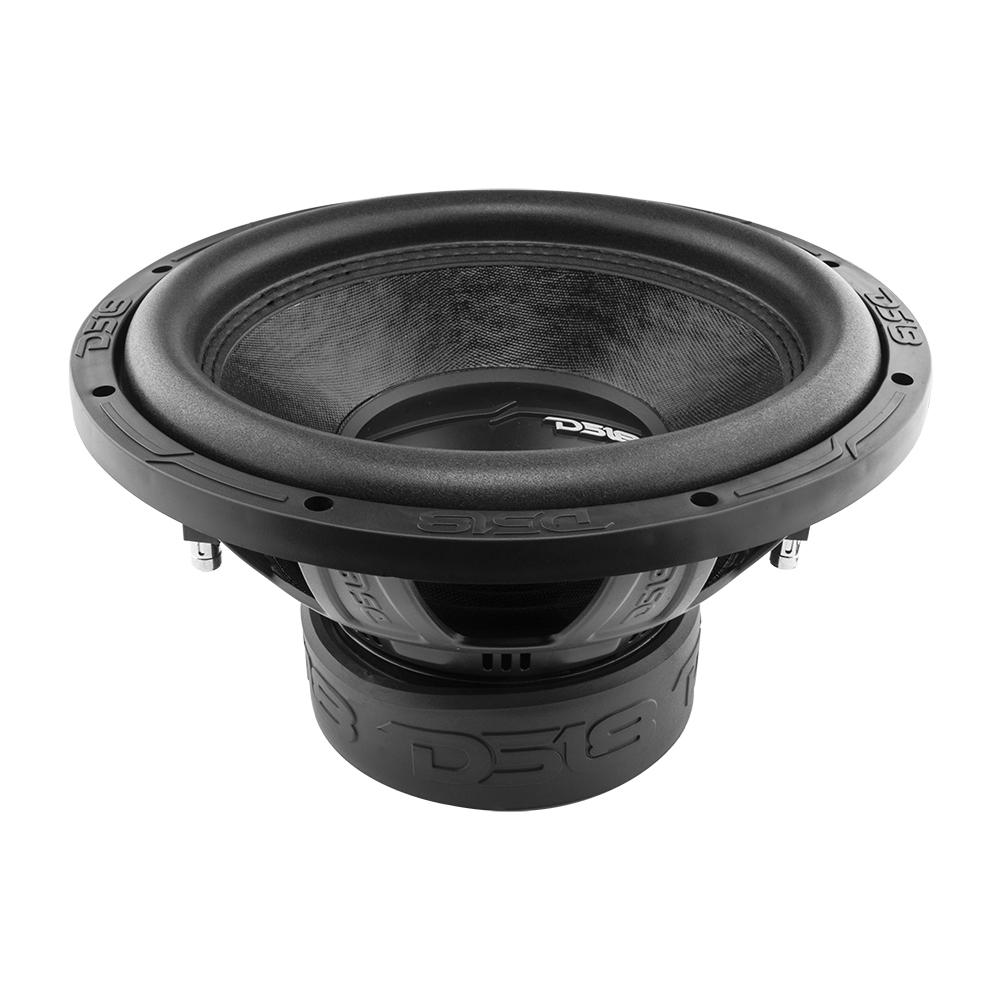

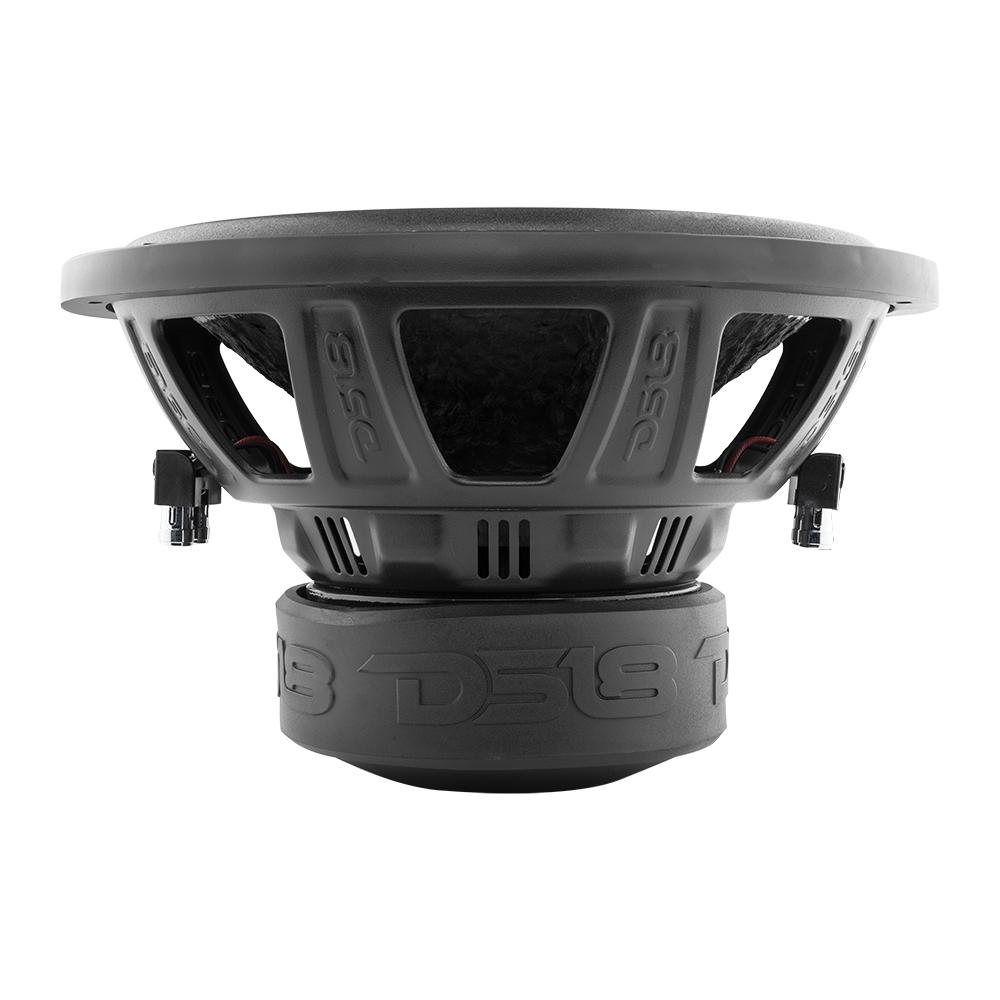

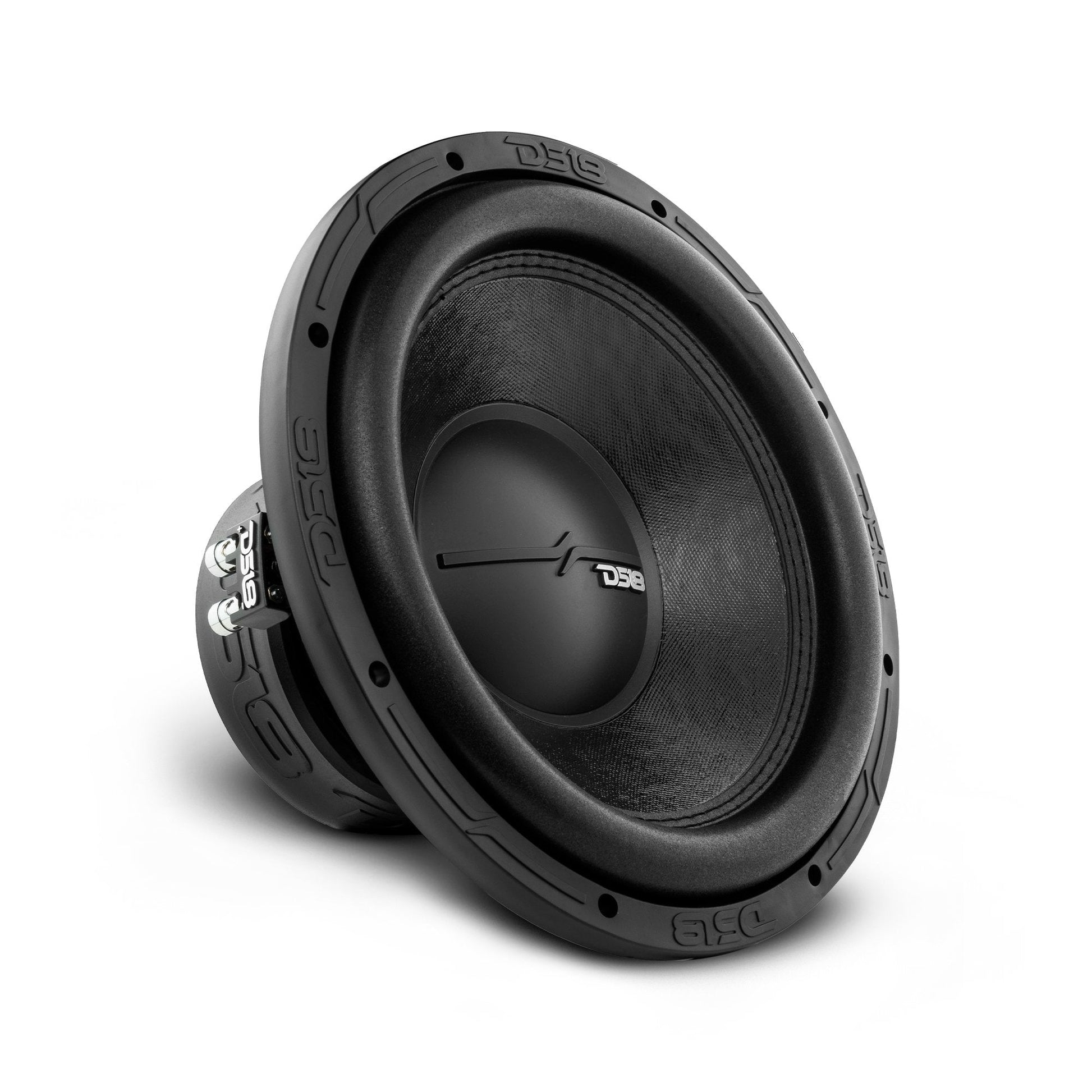

The DS18 ZR12.2D is a 12" subwoofer from DS18 rated at 750W RMS with a 2 ohm dual voice coil design. Pick the sub to match your amp and box, and it will deliver the low end your speakers can't.
DS18 Product Details
DS18 ZR12.2D 12" Car Subwoofer with 1500 Watts 2-Ohm DVC
The ZR subline is a great entry level subwoofer that both handles great power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
This 12 inch model comes in both dual 2 and dual 4 ohms configurations giving you many options to match your amplifiers optimal impedance. This model comes with a 2 inch voice coil that handles 750w RMS and 1500w Max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout the vehicle.
Highlights
- Large foam surround giving great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 750w RMS and 1500w Max through a high strength 2.5 inch aluminum voice coil.
- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, Motor, and dust cap.
- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 12” |
| Nominal Impedance | 2 + 2 Ohms |
| RMS Power Handling | 750 W |
| MAX Power Handling | 1500 W |
| Sensitivity (1w/1m) | 82 dB |
| Frequency Response | 25Hz - 200Hz |
| Recommended Lo Pass Crossover | 90 Hz |
| MOTOR | |
| Voice Coil Diameter | 2.5" / 61.6mm |
| VC Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 100 oz |
| Displacement Volume | 0.07 ft3 |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | 21.2 L |
| Excursion (one way) | 25mm |
| Free Air Resonance | 26Hz |
| Mechanical Factor | 4.8 |
| Electrical Factor | 0.84 |
| Total Factor | 0.71 |
| Moving Mass | 299.7g |
| Compliance | 61.9µ m/N |
| BL Factor | 8.6 |
| Voice Coil Inductance | 567.3m mH |
| Cone Area | 502.73 Cm2 |
| DC Resistance | 1.8 + 1.8 ohm |
| Efficiency Bandwidth Product | 30.9 |

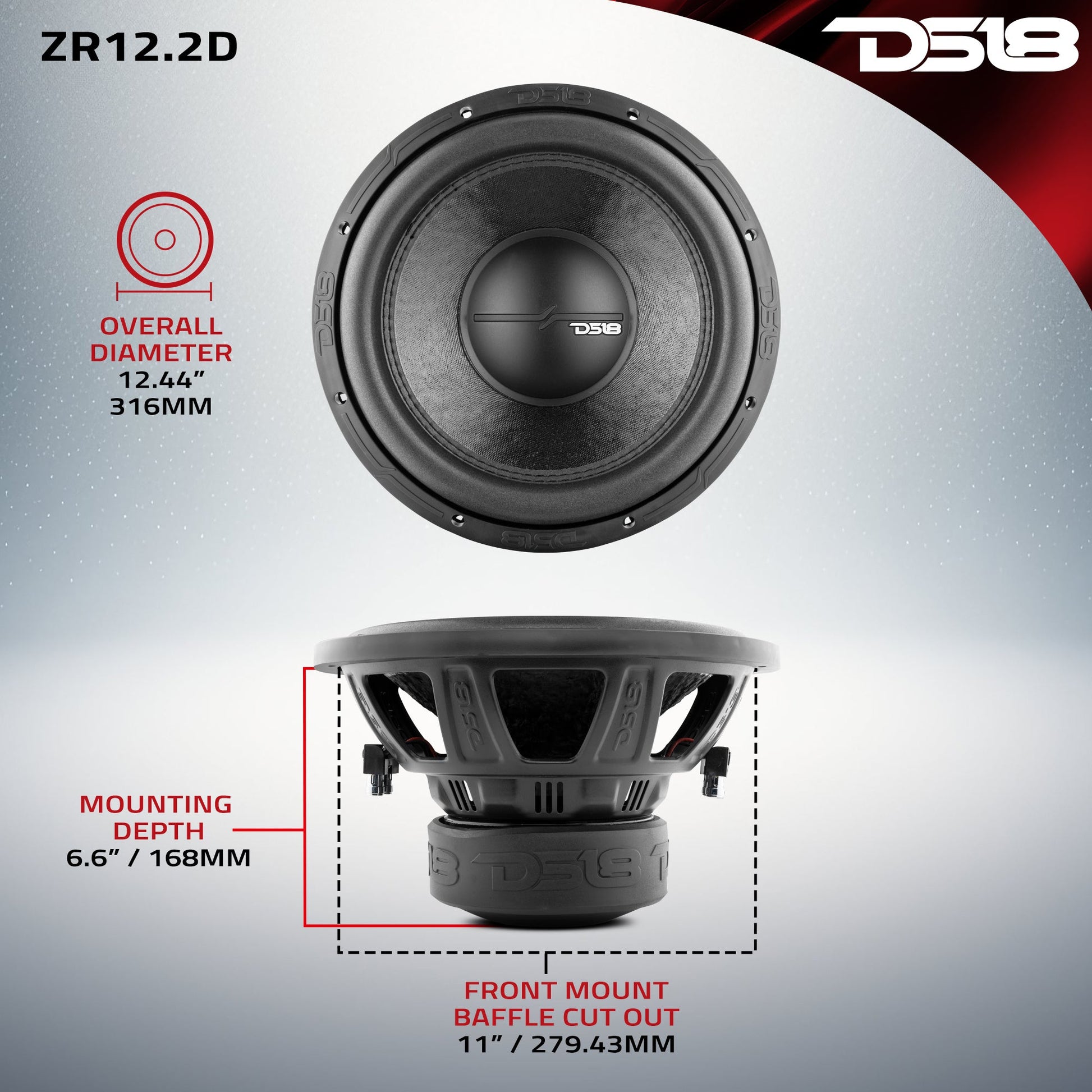

| MEASUREMENTS | |
| Overall Diameter | 12.44” / 316mm |
| Overall Depth | 7.7”/195.56mm |
| Front Mount Baffle Cutout | 11”/279.43mm |
| Mounting Depth | 6.6”/168mm |
| Motor Diameter | 6.1" / 155mm |
Box Info
Setup Tips From Audio Sellerz
- Wire the sub to a final impedance your amp is stable at. The listing rates this one at 2 ohm per coil.
- Use an enclosure built to the manufacturer recommendation. The box makes a big difference in output and sound.
- Break the sub in at moderate volume and set the amp gain correctly before playing it hard.
