Sky High Car Audio SH-CX104SLIM 10" Slim Coaxial Speaker with Compression Driver Horn

Sky High Car Audio SH-CX104SLIM 10" Slim Coaxial Speaker with Compression Driver Horn

Sky High Car Audio SH-CX104SLIM 10" Slim Coaxial Speaker with Compression Driver Horn
Sold by AudioSellerz.com.

The Sky High Car Audio SH-CX104SLIM 10" Slim Coaxial Speaker is built for customers who want loud, clear output from a space-saving 10" speaker design. This slim coaxial speaker combines a 10" midrange/midbass-style speaker platform with an integrated 1" compression driver horn, giving customers strong projection, aggressive clarity, and full-range output in one speaker.

Rated at 200 watts continuous power, 250 watts RMS, and 500 watts peak power at 4 ohm, the SH-CX104SLIM is made for louder mids and highs builds, custom doors, speaker pods, rear panels, walls, and space-restricted installs where a standard-depth speaker may not fit. With 95.5dB sensitivity and a 90Hz-20kHz frequency range, this speaker is designed to deliver strong volume, clear vocals, solid midbass presence, and crisp high-frequency detail.

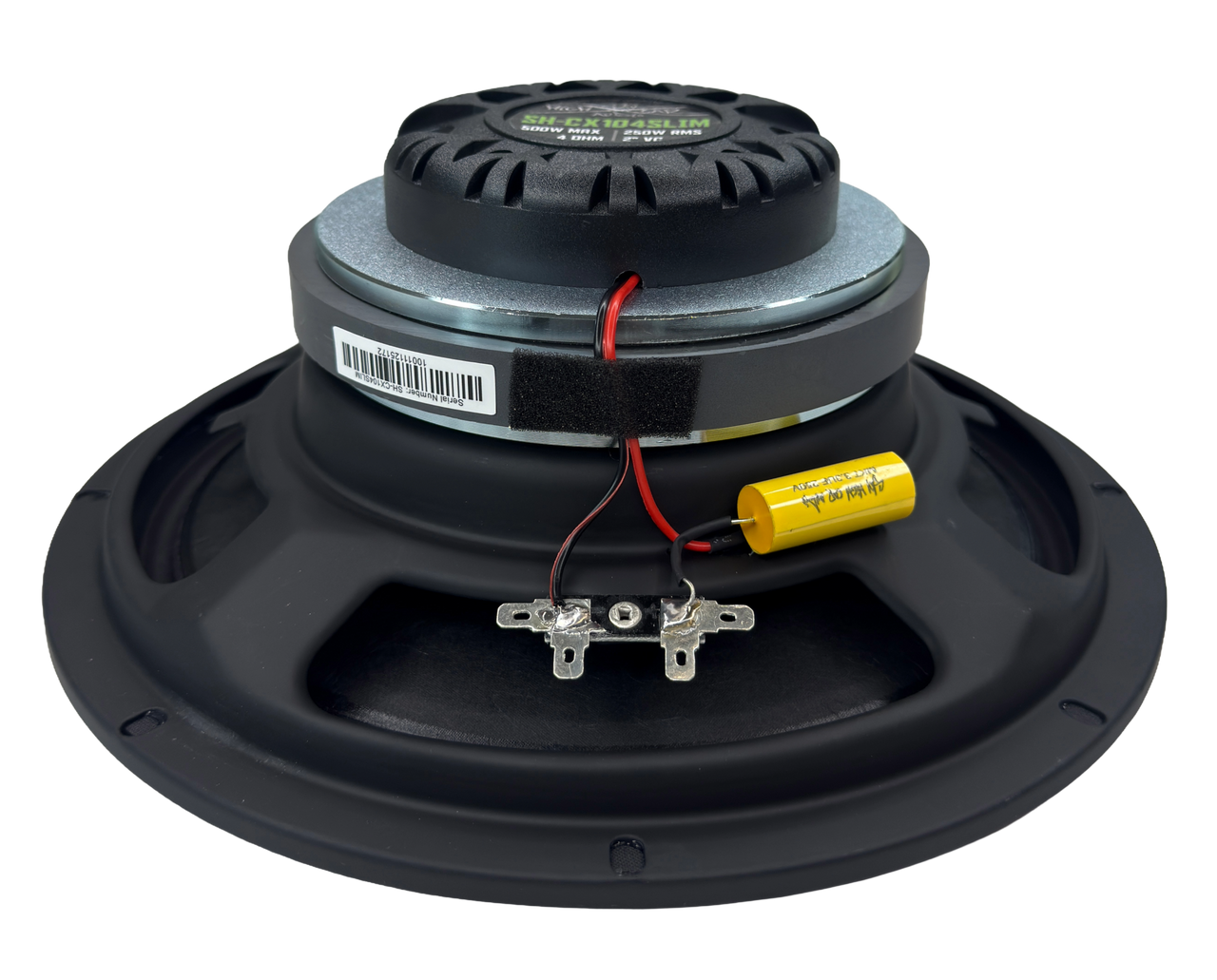

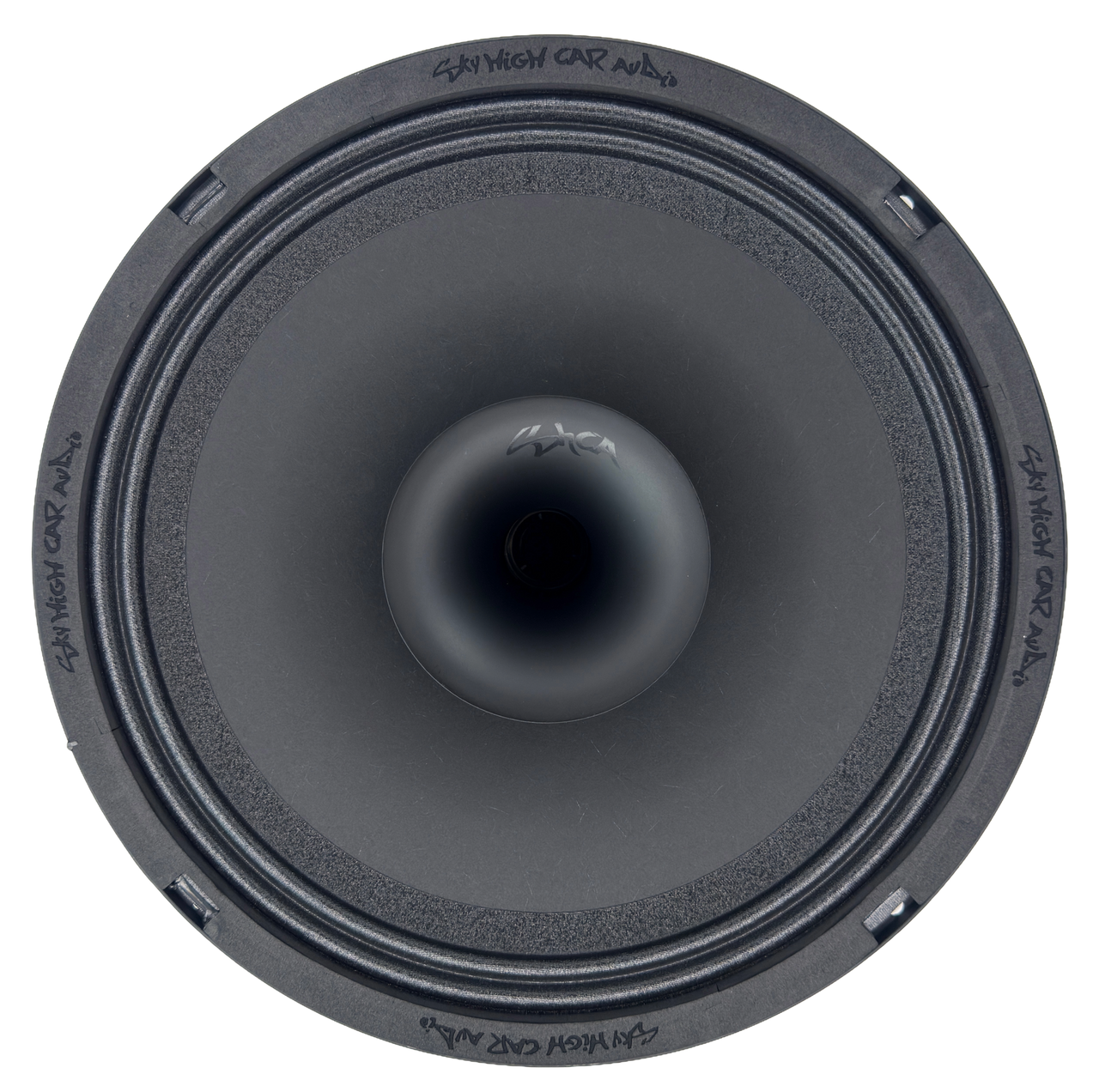

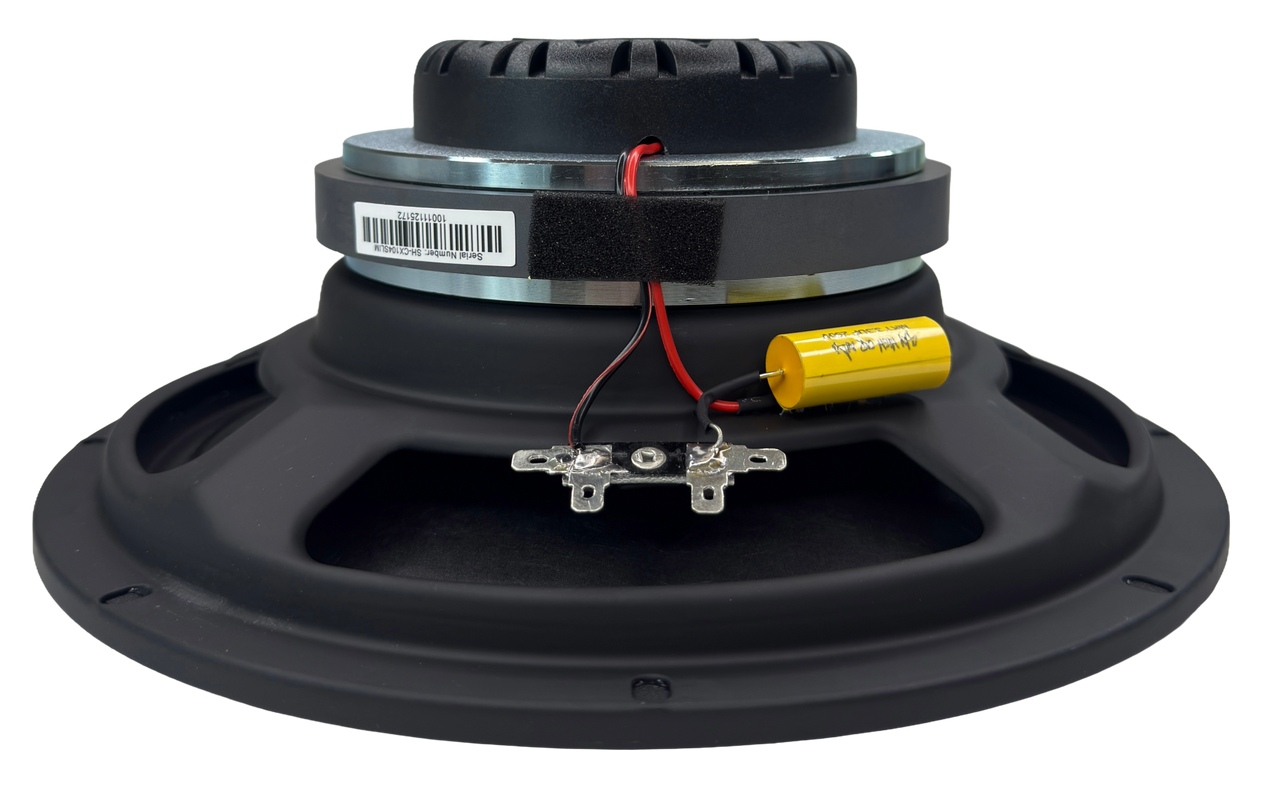

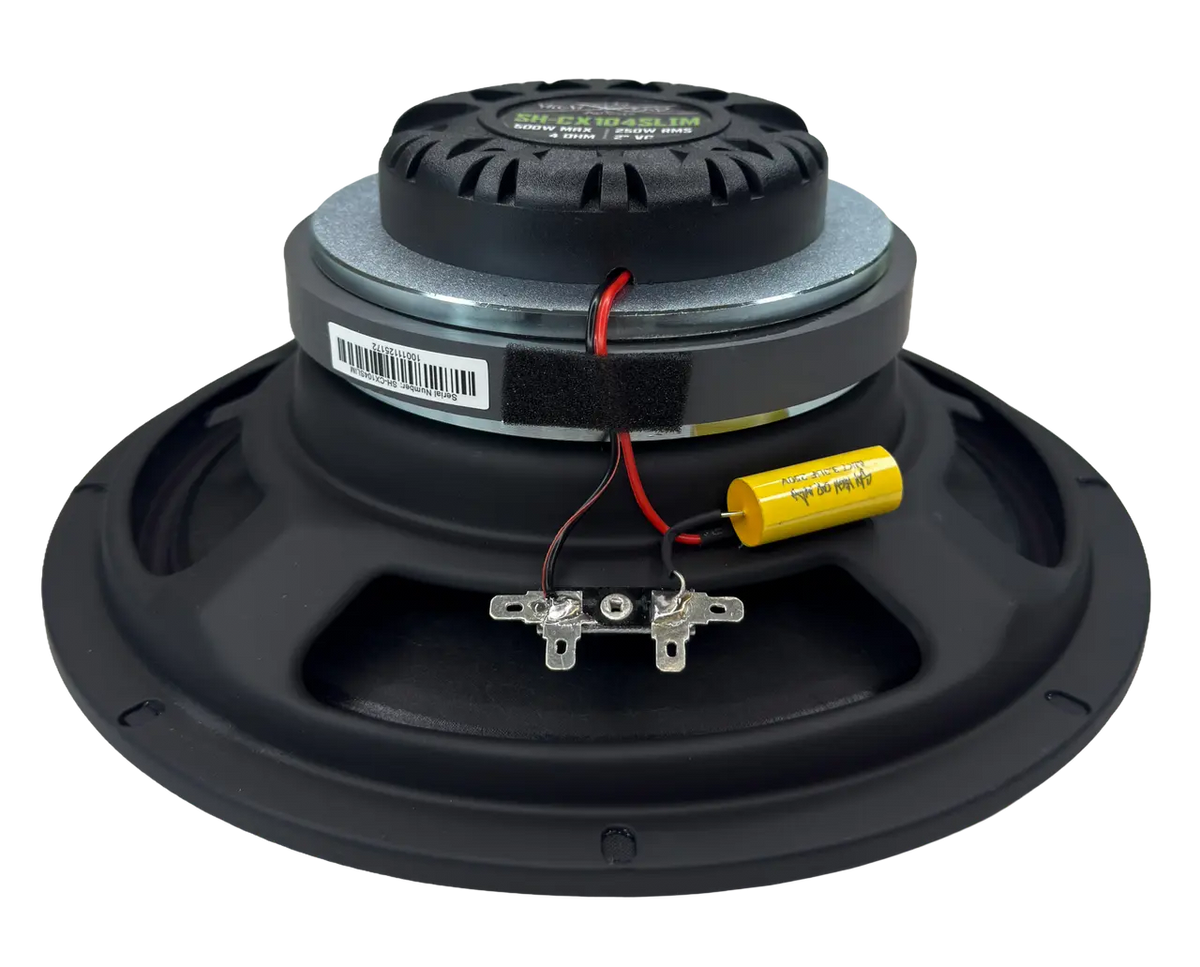

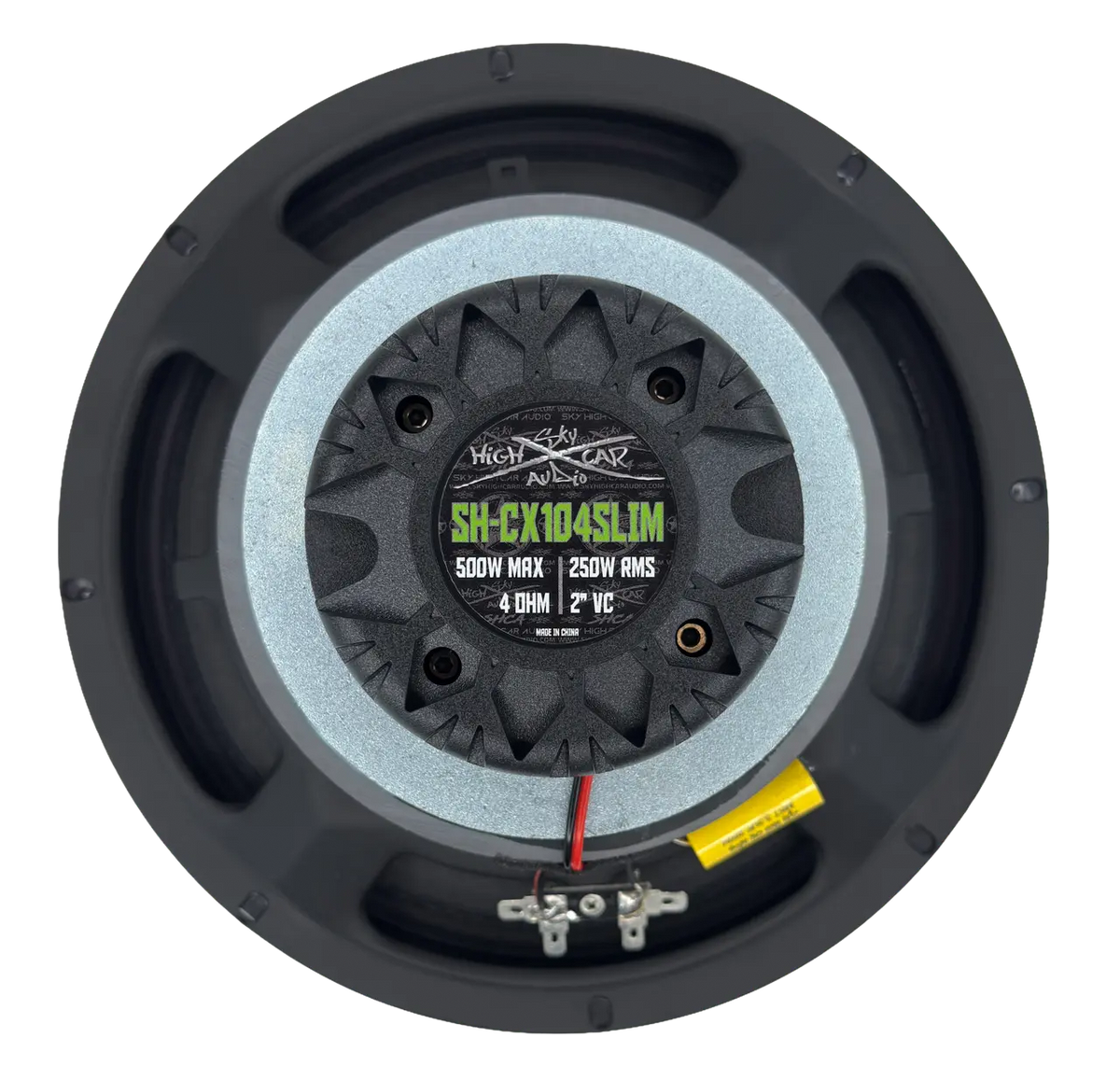

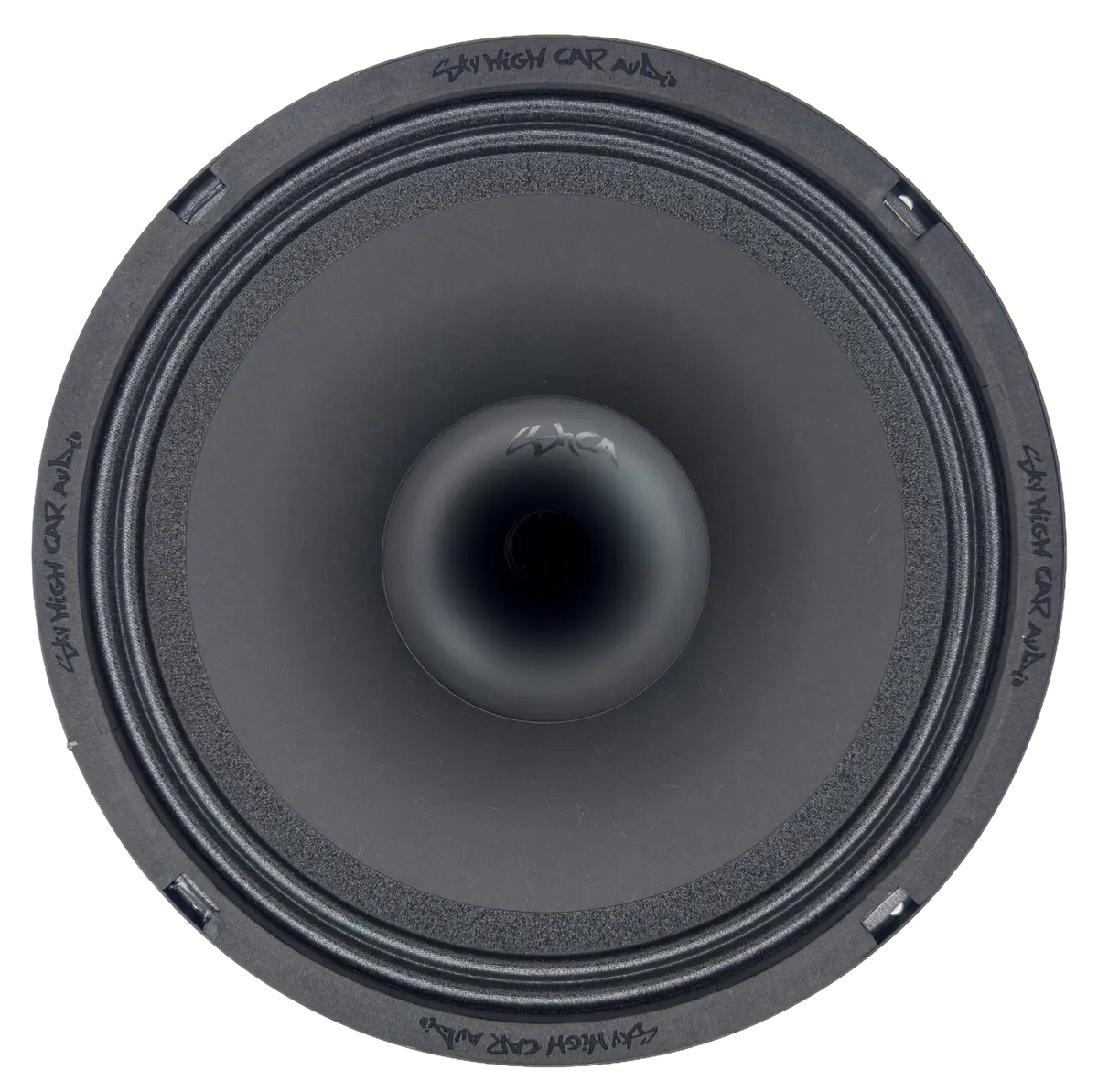

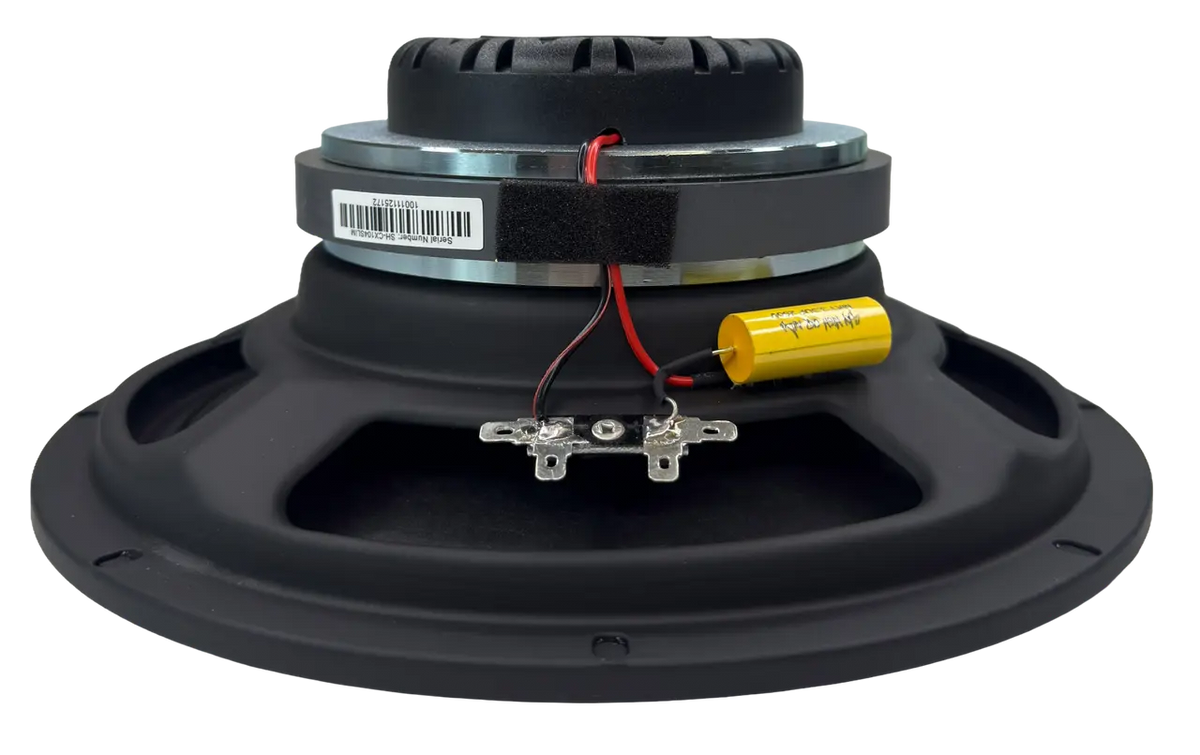

The woofer section uses a 2" high-temperature voice coil with a KSV former and CCAW winding for durability and thermal stability. The paper cone, cloth surround, 30 oz ferrite magnet, and rigid steel basket give the SH-CX104SLIM the motor strength and structure needed for serious car audio use.

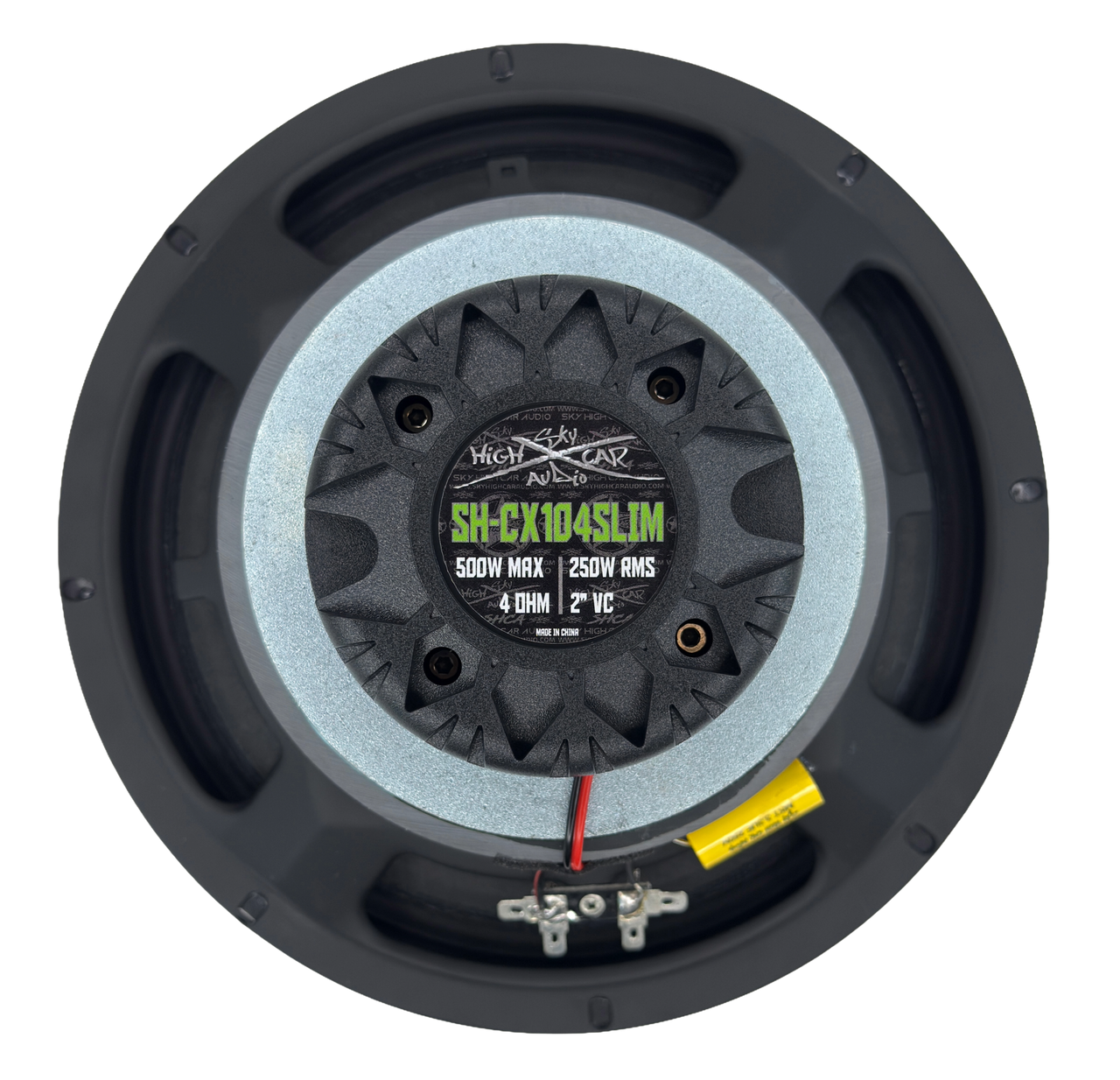

The integrated compression driver features a 1" titanium diaphragm with a neodymium magnet, paired with a 3.15" horn for strong high-frequency projection. This helps the speaker stay clear and present when the system needs to play loud, especially in builds with strong subwoofers or multiple mids.

The slim 10" platform gives installers more flexibility than many traditional 10" speaker designs. With a 3.66" mounting depth, 9.13" cutout, and 10" overall diameter, the SH-CX104SLIM is a strong option for tight-fit applications where output still matters.

If you are building the rest of your system, compare more Sky High Car Audio products, browse our car audio speaker collection, or match your mids and highs with a 4 channel car audio amplifier.

Key Features

• Sky High Car Audio SH-CX104SLIM 10" slim coaxial speaker
• Integrated 1" compression driver horn
• 200 watts continuous power handling
• 250 watts RMS power handling
• 500 watts peak power handling
• 4 ohm impedance
• 95.5dB sensitivity
• 90Hz-20kHz frequency range
• Recommended 100Hz high-pass crossover
• 2" high-temperature voice coil with KSV former and CCAW winding
• 1" titanium diaphragm compression driver with neodymium magnet
• 3.15" horn for strong high-frequency projection
• Paper cone with cloth surround
• 30 oz ferrite magnet
• Rigid steel basket
• Slim 3.66" mounting depth

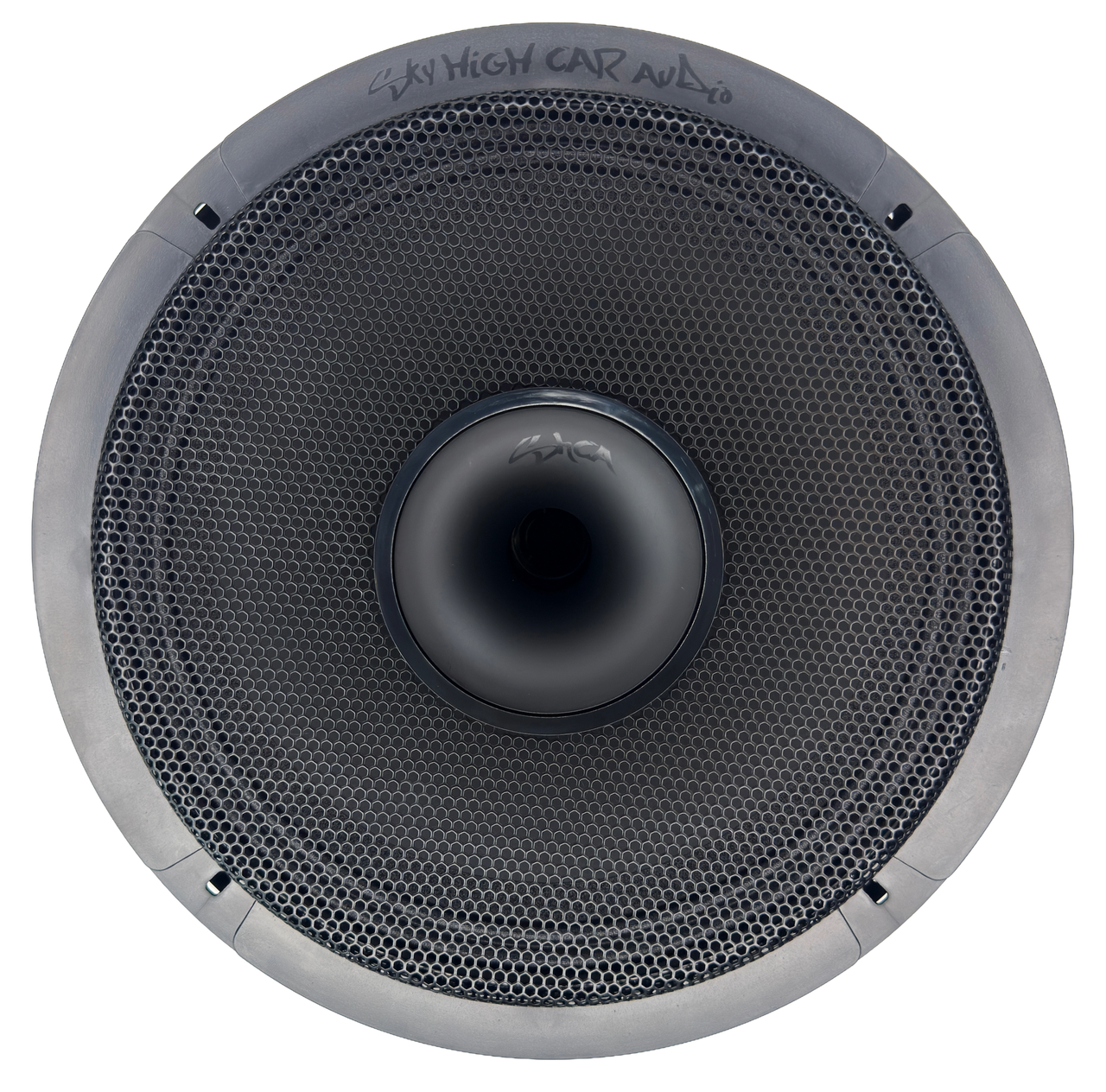

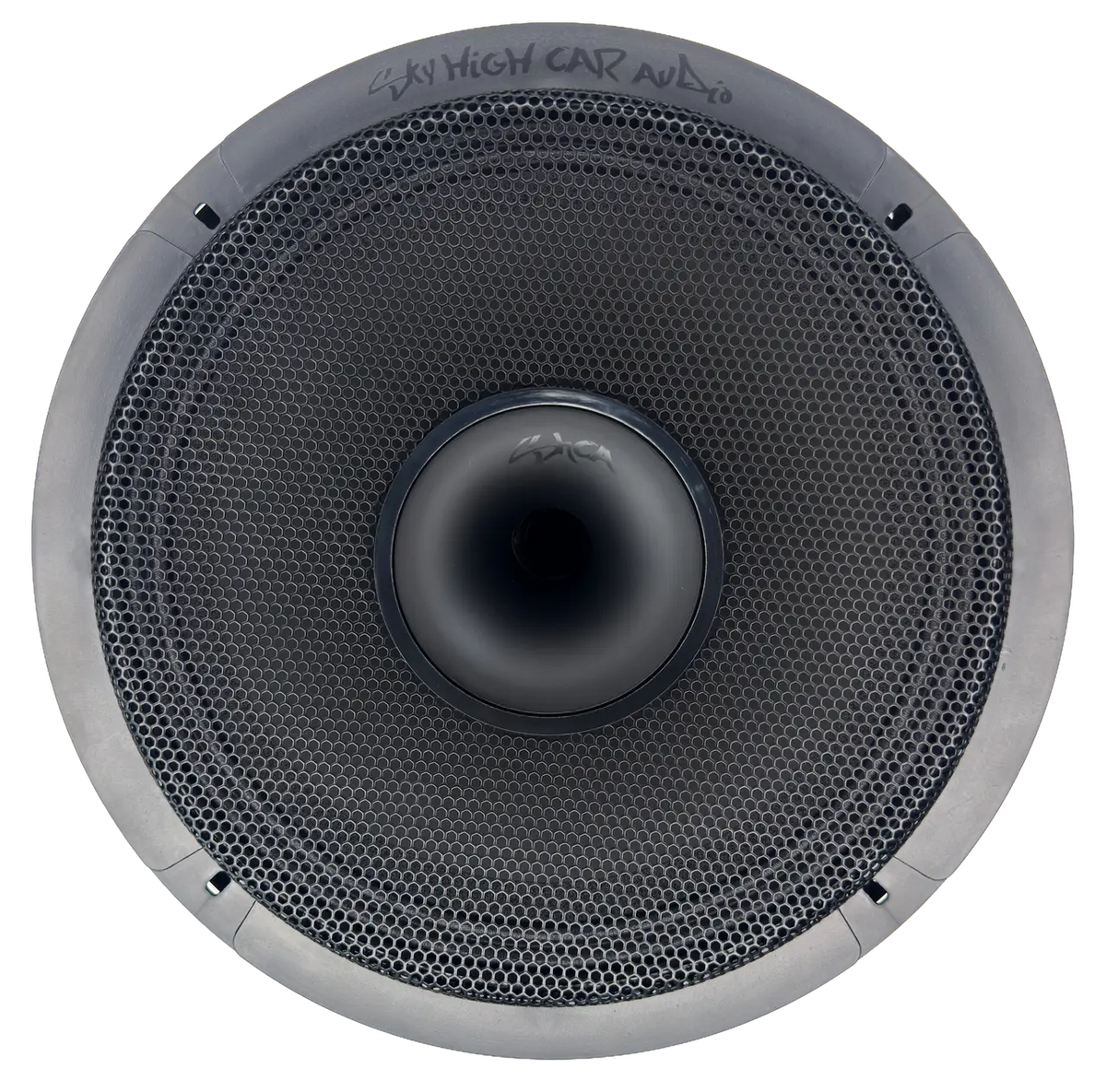

• Protective grill included
• Strong option for custom doors, pods, panels, walls, and space-limited installs

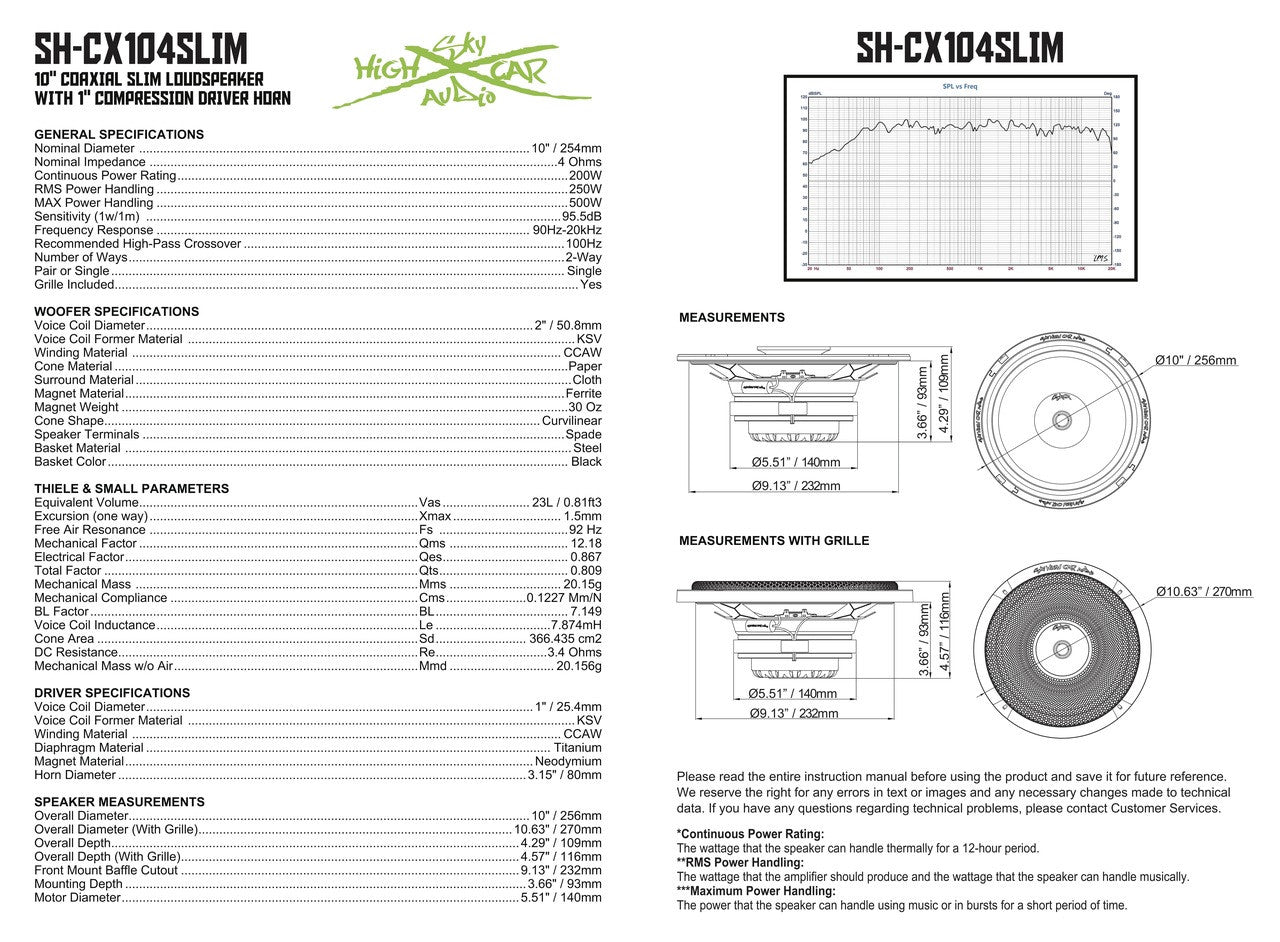

Product Specifications

• Brand: Sky High Car Audio
• Model: SH-CX104SLIM
• Speaker Type: Slim coaxial speaker with compression driver horn
• Speaker Size: 10"
• Impedance: 4 ohm
• Continuous Power Handling: 200 watts
• RMS Power Handling: 250 watts RMS
• Peak Power Handling: 500 watts peak
• Sensitivity: 95.5dB
• Frequency Range: 90Hz-20kHz
• Recommended High-Pass Crossover: 100Hz
• Woofer Voice Coil: 2" high-temperature voice coil
• Voice Coil Former: KSV former
• Voice Coil Winding: CCAW winding
• Cone: Paper cone
• Surround: Cloth surround
• Woofer Magnet: 30 oz ferrite magnet
• Basket: Rigid steel basket
• Compression Driver: 1" titanium diaphragm compression driver
• Compression Driver Magnet: Neodymium magnet
• Horn Size: 3.15"
• Vas: 23L
• Fs: 92Hz
• Overall Diameter: 10" / 256mm
• Cutout Diameter: 9.13" / 232mm
• Mounting Depth: 3.66" / 93mm
• Protective Grill: Included
• SKU: SHCA-SH-CX104SLIM

Great For

• Custom door speaker builds
• 10" speaker pod installs
• Loud mids and highs systems
• Pro-audio style car audio builds
• Rear panel speaker upgrades
• Custom walls and panels
• Space-restricted installs that need a slim speaker
• Systems that need louder vocals and stronger projection
• Builds where a separate tweeter or horn setup may not be ideal

Slim 10" Coaxial Design with Horn Output

The SH-CX104SLIM is a strong option when you want the output of a larger speaker but do not have the room for a deep traditional design. The slim mounting depth makes it useful for custom work where space is limited, while the 10" cone area helps deliver more body and authority than smaller speaker sizes.

The integrated compression driver horn makes this speaker especially useful in loud systems where vocals and highs need to stay present. Instead of relying on a basic coaxial tweeter, the SH-CX104SLIM uses a horn-loaded compression driver to help project high-frequency detail with more authority.

Build the Speaker System Correctly

The Sky High Car Audio SH-CX104SLIM should be matched with the right amplifier power, crossover settings, wiring, speaker count, and final impedance. This speaker is built for loud output, but proper setup is still important.

Sky High recommends a 100Hz high-pass crossover for this speaker. Correct crossover settings help protect the speaker, improve sound quality, and reduce the chance of damage from sending the driver frequencies it was not meant to play.

Use clean amplifier power and avoid clipped signal. A poor tune, wrong crossover point, loose wiring, or weak mounting can make a good speaker sound harsh or fail early. A properly installed slim coaxial speaker can help your system sound louder, cleaner, and more balanced.

For best results, pair this speaker with a properly matched 4 channel car audio amplifier and quality car audio speaker wire.

Installation Notes

Before ordering, check your available mounting depth, cutout size, grille clearance, door clearance, window clearance, rear-panel clearance, pod depth, and speaker location. This speaker lists a 3.66" mounting depth, 9.13" cutout, and 10" overall diameter, but every vehicle, pod, panel, and custom install can be different.

When installing, make sure the speaker is mounted securely and wired correctly. Keep speaker wire away from sharp metal, moving parts, window tracks, seat tracks, hinges, heat, moisture, and pinch points. A clean install helps the speaker perform better and makes the system easier to service later.

For more help planning wire size, fuse protection, and install layout, read the Audio Sellerz car audio wire gauge and fuse guide.
