ZXI 8" High Excursion Subwoofer Quad Stacked Magnets | 600W RMS DVC 2-Ohm

DS18 ZXI8.2D ZXI High Excursion 8" Car Audio Subwoofer 1200W Watts 2-Ohm DVC Quad Stacked Magnets

Do you want more excursion, more thumping power, and to shake everyone's mirrors around you?

DS18 has the perfect subwoofer to satisfy all your bass head needs in the newly designed for the ZXI8.2D high excursion subwoofer. This monster sub packs a 2 inches coil made to withstand high amounts of power with the utmost efficiency while producing thunderous distortion free bass.

This sub has a low FS so it can be used in large boxes with lower than normal tuning. Not only will this subwoofer slay the lows, it is versatile enough to also play higher frequencies in the bass zone of sub frequencies.

The ZXI subline is a great high excursion line of subwoofers that both handle great power and give you smooth clean bass while playing ultra low frequencies. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.

This 8 inches model comes dual 2 ohms and comes with a 2 inches voice coil that handles 600w RMS and 1200w MAX power.

The large foam surround and non-pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout the vehicle giving you an amazing bass experience.

Order the DS18 ZXI8.2D today to turn up the bass with thunderous power!

Highlights

• Large foam surround giving great high xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
• Great power handling of 600w RMS and 1200w MAX through a high strength 2 inches CCAW Aluminum voice coil.
• Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dust cap.
• Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.

Key Features

• 8 inches High Excursion Subwoofer
• Impedance: DVC 2-ohms
• Max Power Handling: 1200 watts
• RMS Power Handling: 600 watts
• Frequency Response: 25-880Hz
• Voice Coil Diameter: 2"
• Voice Coil Material: CCAW
• Sensitivity: 86 dB
• Magnet Weight: 104 oz (4 x 26 oz)
• Magnet Material: Ferrite
• Mounting Depth: 5.51"
• Xmax: 18.5mm one way

 Great for

• Car Audio
• Motorcycles
• Home Studios
• Hi-Fi Installation
• DIY Projects

Technical Details

              ZXI8.2D Product Manual

Nominal Diameter	8" / 203.2mm
Nominal Impedance	2 + 2 ohms
RMS Power Handling	600w
MAX Power Handling	1200w
Sensitivity (1w/1m)	86dB
Frequency Response	25-880Hz
Recommended Lo Pass Crossover	90Hz
MOTOR
Voice Coil Diameter	2" / 50.8mm
Voice Coil Former Material	Black Aluminum
Winding Material	CCAW
Cone Material	Non-Pressed Paper
Dust Cap Material	PPI
Surround Material	Foam
Basket Material	Aluminum
Basket Color/Finish	Black Sandblasted
Magnet Material	Ferrite
Magnet Weight	104 Oz (4 x 26 oz)
Displacement Volume	1.02L / 0.036ft3

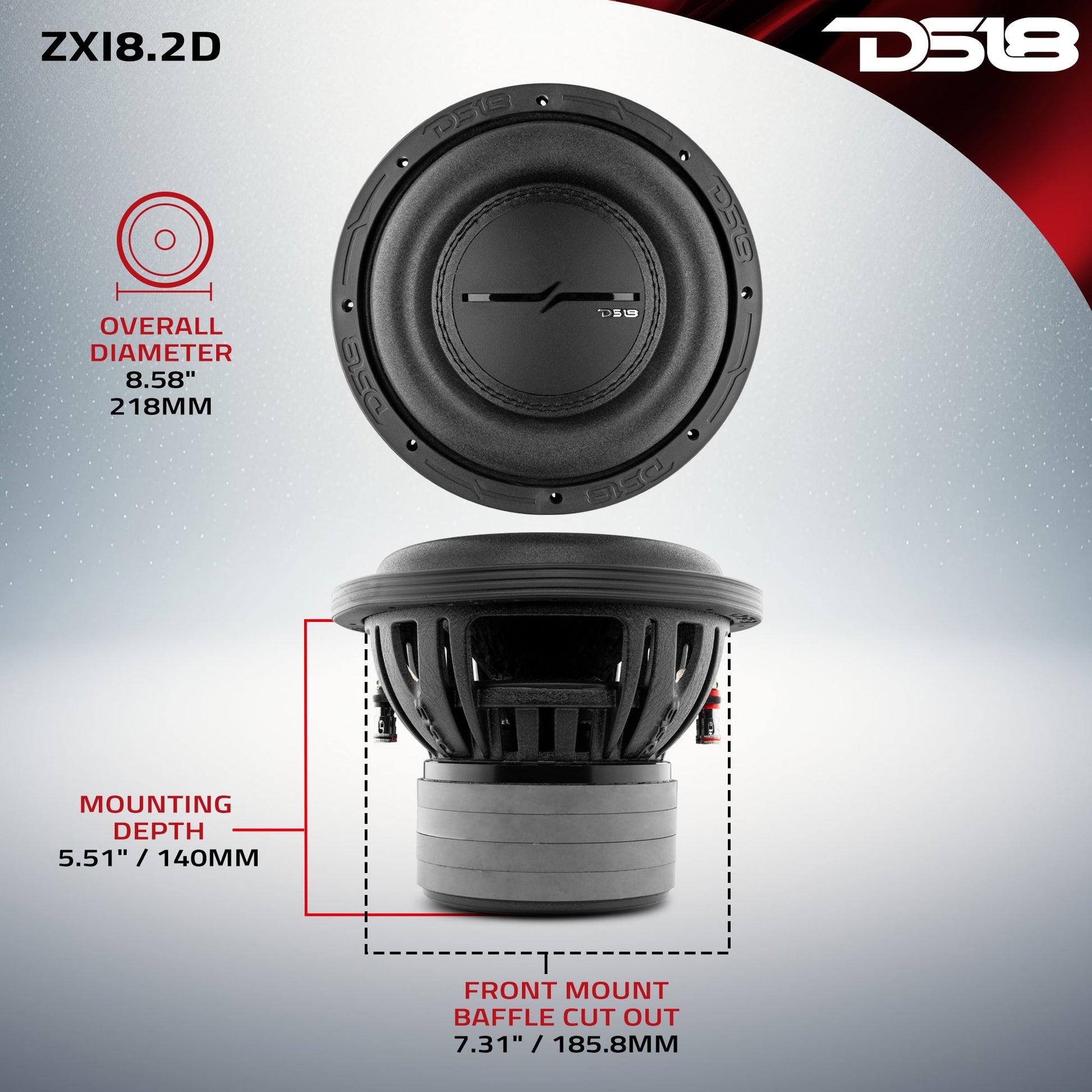

MEASUREMENT
Overall Diameter	8.58" / 218mm
Overall Depth	6.83" / 173.5mm
Front Mount Baffle Cutout	7.31" / 185.8mm
Mounting Depth	5.51" / 140mm
Motor Diameter	5.27" / 134mm
