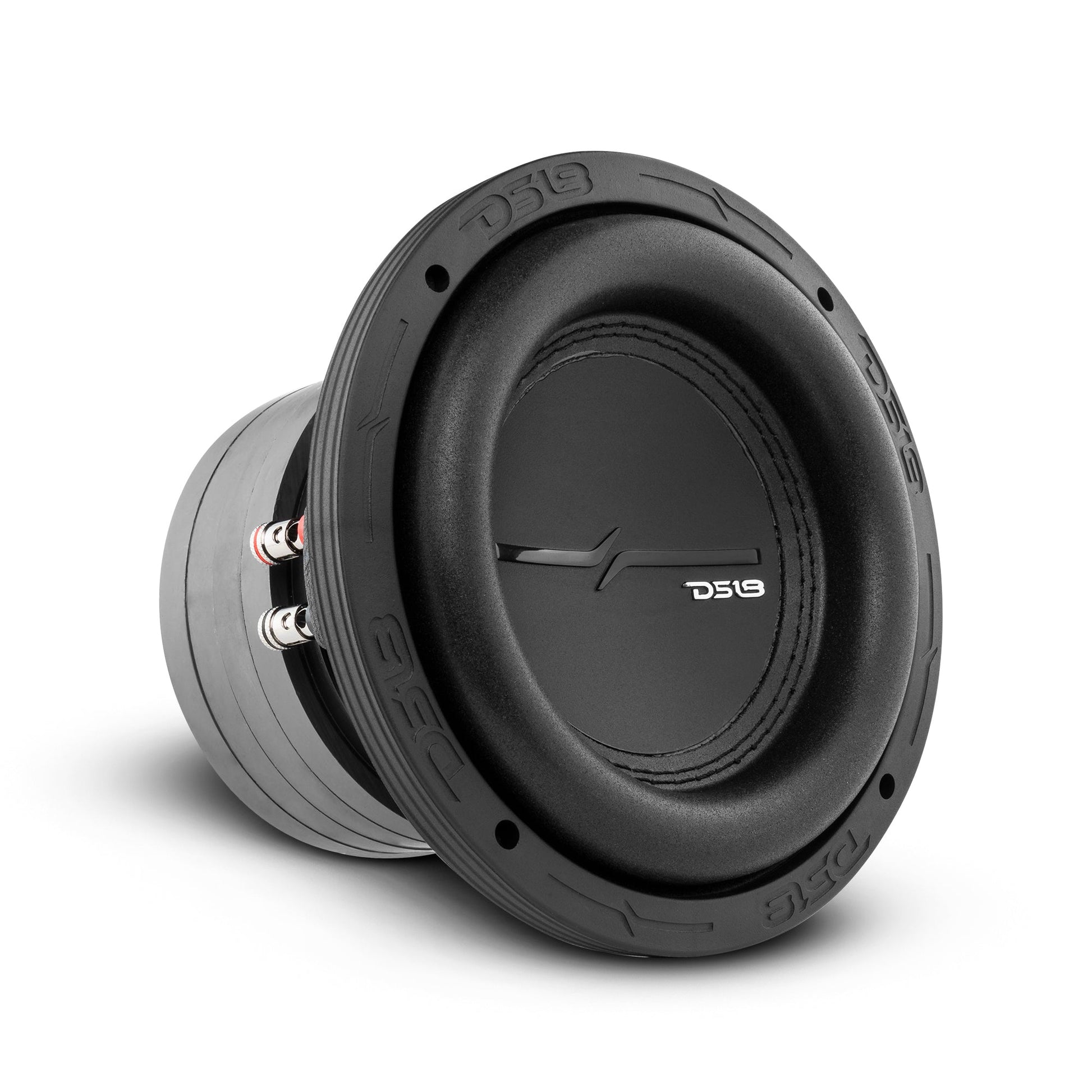

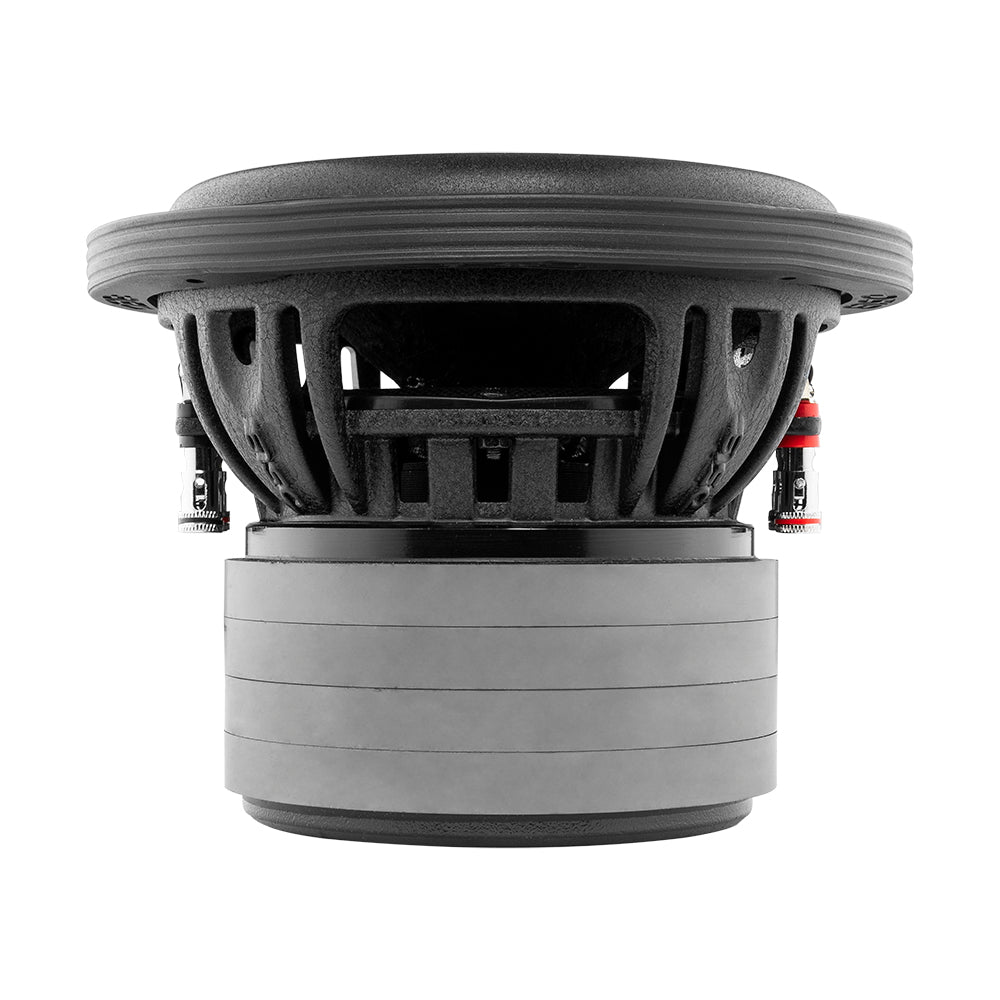

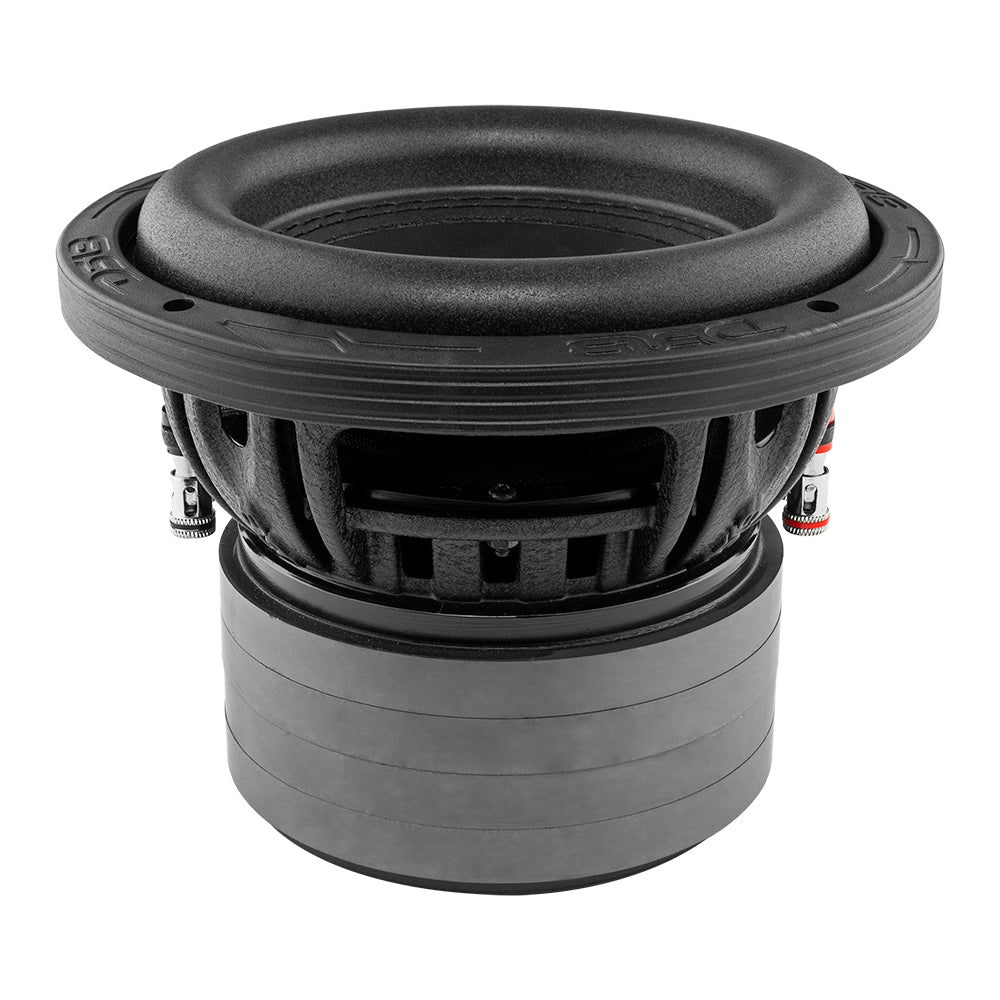

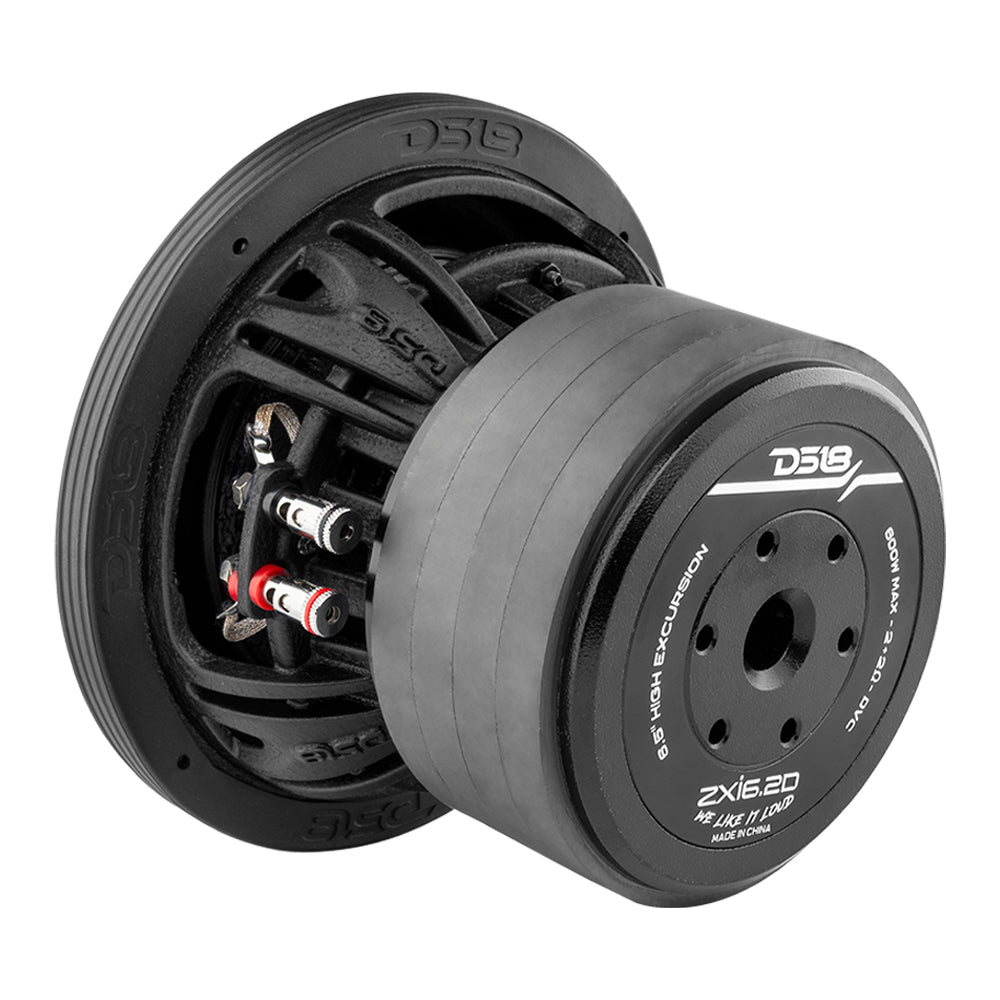

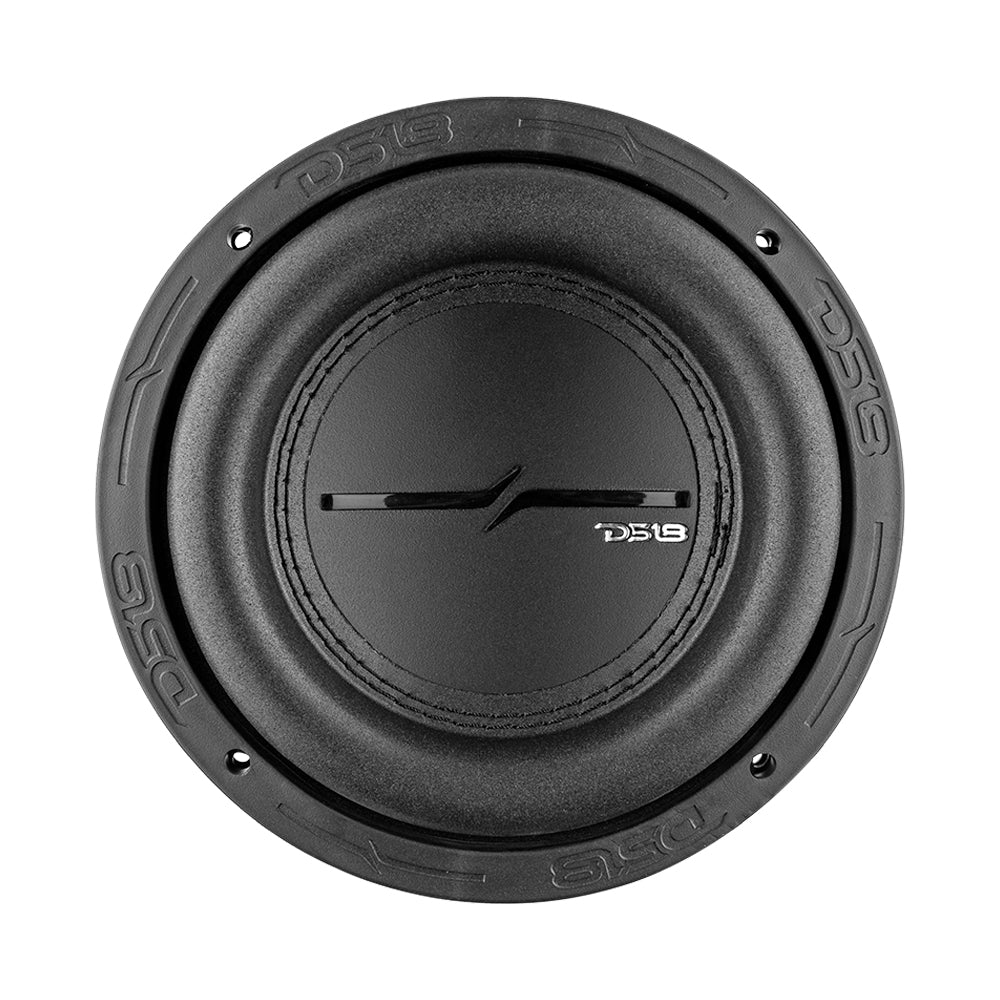

ZXI 6.5" High Excursion Subwoofer Quad Stacked Magnets 300 Watts Rms DVC 2-Ohm

ZXI 6.5" High Excursion Subwoofer Quad Stacked Magnets 300 Watts Rms DVC 2-Ohm

Sold by AudioSellerz.com

SKU: ZXI6.2D

ZXI 6.5" High Excursion Subwoofer Quad Stacked Magnets 300 Watts Rms DVC 2-Ohm is a DS18 subwoofer from DS18 built for bass builds, daily drivers, truck systems, custom enclosures, and full car audio upgrades. This description helps shoppers looking for DS18 6.5 speakers, DS18 subwoofer, DS18 subs, car audio subwoofer, bass speaker, subwoofer upgrade understand where it fits in a real audio system.

Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.

Audio Sellerz System Match Notes

• Match the subwoofer with the right amplifier, enclosure, impedance, wiring, and electrical support for better bass and reliability.
• For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
• If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.

DS18 ZXI6.2D ZXI High Excursion 6.5" Car Audio Subwoofer 600W Watts 2-Ohm DVC Quad Stacked Magnets

Do you want more excursion, more thumping power, and to shake everyone's mirrors around you?

DS18 has the perfect subwoofer to satisfy all your bass head needs in the newly designed ZXI6.2D high excursion subwoofer. This monster mini sub packs a whopping 1.5 inches coil made to withstand high amounts of power with the utmost efficiency while producing thunderous distortion free bass.

This sub has a much lower than normal FS so it can be used in larger boxes with lower than normal tuning. Not only will this subwoofer slay the lows, it is versatile enough to also play higher frequencies with authority.

The ZXI subline is a great high excursion line of subwoofers that both handle great power and give you smooth clean bass while playing ultra low frequencies but also shine in the higher bass range as well. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.

This 6.5 inch model comes dual 2 ohms and comes with a 1.5 inches voice coil that handles 300w RMS and 600w MAX power. The large foam surround and non-pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout the vehicle giving you an amazing bass experience.

Highlights

• Large foam surround giving great high xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
• Great power handling of 300w RMS and 600w MAX through a high strength 1.5 inches aluminum voice coil.
• Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dust cap.
• Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.

Key Features

• 6.5 inches High Excursion Subwoofer
• Impedance: 2+2 Ohms
• Max Power Handling: 600 watts
• RMS Power Handling: 300 watts
• Frequency Response: 35Hz-1.8KHz
• Voice Coil Diameter: 1.5"
• Voice Coil Material: CCAW
• Sensitivity: 87 dB
• Magnet Weight: 80 oz (4 x 20 oz)
• Magnet Material: Ferrite
• Mounting Depth: 4.41"
• Xmax: 18mm one way

 Great for

• Car Audio
• Motorcycles
• Home Studios
• Hi-Fi Installation
• DIY Projects

Technical Details

            ZXI6.2D Product Manual

SPECIFICATIONS
Nominal Diameter	6.5" / 165.1mm
Nominal Impedance	2 + 2 ohms
RMS Power Handling	300w
MAX Power Handling	600w
Sensitivity (1w/1m)	87dB
Frequency Response	35Hz-1.8KHz
Recommended Lo Pass Crossover	90Hz
MOTOR
Voice Coil Diameter	1.5" / 38.6mm
Voice Coil Former Material	Black Aluminum
Winding Material	CCAW
Cone Material	Non-Pressed Paper
Dust Cap Material	PPI
Surround Material	Foam
Basket Material	Aluminum
Basket Color/Finish	Black Sandblasted
Magnet Material	Ferrite
Magnet Weight	80 Oz (4 x 20 oz)
Displacement Volume	0.63L / 0.022ft3

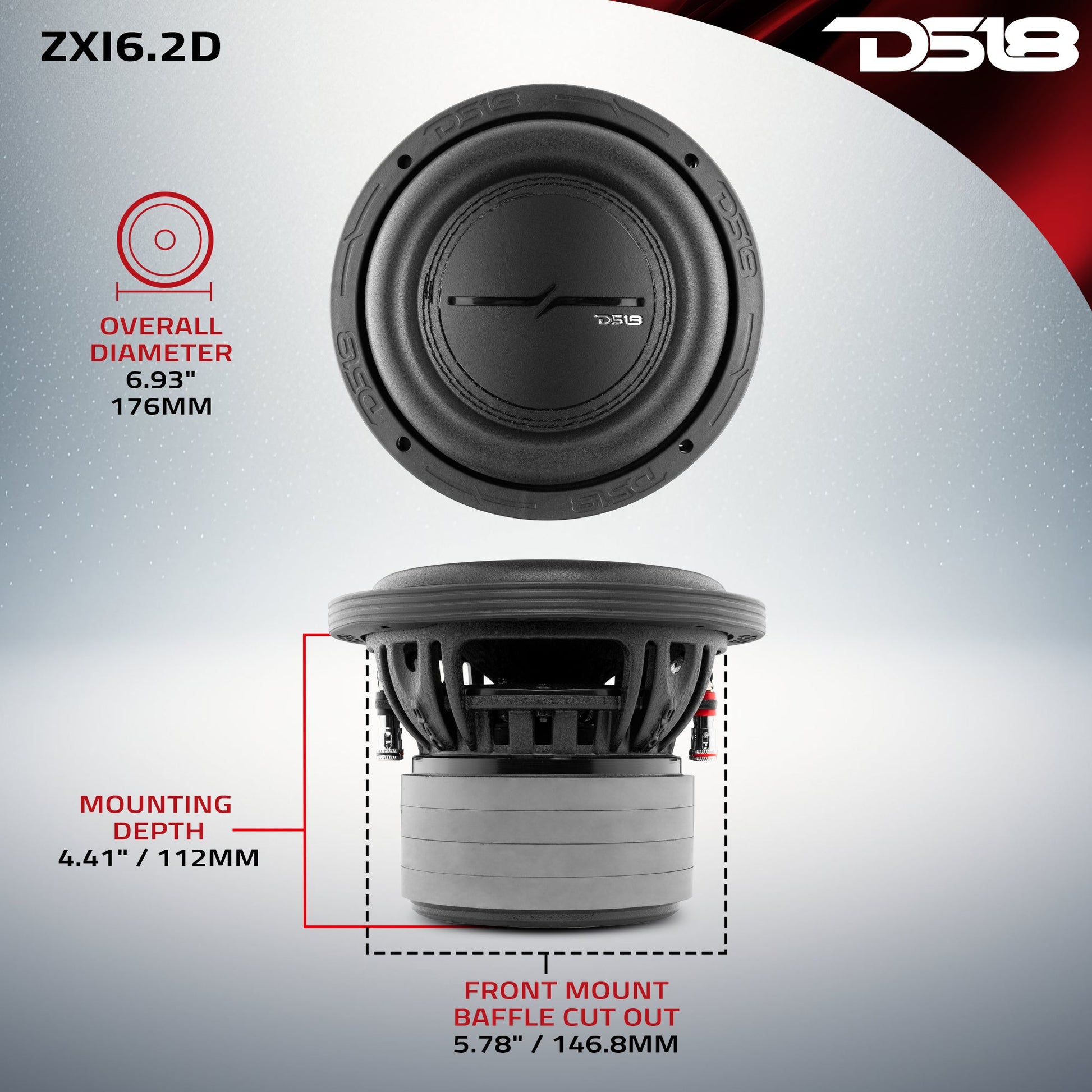

MEASUREMENT
Overall Diameter	6.93" / 176mm
Overall Depth	5.33" / 135.5mm
Front Mount Baffle Cutout	5.78" / 146.8mm
Mounting Depth	4.41" / 112mm
Motor Diameter	4.72" / 120mm
