ZR 4-Channel Class D Amplifier 4 x 200 Watts Rms @ 4-ohm

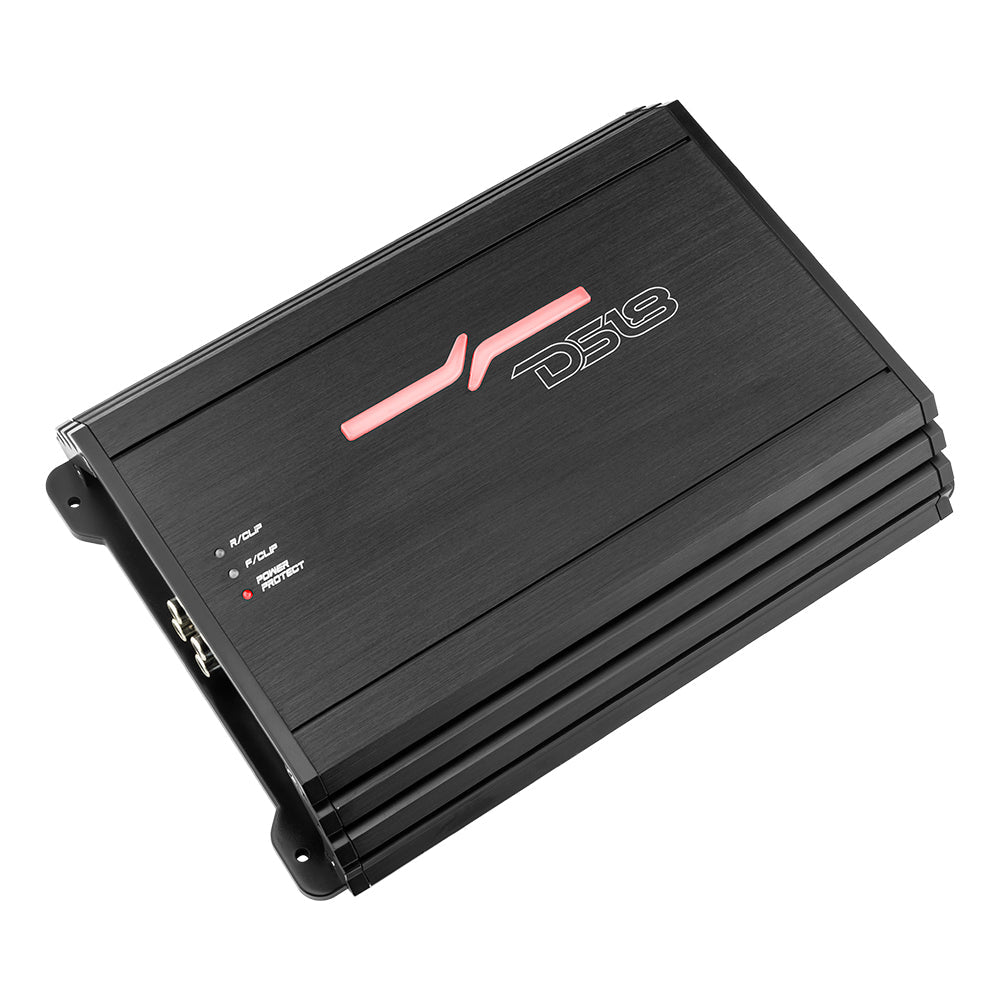

DS18 ZR800.4D ZR Class D 4-Channel Stereo Full Range Amplifier
4 x 200 @ 4 Ohms Watts RMS

DS18’s ZR series of amplifiers are guaranteed to supercharge your sound system to deliver brilliant sound and bulky bass frequencies.

The ZR series was designed to pump up the bass and help your speakers reach their maximum potential as a part of your sound system. These amps offer a surplus of tuning options: the ZR800.4D comes with Lowpass, and High Pass filters to help tune any song to your frequency.

The ZR800.4D is made to deliver 2 x 600 watts RMS @ 4-Ohms Bridge, 4 x 320 watts RMS @ 2-Ohms, and 4 x 200 watts RMS @ 4-Ohms giving you the perfect power for your bass.

Key Features

• Digital Class D Full Range Amp
• MAX Wattage: 3600 Watts Peak
• RMS Wattage: 2 x 600 Watts RMS @ 4-Ohms Bridge, 4 x 320 Watts RMS @ 2-Ohms, 4 x 200 Watts RMS @ 4-Ohms
• Frequency Response: 20Hz – 20KHz
• Signal to Noise Ratio: >90dB
• Efficiency at 4-Ohms: 88%
• Total Harmonic Distortion: 1%
• Input Range: 0.2v - 6v

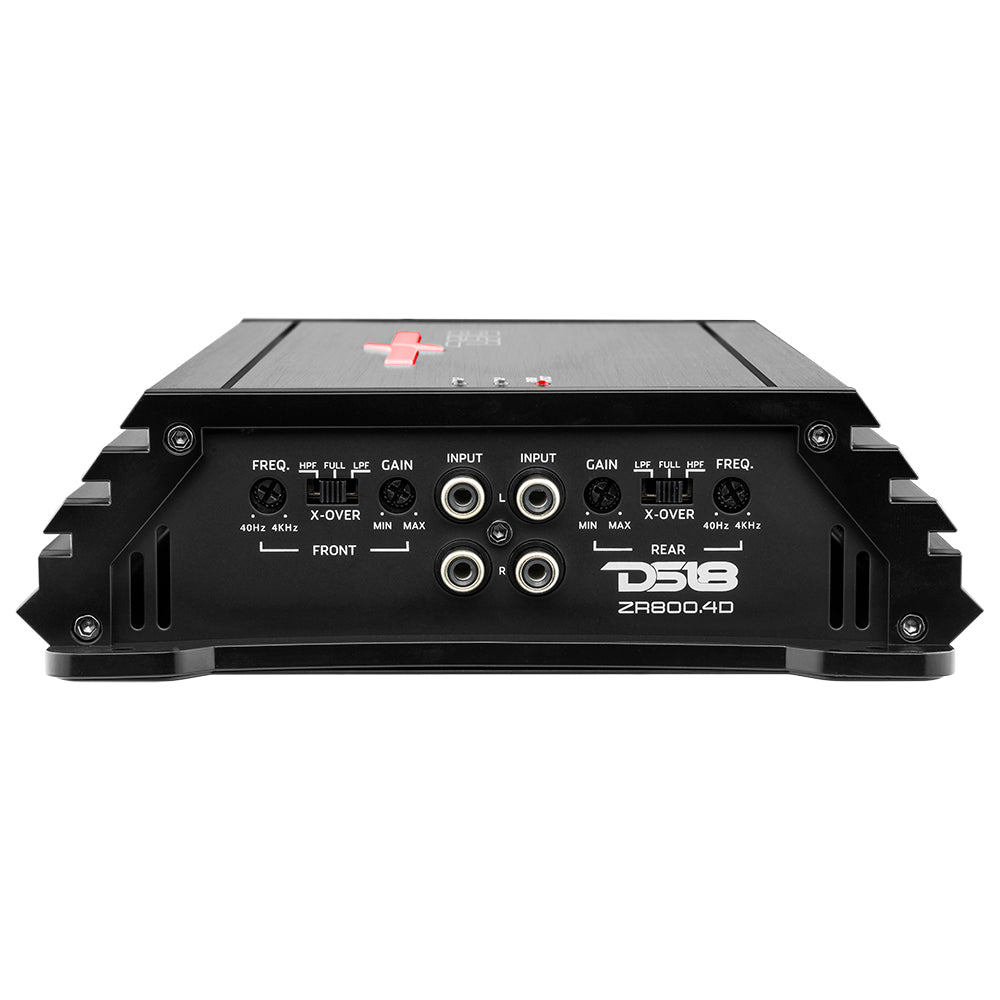

• Selectable X-Over: FULL/LPF/HPF

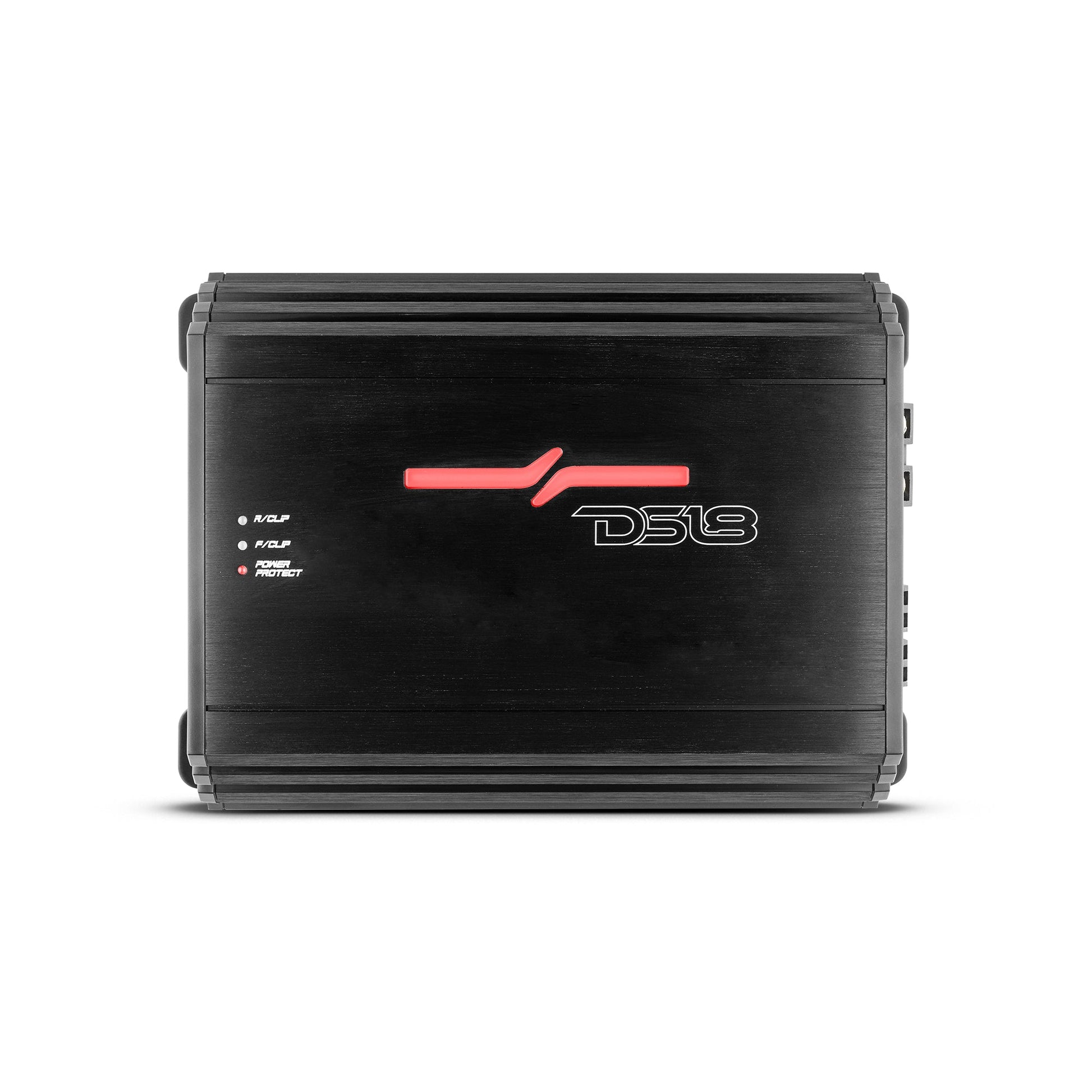

• LED Indicator: Clipping, Power, Protect

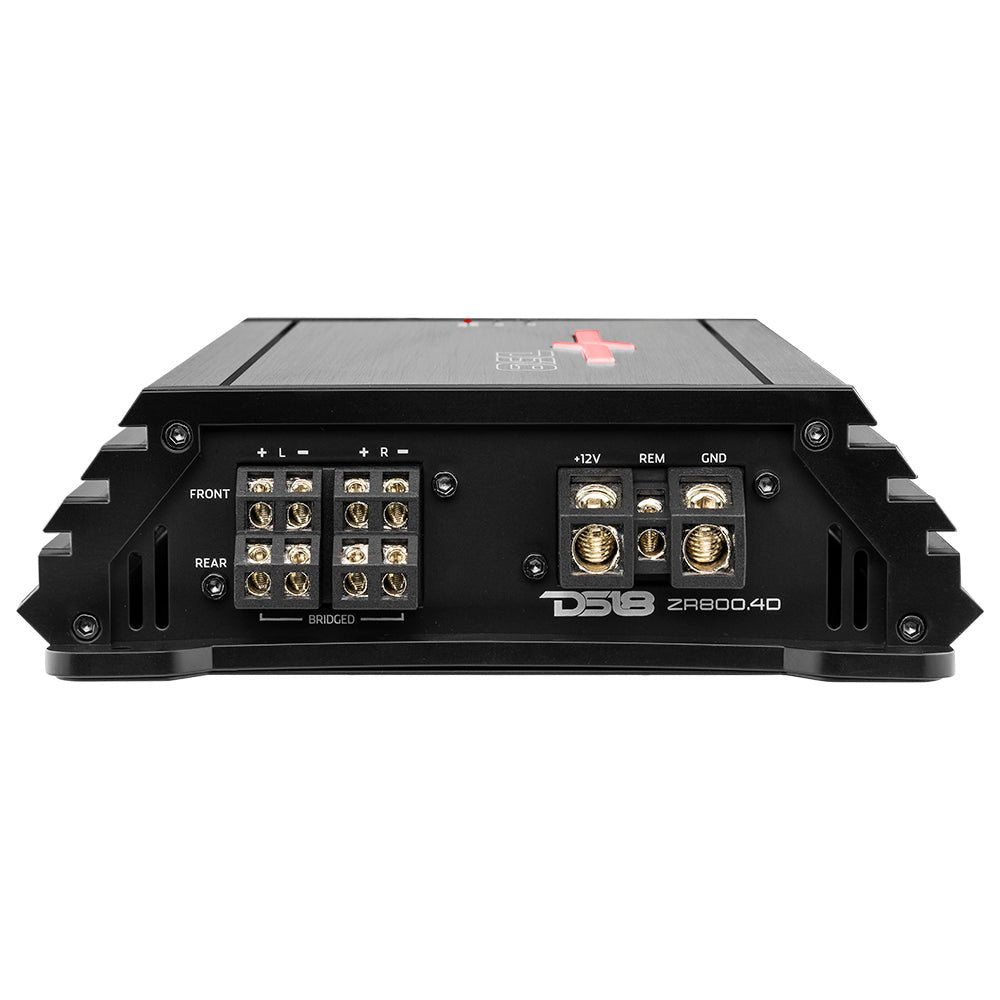

• Power and Ground Terminal: 4 Ga
• Minimum Impedance: 2 Ohms (Stereo) / 4 Ohms (Bridge)

Great for:

• Car Audio
• Pro Audio
• Off Road
• Motorcycles
• Stunt Walls
• DIY Projects

Technical Details

                 ZR800.4D Product Manual
