SoundQubed

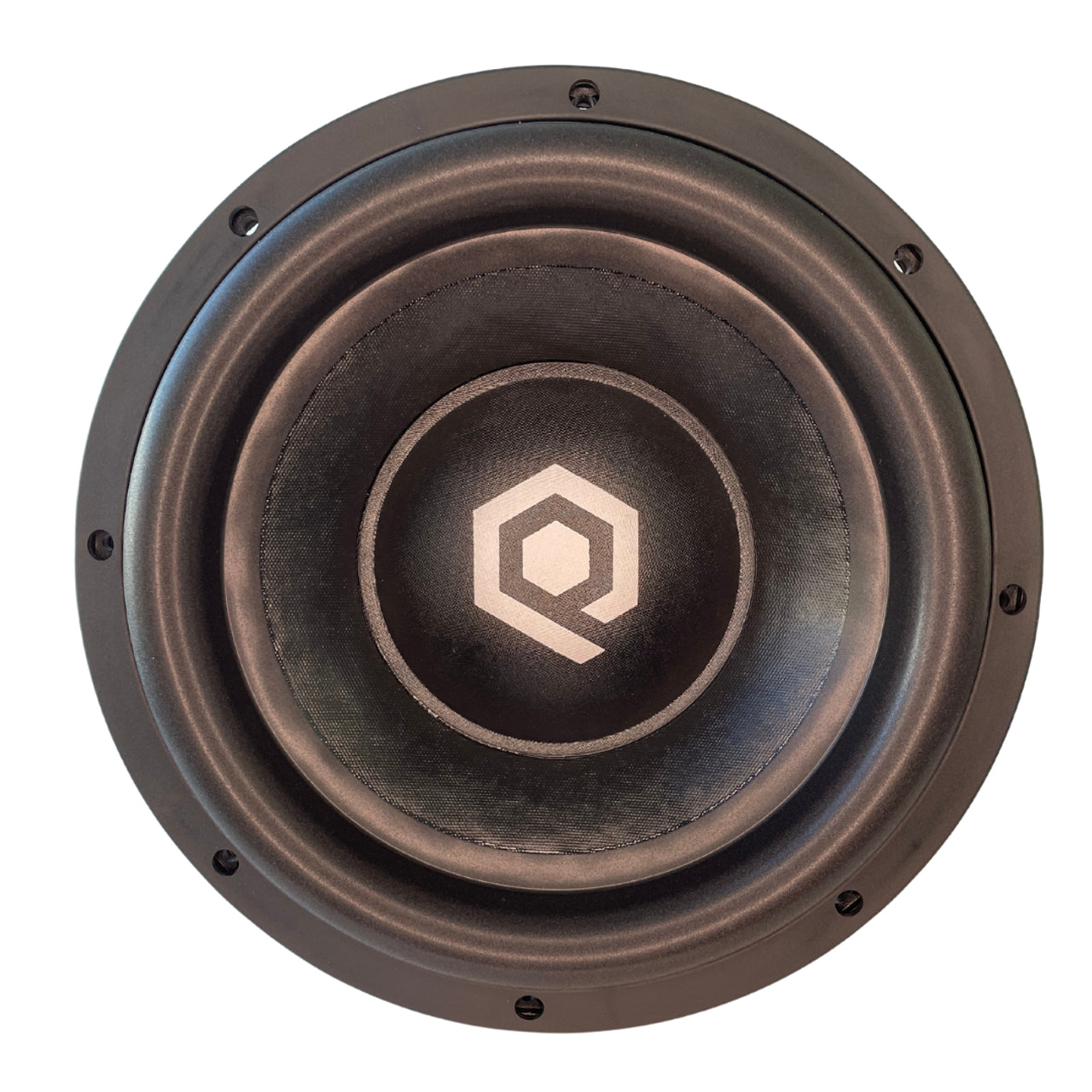

SoundQubed HDX4 12" Competition Subwoofer 2000W RMS D1 or D2

$769.95 USD

Sale Sold out

Shipping calculated at checkout.

Ohm Load D2 D1

SoundQubed HDX4 12" Competition Subwoofer 2000W RMS D1 or D2

Sold by AudioSellerz.com

The SoundQubed HDX4 12" Competition Subwoofer 2000W RMS D1 or D2 gives shoppers a focused page for this exact SoundQubed subwoofer model. The product title lists 2000 watts RMS. It is offered in Dual 1 Ohm and Dual 2 Ohm voice-coil options according to the title.

Match the subwoofer to the amplifier's RMS output at the final wired impedance, a suitable enclosure, adequate speaker wire, correct gain settings, and enough battery and alternator support for the planned system.

Original Product Details and Specifications

If you want a 12" subwoofer that is built for serious low-frequency output without giving up efficiency, the SoundQubed HDX4 12 is made for that kind of system. This dual voice coil competition subwoofer was designed to play lower, stay efficient, and deliver stronger performance in the frequency range many real-world vehicles and modern music demand. It is a strong choice when you want deep bass, hard output, and a subwoofer that can make the most of your amplifier power and electrical system.

The HDX4 line builds on the HDC platform with improved low-frequency performance, increased excursion, and stronger overall durability. The cast basket allows for larger diameter spiders, giving the suspension more room for cone and spider travel while also improving airflow and heat dissipation. It also uses spiders with more and higher rolls to increase freedom of movement and lower Fs, along with a higher surround profile to reduce material stress while increasing excursion.

Strength matters just as much as output, and the HDX4 12 is built with that in mind. It uses a fiberglass-reinforced pulp cone for added rigidity, a non-press cone formation process to increase cone wall cross-section without unnecessary mass, and high-quality American-made voice coil wire and adhesives to increase the thermal working range of the coil. Thicker black-anodized aluminum formers are also used to improve thermal transfer from the coil wire.

If you are shopping for a 12" competition subwoofer, SoundQubed 12" sub, HDX4 12, low-frequency SPL subwoofer, or high-excursion dual voice coil subwoofer, this model checks the right boxes. The HDX4 12 is rated at 2000 watts RMS and 6000 watts peak power, uses a 4" voice coil, a 403 oz motor, 21 mm Xmax, and is available in D1 and D2 options. The recommended ported enclosure range is 1.75 to 2.75 cubic feet, giving you room to build around strong output and deep low-end response.

Specifications

Specification: Details
Brand: SoundQubed
Series: HDX4
Speaker Size: 12"
Subwoofer Type: Competition dual voice coil subwoofer
RMS Power Handling: 2000 watts
Peak Power Handling: 6000 watts
Impedance Options: D1 or D2
Magnet Weight: 403 oz
Voice Coil Diameter: 4"
Fs: 30.95 Hz
Zmax: 21.2 ohms
Qms: 3.664
Qes: 0.344
Qts: 0.3145
Vas: 24.93 liters
Le: 0.7672
Mms: 422 grams
Cms: 0.063
Sensitivity: 85.22 dB
BL: 20.84
Xmax: 21 mm
Mounting Depth: 8 5/8"
Cutout Diameter: 11 1/2"
Recommended Ported Enclosure: 1.75 to 2.75 cubic feet

Match This SoundQubed Subwoofer to the Amplifier and Enclosure

A subwoofer money page must connect the woofer to the rest of the bass system. Match the verified RMS power handling and voice-coil configuration to a stable amplifier load. Then confirm the enclosure type, net air space, tuning, port area, mounting depth, cutout, subwoofer displacement, available vehicle space, speaker wire, and electrical support from the exact specifications.

Shop Related SoundQubed Bass-System Products

Compare more SoundQubed subwoofers, browse monoblock car audio amplifiers, and shop subwoofer boxes and enclosures for the rest of the bass-system plan.

Helpful Subwoofer Guides

Use the subwoofer wiring diagrams and final ohm-load guide before choosing a voice-coil option. Read the subwoofer enclosure guide before selecting or building a box, and use the complete car audio bass setup guide to match the subwoofer, amplifier, enclosure, wiring, fusing, battery, and alternator.

The subwoofer specifications guide explains common woofer ratings, while the amplifier gain guide for subwoofers helps protect the system from poor setup and clipping.

Shop SoundQubed at Audio Sellerz

Browse the complete SoundQubed car audio collection at Audio Sellerz for SoundQubed subwoofers, amplifiers, speakers, tweeters, wiring, deadener, and system accessories. Read why Audio Sellerz sells and supports SoundQubed to learn more about the brand relationship and the product categories we carry.

Frequently Asked Questions About SoundQubed HDX4 12" Competition Subwoofer 2000W RMS D1 or D2

What amplifier should I use with this SoundQubed subwoofer?

Use the product's verified RMS power handling, voice-coil configuration, number of subwoofers, final wired impedance, and the amplifier's continuous output at that impedance. Do not match from peak or maximum power alone.

Which voice-coil option should I choose?

The title lists Dual 1 Ohm and Dual 2 Ohm options. Choose the version that produces a safe final load for the amplifier after accounting for the number of subwoofers and the planned series or parallel wiring.

What enclosure should I use?

Use the exact enclosure recommendations, displacement, mounting depth, and cutout information listed for this model. The best box also depends on the vehicle, available space, music, and desired output.
