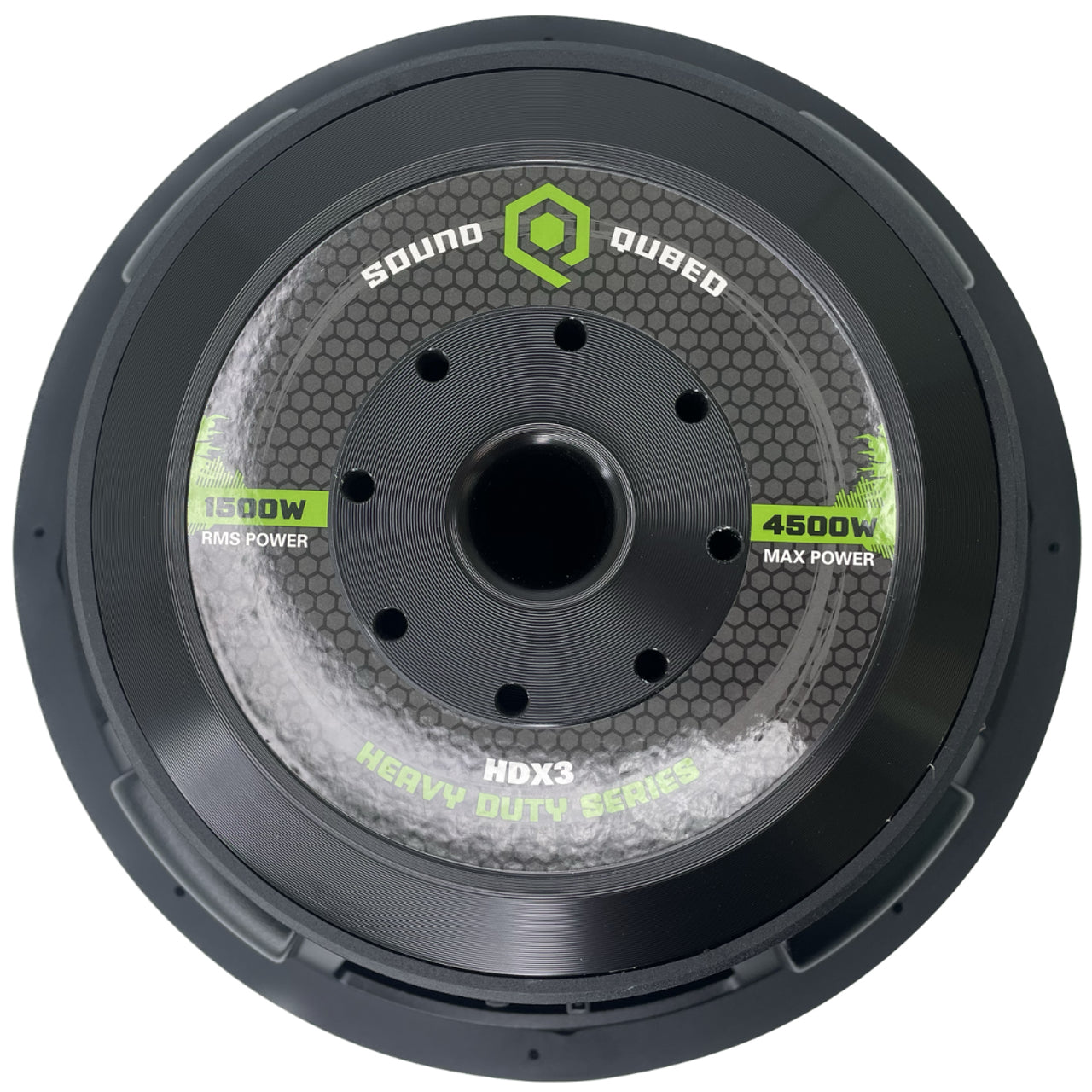

SoundQubed HDX3 18" Competition Subwoofer 1500W RMS D1 or D2
SoundQubed HDX3 18" Competition Subwoofer 1500W RMS D1 or D2
Couldn't load pickup availability
SoundQubed HDX3 18" Competition Subwoofer 1500W RMS D1 or D2
Sold by AudioSellerz.com.
If you want an 18" subwoofer that can bring real low-end authority while still staying efficient and controlled, the SoundQubed HDX3 18 is built for that kind of setup. This heavy-duty competition subwoofer is made for customers who want strong bass, serious output, and a subwoofer that can make the most of real amplifier power. With a made-in-the-USA dual voice coil and a design focused on efficiency, control, and cooling, the HDX3 18 is a strong choice for hard-hitting daily systems and serious bass builds alike.
The HDX3 can handle 1500 watts RMS and 4500 watts peak power, giving you a solid balance of real power handling and strong output potential. SoundQubed built this series with a thick top plate, high motor force, and a tight gap for a high-efficiency speaker design. The taller 4-spoke cast aluminum frame makes room for a larger diameter spider for lower tuning and better accuracy, while the new roll profile helps achieve low-frequency performance without giving up control or power handling.
This subwoofer also uses a taller and wider surround for more precise excursion, stronger pulp-blend cones that are lighter than earlier fiberglass-laminate designs, and a thicker, more robust aluminum former with black anodizing. Double slit venting and a higher temperature resin are also part of the design, helping improve cooling, performance, and long-term durability when the system is pushed hard. If you are shopping for an 18" competition subwoofer, SoundQubed 18" sub, HDX3 18, or a dual voice coil SPL-style woofer that can play low and stay strong, this one checks the right boxes.
For system design, the HDX3 18 is offered in D1 and D2 versions and uses a 3" voice coil, 300 oz magnet, 36 mm Xmax, 10.5" mounting depth, and a 16 9/16" cutout. The recommended ported enclosure range is 5 to 7 cubic feet, giving you room to build around deep output and strong low-frequency response.
Specifications
| Specification | Details |
|---|---|
| Brand | SoundQubed |
| Series | HDX3 |
| Speaker Size | 18" |
| Subwoofer Type | Competition dual voice coil subwoofer |
| RMS Power Handling | 1500 watts |
| Peak Power Handling | 4500 watts |
| Impedance Options | D1 or D2 |
| Magnet Weight | 300 oz |
| Voice Coil Diameter | 3" |
| Coil Length | 50 mm |
| Usable Throw | 68 mm |
| Fs | 27.59 Hz |
| Zmax | 55.47 ohms |
| Qms | 5.777 |
| Qes | 0.4724 |
| Qts | 0.4367 |
| Vas | 168.6 liters |
| Le | 2.563 |
| Mms | 410.9 grams |
| Cms | 0.081 |
| Sensitivity | 90.64 dB |
| BL | 25.14 |
| Xmax | 36 mm |
| Sd | 0.121 m2 |
| Mounting Depth | 10.5" |
| Cutout Diameter | 16 9/16" |
| Recommended Ported Enclosure | 5 to 7 cubic feet |
