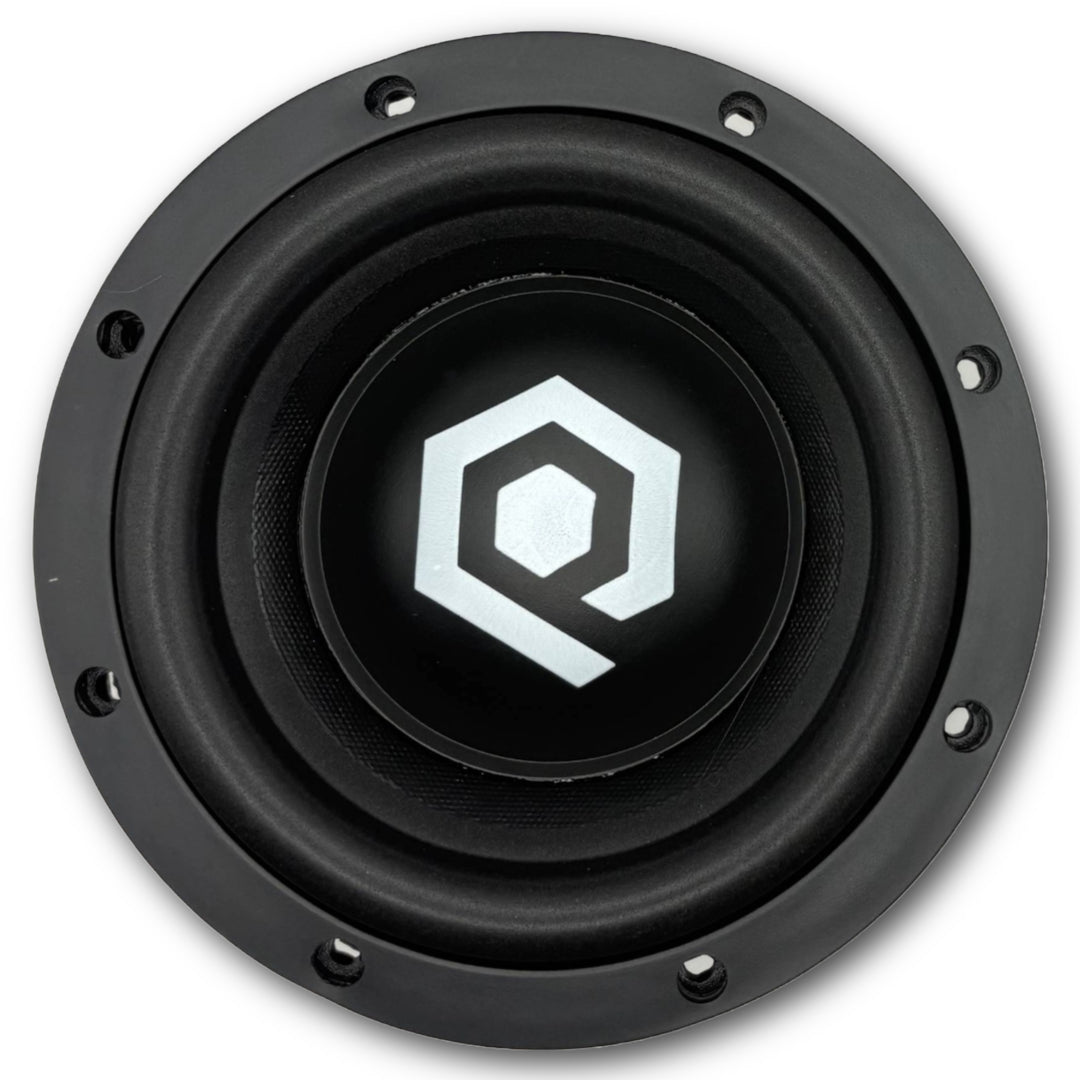

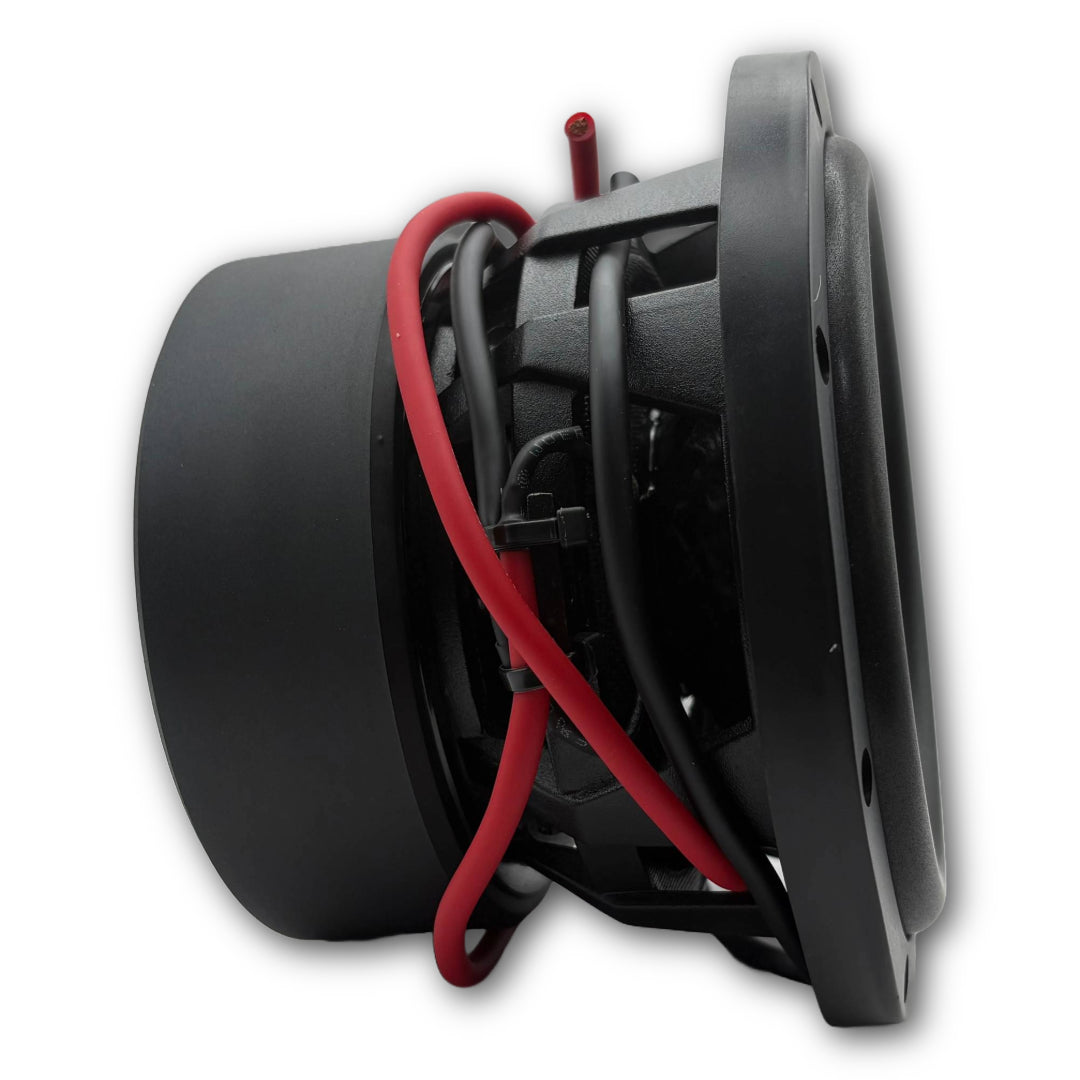

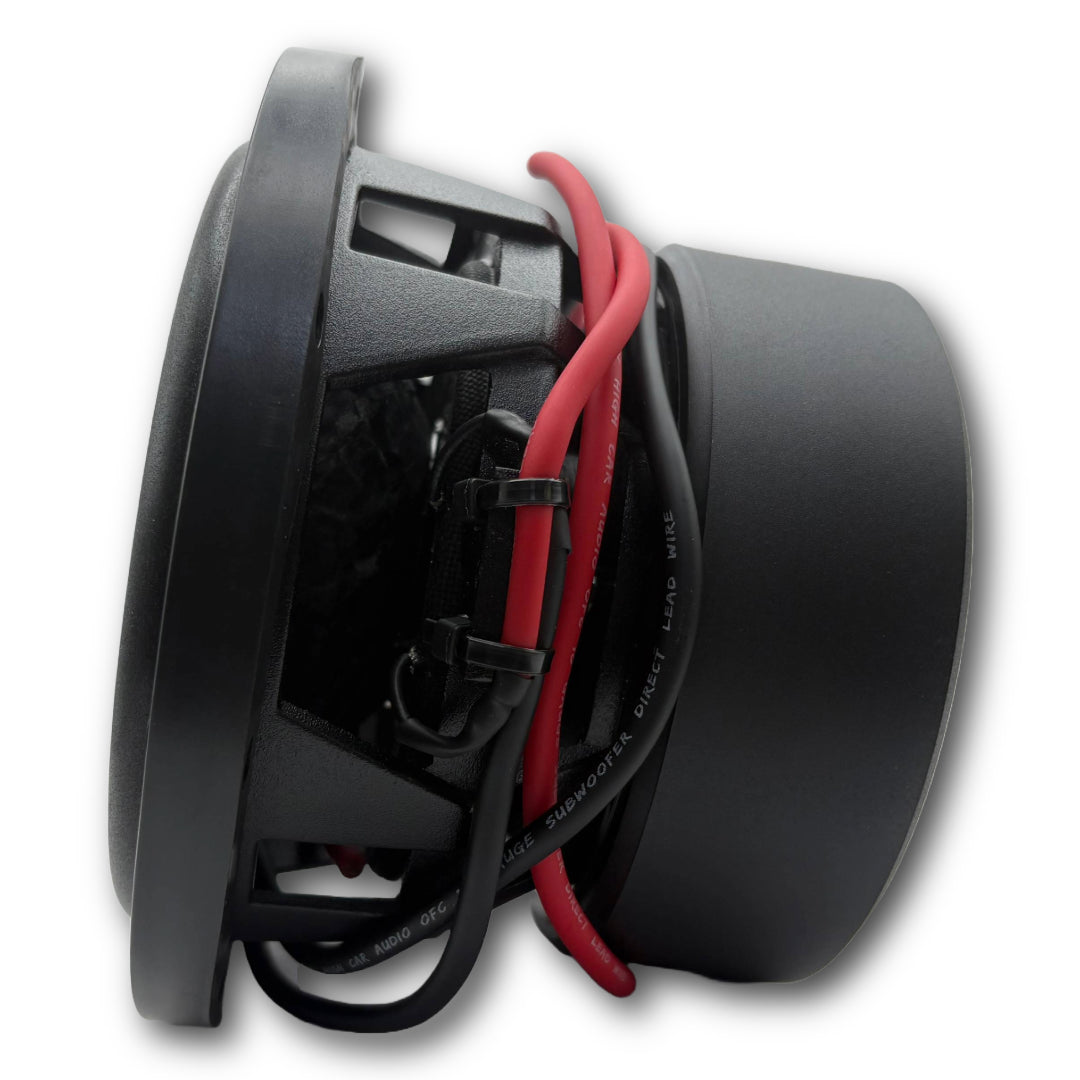

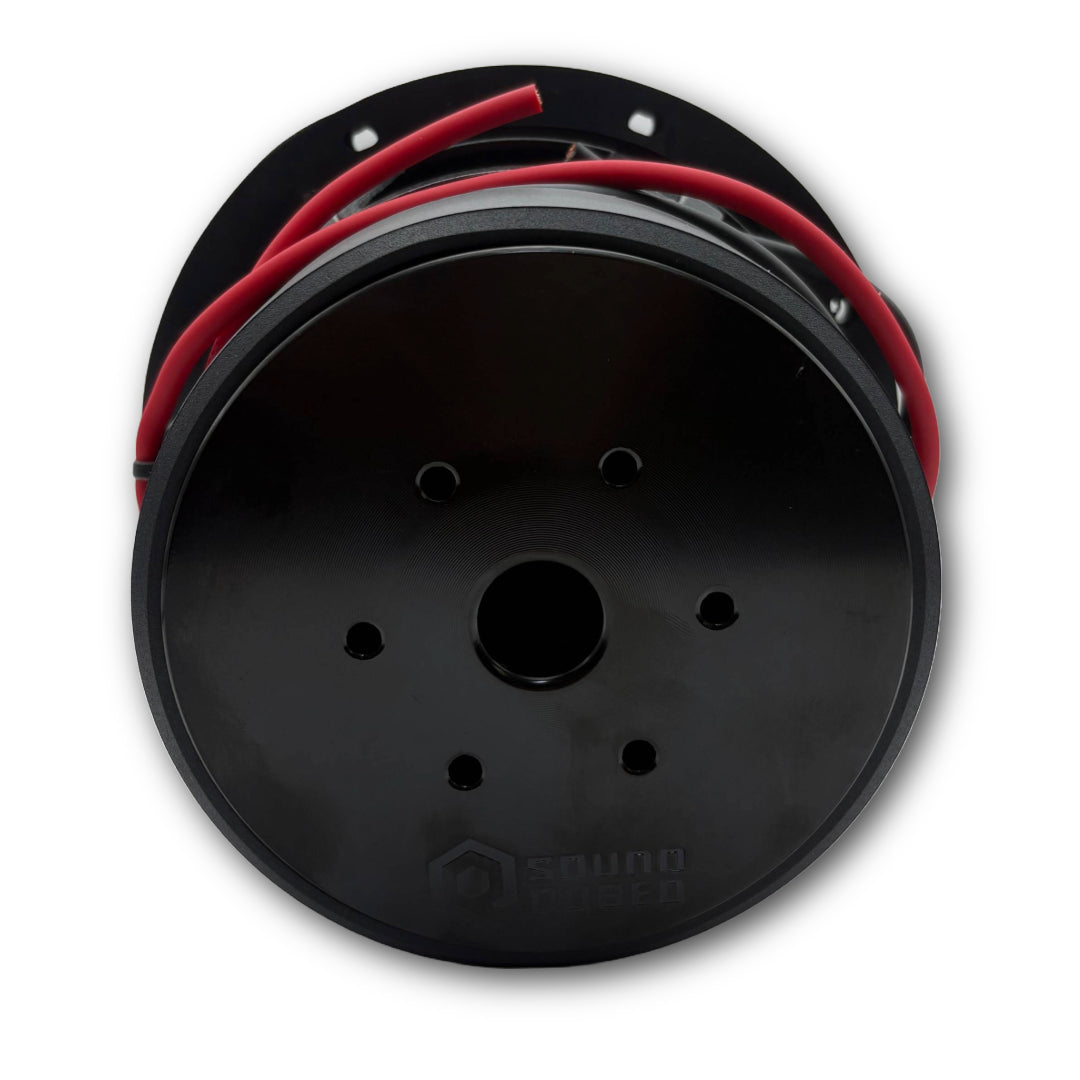

SoundQubed HDS2.3 6.5" Subwoofer 500W RMS 1000W Peak D2 / D4

SoundQubed HDS2.3 6.5" Subwoofer 500W RMS 1000W Peak D2 / D4

Sold by AudioSellerz.com

Shop the SoundQubed HDS2.3 6.5" Subwoofer 500W RMS 1000W Peak D2 / D4 when planning a SoundQubed bass build around verified specifications rather than a single headline number. The product title lists 500 watts RMS. It is offered in Dual 2 Ohm and Dual 4 Ohm voice-coil options according to the title.

The best result depends on the complete system: subwoofer model, number of subs, final impedance, amplifier, enclosure volume and tuning, power wire, ground, fuse protection, battery reserve, and charging system.

Original Product Details and Specifications

SoundQubed HDS2.3 6.5" Subwoofer 500W RMS 1000W Peak D2 / D4 is a compact bass option for builds where space is tight but you still want real output. .

If you are working with a smaller enclosure, a custom build, a motorcycle setup, an under-seat project, or any install where every inch matters, this little HDS2.3 is built to make the most of limited room. It gives you the kind of strong, punchy bass response that makes a small system feel way bigger than it looks.

This 6.5" subwoofer is rated at 500 watts RMS and 1000 watts peak, with a 2" voice coil, 63 oz magnet, and 9mm Xmax. SoundQubed lists it as a strong fit for sealed or ported enclosures from 0.25 to 0.75 cubic feet, which gives you flexibility depending on the kind of response you want. Tight and controlled, or a little more aggressive and lively, this sub gives you options without needing a huge box.

Choose the version that works best for your amplifier and final ohm load goal:

• Dual 2 ohm
• Dual 4 ohm

Both versions carry the same core platform and power rating. The D2 version is described by SoundQubed as a compact 6.5" driver built for limited-space installs needing impactful bass, while the D4 version is positioned the same way for daily systems that want clean, punchy low end in a small footprint.

Why this sub makes sense

• Compact 6.5" size for space-limited installs
• 500W RMS / 1000W peak power handling
• Dual voice coil options for wiring flexibility
• 2" voice coil
• 63 oz magnet
• 9mm Xmax
• Works in sealed or ported enclosures
• Good choice for small daily systems that still want real bass

The D2 version is listed with a 53.0Hz resonant frequency and 79.5dB sensitivity, while the D4 version is listed with a 54.4Hz resonant frequency and 80.2dB sensitivity.

If you need bass from a small woofer without giving up all your space, this is a solid option to look at. The HDS2.3 6.5" is built for the kind of setup where efficiency, fitment, and usable output all matter.

Match This SoundQubed Subwoofer to the Amplifier and Enclosure

A subwoofer money page must connect the woofer to the rest of the bass system. Match the verified RMS power handling and voice-coil configuration to a stable amplifier load. Then confirm the enclosure type, net air space, tuning, port area, mounting depth, cutout, subwoofer displacement, available vehicle space, speaker wire, and electrical support from the exact specifications.

Shop Related SoundQubed Bass-System Products

Compare more SoundQubed subwoofers, browse monoblock car audio amplifiers, and shop subwoofer boxes and enclosures for the rest of the bass-system plan.

Helpful Subwoofer Guides

Use the subwoofer wiring diagrams and final ohm-load guide before choosing a voice-coil option. Read the subwoofer enclosure guide before selecting or building a box, and use the complete car audio bass setup guide to match the subwoofer, amplifier, enclosure, wiring, fusing, battery, and alternator.

The subwoofer specifications guide explains common woofer ratings, while the amplifier gain guide for subwoofers helps protect the system from poor setup and clipping.

Shop SoundQubed at Audio Sellerz

Browse the complete SoundQubed car audio collection at Audio Sellerz for SoundQubed subwoofers, amplifiers, speakers, tweeters, wiring, deadener, and system accessories. Read why Audio Sellerz sells and supports SoundQubed to learn more about the brand relationship and the product categories we carry.

Frequently Asked Questions About SoundQubed HDS2.3 6.5" Subwoofer 500W RMS 1000W Peak D2 / D4

What amplifier should I use with this SoundQubed subwoofer?

Use the product's verified RMS power handling, voice-coil configuration, number of subwoofers, final wired impedance, and the amplifier's continuous output at that impedance. Do not match from peak or maximum power alone.

Which voice-coil option should I choose?

The title lists Dual 2 Ohm and Dual 4 Ohm options. Choose the version that produces a safe final load for the amplifier after accounting for the number of subwoofers and the planned series or parallel wiring.

What enclosure should I use?

Use the exact enclosure recommendations, displacement, mounting depth, and cutout information listed for this model. The best box also depends on the vehicle, available space, music, and desired output.
