SoundQubed HDS 2.2 12" Series Subwoofer

$239.95 USD

Sale Sold out

Shipping calculated at checkout.

Ohm Load D2 D4

SoundQubed HDS 2.2 12" Series Subwoofer

Sold by AudioSellerz.com

The SoundQubed HDS 2.2 12" Series Subwoofer gives shoppers a focused page for this exact SoundQubed subwoofer model.

Match the subwoofer to the amplifier's RMS output at the final wired impedance, a suitable enclosure, adequate speaker wire, correct gain settings, and enough battery and alternator support for the planned system.

Original Product Details and Specifications

The Heavy Duty Street 2 Series 600W Subwoofer improves on its predecessor in terms of build, sound quality, heat dispersion, and frequency response. The 8, 10, 12, or 15-inch models are available with dual 2 or 4-ohm voice coil.

Note: Because of its smaller form factor, the 6.5-inch version specifications vary from the rest of the series. Power handling of the 6.5-inch HDS206 is 350W RMS and 1000 peak. See the specifications tab for full details.

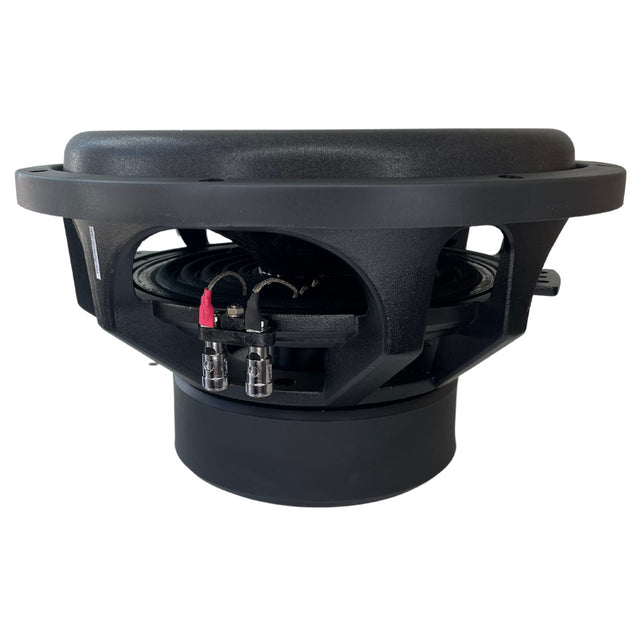

The HDS2 series is an affordable option for your daily-driver car audio system build. First, choose a sealed, ported, or band-pass enclosure. Once you decide on an enclosure option, pair your sub(s) with the appropriate S Series monoblock amp. From there, enjoy easy wiring thanks to 10 AWG push terminals (14 AWG direct leads in the 6.5 and 8-inch models). Soon you’ll be on your way to a dramatically enhanced listening experience.

As with any SoundQubed subwoofer, proper break-in is key to enjoying long life from your HDS2.2. Make sure you follow the steps to loosen up the suspension before pushing these subs to the limit.

The HDS2 600W Subwoofer

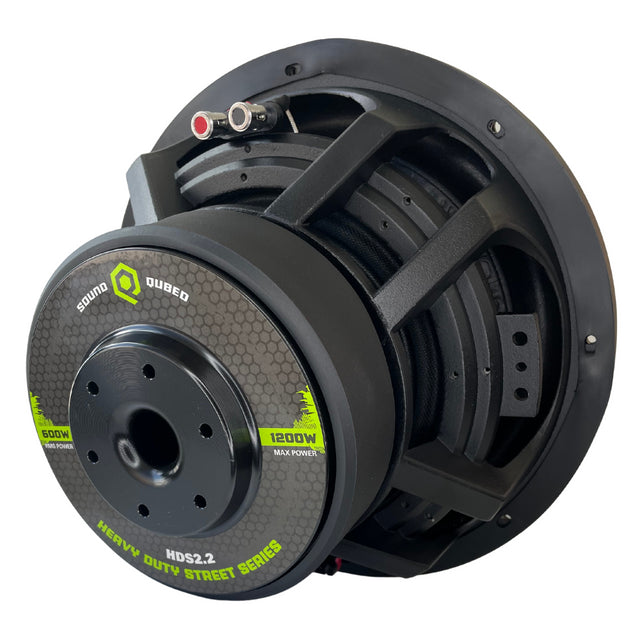

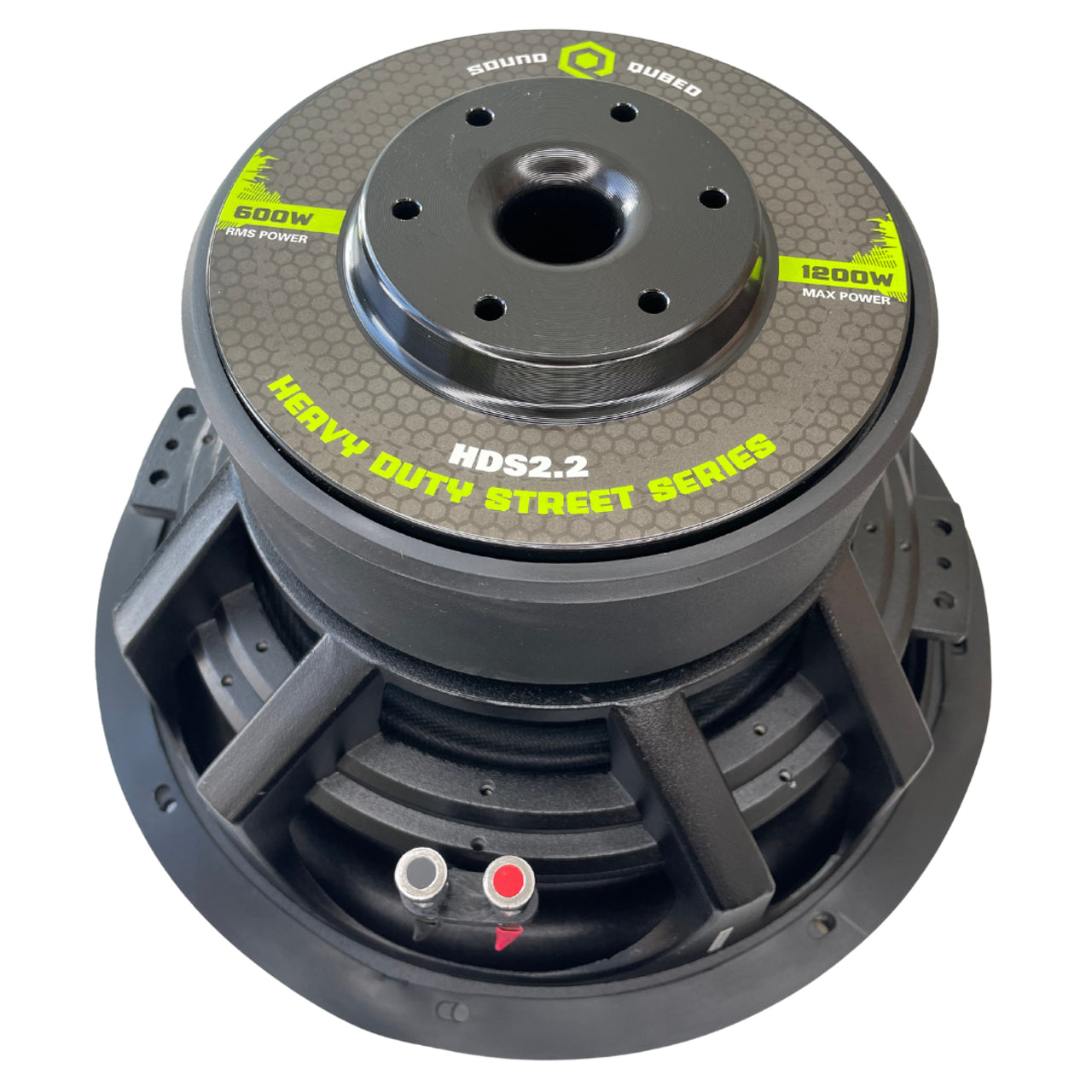

The oversized double magnet in the HDS2 is provides consistently high output levels at 600 Watts RMS. The vented, electroplated back plate lets heat flow away from the coil. As a result, you’ll be less likely to burn your subwoofer’s voice coils.

The HDS2 series uses a 2.5-inch diameter, four-layer, copper dual voice coil with a conical back plate for longer travel. High-temperature adhesives and high quality coil wire guarantee reliable long-term performance and a healthy level of bass!

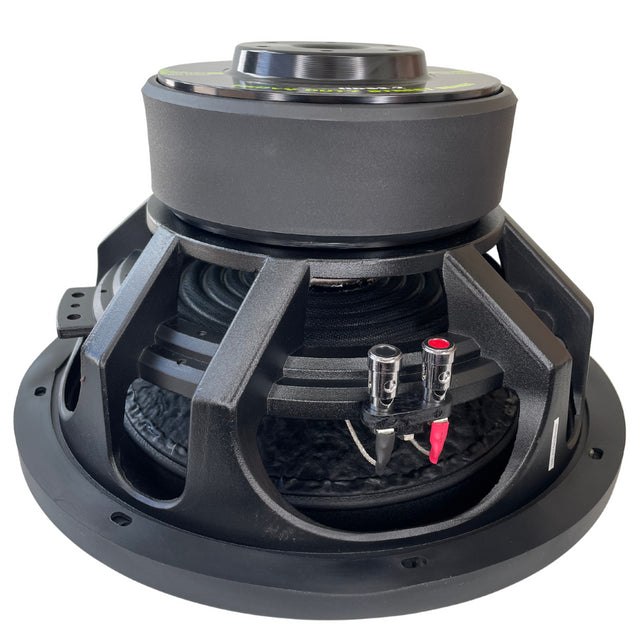

The HDS2 series feature cast aluminum frames. This upgrade provides better heat sinking and increased excursion over stamped-steel baskets. A softer three-piece spider system achieves enhanced performance and lower tuning.

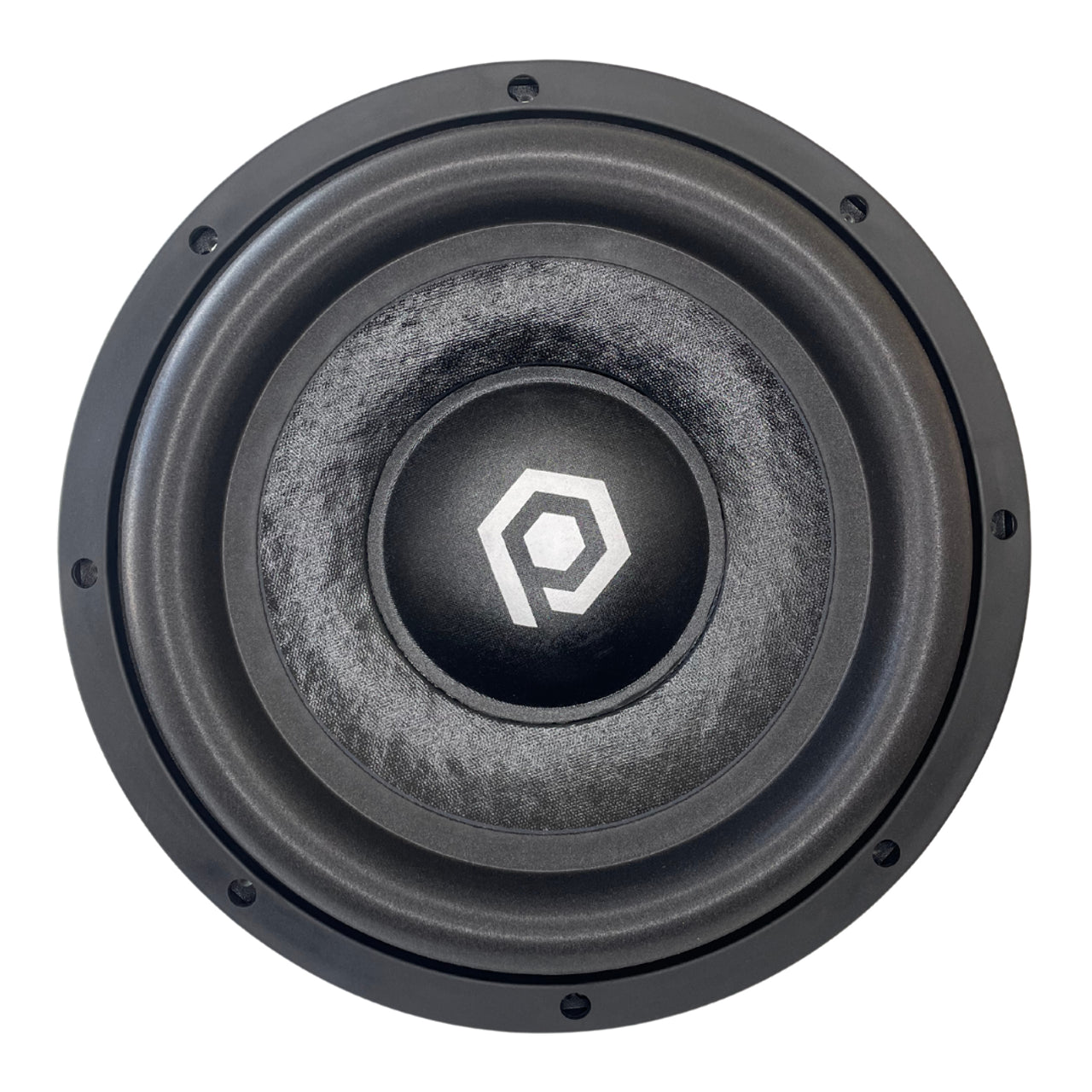

An Extended Range of Motion (EROM) surround profile keeps your cone diameter as large as possible while allowing for long, controlled excursion. The EROM profile gives you more cone area, greater stiffness, and lower mass for more accurate coil signal response. The HDS2 has a non-pressed, fiber added cone for maximum rigidity and long life.

Model: HDS206 | HDS2.208 | HDS2.210 | HDS2.212 | HDS2.215
RMS Power: 350 W | 600 W | 600 W | 600 W | 600 W
Peak Power: 1000 W | 1200 W | 1200 W | 1200 W | 1200 W
Magnet Weight: 60 Oz | 100 Oz | 100 Oz | 100 Oz | 100 Oz
Coil Diameter: 2″ | 2.5″ | 2.5″ | 2.5″ | 2.5″
Coil Length: 28 mm | 36 mm | 40 mm | 40 mm | 40 mm
Woofer Size: 6.5″ | 8″ | 10″ | 12″ | 15″
F(s): 45.39 Hz | 44.41 Hz | 33.65 | 30.95 | 26.92
Impedance: D2 / D4 | D2 / D4 | D2 / D4 | D2 / D4 | D2 / D4
Z(max): 33.81 | 38.77 Ω | 65.65 | 59.14 Ω | 56.79
Q(ms): 3.553 | 4.465 | 5.461 | 5.078 | 6.363
Q(es): 0.5515 | 0.5791 | 0.3991 | 0.423 | 0.608
Q(ts): 0.4774 | 0.5126 | 0.3719 | 0.3905 | 0.5551
V(as): 3.264 L | 5.319 L | 17.43 L | 45.57 L | 100 L
L(e): 1.498 mH | 5.394 mH | 5.745 | 6.079 mH | 6.473
n(0): 0.05% | 0.07673 % | 0.1586 | 0.3046 % | 0.3058
M(ms): 93.7 | 143.8 grams | 201.7 | 209.2 grams | 333.1
C(ms): 0.131 | 0.089 mm/N | 0.111 | 0.126 mm/N | 0.105
Sensitivity 1W/1m: 79.32 | 80.95 | 84.1 | 86.94 | 86.95
BL: 14.84 | 17.56 | 21.86 | 20.91 | 21.42
Xmax: 9 | 13 | 14 | 14 | 14
Sd: 5.25″ | 6.37″ | 8.125″ | 10″ | 12.75″
Displacement: .04ft³ | .06^ft³ | .06^ft³ | .07^ft³ | .11^ft³
Mounting Depth: 4.125″ | 5.5″ | 6.75″ | 6.75″ | 7.44″
Circle Cutout: 6.0625 | 7.5″ | 9.375″ | 11.25″ | 13.875″
Sealed Enclosure (Cu Ft):: .25-.5 FT³ | .35-.75 Ft³ | .5-1.0 FT³ | .75-1.5 FT³ | 1.75-2.75 FT³
Ported Enclosure (Cu Ft):: .25-75 Ft³ | .75-1.25 FT³ | .75-1.25 FT³ | 1-1.75 FT³ | 3-6 FT³

Match This SoundQubed Subwoofer to the Amplifier and Enclosure

A subwoofer money page must connect the woofer to the rest of the bass system. Match the verified RMS power handling and voice-coil configuration to a stable amplifier load. Then confirm the enclosure type, net air space, tuning, port area, mounting depth, cutout, subwoofer displacement, available vehicle space, speaker wire, and electrical support from the exact specifications.

Shop Related SoundQubed Bass-System Products

Compare more SoundQubed subwoofers, browse monoblock car audio amplifiers, and shop subwoofer boxes and enclosures for the rest of the bass-system plan.

Helpful Subwoofer Guides

Use the subwoofer wiring diagrams and final ohm-load guide before choosing a voice-coil option. Read the subwoofer enclosure guide before selecting or building a box, and use the complete car audio bass setup guide to match the subwoofer, amplifier, enclosure, wiring, fusing, battery, and alternator.

The subwoofer specifications guide explains common woofer ratings, while the amplifier gain guide for subwoofers helps protect the system from poor setup and clipping.

Shop SoundQubed at Audio Sellerz

Browse the complete SoundQubed car audio collection at Audio Sellerz for SoundQubed subwoofers, amplifiers, speakers, tweeters, wiring, deadener, and system accessories. Read why Audio Sellerz sells and supports SoundQubed to learn more about the brand relationship and the product categories we carry.

Frequently Asked Questions About SoundQubed HDS 2.2 12" Series Subwoofer

What amplifier should I use with this SoundQubed subwoofer?

Use the product's verified RMS power handling, voice-coil configuration, number of subwoofers, final wired impedance, and the amplifier's continuous output at that impedance. Do not match from peak or maximum power alone.

What enclosure should I use?

Use the exact enclosure recommendations, displacement, mounting depth, and cutout information listed for this model. The best box also depends on the vehicle, available space, music, and desired output.
