SoundQubed

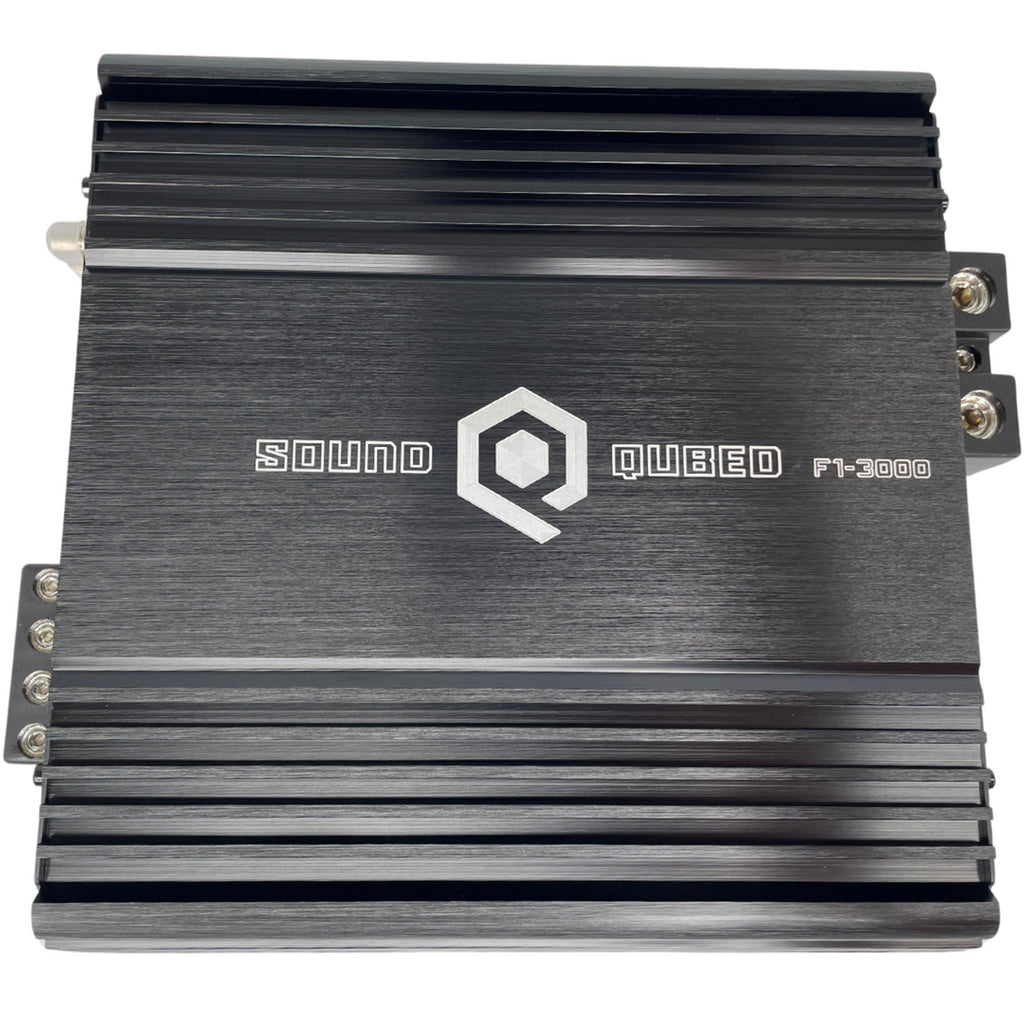

SoundQubed F1-3000 Full Bridge Mono Block Amplifier

Name: SoundQubed F1-3000 Full Bridge Mono Block Amplifier
Brand: SoundQubed
SKU: SQ-F1-3000
Price: 349.95 USD
Availability: InStock

$349.95 USD

Sale Sold out

Shipping calculated at checkout.

SoundQubed F1-3000 Full Bridge Mono Block Amplifier

Sold by AudioSellerz.com

The SoundQubed F1-3000 Full Bridge Mono Block Amplifier is a SoundQubed full-bridge monoblock subwoofer amplifier for a system built around the exact power ratings, impedance limits, channel layout, wiring, and electrical requirements listed below.

Use the model name F1-3000 when comparing SoundQubed amplifiers. Do not choose an amplifier from the largest wattage number alone; match continuous output at the intended load, the connected speakers or subwoofers, power and ground wire, fuse protection, battery support, alternator capacity, airflow, and gain settings.

Original Product Details and Specifications

SoundQubed F1-3000 3000W Full-Bridge Monoblock Amplifier

The SoundQubed F1-3000 full-bridge monoblock amplifier delivers up to 3,000 watts RMS at 1 ohm for powerful daily-driver, street and high-output subwoofer systems. It combines serious bass power with a compact chassis measuring approximately 9.25" long, 8.46" wide and 2.28" tall, making it easier to fit into crowded amplifier racks and space-conscious installations.

The F1-3000 is the entry point into the monoblock side of SoundQubed’s F-Series amplifier lineup, but its output is far beyond what most basic bass systems require. It is rated for 850 watts RMS at 4 ohms, 1,700 watts RMS at 2 ohms and 3,000 watts RMS at 1 ohm, giving installers several ways to match the amplifier to compatible SoundQubed subwoofers and other car audio subs.

This amplifier should be treated as part of a complete system. The subwoofers, final ohm load, enclosure, power wire, ground wire, fuse protection, battery capacity and alternator output all affect how well the SoundQubed F1-3000 performs.

SoundQubed F1-3000 Power Ratings and Specifications

RMS power at 4 ohms: 850 watts
RMS power at 2 ohms: 1,700 watts
RMS power at 1 ohm: 3,000 watts
Amplifier type: Full-bridge monoblock amplifier
Minimum rated impedance: 1 ohm
Frequency capability: 10Hz–20kHz
Dimensions: 9.25" long x 8.46" wide x 2.28" tall
Model: F1-3000
SKU: SQ-F1-3000

3000-Watt Monoblock Amplifier at 1 Ohm

The SoundQubed F1-3000 1-ohm monoblock amplifier is rated to produce 3,000 watts RMS when connected to a properly wired 1-ohm subwoofer load.

A 1-ohm system can make sense when the subwoofer voice coils and number of subwoofers create that final impedance safely. Possible configurations may include one or more compatible dual voice-coil subwoofers, but the exact wiring plan depends on whether the subs are dual 1, dual 2 or dual 4 ohm.

Before connecting the F1-3000 at 1 ohm, verify:

The voice-coil configuration of every subwoofer
The number of subwoofers being connected
The final series or parallel wiring arrangement
The combined RMS power handling of the subwoofers
The power and ground wire capacity
The vehicle’s available electrical support

Do not connect the amplifier below its rated 1-ohm minimum load. Wiring below the rated impedance can increase heat and current demand while causing protect mode, blown fuses or amplifier failure.

Use our guide explaining how to wire a car audio amplifier to the correct ohm load before connecting the subwoofers.

1700 Watts RMS at 2 Ohms

At 2 ohms, the SoundQubed F1-3000 is rated for 1,700 watts RMS.

A 2-ohm configuration may be useful for a strong daily-driver system that does not need the amplifier’s complete 1-ohm output. It can also work when the selected subwoofer voice coils naturally create a 2-ohm final load.

Running at 2 ohms may be appropriate when:

The connected subwoofers are rated for approximately this power range
The available electrical system is not being planned around full 1-ohm output
The selected voice coils create a safe 2-ohm final load
The customer wants room to upgrade the subwoofer system later
The enclosure and listening goals do not require the amplifier’s full output

The amplifier does not need to be wired to 1 ohm simply because it is capable of operating there. The correct load is the one that properly matches the subwoofers, electrical system and system goals.

850 Watts RMS at 4 Ohms

At 4 ohms, the F1-3000 produces 850 watts RMS.

This can work well for a smaller daily-driver subwoofer system or a temporary configuration while the customer prepares for future upgrades. It may also match a single subwoofer whose voice coils create a 4-ohm final load.

Running at 4 ohms gives the amplifier a significantly lighter load than operating at 1 ohm. The output is lower, but 850 watts RMS is still enough power for many capable daily-driver subwoofers.

Customers should choose the final load according to the actual subwoofer system—not simply chase the highest power number.

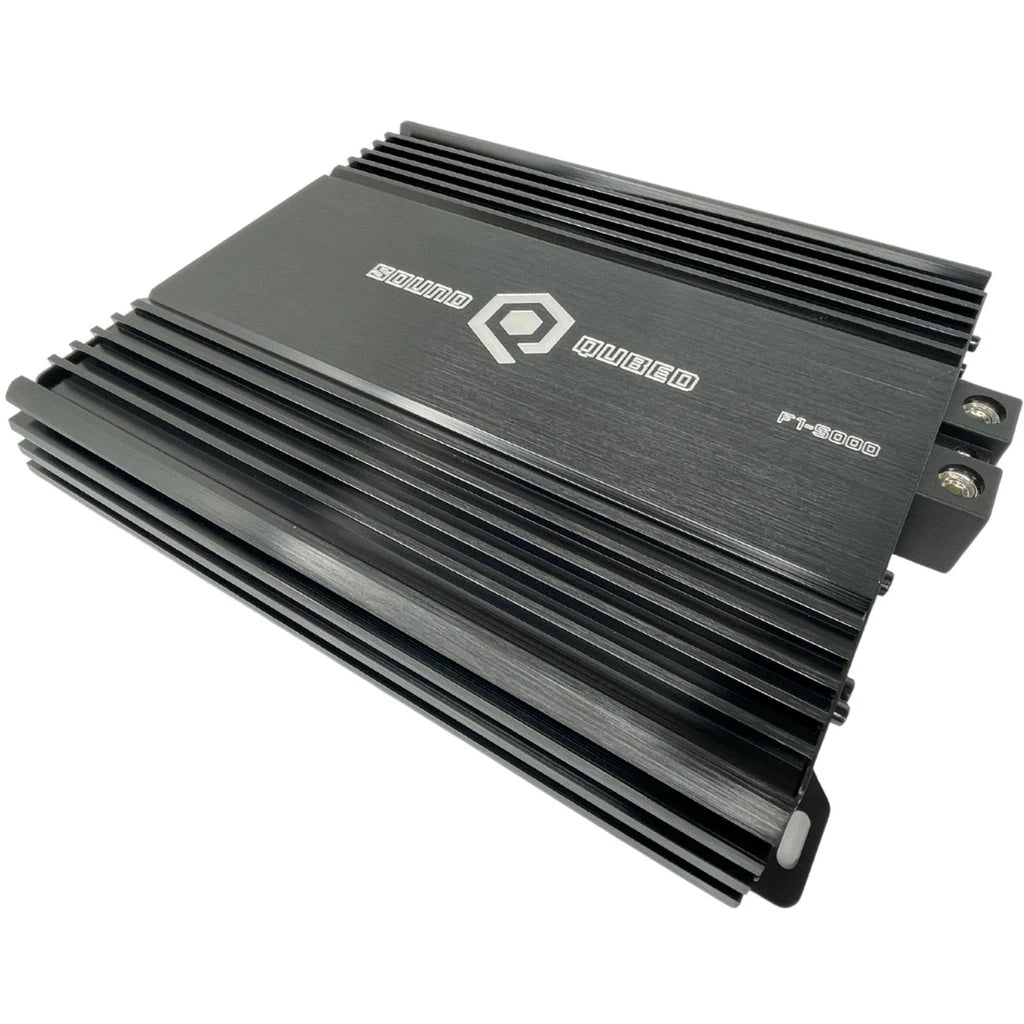

Compact Full-Bridge Monoblock Design

The SoundQubed F1-3000 measures approximately 9.25" long x 8.46" wide x 2.28" tall.

Its compact full-bridge design gives installers substantial monoblock power without requiring the footprint of a much larger conventional amplifier.

The smaller chassis can be useful in:

Pickup trucks
Compact cars
Hatchbacks
Under-seat installations when clearance and ventilation allow
Multi-amplifier systems
Custom amplifier racks
Daily-driver systems where cargo space matters

Compact does not mean the amplifier should be installed without airflow. Mount the F1-3000 securely and leave enough open space for heat to escape.

Avoid mounting the amplifier:

Under loose carpet
Inside an unventilated sealed compartment
Where water or condensation can reach it
Against material that blocks the heat sink
Where cargo can contact the terminals
Near seat tracks or other moving parts

SoundQubed F-Series Full-Bridge Amplifier

The F1-3000 is part of SoundQubed’s F-Series amplifier family. The lineup includes high-output mono amplifiers for subwoofers and four-channel models for mids, highs and full-range speaker systems.

The F1-3000 is the smallest monoblock in the current F-Series lineup, followed by larger F1 models for customers building systems that require more amplifier power.

Being the smallest F-Series monoblock does not make it a small amplifier. Three thousand watts RMS at 1 ohm can support a serious subwoofer setup when the vehicle and electrical system are prepared correctly.

Compare it with other SoundQubed amplifiers available from Audio Sellerz.

Match the F1-3000 With the Correct Subwoofers

The SoundQubed F1-3000 should be matched to subwoofers according to their combined RMS rating and final wired impedance.

Before selecting the subwoofers, confirm:

The RMS rating of each subwoofer
The voice-coil impedance
The number of subwoofers
The final wired ohm load
The enclosure requirements
The electrical support available
How hard and how long the system will be played

A pair of subwoofers rated for a combined 3,000 watts RMS may be a reasonable starting point for a 1-ohm F1-3000 system, but power ratings alone do not guarantee a correct match.

The enclosure, impedance rise, charging voltage, gain setting and real listening habits all affect how much power the subwoofers receive.

Browse the dedicated SoundQubed subwoofer collection to compare available SoundQubed subs by size, series, voice coils and power level.

One Large Subwoofer or Multiple SoundQubed Subs?

The F1-3000 can be used with one powerful subwoofer or multiple compatible subwoofers as long as the combined impedance and RMS power handling are matched correctly.

One Subwoofer May Be Better When:

Enclosure space is limited
The customer wants a simpler installation
The system is built around one high-power subwoofer
Cargo space needs to remain usable
The desired final load can be created with one subwoofer

Multiple Subwoofers May Be Better When:

The customer wants more cone area
The vehicle has room for the correct enclosure
The combined voice coils create the required load
The total RMS handling matches the amplifier
The electrical system can support sustained amplifier output

Two subwoofers do not automatically make a better system. One properly powered subwoofer in the correct enclosure can outperform multiple subs installed in the wrong box or starved for electrical power.

The Subwoofer Enclosure Still Matters

A 3,000-watt amplifier cannot fix a poorly designed subwoofer enclosure.

The box affects:

Frequency response
Low-frequency extension
Output and efficiency
Cone control
Mechanical stress on the subwoofers
How the system loads inside the vehicle

The enclosure should be built around the exact subwoofer model, number of subs, internal volume, displacement, port area and tuning requirements.

Read the Audio Sellerz subwoofer box guide before selecting a sealed or ported enclosure.

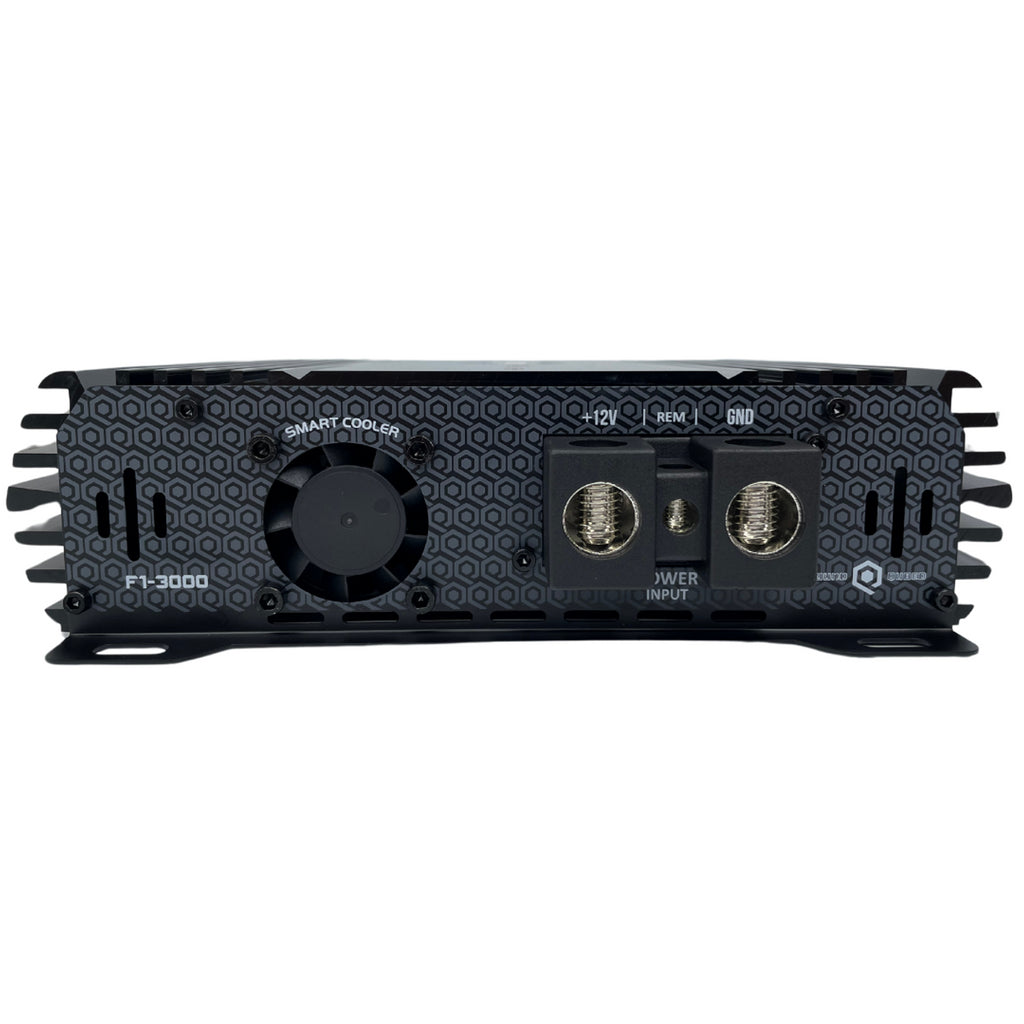

Power Wire and Ground Wire for the F1-3000

A 3,000-watt car audio amplifier needs serious power and ground wiring.

The complete installation should include:

Power wire sized for the amplifier’s current demand
A matching ground-wire capacity
Proper battery-side fuse protection
Secure ring terminals and connections
A short, low-resistance amplifier ground
Safe cable routing through the vehicle
Electrical support capable of supplying the system

Customers can shop SoundQubed amp kits and car audio wire when planning the F1-3000 installation.

Our car audio wire gauge chart and fuse guide explains how amplifier power, cable length, wire material and fuse protection work together.

Build a Proper Amplifier Ground

The F1-3000 ground cable should have enough capacity to complete the same electrical circuit supplied by the positive power wire.

A large power cable cannot overcome a weak, undersized or poorly connected ground.

The amplifier ground should be:

As short as practical
Connected securely to clean bare metal
Protected from loosening and corrosion
Large enough for the current demand
Tested for excessive resistance or voltage drop

A poor ground can contribute to weak output, protect mode, heat, voltage instability and damaged terminals.

Use the car audio grounding guide for building a better amplifier ground.

Electrical Upgrades for a 3000-Watt Amplifier

The electrical upgrades needed for the SoundQubed F1-3000 depend on how the amplifier is used and what other equipment is installed.

A system running the F1-3000 near full output at 1 ohm creates substantially more current demand than the same amplifier operating at a lighter load and lower output.

Possible supporting upgrades may include:

A Big 3 wiring upgrade
Larger factory charging cables
Additional battery capacity
A high-output alternator
Upgraded fuse holders and power distribution
Additional power and ground runs when required

Do not assume a stock alternator and starting battery can support a 3,000-watt amplifier simply because the vehicle still starts normally.

Review our step-by-step car audio electrical upgrade guide before completing the installation.

Set the F1-3000 Gain Correctly

Amplifier gain is not a volume or power control.

The gain setting matches the amplifier’s input sensitivity to the signal coming from the radio, DSP or line-output converter.

Setting gain too high can create:

Clipping
Distorted bass
Overheated subwoofer voice coils
Excessive current demand
Amplifier protect mode
Premature equipment failure

A clean signal and conservative gain setting are more useful than forcing the amplifier to make distorted output.

Read our guide explaining how to set amplifier gain for subwoofers before tuning the system.

Who Should Buy the SoundQubed F1-3000?

The SoundQubed F1-3000 may be a strong choice for customers building:

A high-power daily-driver bass system
A single high-output subwoofer setup
A dual-subwoofer street system
A SoundQubed HDS or HDX bass build
A compact amplifier rack with limited space
A 1-ohm system needing up to 3,000 watts RMS
A 2-ohm system needing approximately 1,700 watts RMS
A complete SoundQubed amplifier and subwoofer system

Customers needing less or more power can compare other monoblock car audio amplifiers available from Audio Sellerz.

Why Buy the SoundQubed F1-3000 From Audio Sellerz?

Audio Sellerz is a real brick-and-mortar car audio shop in Norton, Ohio.

We understand that choosing a monoblock amplifier involves more than comparing wattage numbers.

The amplifier must work with:

The subwoofers
The voice-coil configuration
The final ohm load
The enclosure
The power and ground wire
The fuse protection
The batteries and alternator
The gain and signal settings

When you buy the SoundQubed F1-3000 from Audio Sellerz, you are purchasing from people who understand daily-driver bass systems, high-output builds and the supporting equipment needed to make the amplifier perform correctly.

Learn more about our relationship with the company in the article explaining why Audio Sellerz sells and supports SoundQubed.

SoundQubed F1-3000 Frequently Asked Questions

How much power does the SoundQubed F1-3000 make?

The F1-3000 is rated for 850 watts RMS at 4 ohms, 1,700 watts RMS at 2 ohms and 3,000 watts RMS at 1 ohm.

Is the SoundQubed F1-3000 a full-bridge amplifier?

Yes. The F1-3000 is part of SoundQubed’s F-Series full-bridge amplifier lineup.

Is the SoundQubed F1-3000 stable at 1 ohm?

Yes. SoundQubed rates the F1-3000 for 3,000 watts RMS at a 1-ohm load. It should not be connected below its rated 1-ohm minimum impedance.

Can I run the F1-3000 at 2 ohms?

Yes. It is rated for 1,700 watts RMS at 2 ohms.

Can I run the F1-3000 at 4 ohms?

Yes. It is rated for 850 watts RMS at 4 ohms.

How large is the SoundQubed F1-3000?

The amplifier measures approximately 9.25" long x 8.46" wide x 2.28" tall.

What subwoofers should I use with the F1-3000?

Choose subwoofers according to their combined RMS rating, voice-coil configuration and final wired impedance. The correct setup depends on whether the amplifier will operate at 4 ohms, 2 ohms or 1 ohm.

Can the F1-3000 power two subwoofers?

Yes, when the combined voice coils create a safe final load and the subwoofers have enough combined RMS power handling for the amplifier’s output.

What wire should I use with the F1-3000?

The correct wire size depends on current demand, cable length, conductor material, charging voltage and the rest of the system. Use properly sized power and ground wire with correctly selected fuse protection.

Does the F1-3000 require electrical upgrades?

Electrical requirements depend on the final load, listening habits and other installed amplifiers. A system using the F1-3000 near full output may require a Big 3 upgrade, additional battery capacity, larger wiring and a high-output alternator.

Match This SoundQubed Amplifier to the System

Use the continuous power ratings at the intended impedance, minimum stable load, channel configuration, crossover controls, input signal, fuse requirements, power-wire size, ground path, ventilation, and vehicle electrical support. This amplifier should be matched to one or more subwoofers at a safe final impedance according to the original specifications.

Shop SoundQubed Amplifiers and Supporting Products

Compare the complete SoundQubed amplifier collection, browse more monoblock car audio amplifiers, and review the SoundQubed SK1 F-Series bass knob and monitor when the exact amplifier supports it.

Helpful SoundQubed Amplifier Guides

Compare the models in the SoundQubed F-Series amplifier guide. Use the guide to wiring an amplifier to the correct ohm load, verify power wire and fusing with the car audio wire-gauge and fuse guide, and create a dependable return path with the amplifier grounding guide.

Set the system up with the amplifier gain guide for subs, mids, and highs. If the amp shuts down, use the amplifier protect-mode troubleshooting guide before replacing equipment by guesswork.

Shop SoundQubed at Audio Sellerz

Browse the complete SoundQubed car audio collection at Audio Sellerz for SoundQubed subwoofers, amplifiers, speakers, tweeters, wiring, deadener, and system accessories. Read why Audio Sellerz sells and supports SoundQubed to learn more about the brand relationship and the product categories we carry.

Frequently Asked Questions About SoundQubed F1-3000 Full Bridge Mono Block Amplifier

What should this SoundQubed amplifier power?

Match the amplifier channel layout, RMS output, impedance ratings, and crossover controls to the connected speakers or subwoofers. Confirm the complete model specifications before ordering.

What power wire and fuse does it need?

Use the amplifier's published current and fuse requirements, total power-wire length, conductor material, installation temperature, and electrical-system design. Do not choose wire from the model name alone.

Does a larger amplifier require electrical upgrades?

It may. Measure voltage under load and evaluate the power wire, ground, fuse holder, battery reserve, Big 3 wiring, and alternator output as one electrical system.
