How to Wire Any Car Audio Amp to the Right Ohm Load
Wiring your amplifier to the right ohm load is one of the most important parts of building a car audio system that actually performs the way it should.
You can buy a strong amplifier, good subwoofers, a solid subwoofer box, and quality wire, but if the final speaker or subwoofer load is wrong, the amplifier may not make power correctly. Worse, it can overheat, clip sooner, go into protect mode, blow fuses, or become unreliable.
The goal is simple: the amp needs to see the load it was designed to run.
This matters whether you are wiring a monoblock amplifier for subwoofers, a 4 channel amp for mids and highs, a full-range amplifier for door speakers, or a multi-amp system with several speakers and subs.
If you are still planning the build, start by matching the right car audio amplifier with the right subwoofers, subwoofer box, amp kit, wire size, fuse protection, and electrical support. Wiring the amp correctly is only one part of building the system correctly.
What Is an Ohm Load in Car Audio?
An ohm load is the electrical resistance, or impedance, that the amplifier sees from the speakers or subwoofers connected to it.
In car audio, that final load matters because it affects:
- How much power the amplifier can make
- How much current the amp pulls
- How hot the amp runs
- How hard the electrical system has to work
- Whether the amp stays reliable
- Whether the amp goes into protect mode
In many car audio systems, a lower ohm load allows the amplifier to make more power. But lower is not automatically better. A lower load also puts more stress on the amp and electrical system.
A higher ohm load is usually easier on the amp, but the amplifier may make less power. That can be fine in some builds, but it may not give the output the customer expected.
The correct load depends on the amplifier. Some monoblock amps are designed for 1 ohm. Some are happiest at 2 ohm. Some amps can run lower than 1 ohm only when the manufacturer actually rates them for that. Some 4 channel amplifiers are safe at one load per channel but require a higher load when bridged.
The safe answer is always the same: check the amplifier rating first, then wire the speakers or subwoofers to match that safe range.
Why the Right Ohm Load Matters
The amplifier can only do its job correctly if the final speaker or subwoofer load matches what it was built to handle.
If the final ohm load is too low, you can run into problems like:
- Excess heat
- Amplifier protect mode
- Clipping
- Voltage drop
- Blown fuses
- Poor reliability
- Weak output after the system heats up
- Speaker or subwoofer damage
- Amplifier failure
If the final ohm load is too high, the system may stay safer, but the amp may not make the power you expected.
That is why the correct ohm load is not just a technical detail. It affects how loud the system gets, how clean it plays, how hot the amplifier runs, and how reliable the build is long term.
If your amplifier is already shutting down or acting strange, read the amplifier protect mode guide before assuming the amp is bad.
Start With the Amplifier, Not the Subwoofer
One of the biggest mistakes people make is buying subwoofers first, then trying to figure out later how to wire them to the amp.
The smarter move is to start with the amplifier and work backward.
Before wiring anything, you need to know:
- Whether the amplifier is mono, 2 channel, 4 channel, 5 channel, or multi-channel
- The minimum rated ohm load
- The RMS power at each rated load
- Whether the rating is per channel or bridged
- Whether the amp is meant for subwoofers or full-range speakers
- The voltage the power rating is based on
- Whether the electrical system can support the power level
This matters because not all amps behave the same way. A monoblock amplifier built for subwoofer duty is different from a 4 channel amplifier powering mids and highs. A full-range amplifier may have different safe wiring rules than a bass amp.
If you are still choosing the amplifier, compare monoblock amplifiers for subwoofer builds and 4 channel amplifiers for door speakers, mids, highs, and full-range speakers.
Know Your Subwoofer Voice Coils Before You Buy
Once you know what ohm load the amplifier wants to see, the next step is understanding the subwoofer’s voice coil configuration.
Most car audio subwoofers are sold in versions like:
- Single 2 ohm
- Single 4 ohm
- Dual 1 ohm
- Dual 2 ohm
- Dual 4 ohm
This is what determines your wiring options.
A dual voice coil subwoofer gives you more than one wiring choice. For example, one dual 2 ohm subwoofer can usually be wired to 1 ohm or 4 ohm. One dual 4 ohm subwoofer can usually be wired to 2 ohm or 8 ohm.
Once you add multiple subwoofers, the final wiring options change again.
That is why buying the right coil version matters. If your amp is designed to make power at 1 ohm, you need subwoofers that can be wired to 1 ohm safely. If your amp is designed for 2 ohm, you need a subwoofer setup that lands there instead.
If you want a deeper wiring chart, use the subwoofer wiring diagrams and ohm load guide with this article.
Single Voice Coil vs Dual Voice Coil Subwoofers
A single voice coil subwoofer has one coil and fewer wiring options. If it is a single 4 ohm subwoofer, that single sub is normally 4 ohm by itself.
A dual voice coil subwoofer has two coils. That gives you more wiring flexibility because the coils can usually be wired in series or parallel.
Dual voice coil subwoofers are popular because they make it easier to hit the final load your amplifier needs.
For example:
- A dual 2 ohm sub can often wire to 1 ohm or 4 ohm
- A dual 4 ohm sub can often wire to 2 ohm or 8 ohm
- Two dual 4 ohm subs can often wire to 1 ohm or 4 ohm
- Two dual 2 ohm subs can often wire to 0.5 ohm or 2 ohm
The key is matching the subwoofer coil version to the amplifier before you buy. Do not assume every subwoofer version works with every amp.

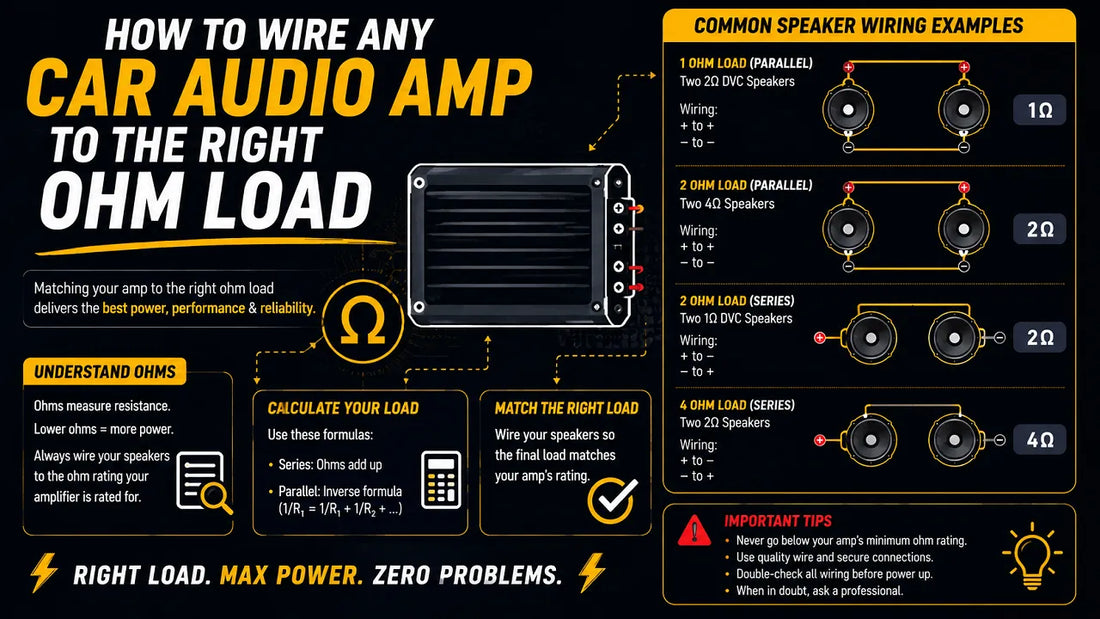

Series vs Parallel Wiring
This is the part that confuses a lot of people, but the basic idea is simple.
Series wiring raises impedance.
Parallel wiring lowers impedance.
If you wire two 2 ohm coils in series, the final result is 4 ohm.
If you wire two 2 ohm coils in parallel, the final result is 1 ohm.
The same idea applies whether you are wiring the coils on one subwoofer or wiring multiple subwoofers together.
Simple series wiring example
If you have two 2 ohm coils and wire them in series:
- 2 ohm + 2 ohm = 4 ohm
Series wiring adds the loads together.
Simple parallel wiring example
If you have two 2 ohm coils and wire them in parallel:
- 2 ohm and 2 ohm in parallel = 1 ohm
Parallel wiring lowers the final load.
This is why subwoofer wiring needs to be planned. The same subwoofer can create different final loads depending on how the coils are connected.
Common Subwoofer Wiring Examples
Here are some common real-world examples customers run into when wiring subwoofers to a monoblock amplifier.
One dual 2 ohm subwoofer
One dual 2 ohm subwoofer can usually be wired to:
- 1 ohm
- 4 ohm
This works well for many monoblock amplifiers that are designed to run at 1 ohm. If the amplifier is not 1 ohm stable, the 4 ohm option may be safer, but it may make less power.
One dual 4 ohm subwoofer
One dual 4 ohm subwoofer can usually be wired to:
- 2 ohm
- 8 ohm
This is a common choice for people who want to run a subwoofer amp at 2 ohm instead of pushing it harder at 1 ohm.
Two dual 4 ohm subwoofers
Two dual 4 ohm subs can usually be wired to:
- 1 ohm
- 4 ohm
- 16 ohm
Most daily subwoofer systems will care about the 1 ohm or 4 ohm options.
Two dual 2 ohm subwoofers
Two dual 2 ohm subs can usually be wired to:
- 0.5 ohm
- 2 ohm
- 8 ohm
This is where people get into trouble. Just because the subwoofers can be wired to 0.5 ohm does not mean the amplifier should be run there. Most daily driver systems should stay at the amplifier’s actual rated load.
1 Ohm vs 2 Ohm vs 4 Ohm
A lot of customers ask whether 1 ohm, 2 ohm, or 4 ohm is best.
The answer depends on the amplifier and the build.
1 ohm
1 ohm is common for monoblock subwoofer amplifiers because many bass amps are designed to make strong power there.
1 ohm can be a good choice when:
- The amplifier is rated for 1 ohm
- The wiring is correct
- The electrical system is strong enough
- The subwoofer setup lands at 1 ohm safely
- The system is designed for the current demand
2 ohm
2 ohm is often easier on the amplifier and electrical system than 1 ohm. Some customers choose 2 ohm for cleaner daily reliability, less heat, or because their amplifier is designed to make power there.
2 ohm can be a good choice when:
- The amplifier is rated well at 2 ohm
- The customer wants a safer daily load
- The system does not need maximum amp output
- The subwoofer coil setup naturally wires to 2 ohm
4 ohm
4 ohm is usually easier on the amplifier, but the amp may make less power. This can still work well for sound quality setups, smaller systems, or builds where reliability matters more than maximum output.
4 ohm can be a good choice when:
- The amplifier does not need to be pushed hard
- The system is smaller
- The speaker or subwoofer setup naturally lands at 4 ohm
- The customer wants lower current draw
For a deeper comparison, read the 1 ohm vs 2 ohm vs 4 ohm subwoofer guide.
Not Every Amp Should Be Wired the Same Way
You cannot assume every amplifier should be wired to the lowest ohm load possible.
That is not smart system design. That is just chasing numbers.
Some amplifiers are built for aggressive low-load bass setups. Some are better for daily driver reliability. Some are designed for full-range speakers. Some make more sense for mids and highs. Some can be bridged, and some should not be bridged at all.
The important part is simple:
Wire the amplifier to the load it was designed to run, not the load you hope it survives.
If you are shopping by brand, Audio Sellerz carries options from brands like Sky High Car Audio, Stetsom, Ruthless Audio, American Bass, and SoundQubed. The brand matters, but the exact amplifier model and rating matter even more.
Mono Amps and Subwoofer Wiring
Most of the time, when people ask how to wire an amp to the right ohm load, they are talking about a monoblock amplifier on one or more subwoofers.
For mono amps, the process is usually:
- Check the amplifier’s minimum rated impedance.
- Check how many subwoofers you are running.
- Check the voice coil configuration of each subwoofer.
- Choose a wiring method that lands on the correct final load.
- Make sure the wiring, fuse protection, and electrical support can handle the power.
If the final load is wrong, the amp may either work too hard or fail to make the power you expected.
If you are still choosing parts, compare monoblock amplifiers with the right subwoofers before buying the wrong coil version.
Multi-Channel Amps and Speaker Wiring
Multi-channel amps are different because the safe impedance can change depending on whether you are wiring one speaker per channel, multiple speakers per channel, or bridging channels.
A 4 channel amp might be safe at one load per channel but require a higher load when bridged.
This matters if you are wiring:
- Door speakers
- Midrange speakers
- Midbass speakers
- Full-range speakers
- Tweeters
- Horns
- Small subwoofers on bridged channels
Do not guess on bridged wiring. Always check the amplifier’s bridged rating and the speaker load before connecting everything.
If your goal is speaker output instead of bass, compare 4 channel amplifiers and make sure the speaker impedance matches the amplifier setup.
Can You Bridge an Amplifier to Change the Ohm Load?
Some multi-channel amplifiers can be bridged. Bridging combines two channels to power one speaker or subwoofer.
But bridging does not mean you can wire anything however you want.
When an amp is bridged, the minimum safe load is usually higher than the normal per-channel load. For example, an amp may be safe at 2 ohm per channel but only safe at 4 ohm when bridged. That depends on the amplifier.
Before bridging an amp, check:
- Whether the amp is bridgeable
- The correct bridged speaker terminals
- The bridged RMS power rating
- The minimum bridged impedance
- The speaker or subwoofer impedance
- Whether the amp has enough power wire and fuse protection
- Whether the amp has enough airflow
If the final load is too low when bridged, the amp can overheat, shut down, go into protect mode, or fail.
What About Strapped Amplifiers?
Strapped amplifiers are a separate conversation.
Some amplifiers are designed to be strapped or linked together. When done correctly, one amp acts as the master and the other acts as the slave, depending on the manufacturer’s design.
Do not guess on strapped amp wiring.
If the amps are designed to be strapped, follow the manufacturer’s instructions exactly. Master/slave settings, RCA signal, speaker wiring, final load, and gain setup all matter.
If the amps are not designed to be strapped, do not try to force them to work together.
If you are running multiple amps on subwoofers in the same box, also read the gain matching amps guide. The wiring has to be right, but the amps also need to be set so the subs work together correctly.
How Ohm Load Affects Amplifier Power
In many amplifier ratings, you will see power listed at different loads.
For example, an amplifier might be rated differently at:
- 4 ohm
- 2 ohm
- 1 ohm
Usually, as the load gets lower, the amp can make more power. But that only works when the amplifier is designed for that load and the electrical system can support the current draw.
If you wire the amp below its safe rating, you may get more current demand, more heat, more voltage drop, and more reliability problems instead of better performance.
That is why “wire it as low as possible” is bad advice for daily systems.
The better advice is: wire it to the amplifier’s safe rated load and support it correctly.
Box Rise Is Real
The ohm load you wire at rest is not always the exact load the amplifier sees when the system is playing.
When a subwoofer is installed in an enclosure and playing music, impedance can rise. A system wired to 1 ohm at rest may rise above that during actual use depending on frequency, enclosure design, port tuning, woofer behavior, and the vehicle.
This is often called box rise.
Box rise is one reason experienced builders pay close attention to the enclosure, electrical system, and amplifier behavior under real playing conditions.
But box rise is not an excuse to wire below the amplifier’s safe rating and hope it survives.
The smart move is still the same: build around the amp’s rated operating range, use the right subwoofer voice coil version, and support the system correctly.
If the enclosure is part of the build plan, read the subwoofer box guide so the box, subwoofer, amplifier, and final load make sense together.
Your Electrical System Matters More Than People Think
Even if the final ohm load is technically correct, the system still needs enough electrical support to keep the amplifier happy.
A powerful amp pulling current through weak power wire, a poor ground, cheap fuse holders, or a struggling charging system is going to have problems.
Voltage drop can make amps:
- Run hotter
- Clip sooner
- Shut down
- Go into protect mode
- Make less usable power
- Sound weaker than expected
That is why serious amplifier systems should be supported with the right amp kits, car audio wire, fuse blocks and fusing, Big 3 kits, battery support, and charging upgrades when needed.
If the build is already showing voltage drop, compare Advanced Electric batteries and high output alternators as part of the full system plan.
Wire Size and Fuse Protection Matter
The amp’s speaker load is only one side of the install. The power side matters too.
If the amp is wired to the correct ohm load but the power wire is too small, the ground is weak, or the fuse holder is bad, the amp may still have problems.
Before turning up the system, check:
- Power wire size
- Ground wire size
- Ground location
- Fuse holder quality
- Fuse rating
- Distribution blocks
- Battery terminals
- Crimp quality
- Wire routing
- Voltage at the amplifier under load
If you are not sure what wire or fuse size the system needs, use the car audio wire size guide and the car audio wire gauge and fuse guide.
If the amp ground may be the issue, read the car audio grounding guide.
Common Mistakes That Hurt Car Audio Systems
A lot of amplifier and subwoofer problems come from the same wiring mistakes.
Buying the wrong coil version
This happens when someone buys the subwoofer they want without checking how it will wire to the amplifier they already have.
Wiring below the amp’s safe limit
Lower is not always better. A daily system wired too low can become unreliable fast.
Ignoring the electrical system
An amp can be wired correctly on paper and still underperform if voltage is weak.
Using cheap or undersized wire
Weak power wire, bad grounds, and poor fuse holders can create heat, voltage drop, and protect mode problems.
Guessing on bridged loads
This is common with 2 channel and 4 channel amps. Bridged impedance ratings need to be checked before wiring.
Mixing subs and coils without a plan
Mixing different subwoofer models, coil versions, or wiring styles can create uneven loads and unpredictable performance.
Assuming all amp terminals are separate channels
Many monoblock amps have multiple speaker terminals for wiring convenience, but they may still be internally connected to the same output. Always check the amplifier design.
Changing wiring without retuning
If the final load changes, the amp may make a different amount of power. That can affect gain setup, clipping, voltage demand, and reliability.
How to Choose the Right Subwoofer Version for Your Amp
The easiest way to avoid wiring mistakes is to plan backward from the amplifier.
Ask yourself:
- What final ohm load does the amp want to see?
- How much RMS power does the amp make at that load?
- How many subwoofers am I running?
- Do I need single voice coil or dual voice coil subs?
- Do I need dual 2 ohm or dual 4 ohm?
- Is the amp stable at the load I am aiming for?
- Is my electrical system ready for the power level?
- Does the subwoofer box match the subs and power?
This is the smarter way to shop.
If the amplifier wants 1 ohm, do not accidentally buy a subwoofer setup that only lands at 2 ohm or 4 ohm. If the amp is happiest at 2 ohm, do not buy a setup that forces you into 0.5 ohm.
Plan the amp, subs, wiring, box, and electrical system together.
What to Do Before You Turn the System Up
Before playing the system hard, check the basics.
- Make sure the amp is wired to a safe final load.
- Make sure every subwoofer coil is connected correctly.
- Make sure polarity is correct.
- Make sure the amp has proper power and ground wire.
- Make sure the fuse rating matches the wire and system.
- Make sure the ground is clean bare metal.
- Make sure the battery and alternator can support the amp.
- Make sure the gain is set correctly.
- Make sure the amp is not clipping.
- Make sure the subwoofer box fits the subwoofer setup.
If you are building a full bass setup, the complete car audio bass setup guide will help you match subs, amps, boxes, wiring, and electrical support instead of guessing one part at a time.
What If the Amp Goes Into Protect After Wiring?
If the amp goes into protect mode after wiring, do not keep turning it up and hoping it fixes itself.
Check:
- Final ohm load
- Speaker wire shorts
- Subwoofer coil wiring
- Power wire size
- Ground quality
- Fuse holder condition
- Voltage at the amp
- Gain setting
- Amplifier temperature
- Subwoofer condition
Protect mode can be caused by wiring too low, shorted speaker wire, weak voltage, overheating, a bad ground, or a damaged amp or subwoofer.
Use the amp protect mode guide and the car audio amp troubleshooting guide to narrow it down.
When Battery or Alternator Support Becomes Necessary
The lower the ohm load and the more power the amplifier makes, the more current the system can demand.
That is why bigger amp setups often need more than basic factory electrical support.
You may need stronger battery or alternator support if:
- Voltage drops hard when bass hits
- The amp shuts off at higher volume
- The system gets weaker after playing for a while
- The fuse holder or ground gets hot
- The vehicle has a large monoblock amp
- The build has multiple amplifiers
- The system is used for demos
- The battery does not recover after playing
If you are not sure how much battery support the build needs, read the how much battery do I need for car audio guide. If the alternator may be the restriction, read the high output alternator guide.
For a full upgrade path, use the step-by-step car audio electrical upgrade guide.
How This Connects to Gain Matching
Ohm load and gain matching are different, but they work together in serious systems.
The ohm load decides what load the amplifier sees from the speakers or subwoofers. Gain setting decides how much input signal the amp uses to reach output.
If you are running one amp, you need the right ohm load and a correct gain setting.
If you are running multiple amps on subwoofers in the same box, you need the right ohm load, correct wiring, and gain matching so the subs work together evenly.
If one amp is making more clean output than the other, one sub may work harder. If one amp clips earlier, that sub can heat faster or sound different. This matters even more in shared chambers and larger bass builds.
For multi-amp systems, read the do I need to gain match my amps guide.
Frequently Asked Questions About Amp Ohm Loads
What ohm load should I wire my amp to?
Wire the amplifier to the load it is rated to handle. If the amp is rated for 1 ohm, a 1 ohm final load may be correct. If the amp is only rated for 2 ohm, do not wire it to 1 ohm.
Is 1 ohm better than 2 ohm?
Not always. 1 ohm can make more power on many monoblock amps, but it also demands more from the amplifier and electrical system. 2 ohm can be better for reliability in some daily builds.
Can I wire my amp lower than rated?
You should not wire an amp below the manufacturer’s rated safe load. Some competition builders may take risks, but that does not make it a smart daily-driver setup.
What happens if the ohm load is too low?
The amp may overheat, clip, shut down, blow fuses, go into protect mode, or fail. It can also put extra stress on the electrical system.
What happens if the ohm load is too high?
The amp will usually run easier, but it may make less power than expected. The system may be safe but not as loud as the customer wanted.
Can one dual 2 ohm subwoofer wire to 1 ohm?
Yes, one dual 2 ohm subwoofer can usually be wired to 1 ohm in parallel or 4 ohm in series.
Can one dual 4 ohm subwoofer wire to 2 ohm?
Yes, one dual 4 ohm subwoofer can usually be wired to 2 ohm in parallel or 8 ohm in series.
Can two dual 4 ohm subs wire to 1 ohm?
Yes, two dual 4 ohm subwoofers can commonly be wired to a 1 ohm final load when wired correctly.
Can two dual 2 ohm subs wire to 1 ohm?
Two dual 2 ohm subs usually do not land at 1 ohm with standard wiring. Common final loads are often 0.5 ohm, 2 ohm, or 8 ohm. That is why coil choice matters before buying.
Does box rise change the ohm load?
Yes. The wired resting load is not always the same load the amp sees while playing. Impedance can rise during real use because of the enclosure, frequency, and subwoofer behavior.
Do 4 channel amps have ohm loads too?
Yes. Every amplifier has a safe speaker load. A 4 channel amp may have one minimum load per channel and another minimum load when bridged.
Can wrong ohm load cause protect mode?
Yes. Wiring an amp too low can cause protect mode, overheating, shutdowns, and reliability problems. Protect mode can also come from bad grounds, low voltage, shorted wiring, or damaged equipment.
Final Thoughts
If you want your car audio amp to play hard, stay reliable, and make the power it was built for, the final ohm load has to make sense.
The best systems are not thrown together. They are matched correctly from the start.
That means choosing the right amplifier, the right subwoofer voice coil configuration, the right wiring method, the right box, and the right electrical support so everything works together.
Getting the ohm load right is one of the easiest ways to avoid wasted money, weak performance, protect mode, and reliability problems later.
When you are ready to build the system correctly, start with the right car audio amplifier, monoblock amplifier, subwoofers, subwoofer box, amp kit, and electrical support from Audio Sellerz.
Follow Audio Sellerz
Want to see more car audio builds, product updates, demos, troubleshooting tips, show coverage, and behind-the-scenes content from Audio Sellerz? Follow us on social media and stay connected with the team.
