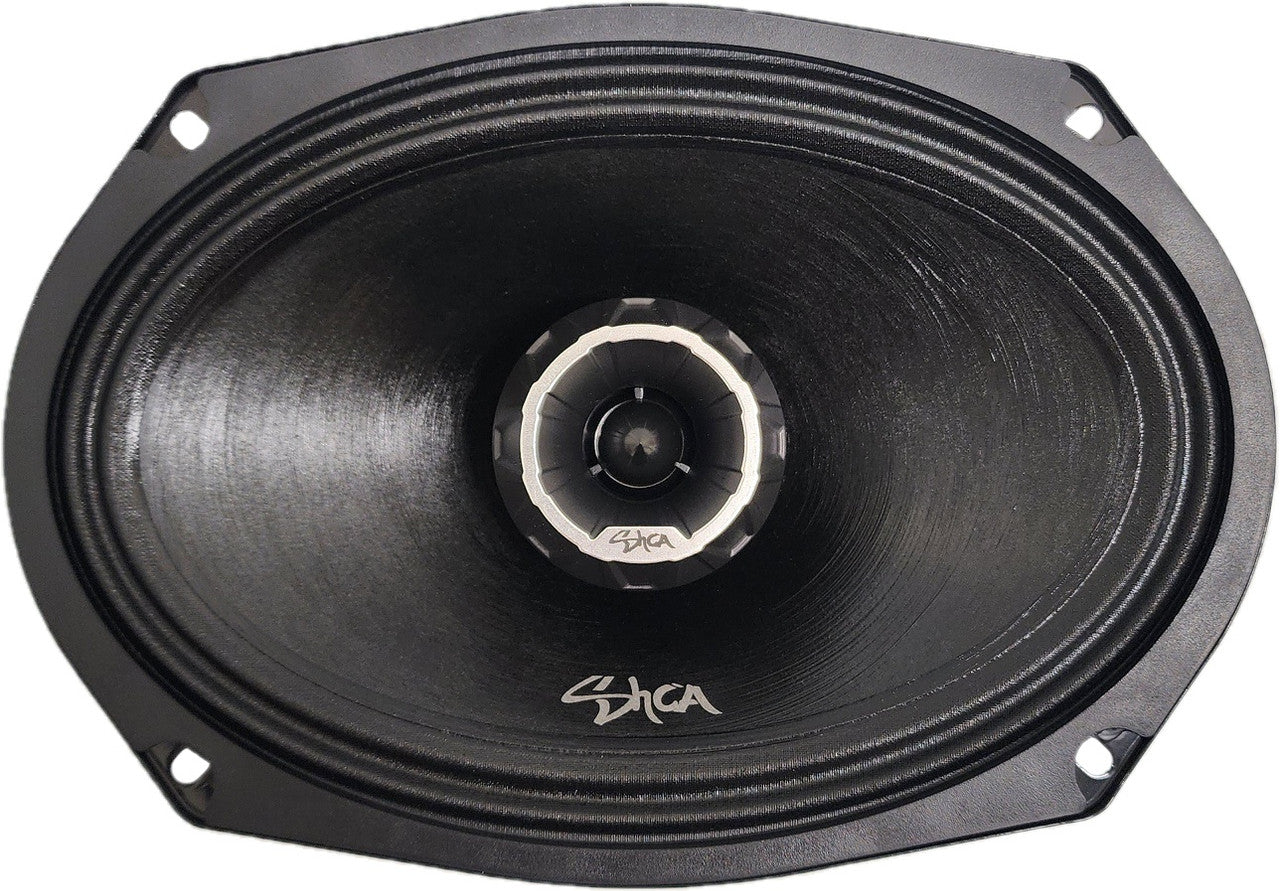

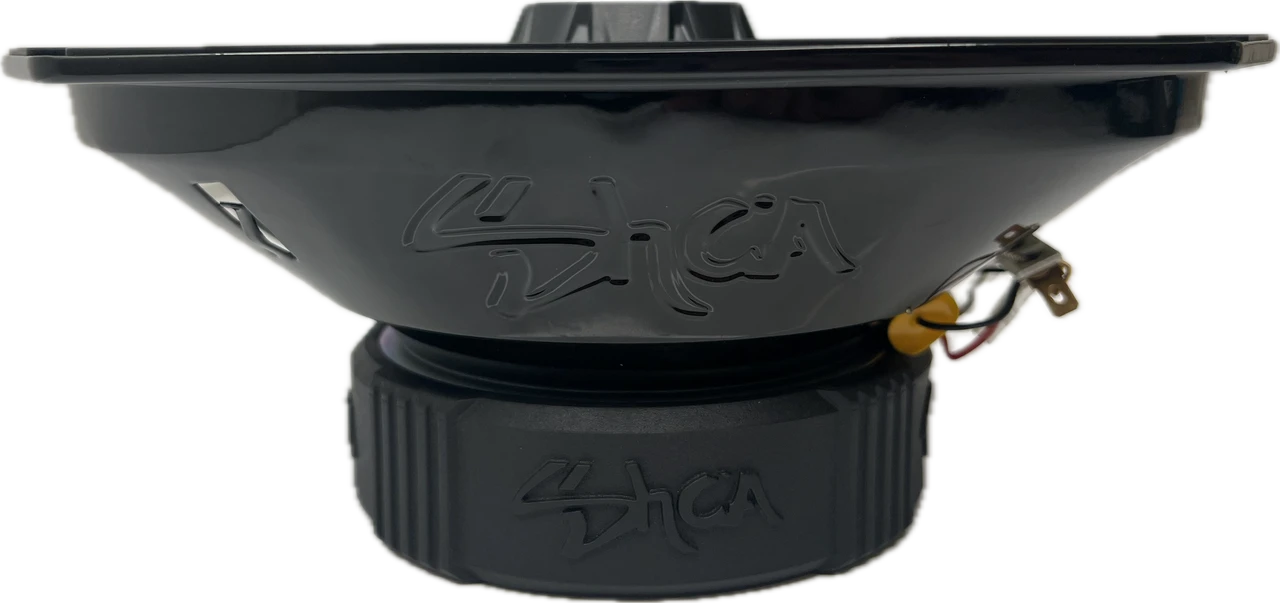

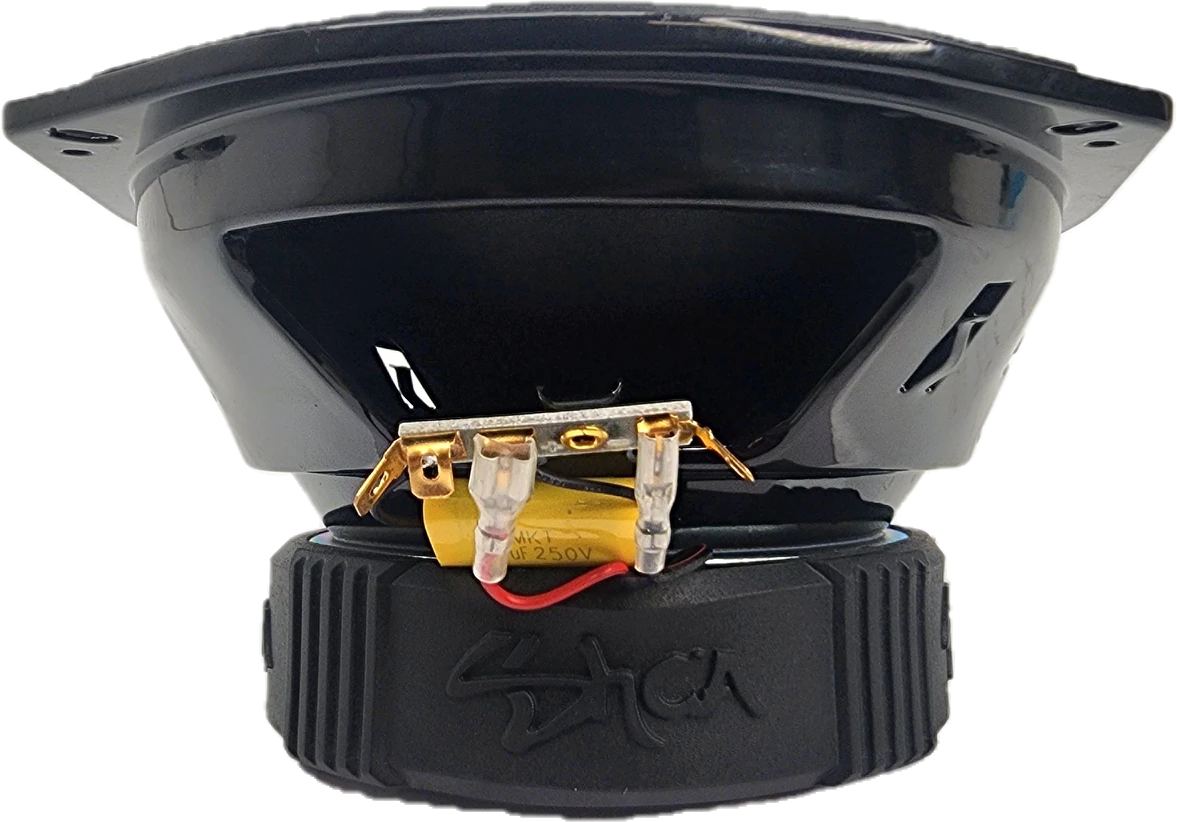

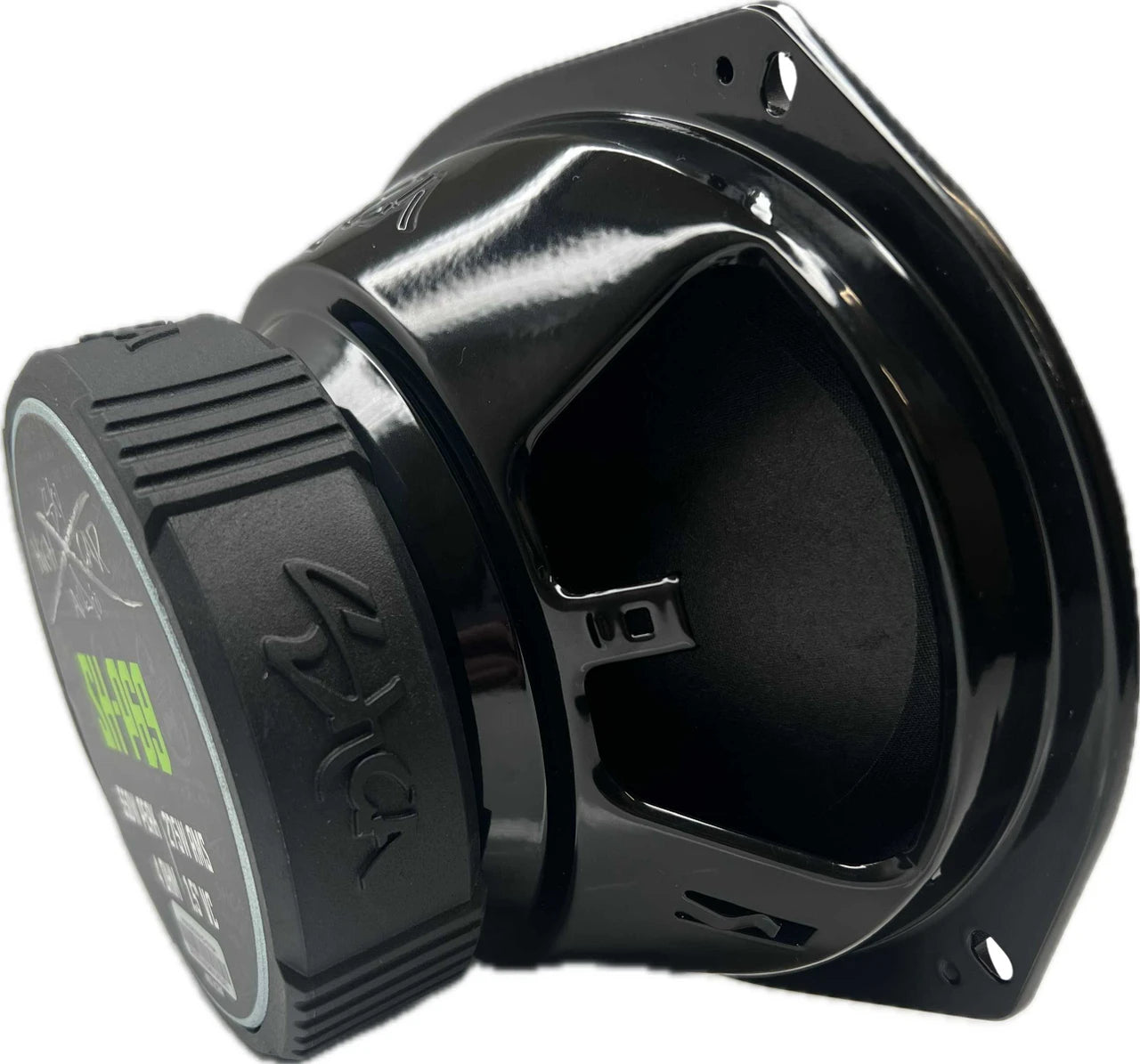

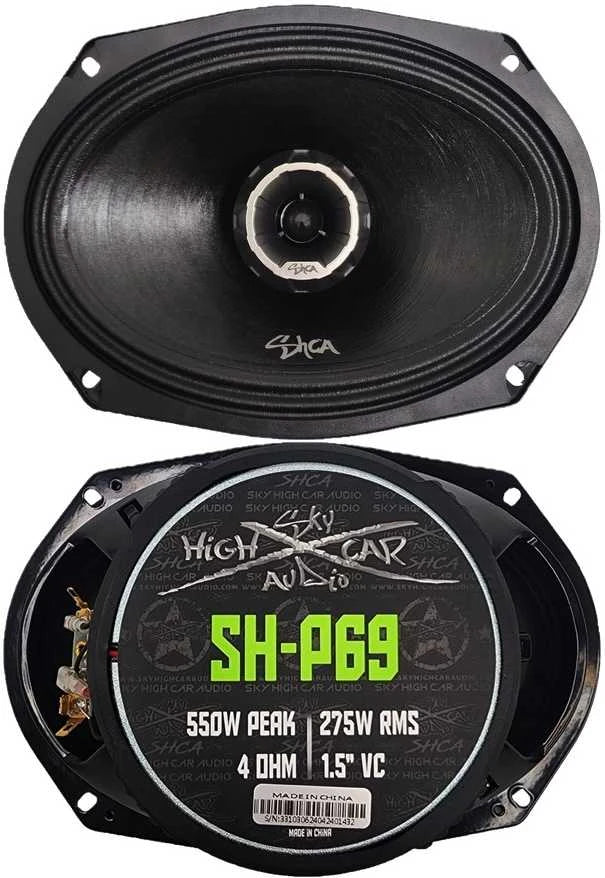

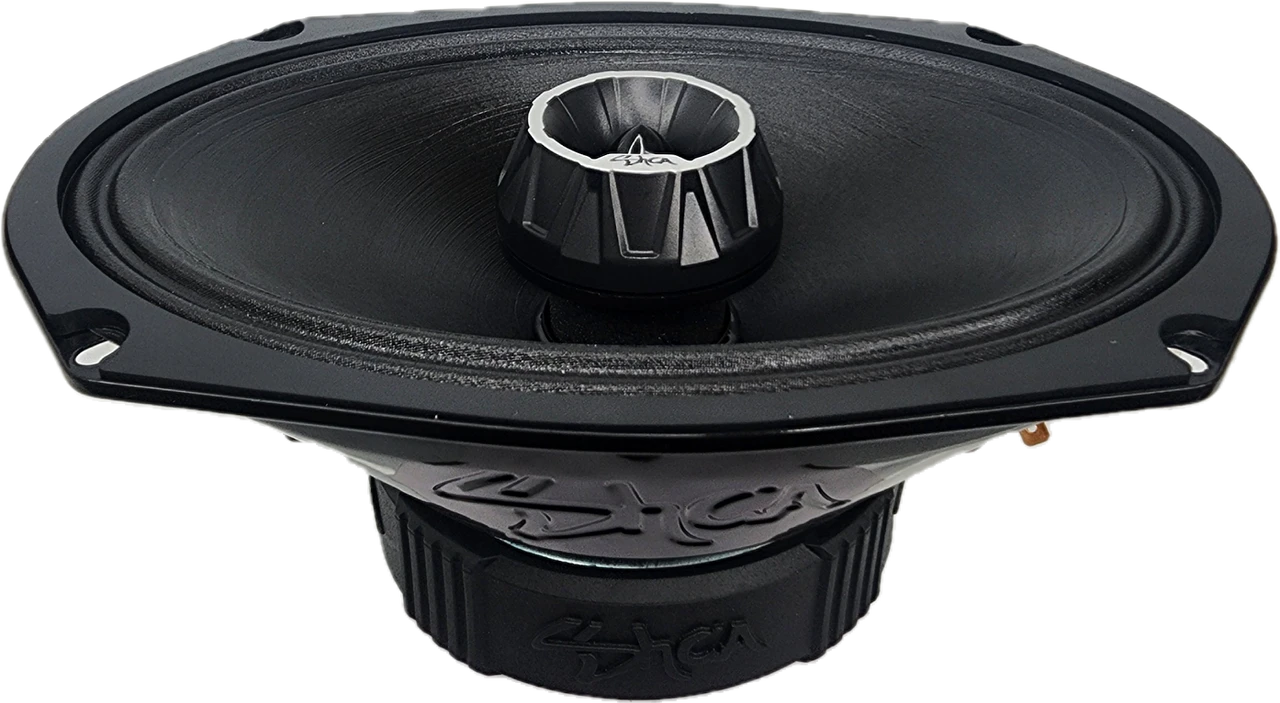

Sky High Car Audio SH-P69 6x9" Coaxial Mid-Range Loudspeaker with 1" Bullet Tweeter

Sky High Car Audio SH-P69 6x9" Coaxial Mid-Range Loudspeaker with 1" Bullet Tweeter
Sold by AudioSellerz.com.

The Sky High Car Audio SH-P69 6x9" Coaxial Mid-Range Loudspeaker with 1" Bullet Tweeter is built for loud, clear mids and highs in car audio systems that need stronger vocals, crisp top-end detail, and pro audio-style output. This speaker combines a 6x9" ferrite woofer with a built-in 1" bullet tweeter, giving your system midrange presence and high-frequency detail from one coaxial speaker design.

With 275 watts RMS, 550 watts peak power, 4 ohm impedance, 98dB sensitivity, and a wide 60Hz-22KHz frequency response, the SH-P69 is a strong choice for customers upgrading factory 6x9 speaker locations, building louder rear decks, adding stronger door output, or designing a mids and highs setup that needs more output than basic replacement speakers can provide.

The built-in 1" neodymium bullet tweeter helps deliver crisp highs, while the 6x9" ferrite woofer handles the midrange and vocal side of the system. This makes the SH-P69 useful for vocals, guitars, drums, instruments, and the upper detail that helps a car audio system sound louder, cleaner, and more alive.

If you are building the rest of your speaker setup, browse more midrange speakers for car audio, compare full range car audio speakers, shop car audio tweeters, or match the system with a 4 channel car audio amplifier.

Key Features:

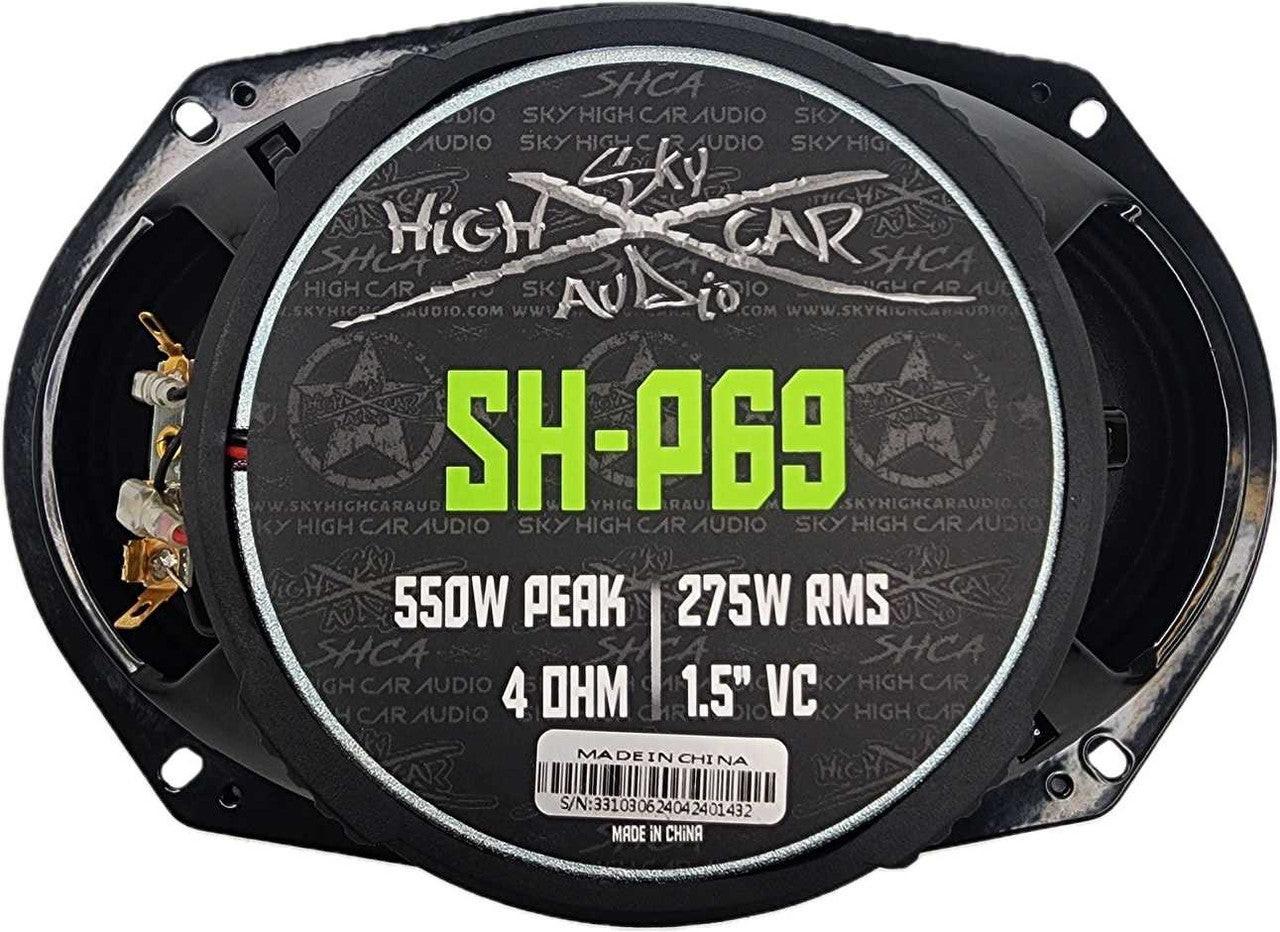

• Sky High Car Audio SH-P69 coaxial mid-range loudspeaker
• 6x9" ferrite woofer with built-in 1" bullet tweeter
• 275 watts RMS power handling
• 550 watts peak power handling
• 4 ohm system impedance
• 98dB sensitivity at 1W/1m
• 60Hz-22KHz frequency response
• Recommended 80Hz high-pass crossover frequency
• Water-resistant paper woofer cone with IP22 rating
• 1.5" voice coil with Kapton former and CCAW winding
• Aluminum alloy tweeter diaphragm with neodymium magnet

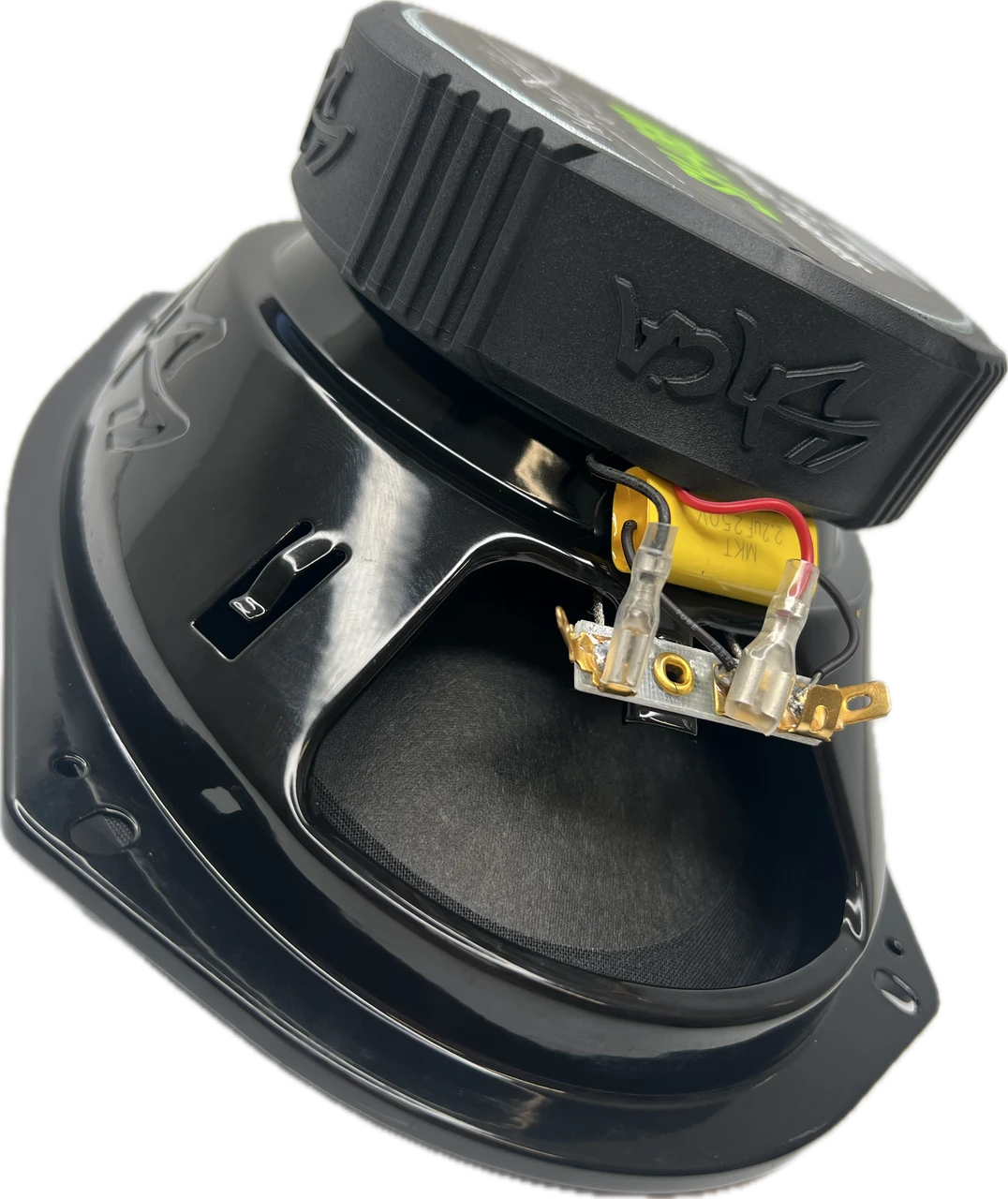

• Steel basket for strong speaker structure

Built-In Bullet Tweeter:

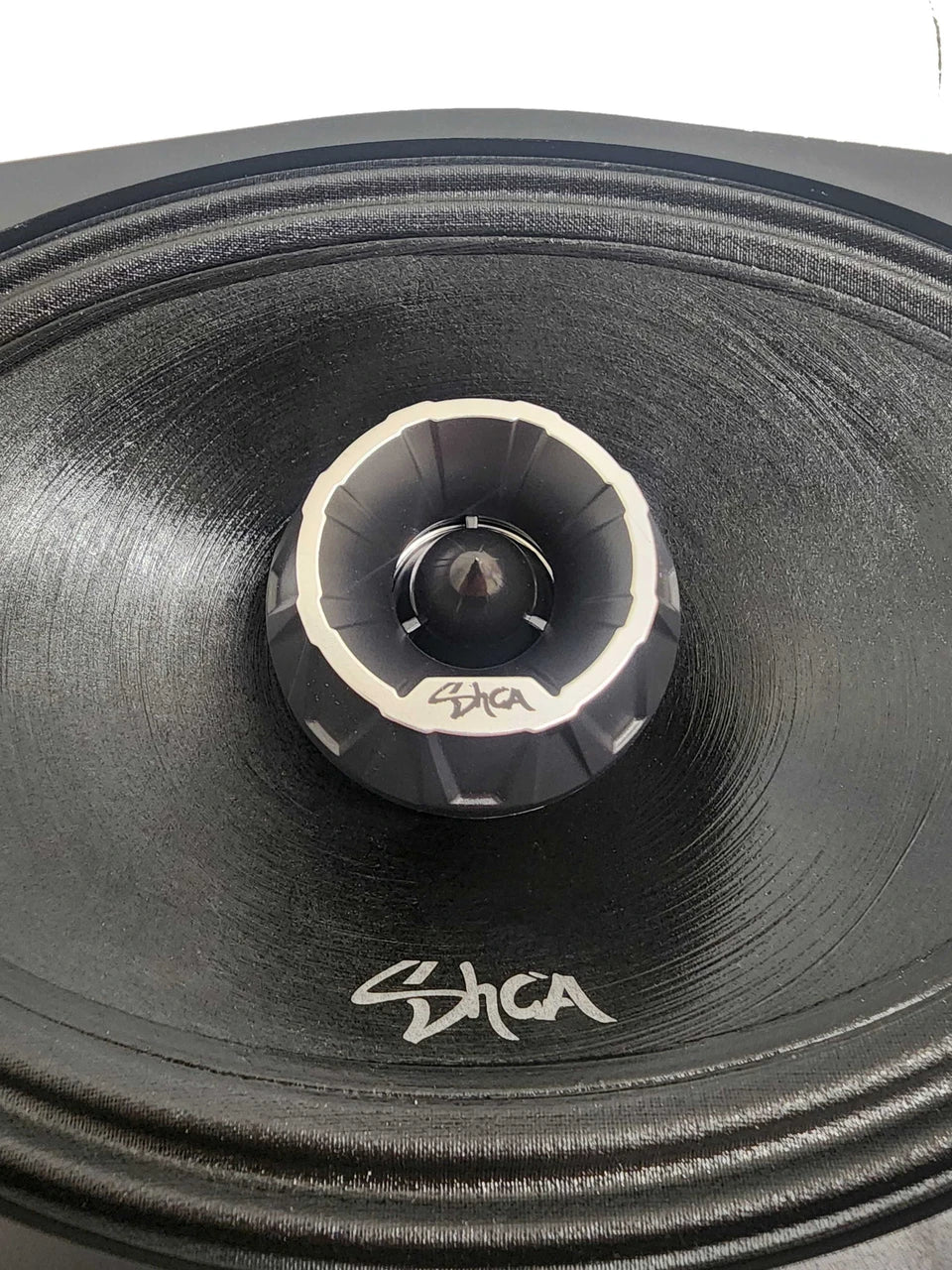

The SH-P69 uses a built-in 1" neodymium bullet tweeter with an N38H magnet to help bring out high-frequency detail in the system. This gives the speaker more top-end presence than a midrange-only speaker and makes it useful for customers who want a louder, more aggressive sound without adding a separate tweeter in every location.

This design is especially helpful in factory 6x9 locations, rear decks, custom panels, and mids and highs builds where space matters. Instead of needing a separate midrange and tweeter location, the SH-P69 gives you both in one 6x9" coaxial package.

Strong 6x9 Midrange Output:

The 6x9" ferrite woofer is built to handle the vocal and midrange part of the system. With a water-resistant cone and sturdy steel basket, the SH-P69 is made for car audio environments where speakers may deal with panel vibration, door movement, rear deck resonance, heat, moisture, and daily use.

If your bass is strong but your vocals are getting buried, or your factory speakers cannot keep up with the rest of the system, upgrading to a louder midrange-style speaker can make a big difference. The SH-P69 helps bring more volume and detail into the cabin so the system sounds more complete.

Great For:

• Factory 6x9 speaker upgrades
• Rear deck speaker upgrades
• Custom door speaker builds
• Mids and highs systems
• Loud front-stage or rear-fill upgrades
• Pro audio-style car audio systems
• Daily drivers needing stronger vocals and highs
• Speaker pods and custom panels
• Systems that need a 6x9" speaker with built-in tweeter output

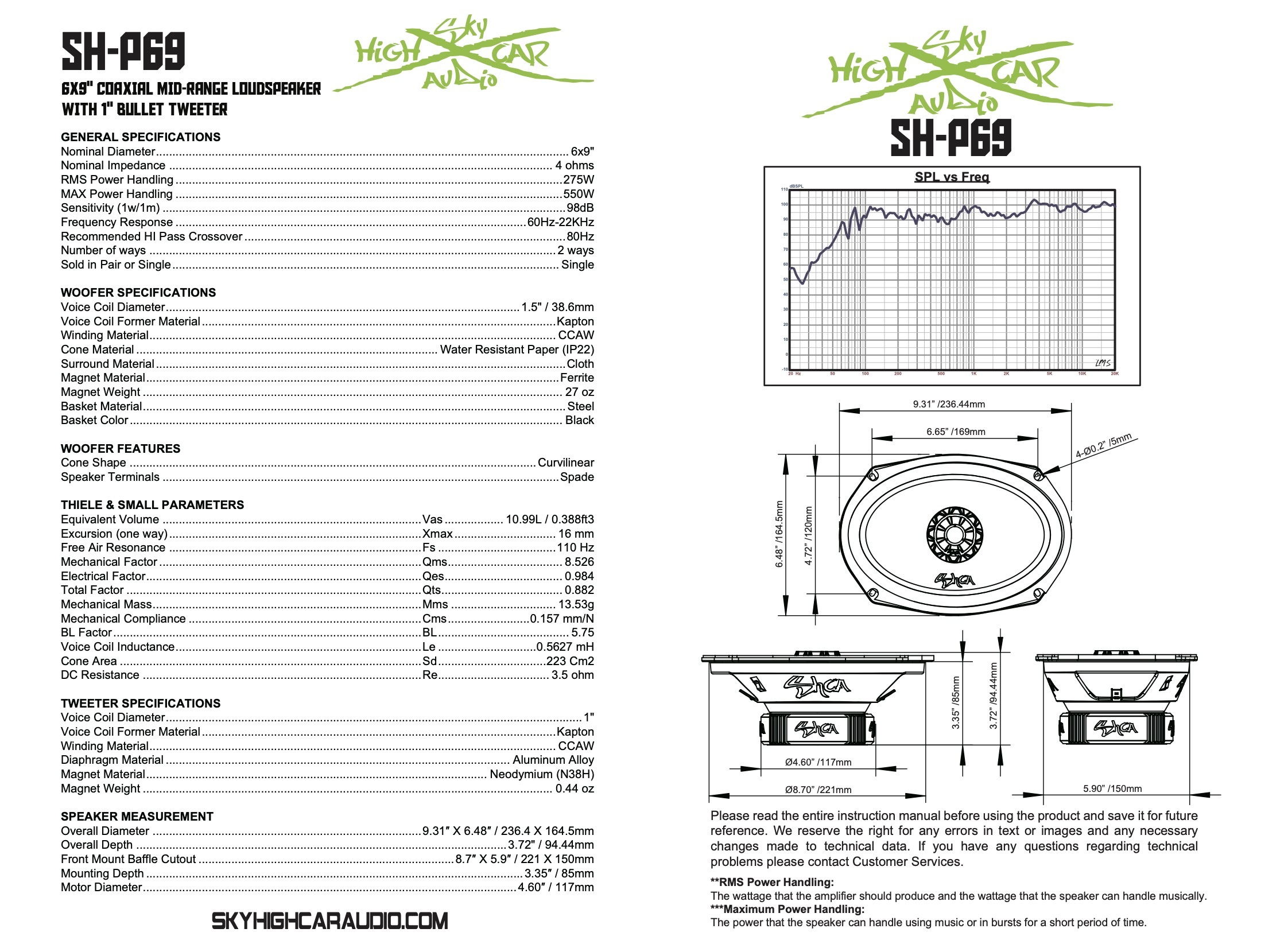

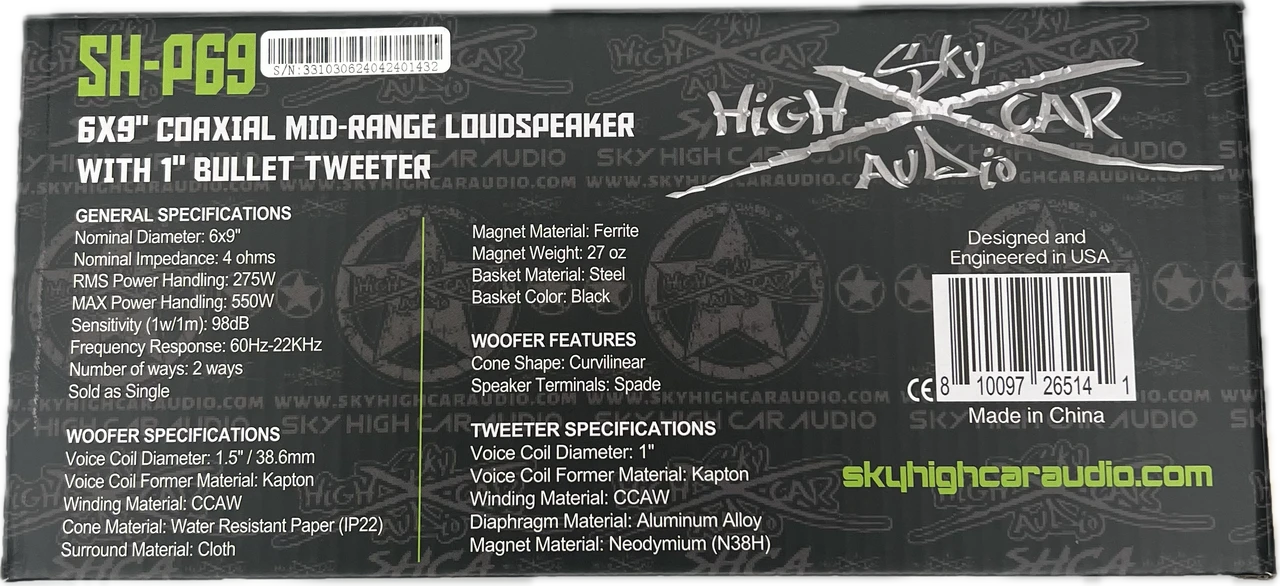

Product Details:

• Brand: Sky High Car Audio
• Model: SH-P69
• Speaker Size: 6x9"
• Speaker Type: Coaxial mid-range loudspeaker with bullet tweeter
• Woofer Type: Ferrite woofer
• Tweeter Type: 1" neodymium bullet tweeter
• Tweeter Magnet: N38H neodymium magnet
• RMS Power Handling: 275 watts RMS
• Peak Power Handling: 550 watts peak
• Impedance: 4 ohm
• Sensitivity: 98dB at 1W/1m
• Frequency Response: 60Hz-22KHz
• Recommended High-Pass Crossover: 80Hz
• Voice Coil: 1.5" voice coil with Kapton former and CCAW winding
• Tweeter Diaphragm: Aluminum alloy
• Basket: Steel basket
• Xmax: 16mm
• Qts: 0.882
• Overall Diameter: 9.31" x 6.48"
• Overall Depth: 3.72"
• Front Mount Baffle Cutout: 8.7" x 5.9"
• Mounting Depth: 3.35"

Why Choose a 6x9 Coaxial Mid-Range Speaker?

A 6x9 coaxial mid-range speaker is useful when you want strong midrange output and high-frequency detail from one speaker location. Many vehicles already have factory 6x9 locations, making this style of speaker a natural upgrade for customers who want more output without redesigning the entire speaker layout.

The SH-P69 combines a larger 6x9" woofer area with a built-in 1" bullet tweeter. That gives your system more output potential than many smaller coaxial speakers while still keeping the install layout simple. It is a strong option for customers who want louder vocals, cleaner highs, and a more aggressive mids and highs setup.

Build the Speaker System Correctly:

The SH-P69 is made for mids and highs performance, but it still needs to be installed and tuned correctly. Use proper crossover settings, clean amplifier power, quality speaker wire, and safe gain settings. The recommended high-pass crossover is 80Hz, which helps protect the speaker from being forced to play too low.

For best results, pair this speaker with a properly matched 4 channel car audio amplifier and quality car audio speaker wire. If the full system includes subwoofers, make sure the mids, highs, subwoofer stage, amplifier settings, and crossover points all work together.

Installation Notes:

Before ordering, check your mounting depth, cutout size, speaker location, door clearance, rear deck clearance, trunk clearance, grille clearance, and panel fitment. The SH-P69 has a 9.31" x 6.48" overall diameter, 8.7" x 5.9" front mount baffle cutout, 3.72" overall depth, and 3.35" mounting depth, but every vehicle and custom install can be different.

Do not overpower the speaker with clipped signal or unsafe crossover settings. A dirty signal, poor mounting, loose wiring, or incorrect crossover point can make a good speaker sound harsh or fail early. Take the time to mount the speaker securely, wire it correctly, and tune the amplifier safely.

If you are planning the wiring side of the install, read the Audio Sellerz car audio wire gauge and fuse guide before finishing the system.

Who is the SH-P69 For?

• Customers wanting louder vocals and highs from a 6x9 location
• Daily drivers upgrading weak factory 6x9 speakers
• Rear deck speaker upgrades
• Custom door panel builds
• Mids and highs systems
• Pro audio-style car audio builds
• Customers who want a 6x9" speaker with a built-in bullet tweeter
• Installers building louder front-stage or rear-fill systems
• Customers who need strong output from one speaker location

If your build needs stronger midrange, sharper highs, and a louder 6x9" coaxial speaker with a built-in bullet tweeter, the Sky High Car Audio SH-P69 6x9" Coaxial Mid-Range Loudspeaker with 1" Bullet Tweeter is a strong upgrade for your car audio system.
