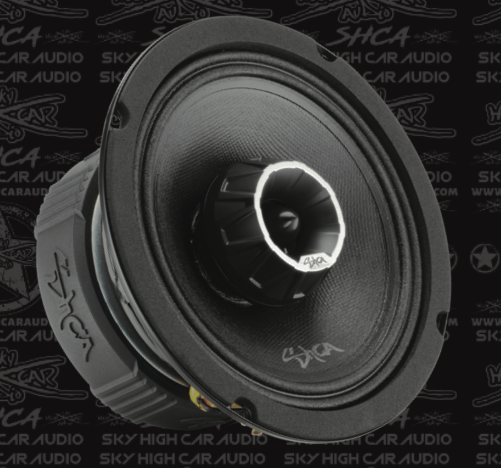

Sky High Car Audio SH-P6 6.5" Coaxial Mid-Range Loudspeaker with 1" Bullet Tweeter

Sky High Car Audio SH-P6 6.5" Coaxial Mid-Range Loudspeaker with 1" Bullet Tweeter
Sold by AudioSellerz.com.

The Sky High Car Audio SH-P6 6.5" Coaxial Mid-Range Loudspeaker with 1" Bullet Tweeter is built for loud, clear mids and highs in car audio systems that need strong vocal output, crisp detail, and pro audio-style performance. This speaker combines a 6.5" mid-range loudspeaker with a built-in 1" bullet tweeter, giving you midrange presence and high-frequency detail from one compact coaxial speaker design.

With 225 watts RMS, 450 watts peak power, 4 ohm impedance, 96dB sensitivity, and a 65Hz-22KHz frequency response, the SH-P6 is a strong choice for customers upgrading factory speakers, building louder doors, adding front-stage output, or designing a mids and highs setup that needs more output than basic coaxial speakers can provide.

The built-in 1" neodymium bullet tweeter helps deliver crisp highs, while the 6.5" ferrite woofer handles the midrange side of the sound. This makes the SH-P6 useful for vocals, guitars, drums, instruments, and the upper detail that helps a car audio system sound louder, cleaner, and more alive.

If you are building the rest of your speaker setup, browse more midrange speakers for car audio, compare full range car audio speakers, shop car audio tweeters, or match the system with a 4 channel car audio amplifier.

Key Features:

• Sky High Car Audio SH-P6 coaxial mid-range loudspeaker
• 6.5" ferrite woofer with built-in 1" bullet tweeter
• 225 watts RMS power handling
• 450 watts peak power handling
• 4 ohm nominal impedance
• 96dB sensitivity at 1W/1m
• 65Hz-22KHz frequency response
• Recommended 120Hz high-pass crossover frequency
• Water-resistant paper woofer cone with IP22 rating
• 1.5" voice coil with Kapton former and CCAW winding
• Aluminum alloy tweeter diaphragm with neodymium magnet
• Steel basket for strong speaker structure

Built-In Bullet Tweeter:

The SH-P6 uses a built-in 1" neodymium bullet tweeter with an N38H magnet to help bring out the high-frequency detail in the system. This gives the speaker more top-end presence than a basic midrange-only speaker and makes it useful for customers who want a louder, more aggressive front stage without adding a separate tweeter in every location.

This design is especially helpful in custom doors, speaker pods, and mids and highs builds where space matters. Instead of needing a separate midrange and tweeter location, the SH-P6 gives you both in one 6.5" coaxial package.

Strong Midrange Output:

The 6.5" ferrite woofer is built to handle the vocal and midrange part of the system. With a water-resistant cone and sturdy steel basket, the SH-P6 is made for car audio environments where speakers may deal with door vibration, panel movement, heat, moisture, and daily use.

If your bass is strong but your vocals are getting buried, or your factory speakers cannot keep up with the rest of the system, upgrading to a louder midrange speaker can make a big difference. The SH-P6 helps bring the front stage forward so the system sounds more complete.

Great For:

• Custom door speaker builds
• Mids and highs systems
• Loud front-stage upgrades
• Factory speaker upgrades
• Pro audio-style car audio systems
• Daily drivers needing stronger vocals and highs
• Speaker pods and custom panels
• Motorcycle, UTV, and powersports audio builds where fitment allows
• Systems that need a 6.5" speaker with built-in tweeter output

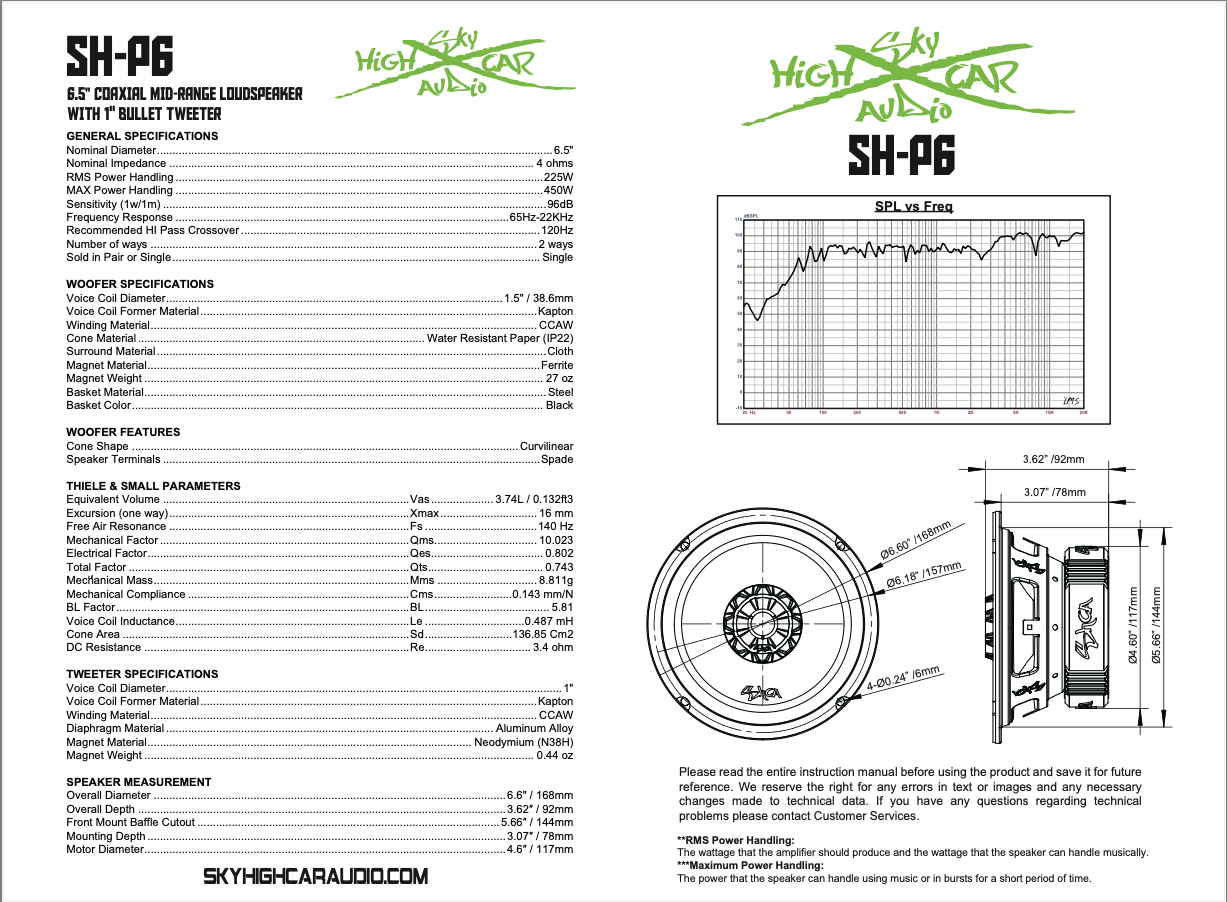

Product Details:

• Brand: Sky High Car Audio
• Model: SH-P6
• Speaker Size: 6.5"
• Speaker Type: Coaxial mid-range loudspeaker with bullet tweeter
• Woofer Type: Ferrite woofer
• Tweeter Type: 1" neodymium bullet tweeter
• Tweeter Magnet: N38H neodymium magnet
• RMS Power Handling: 225 watts RMS
• Peak Power Handling: 450 watts peak
• Nominal Impedance: 4 ohm
• Sensitivity: 96dB at 1W/1m
• Frequency Response: 65Hz-22KHz
• Recommended High-Pass Crossover: 120Hz
• Voice Coil: 1.5" voice coil with Kapton former and CCAW winding
• Tweeter Diaphragm: Aluminum alloy
• Basket: Steel basket
• Xmax: 16mm
• Qts: 0.743
• Overall Diameter: 6.6"
• Depth: 3.62"
• Mounting Depth: 3.07"
• Front Mount Baffle Cutout: 5.66"

Why Choose a Coaxial Mid-Range Speaker?

A coaxial mid-range speaker is useful when you want midrange output and high-frequency detail from one speaker location. In many builds, space is limited. Door panels, factory speaker locations, custom pods, and panels may not always have room for a separate midrange and tweeter setup.

The SH-P6 solves that by combining a 6.5" mid-range loudspeaker with a 1" bullet tweeter. This helps simplify the speaker layout while still giving the system a stronger sound than many standard factory-style speaker upgrades.

Build the Speaker System Correctly:

The SH-P6 is made for mids and highs performance, but it still needs to be installed and tuned correctly. Use proper crossover settings, clean amplifier power, quality speaker wire, and safe gain settings. The recommended high-pass crossover is 120Hz, which helps protect the speaker from being forced to play too low.

For best results, pair this speaker with a properly matched 4 channel car audio amplifier and quality car audio speaker wire. If the full system includes subwoofers, make sure the mids, highs, subwoofer stage, amplifier settings, and crossover points all work together.

Installation Notes:

Before ordering, check your mounting depth, cutout size, speaker location, door clearance, window clearance, grille clearance, and panel fitment. The SH-P6 has a 6.6" overall diameter, 5.66" front mount baffle cutout, 3.62" depth, and 3.07" mounting depth, but every vehicle and custom install can be different.

Do not overpower the speaker with clipped signal or unsafe crossover settings. A dirty signal, poor mounting, loose wiring, or incorrect crossover point can make a good speaker sound harsh or fail early. Take the time to mount the speaker securely, wire it correctly, and tune the amplifier safely.

If you are planning the wiring side of the install, read the Audio Sellerz car audio wire gauge and fuse guide before finishing the system.

Who is the SH-P6 For?

• Customers wanting louder vocals and highs
• Daily drivers upgrading weak factory speakers
• Custom door panel builds
• Mids and highs systems
• Pro audio-style car audio builds
• Customers who want a 6.5" speaker with a built-in bullet tweeter
• Installers building louder front-stage systems
• Customers who need strong output from one speaker location

If your build needs stronger midrange, sharper highs, and a louder front-stage speaker in a 6.5" coaxial design, the Sky High Car Audio SH-P6 6.5" Coaxial Mid-Range Loudspeaker with 1" Bullet Tweeter is a strong upgrade for your car audio system.
