DS18
PANCADÃO Mid-Bass Loudspeaker 10" 1500 Watts Rms 4-Ohm
PANCADÃO Mid-Bass Loudspeaker 10" 1500 Watts Rms 4-Ohm
Couldn't load pickup availability
PANCADÃO Mid-Bass Loudspeaker 10" 1500 Watts Rms 4-Ohm
Sold by AudioSellerz.com

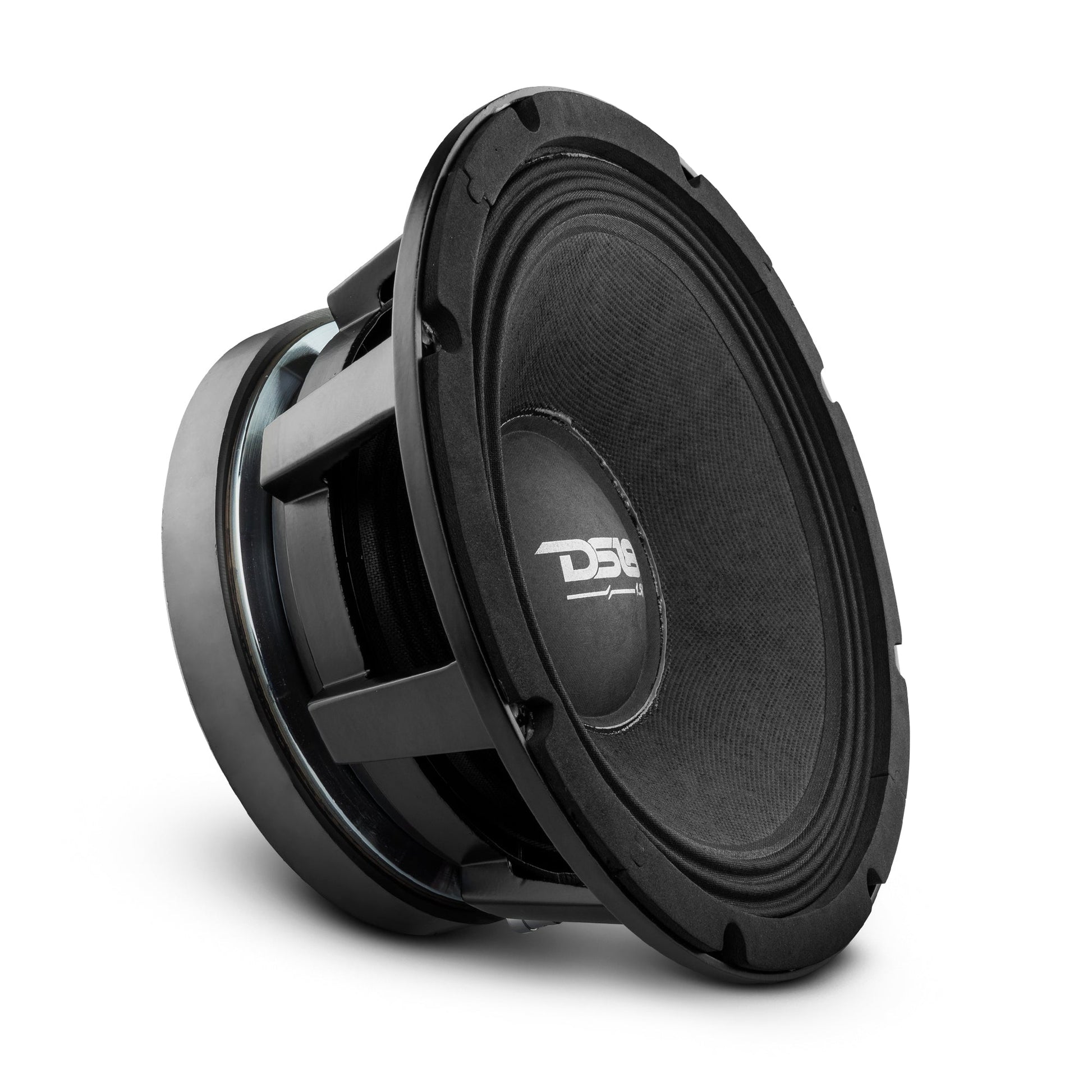

The DS18 PRO-1.5KP10.4 is a 10" mid-bass loudspeaker from the DS18 PRO line rated at 1500W RMS with a 4 ohm design. Coaxials and loudspeakers like this are where most systems start, because the speakers decide how clear the whole build sounds.
DS18 Product Details
DS18 PRO-1.5KP10.4 PANCADÃO Mid-Bass/Woofer Loudspeaker 10" 1500 Watts RMS 4-Ohm
The PANCADAO from DS18 has new siblings to complement anyone's high performance pro audio system! Now, not only do we offer them in 12", but also 10", and 8" so everyone can get a piece of PANCADAO in their build. These high performance "do all" woofers can play an amazing range of frequencies. From hard punching mid-bass to mid high vocals at an unbelievable volume. These are the go to DS18 Pro Audio speakers to set your sound above the rest.
Highlights
- The most powerful midbass DS18 has to offer that not only plays intense punch mid-bass, it also has the ability to play mid to high vocals as well.
- Large high strength ferrite magnet and reinforced basket for great power handing and durability.
- Designed for intense mid-bass and high powered audio systems needing massive mid-bass.
Technical Details
| Model: | PRO-1.5KP10.4 |
| RMS Power Handling: | 1500 Watts |
| MAX Power Handling: | 3000 Watts |
| Sensitivity (1w/1m) | 94.4dB |
| Frequency Response: | 80Hz-10KHz |
| Minimum Impedance: | 4 Ohms |
| Voice Coil Diameter: | 3" |
| Winding Material: | CCAW |
| Magnet Weight: | Ferrite 91oz |
| Basket Material: | Aluminum |
| Overall Diameter: | 10.51" |
| Baffle Cutout Diameter: | 9.6" |
| Overall Depth: | 5.23" |
| Mounting Depth: | 4.8" |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 1500W RMS at 4 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Pro audio mids work best with a proper crossover or DSP so each driver only plays the range it was built for.
