The DS18 10OCT500-8 is a 10" mid-range loudspeaker from DS18 rated at 500W RMS with an 8 ohm design. Coaxials and loudspeakers like this are where most systems start, because the speakers decide how clear the whole build sounds.
DS18 Product Details
DS18 10OCT500-8 PRO Octagon 10" Mid-Range Loudspeaker
1000 Watts Max 8-Ohm
Get your system in shape with DS18’s new 10OCT500-8!
This 10” octagonal midrange loudspeaker offers better frequency response than your usual round speakers and can reproduce frequencies as low as 40Hz and as high as 8KHz!
Create an incredibly tangible soundstage that increases the quality and feel of the speakers in your system and sound created by them!
For our competitors, the octagonal speakers will give your show stopping system a cleaner look that can be easily organized for precise reproduction when you need it most.
It’s high sensitivity, rated at 95 dB, allows it to handle powers of 500 W RMS and 1000 W MAX. These speakers get LOUD easily, just the way we like it!
Install these 8 ohm speakers into your sound system correctly and enjoy intense volume that never fades!
Highlights
- Octagonal shape offers wider range of frequency response available to speakers of rounder shape
- Easier organization of the equipment in your system
- 500 RMS Power Handling
- 1000 MAX Power Handling
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500W |
| MAX Power Handling | 1000W |
| Sensitivity (1w/1m) | 100dB |
| Frequency Response | 40Hz-8KHz |
| Recommended HI Pass Crossover | 80Hz |
| Sold As Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 2.6" / 66mm |
| Voice Coil Former Material | TIL |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 62.3oz |
| Displacement Volume | 0.088L / 0.0031ft3 |

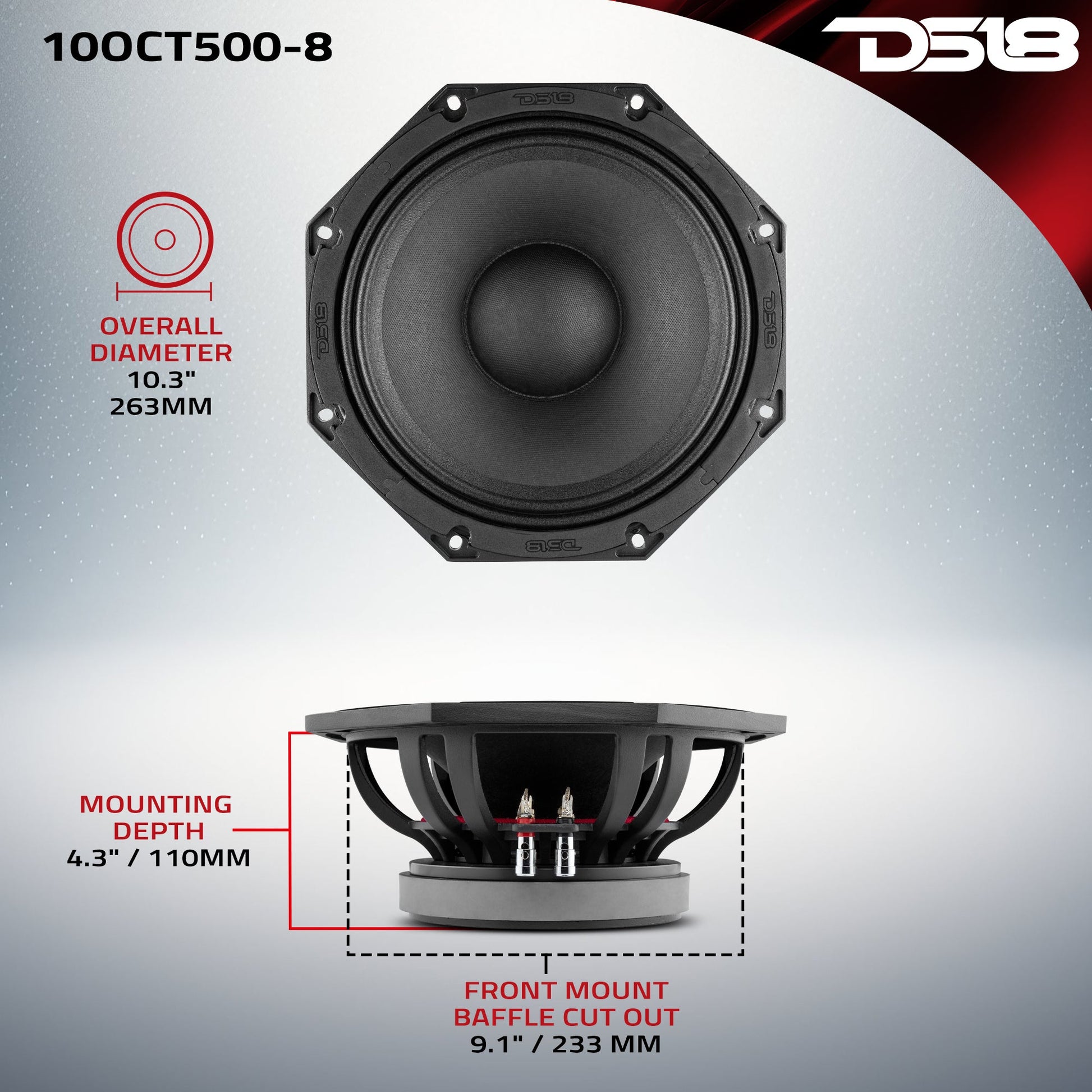

| MEASUREMENT | |
| Overall Diameter | 10.3" / 263mm |
| Overall Depth | 4.8" / 124mm |
| Front Mount Baffle Cutout | 9.1" / 233mm |
| Mounting Depth | 4.3" / 110mm |
| Motor Diameter | 6.6" / 168mm |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 500W RMS at 8 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Pro audio mids work best with a proper crossover or DSP so each driver only plays the range it was built for.
