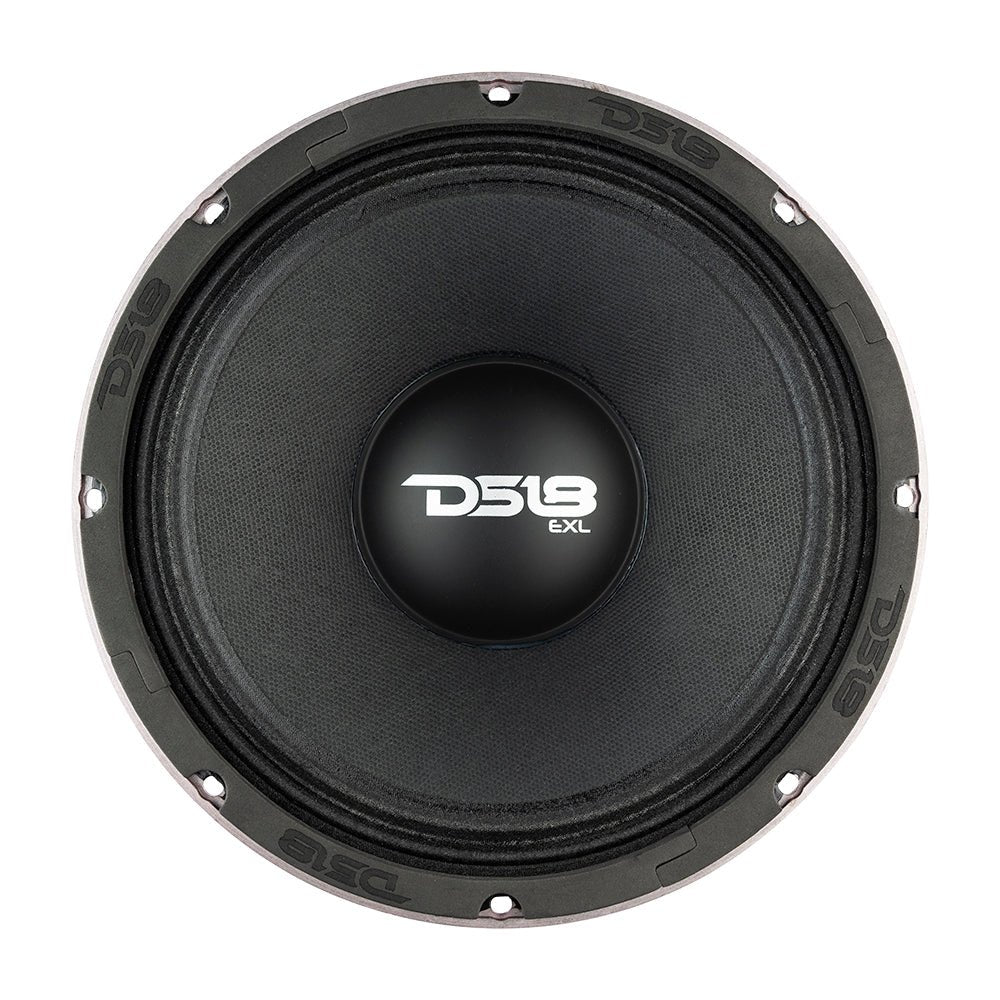

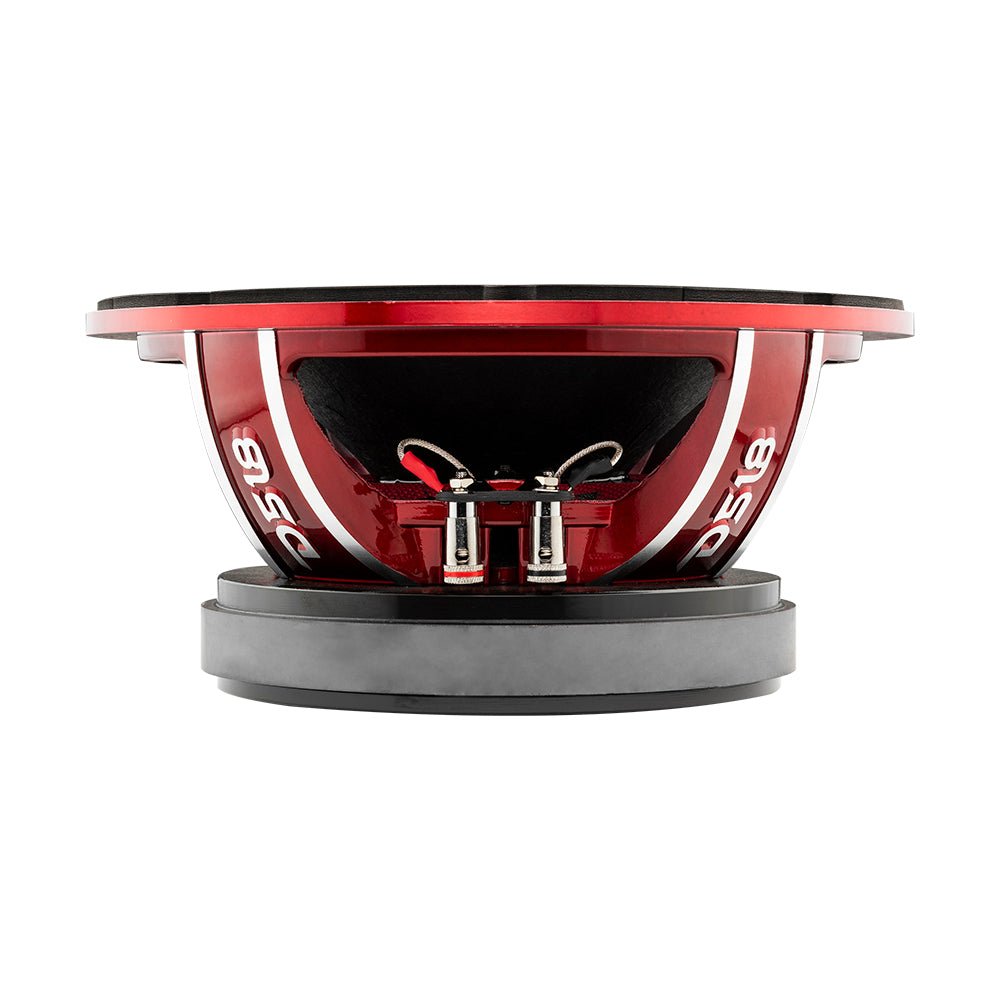

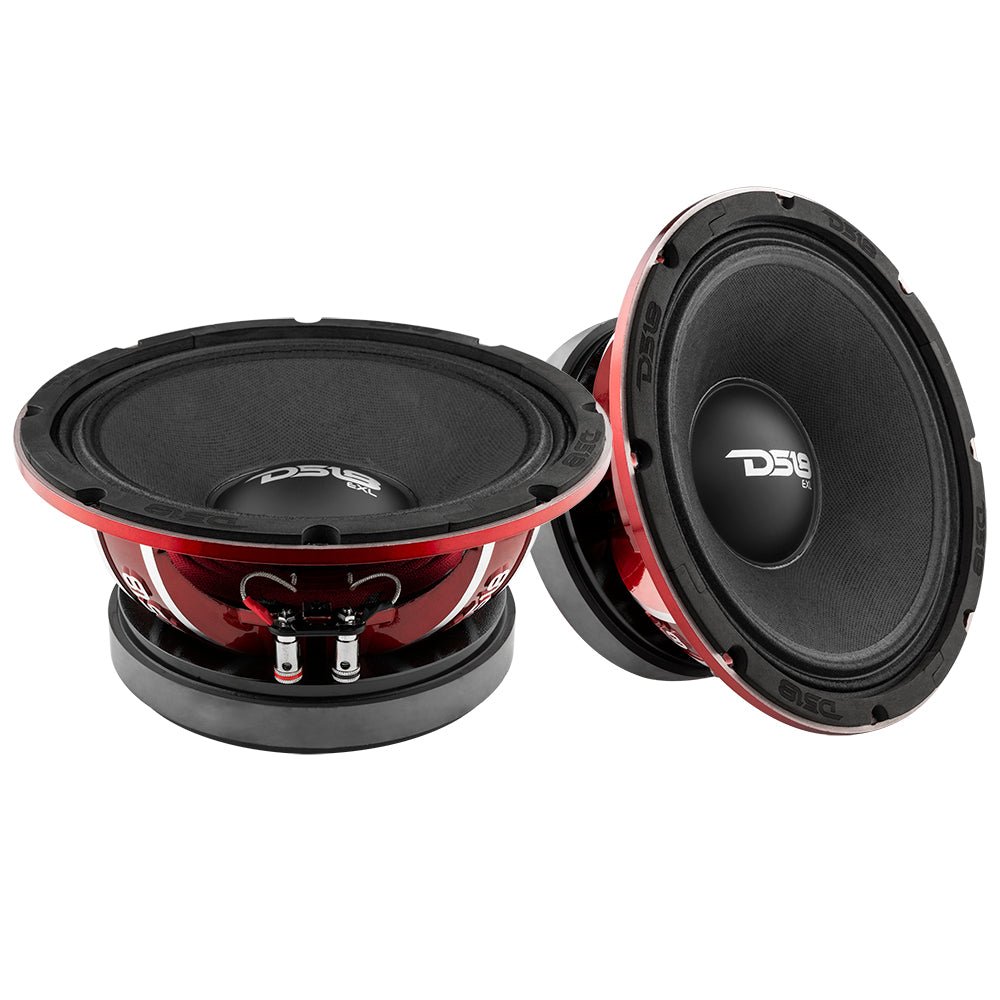

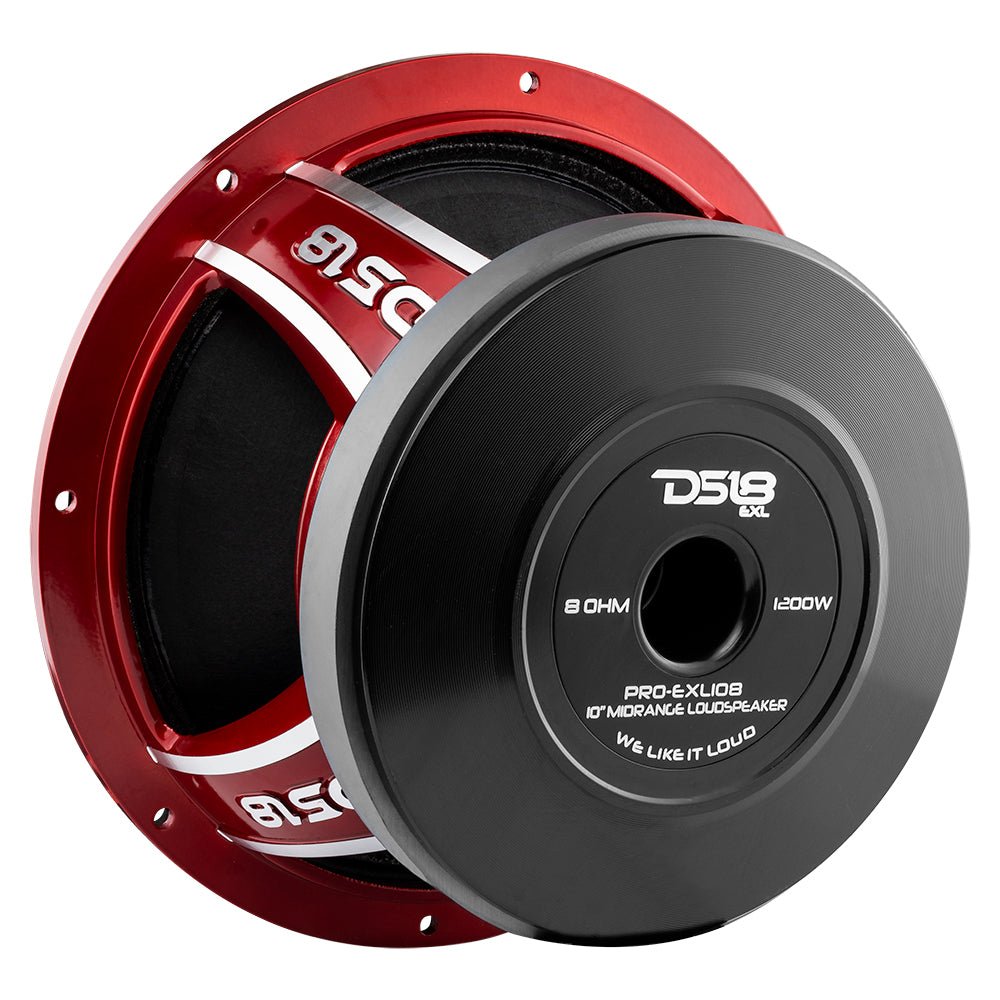

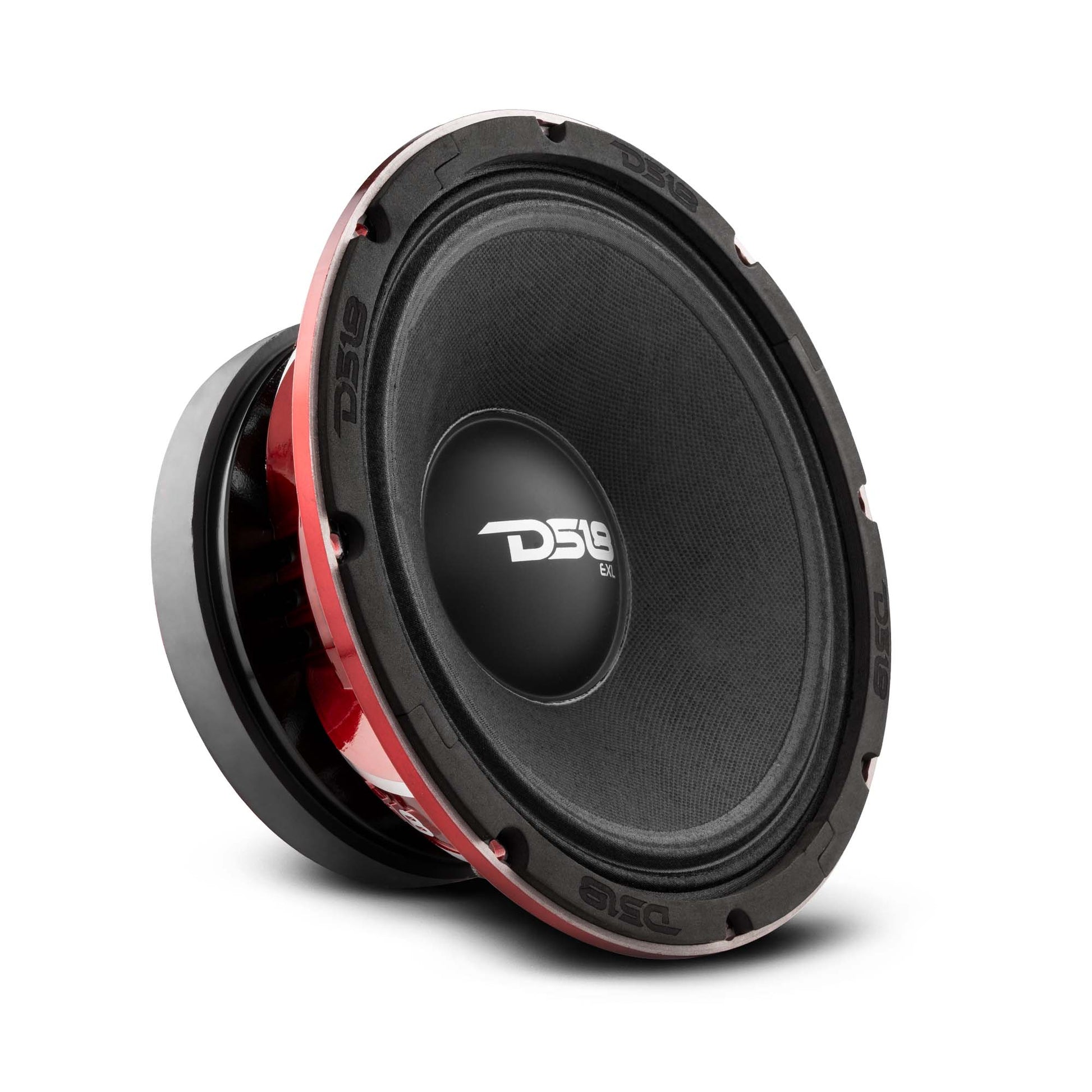

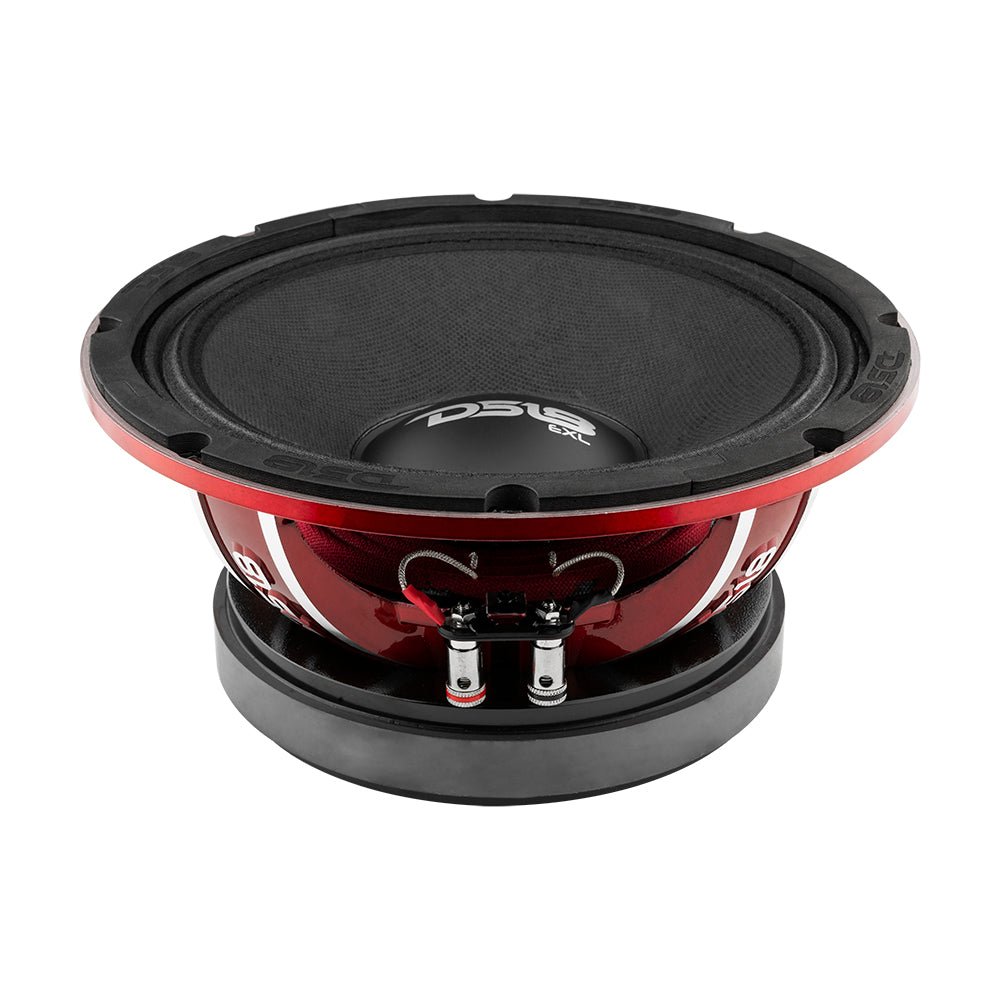

DS18 PRO-EXL108 10" Mid-Range Loudspeaker 1200 Watts 8-Ohm
DS18 PRO-EXL108 10" Mid-Range Loudspeaker 1200 Watts 8-Ohm
Couldn't load pickup availability
DS18 PRO-EXL108 10" Mid-Range Loudspeaker 1200 Watts 8-Ohm
Sold by AudioSellerz.com
The DS18 PRO-EXL108 is a 10" mid-range loudspeaker from the DS18 PRO line with an 8 ohm design. Swapping in better speakers is one of the most noticeable upgrades you can make to any system.
DS18 Product Details
|
The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 ohms or 4 ohms impedance; these are only the basic components, the rest is pure DS18 technology. Highlights
|
Technical Details
| Model: | PRO-EXL108 |
| Type: | Midrange Loudspeaker |
| Size: | 10" |
| RMS Power: | 600W |
| MAX Power: | 1200W |
| Frequency Response: | 74Hz-12KHz |
| Impedance: | 8 Ohms |
| Sensitivity: | 97dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | KCCAW |
| Diameters | |
| Voice Coil Size: | 3" |
| Magnet Size: | 80 oz |
| Mounting Depth: | 4.9" (119mm) |
| Cut-Out Dimension: | 9.13" (232mm) |
| Net Weight: | 6.9 kg |
Setup Tips From Audio Sellerz
- Match the amplifier's RMS power per channel to the speaker's RMS rating at its impedance, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Pro audio mids work best with a proper crossover or DSP so each driver only plays the range it was built for.
