EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 4-Ohm
EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 4-Ohm
Couldn't load pickup availability
EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 4-Ohm
Sold by AudioSellerz.com

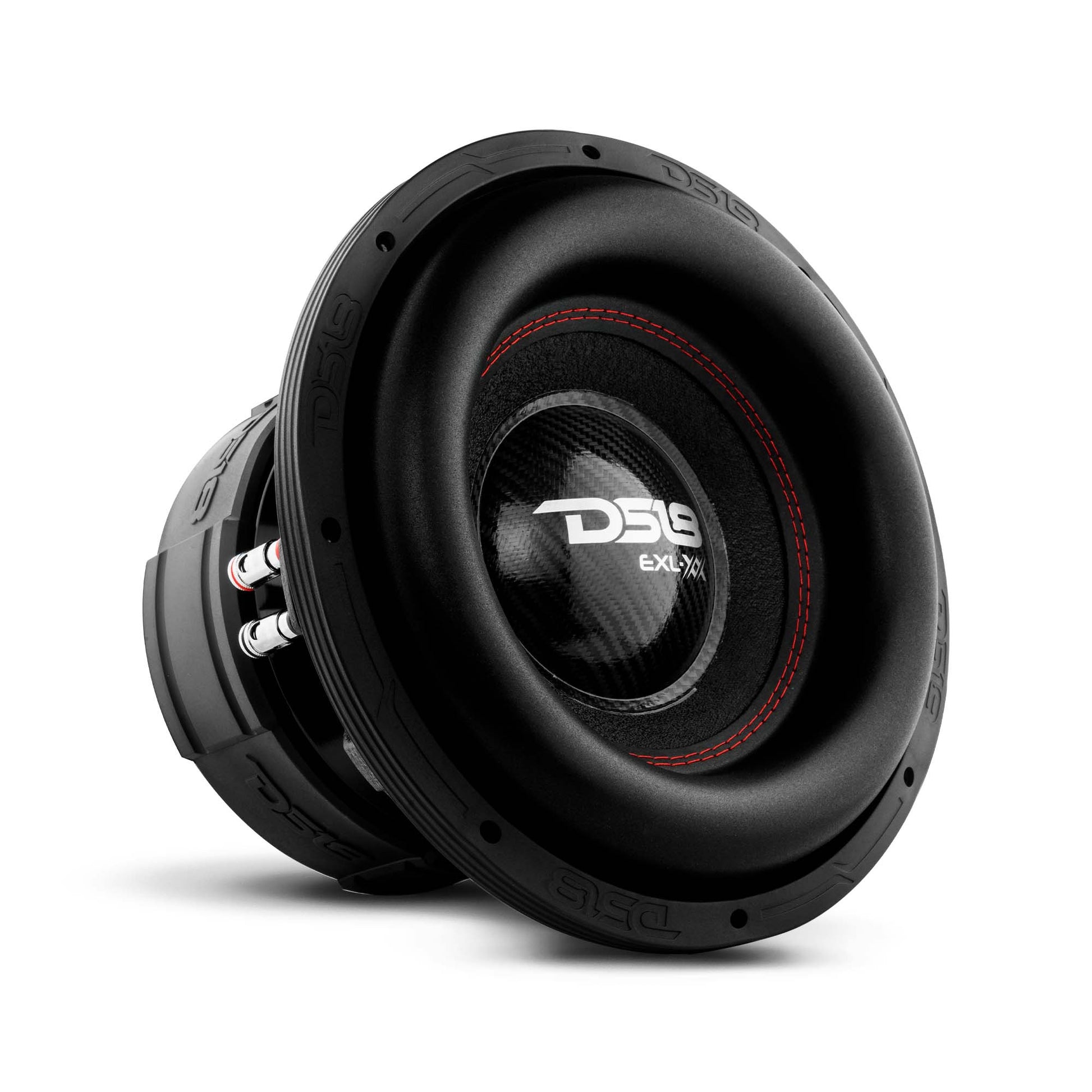

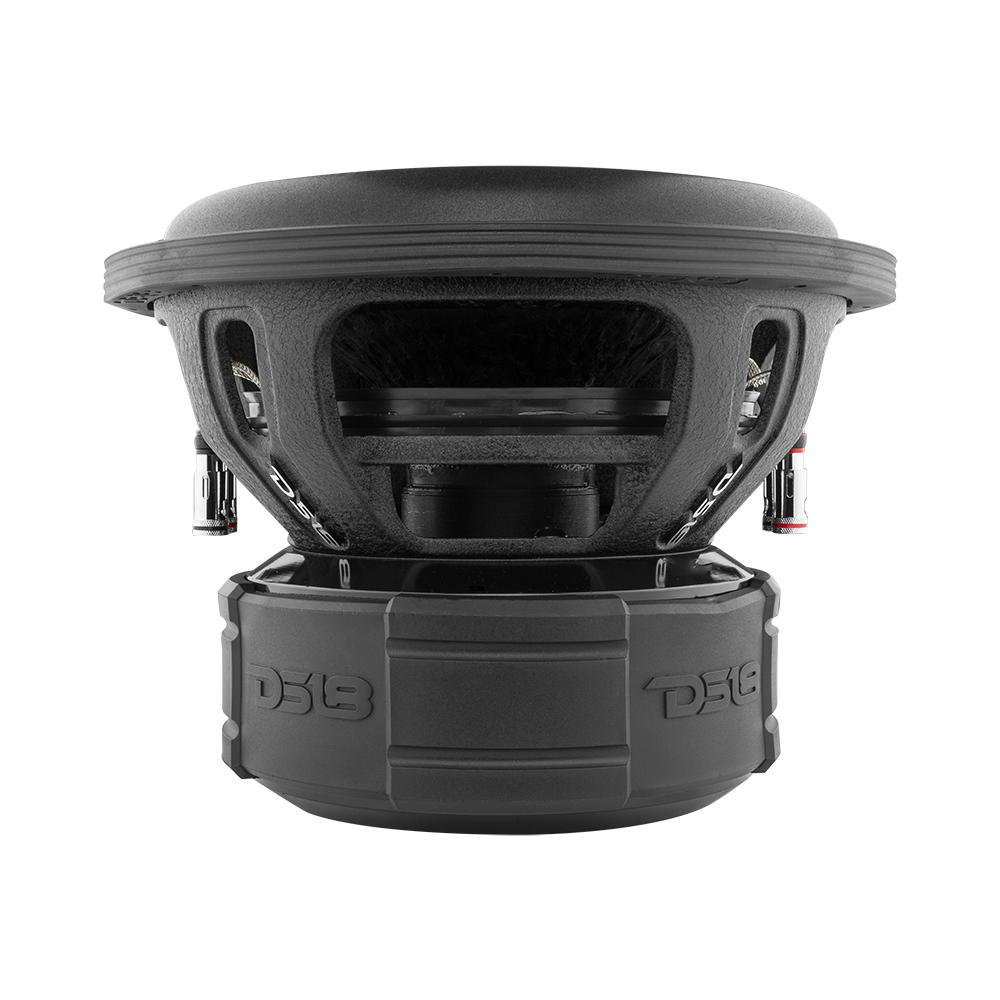

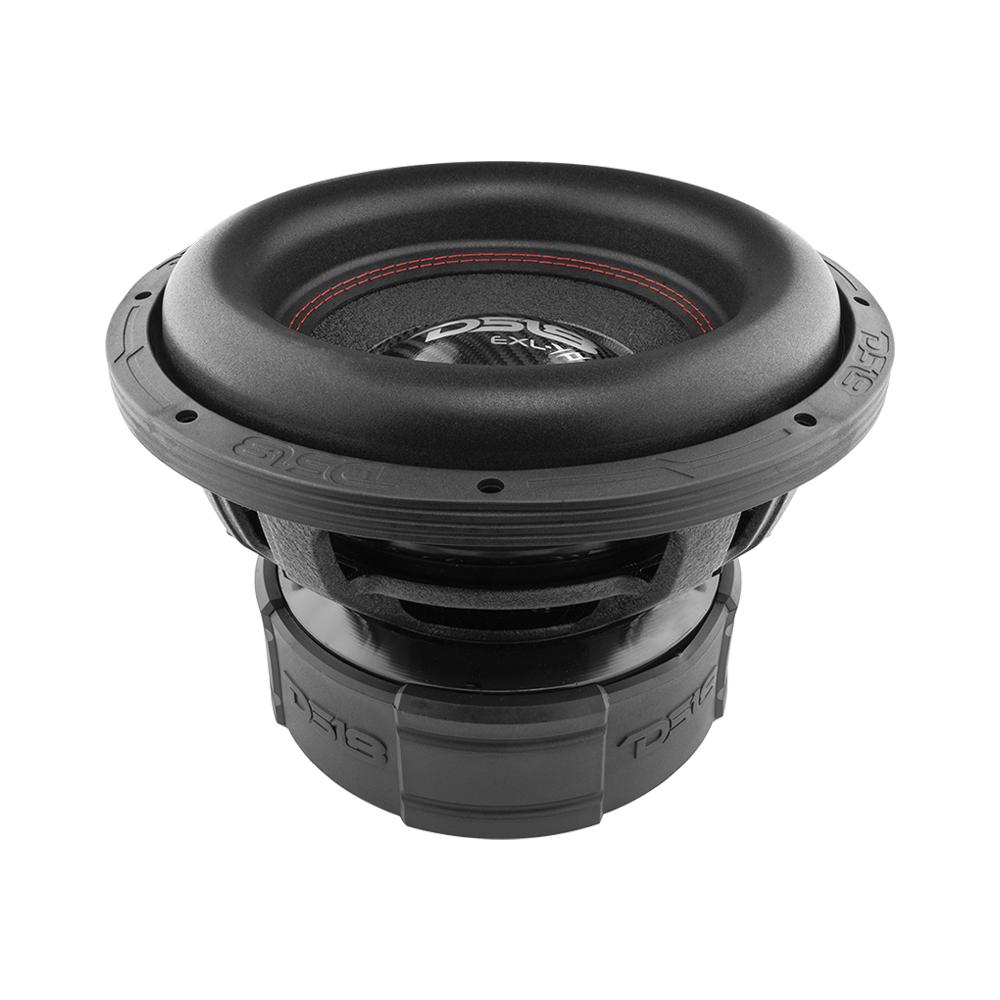

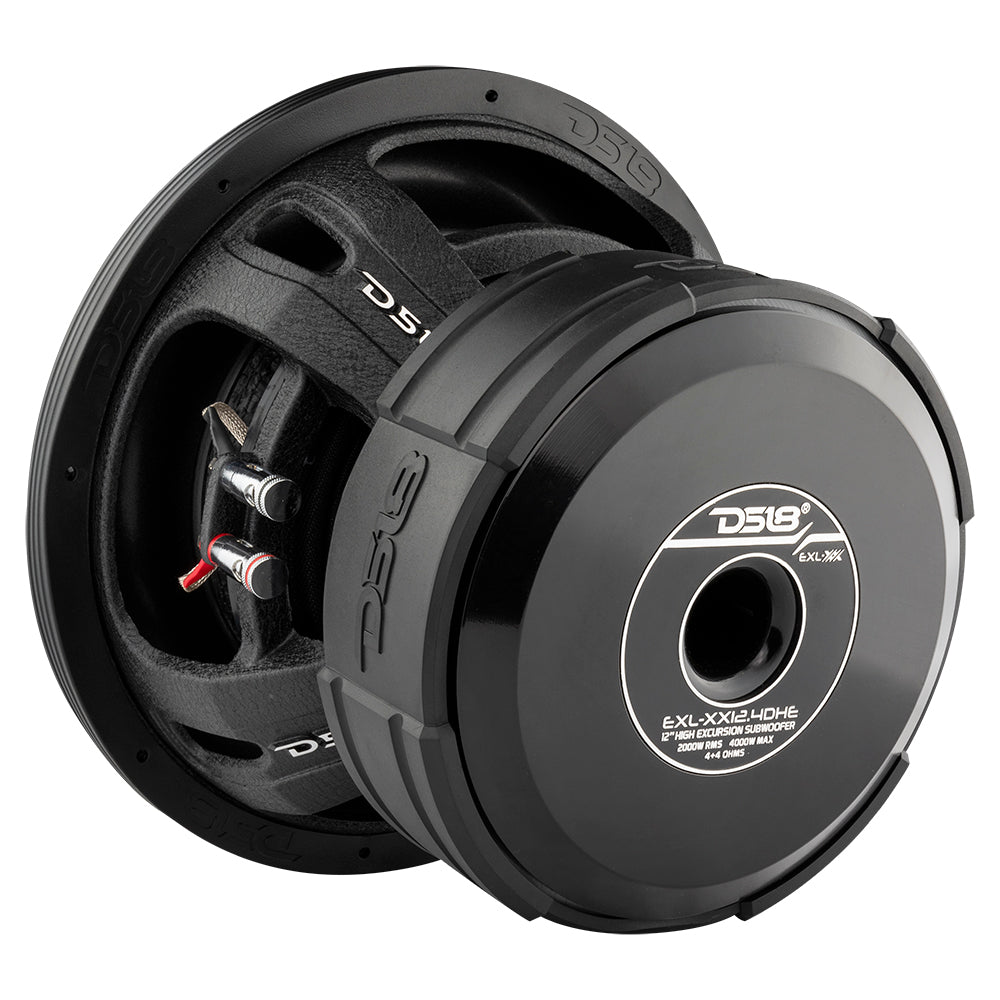

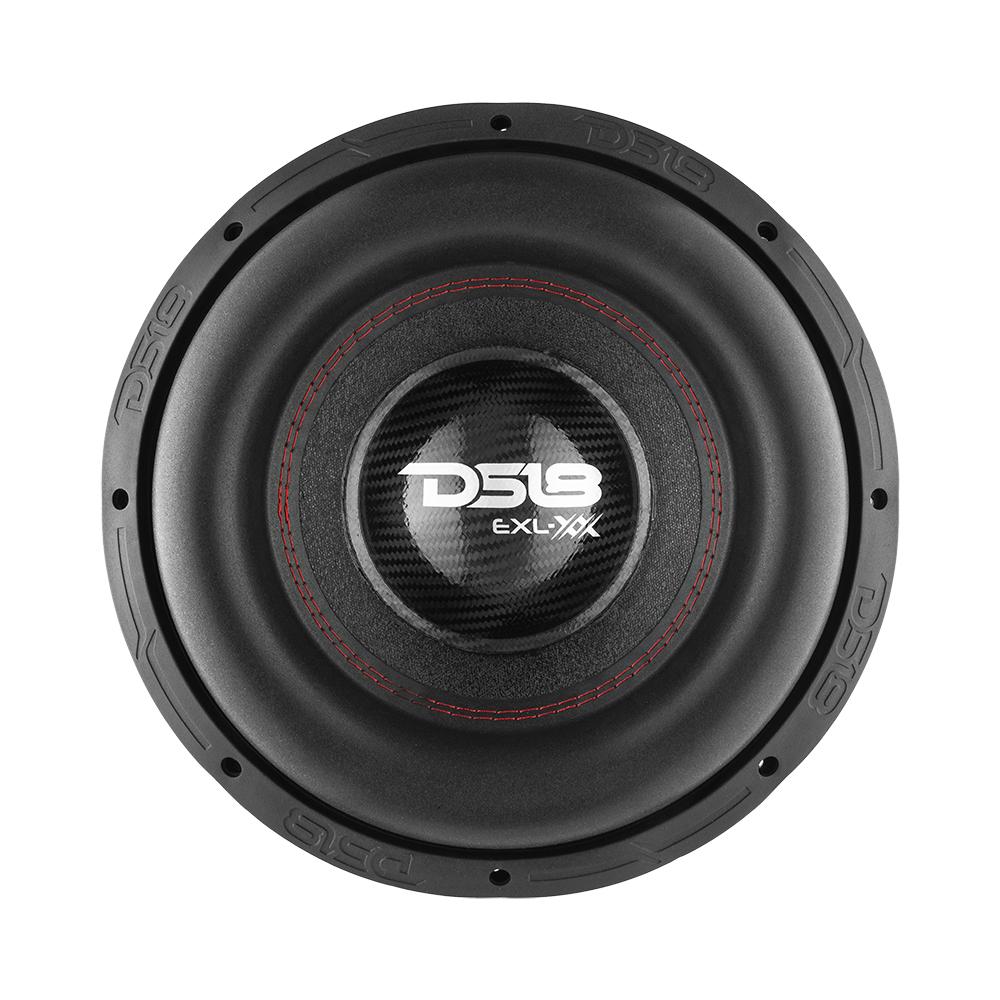

The DS18 EXL-XX12.4DHE is a 12" subwoofer from the DS18 EXL line rated at 2000W RMS with a 4 ohm dual voice coil design. This is the part of the system that does the heavy lifting down low.
DS18 Product Details
DS18 EXL-XX12.4DHE 12" High Excursion Car Subwoofer 4000 Watts Max 4-Ohm DVC.
High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX12.4DHE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.
Highlights
- High Excursion surround for a very high amount of xmax.
- Great power handling of 2000w RMS and 4000w max.
- Three inch black aluminum voice coil for high power handling and great efficiency.
Technical Details
| Nominal Diameter | 12 |
| Nominal Impedance | 4 + 4 Ohms |
| RMS Power Handling | 2000W |
| MAX Power Handling | 4000W |
| Sensitivity (1w/1m) | 87 dB |
| Frequency Response | 20Hz -1.3KHz |
| Recommended Lo Pass Crossover | 80 Hz |
| Motor: | |
| VC Diameter | 3"/ 75.6mm |
| VC Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Glass Fiber |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 306 Oz |
| Displacement Volume | 3.26L |
| Thiele & Small Parameters | |
| Equivalent Vol | Vas 20.738L |
| Excursion(one way) | Xmax 42 mm |
| Free Air Resonance | Fs 41.3 Hz |
| Mechanical Factor | Qms 4.525 |
| Electrical Factor | Qes 0.511 |
| Total Factor | Qts 0.459 |
| Moving Mass | Mms 285.433 g |
| Compliance | Cms 0.026 mm/N |
| Bl Factor | BL 17.166 |
| VC Inductance | Le 9.8 mH |
| Diaphragm Area | Sd 433.74 cm² |
| Dc Resistance | Re 3.6 + 3.6 ohms |
| Efficiency Bandwidth Product | EBP 80.8 |

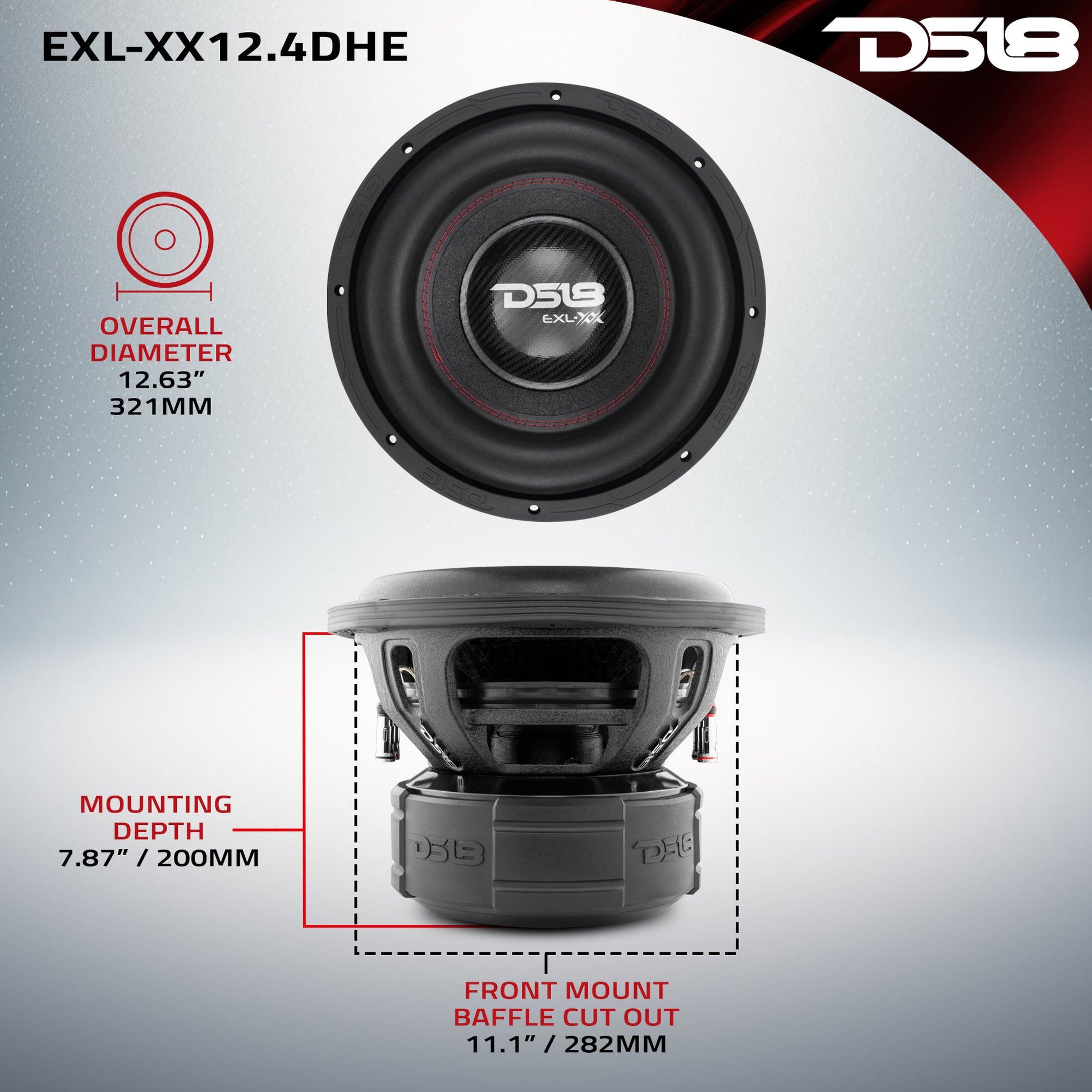

| Measurements | |
| Overall Diameter | 12.63" / 321mm |
| Overall Depth | 9.25"/235mm |
| Front Mount Baffle Cutout | 11.1" / 282mm |
| Mounting Depth | 7.87" / 200mm |
| Motor Diameter | 8.89" / 226mm |
Box Info
Box Info
Setup Tips From Audio Sellerz
- Wire the sub to a final impedance your amp is stable at. The listing rates this one at 4 ohm per coil.
- Use an enclosure built to the manufacturer recommendation. The box makes a big difference in output and sound.
- Break the sub in at moderate volume and set the amp gain correctly before playing it hard.
