DS18

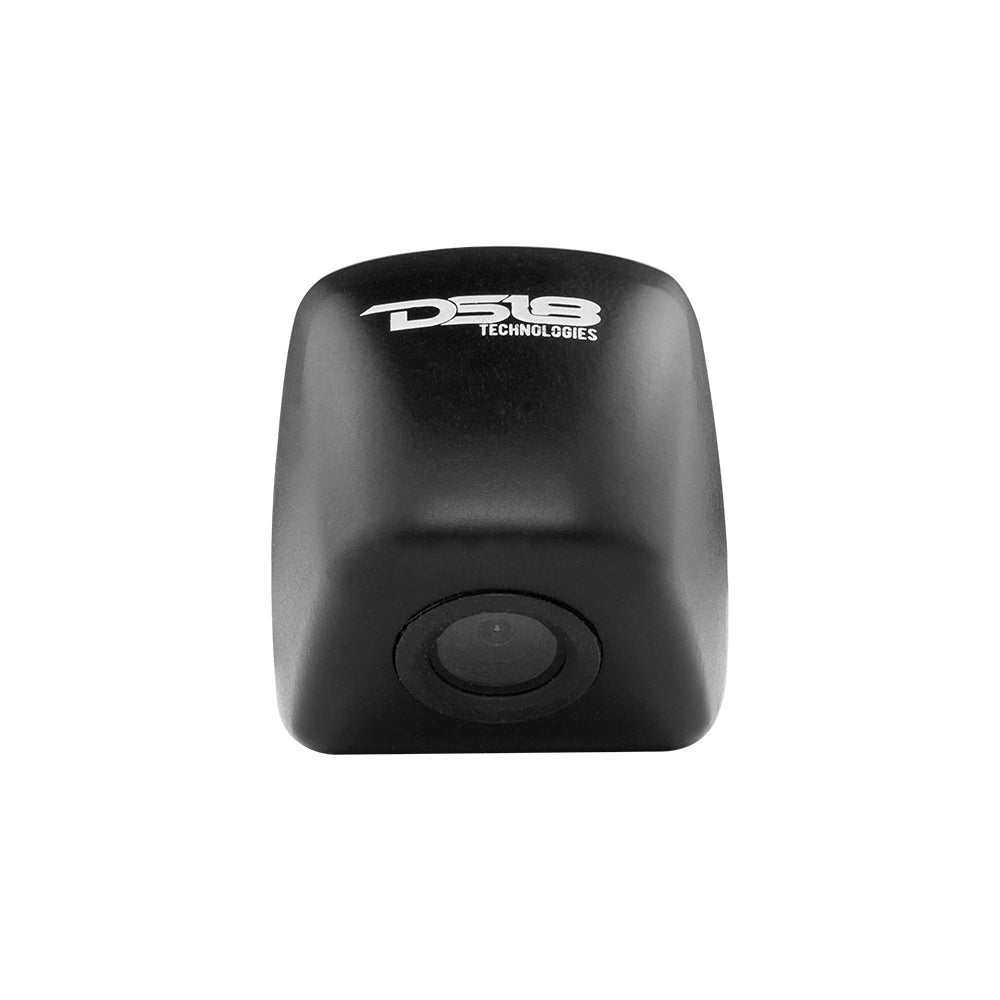

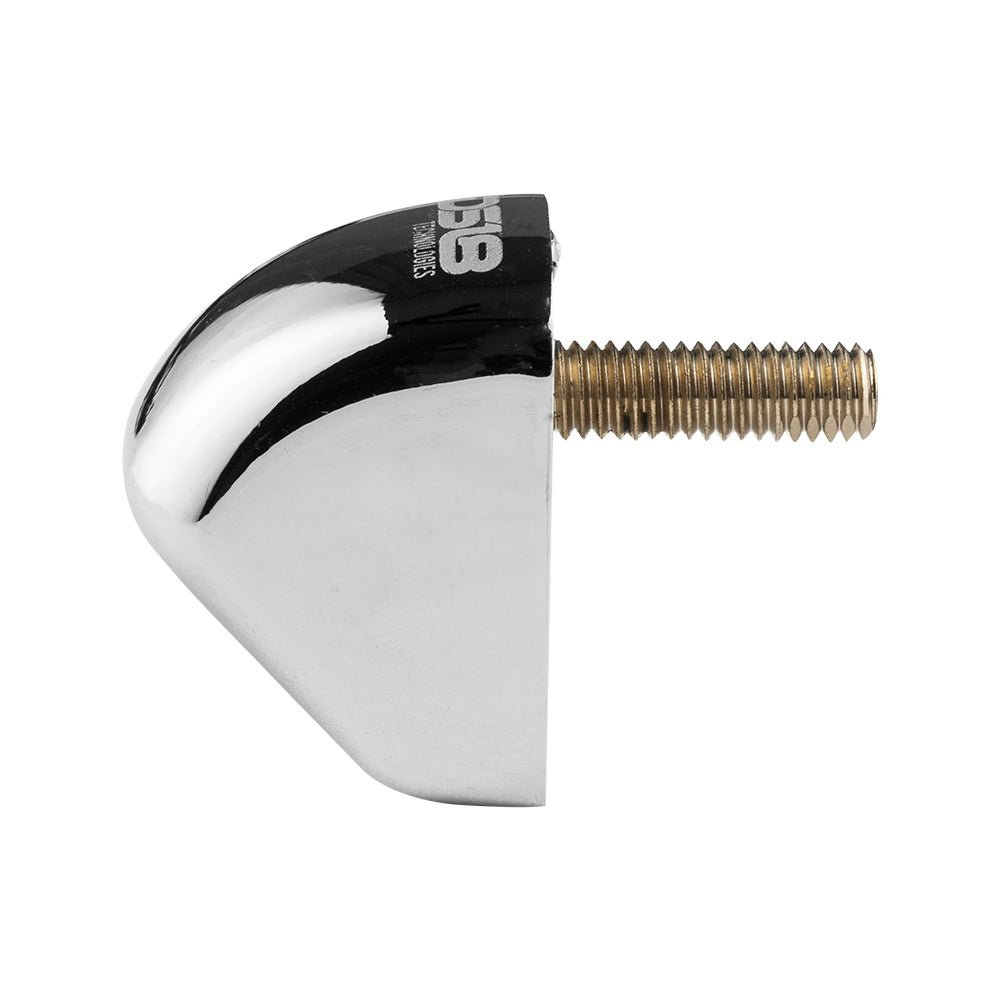

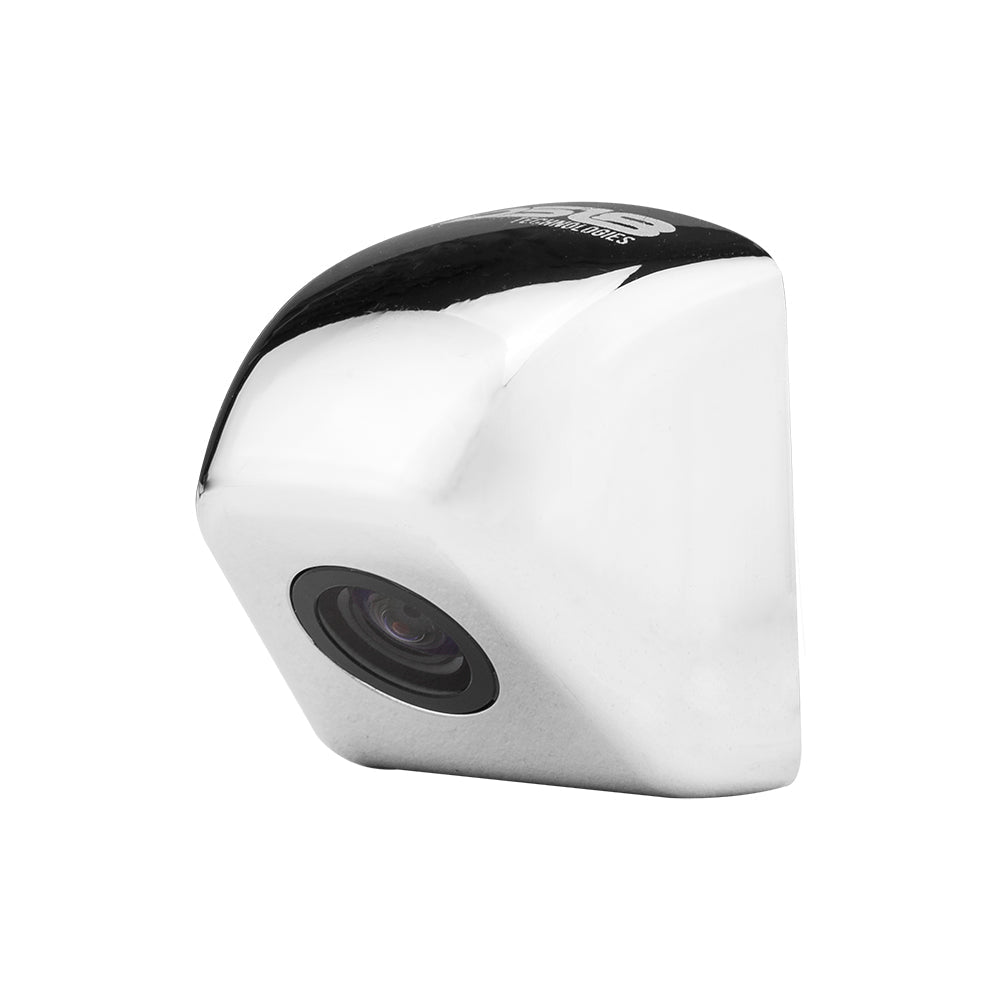

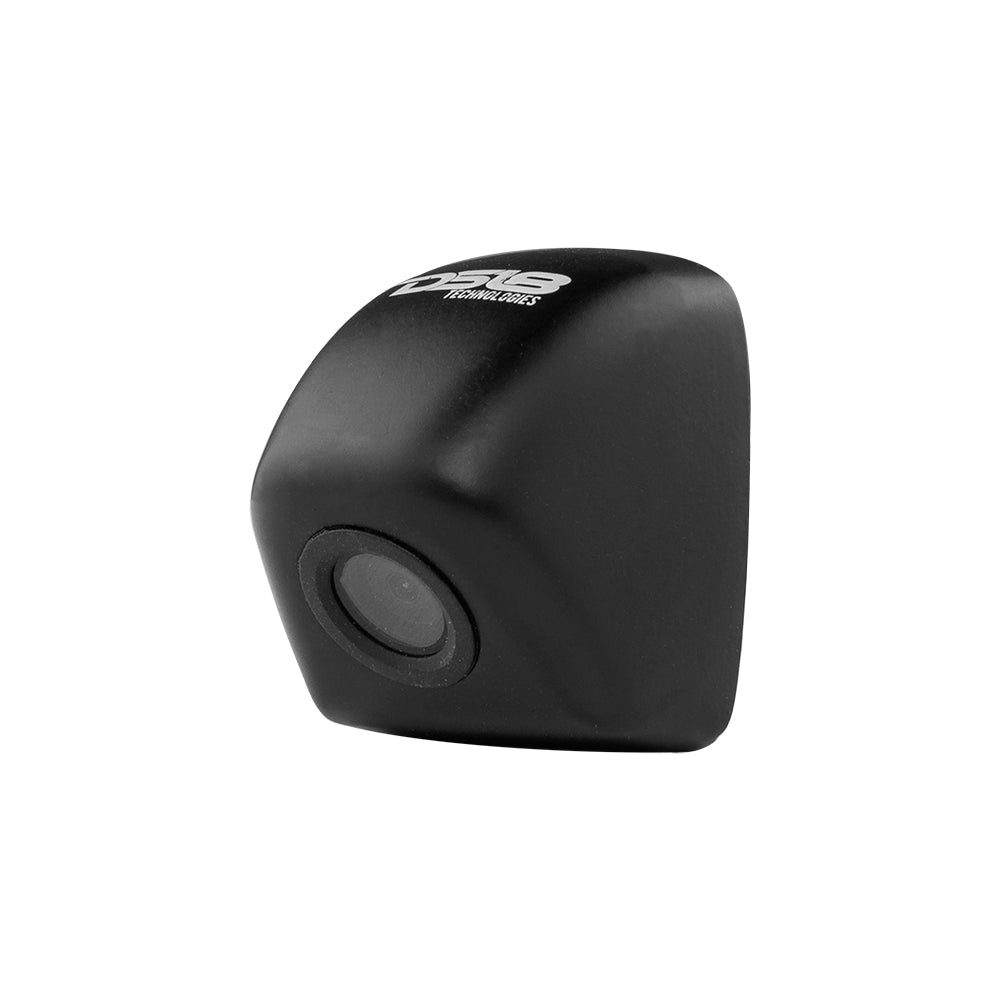

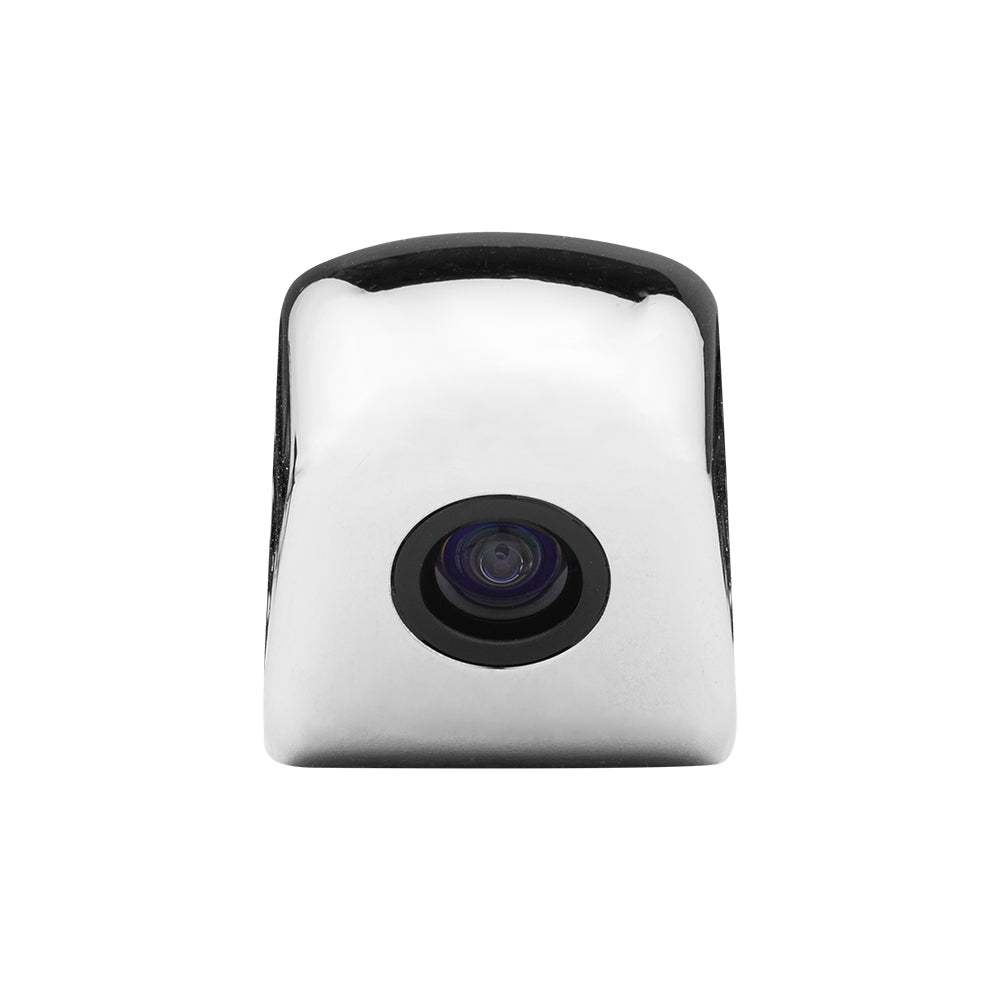

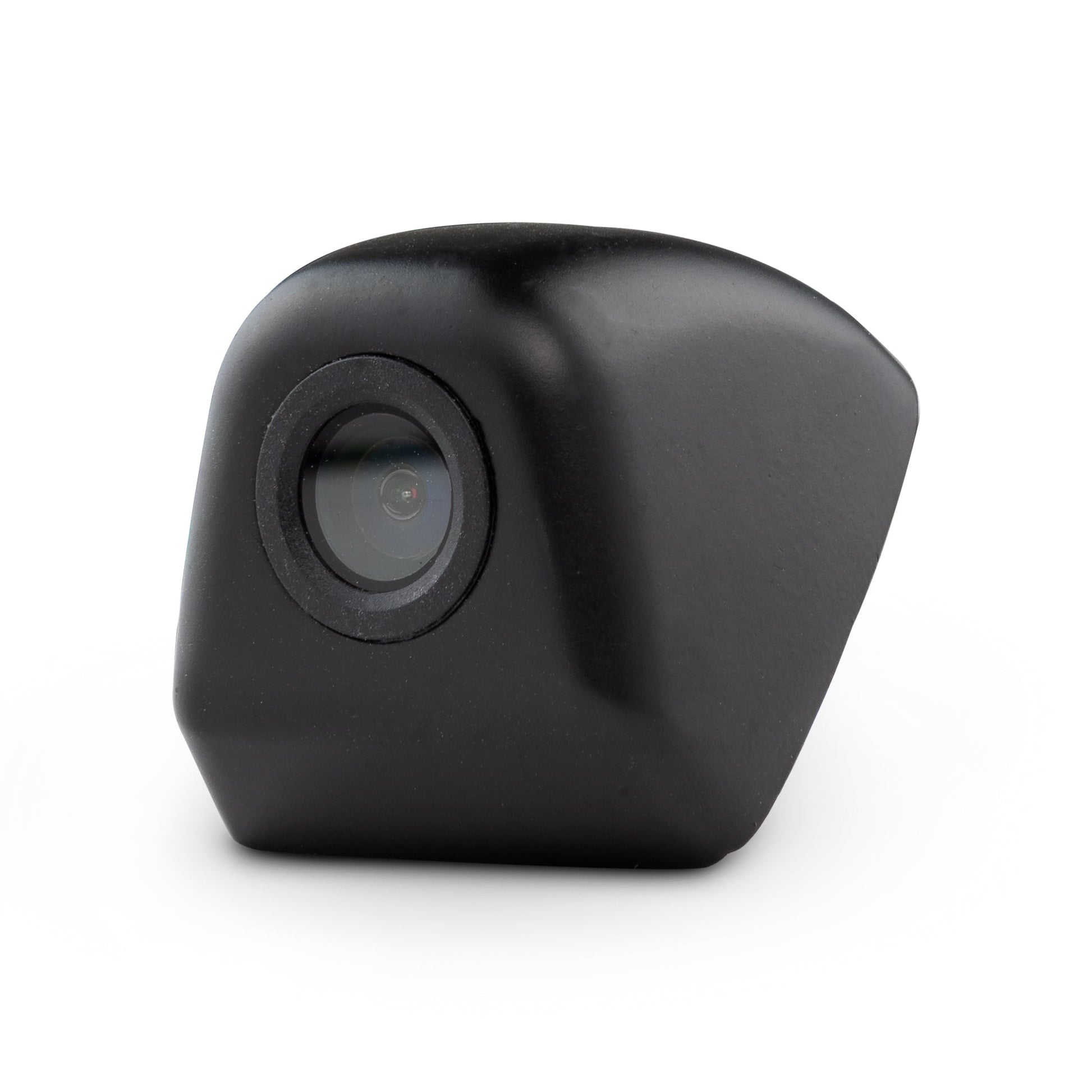

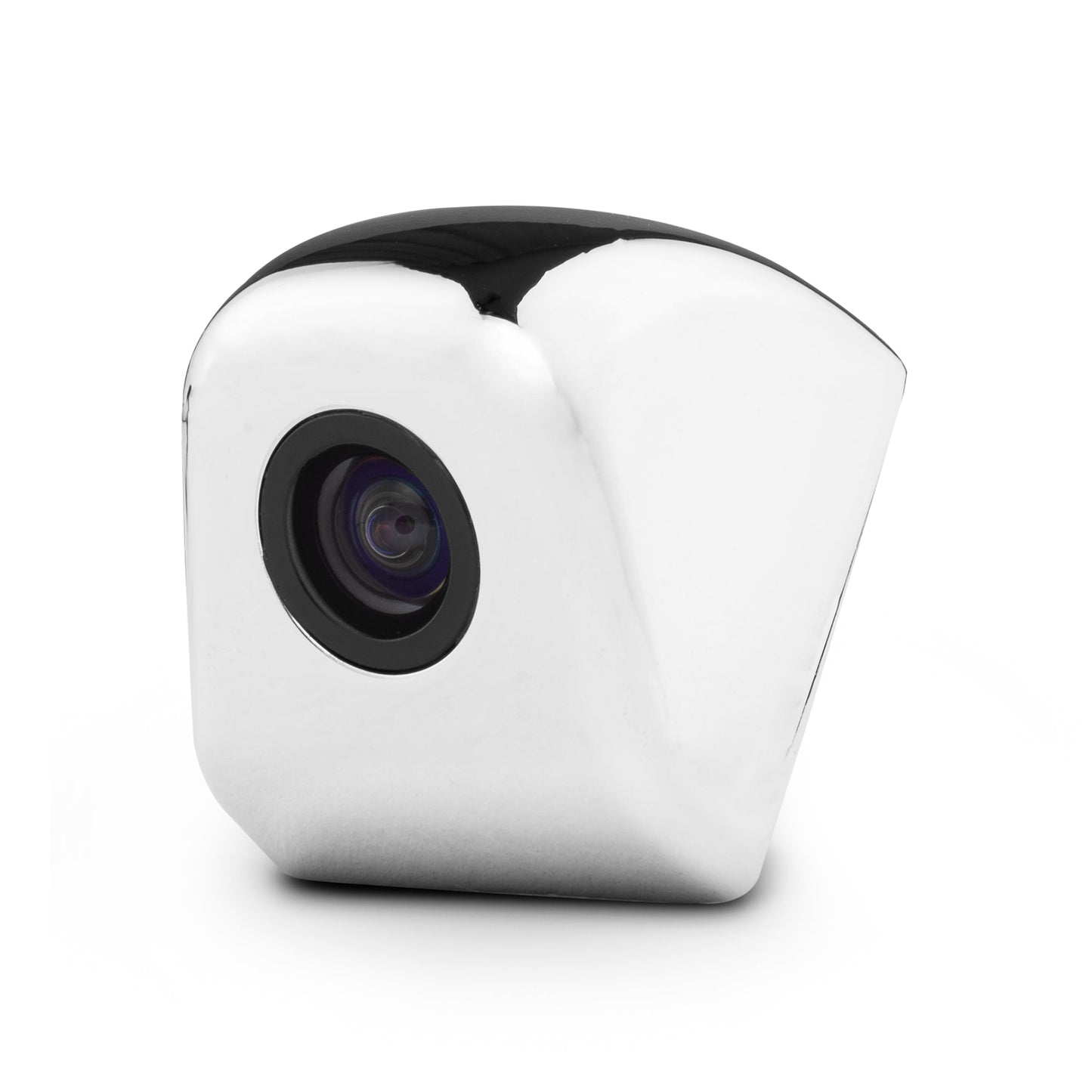

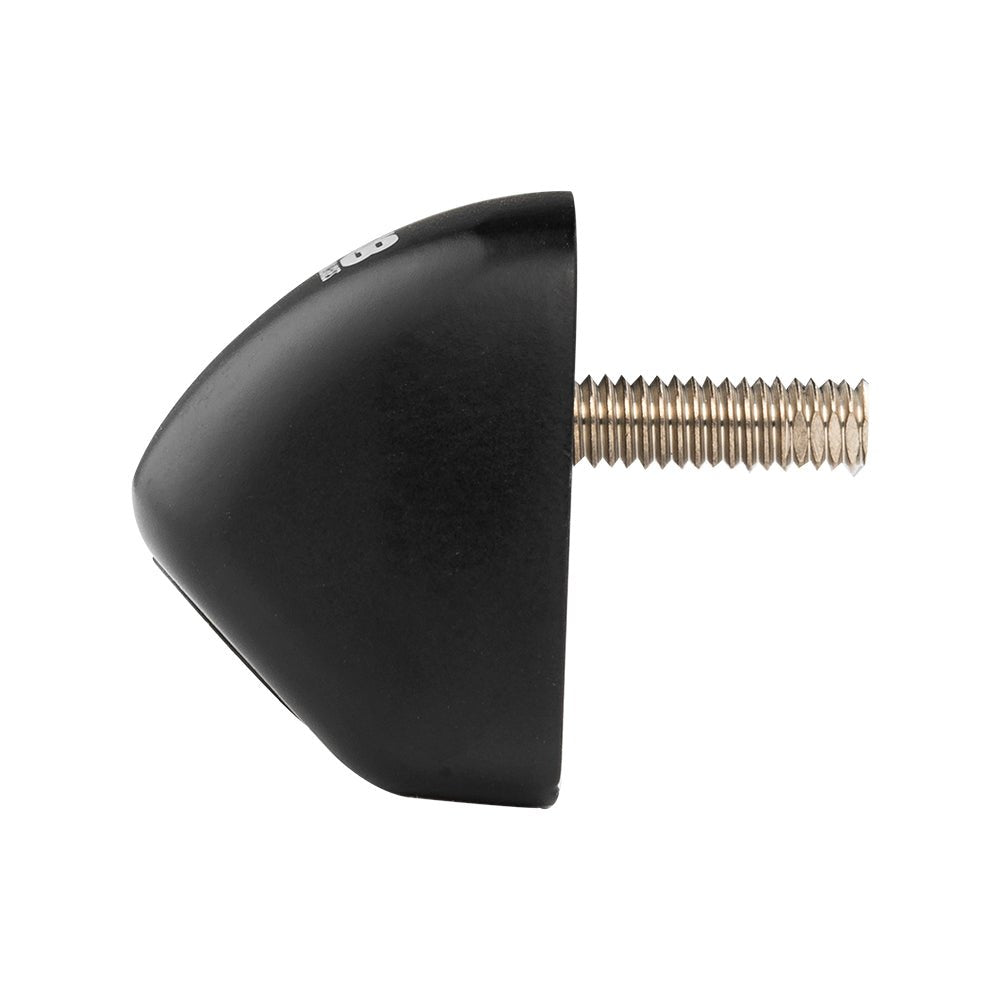

DS18 RCD20 Reverse Camera with Night Vision

$24.95 USD

Sale Sold out

Shipping calculated at checkout.

Color Black Silver

DS18 RCD20 Reverse Camera with Night Vision

Sold by AudioSellerz.com

SKU: RCD20B

DS18 RCD20 Reverse Camera with Night Vision is a DS18 vehicle electronics upgrade from DS18 built for dash camera installs, reverse camera setups, parking support, and upgraded vehicle safety electronics. This description helps shoppers looking for DS18 dash cam, rearview mirror camera, reverse camera, parking sensor, vehicle camera system understand where it fits in a real audio system.

Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.

Audio Sellerz System Match Notes

Verify vehicle compatibility, power connections, camera placement, and wiring path before installation.
For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.

drivers ass

With customer safety in mind, DS18 cameras and reverse sensors are manufactured with the most up-to-date parts in the industry. Engineered and designed in the United States our cameras have crystal clear night vision and are tested to work in the harshest environment.

Technical Details

Operation Temperature:	-10°- + 46°C (RH95% Max)
TV System:	NTSC
Distance Scale Line:	6-9M
Effective Pixels:	NTSC: 648 x 488 pixels
Sensing Area:	5.55µm x 5.55µm
Horizontal Resolution:	420 TV Lines
Dimension:	24 x 25 x 21.6mm
Lens Angle:	135°
Minimum Illumination:	1.5 lux /F1.2
Electronic Shutter Time:	1/60th - 1/15000th seconds
S/N ratio:	>48
Video Output:	CCIR/EIA(PAL/NTSC) Standard video Signal 1.0 Vp-p, 75 ohm
Sync System:	Internal Synchronization
Power Supply:	12V
