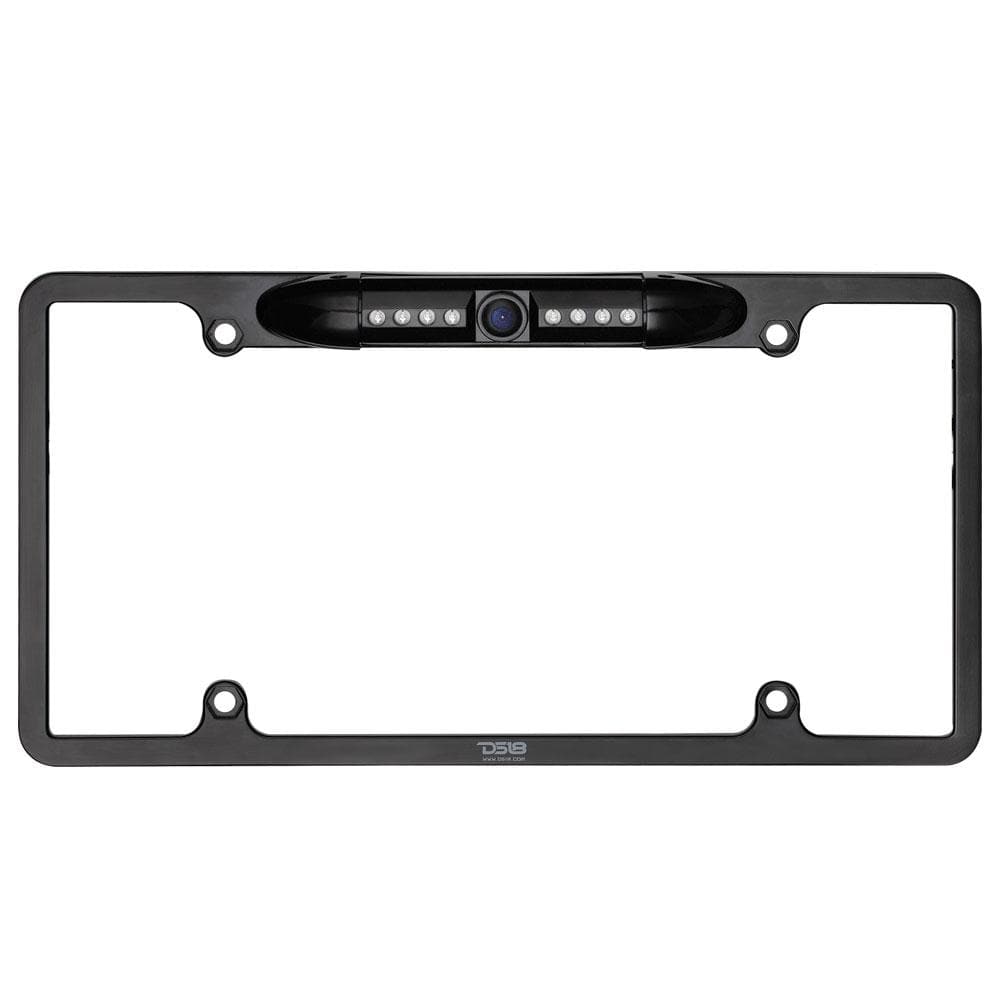

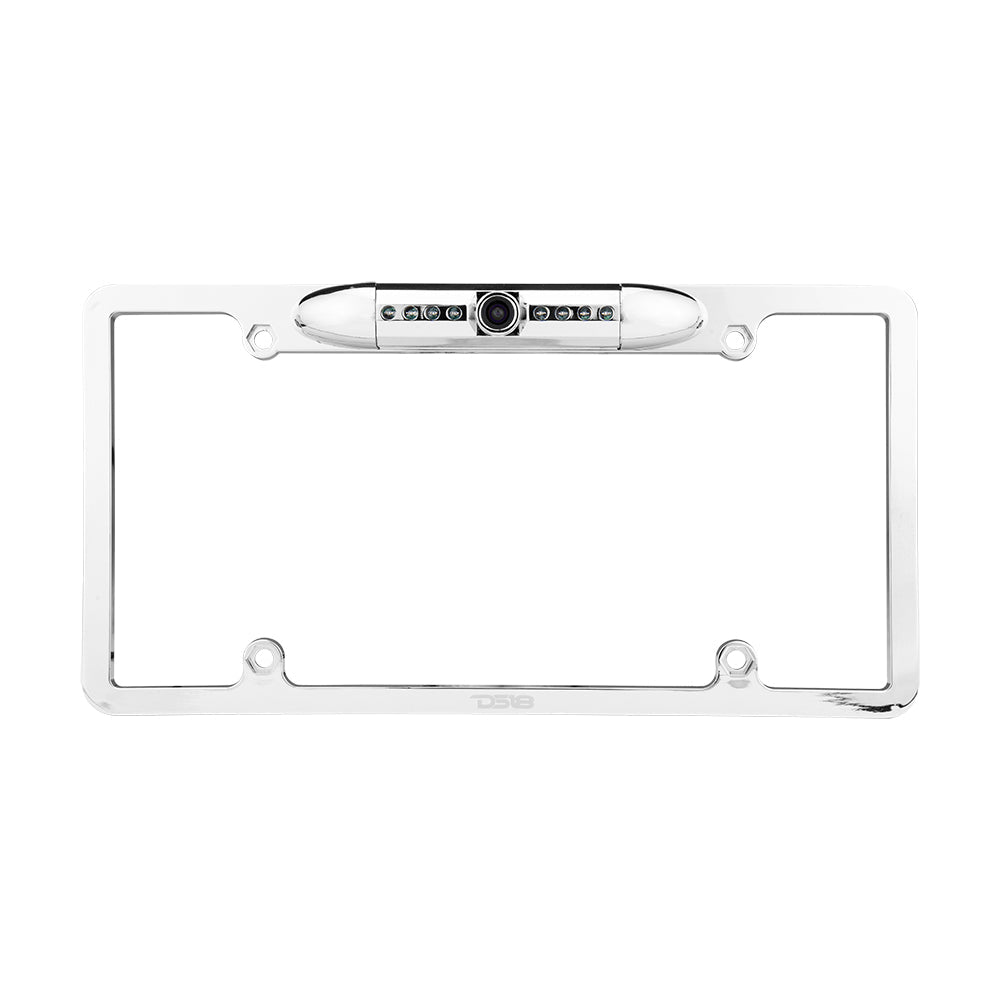

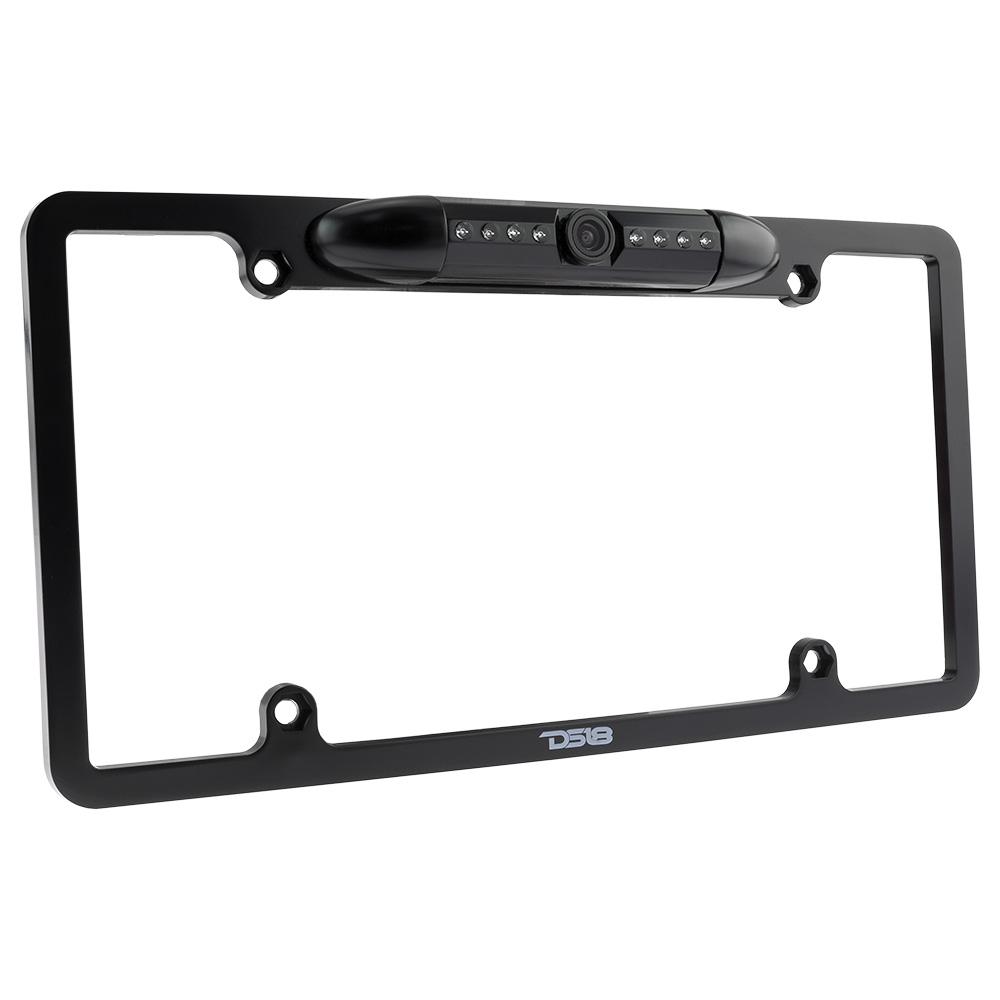

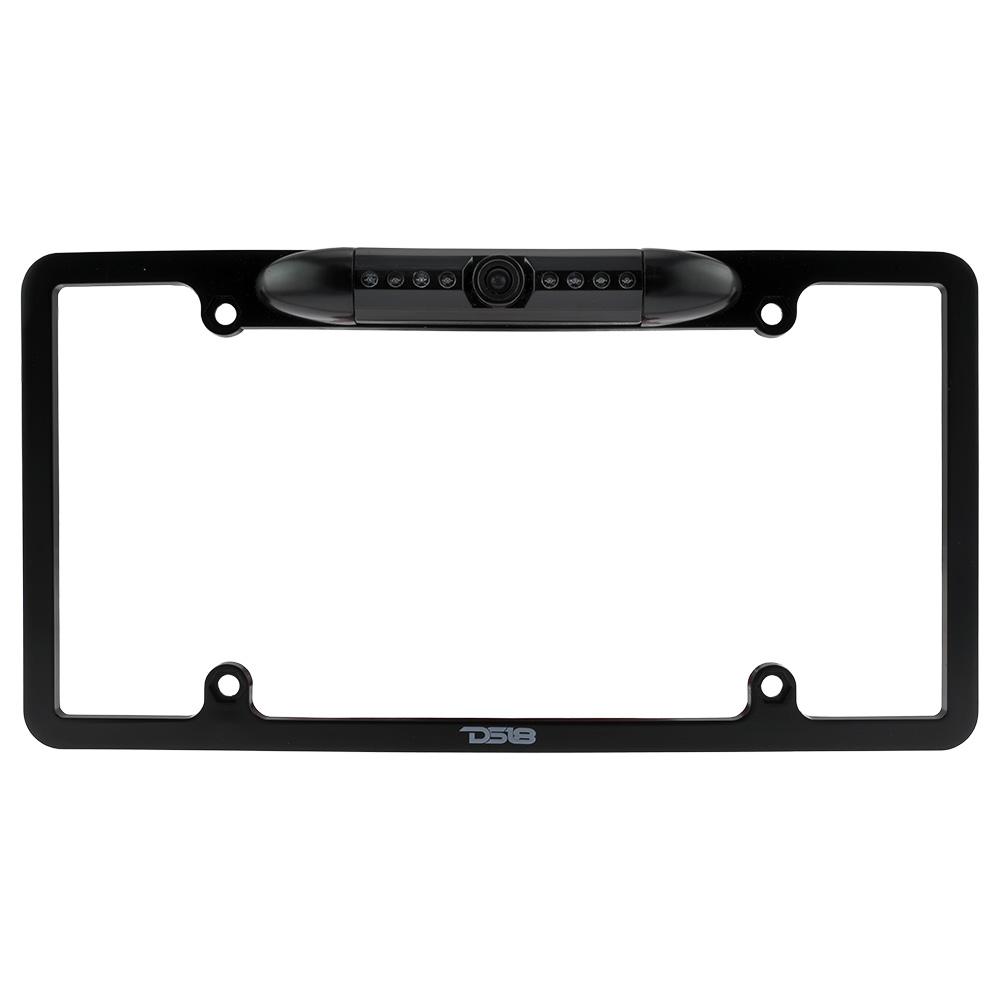

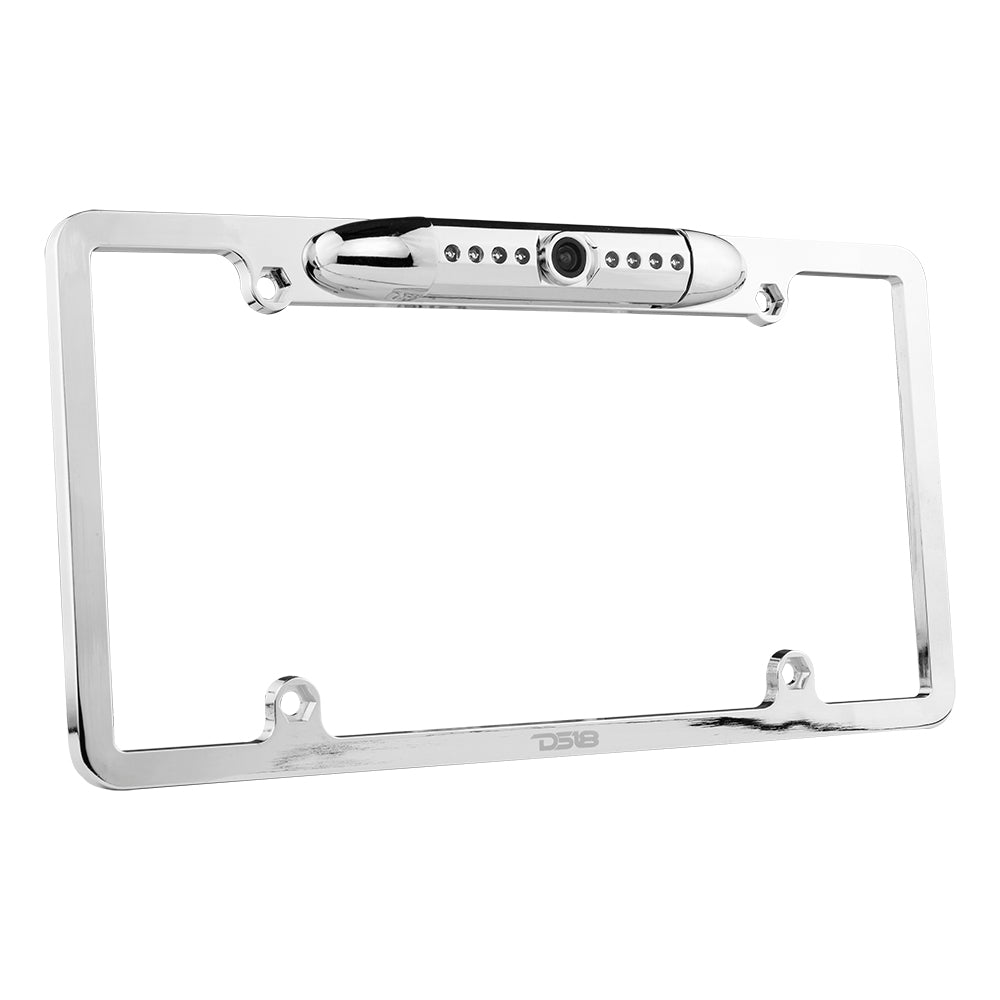

DS18 RCCP License Plate Backup Camera with Night Vision
DS18 RCCP License Plate Backup Camera with Night Vision
Couldn't load pickup availability
DS18 RCCP License Plate Backup Camera with Night Vision
Sold by AudioSellerz.com
SKU: RCCPB
DS18 RCCP License Plate Backup Camera with Night Vision is a DS18 vehicle electronics upgrade from DS18 built for dash camera installs, reverse camera setups, parking support, and upgraded vehicle safety electronics. This description helps shoppers looking for DS18 dash cam, rearview mirror camera, reverse camera, parking sensor, vehicle camera system understand where it fits in a real audio system.
Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.
Audio Sellerz System Match Notes
- Verify vehicle compatibility, power connections, camera placement, and wiring path before installation.
- For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
- If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.
| The DS18 selection of rearview cameras are waterproof, sturdy, and underscore LEDs for night vision.
They provide the best resolution out of any similarly-priced rearview cameras on the market with CMOS color camera and color screen images. Allrearview camerascome with 120 degree lens angle with distance scale lane. Super low illumination and easy to install. Highlights
|
Specifications
| Image Sensor: | PC7070 |
| TV System: | PAL/NTSC |
| Effective Pixels: | 648 x 488 Pixels |
| Sensing Area: | 5.55µm x 5.55µm |
| Scanning System: | 2:1 Interlance |
| Sync System: | Internal |
| Resolution: | 420 TV Lines |
| Horizontal Sync, Frequency: | 15.625KHz - 15.734KHz |
| Vertical Sync, Frequency: | 50Hz - 60Hz |
| Minimum Illumination: | 1.5 lux/F1.2 |
| Video Output: | 1.0VP -P.750hm |
| Gamma Consumption: | 0.45 |
| AGC: | Auto |
| S/N Ratio: | Better than 48dB |
| White Balance: | Auto |
| Electronic Shutter: | 1/60th - 1/15000 seconds |
| BLC: | Auto |
| Current Consumption: | 80Ma |
| Power Supply: | DC 12V-24V |
| Operating Temperature: | -10°C - 46°C RH 95% MAX |
| Storage Temperature: | -30°C - 60°C RH 95% MAX |
| Lens: | 1.8mm F=2.0 |
| Lens Angle: | 170° |
| Waterproof Grade: | IP 67 |
