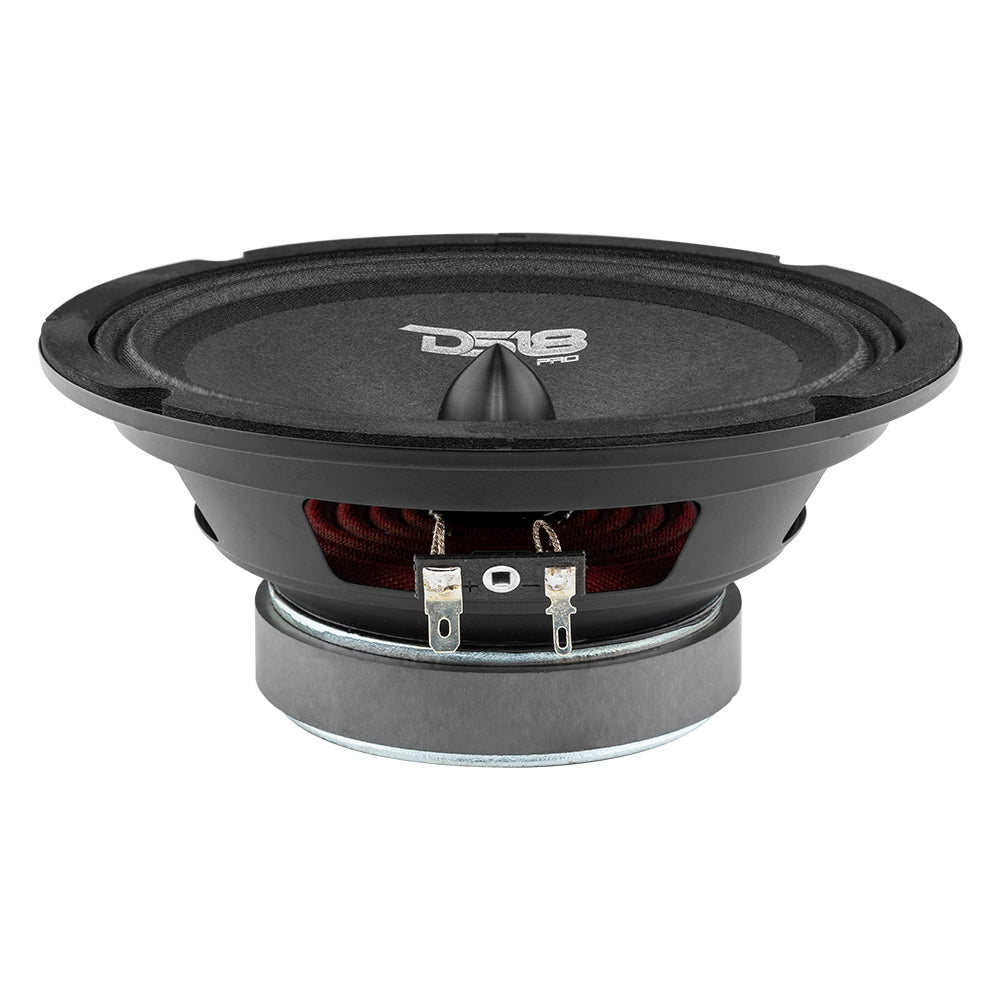

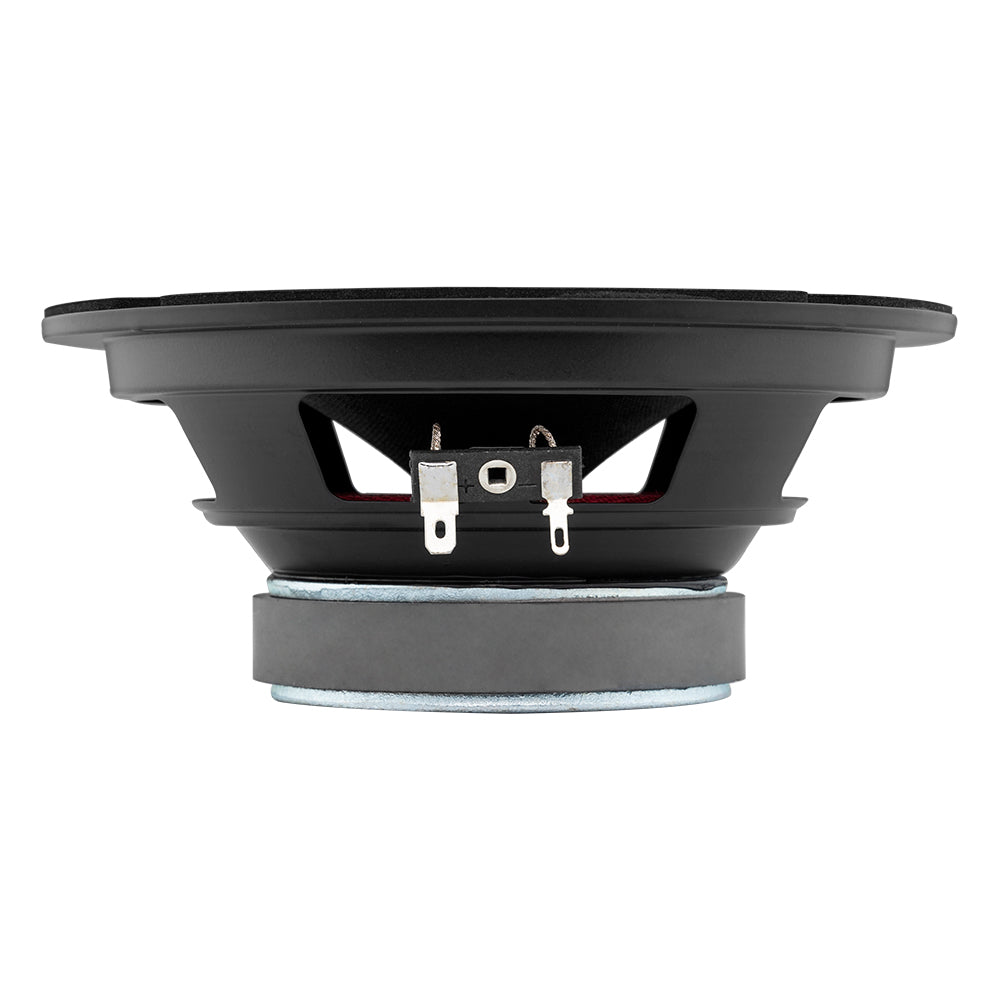

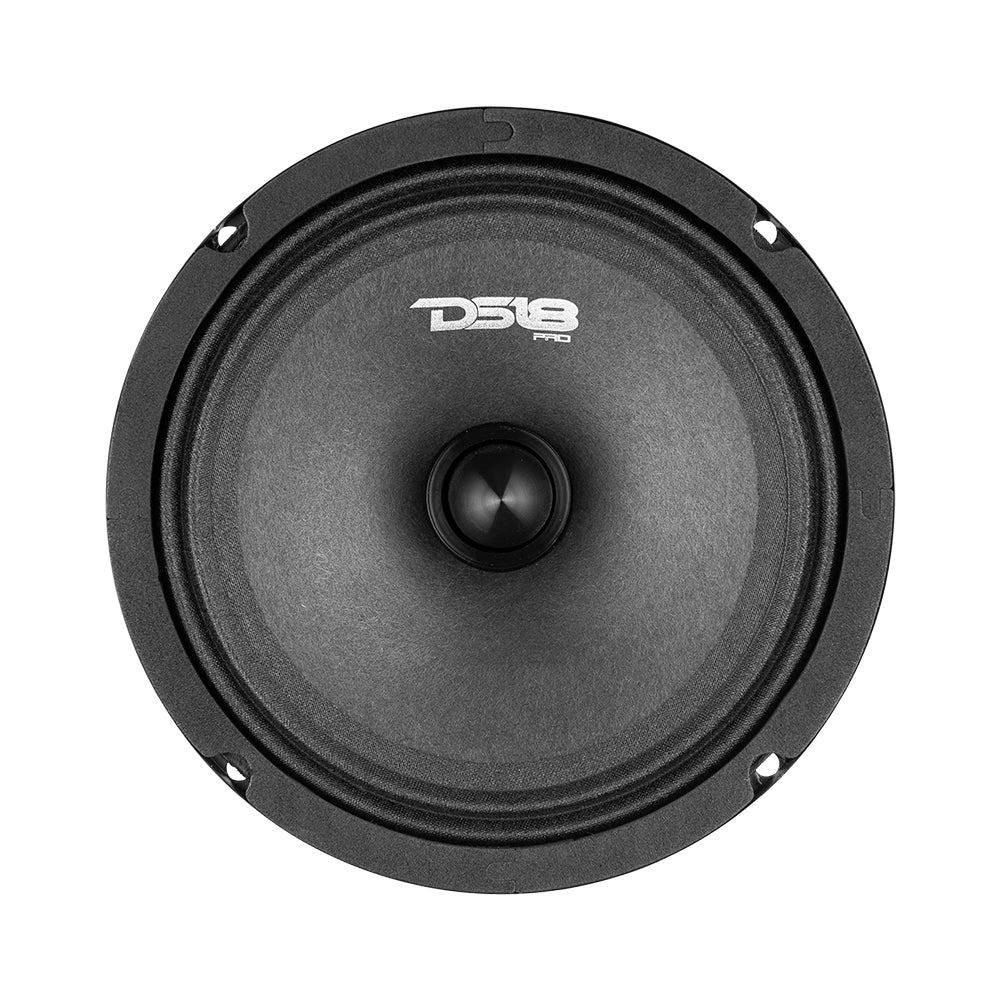

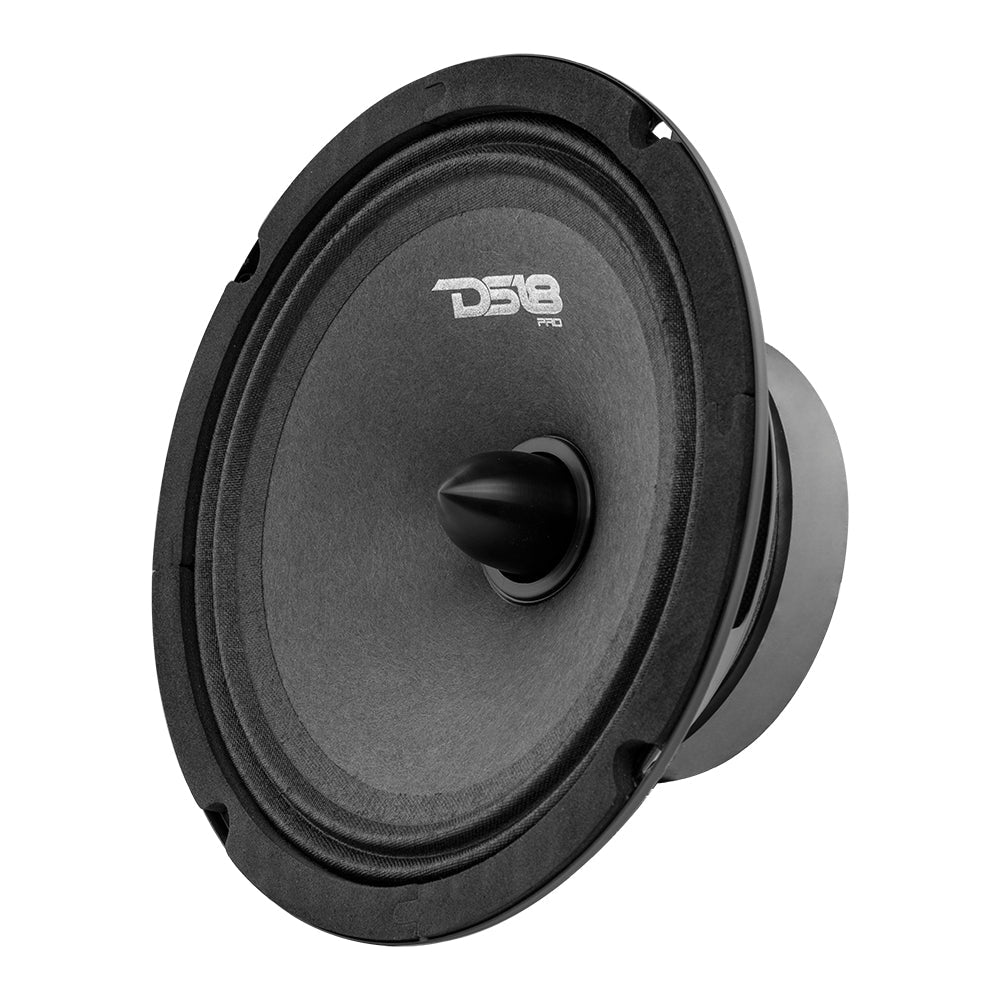

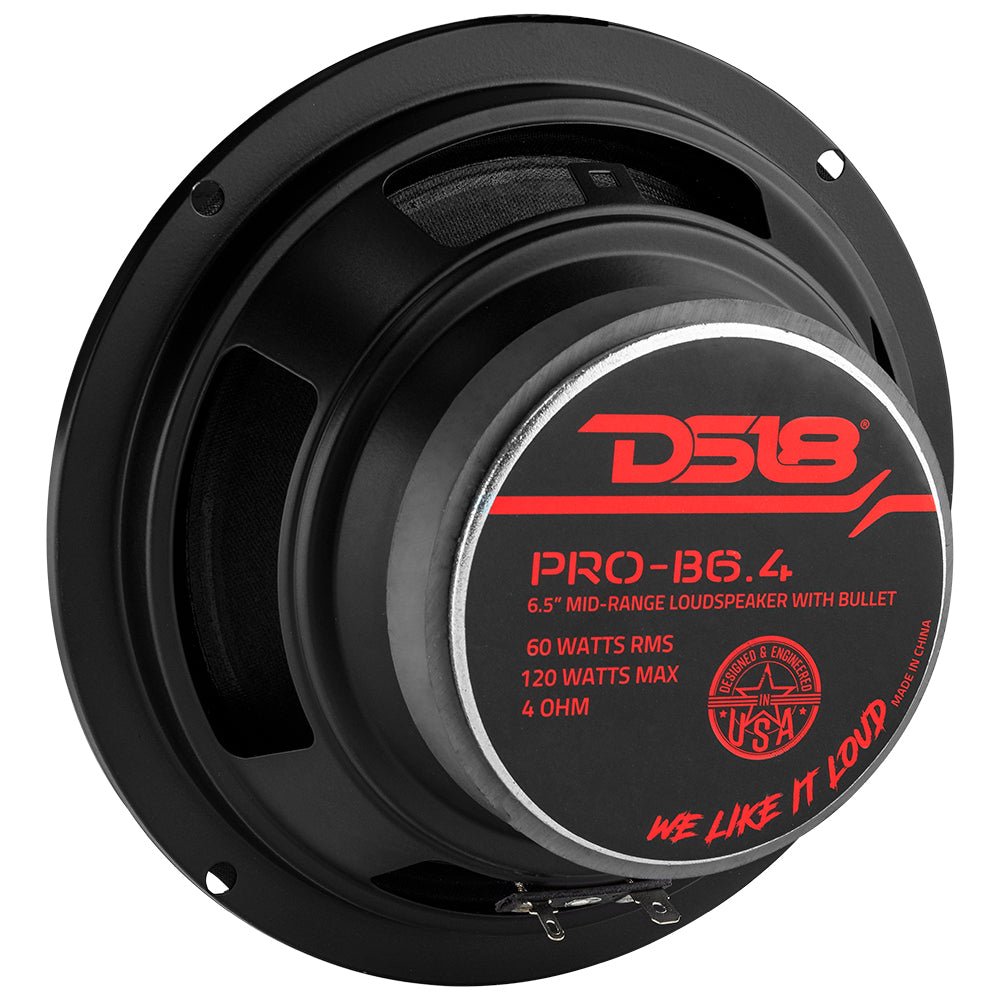

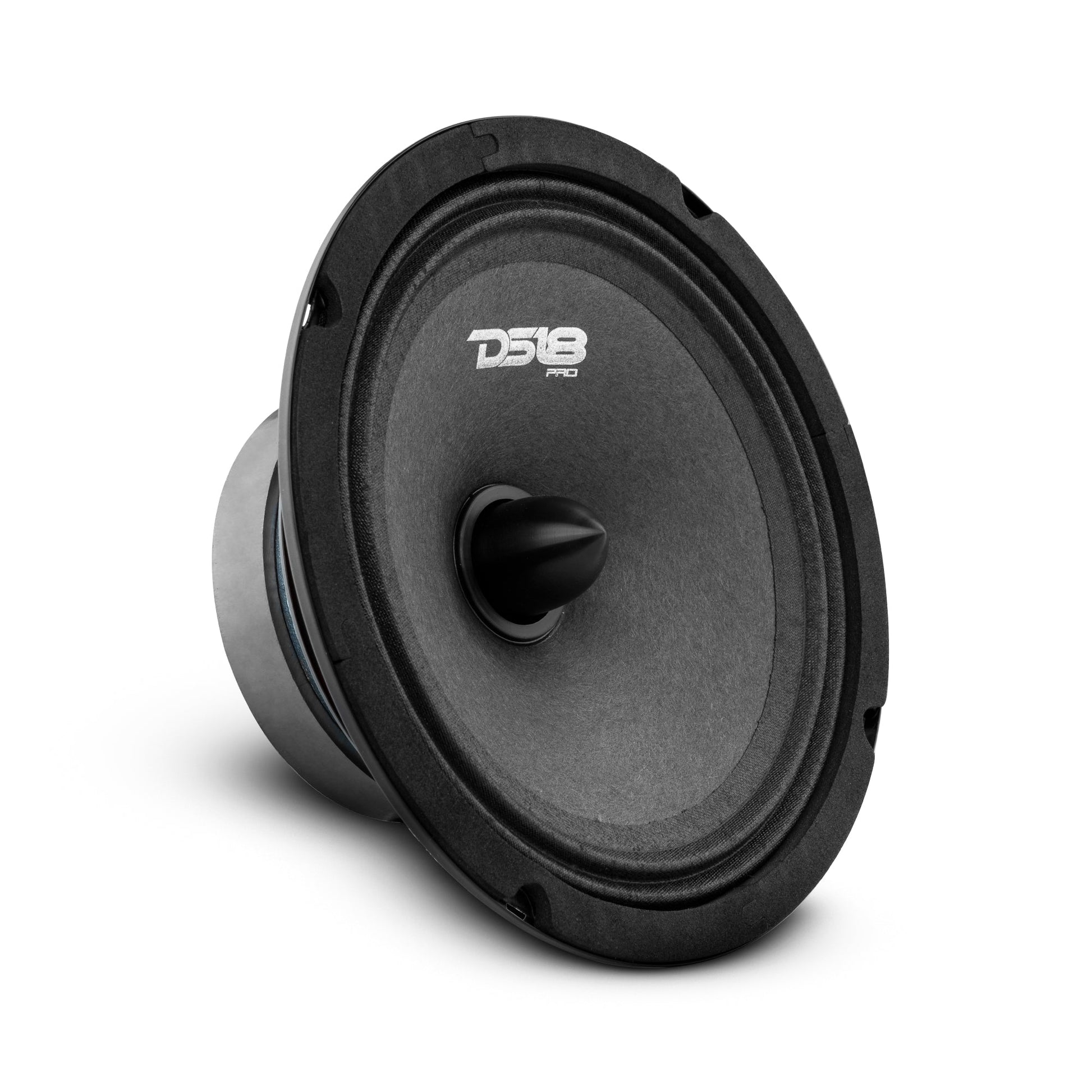

DS18 PRO-B6.4 6.5" Mid-Range Car Audio Loudspeaker with Bullet 120 Watts 4-Ohm
DS18 PRO-B6.4 6.5" Mid-Range Car Audio Loudspeaker with Bullet 120 Watts 4-Ohm
Couldn't load pickup availability
DS18 PRO-B6.4 6.5" Mid-Range Car Audio Loudspeaker with Bullet 120 Watts 4-Ohm
Sold by AudioSellerz.com
The DS18 PRO-B6.4 is a 6.5" mid-range loudspeaker from the DS18 PRO line with a 4 ohm design. It is built for clean, loud midrange and highs that cut through road noise.
DS18 Product Details
The DS18 PRO-B6.4 Midrange Loudspeaker offers an auditory experience like no other by delivering vivid midrange and bright high frequencies. Built to last, these 6.5” speakers are equipped with a 1" voice coil that is tested to endure the longest jam sessions you could hope to have.
These speakers sport a high 93.4 dB sensitivity so you can turn the tunes all the way up and not have to worry about distortion, while the 100Hz to 12.5KHz frequency provides an array of accurate tones that anyone who likes it loud is sure to appreciate. With a 60W RMS, these midranges are capable of consistent jamming all day and all night. Push these speakers to their limits, and they'll show you they have none!
Highlights
- High power pro audio speaker handling 60w RMS and 120w MAX power.
- Strong ferrite magnet with high wattage 1" voice coil and 93.4dB sensitivity.
- Sizable midrange that offers a versatile approach to acquiring a wide range of frequencies.
- Strong ferrite magnet that holds every powerful piece of equipment together.
- Very wide frequency response of 100Hz to 12.5KHz for an amazing range of frequencies.
-
2.56" mounting depth which makes it versatile enough to fit in most factory 6.5" locations without modifications.
Great for:
- Car Audio
- Pro Audio
- Motorcycles
- Stunt Walls
- DIY Projects
- Hi Fi Installation
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 60W |
| MAX Power Handling | 120W |
| Sensitivity (1w/1m) | 93.4dB |
| Frequency Response | 100Hz-12.5KHz |
| Recommended HI Pass Crossover | 120Hz |
| Pair or Single | Single |
| Grill Included | NO |
| MOTOR | |
| Voice Coil Diameter | 1” / 25mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | High Temperature Resistant ABS |
| Bullet Color | Matte Black |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Ferrlte |
| Magnet Weight | 14.4 Oz |
| MEASUREMENT | |
| Overall Diameter | 6.46" / 164mm |
| Overall Depth | 2.8" / 71mm |
| Front Mount Baffle Cutout | 5.8" / 147mm |
| Mounting Depth | 2.56" / 65mm |
| Motor Diameter | 3.54" / 90mm |
Setup Tips From Audio Sellerz
- Match the amplifier's RMS power per channel to the speaker's RMS rating at its impedance, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Pro audio mids work best with a proper crossover or DSP so each driver only plays the range it was built for.
