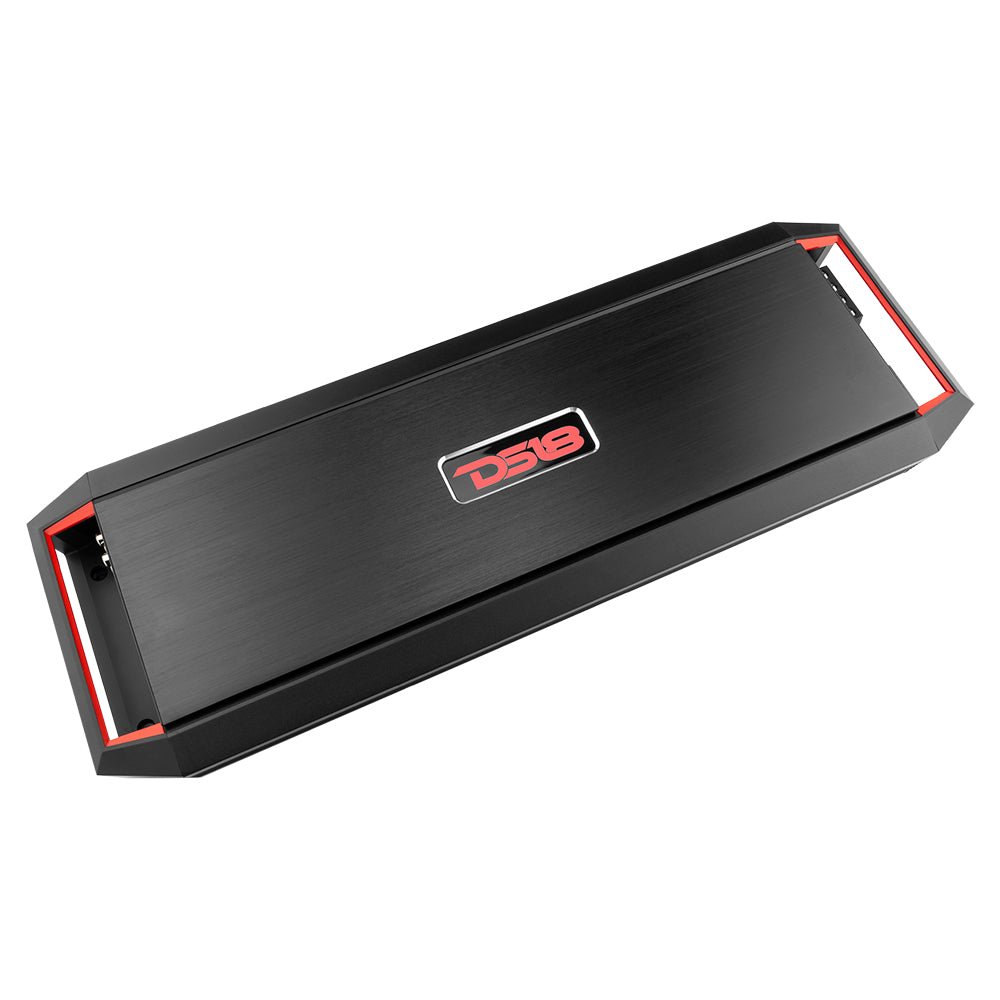

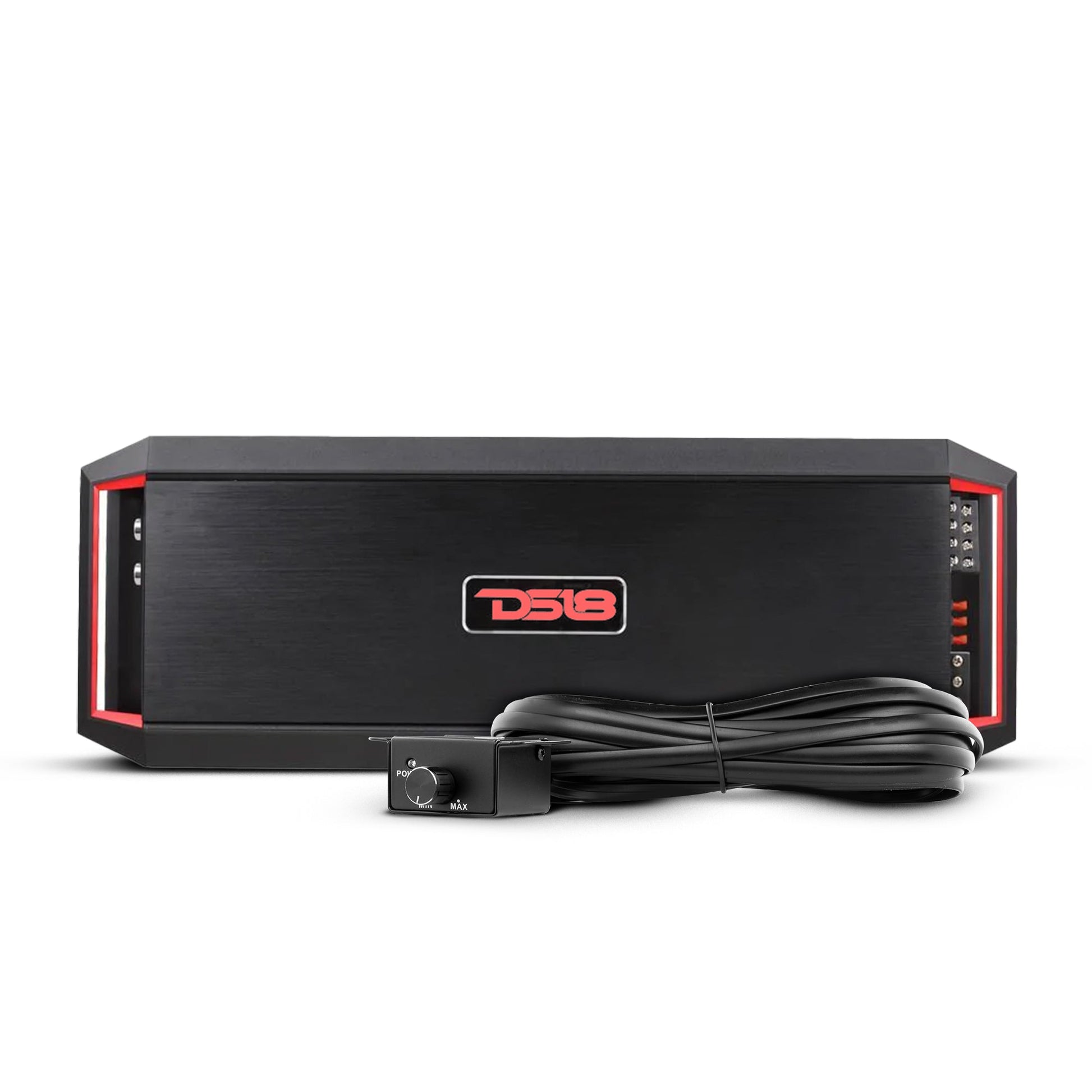

DS18 GEN-X3700.4 Full-Range Class AB 4-Channel Amplifier 3700 Watts
DS18 GEN-X3700.4 Full-Range Class AB 4-Channel Amplifier 3700 Watts
Couldn't load pickup availability
DS18 GEN-X3700.4 Full-Range Class AB 4-Channel Amplifier 3700 Watts
Sold by AudioSellerz.com
SKU: GEN-X3700.4
DS18 GEN-X3700.4 Full-Range Class AB 4-Channel Amplifier 3700 Watts is a DS18 amplifier from DS18 built for powering subwoofers, mids, highs, full-range speakers, motorcycles, marine systems, Jeeps, and powersports audio. This description helps shoppers looking for DS18 4 channel amp, DS18 amp, DS18 amplifier, car audio amplifier, monoblock amplifier understand where it fits in a real audio system.
Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.
Audio Sellerz System Match Notes
- Match the amplifier to the speaker or subwoofer RMS power, final ohm load, wire size, fuse protection, and vehicle electrical support.
- For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
- If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.
Overview
DS18 GEN-X3700.4 Full-Range Class AB 4-Channel Amplifier 3700 Watts
The DS18 Gen-X series of amps are very durable and provide maximum wattage for your budget. These stylish amps will fit just about anywhere and supply all the power you need with great efficiency. Top of the line internal technologies assure you are getting the best amp your money can buy with parts manufactured by DS18.
The amps efficiency is so high that you can install multiple amps without the worry of having to install a high output alternator as well. We developed these amps with the customer in our minds and what the enthusiast would want, so here DS18 brings you all the versions of the Gen-X!
Highlights
- Lightweight design that retains very high durability with incorporated high efficiency heat sync.

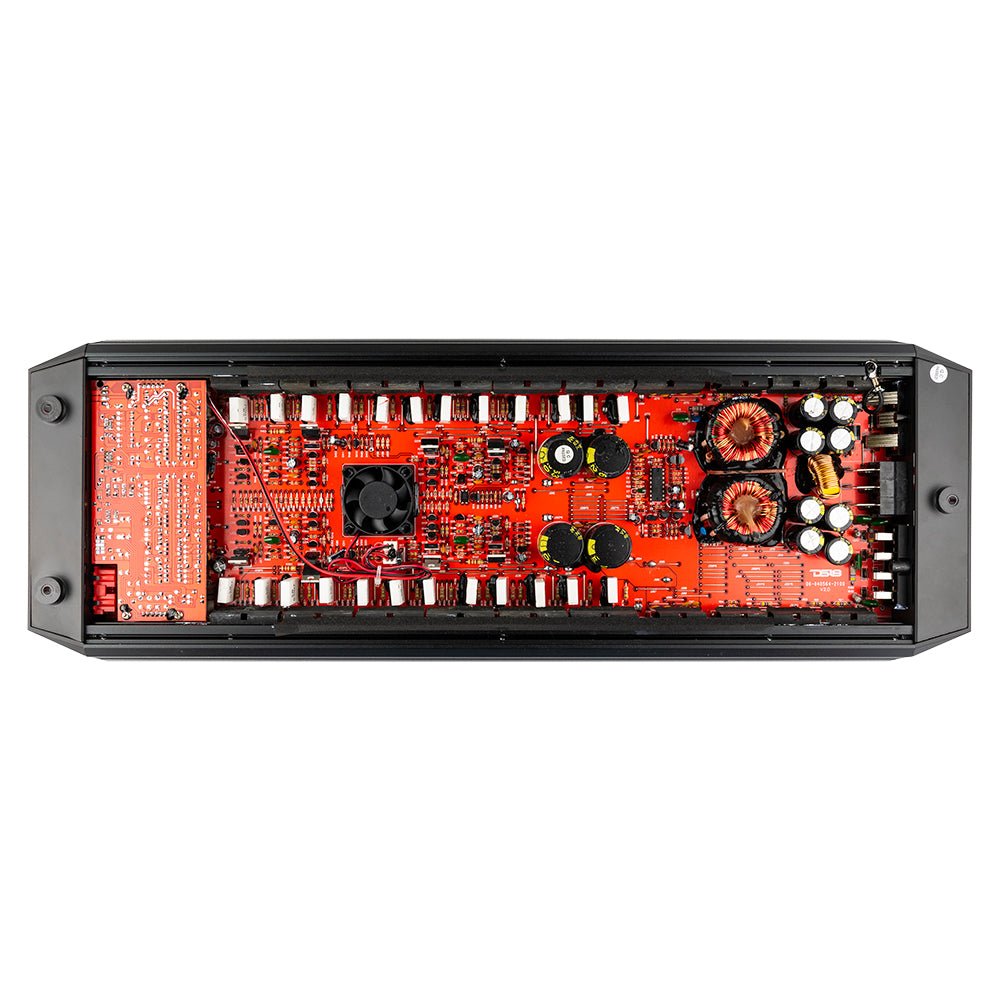

- High quality circuit board to give the most power with a high efficiency rate.

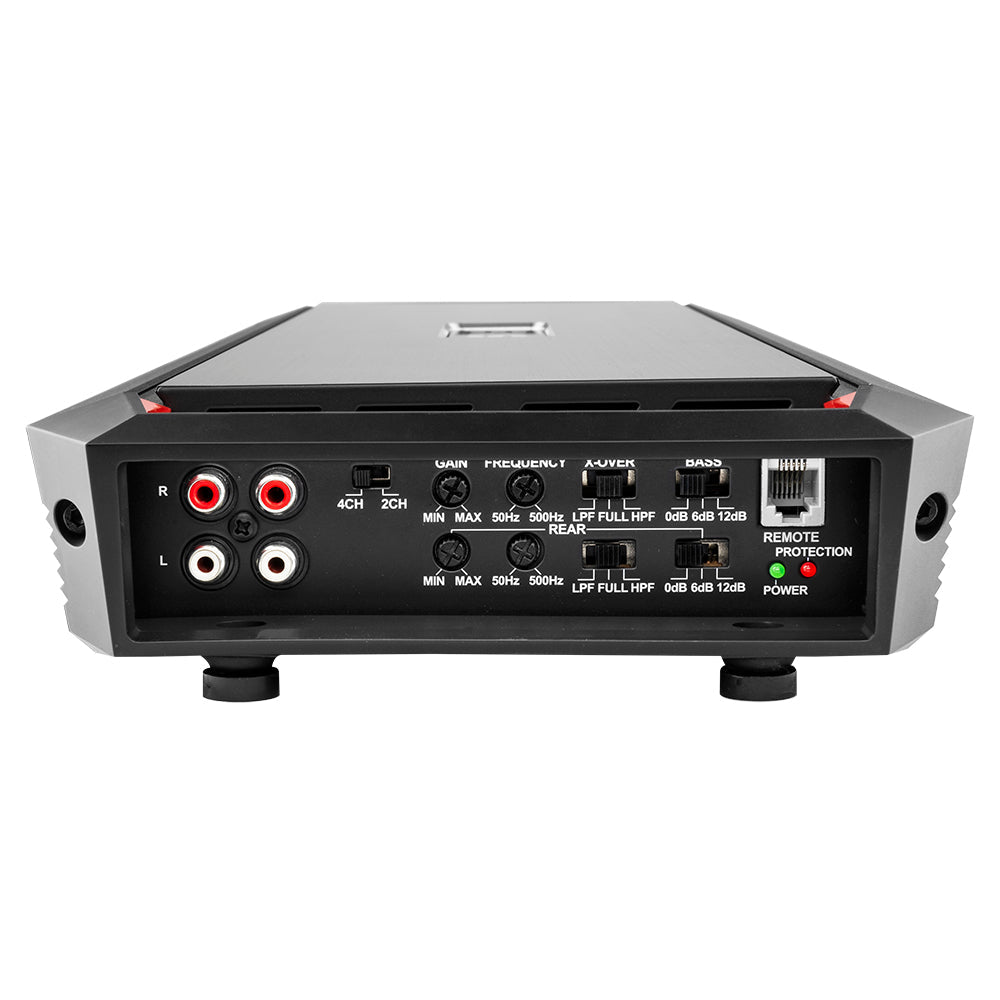

- Light up DS18 logo and fully adjustable crossover filters.
Technical Details
| Model: | GEN-X3700.4 |
| Number of Channels: | 4 |
| Frequency Response: | 20Hz - 20KHz |
| MAX Power: | 3700W |
| 2 Ohms RMS Power (14.4V) Per Channel: | 225W x 4 |
| 4 Ohms RMS Power (14.4V) Per Channel: | 150W x 4 |
| 4 Ohms RMS Power Bridge (14.4V) Per Channel: | 375W x 2 |
| Speaker Impedance Range: | 2-4 Ohms |
| Input Sensitivity: | 0.2V-+6V |
| Low Pass Filter: | 50Hz - 500Hz |
| High Pass Filter: | 50Hz - 500Hz |

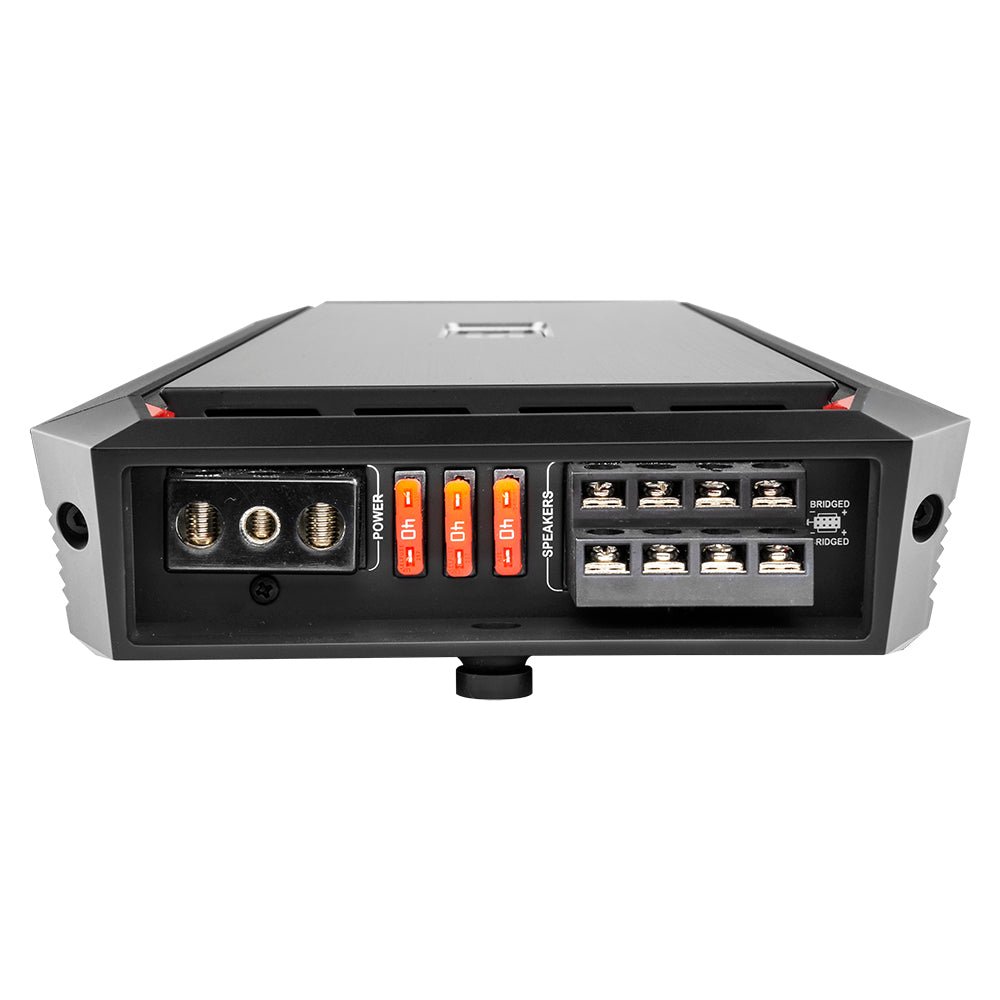

| Fuse Size: | 3 x 40A |
| Signal-to-Noise Ratio: | 98dB |
| THD: | 0.08% |
| Product Dimensions (L x W x H): | 540 x 190 x 60mm |
