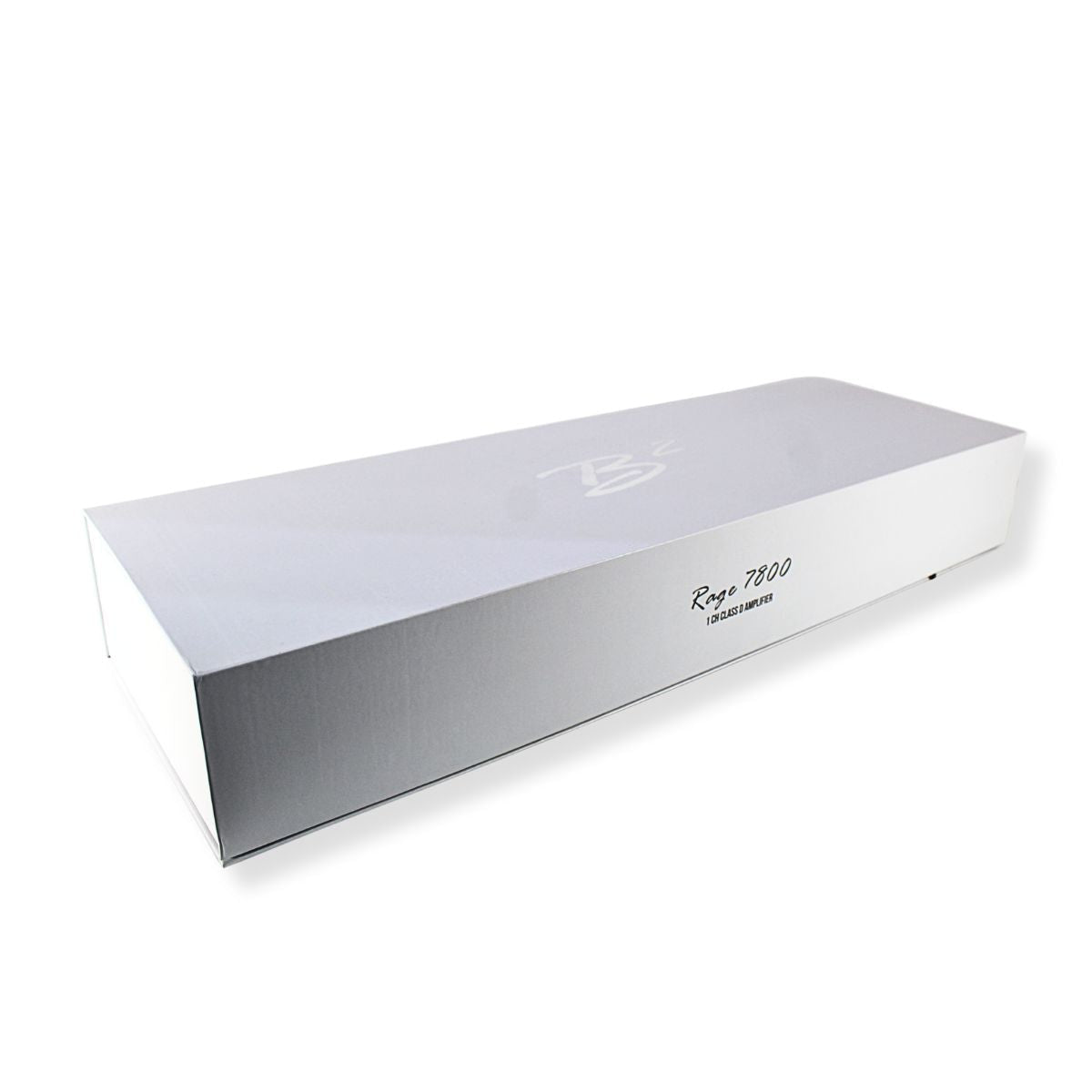

B2 Audio Monoblock Amplifier RAGE 7800W Class D 1 Ohm Full Range

Name: B2 Audio Monoblock Amplifier RAGE 7800W Class D 1 Ohm Full Range
Brand: B2 Audio Dealer
SKU: B2-RAGE-7800
Price: 799.95 USD
Availability: InStock

$799.95 USD

~~$799.95 USD~~ $799.95 USD

Sale Sold out

Shipping calculated at checkout.

B2 Audio Monoblock Amplifier RAGE 7800W Class D 1 Ohm Full Range

Sold by AudioSellerz.com

The B2 Audio Monoblock Amplifier RAGE 7800W Class D 1 Ohm Full Range is a car audio amplifier from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

7,800W RMS 1-OHM MONOBLOCK – B2 Audio RAGE 7800 Class D amplifier delivers 7,800–8,000W RMS at 1 ohm with sufficient electrical support; also rated 4,200–4,500W RMS at 2 ohms and 2,400–2,600W RMS at 4 ohms.
FULL-RANGE CLASS D PERFORMANCE – Wide 10Hz–12.5kHz frequency response lets this monoblock power hard-hitting subwoofers or serve high-output full-range applications where a powerful single-channel amplifier is needed.
ADJUSTABLE SYSTEM TUNING – Features adjustable low-pass, high-pass, and subsonic crossovers, plus 0.2V–6V input sensitivity and 30Hz–80Hz bass-level adjustment to dial the amplifier into your system.
INCLUDED VOLTAGE & TEMPERATURE BASS KNOB – Includes a wired B2 bass knob with voltage and temperature display, giving you convenient output control and a quick view of key amplifier system information from the driver’s seat.
BUILT FOR SERIOUS ELECTRICAL SYSTEMS – Dual 0-gauge power terminals, minimum 10-gauge speaker-wire recommendation, and 600A fuse requirement support demanding high-power builds. Thermal, short-circuit, and overcurrent protection help safeguard the amplifier during operation.

B2 Audio RAGE 7800 Watt Class D 1-Ohm Full Range Monoblock Amplifier

This Listing Includes:

(1) B2-RAGE-7800 Amplifier

(1) Bassknob w/ voltage/temp meter & cable

Unleash the power of the B2 Audio RAGE Series 7800 - 7800 Watt 1-Ohm Class D Monoblock Amplifier. This amplifier delivers an earth-shattering 7800 watts of pure, relentless power at 1-ohm, transforming your audio setup into a thunderous soundscape with bone-rattling bass and electrifying performance. Designed with advanced Class D technology, it maximizes efficiency, offering intense, precise sound that will leave you craving more. Whether you’re upgrading for a premium listening experience or competing for supremacy, the RAGE 7800 is the amplifier to dominate the scene. It features advanced protection against thermal overload, short circuits, and overcurrent, ensuring rock-solid reliability under even the most demanding conditions. With its sleek design and heavy-duty construction, the RAGE 7800 seamlessly integrates into any high-performance system, ready to push the limits and take your audio experience to new heights. Embrace the power, embrace the rage

Specifications

RMS Power @ 4 ohm: 2400W* - 2600 W

RMS Power @ 2 ohm: 4200W* - 4500 W

RMS Power @ 1 ohm: 7800W*- 8000 W

Frequency Response:10 Hz - 12.5 KHz

Signal to Noise Ratio: >90dB

Input Sensitivity: 6 V - 0.2 V

Power Terminal Gauge: 2 x 0 Gauge

Recommended Speaker Wire: 10 AWG (Minimum)

Fuse Rating: 600 A

Bass Level: 30 Hz - 80 Hz

* The lower number is based on amp dyno performance measured at 1000 KHZ for multi channels and 100 Hz for the mono. The other is audio precision up to 1% THD. Full output power according to the spec is based on a sufficient electrical supply system.

Crossover Circuit:

Low Pass Crossover: 30 Hz -12.5 Hz

High Pass Crossover: 10 Hz - 2 KHz

Subsonic Crossover: 10 Hz - 2 KHz

Measurements:

Length: 22"

Width: 6.5"

Height: 2.5"

Weight: 14.95 Lbs

Turn your setup into a powerhouse of clean, controlled, and unmatched sound. The B2 Audio RAGE 7800 isn’t just an amplifier, it’s a statement of dominance and precision for serious bass enthusiasts and competitors who demand the best.
