The DS18 RY-KIT4.HD is an amplifier installation kit from DS18. Wiring is the part of the build people skip, and it is usually where problems start.
DS18 Product Details

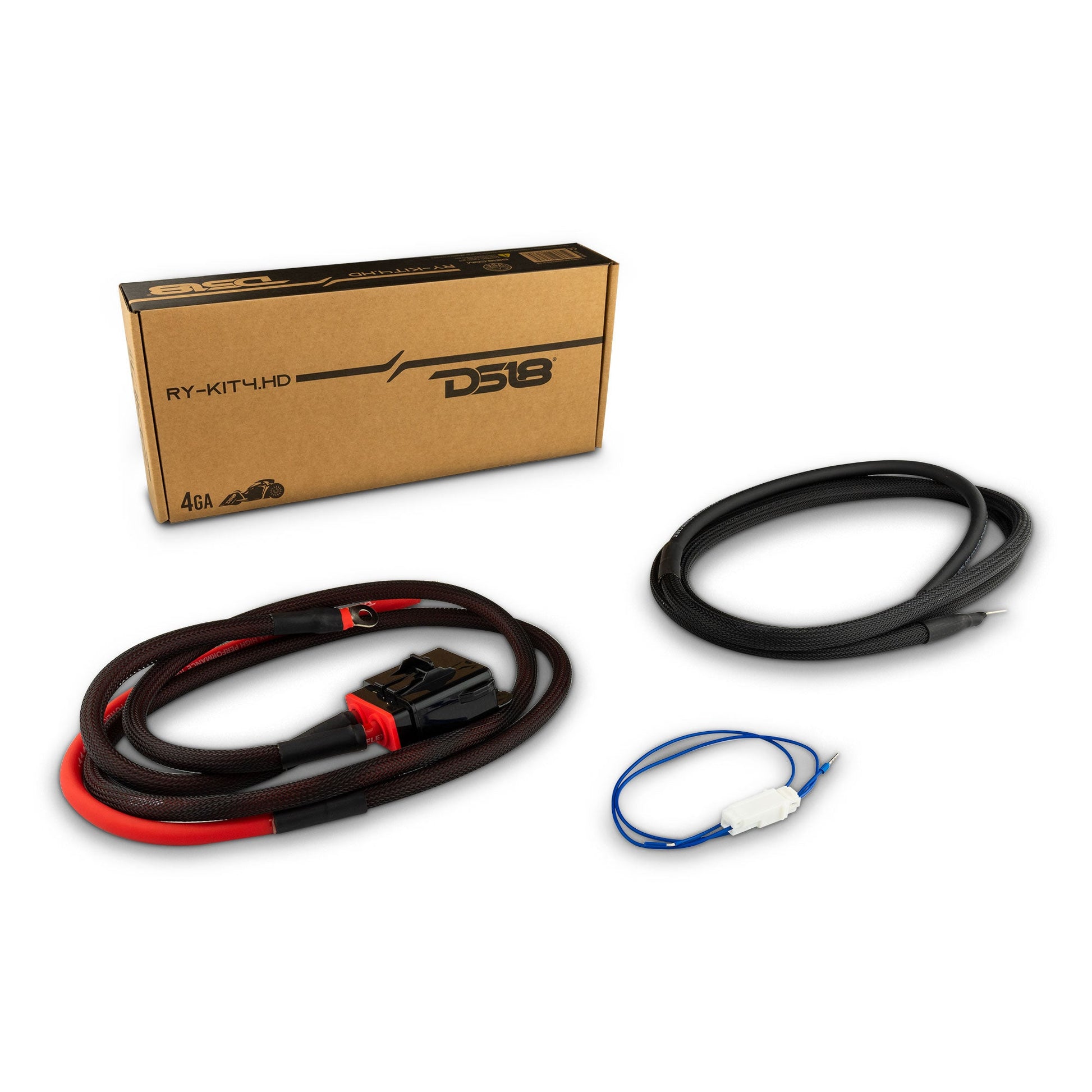

DS18 RY-KIT4.HD 4-GA Amplifier OFC Installation Kit for Motorcycle, Powersports and Marine.
Don’t wait any longer; upgrade your Harley with DS18’s all new RY-KIT4.HD!
This kit helps in the installation of an extra amplifier on Harley Davidson models from 1996 and later including the Electra Glide (FLHT), Street Glide (FLHX), Road Glide (FLTR) and some TRIKE’s.
Included in this kit is DS18’s newest OFC (Oxygen Free Copper) tinned wire for stronger connections, higher conduction, and resistance against corrosion caused by the elements.
The 4AWG Red (Power) and Black (Ground) OFC Tinned Wire comes in a protective braided sleeve, heat shrink, and ring terminals for added protection against the elements and easier inspection of possible problems.

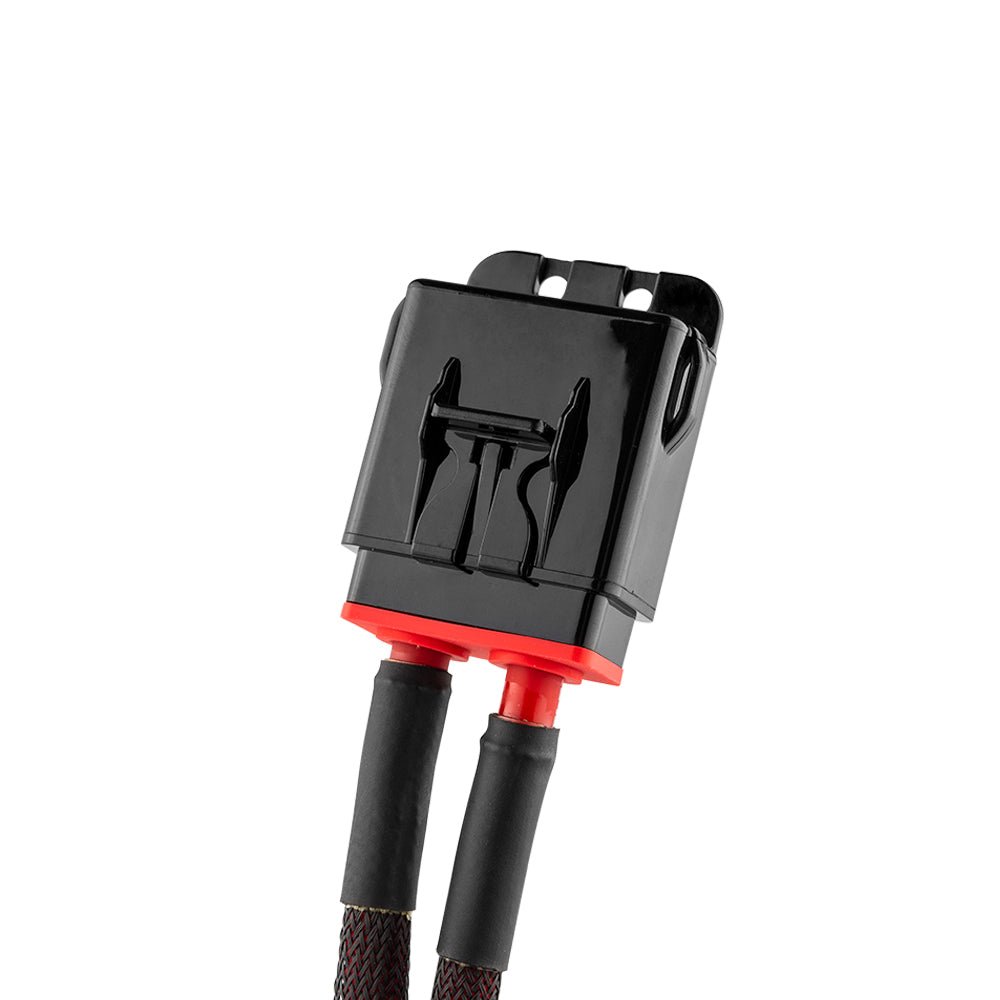

The stronger connections these wires establish are supported by the included in-line waterproof fuse holder and the 120A mini-ANL fuse installed on the holder.
The RY-KIT4.HD is recommended for amplifiers up to 1680W for best results after installation.
Order the RY-KIT4.HD today to get your bike louder and clearer than ever before!
Highlights
- Stronger, more conductive, and corrosion resistant OFC (Oxygen Free Copper) tinned wires
- ANL Fuse Holder and 120A mini-ANL fuse for easy integration of fuses into any electrical circuit
- Weather Resistant Wiring to help install a compact weather resistant amplifier suitable for motorcycle applications
Great For
- Harley Davidson (1996 and later)
- Motorcycle
- Powersports
- Marine
Technical Details
|

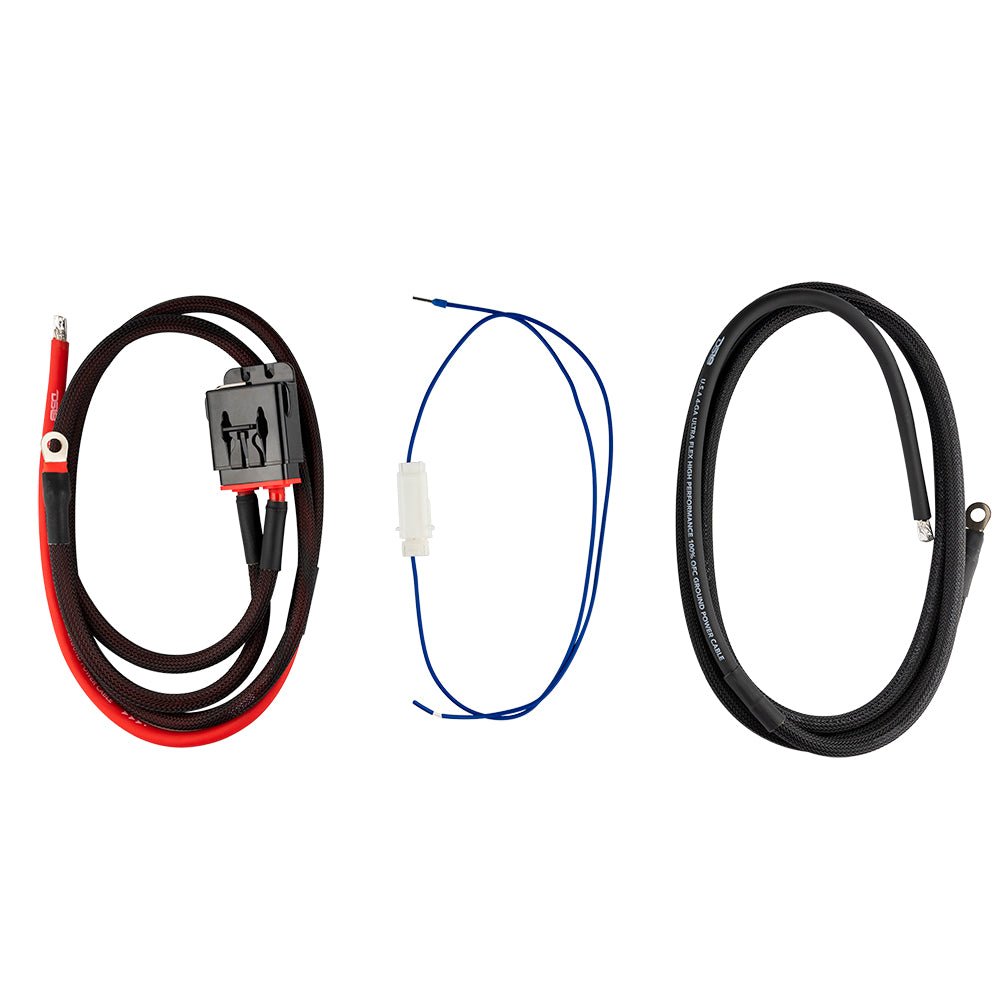

Fits on 1996-up HD models including FLHT, FLHX, FLTR and some TRIKEs In-Line Waterproof fuse holder included. |
|
120A mini-ANL Fuse already installed on the Fuse Holder. |
|

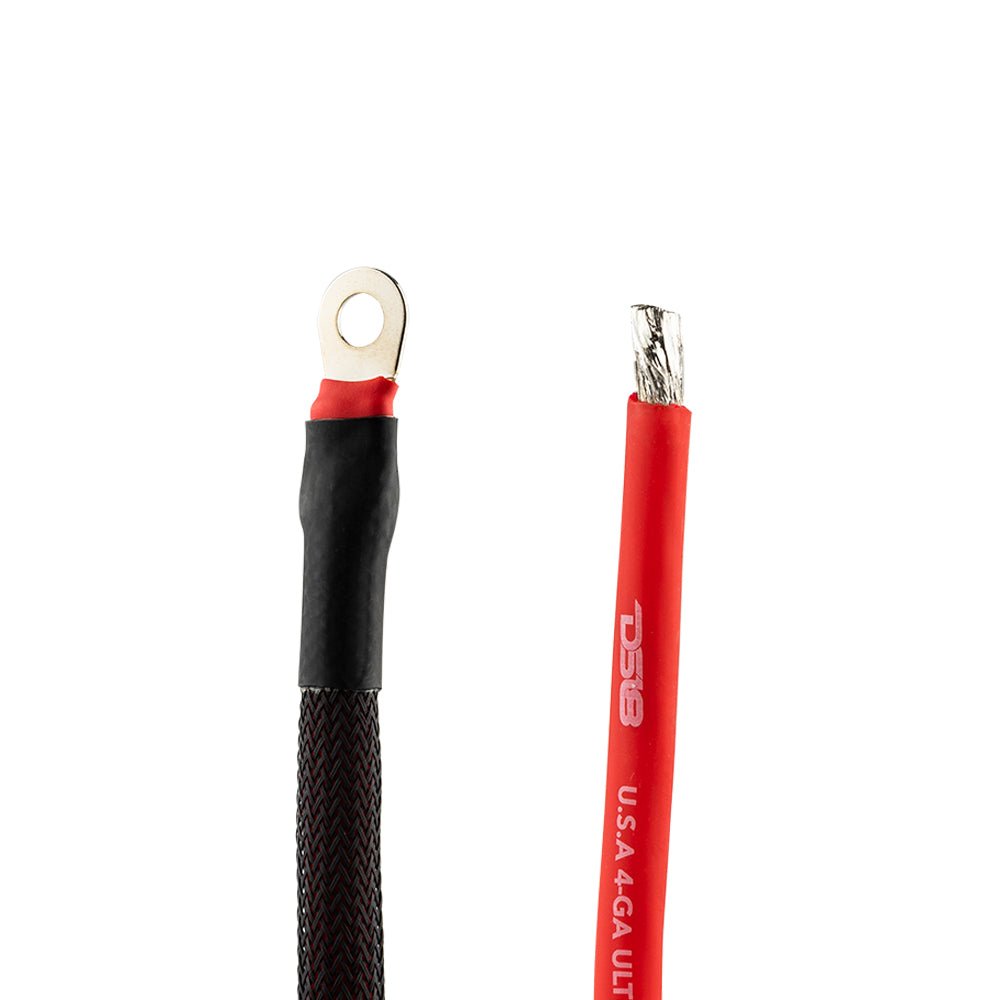

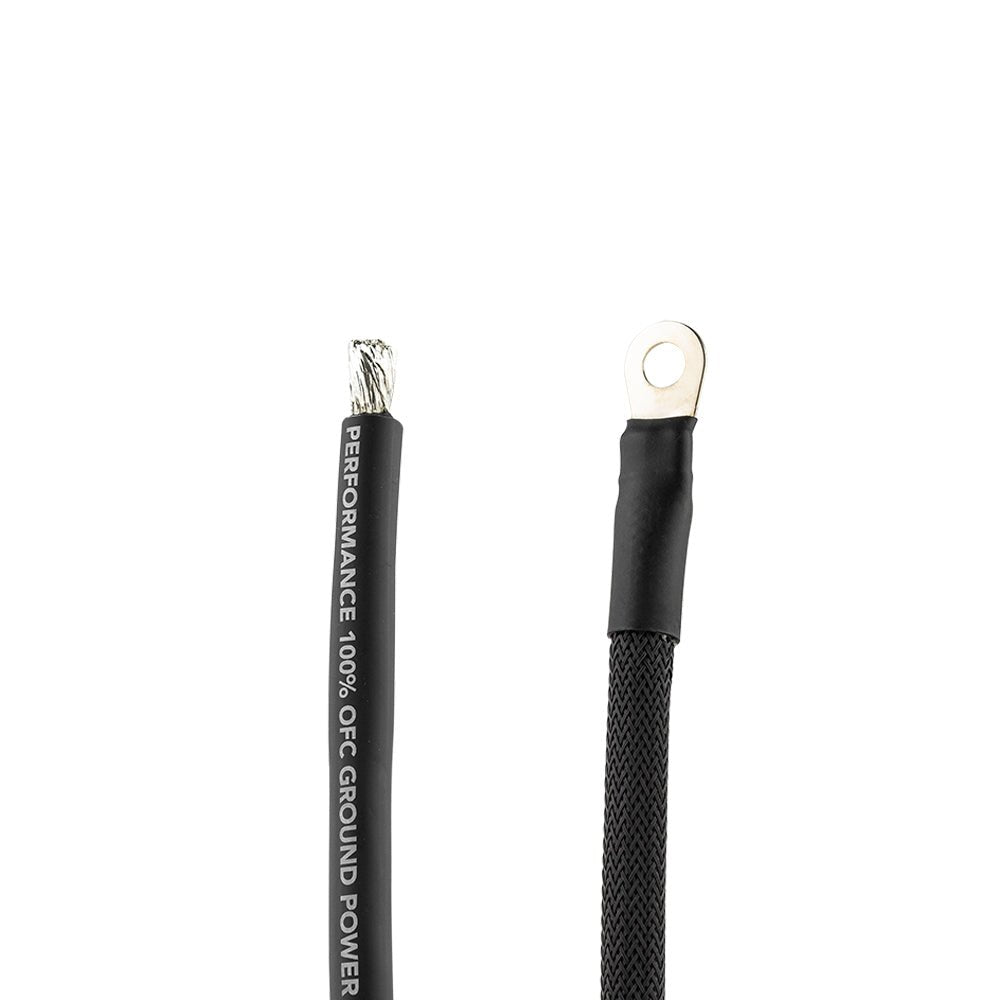

(6ft) 4AWG Red + (6ft) 4AWG Black OFC tinned Wire with protective braided sleeve, heat shrink and Ring terminals. |
|
Good for an amplifier up to 1680W*. |
|
(2ft) 18AWG Blue OFC tinned Remote Wiring with Fast plug connector. |
Setup Tips From Audio Sellerz
- Size power and ground wire for the amplifier's current draw and the length of the run, not just the wattage on the box.
- Fuse the main power wire as close to the battery as possible to protect the vehicle.
- Keep the ground short and on clean, bare metal.
