Car Audio Amp Kits Explained

Car Audio Amp Kits Explained: CCA vs OFC, Wire Size Guide, and How to Pick the Right Kit (Audio Sellerz)

Car Audio Amp Kits Explained: CCA vs OFC, Wire Size Guide, and How to Pick the Right Kit (Audio Sellerz)

The right car audio amp kit matches your amplifier, cable route and installation—not just a wattage number on the box. Start with the required wire size and conductor material, then compare cable lengths, signal connections, fuse hardware and the parts included.

This guide explains OFC vs CCA wire for car audio, including speaker wire, then helps you compare Sky High Car Audio amp kits in 8-gauge, 4-gauge and 1/0-gauge options. For current-draw calculations and detailed sizing charts, use our car audio wire gauge and amp wire size guide.

Sky High Car Audio amp kits — Sold by AudioSellerz.com.

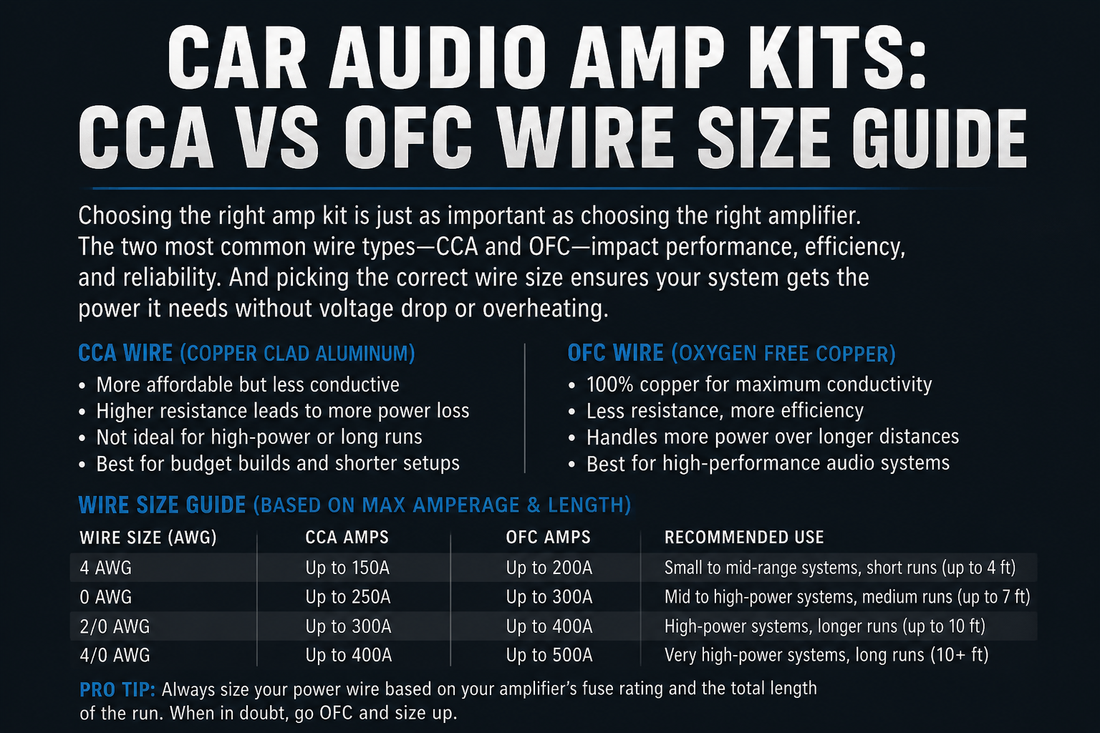

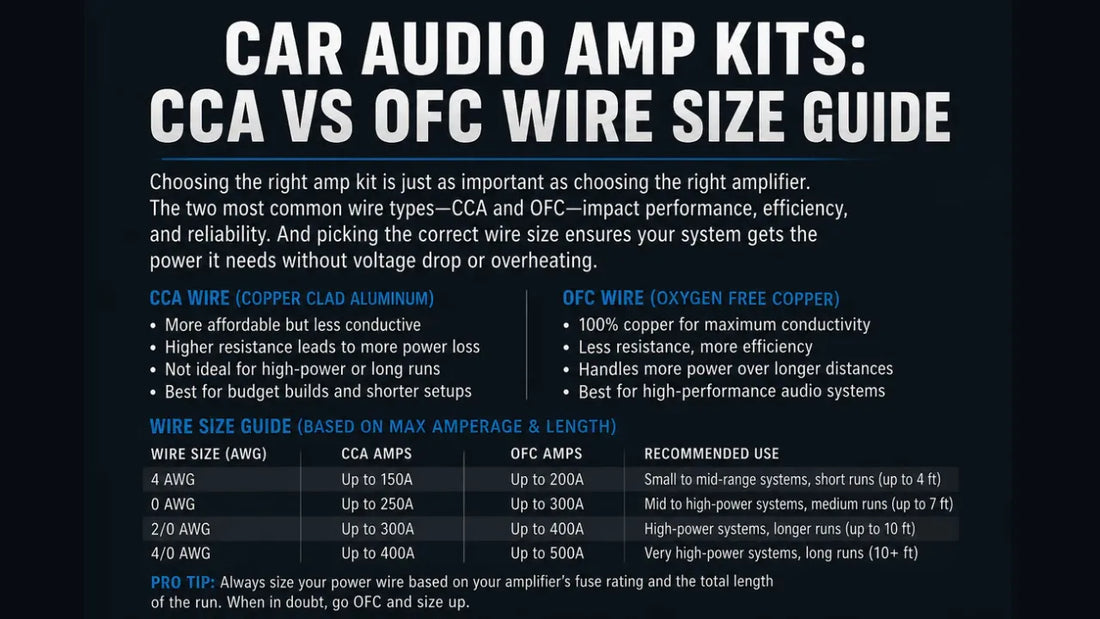

CCA vs OFC Wire: What Is the Difference?

OFC is oxygen-free copper; CCA is copper-clad aluminum. At the same conductor area, length and temperature, copper has lower electrical resistance. That makes material an important part of choosing both amplifier power cable and speaker wire.

What Is OFC Wire?

OFC wire uses an oxygen-free copper conductor rather than an aluminum core with a copper coating. In car audio, it is available as power wire, ground wire and speaker wire. The OFC label identifies the conductor material; it does not tell you the correct gauge, insulation rating or safe fuse size for your installation.

OFC Wire for Car Audio: When We Recommend It

At Audio Sellerz, we prefer correctly sized OFC for demanding amplifier feeds, longer cable runs and builds planned for more power later. Lower cable resistance helps limit voltage loss under load. It does not repair a poor ground, undersized terminal or failing battery.

Compare Sky High OFC amp kits for a packaged installation, or browse Sky High power, ground and speaker wire for individual cable options.

What Is CCA Wire?

CCA wire has an aluminum core with a copper outer layer. It usually costs less than a comparable copper cable, but its higher resistance must be considered when choosing the conductor size and run length.

CCA can suit a budget-conscious installation when the exact cable meets the equipment requirements. Compare the cable's actual specifications rather than assuming that every 4-gauge or 1/0-gauge product performs identically.

Can You Substitute the Same Gauge of CCA for OFC?

Not automatically. A copper-only sizing chart does not establish the capacity of the same nominal gauge of CCA. Check actual conductor area, resistance, temperature rating, cable length and recommended protection. Oversized cable construction can also make nominal-gauge comparisons misleading.

Our buying advice: choose suitable OFC when lower resistance is the priority. Choose CCA only when its verified specifications meet the installation requirements and the savings make sense for the build.

OFC vs CCA Speaker Wire

The material difference also applies to the wire between an amplifier and its speakers. At equal conductor area and length, OFC speaker wire has lower resistance than CCA. Cable length, speaker impedance and power determine how significant that resistance is in your installation.

CCA speaker wire can be suitable when sized for the job. For longer runs, lower-impedance loads or higher-current speaker circuits, compare copper options and calculate the required size rather than choosing by price alone. Changing material does not guarantee an audible improvement when the existing wiring already meets the requirements.

For a copper option, compare the Sky High OFC 12-Gauge Speaker Wire 100ft Spool. Match each run to the actual speaker load, distance and terminal size; 12 gauge is not a universal requirement for every speaker.

Keep the two circuits separate: amplifier power wire supplies the amplifier, while speaker wire carries its output. Use our car audio wire gauge guide for the detailed power-wire and speaker-wire sizing charts.

Start With the Right Sky High Wiring Option

Want copper power and ground wire? Compare Sky High OFC amp kits, particularly for longer runs, higher-current amplifiers and planned upgrades.

Working with a tighter budget? Compare the E-Series CCA kits below after checking that the selected cable meets your amplifier's requirements. CCA and OFC are not interchangeable at the same nominal gauge.

Need custom lengths or already own some installation parts? Browse Sky High power, ground and speaker wire instead of buying a kit that does not fit the job.

Shop all Sky High Car Audio amp kits

What Is a Car Audio Amp Kit?

An amplifier wiring kit packages the cable and installation hardware used to connect an aftermarket amplifier. Depending on the kit, it can include power wire, ground wire, RCA signal cable, remote turn-on wire, speaker wire, a fuse holder, a fuse and termination accessories.

An amp wiring kit does not include the amplifier or subwoofer. It also does not automatically include a vehicle-specific radio interface, enough speaker wire for every door, or distribution hardware for a second amplifier.

Compare Sky High OFC and E-Series Amp Kits

The table compares the listed main cable lengths for six Sky High options. Each kit's ground cable matches its power cable's nominal gauge and material. Measure the actual installation route before choosing; a supplied length is not a universal vehicle-fitment guarantee.

Sky High amplifier-kit power and ground cable comparison
Kit Main cable Power length Ground length
Sky High 8-Gauge OFC Amp Kit 8-gauge OFC 17 ft 3 ft
Sky High 4-Gauge OFC Amp Kit 4-gauge OFC 17 ft 3 ft
Sky High 1/0-Gauge OFC Amp Kit 1/0-gauge OFC 17 ft 3 ft
Sky High E-Series 8-Gauge CCA Amp Kit 8-gauge CCA 16 ft 2 ft
Sky High E-Series 4-Gauge CCA Amp Kit 4-gauge CCA 16 ft 2 ft
Sky High E-Series 1/0-Gauge CCA Amp Kit 1/0-gauge CCA 16 ft 2 ft

Open the product listing to review its color options, complete contents, price and availability. Do not replace an unavailable kit with smaller cable or a different conductor material unless the replacement meets the installation requirements.

What Comes With the Sky High Kits?

Sky High OFC Amp-Kit Contents

The OFC kits above list copper power and ground cable, speaker wire, RCA cable, remote wire, an ANL fuse holder and termination accessories. They provide a packaged starting point for an amplifier installation.

Before ordering, confirm the exact speaker-wire length and gauge, RCA length and channel count, supplied fuse and terminal hardware for the kit being shipped. Those details matter when planning a four-channel amplifier, a longer signal route or multiple speakers.

Sky High E-Series CCA Amp-Kit Contents

The listed E-Series kits include power and ground cables with a pre-installed copper lug and heat shrink, 18 feet of 16-gauge remote wire, and an 18-foot OFC RCA cable with 90-degree ends. The OFC description of the RCA cable does not make the main power and ground cables OFC; those are CCA.

The 8-gauge and 4-gauge E-Series kits list 20 feet of 14-gauge speaker wire. The 1/0 E-Series kit lists 20 feet of 12-gauge speaker wire. Their installation accessories include a fuse holder and fuse, zip ties, a rubber grommet and mounting screws.

The included fuse is a supplied component, not a universal recommendation for every amplifier or installation. Verify protection requirements before installation.

8 Gauge vs. 4 Gauge vs. 1/0 Gauge Amp Kits

8-Gauge Amp Kits

Consider 8 gauge for lower-current installations where the amplifier manufacturer and cable requirements support it. The Sky High 8-Gauge OFC Amp Kit is a copper option to evaluate. An amplifier's small physical size does not prove that 8 gauge is sufficient.

4-Gauge Amp Kits

Four gauge is larger than 8 gauge and can suit a range of speaker-amplifier and subwoofer-amplifier installations. Compare the Sky High 4-Gauge OFC Amp Kit when its capacity and supplied lengths match your system. Higher current or a longer route may call for larger cable.

0-Gauge / 1/0-Gauge Amp Kits

Zero gauge and 1/0 identify the same nominal AWG size. A Sky High 1/0 OFC Amp Kit is worth comparing when the design calls for a larger copper feed. It is not automatically sufficient for every high-power amplifier or multi-amplifier system.

Choose by actual requirements, not a universal wattage promise. Use our amp wire-size guide for current calculations and cable-length considerations.

Check These Details Before Buying an Amp Kit

Amplifier requirements: identify the exact model, intended speaker load, recommended conductor size, input-terminal size and external fuse requirements. Use realistic RMS specifications rather than peak-power advertising.

Cable route: measure around the engine bay, through the firewall and along the actual interior route. Include a suitable ground location and reasonable service allowance. A straight-line measurement can underestimate the cable needed.

Signal and speaker connections: count the required RCA channels and measure each speaker run. A kit with one signal cable or a short speaker-wire supply may need additional parts.

Future changes: include a planned second amplifier in the design now. Buying a larger kit only helps when the fuse arrangement, distribution and return path also support the future system.

Single Amplifier, Four-Channel Amp or Two Amplifiers?

One Subwoofer Amplifier

Confirm the main power and ground requirements, the signal connection and the speaker wire between the amplifier and enclosure. The subwoofer's diameter does not determine the required amplifier power-wire gauge.

A Four-Channel Speaker Amplifier

Check how many independent signal channels the amplifier needs and whether you want separate front/rear control. You may need another RCA pair or a four-channel interconnect, plus more speaker wire than one kit supplies. Compare car audio RCA cables and Sky High speaker wire against the actual layout.

Two or More Amplifiers

Size a shared main feed for the combined demand, then size and protect each branch appropriately. A standard single-amplifier kit does not automatically supply the distribution blocks, additional ground connections, fuses or signal cables needed. Use a planned distribution layout rather than casually splitting an existing power cable.

Keeping the Factory Radio? Check the Signal Connection

An RCA cable does not convert a factory radio's speaker-level output by itself. Depending on the vehicle and amplifier, you may need compatible high-level inputs, a line output converter or a vehicle-specific integration interface.

Verify the factory system before ordering, particularly when it already has an amplifier. Browse line output converters only after confirming the required signal levels and features. The amp wiring kit handles a different part of the installation.

Fuse Protection, Grounding and Safe Routing Still Matter

Protect the battery-fed power cable with appropriate overcurrent protection near its source. Select the fuse and holder for the actual cable, installation and amplifier requirements. An included fuse is not proof that it is the right value for every system, and installing a larger fuse does not increase the cable's capacity.

Use a suitable ground connection, compatible terminals and secure crimps. Protect cable through metal openings with an appropriate grommet, and keep it away from exhaust heat, moving parts, sharp edges and seat tracks.

Review our wire-gauge and fuse guide and amplifier grounding guide. High-current vehicle wiring can cause burns, fire or equipment damage if installed incorrectly. Follow the vehicle's power-disconnection procedure and use a qualified installer when needed.

Do You Need a Big 3 Kit Too?

An amp kit connects the amplifier to its electrical supply and signal. A Big 3 kit upgrades the vehicle's main charging and grounding paths. One does not replace the other.

Compare Sky High Big 3 kits when planning that separate upgrade, and watch our video Talking About Sky High Big 3 Kits at AudioSellerz for more on the kits.

Neither kit creates additional alternator output or repairs a failing battery. When an amplifier shuts down or voltage falls excessively, diagnose the cause before buying more electrical parts. Our amplifier protect-mode guide explains common checks.

Car Audio Amp-Kit Questions

Can I Use a Sky High Kit With Another Brand of Amplifier?

Yes, when its conductors, lengths, terminals, signal connections and protection meet that amplifier's requirements. The wiring and amplifier brands do not need to match.

What Amp Kit Do I Need for a 1,000-Watt or 3,000-Watt Amp?

Start with the exact amplifier, its rated RMS output and installation instructions. Current demand, cable length and OFC or CCA construction determine the suitable wiring—not the advertised wattage alone. Some systems need a custom wiring plan beyond a packaged kit.

Is the E-Series Kit OFC Because It Includes an OFC RCA Cable?

No. The listed E-Series kits use CCA for the main power and ground cables. Their OFC RCA cable is a separate signal component.

Will a Bigger Amp Kit Make My System Louder?

Wire does not create amplifier power. Correcting an undersized cable or poor connection can reduce losses, but the result depends on the original problem and the rest of the system.

Should I Buy a Complete Kit or Individual Wire?

A kit is convenient when its included parts and lengths fit. Individual wire can be a better choice for custom routes, multiple amplifiers or installations where you already own suitable signal cables, terminals and fuse hardware.

Choose Your Sky High Amp Kit With Audio Sellerz

Before ordering, send us your amplifier model, vehicle, battery location, approximate cable route and future upgrade plans through the website chat on AudioSellerz.com.

We can help compare the kit contents with your installation and identify additional wire, signal connections or distribution parts before the vehicle is taken apart.

Compare Sky High Car Audio amp kits

Planning the rest of the system? Explore the full Sky High Car Audio collection at Audio Sellerz or read the complete Sky High Car Audio guide.
