DS18

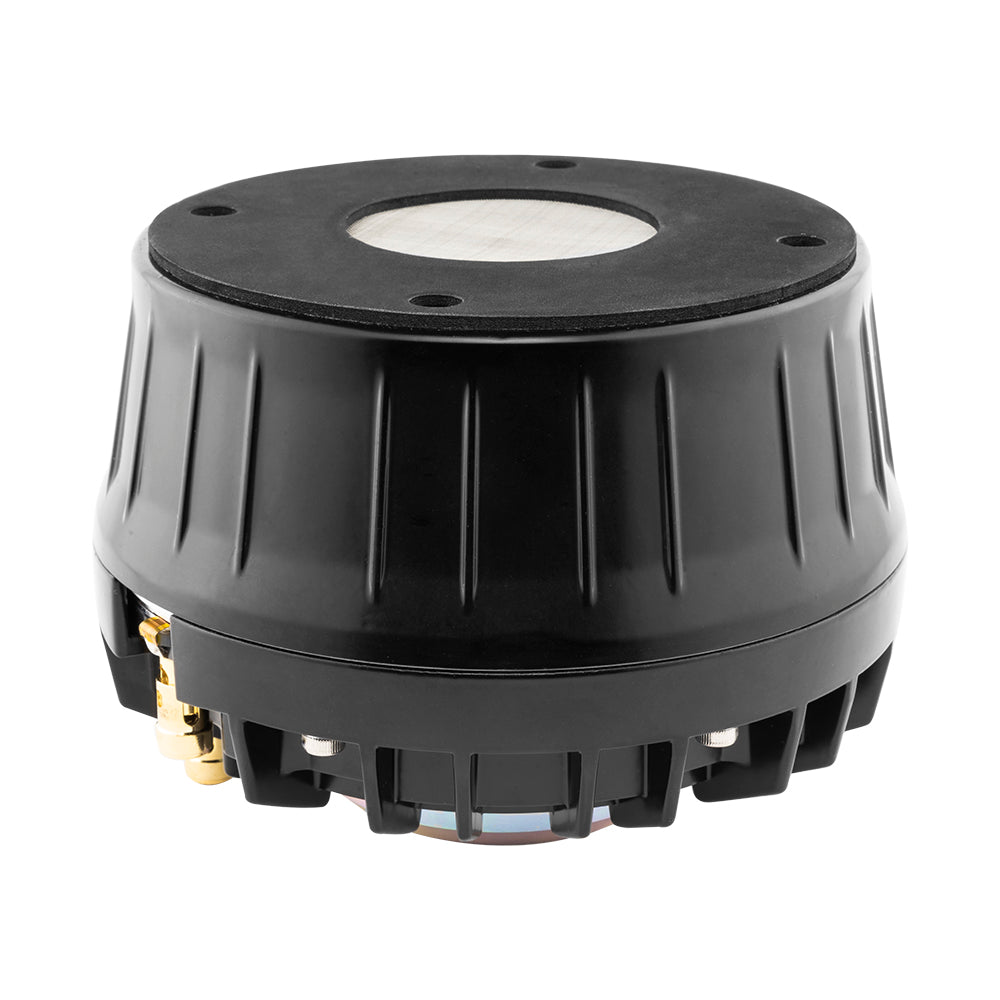

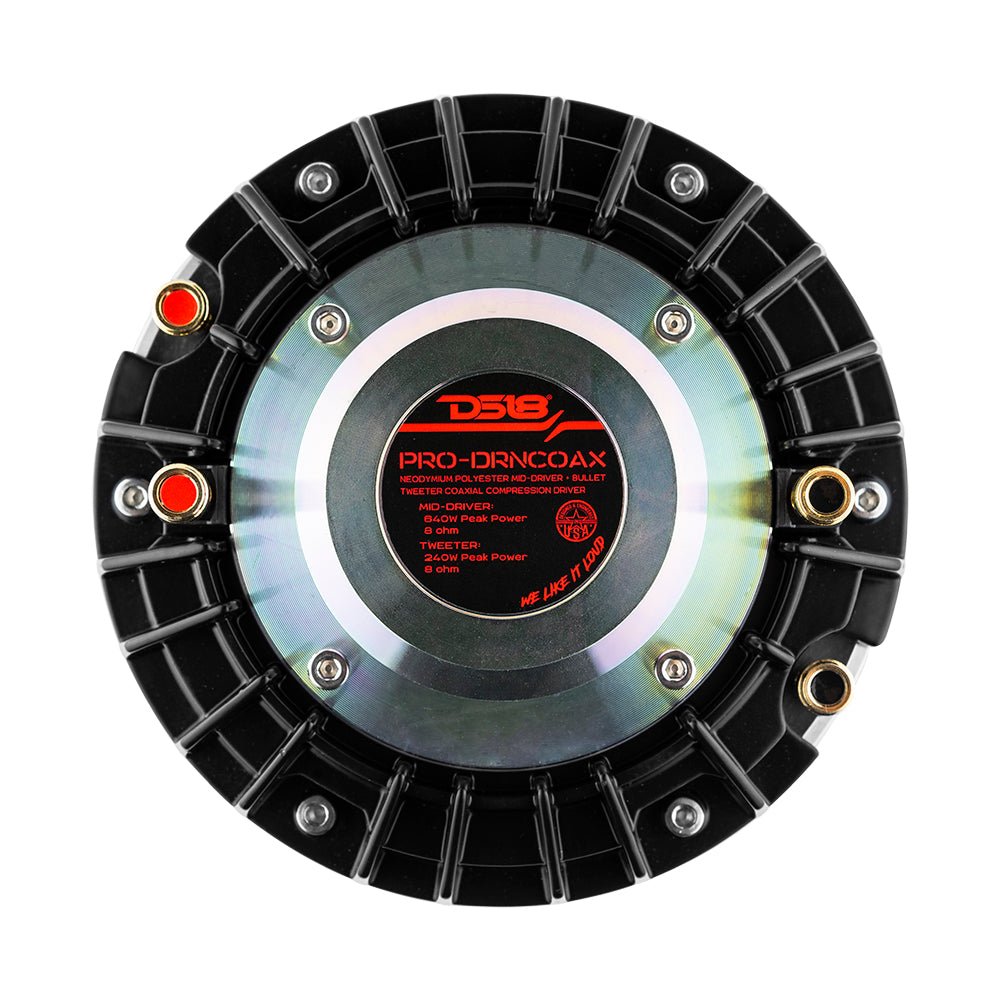

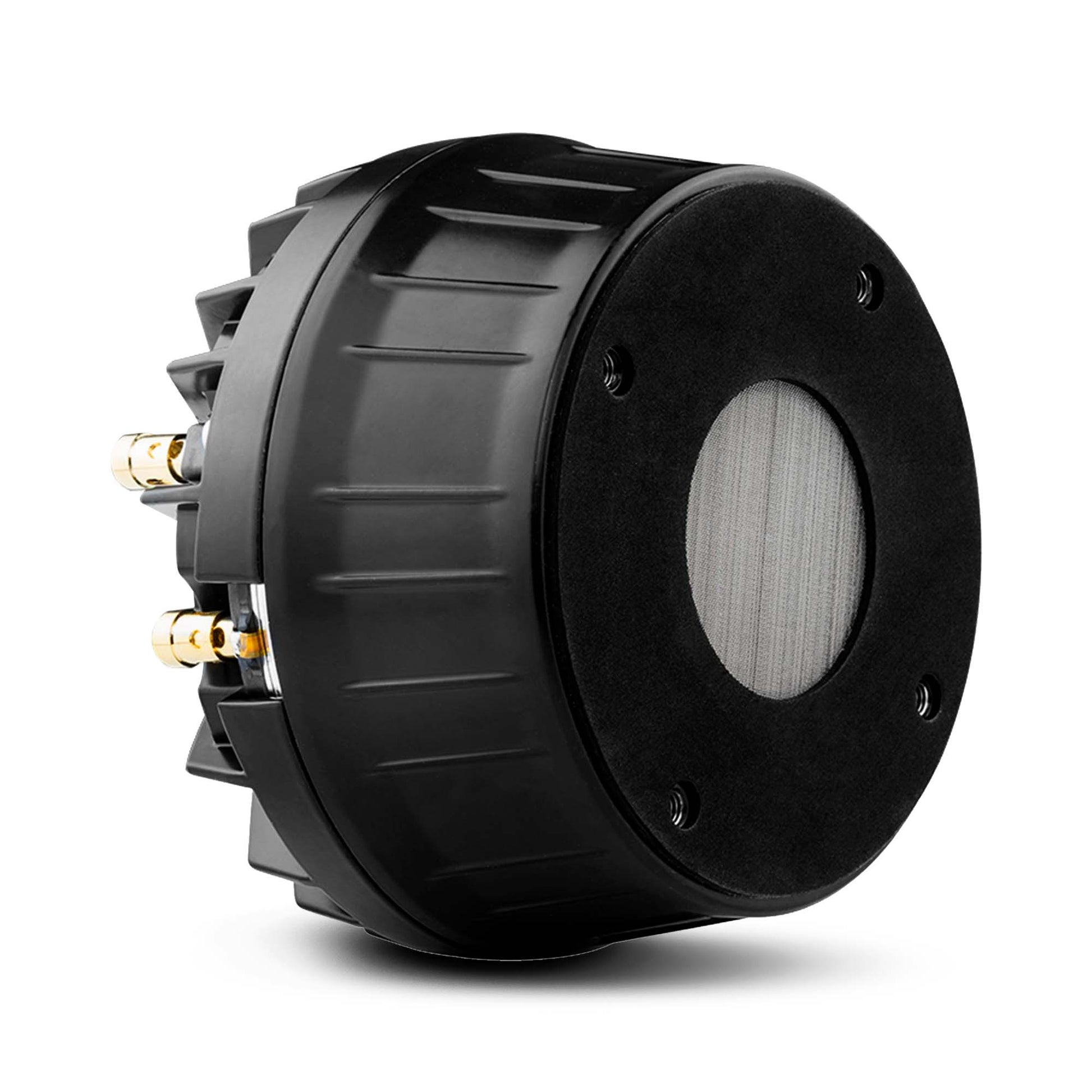

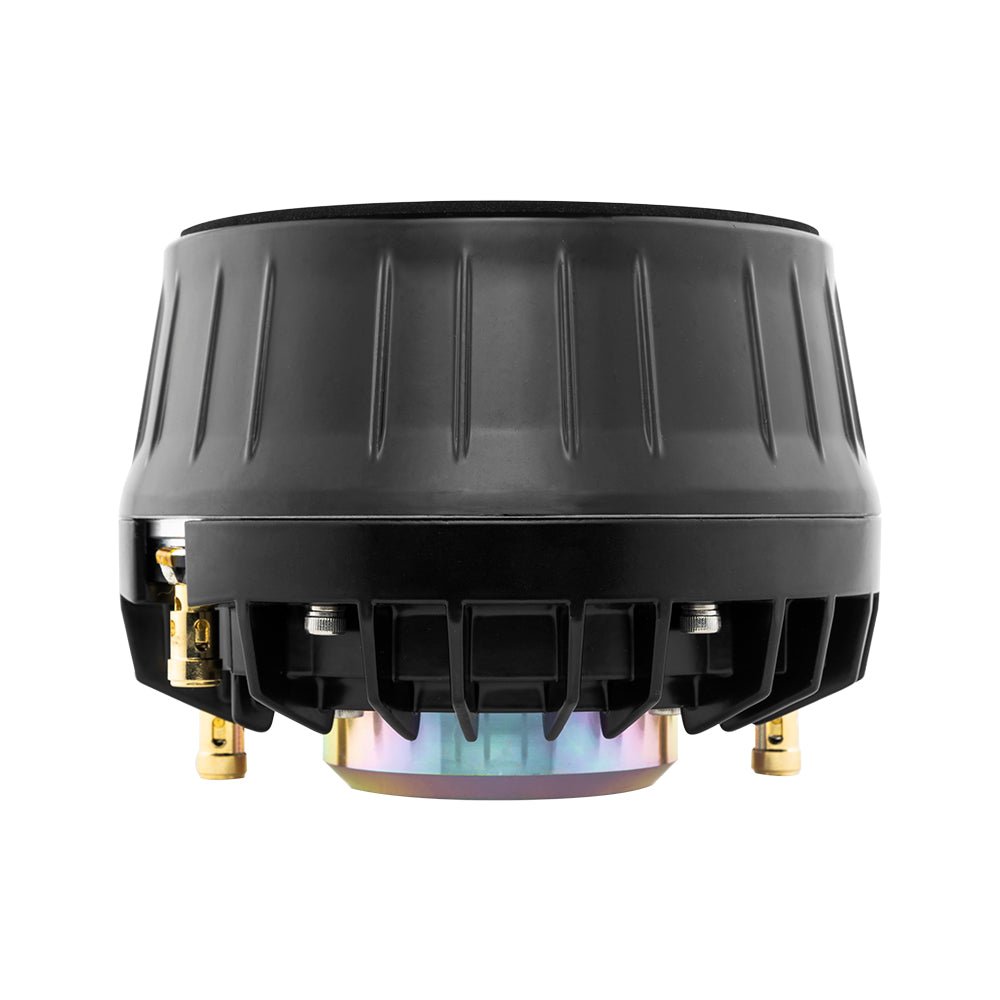

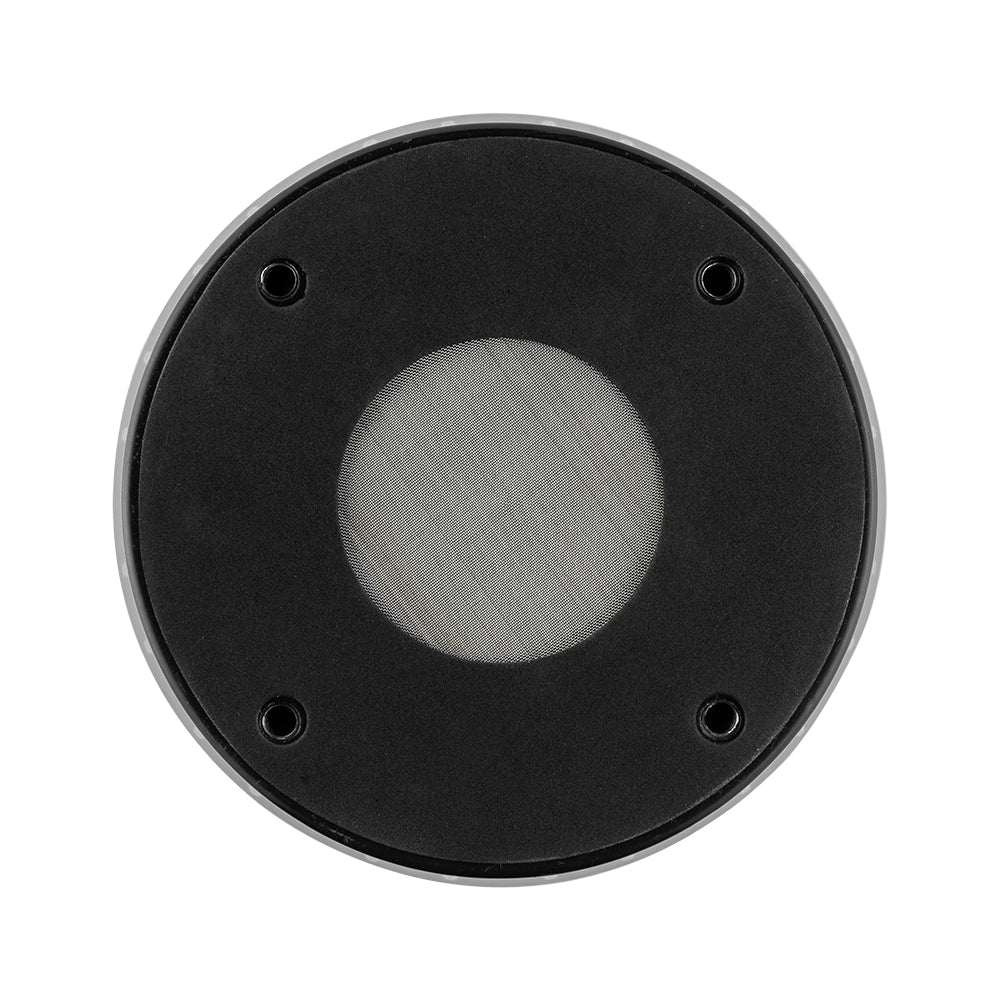

2" Throat Bolt on Nedodymium Driver 320 Watts with Dual Polyester 1 x 3.5" Mid-Range + 1.75" High Range 8-Ohm

2" Throat Bolt on Nedodymium Driver 320 Watts with Dual Polyester 1 x 3.5" Mid-Range + 1.75" High Range 8-Ohm

$599.95 USD
$599.95 USD
Sale Sold out
Shipping calculated at checkout.

DS18 PRO-DRNCOAX 2" Throat Bolt On Neodymium Compression Driver Dual Polyester 1 x 3.5" Mid Range VC 640 Watts + 1 x 1.75" High Range VC 240 Watts 118Db 8 Ohm

Bringing new and innovative products is what DS18 is all about!

Our new coax driver will be sure to fill in all your high end frequencies without slipping one beat!

This unique neodymium driver is 2 way. The midrange driver plays 315Hz - 20KHz, while the high range tweeters fills out frequencies from 4 KHz to 20KHz for added punch!

Highlights

  • 2 way driver featuring a 160w AES driver and 60w AES tweeter.
  • Separate inputs for both speakers to give you more power and mounting options.
  • Gold plated terminals for the highest conductivity.
  • Slay the highs with this ultra loud 2 way coaxial driver.



Technical Details
Download PRO-DRNCOAX Product Manual

Throat Diameter 2"/50.8mm
Installation Type Bolt-on
Sensitivity (1w/1m) 118dB
Frequency Response 315Hz - 20KHz
Mid-Driver Specifications
Peak Power Handling 640W
Program Power Handling 320W
AES Power Handling 160W
Frequency Response 315Hz - 20KHz
Recommended Band-Pass Crossover 630Hz - 5KHz
Tweeter Specifications
Peak Power Handling 240W
Program Power Handling 120W
AES Power Handling 60W
Frequency Response 4KHz - 20KHz
Recommended Hi-Pass Crossover 5KHz
Motor
Tweeter Voice Coil Diameter 1.75"/44.4mm
Mid-Drive Voice Coil Diameter 3.5"/90mm
Voice Coil Former Material Kapton
Winding Material CCAW
Diaphragm Material Polyester
Magnet Material Neodymium
Measurements
Overall Diameter 5.5"/140 mm
Overall Depth 3.9"/101 mm
Bolt Pattern M6 - 4"/102mm
