DS18
ZXI 6.5" 2-Way Coaxial Speakers with Glass Fiber Cone | 80W RMS 4-Ohm
ZXI 6.5" 2-Way Coaxial Speakers with Glass Fiber Cone | 80W RMS 4-Ohm
Couldn't load pickup availability
ZXI 6.5" 2-Way Coaxial Speakers with Glass Fiber Cone | 80W RMS 4-Ohm
Sold by AudioSellerz.com
The DS18 ZXI-654 is a 6.5" coaxial speaker set from the DS18 ZXI line rated at 80W RMS with a 4 ohm design. It is built for clean, loud midrange and highs that cut through road noise.
DS18 Product Details
DS18 ZXI-654 Glass Fiber Cone 6.5" 2-Way Coaxial Car Speaker 240 Watts 4-Ohm
DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This 2-way 6.5" takes 80w RMS and 240w Max and with a 89 dB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. These speakers are an amazing choice for your average every day to extreme audiophile!
Highlights
- Highly durable and extremely loud design built for the average to extreme audio systems.
- Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.
- 2 - way design will bring a full range of frequencies to your ears and with great sound quality.
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6.5” |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 80 Watts |
| MAX Power Handling | 240 Watts |
| Sensitivity (1w/1m) | 89dB |
| Frequency Response | 40Hz - 20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Speaker Type | 2-Way |
| MOTOR | |
| Voice Coil Diameter | 1” / 25.5mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISV |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 14.46 oz / 410g |
| TWEETER | |
| Nominal Diameter | 1" / 25.4mm |
| Voice Coil Diameter | 0.8" / o20.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISVM |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 0.3 oz / 8.5g |
| Equivalent Volume | 10.84L |
| Excursion (one way) | 2.7mm |
| Free Air Resonance | 64Hz |
| Mechanical Factor | 9.44 |
| Electrical Factor | 0.79 |
| Total Factor | 0.73 |
| Mechanical Mass | 13.72g |
| Mechanical Compliance | 444mm/N |
| BL Factor | 5.1 |
| Voice Coil Inductance | 228mH |
| Cone Area | 131cm2 |
| DC Resistance | 3.5 ohm |
| Mechanical Mass w/o air | 12g |

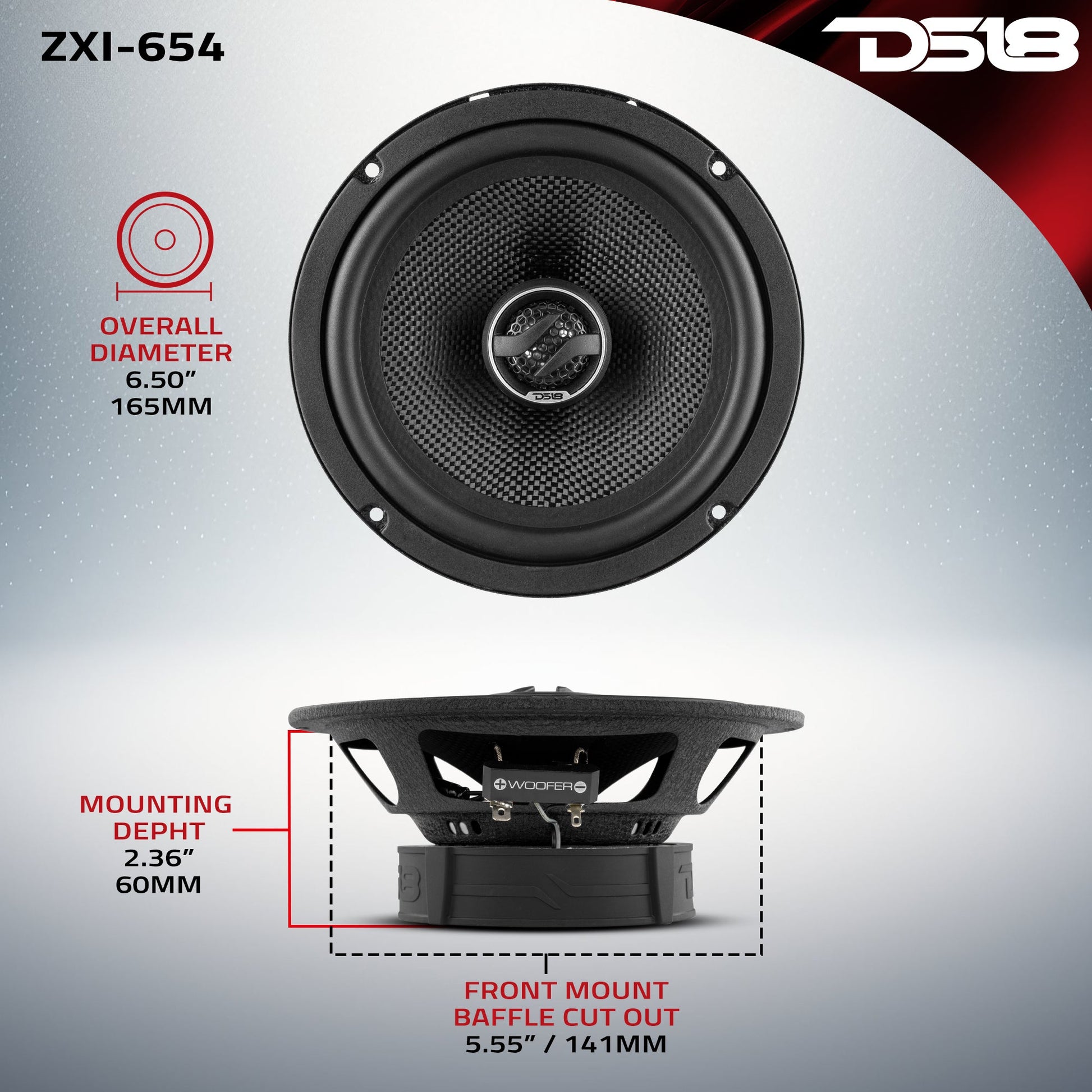

| MEASUREMENTS | |
| Overall Diameter | 6.50” / 165mm |
| Overall Depth | 2.83” / 72mm |
| Front Mount Baffle Cutout | 5.55” / 141mm |
| Mounting Depth | 2.36” / 60mm |
| Motor Diameter | 3.70” / 94mm |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 80W RMS at 4 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Check the size and mounting depth against your vehicle before ordering. Some vehicles need speaker adapters or harnesses.
