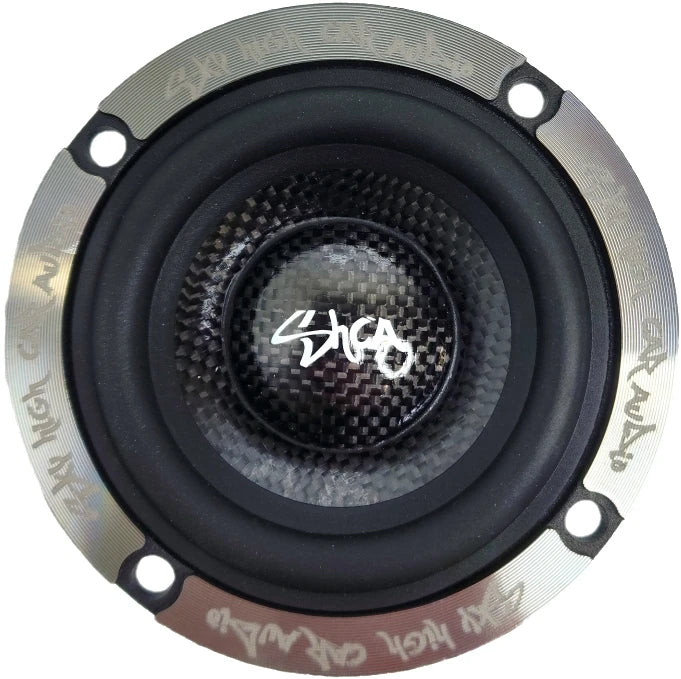

Sky High Car Audio SH-25NP 2.5" Neo Midrange Speaker Pair – 80W RMS, 4 Ohm

Sky High Car Audio SH-25NP 2.5" Neo Midrange Speaker Pair – 80W RMS, 4 Ohm

Sold by AudioSellerz.com

The Sky High Car Audio SH-25NP 2.5" neodymium midrange speaker pair is designed for customers who want clearer vocals, stronger musical detail and flexible mounting options without trying to fit a large speaker into a small location.

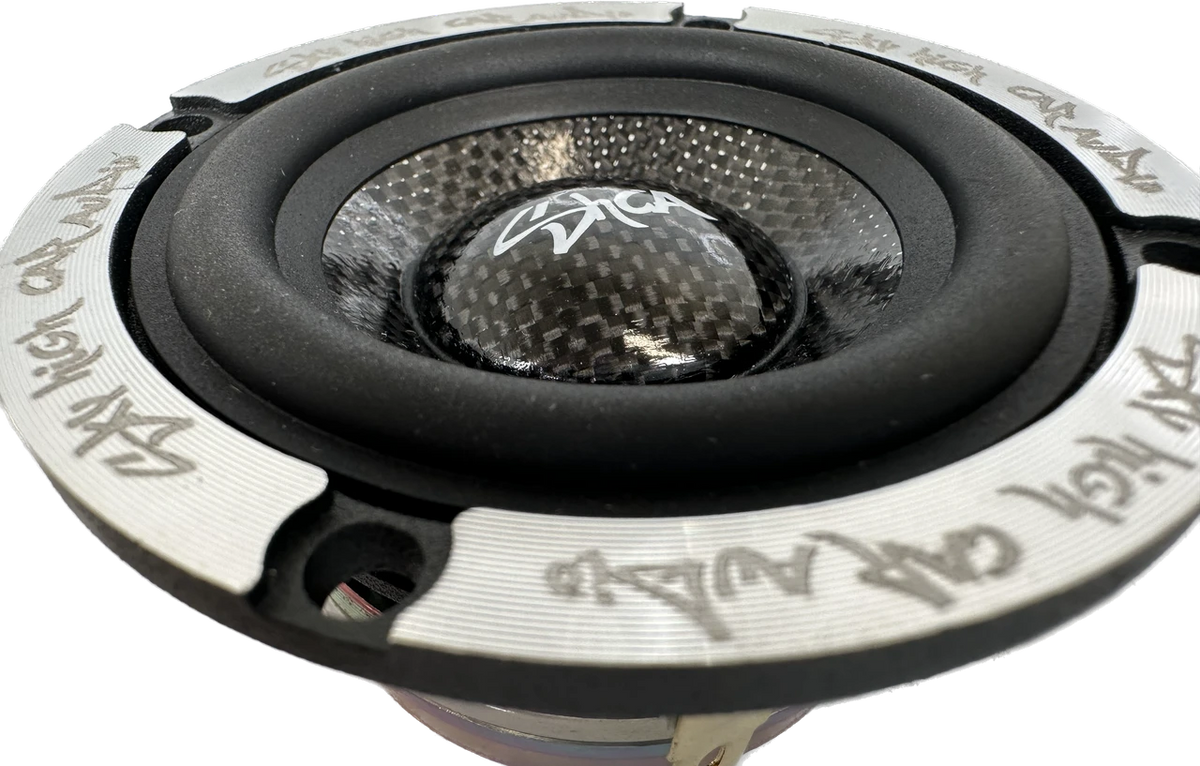

Its compact size works well in dashboards, A-pillars, custom speaker pods and multi-speaker front-stage systems. Each speaker combines a lightweight neodymium motor with a rigid carbon-fiber-and-resin cone to help reproduce midrange frequencies with clarity and control.

These are dedicated midrange speakers—not subwoofers or low-frequency midbass drivers. Sky High recommends a 200 Hz high-pass crossover to help protect the speakers from frequencies below their intended operating range.

Compact Midrange Speakers for Custom Systems

The SH-25NP is part of Sky High Car Audio’s modular component-speaker system. Its small footprint gives builders more freedom when designing three-way front stages, dashboard upgrades, A-pillar systems and custom pods.

• Compact 2.5" midrange speaker design

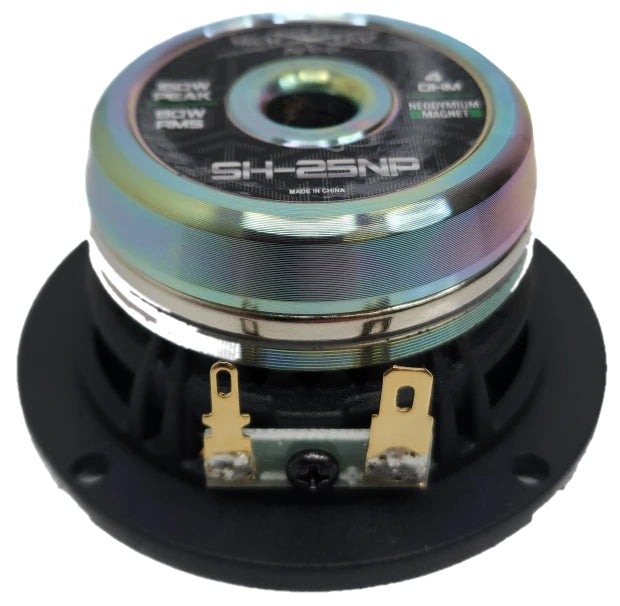

• Neodymium magnets reduce motor size and weight
• Carbon-fiber-and-resin cones provide a rigid playing surface
• Rubber surrounds support controlled cone movement

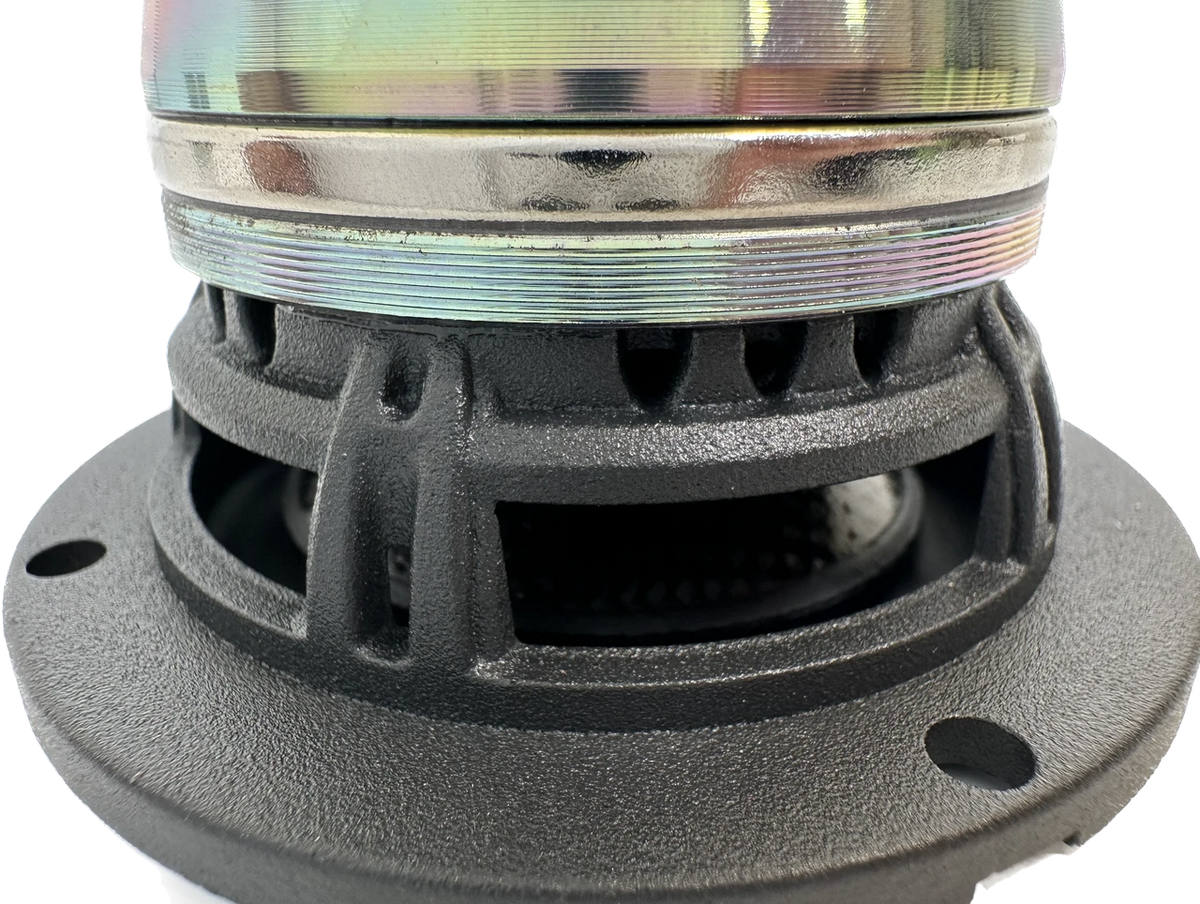

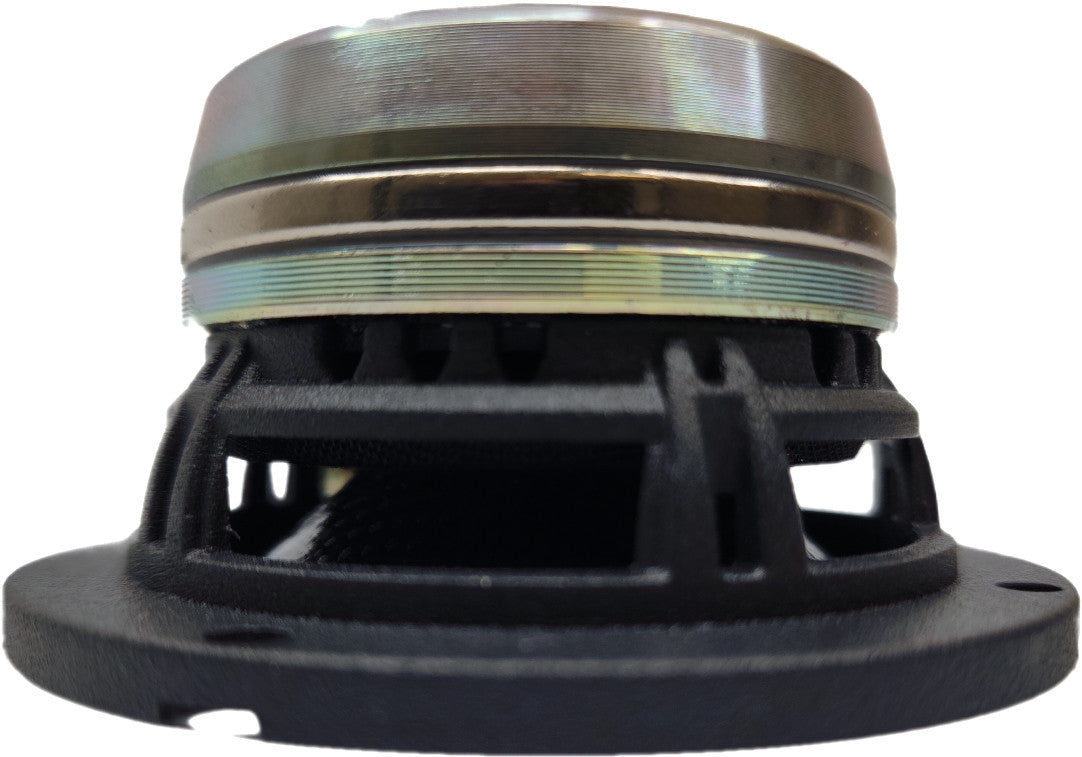

• Black aluminum baskets provide a strong mounting platform

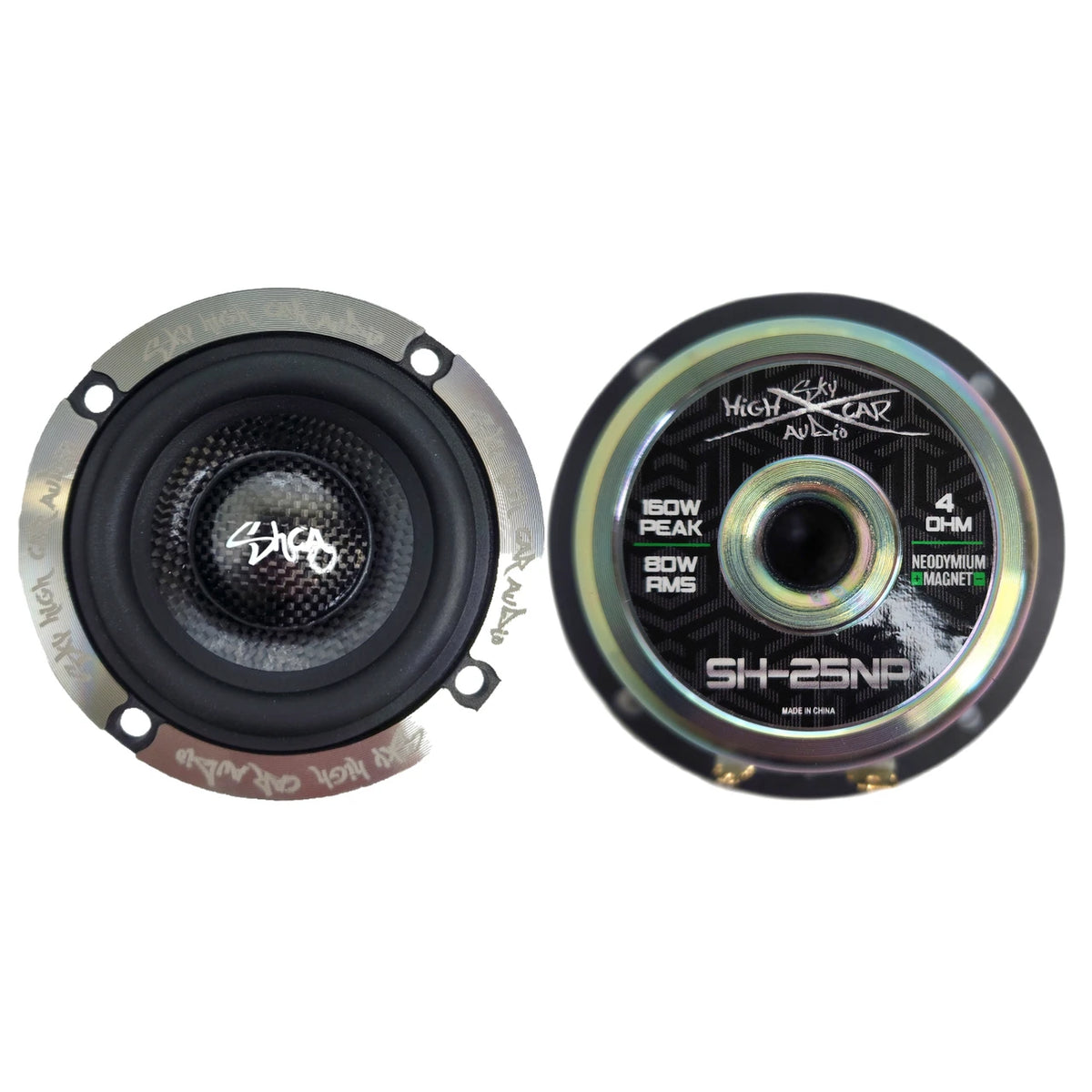

• Sold as a matched pair

Browse more 2.5" car speakers, compare additional midrange speakers, or explore the complete Sky High Car Audio collection.

Power Handling and Amplifier Matching

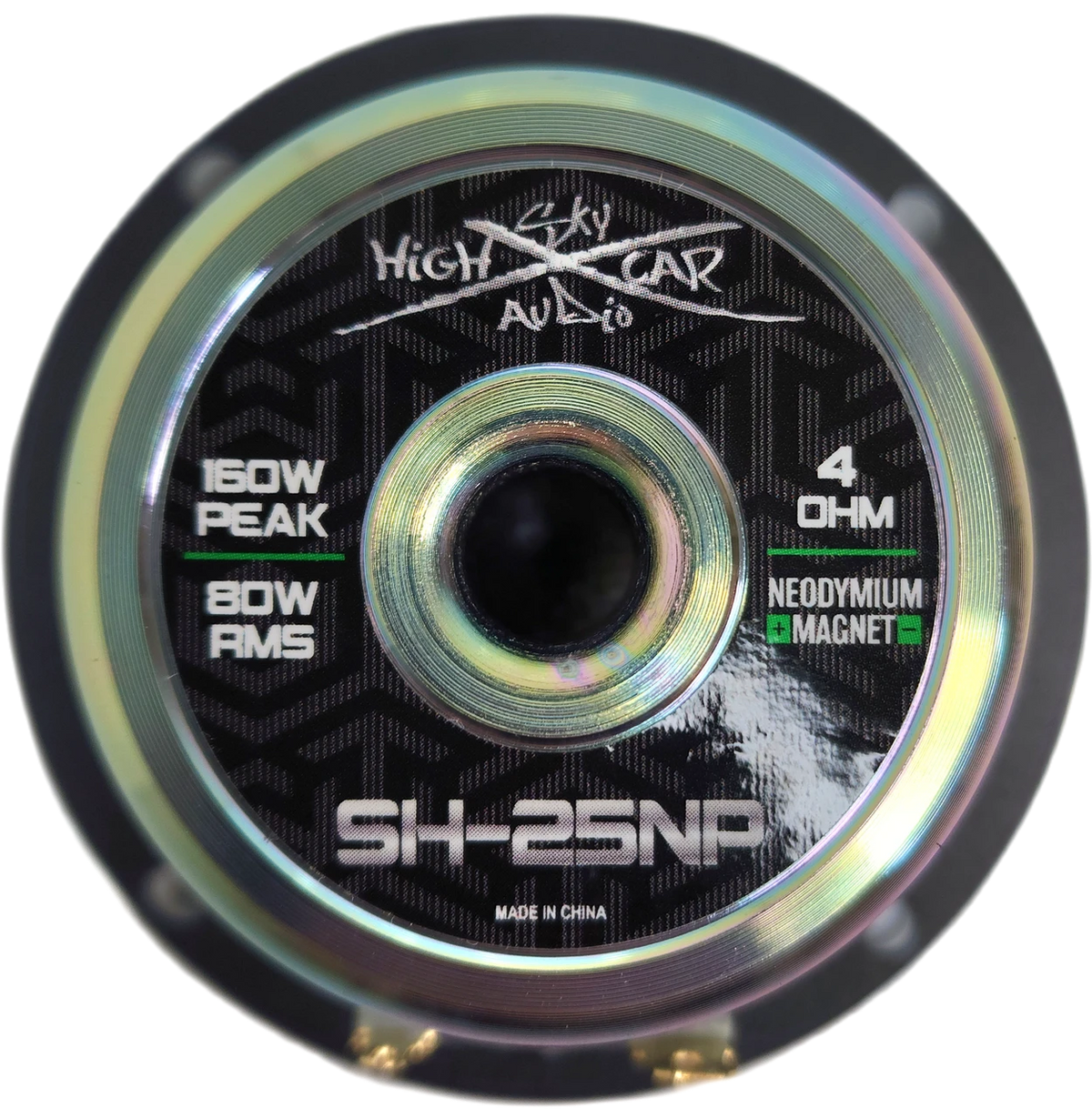

Each SH-25NP speaker has a nominal 4-ohm impedance and is rated for 80 watts RMS and 160 watts maximum power handling. Amplifier output should be matched to the number of speakers being used and the final wired impedance presented to each channel.

Do not select an amplifier using maximum-power numbers alone. Use the RMS rating, final impedance, crossover settings and number of speakers connected to each channel when planning the system.

Shop our 4-channel car audio amplifiers and power and speaker wire to finish your installation.

Fitment Information

A speaker’s advertised size does not guarantee that it will fit every factory location or aftermarket pod. Before ordering, compare the following dimensions with the available opening, mounting depth and surrounding clearance in your vehicle:

• Overall diameter: 3.15" / 80 mm
• Overall depth: 1.53" / 39 mm
• Front-mount baffle cutout: 2.5" / 63 mm
• Mounting depth: 1.38" / 35 mm
• Motor diameter: 2.16" / 55 mm

Factory installations may require mounting adapters, speaker brackets, wiring adapters or modification. Check the vehicle carefully before removing or modifying factory panels.

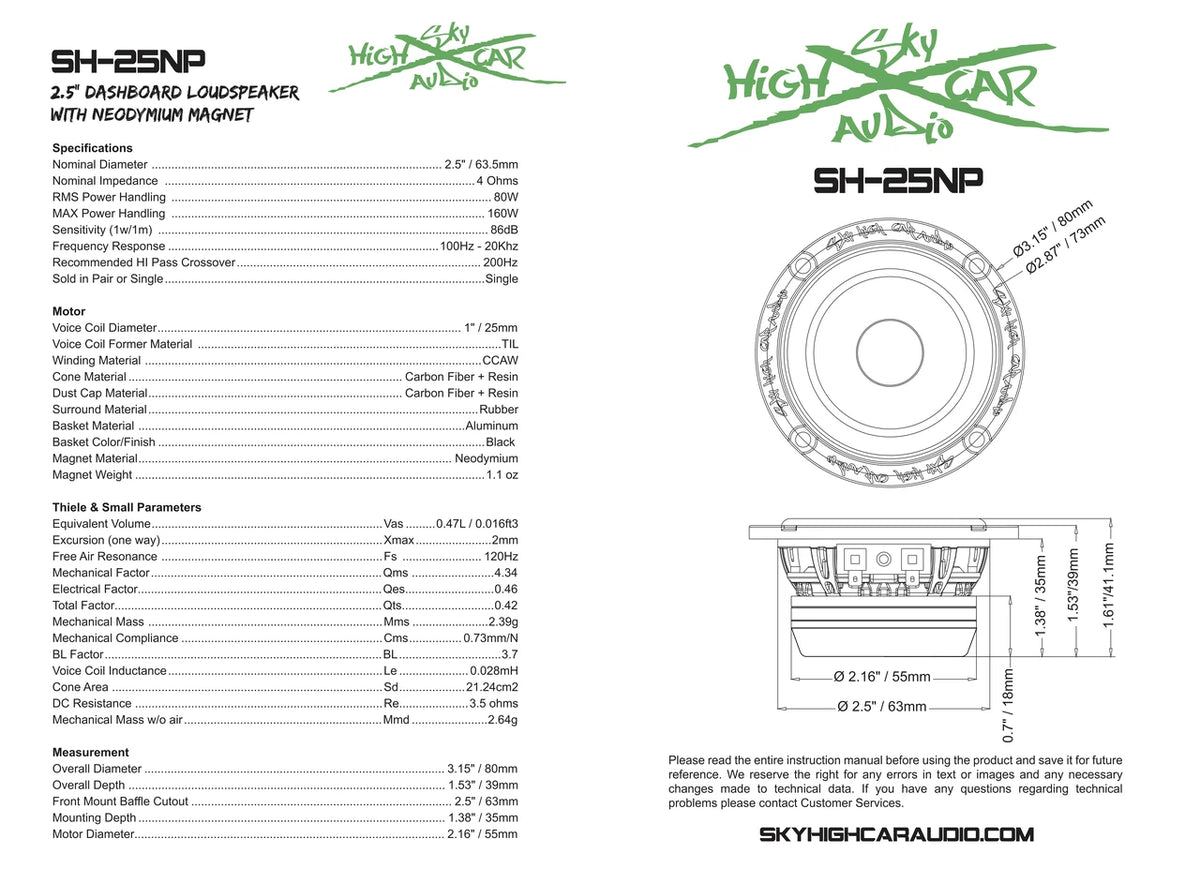

SH-25NP Specifications

• Speaker type: Midrange loudspeaker
• Nominal diameter: 2.5" / 63.5 mm
• Nominal impedance: 4 ohm per speaker
• RMS power handling: 80 watts per speaker
• Maximum power handling: 160 watts per speaker
• Sensitivity: 86 dB at 1 watt/1 meter
• Frequency response: 100 Hz–20 kHz
• Recommended high-pass crossover: 200 Hz
• Voice-coil diameter: 1" / 25 mm
• Voice-coil winding: CCAW
• Cone material: Carbon fiber and resin
• Dust-cap material: Carbon fiber and resin
• Surround material: Rubber
• Basket material: Aluminum
• Basket finish: Black
• Magnet material: Neodymium
• Magnet weight: 1.1 ounces
• Quantity: Two speakers

Thiele and Small Parameters

• Vas: 0.47 liter / 0.016 cubic foot
• Xmax: 2 mm one way
• Fs: 120 Hz
• Qms: 4.34
• Qes: 0.46
• Qts: 0.42
• Mms: 2.39 grams
• Cms: 0.73 mm/N
• BL: 3.7
• Le: 0.028 mH
• Sd: 21.24 square centimeters
• Re: 3.5 ohm
• Mmd: 2.64 grams

Installation and Tuning Recommendations

Use the recommended high-pass crossover as a starting point and adjust the system carefully based on speaker placement, amplifier power and listening goals. Avoid excessive gain, bass boost or low-frequency content that can push the small drivers beyond their intended operating range.

For help setting crossovers and balancing your front stage, read our car audio speaker tuning guide and our guide explaining the differences between full-range, midrange, midbass and tweeter speakers.

Manufacturer Warranty

Sky High Car Audio provides a one-year warranty covering qualifying manufacturing defects. Damage caused by misuse, improper installation, modification, accidents, overpowering or incorrect tuning is not covered.
