PRO 8" Neodymium Mid-Range Loudspeaker 400 Watts Rms 4-Ohm
PRO 8" Neodymium Mid-Range Loudspeaker 400 Watts Rms 4-Ohm
Couldn't load pickup availability
PRO 8" Neodymium Mid-Range Loudspeaker 400 Watts Rms 4-Ohm
Sold by AudioSellerz.com

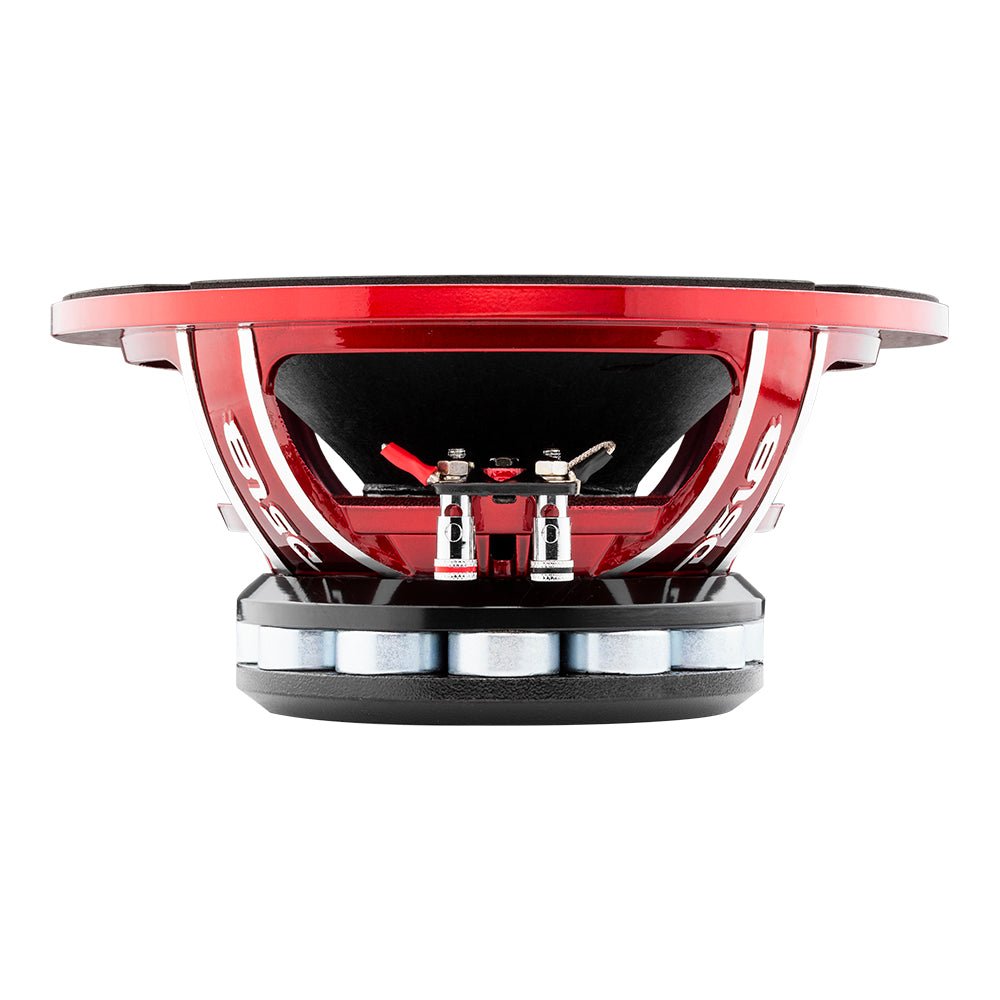

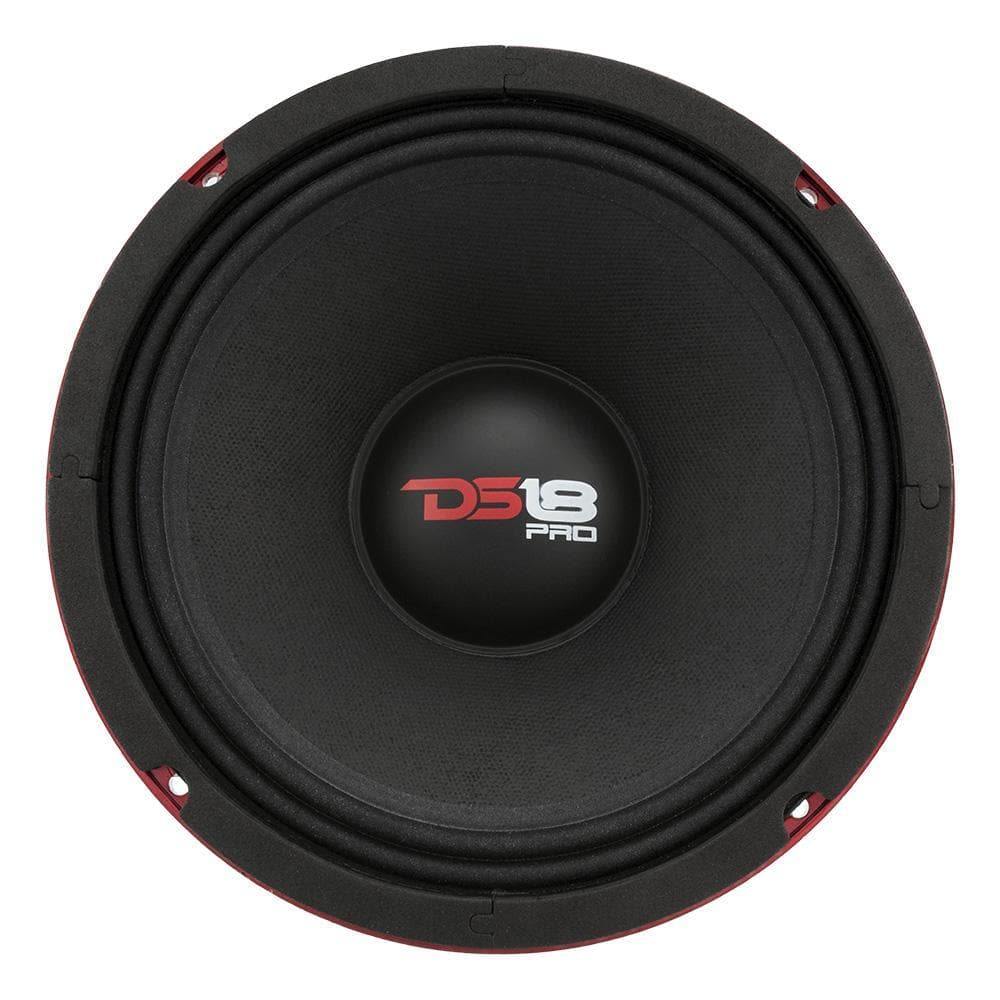

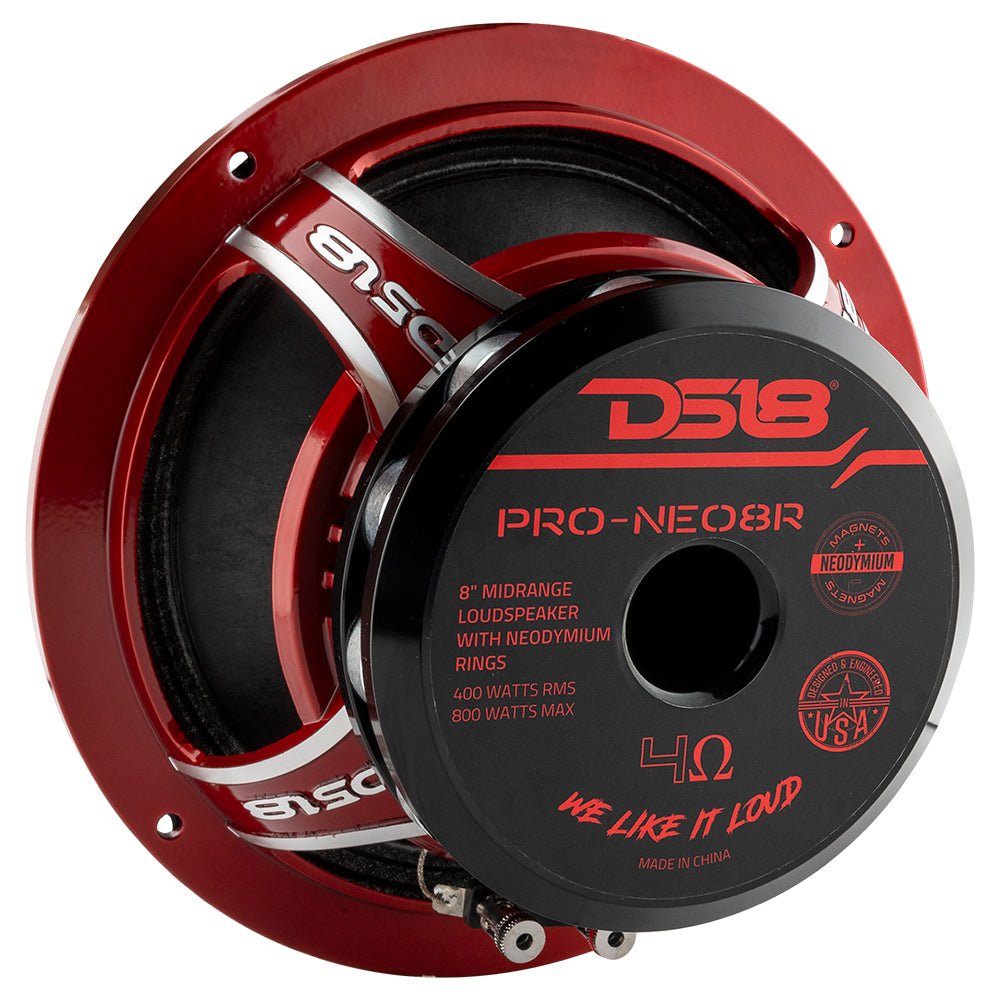

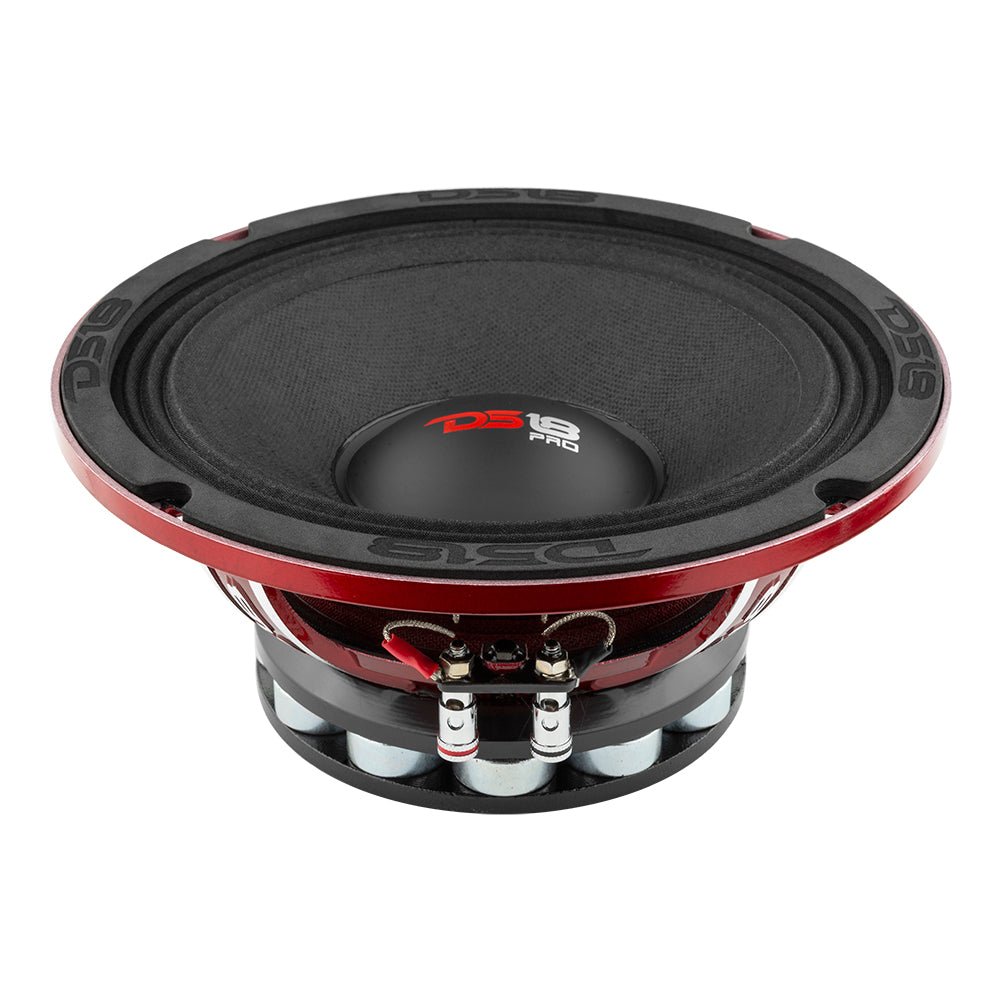

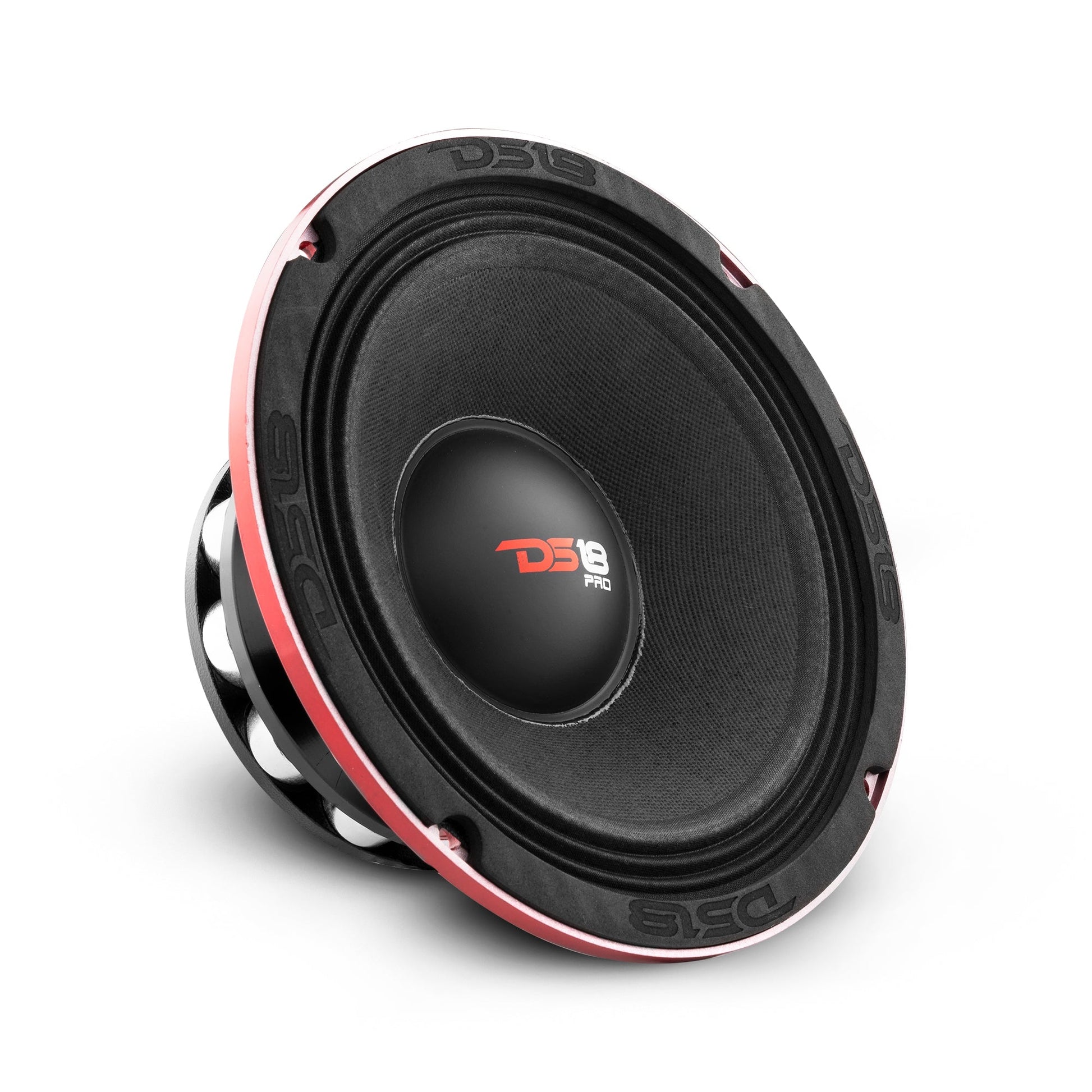

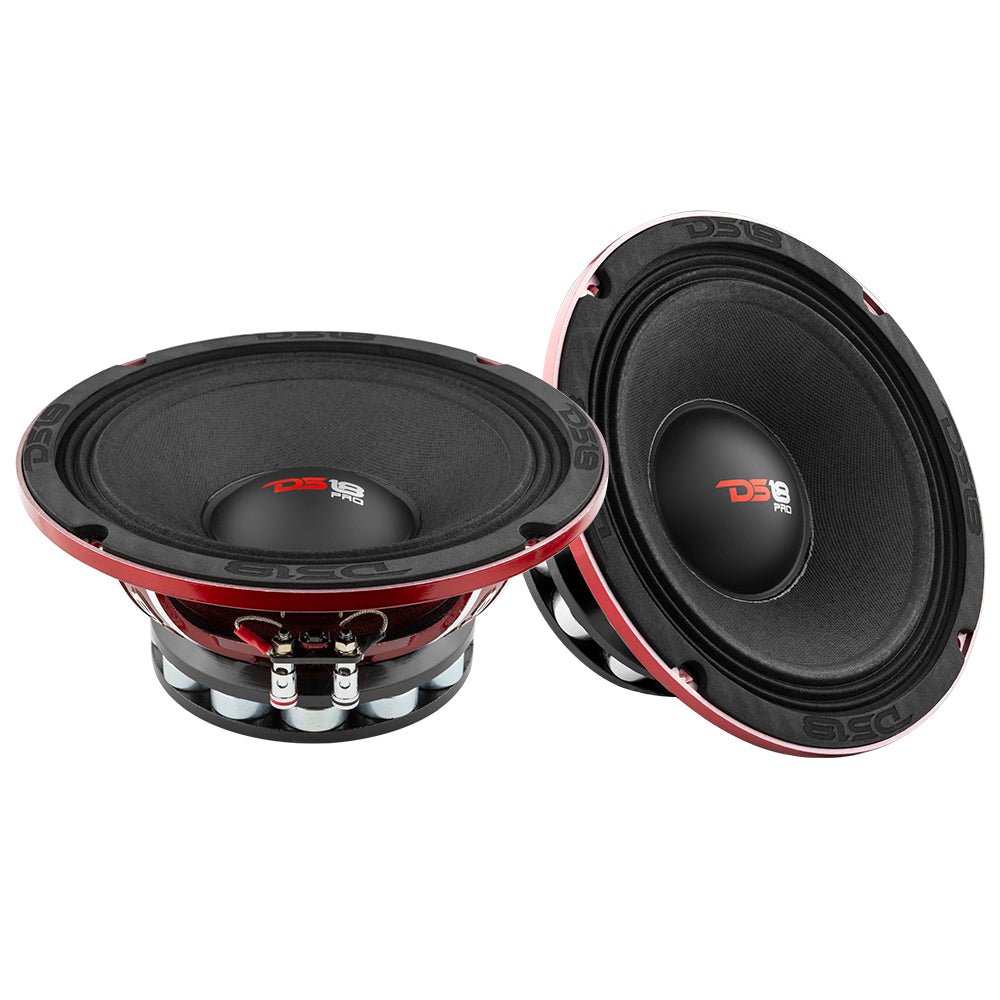

The DS18 PRO-NEO8R is an 8" mid-range loudspeaker from the DS18 PRO line rated at 400W RMS with a 4 ohm design. Coaxials and loudspeakers like this are where most systems start, because the speakers decide how clear the whole build sounds.
DS18 Product Details
DS18 PRO-NEO8R 8" Neodymium Mid-Range Loudspeaker 800 Watts 4-Ohm
|
DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build. Highlights
|
Technical Details
| Model: | PRO-NEO8R |
| Type: | Midrange Loudspeaker |
| Size: | 8" |
| RMS Power: | 400W |
| MAX Power: | 800W |
| Frequency Response: | 100Hz - 12.5KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 93dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Paper Cone |
| Magnet: | Neodymium |
| Voice Coil Wire: | Glass Fiber CCAW |
| Measurements | |
| Voice Coil Size: | 2" |
| Magnet Weight: | 13.68 oz. |
| Mounting Depth: | 3.50" |
| Cut-Out Dimensions: | 7.12" (181mm) |
| Net Weight: | 2.92 kg |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 400W RMS at 4 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Pro audio mids work best with a proper crossover or DSP so each driver only plays the range it was built for.
