DC Audio

M4 8" Subwoofer

$249.99 USD

~~$399.99 USD~~ $249.99 USD

Sale Sold out

Shipping calculated at checkout.

Voice Coil D2 D4

M4 8" Subwoofer

Sold by AudioSellerz.com

Use the DC Audio M4 8" Subwoofer when researching DC Audio subs for a daily-driver, custom enclosure, or higher-output bass build. The exact product details below should be checked against the amplifier, final ohm load, available box space, enclosure design, vehicle, and electrical support before ordering.

A subwoofer performs within a complete system. Confirm voice-coil configuration, final ohm load, amplifier match, enclosure volume and tuning, mounting dimensions, speaker wire, power wire, fuse protection, and voltage support using the product specifications supplied below.

Original Product Details

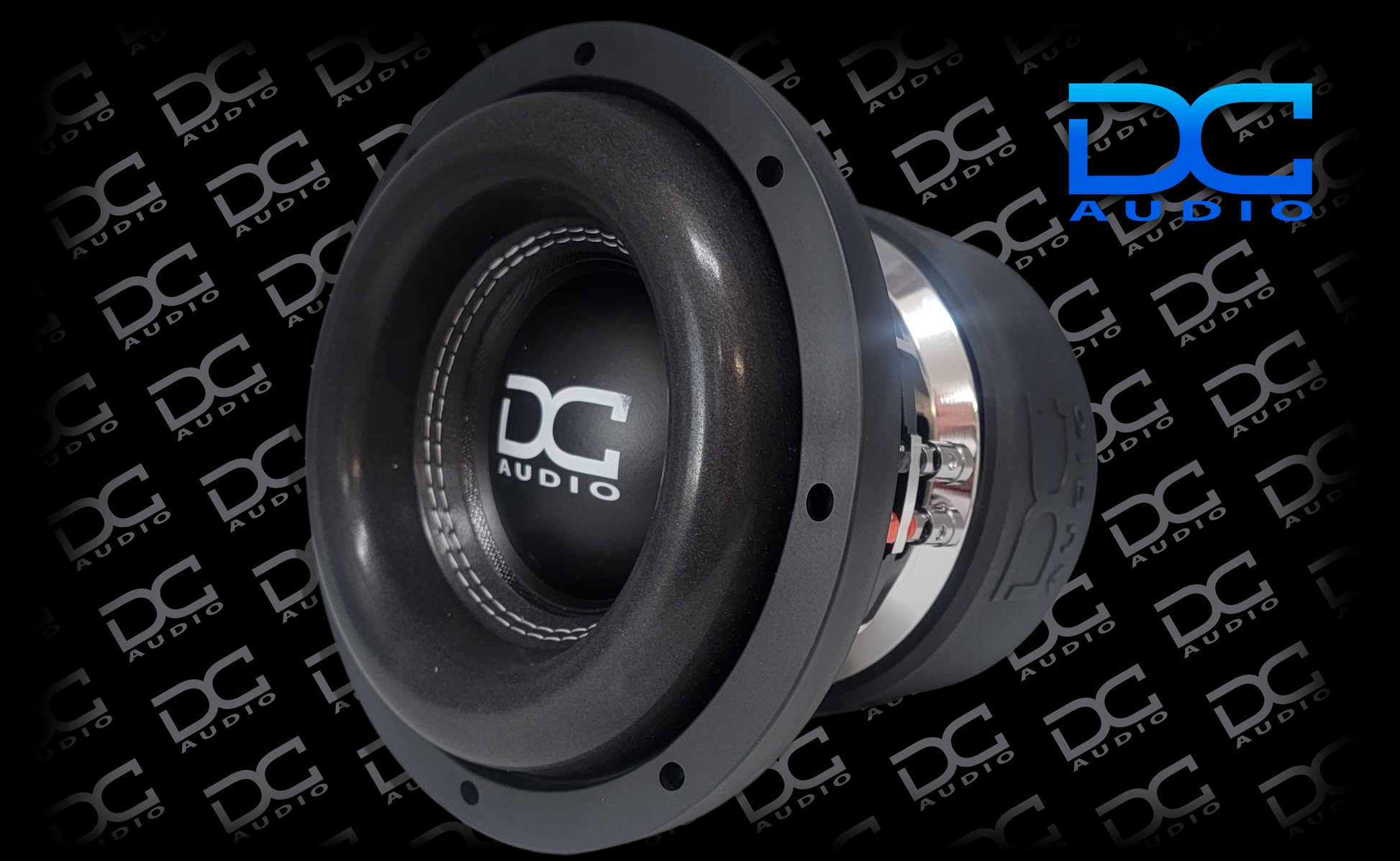

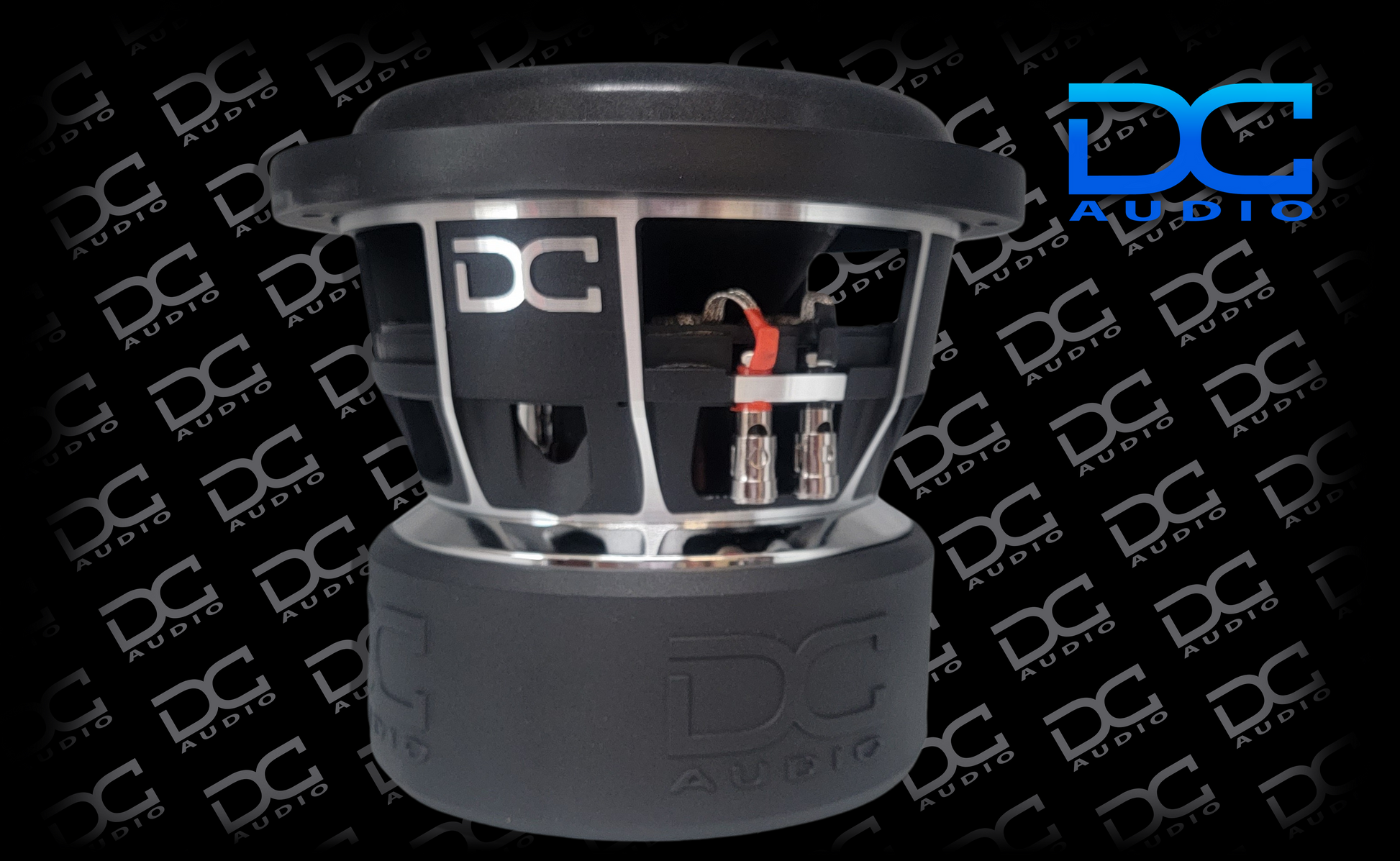

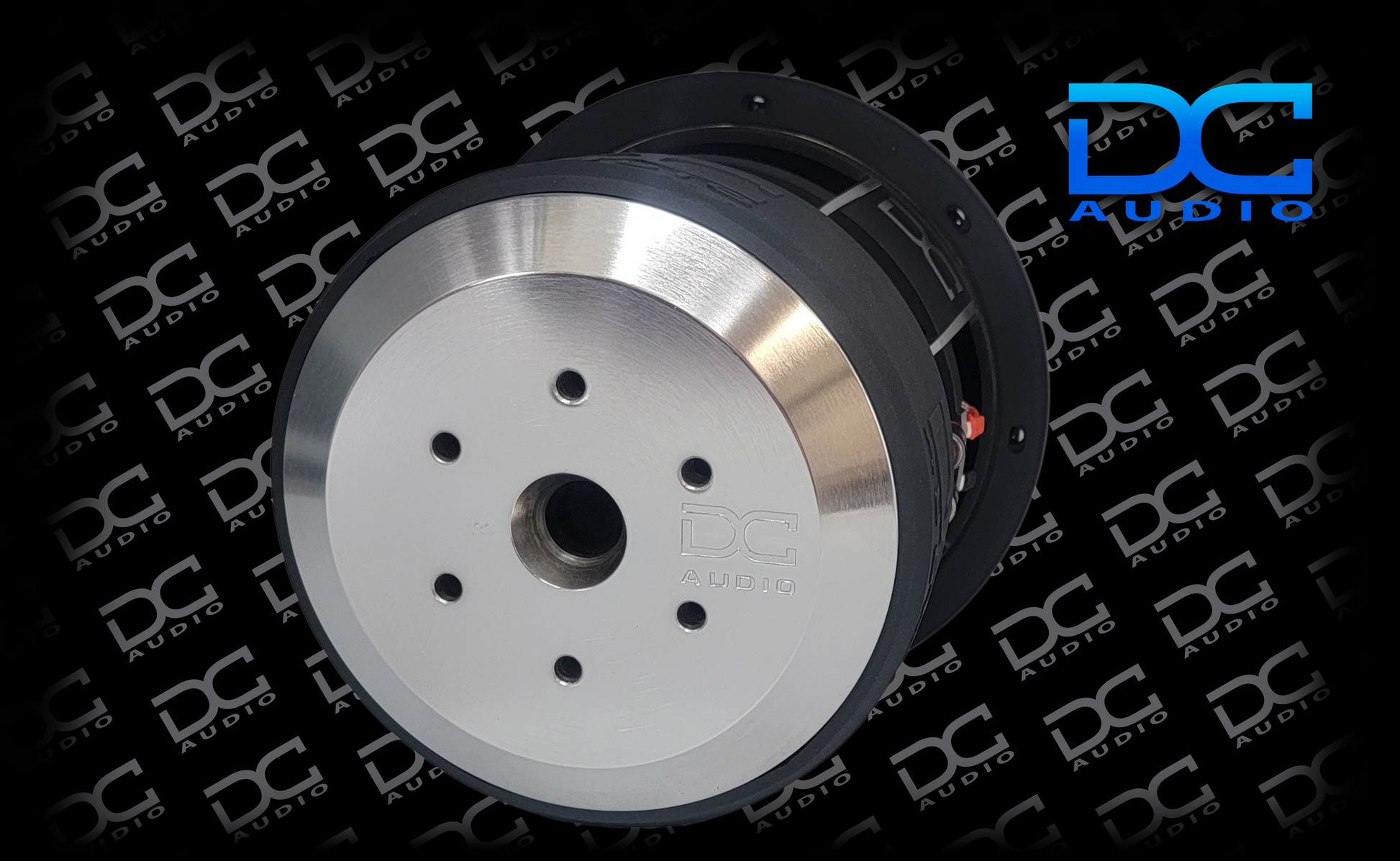

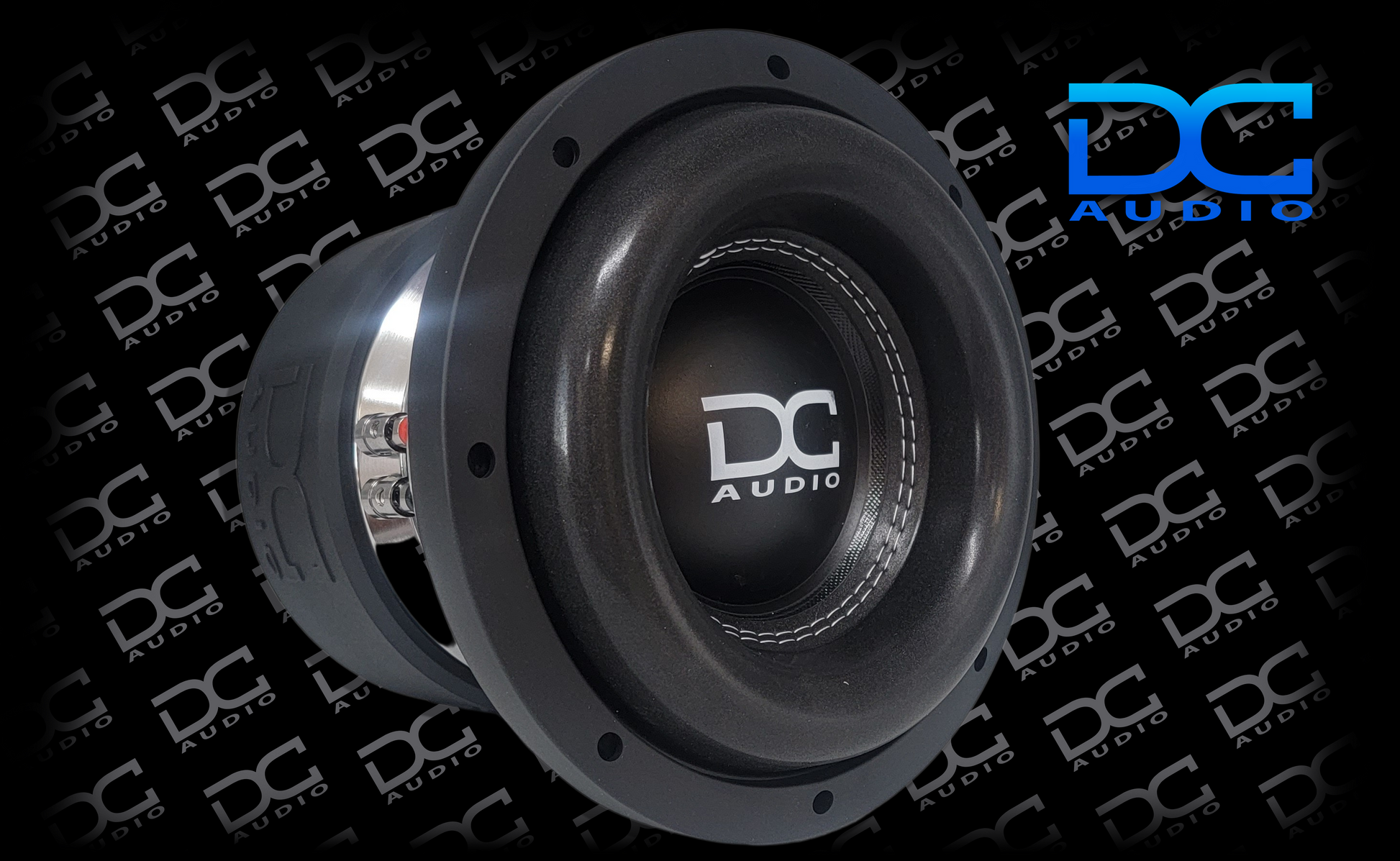

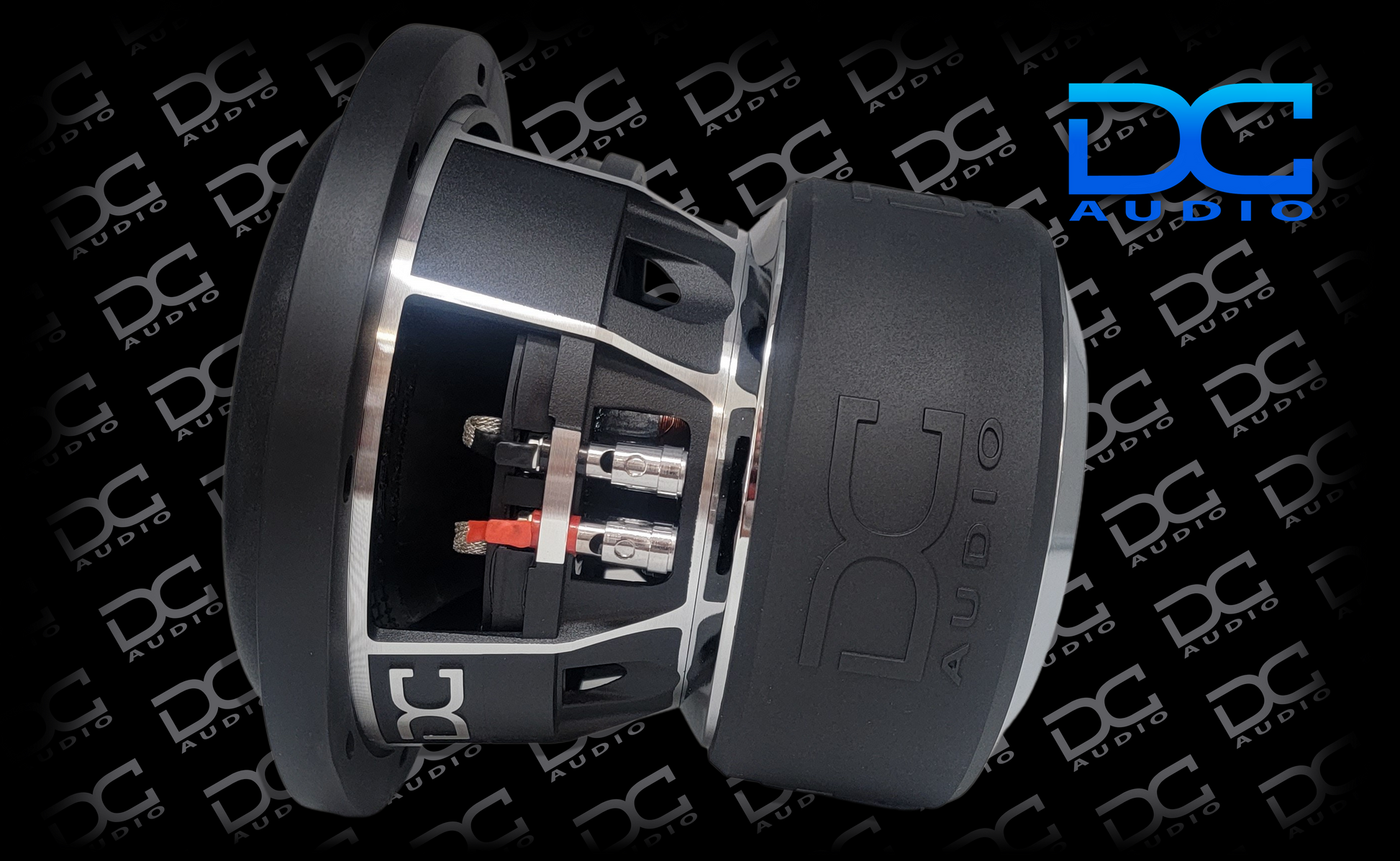

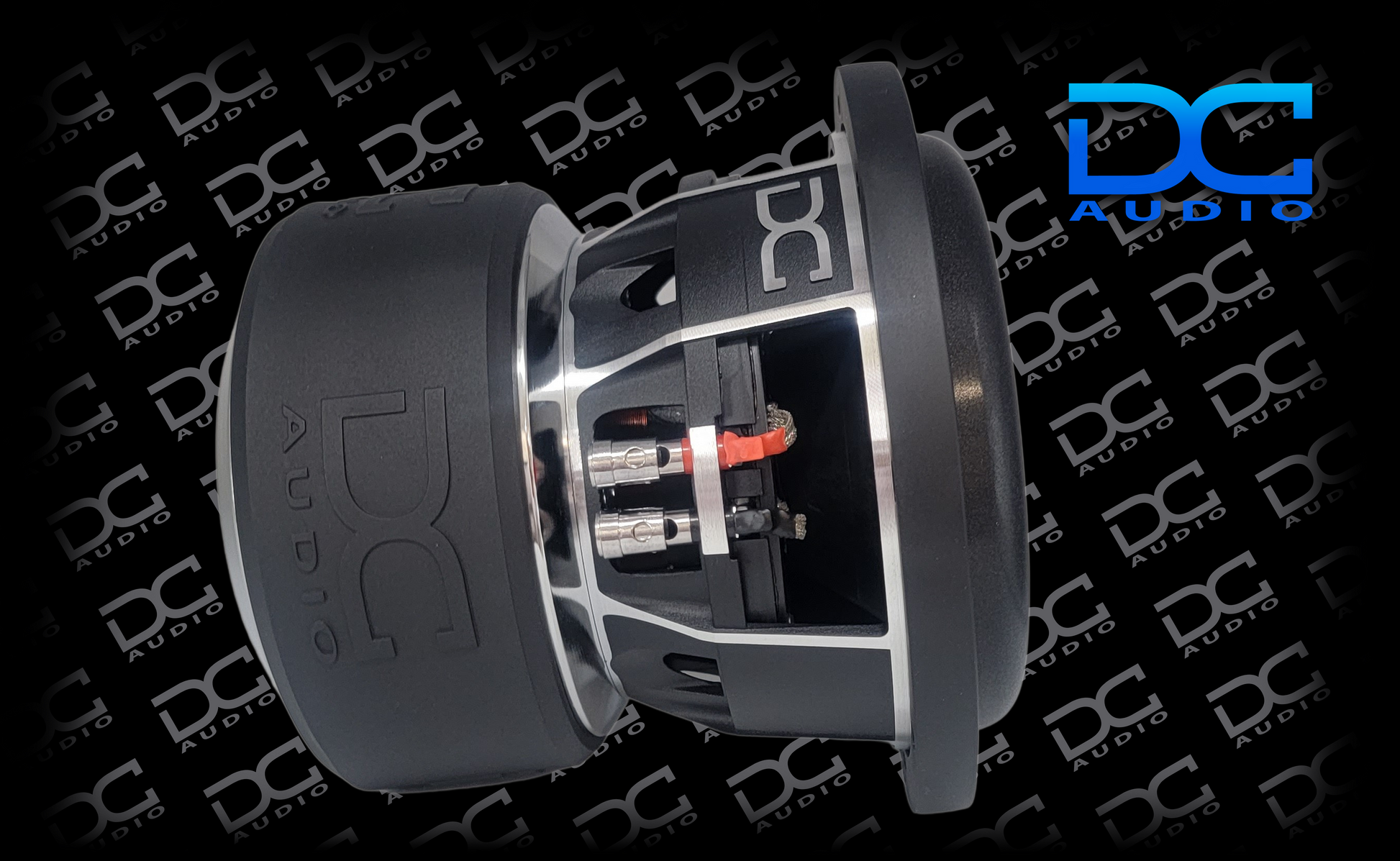

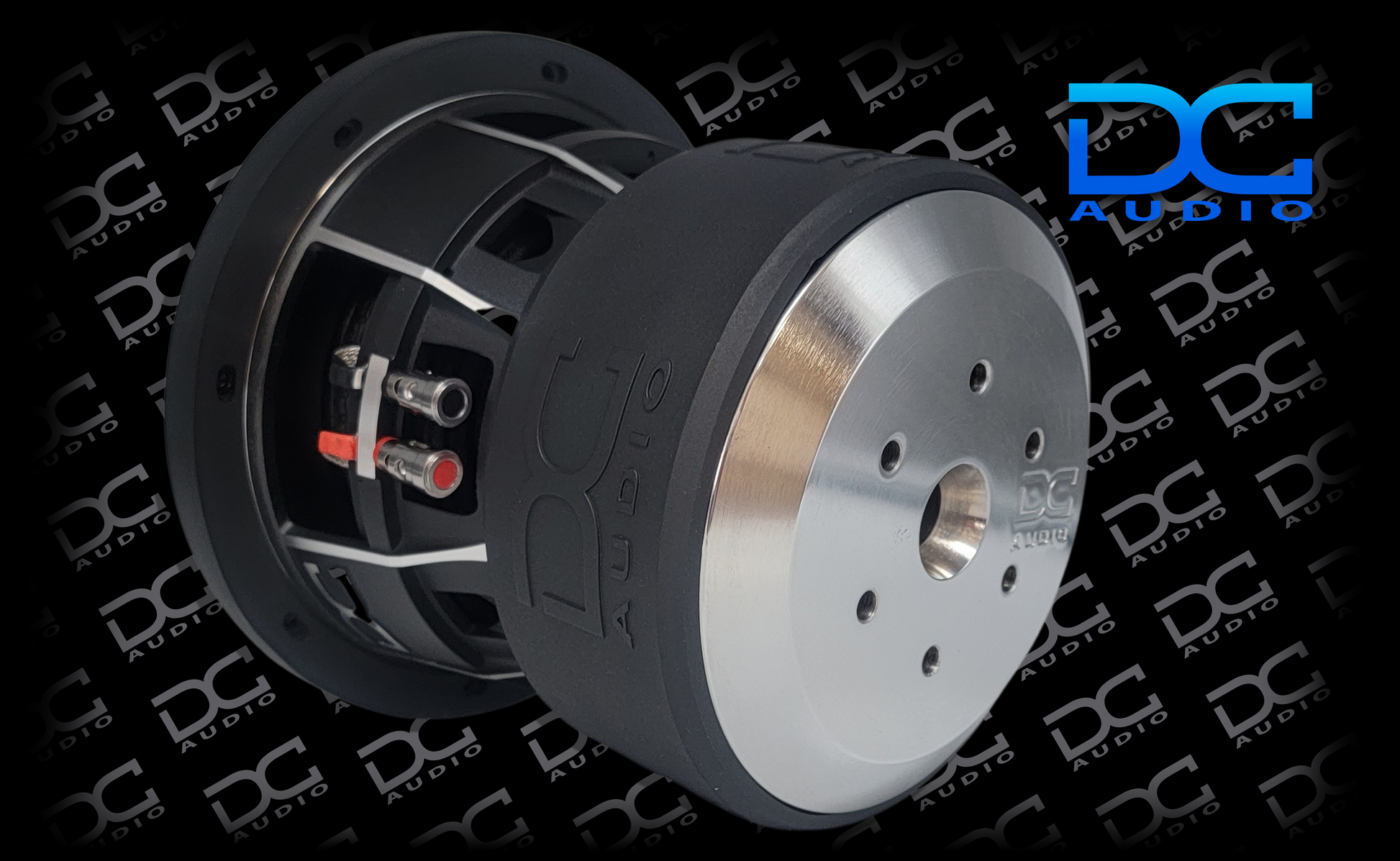

DC Audio m4 8" Subwoofer

Available in D2 & D4 Models

800 watts RMS 1600 watts Peak

The m4 8 is an 8" long X-Max subwoofer. We have been asked for a 8 that smash the lows and takes power.

This is a 8 that will give those that asked exactly what they are looking for. A tall roll stitched surround, oversized spiders, and a taller cast frame than the m3 . These newly designed parts allow for lower frequency reproduction and higher power handling.

The bolted down spaced spider design keeps it all linear. The m4 8 uses a gap cooled design to allow the 2.5" voice coil to thermally take more power than the m3

Key Features:

Extremely rigid non-pressed paper cone assembly
High Roll Stitched Multilayered reinforced polymer foam surround
Rigid propylene dust cover with White DC logo
Bolted down & spaced Linear roll spiders
Sewn flat heavy duty tinsel lead wire
Custom Cast aluminum black frame
FEA analyzed and optimized motor assembly – Fully CNC machined
Rubber mounting gasket and custom tooled motor boot.
DVC 2.5” Copper voice coil.

Click HERE to get a Subwoofer Box

T/S Parameters

M4 8" Subwoofer	D2	D4
Mounting Depth	7.0"	7.0"
Mounting Hole Diameter	7.5"	7.5"
Outside Driver Diameter	8.75"	8.75"
VC Diameter	2.5"	2.5"
Displacement	.15 ft³	.15 ft³
Power Handling rms/peak	800/1600	800/1600
Ohm Options	d2/d4	d2/d4
Sd	188.69 cm²	188.69 cm²
Vas	1.728 Ltr	1790 Ltr
Cms	0.000 Mm/n	0.000 Mm/n
Mms	248.83g	202.53g
Fs	44.5 Hz	47.4 Hz
Bl	20.72 N/A	19.68 N/A
Re	4.00 Ohm	8.00 Ohm
Le	0.00 mH	0.00 mH
Qms	4.54	4.81
Qes	0.614	0.700
Qts	0.538	0.652
Xmax	19mm	19mm
Ref SPL @1 watt	78.4 db	78.0 db
Suggest Sealed Box	N/A ft³	N/A ft³
Suggested Ported Box	0.85 ft³	0.85 ft³

Plan the DC Audio Subwoofer, Amplifier, and Enclosure Together

Shop more DC Audio subwoofers or return to the main DC Audio collection at Audio Sellerz. When the enclosure is part of the next step, compare DC Audio subwoofer boxes and the wider car audio subwoofer box collection.

Use the subwoofer specifications guide to understand common subwoofer terms, the subwoofer wiring-diagram and ohm-load guide to plan final impedance, and the complete car audio bass setup guide to match the sub, amplifier, box, wire, fusing, and electrical support.

Confirm the Exact Product Before Ordering

Use the product title and selected variant as the starting point, then review every original specification, compatibility note, dimension, quantity, build-time notice, shipping limitation, and other condition provided above. Confirm the equipment and installation requirements before placing the order.
