Level 4 Subwoofers

**HAND BUILT IN THE USA**

Build Time 7-14 Days

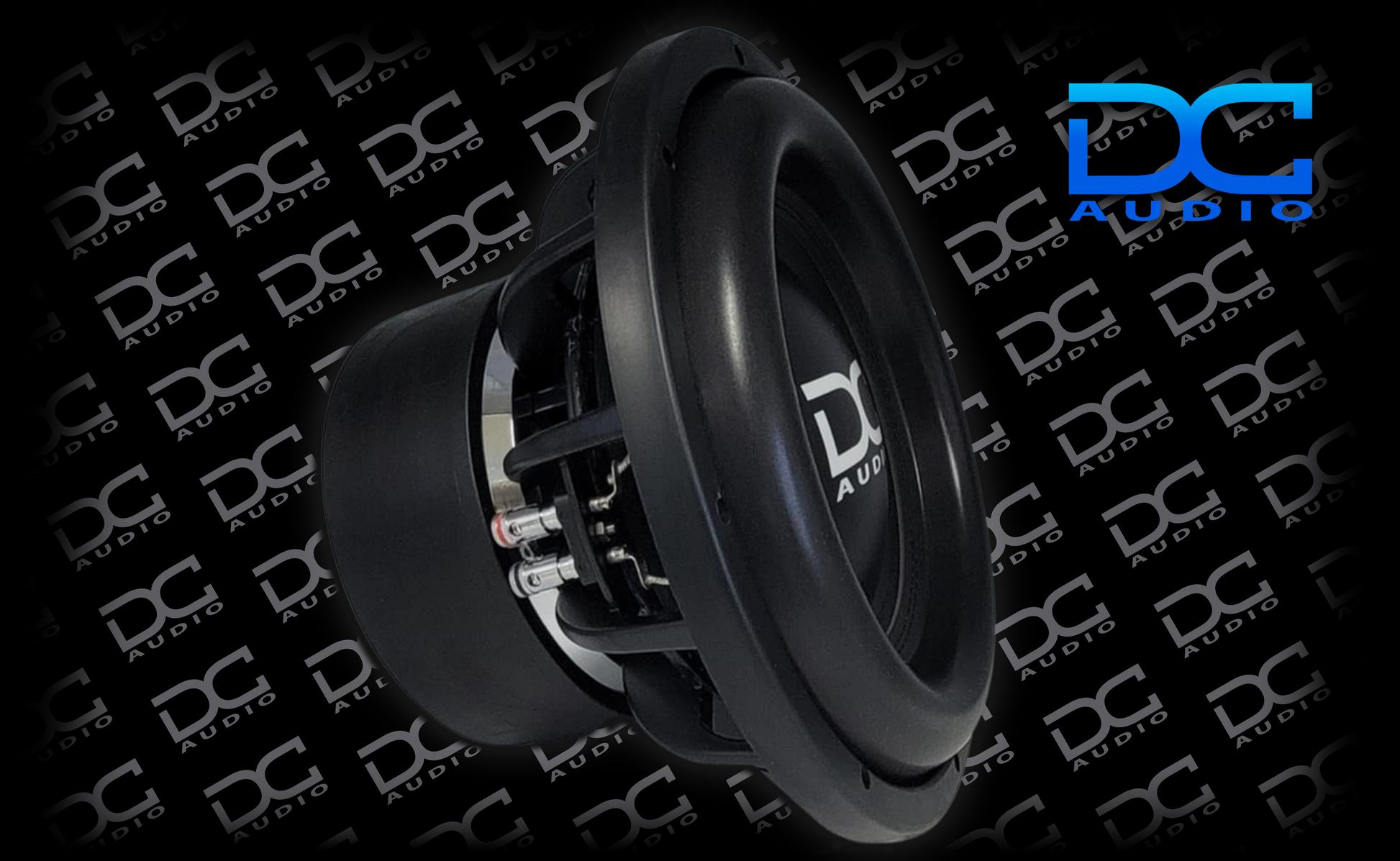

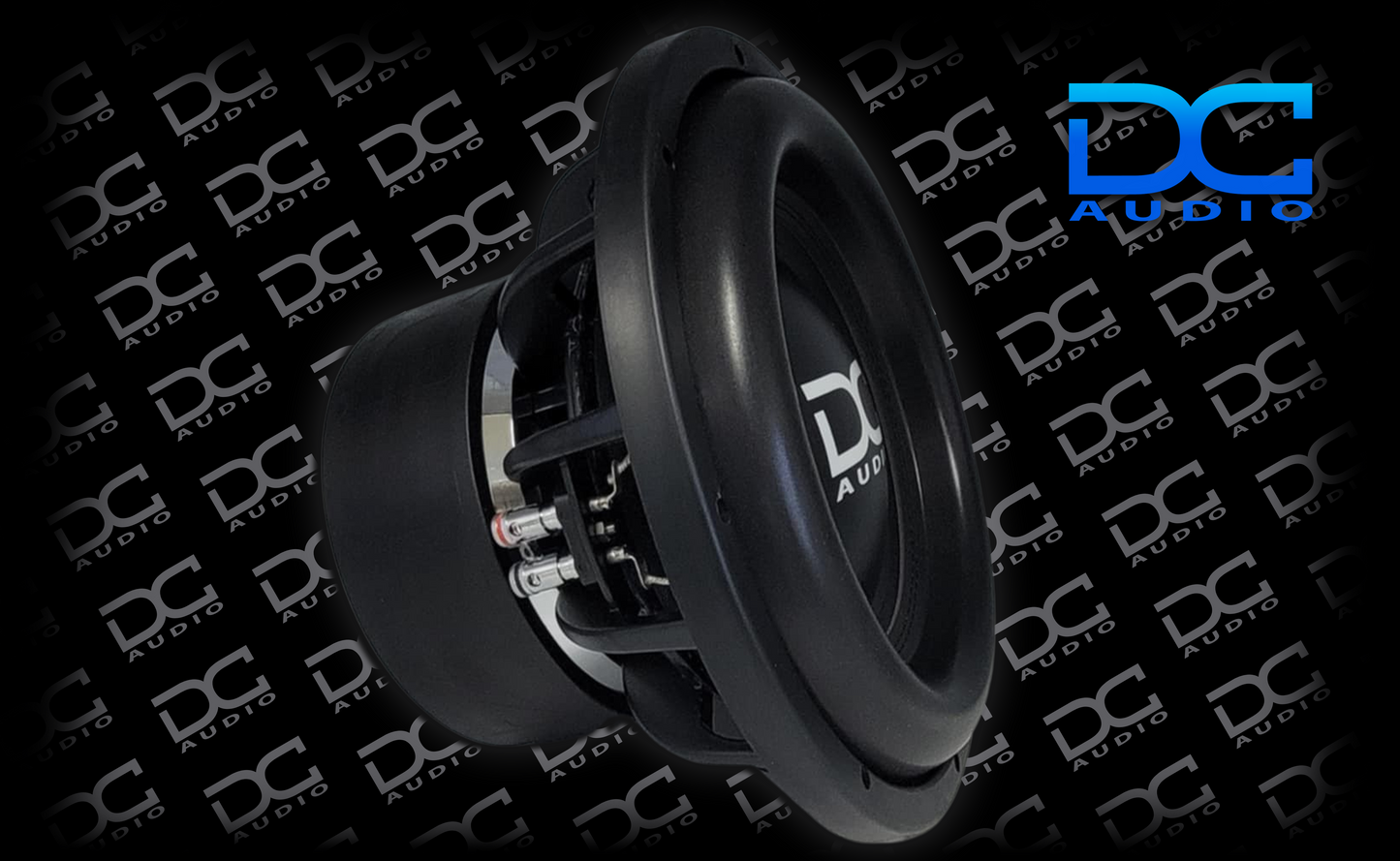

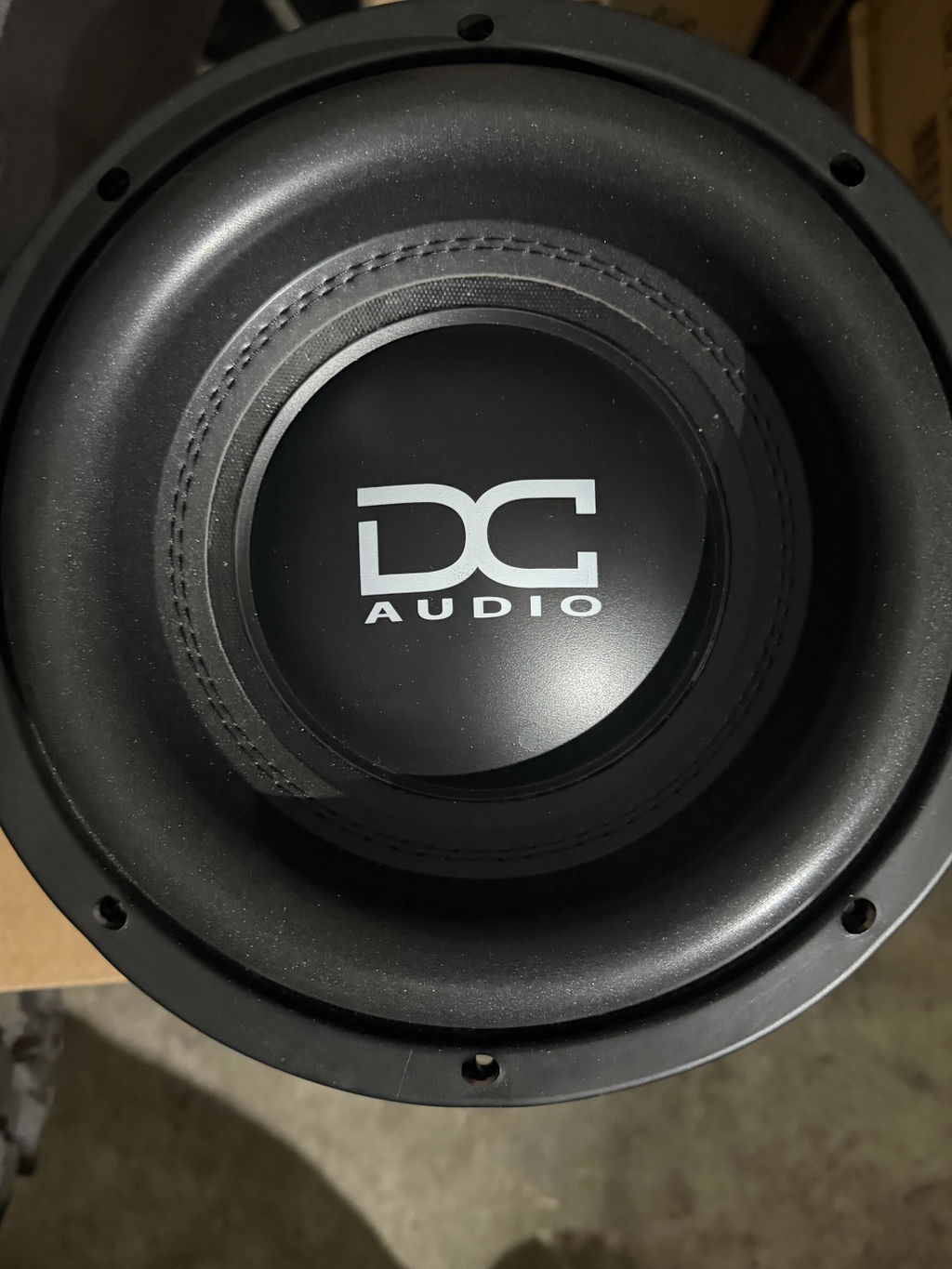

DC Audio Level 4 Subwoofer

Model: m4

Sizes Available: 10,12,15 and 18 Inch

Power Handling: 1500 Watts RMS 3000 Watts Peak

Voice Coil Options: Dual 1, Dual 2 and Dual 4-ohm versions

The Level 4 m4 is a step forward in SQ and heat dissipation vs the last generation model (m3). It now comes with a 2.5mm Aluminum Shorting ring (demodulation ring) to help reduce inductance in the motor. This can help with power compression.

It also acts as an internal heatsink by pulling heat from the windings into the aluminum ring and direct to coil venting cycles air across the coil windings and aluminum shorting ring at the same time cooling them simultaneously.

Newly tooled Motor boots with the DC Logo and LV4 logo embossed on them

With fantastic power handling and smashing lows its hard to beat.

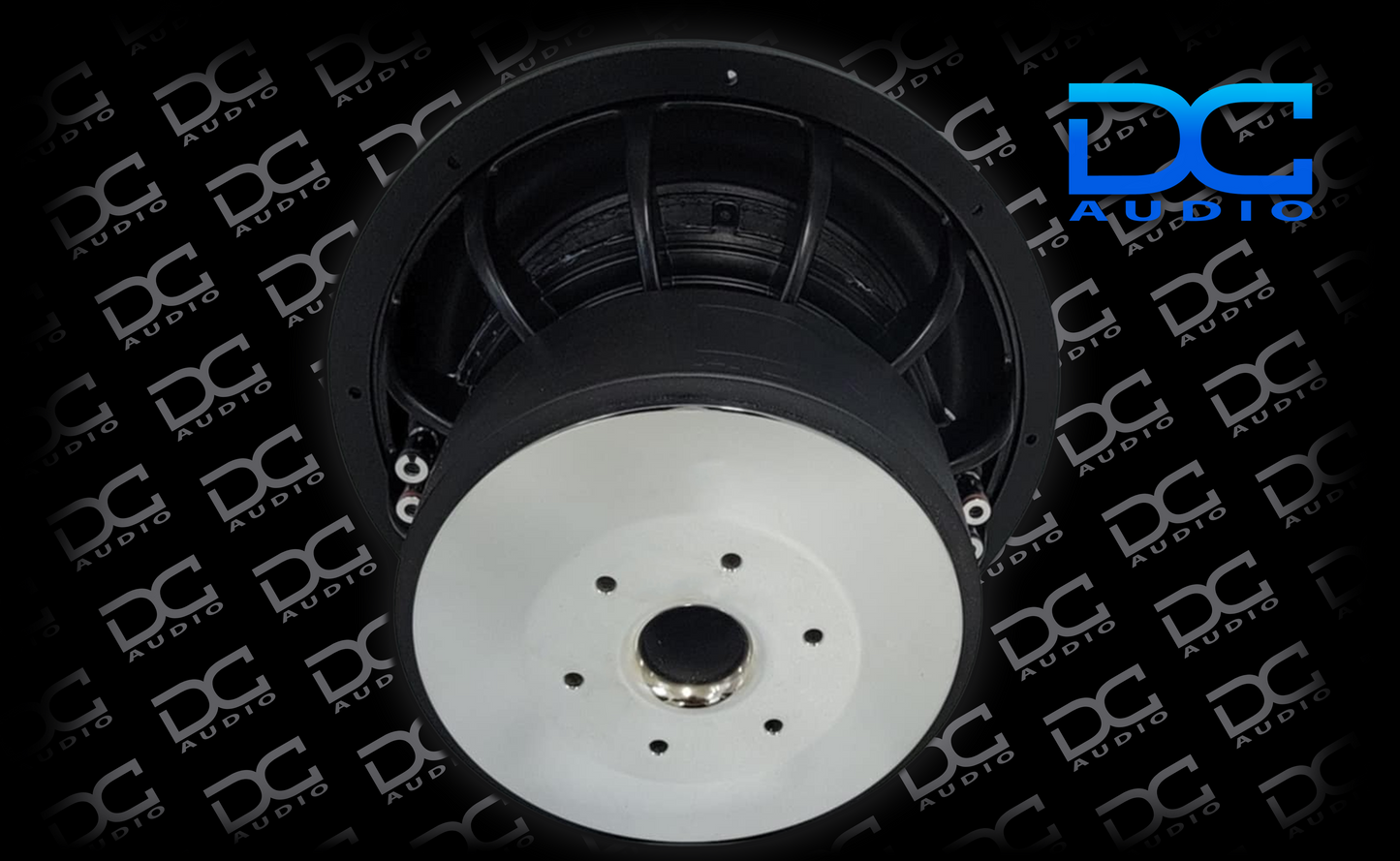

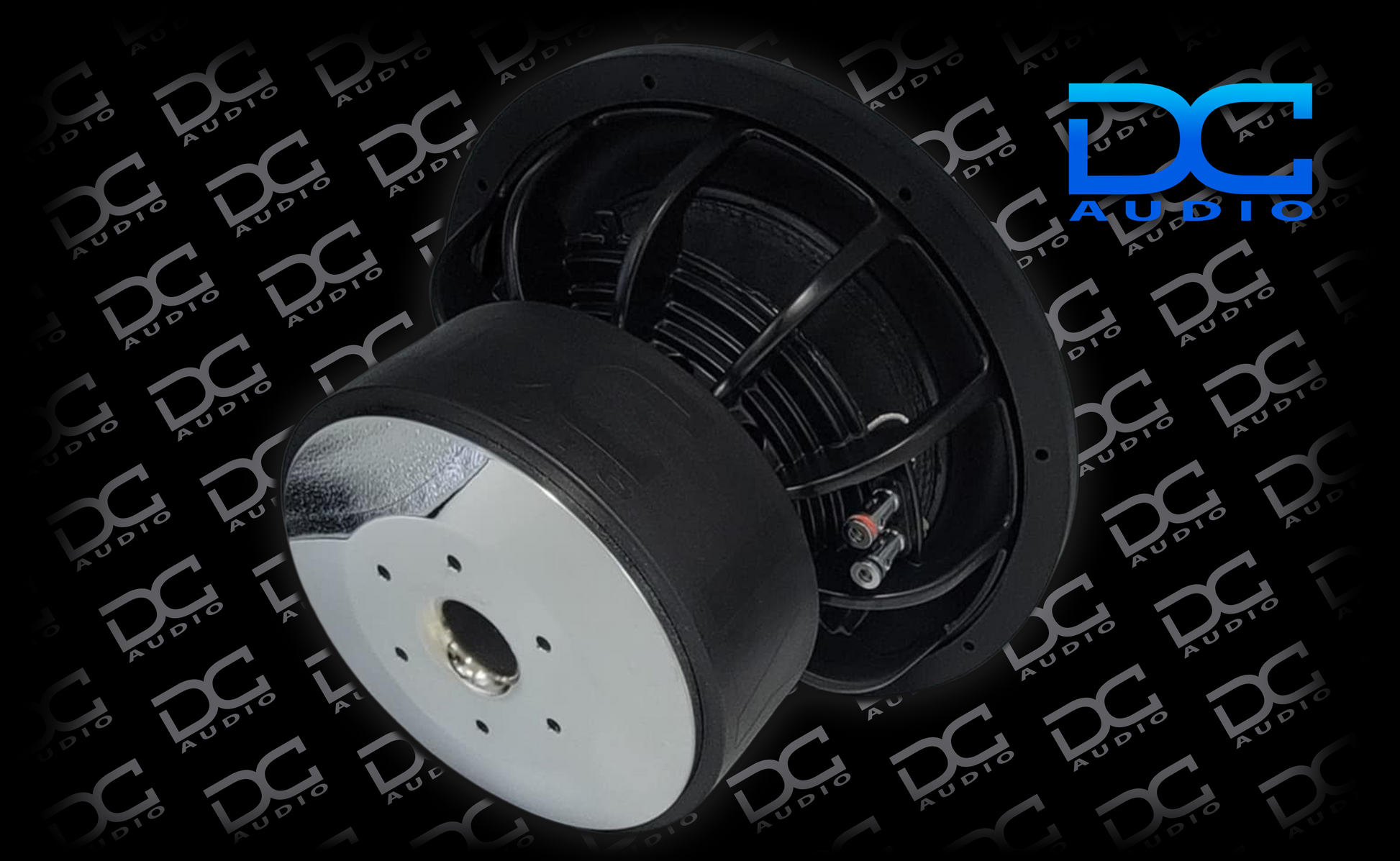

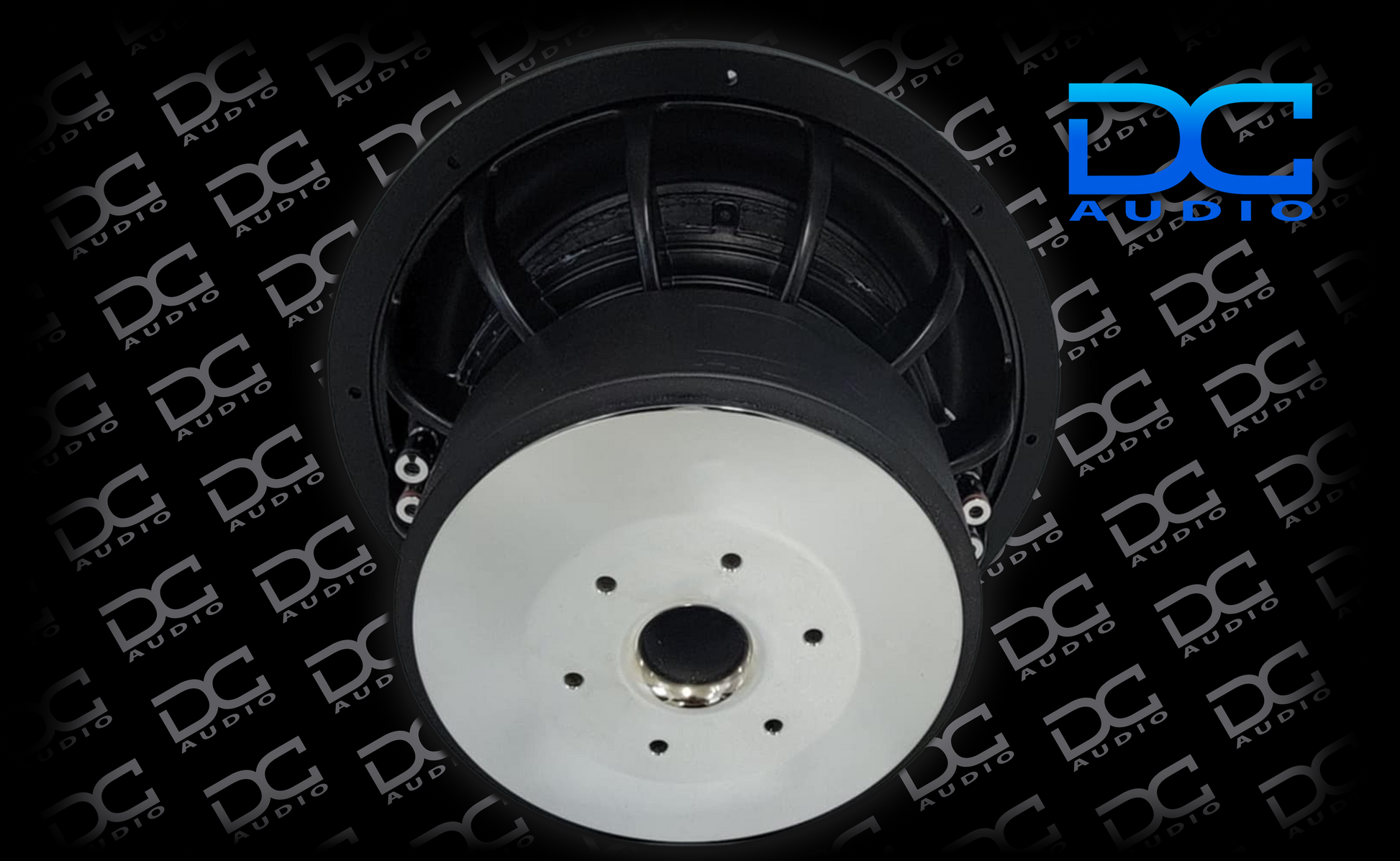

The Level 4 sub is a large triple stacked motor with a chrome top plate and T yoke yielding 23.5mm of X-Max.

Furthermore, you get the upgraded triple progressive spiders, cone, surround, 3" coil, cast basket, push terminals and upgraded lead wire sewn to the spider. This sub is rated at 1500w RMS and 3000w peak.

Key Features

Extremely rigid non-pressed paper cone assembly

Multilayered polymer foam stitched surround

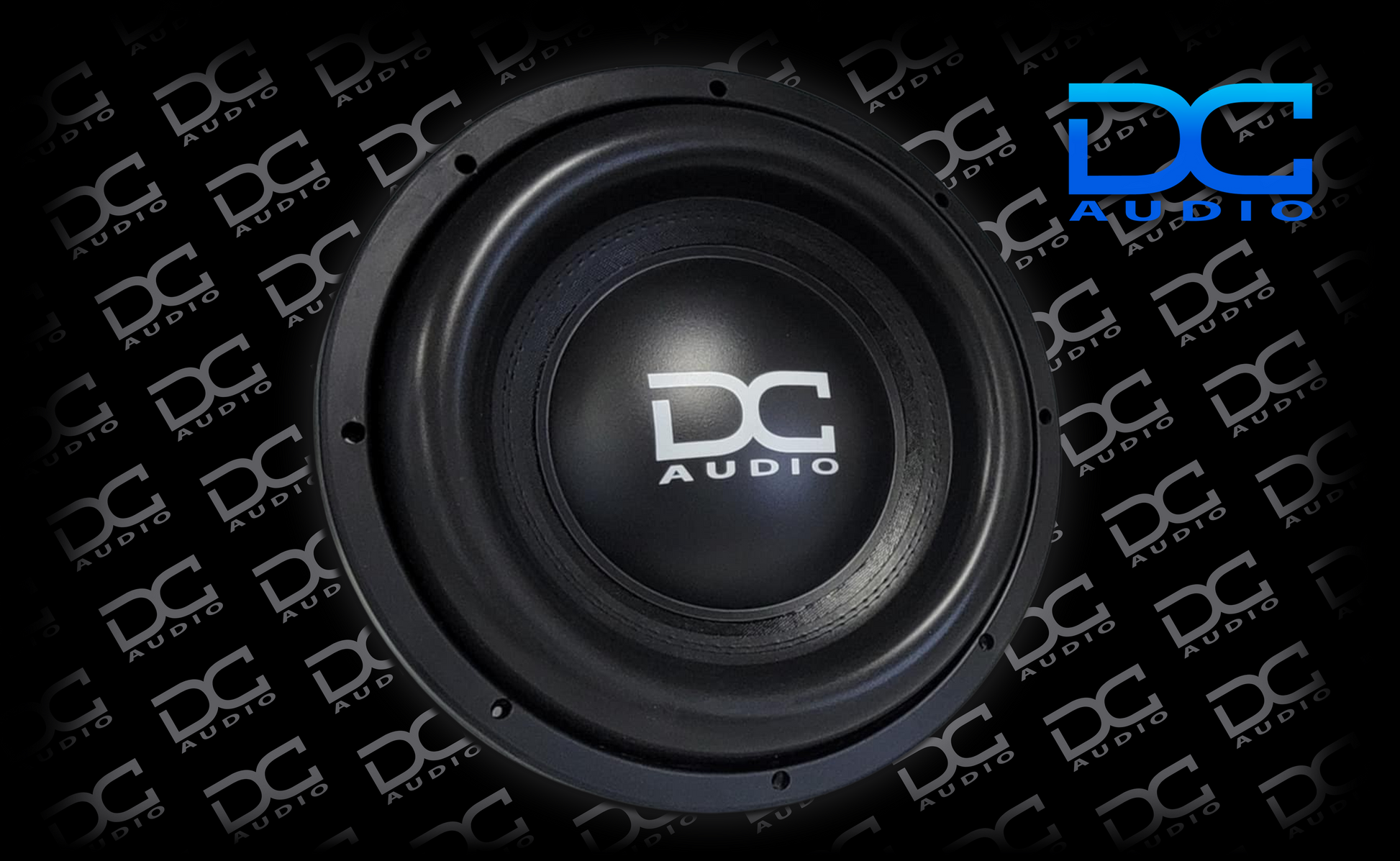

Polypropylene dust cover with DC logo

Triple 8” OD semi cup progressive roll spider

Extra heavy duty interweaved tinsel lead wire sewn to spider

Cast aluminum black frame / no invert mount

FEA analyzed and optimized motor assembly – Fully CNC machined

Rubber mounting gasket

Chrome spring loaded push terminals

3” Hi-temp Aluminum voice coil wound on black anodized voice coil former 8 Layer Flat Wound

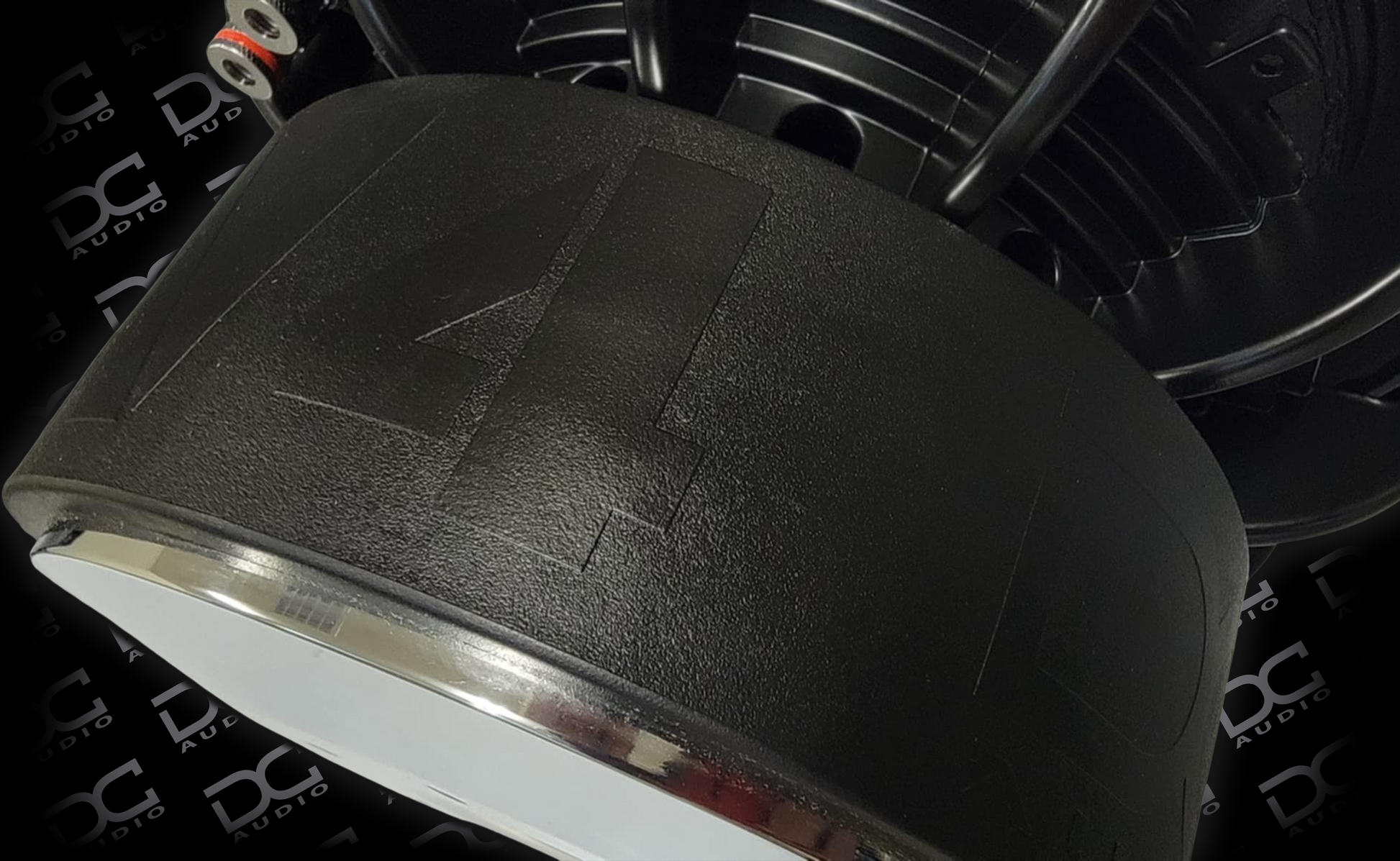

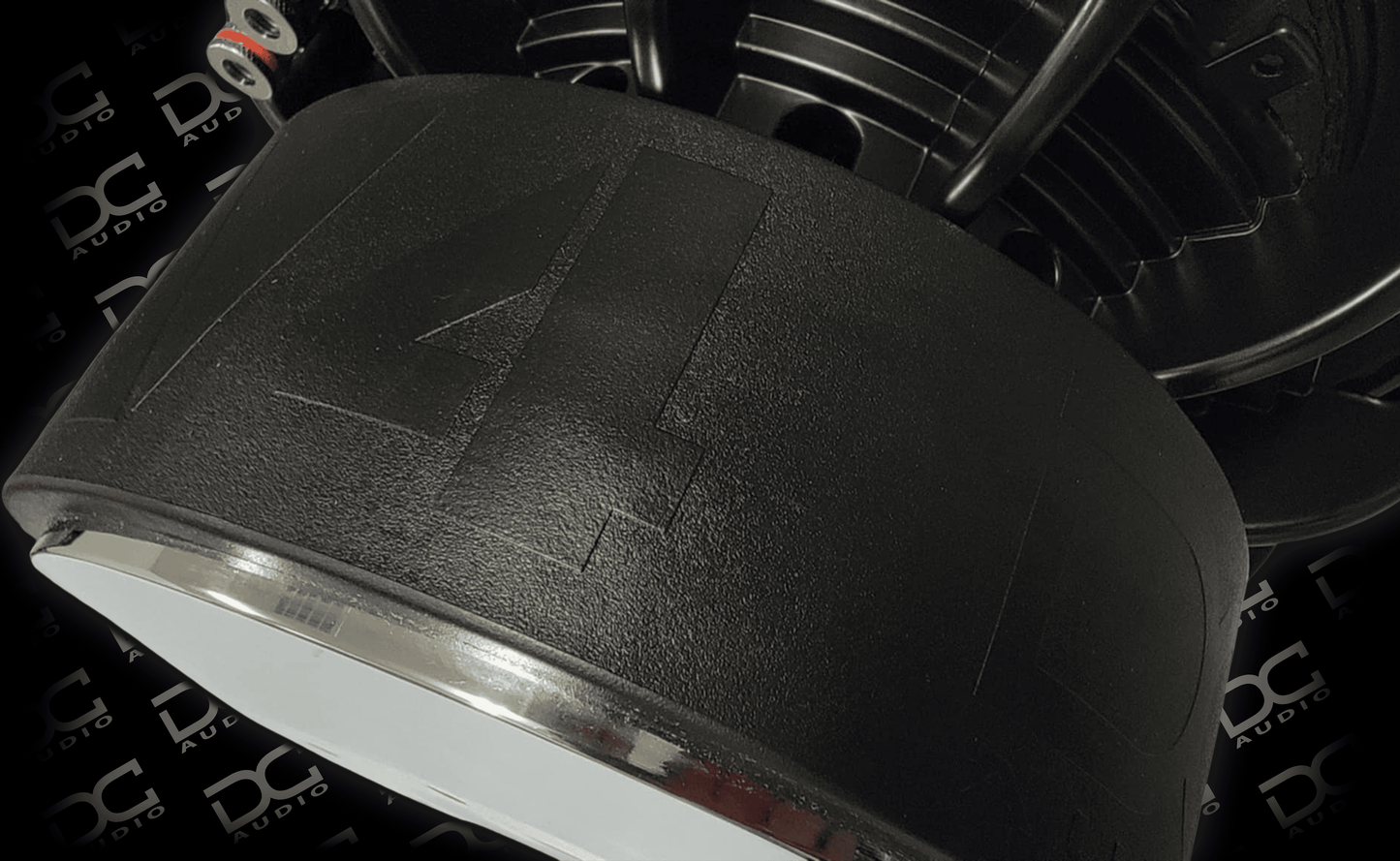

Rubber magnet cover with DC and Lv4 Logos

2.5mm Aluminum Shorting ring

Click HERE to get a Subwoofer Box

T/S Parameters
