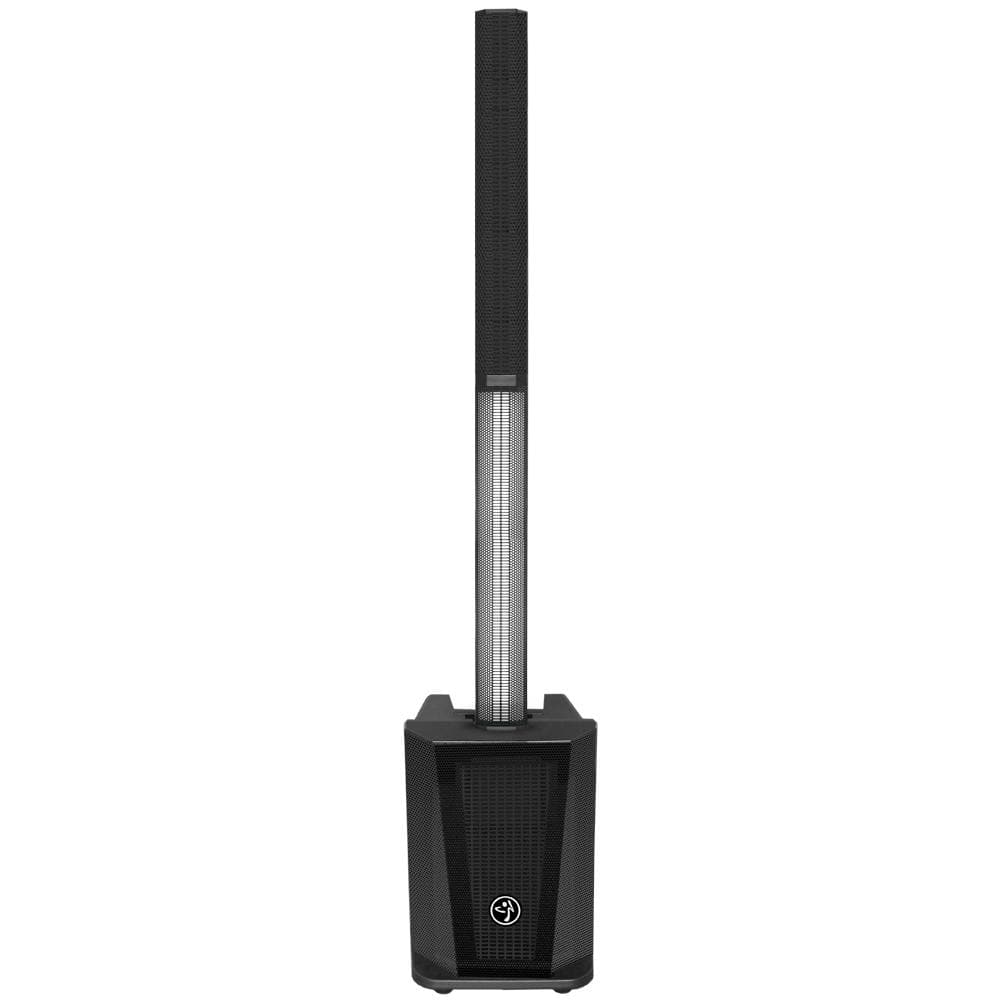

DS18 ZL-10AT exclusive ZUMBA LOUD Powered All In One Line Array 10" Tower Speaker System with MP3 USB & TWS BT 1000 Watts
DS18 ZL-10AT exclusive ZUMBA LOUD Powered All In One Line Array 10" Tower Speaker System with MP3 USB & TWS BT 1000 Watts
Couldn't load pickup availability
DS18 ZL-10AT exclusive ZUMBA LOUD Powered All In One Line Array 10" Tower Speaker System with MP3 USB & TWS BT 1000 Watts
This compact and powerful system can bring clear and loud sound to every corner of your venue with ease. The system takes very little effort to disassemble for storage due to it three-piece style connection. The compact design lets you put this impressive and powerful party system in the smallest of areas when you have little space available. This tower speaker will fill any room with concert quality sound! We packed this beautiful unit with Bluetooth, Aux jacks, LCD display, and an easy to use mixer to help you get the perfect sound you are looking for. We included RGB LED dancing lights to give an acute visual cue to all your favorite songs. This tower will also light up any environment with vibrant LED lights to help set the mood for your dance floor, studio and more!
Highlights
- ZL-10AT: 60Hz-18Khz, Max SPL 124dB. 1000W power
- 10” Woofer (PRO-Z10AT) for low-end punch in a compact enclosure and 6x3" Mid-range, 2x1" silk & titanium tweeter
- LCD Media player with TWS technology

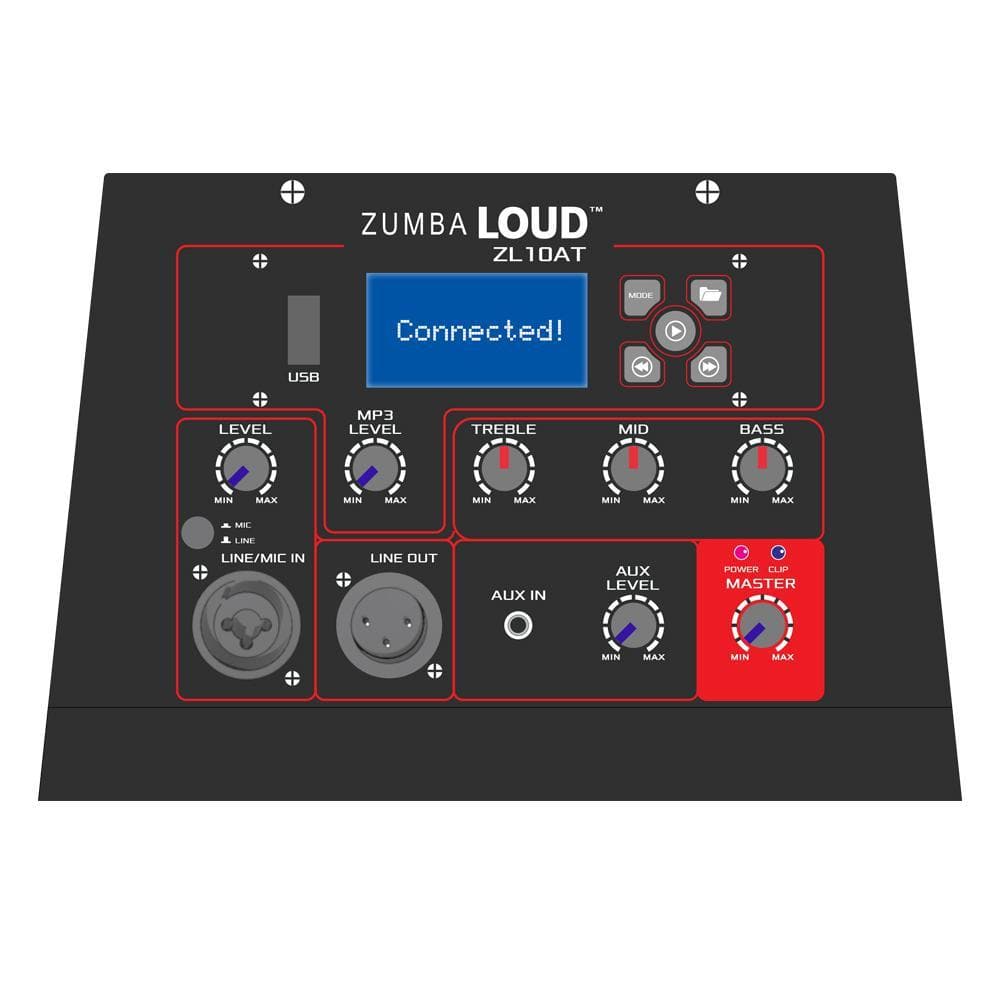

- Input level meters and independent amplifier control to ensure optimal gain structure
- Front lighted logo for power on indication
- Class-D amplifier

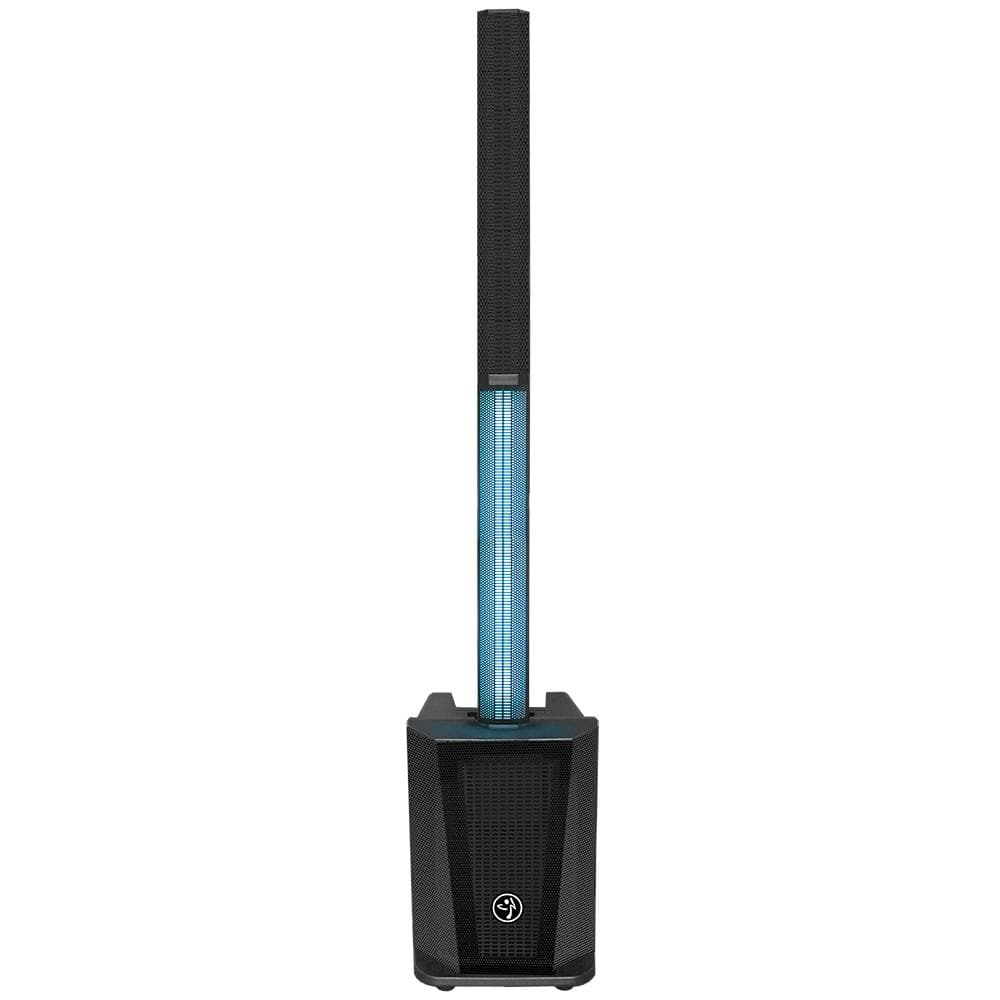

- Full color LED lights on the bottom speaker tower
- Heavy-duty steel grill
- Setup in one minute!
- Subwoofer handle for transportation ease
- USB player with folder search function
- 3.5mm AUX Jack input
- XLR/TRS combo input with mic/line selector
- XLR mix output
Technical Details
| System | |
| Model: | ZL10AT |
| Type: | Self Powered Tower,3 -Way,10" Bass-Reflex Loud speaker |
| Size: | 10" |
| SPL Sensitivity | 95dB |
| Maximum SPL Output | 124 dB |
| Frequency Response (-10dB) | 60Hz - 18KHz |
| Frequency Response (-3dB) | 70Hz-17kHz |
| Amplifier | |
| System Power Rating | 250W Continuous(RMS) (150w LF +100W HF) 500W MUSIC PROGRAM (300W LF + 200W HF) 1000 PEAK |
| Type: | Class D |
| Input Impedance | 20k |
| Line Input Gain | Infinity to +4 dBu |
| MIC input Gain | infinity to +6 dBU |
| Maximum Input Level | 4dBu / Mic - 20 dBu |
| Equalizer | 3 Band Graphic |
| Connectors | 1 x XLR- 1/4" Combo Inputs;Mic/Line Selector 1 x XRL Mixed Output |
| MP3 Player | USB Mp3/WMA ,Bluetooth v4.2 With TWS (True Wirless Stereo) |
| LED Soundbar | Digital Type RGB LED With Stanby Rainbow Function And Sound Meter Function |
| LED Indicators | Front Power LED, Rear Power LED(Blue) Rear Clip (RED) |
| Cooling | Passive |
| AC Power Input | 100-120VAC 50/60Hz;230-240 VAC 50/60Hz |
| AC Power Consumption (120-v) | Full power - 2.5A ( Max) |
| Speaker | |
| LF Driver | 1 PRO-Z10 (10") PRO woofer with 2" voice coil,pure copper wire coil,50oz ferrite magnet, paper cone |
| HF Driver | 2 x PRO-TW1SN (1") Soft Dome Tweeter, N38H Neodymuim Magnet,Silk & Titanium Diaphragm , 1" Kapton Voice Coil |
| MF Driver | 6x PRO-Z3(3") Mid-Range 0.75" Voice Coil,Pure Copper Wire Coil,5oz Ferrite Magnet,Paper Cone |
| Coverage Pattern | 110 x 20 Degrees |
| Crossover Frequency | 2 KHz |
| Enclosure | |
| Material | Polyproylene, Black |
| Monitor Angle | Both sides |
| Suspension/Mounting | 35mm Pole Socket ,3 X M8 Suspension points |
| Dimensions (L x W X H) | 18" x 18.5" x 77" |
| Weight | Total 41.4 LB/ Subwoofer Box : 31.3LB , Speaker Tower :10.1LB |
