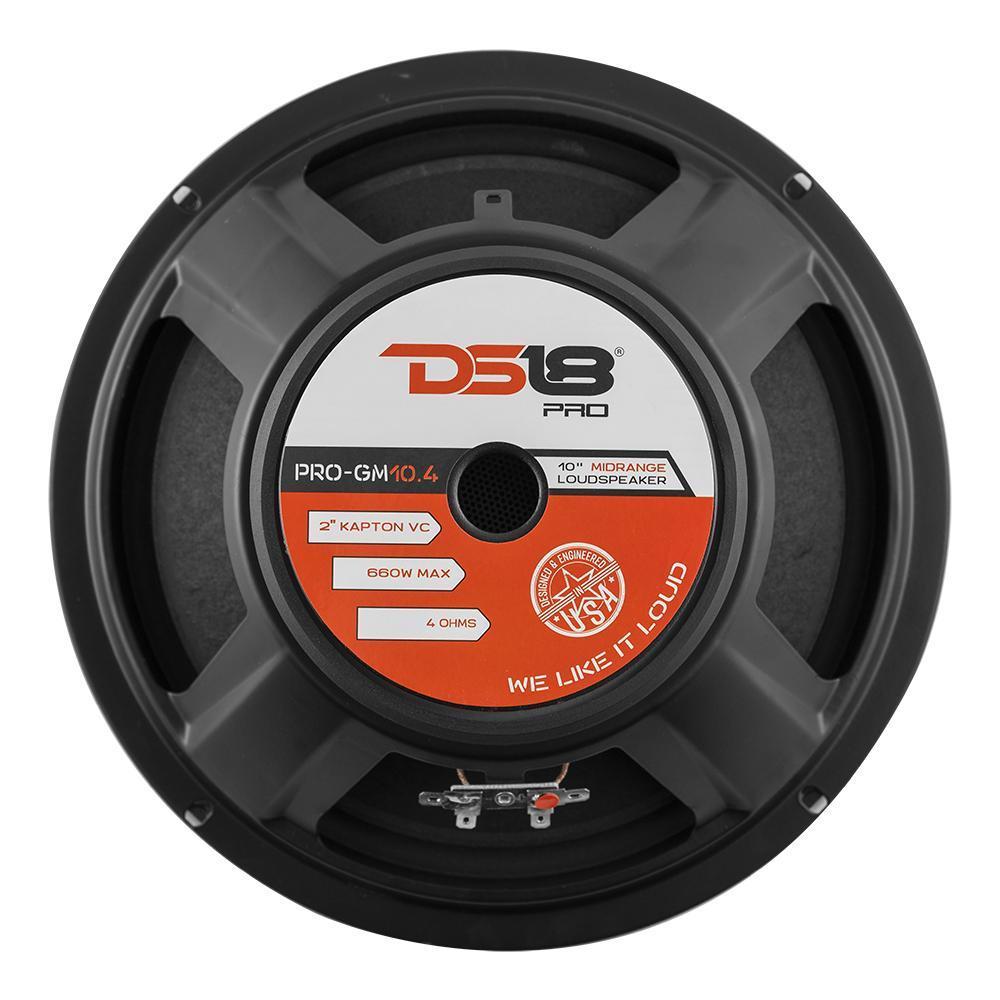

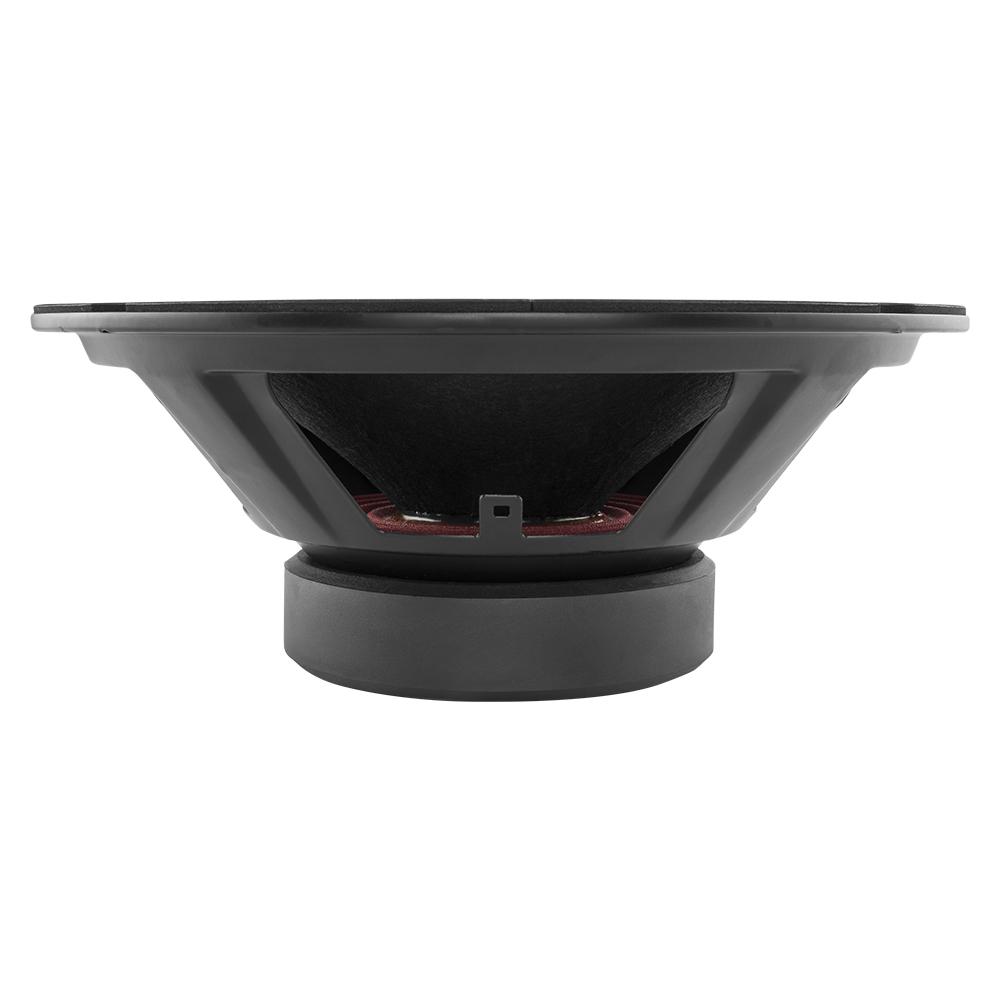

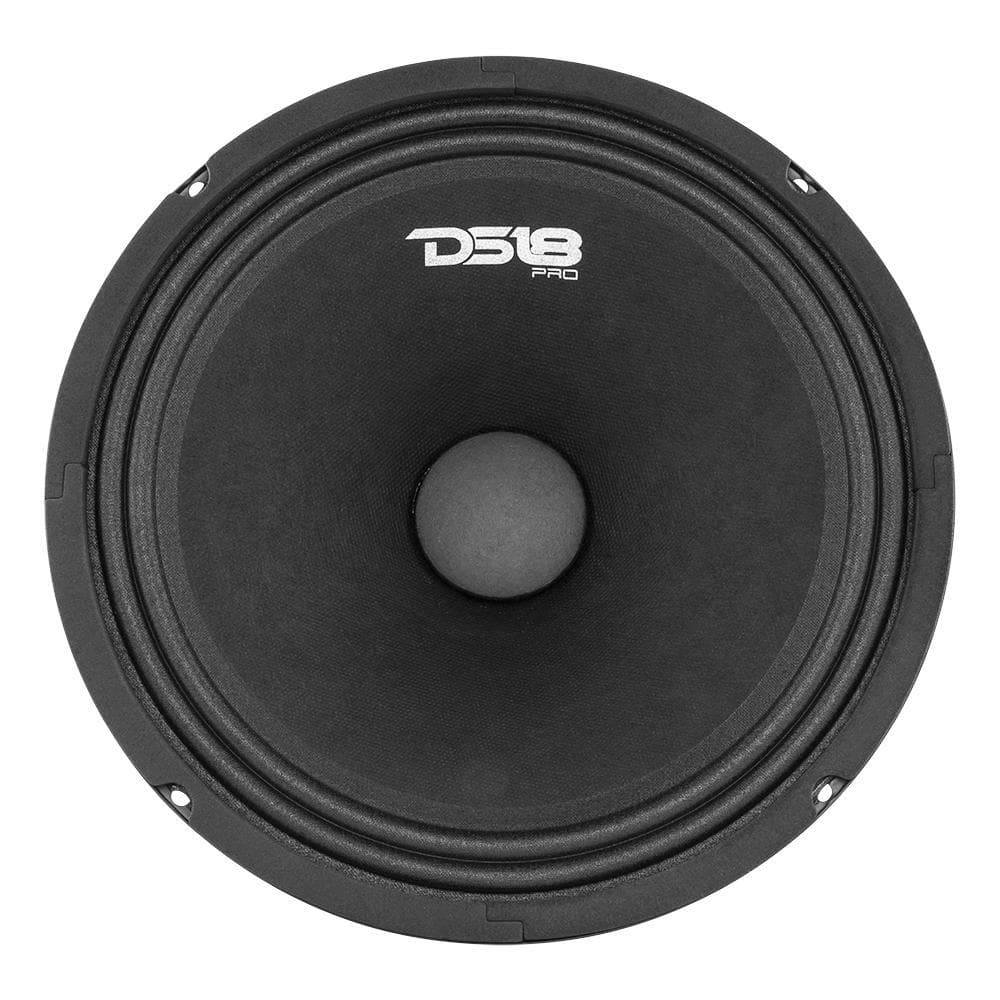

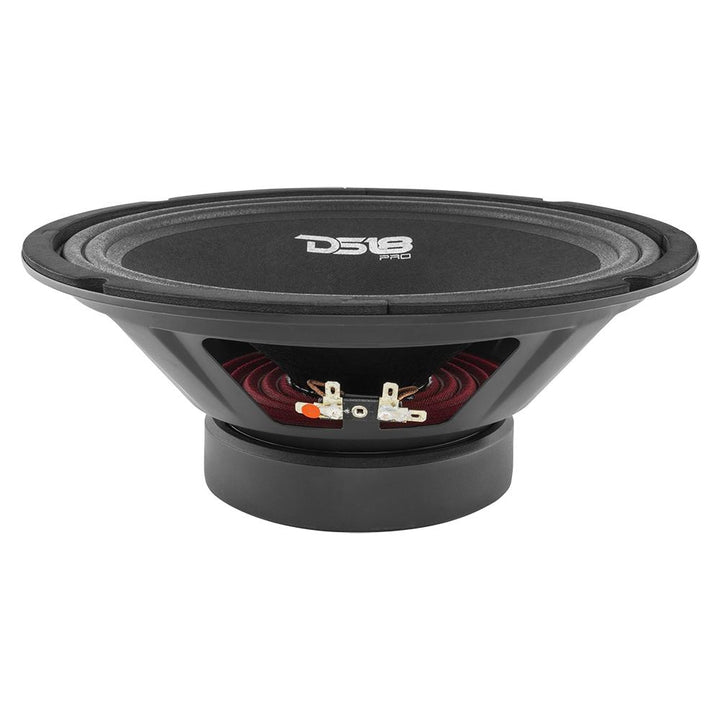

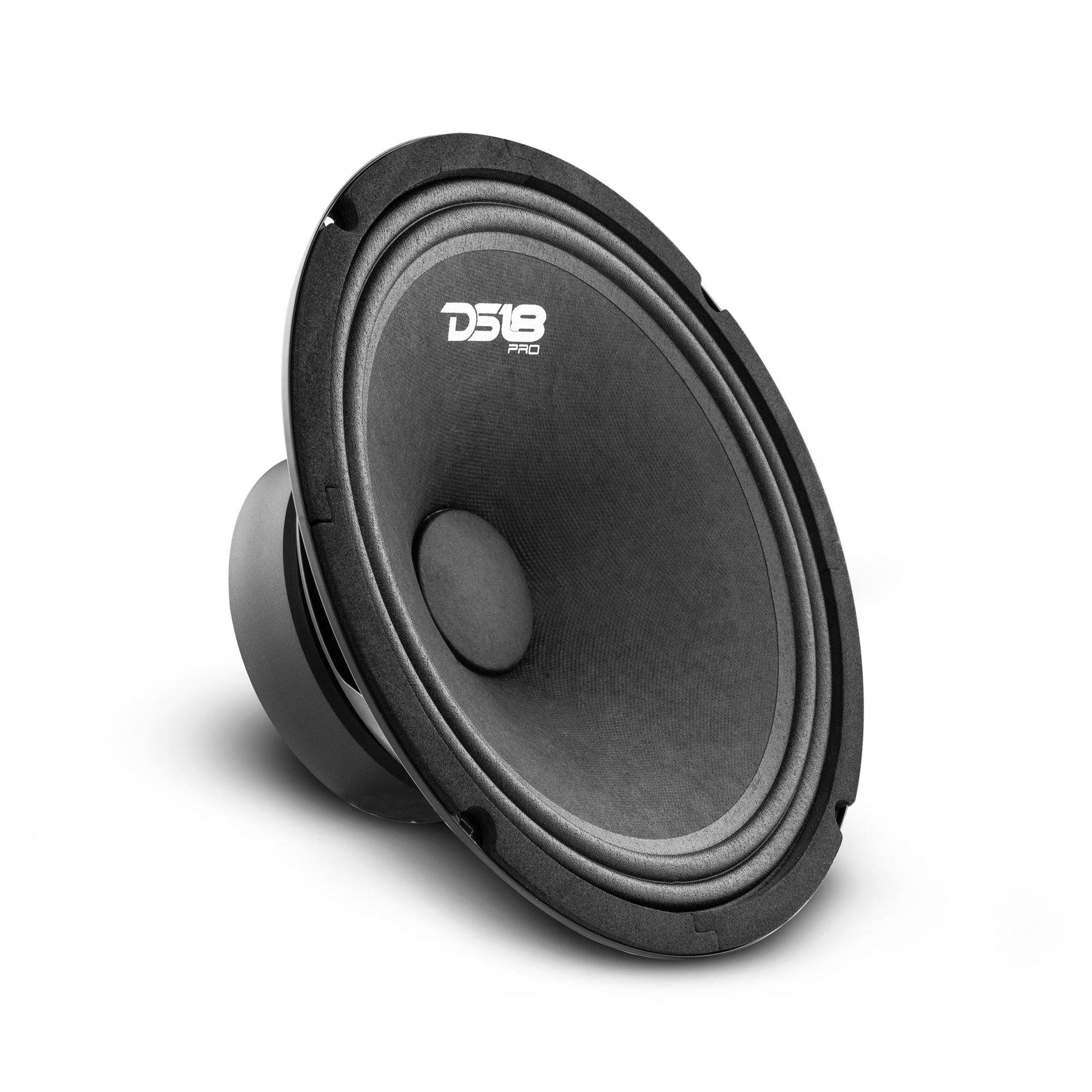

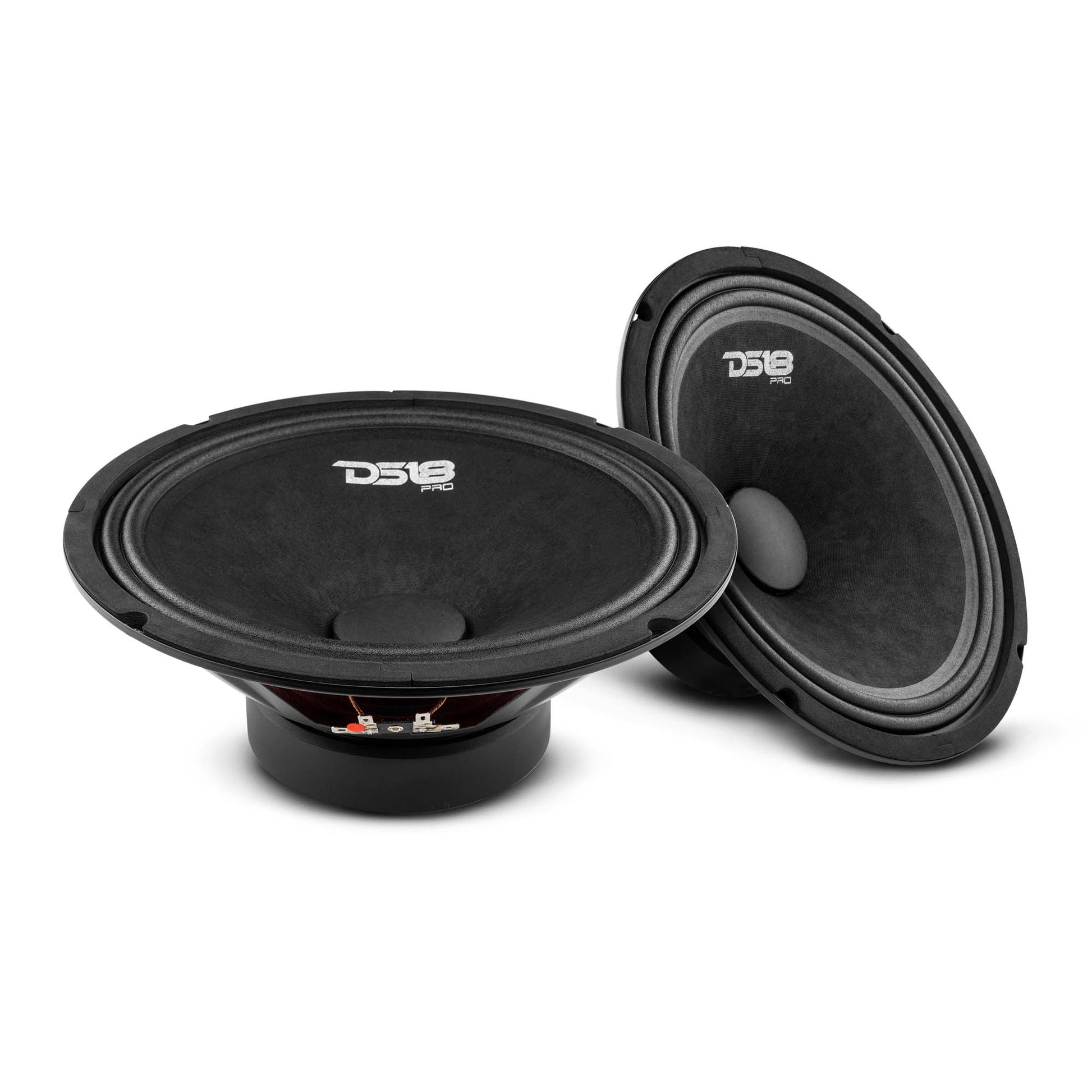

DS18 PRO-GM10.4 10" Mid-Range Loudspeaker 660 Watts 4-Ohm

DS18 PRO-GM10.4 10" Mid-Range Loudspeaker 660 Watts 4-Ohm

Sold by AudioSellerz.com

SKU: PRO-GM10.4

DS18 PRO-GM10.4 10" Mid-Range Loudspeaker 660 Watts 4-Ohm is a DS18 audio processor from DS18 built for system tuning, signal control, crossover setup, equalization, and cleaner full-system audio builds. This description helps shoppers looking for DS18 DSP, car audio processor, audio equalizer, digital sound processor, system tuning understand where it fits in a real audio system.

Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.

Audio Sellerz System Match Notes

• Use clean signal routing and proper tuning so the speakers, subwoofers, and amplifiers work together.
• For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
• If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.

DS18 PRO-GM10.4 10" Mid-Range Loudspeaker 660 Watts 4-Ohm

Everyone's favorite is now available in 4-Ohms During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/"voceteo" audiophiles. Therefore, DS18 created the PRO-GM audio line, which features a wide variety of midranges the produce concert-like sounds that will knock the wind out of you.

A midrange driver is called upon to handle the most significant part of the audible sound spectrum, the region where the most fundamentals emitted by musical instruments and, most importantly, the human voice, lie. This region contains sounds which are the most familiar to the human ear, and where discrepancies from faithful reproduction are most easily observed. It is therefore paramount that a mid-range driver of good quality be capable of low-distortion reproduction.

Highlights

• DS18's highly popular series of High Powered pro audio.
• Great DS18 design of high durability parts including strong ferrite magnet, pressed paper cone, and CCA voice coils to get you maximum loudness with great sound quality.
• These mids come with a solid cone design and are pure midrange speakers and will be greatly complemented with a not included tweeter.

Technical Details

Download PRO-GM10.4 Product Manual

Model:	PRO-GM10.4
Type:	Midrange Loudspeaker
Size:	10"
RMS Power:	220W
MAX Power:	660W
Frequency Response:	40Hz-6.3KHz
Impedance:	4 Ohms
Sensitivity:	95dB
Materials
Surround:	Cloth Surround
Frame:	Black Stamp Steel Basket
Cone:	Black Paper Woofer Cone
Magnet:	Ferrite
Voice Coil Wire:	Kapton
Diameters
Voice coil size:	2"
Magnet Weight:	30 oz.
Mounting Depth:	3.7" (96mm)
Cut-Out Dimension:	9.05" (182mm)
Fs	59 Hz
Re	3.4 Ohm
Qes	0.808
QMS	14.565
Qts	0.765
Vas	79.3L / 2.8ft3
