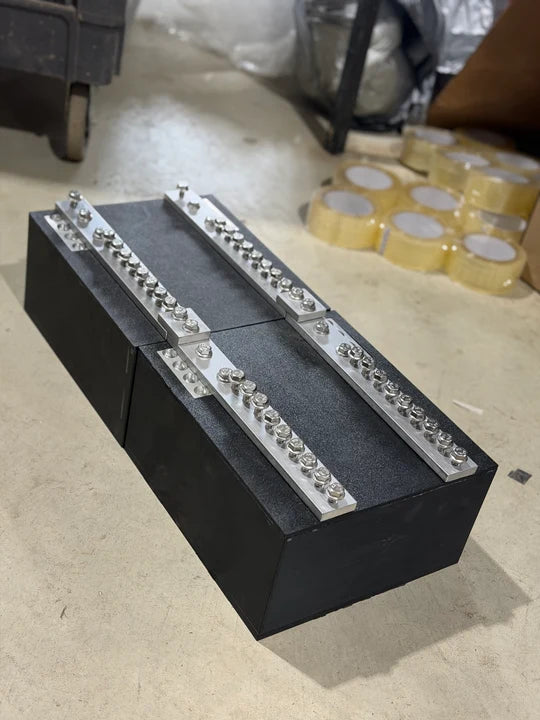

Brand X 80Ah LTO Battery – 20KW Peak Output

Brand X 80Ah LTO Battery – 20KW Peak Output

Sold by AudioSellerz.com

The Brand X 80Ah LTO Battery is built for high-power car audio systems that need serious electrical support. It uses 20Ah LTO prismatic cells in a 6S4P configuration, providing a total capacity of 80Ah in a compact, stackable design.

Brand X 80Ah LTO Battery Features

• 80Ah total battery capacity
• 20Ah LTO prismatic cells
• 6S4P cell configuration
• Up to 20KW peak system support for burp builds
• Approximately 14–16KW peak system support for musical builds
• Designed for systems with strong alternator support
• Compact and stackable battery design
• ABS 3D-printed protective case
• Passive balancing system
• 36-month prorated manufacturer warranty

Battery Specifications

• Battery Type: LTO lithium battery
• Capacity: 80Ah
• Cell Type: 20Ah LTO prismatic cells
• Cell Configuration: 6S4P
• Working Voltage: 15–16 volts
• Maximum Voltage: 16.8 volts
• Minimum Charging Voltage: 15 volts
• Peak Burp System Rating: Up to 20KW peak per battery
• Peak Musical System Rating: Approximately 14–16KW peak per battery with 400 or more amps of alternator support
• Dimensions: 9.75 inches × 11 inches × 5.5 inches tall
• Weight: Approximately 35 pounds
• Case: ABS 3D-printed case
• Warranty: 36-month prorated manufacturer warranty

How Much Power Can the Brand X 80Ah LTO Battery Support?

Brand X rates this 80Ah LTO battery for systems producing up to approximately 20KW peak in burp-style builds. For musical systems, it is intended to support approximately 14–16KW peak when paired with at least 400 amps of alternator output.

Actual system support depends on alternator output, engine RPM, charging voltage, wiring, grounds, amplifier efficiency, impedance, playing time, and the condition of the complete electrical system.

Using less alternator output may reduce the amount of power the battery can reliably support. Additional alternator output and battery capacity may be required for longer musical demonstrations or systems with heavier continuous current demand.

Requires a 15–16 Volt Charging System

This is not a drop-in replacement for vehicles that charge in the standard 13.8–14.8-volt range. The Brand X 80Ah LTO battery requires a properly configured charging system capable of maintaining at least 15 volts.

Before ordering, confirm the vehicle has the correct high-output alternator, voltage control, external regulator, or other approved charging equipment.

Do not purchase this battery with the intention of operating it below 15 volts. Do not allow the charging system to exceed 16.8 volts.

Complete Electrical-System Planning

A high-capacity LTO battery cannot correct undersized wiring, weak grounds, loose terminals, restricted fuse holders, or insufficient alternator output. The battery, alternator, voltage control, wiring, grounds, fuse protection, and amplifiers must work together as one complete system.

Customers building a 15–16-volt electrical system can browse Brand X high-output alternators and external regulators.

Upgrade the main charging and grounding paths with a properly sized car audio Big 3 upgrade kit.

Shop car audio power wire and ground wire for battery connections, amplifier runs, alternator upgrades, and electrical-system installations.

You can also browse additional car audio electrical upgrades available from Audio Sellerz.

Installation Requirements

• Confirm charging voltage before connecting the battery
• Maintain a working voltage between 15 and 16 volts
• Never allow voltage to exceed 16.8 volts
• Do not operate or recharge the battery below 15 volts
• Use properly sized OFC power and ground wire
• Install appropriate fuse protection
• Securely mount the battery
• Protect exposed battery terminals
• Use clean, tight electrical connections
• Follow all instructions included with the battery

Do not combine this battery with batteries using different chemistries, operating voltages, or states of charge unless Brand X specifically approves the configuration.

Brand X Battery Warranty

This battery includes a 36-month prorated manufacturer warranty covering the battery itself. The warranty does not cover amplifiers, alternators, wiring, chargers, or other equipment connected to the battery.

Operating or charging the battery below 15 volts will void the warranty. Battery swelling caused by improper discharge or recharge may place the battery into the manufacturer’s lowest prorated warranty tier, regardless of how long the battery has been owned.

Proper charging, voltage monitoring, installation, and system maintenance are the customer’s responsibility.

Important Information Before Ordering

Do not order this battery until you have verified that your charging system can consistently maintain between 15 and 16 volts without exceeding 16.8 volts.

If you are unsure whether this Brand X 80Ah LTO battery is compatible with your system, contact Audio Sellerz before purchasing. We can help review your alternator output, charging voltage, amplifier power, wiring, battery capacity, and intended system use.
