B2 Audio RIOT Series V2 6.5" 100 Watt RMS 4-Ohm Component Set With 1" Wide Band Tweeter & Crossover RIOT61

B2 Audio RIOT Series V2 6.5" 100 Watt RMS 4-Ohm Component Set With 1" Wide Band Tweeter & Crossover RIOT61

Sold by AudioSellerz.com

The B2 Audio RIOT Series V2 6.5" 100 Watt RMS 4-Ohm Component Set With 1" Wide Band Tweeter & Crossover RIOT61 is a car audio signal-processing product from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• POWERFUL 2-WAY COMPONENT SET: Includes two 6.5" midrange woofers (100W RMS), two 1" silk dome tweeters (10W RMS), and 12 dB crossovers for balanced, high-output sound.
• SMOOTH HIGH FREQUENCY RESPONSE: Silk dome tweeters with 94 dB sensitivity deliver crisp, detailed highs and a wide frequency range up to 25kHz for immersive clarity.
• DEEP & RESPONSIVE MIDBASS: Coated paper cone midwoofers with rubber surround and 88.9 dB sensitivity provide clean, punchy low mids that fill out your soundstage.
• HIGH-PRECISION CROSSOVERS: Aggressive 12 dB/octave slope at 3.5kHz ensures accurate frequency separation and dynamic control for both mids and highs.
• EASY TO INSTALL, OEM READY: Slim 2.4" mounting depth and compact tweeter design make this set ideal for factory upgrades or custom car audio builds.

B2 Audio 2-Way 4-Ohm Component Set RIOT 6.5" With 1" Tweeter & Crossover RIOT61

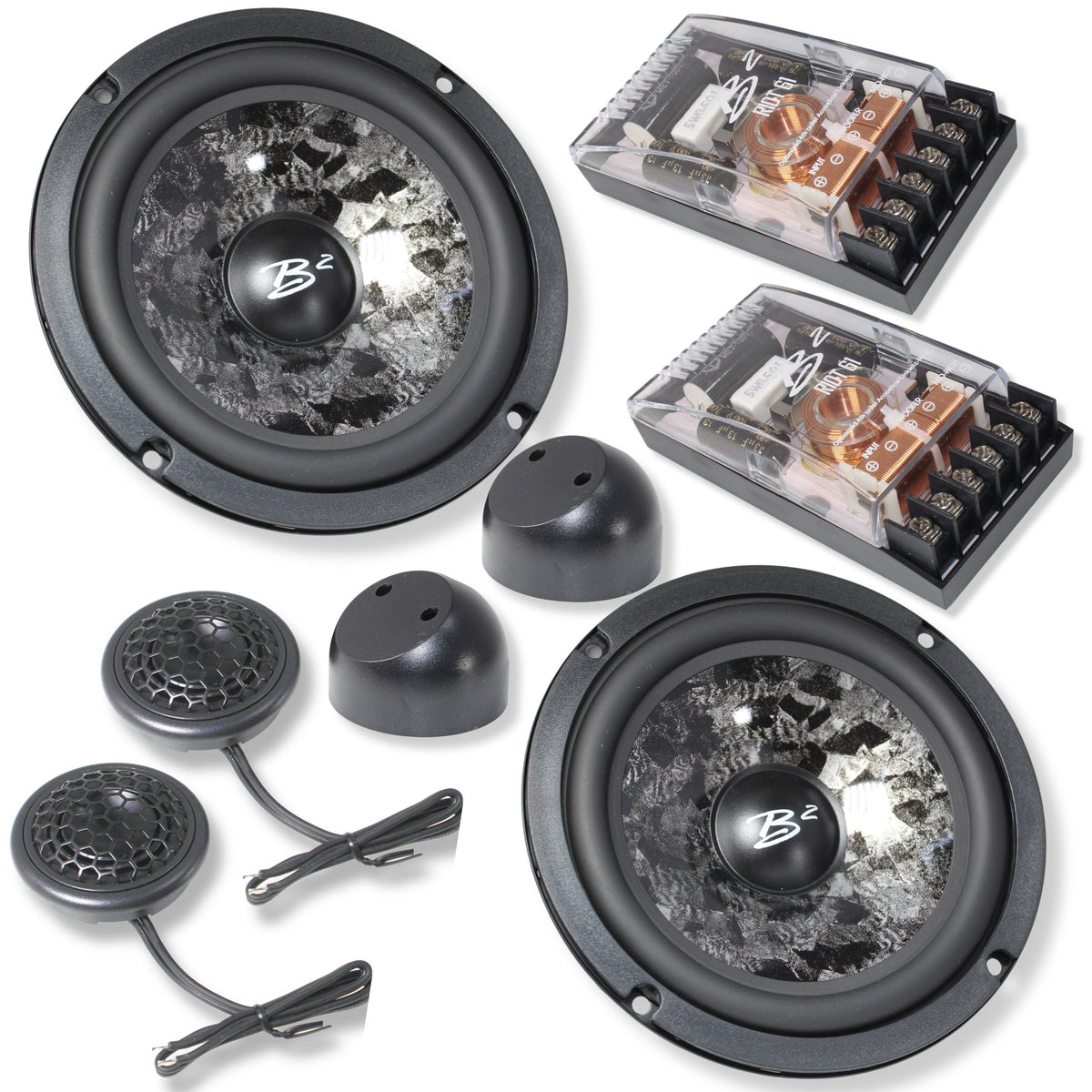

This Listing Includes:

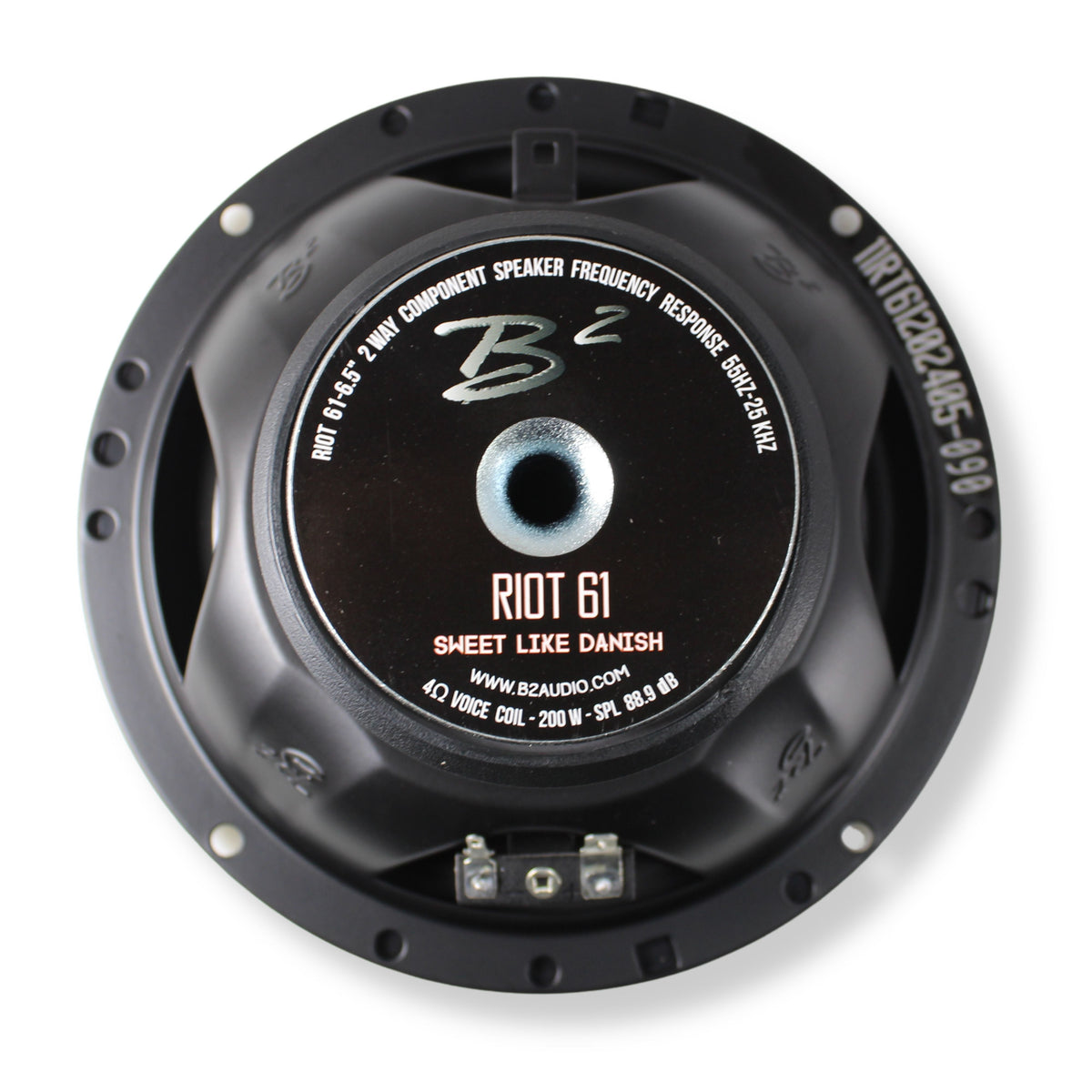

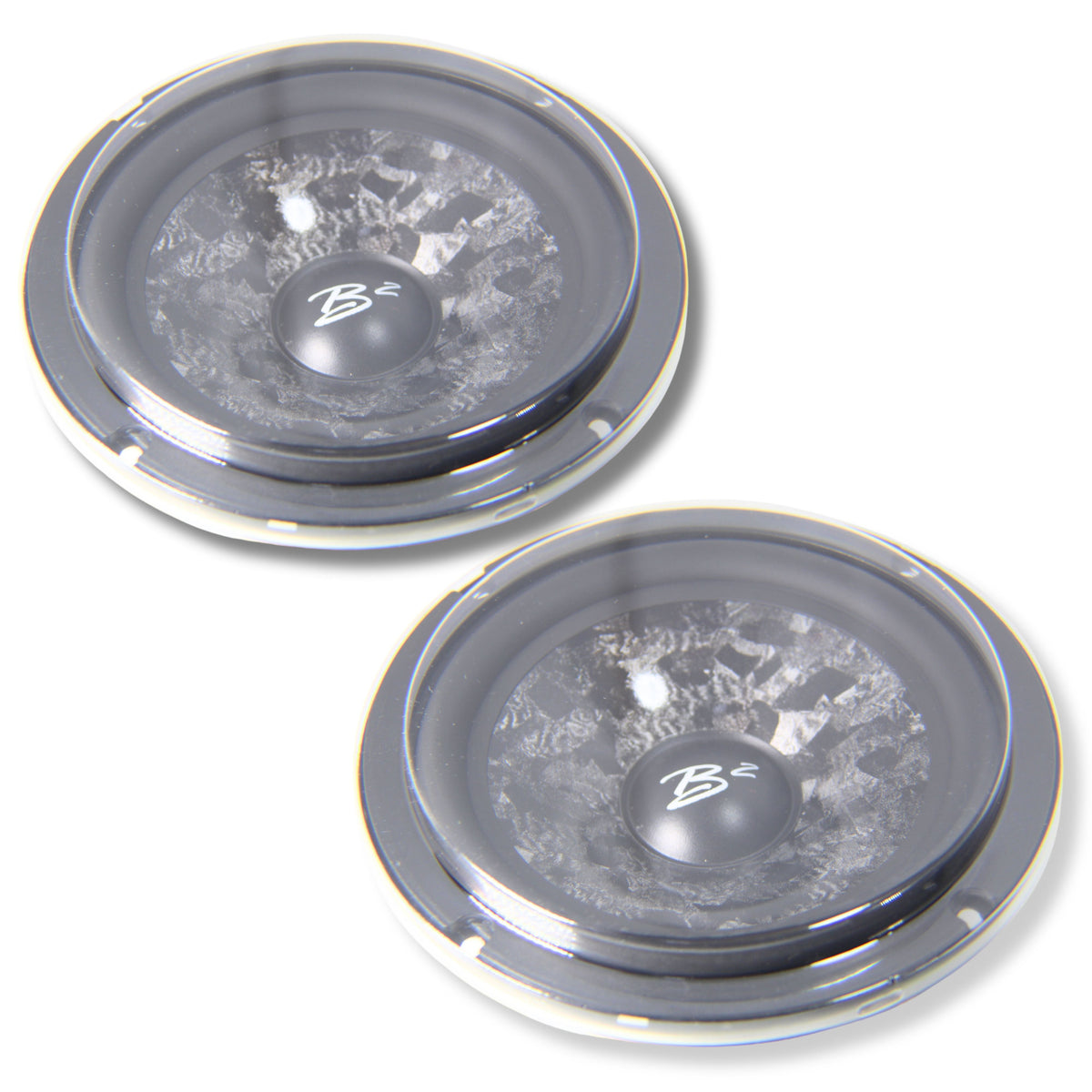

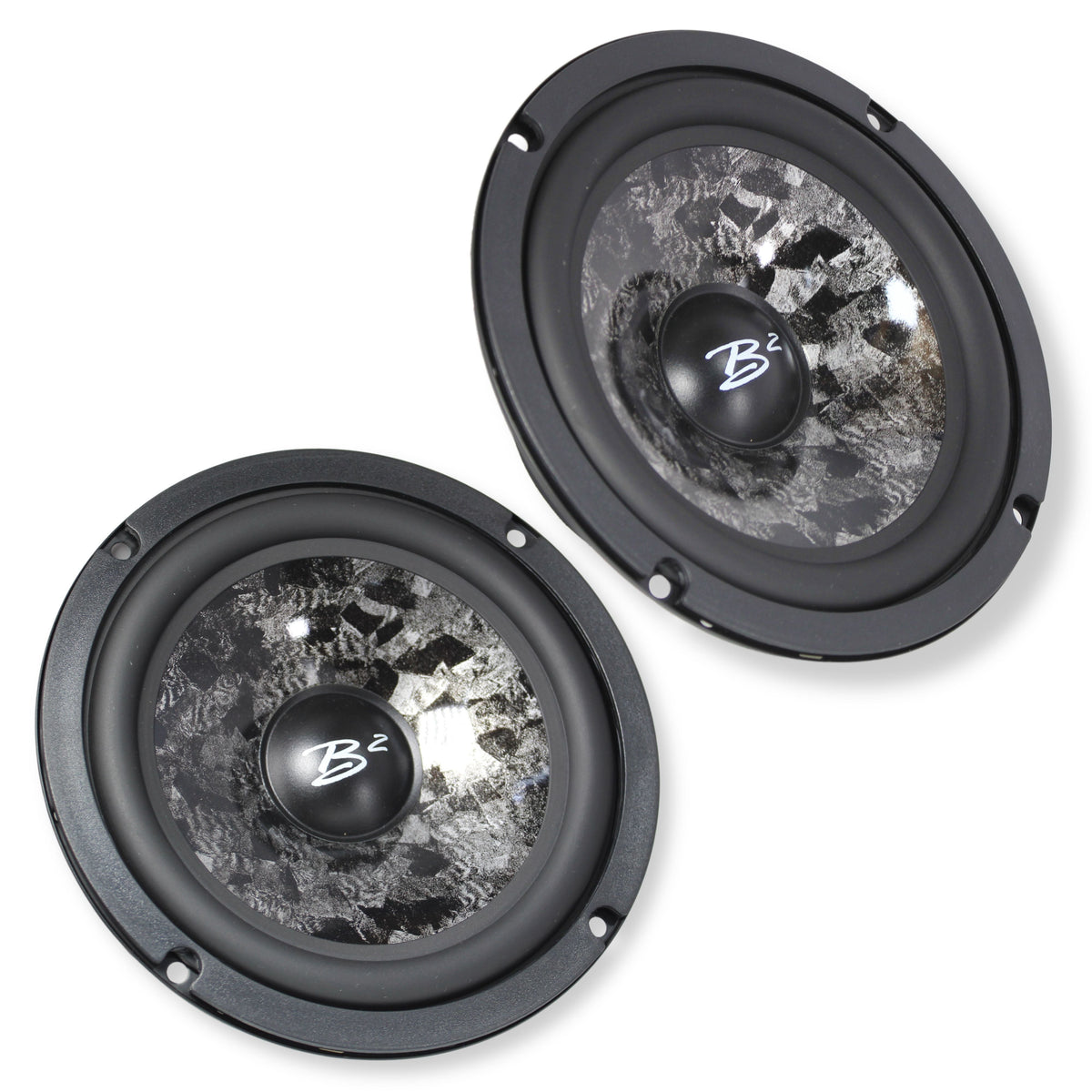

• (2) 6.5" 100W RMS Midrange Speakers

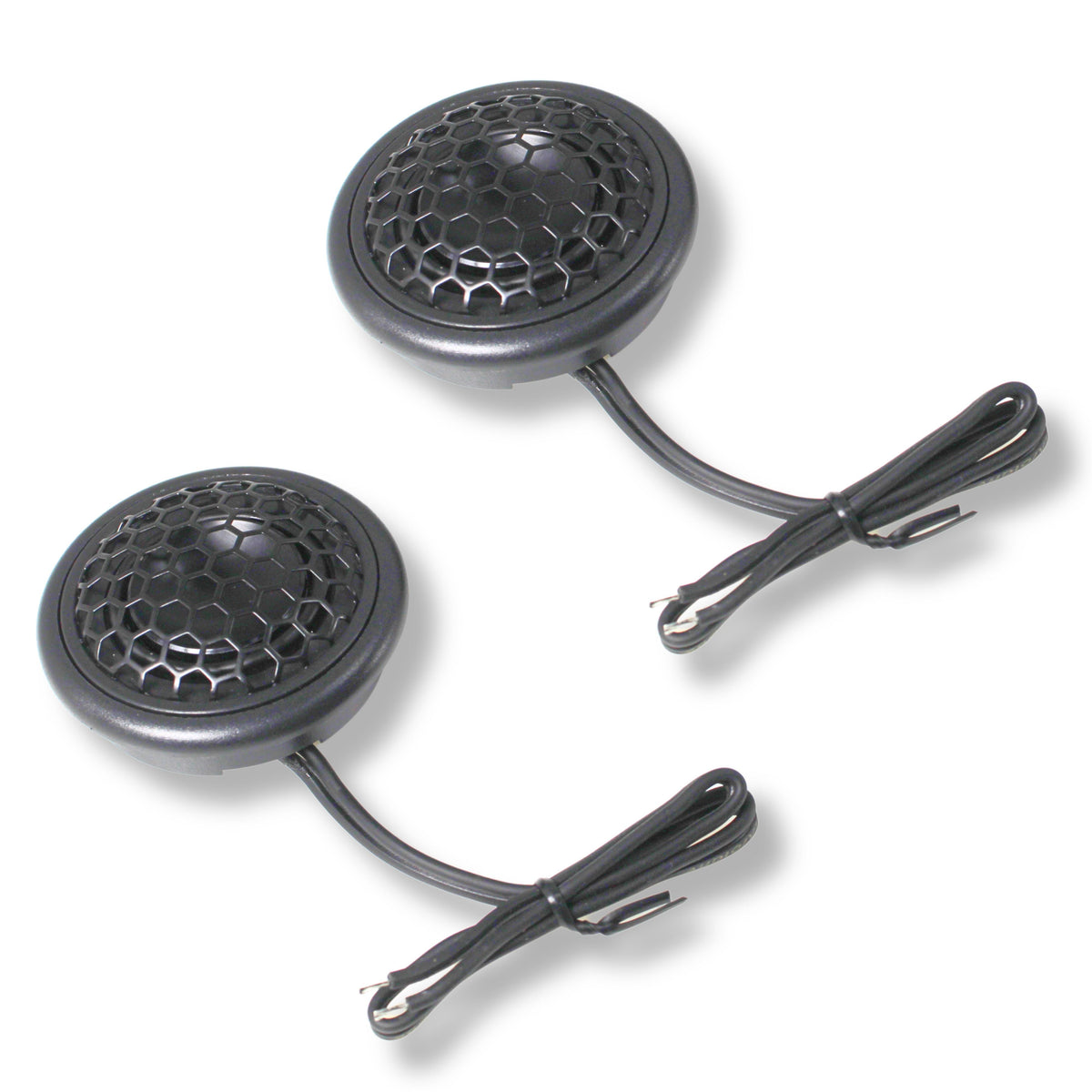

• (2) Silk Dome 10W RMS Tweeters

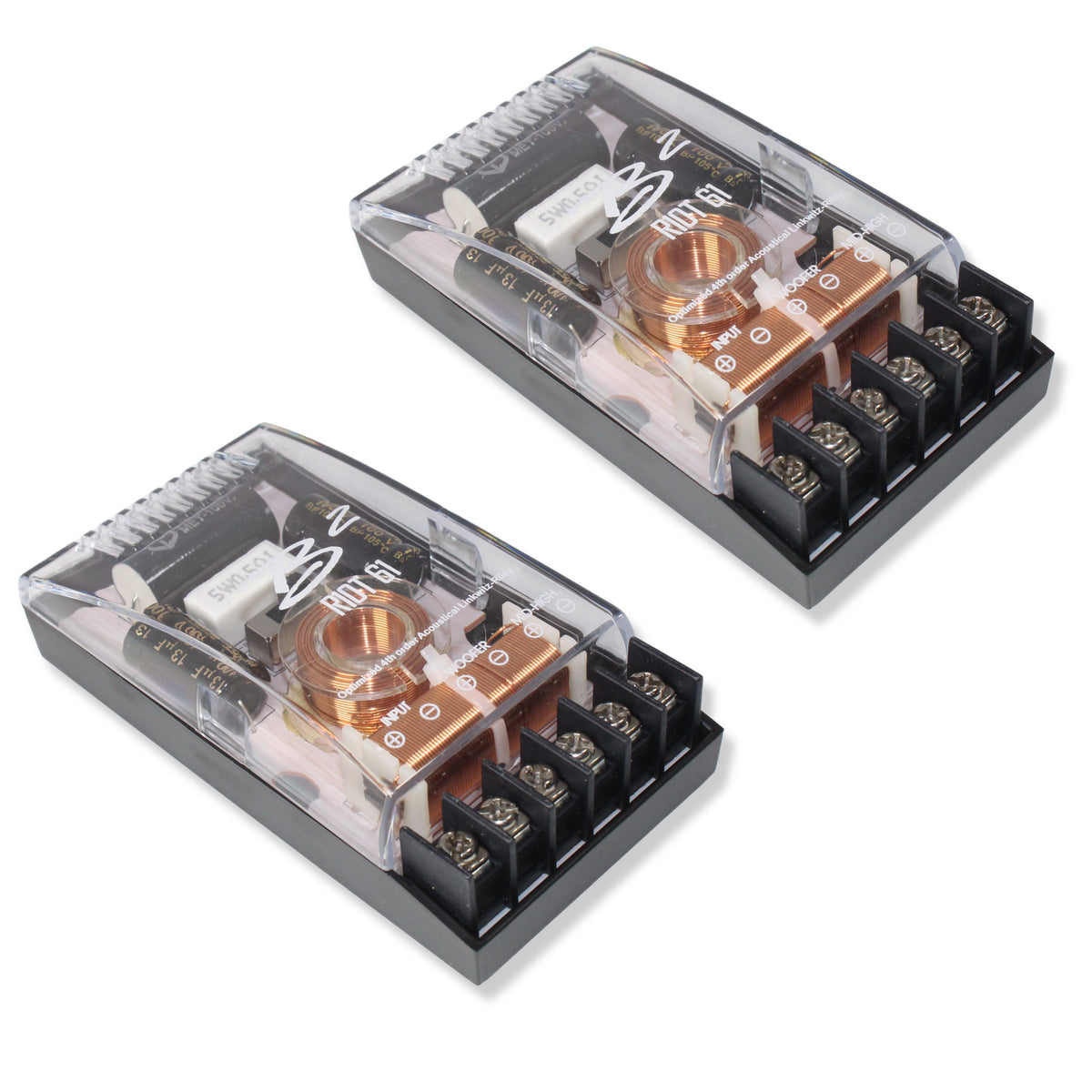

• (2) Crossovers

Rev up your car's audio with the RIOT61 6.5" Component Speaker Kit. Engineered for raw power and performance, it features aggressive 12 dB/octave crossovers with tweeter attenuation set at 3.5 KHz for precision. Silk dome tweeters deliver clear highs, while coated paper cone midwoofers provide a fuller sound. With easy installation and specs that scream dominance, including wide frequency response and high sensitivity, the RIOT61 ensures an immersive driving experience.

Features

Midrange Specifications:

• Nominal Chassis Diameter: 6.5"


• RMS Power Handling: 75W


• Maximum Power Handling: 200W


• Nominal Impedance: 4 Ohm


• Resonance Frequency: 52 Hz


• Voice Coil Diameter: 1"


• Winding Material: CCA / Copper


• Magnet Type : Neo / Ferrite


• Magnet Weight: 11.7 Oz

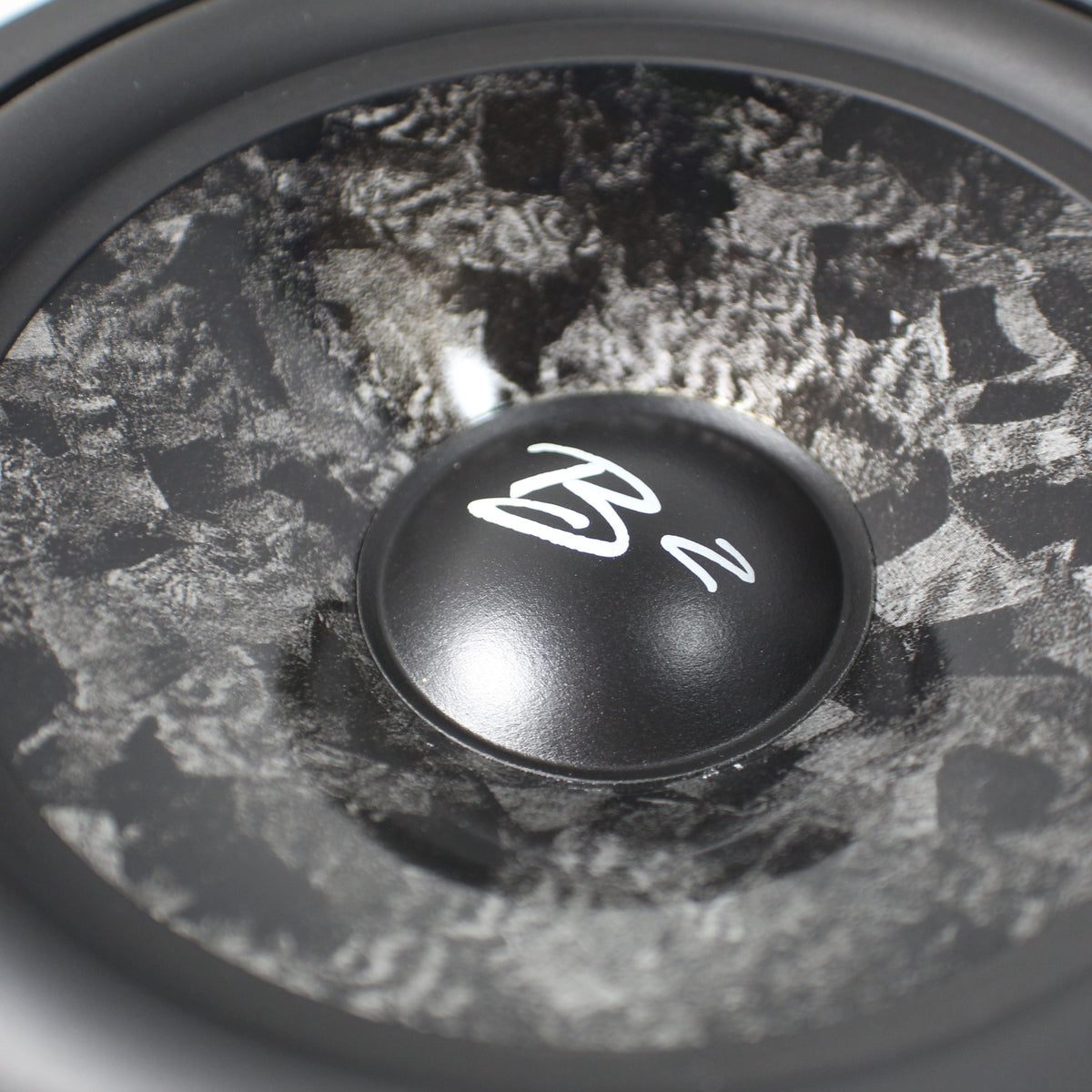

• Cone Material: IMWRP


• Frequency Response: 55 Hz ~ 25 KHz


• Sensitivity: 88.9 dB


• Surround Type: U Shaped Rubber

Tweeter Specs:

• RMS Power Handling: 10W


• Max Power Handling: 25W


• Nominal Impedance: 4 Ohm


• Voice Coil Diameter: 1"


• Sensitivity: 94 dB


• Free Air Resonance (Fs): 1.8 KHz

Thiele & Small Parameters:

Midrange:

• Free Air Resonance (Fs): 55 Hz


• Resistance (Re): 3.3 ohm


• Mechanical Factor (Qms): 5.54


• Electrical Factor (Qes): 0.666


• Total Factor (Qts): 0.595


• Equivalent Volume (Vas): 8.64 L


• Compliance (Cms): 560 um/N


• BL Factor (BL): 5.56 T/M


• Moving Mass (Mms): 18.89 g


• XMAX: 6.5 mm


• SD: 128.68 cm^2


• Efficiency: 0.241 Percent


• Le (1 KHz): 0.479 mH


• EBP: 82.58

Measurements

Midrange:

• Overall Diameter: 6.53" / 166mm


• Baffle Cutout Diameter: 5.59 in / 142 mm


• Net Weight (1 pc): 0.96 kgs


• Shipping Weight (sets): 2.51 kgs


• Shipping Box (set): 385 x 195 x 100 mm


• Mounting Diameter: 5.66" / 144mm


• Front Mount Baffle Cutout: 5.55 / 141mm

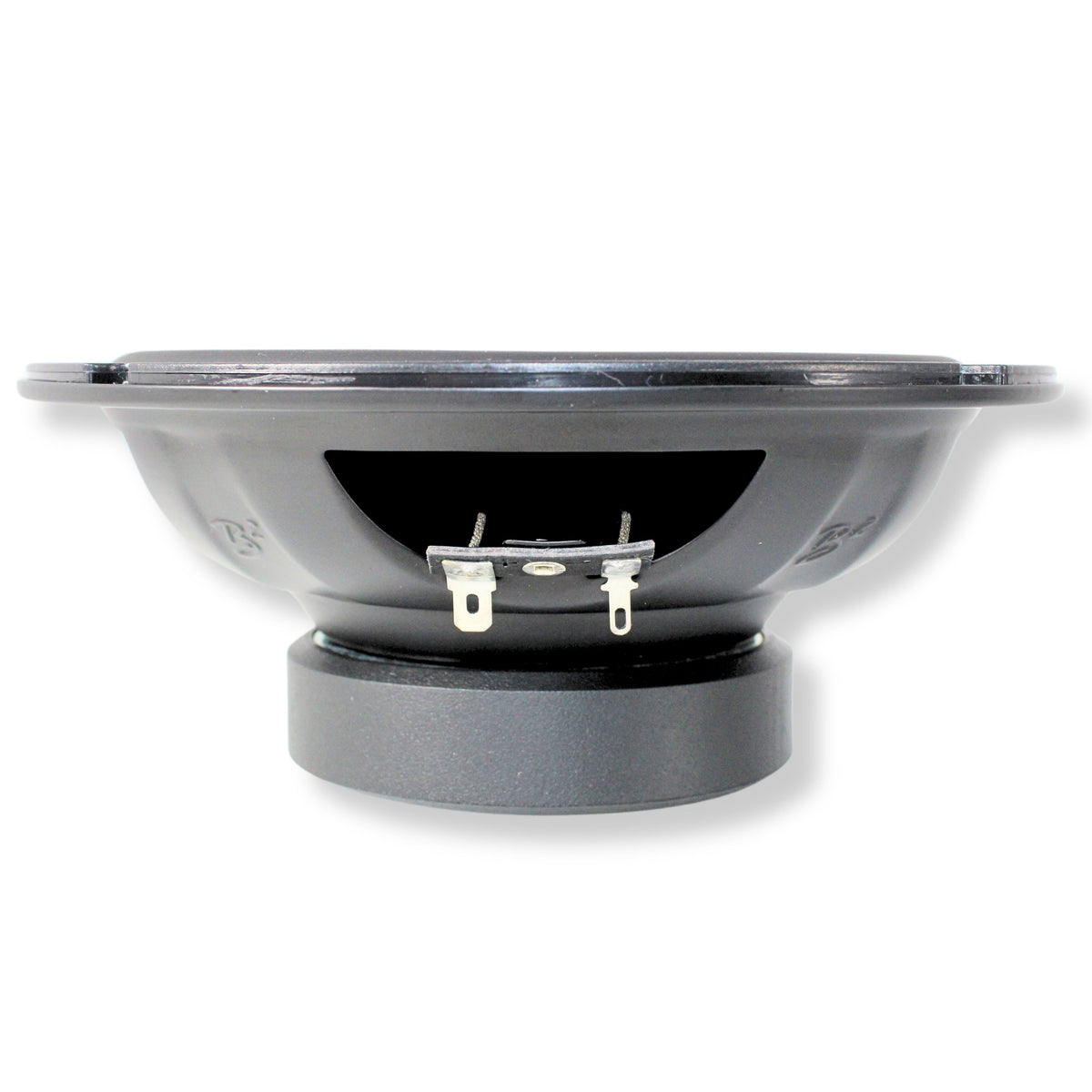

• Overall Depth: 2.59 / 65.9mm


• Mounting Depth: 2.40" / 61mm


• Sold as: (Pair)

Tweeter:

• Overall Diameter: 1.96" / 50mm


• Overall Depth: 1.00" / 25.6mm


• Mounting Depth: 0.63" / 16mm
