B2 Audio RIOT Series 6.5" 100 Watt RMS 4-Ohm Component Set With 1" Wide Band Tweeter & Crossover RIOT61

B2 Audio RIOT Series 6.5" 100 Watt RMS 4-Ohm Component Set With 1" Wide Band Tweeter & Crossover RIOT61

Sold by AudioSellerz.com

The B2 Audio RIOT Series 6.5" 100 Watt RMS 4-Ohm Component Set With 1" Wide Band Tweeter & Crossover RIOT61 is a car audio signal-processing product from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• POWERFUL 2-WAY COMPONENT SYSTEM: Includes two 100W RMS midrange drivers, two 1" silk dome tweeters, and precision crossovers for full-range car audio clarity and balance.
• CRISP HIGHS & FULL MIDRANGE: Silk dome tweeters produce 94 dB sensitivity and clean treble tones, while the midwoofers handle 60Hz–23kHz for impactful low to upper mids.
• HIGH-PERFORMANCE CROSSOVERS: 12 dB/octave crossover with 3.5 kHz attenuation ensures seamless handoff between tweeter and woofer for a smooth, natural sound stage.
• COMPACT & INSTALLATION FRIENDLY: Shallow 2.4" mounting depth and included grilles allow for easy fitment in factory locations or custom builds without sacrificing output.
• Versatile Compatibility: Suitable for various vehicles, this component speaker kit is the perfect solution for upgrading stock loudspeakers.
• BUILT FOR RELIABILITY: Neo/ferrite magnet structure, 1.2" voice coil, and weather-resistant components deliver long-lasting performance for daily drivers and show builds.

B2 Audio RIOT 6.5" 2-Way 4-Ohm Component Set With 1" Tweeter & Crossover RIOT61

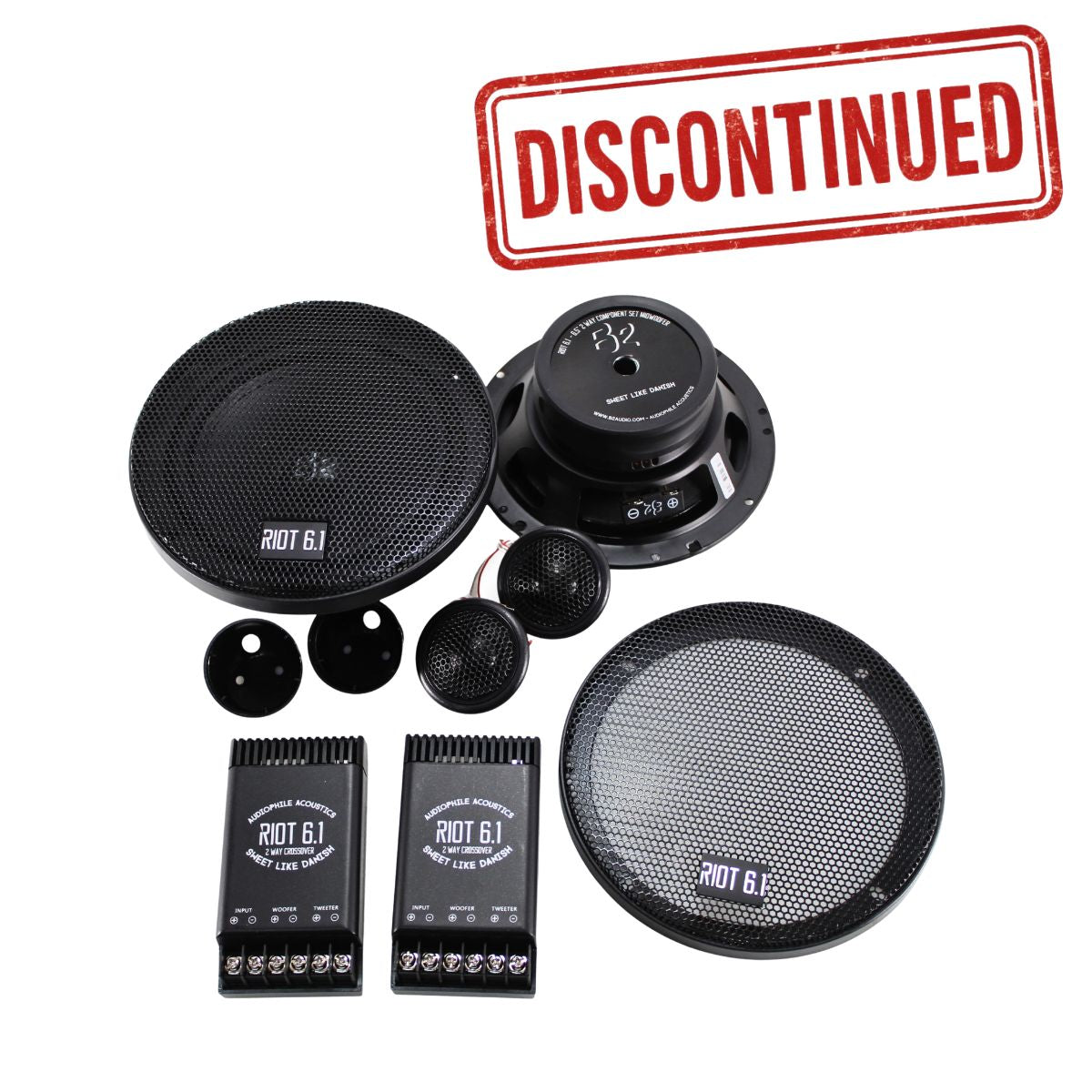

*This one’s been discontinued, but we’ve got you covered. Check out the B2-RIOT61-V2.

This Listing Includes:

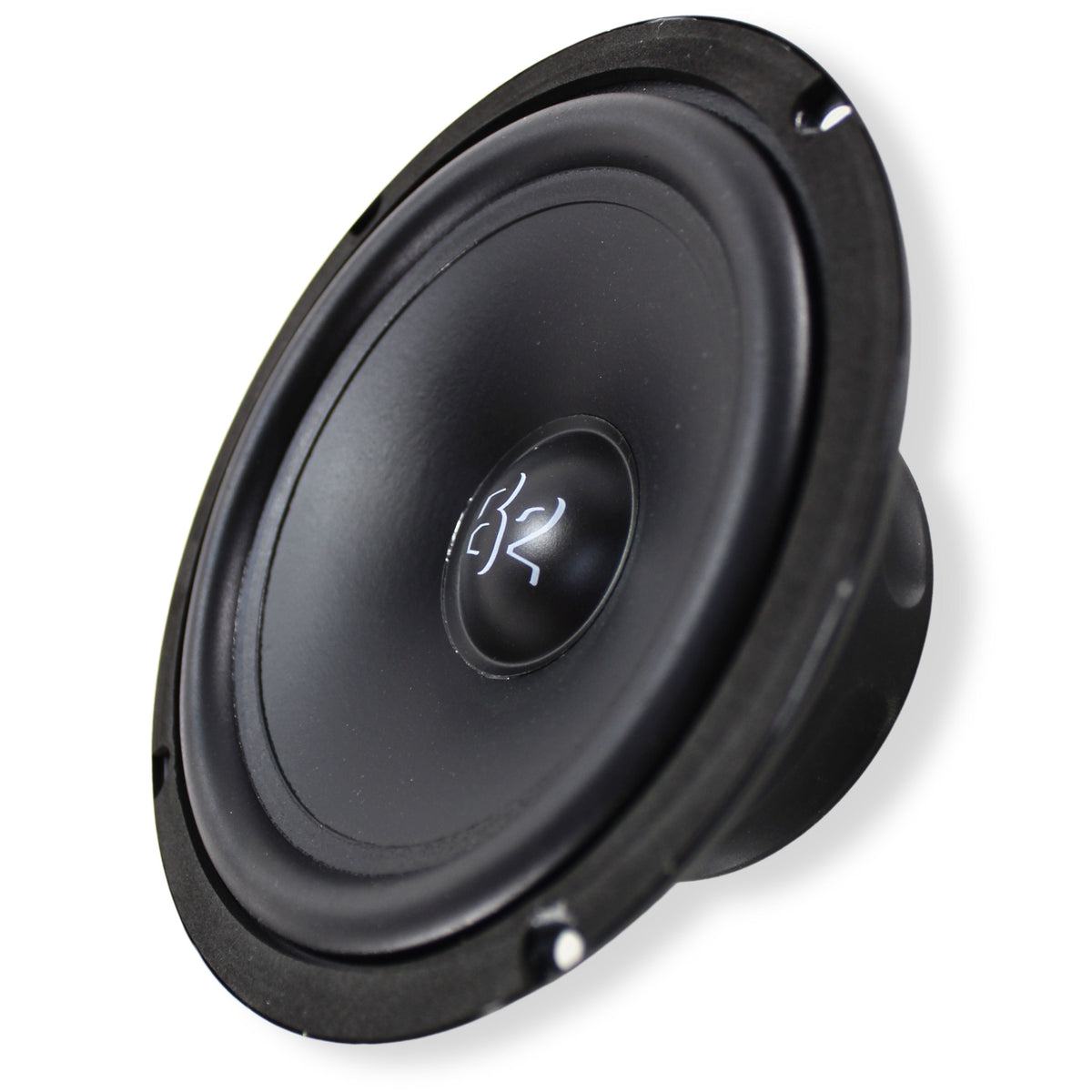

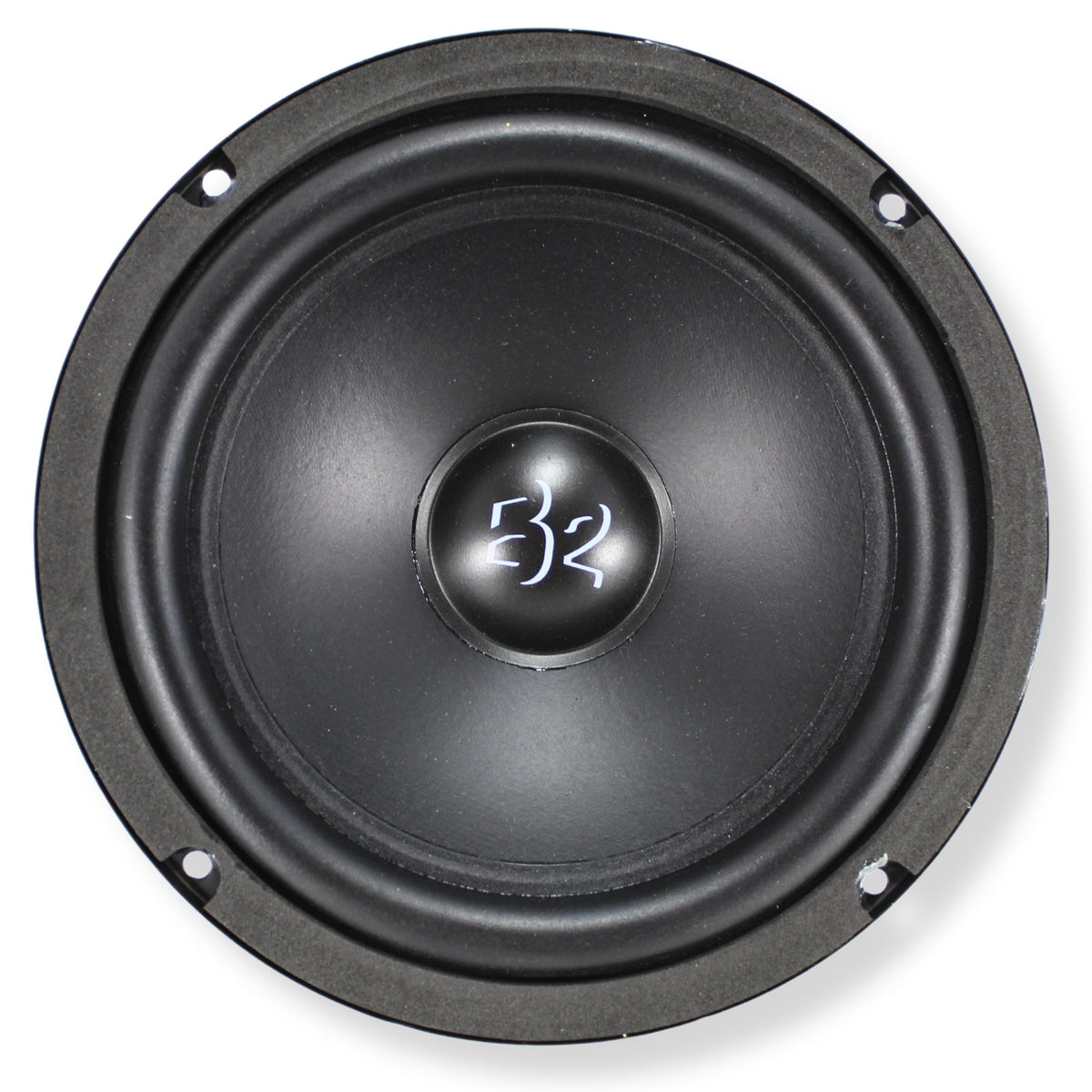

• (2) 6.5" 100W RMS Midrange Speakers

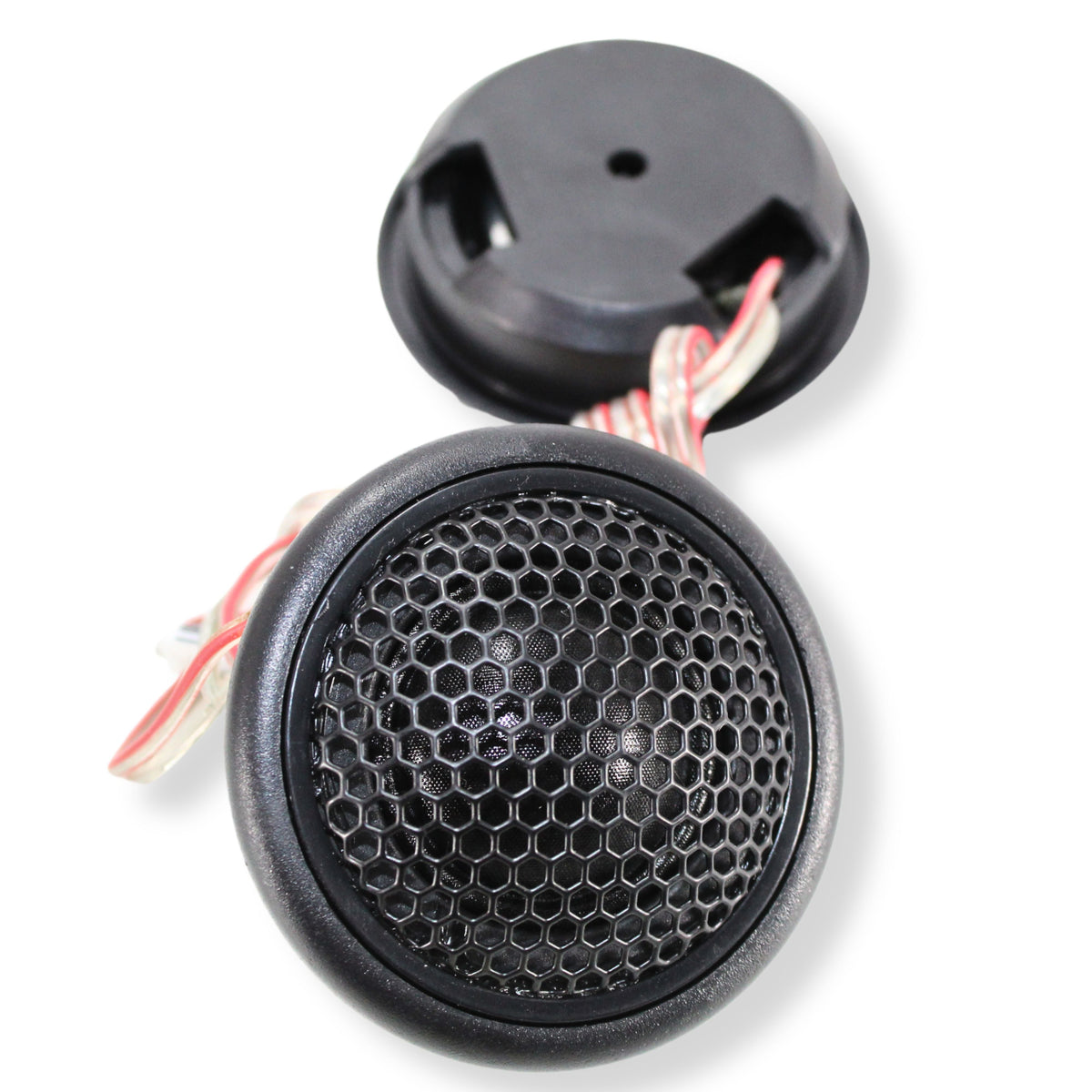

• (2) Silk Dome 10W RMS Tweeters

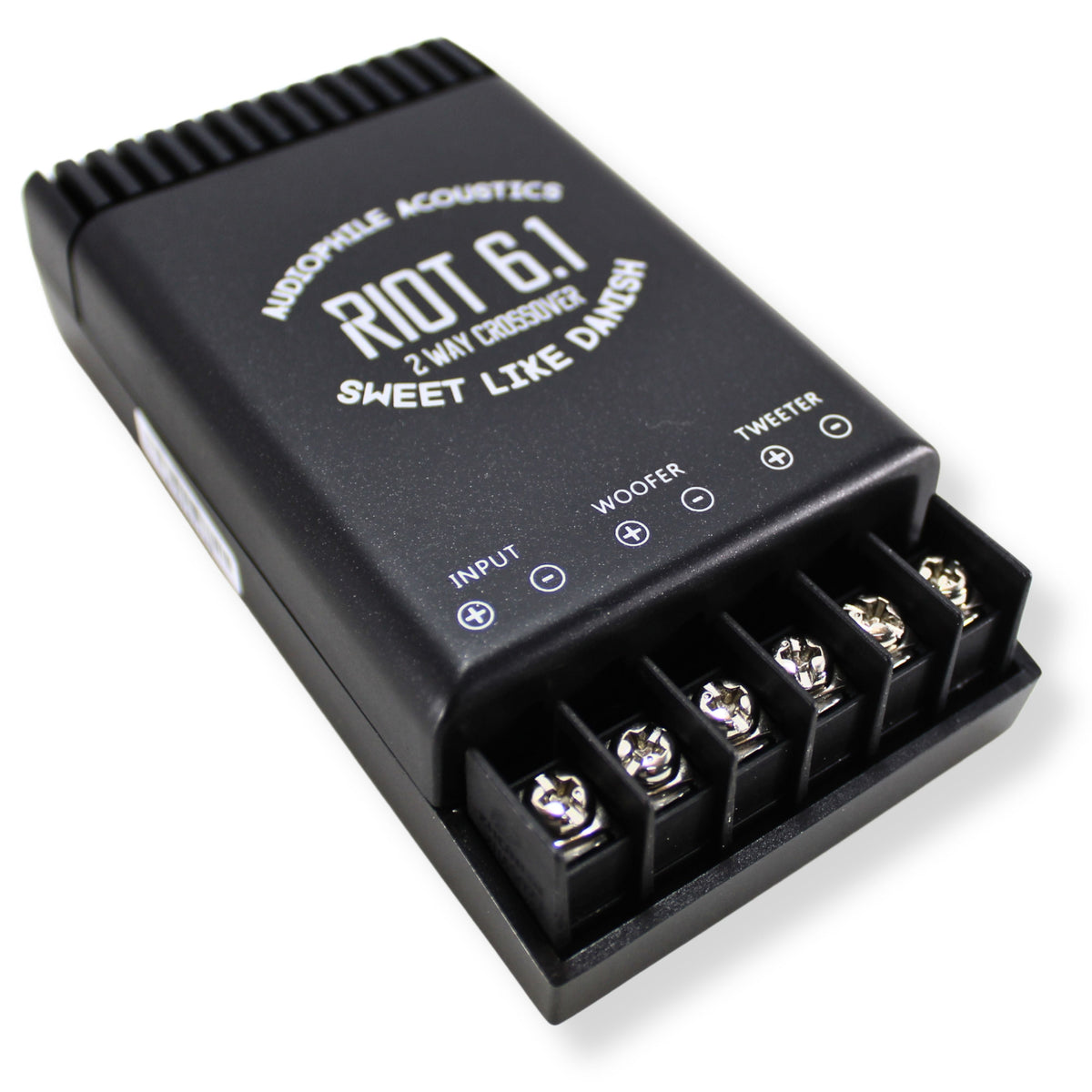

• (2) Crossovers

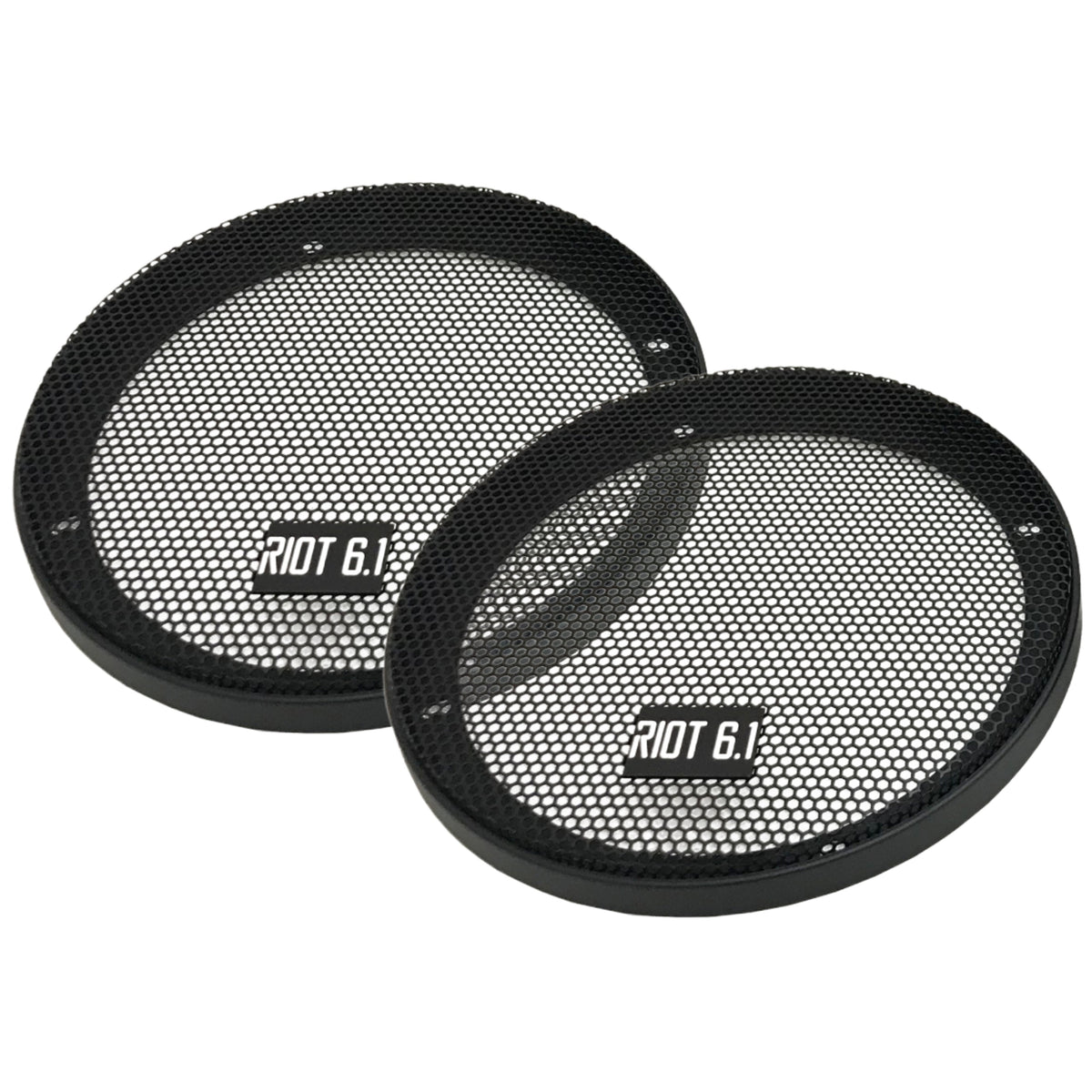

• (2) Grilles for the 6.5" Speakers

Item Description

Rev up your car's audio with the RIOT61 6.5" Component Speaker Kit. Engineered for raw power and performance, it features aggressive 12 dB/octave crossovers with tweeter attenuation set at 3.5 KHz for precision. Silk dome tweeters deliver clear highs, while coated paper cone midwoofers provide a fuller sound. With easy installation and specs that scream dominance, including wide frequency response and high sensitivity, the RIOT61 ensures an immersive driving experience.

Features

• Complete 2-Way Speaker Set – Includes two 6.5" midrange drivers, two 1" silk dome tweeters, two 12 dB/octave crossovers, and grilles.


• 100W RMS Midrange Performance – Covers a wide 60Hz–23kHz frequency response with 90.2 dB sensitivity for powerful, dynamic output.


• Silk Dome Tweeters – 94 dB sensitivity and 25W max power handling provide clean, detailed high frequencies without harshness.


• Aggressive 12 dB Crossover – Ensures optimal transition at 3.5 kHz, enhancing sound staging and tonal accuracy.


• Install-Ready Form Factor – 2.4" mounting depth and compact tweeter design fit most vehicle doors and dash panels with ease.

Midrange Specifications:

• RMS Power Handling: 100W


• Maximum Power Handling: 150W


• Nominal Impedance: 4 Ohm


• Voice Coil Diameter: 1.2"


• Frequency Response: 60 Hz ~ 23 KHz


• Sensitivity: 90.2 dB

Tweeter Specs:

• RMS Power Handling: 10W


• Max Power Handling: 25W


• Nominal Impedance: 4 Ohm


• Voice Coil Diameter: 1"


• Sensitivity: 94 dB


• Free Air Resonance (Fs): 1.8 KHz

Thiele & Small Parameters:

Midrange:

• Free Air Resonance (Fs): 62 Hz


• Resistance (Re): 3.4 ohm


• Mechanical Factor (Qms): 3.55


• Electrical Factor (Qes): 0.55


• Total Factor (Qts): 0.476


• Equivalent Volume (Vas): 14.03 L


• Compliance (Cms): 560 um/N


• BL Factor (BL): 5.32 TM


• Moving Mass (Mms): 11.73 g

Measurements

Midrange:

• Overall Diameter: 6.53" / 166mm


• Mounting Diameter: 5.66" / 144mm


• Front Mount Baffle Cutout: 5.55 / 141mm


• Overall Depth: 2.59 / 65.9mm


• Mounting Depth: 2.40" / 61mm


• Sold as: (Pair)

Tweeter:

• Overall Diameter: 1.96" / 50mm


• Overall Depth: 1.00" / 25.6mm


• Mounting Depth: 0.63" / 16mm
